Lecture 5 Smaller Network: CNN l We know it is good to learn a

Lecture 5 Smaller Network: CNN l We know it is good to learn a small model. l From this fully connected model, do we really need all the edges? l Can some of these be shared?

Consider learning an image: l Some patterns are much smaller than the whole image

Consider learning an image: l Some patterns are much smaller than the whole image Can represent a small region with fewer parameters “beak” detector

Same pattern appears in different places: They can be compressed! What about training a

Same pattern appears in different places: They can be compressed! What about training a lot of such “small” detectors and each detector must “move around”. “upper-left beak” detector They can be compressed to the same parameters. “middle beak” detector

A convolutional layer A CNN is a neural network with some convolutional layers (and

A convolutional layer A CNN is a neural network with some convolutional layers (and some other layers). A convolutional layer has a number of filters that does convolutional operation. Beak detector A filter

Convolution These are the network parameters to be learned. 1 0 0 1 0

Convolution These are the network parameters to be learned. 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 -1 -1 -1 Filter 2 -1 … … 6 x 6 image 1 -1 -1 -1 Filter 1 -1 -1 1 Each filter detects a small pattern (3 x 3).

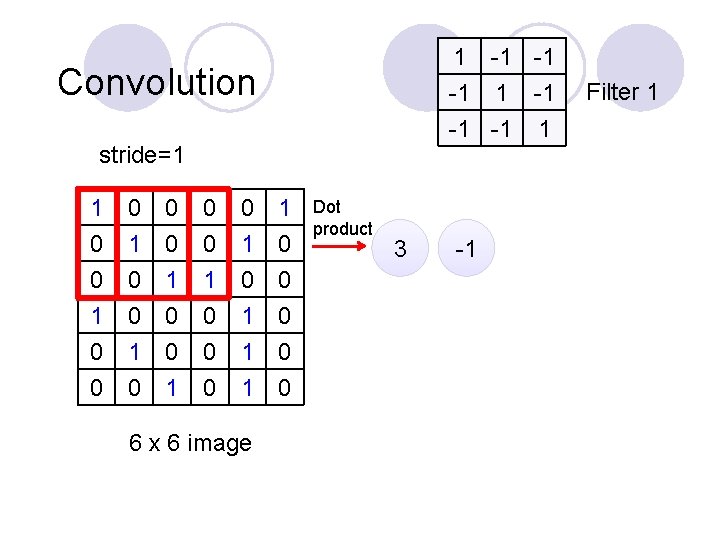

1 -1 -1 -1 1 Convolution stride=1 1 0 0 1 0 0 0

1 -1 -1 -1 1 Convolution stride=1 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 6 x 6 image Dot product 3 -1 Filter 1

1 -1 -1 -1 1 Convolution If stride=2 1 0 0 1 0 0

1 -1 -1 -1 1 Convolution If stride=2 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 6 x 6 image 3 -3 Filter 1

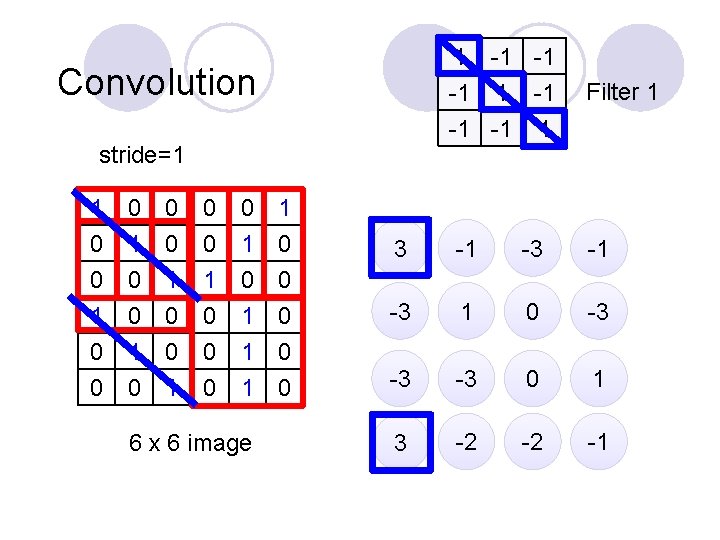

Convolution stride=1 1 -1 -1 -1 1 Filter 1 1 0 0 1 0

Convolution stride=1 1 -1 -1 -1 1 Filter 1 1 0 0 1 0 0 0 1 0 1 1 0 0 0 3 -1 -3 1 0 -3 0 0 1 1 0 0 -3 -3 0 1 3 -2 -2 -1 6 x 6 image

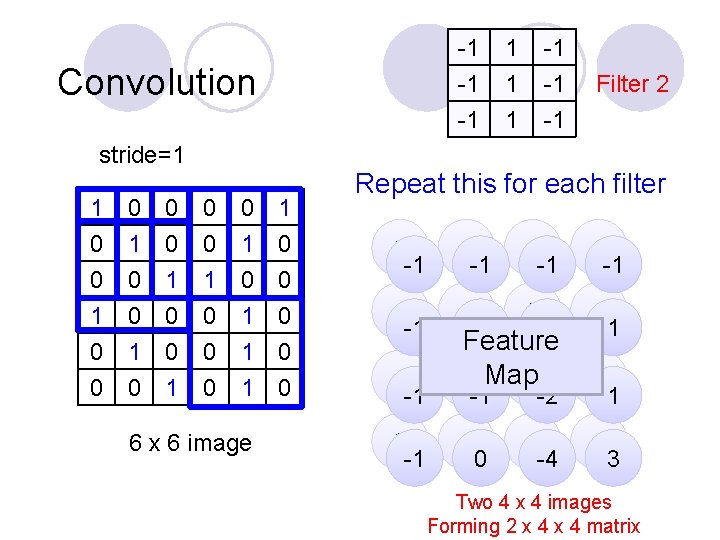

Convolution stride=1 1 0 0 1 0 0 0 1 0 1 1 0

Convolution stride=1 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 6 x 6 image -1 1 -1 -1 -1 1 1 -1 -1 Filter 2 Repeat this for each filter 3 -1 -1 -1 -3 -1 1 -1 0 -2 -3 1 -3 -1 Feature -3 Map 0 -1 -2 -2 0 -2 -4 1 1 -1 3 Two 4 x 4 images Forming 2 x 4 matrix

Color image: RGB 3 channels Color image -1 -1 11 -1 -1 -1 -1

Color image: RGB 3 channels Color image -1 -1 11 -1 -1 -1 -1 -1 111 -1 -1 -1 Filter 2 -1 1 -1 Filter 1 -1 -1 -1 11 -1 -1 -1 -1 1 1 0 0 0 0 1 0 11 00 00 01 00 1 0 0 00 11 01 00 10 0 1 1 0 0 1 00 00 10 11 00 0 11 00 00 01 10 0 0 1 0 0 00 11 00 01 10 0 1 0

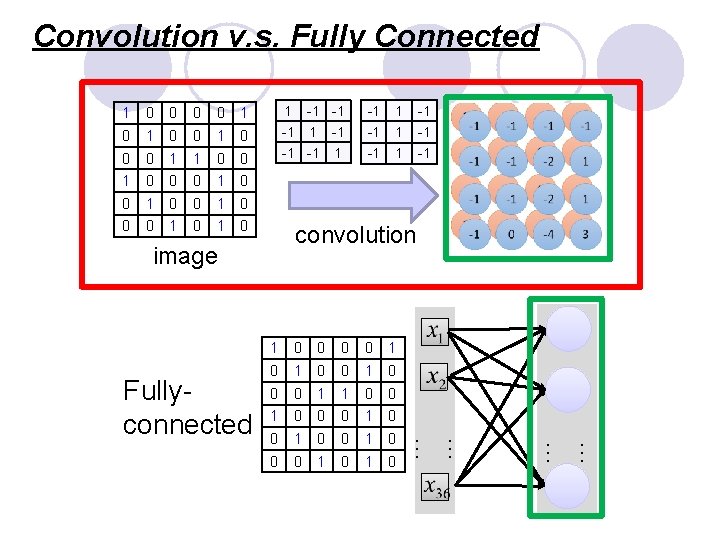

Convolution v. s. Fully Connected 1 0 0 1 1 -1 -1 -1 0

Convolution v. s. Fully Connected 1 0 0 1 1 -1 -1 -1 0 1 0 -1 1 -1 0 0 1 1 0 0 -1 -1 1 0 0 0 1 0 1 0 convolution image 0 0 0 1 0 0 0 1 1 0 0 0 1 0 0 0 1 0 … … Fullyconnected 1

1 -1 -1 Filter 1 -1 -1 -1 1 1 0 0 1 0

1 -1 -1 Filter 1 -1 -1 -1 1 1 0 0 1 0 0 0 1 0 1 1 0 0 0 … 0 0 1 1 0 0 fewer parameters! 3 0 8 1 9 0 10: 0 … 6 x 6 image 2 0 3 0 4 0 : 13 0 14 0 15 1 16 1 … Only connect to 9 inputs, not fully connected

1 -1 -1 -1 1 Filter 1 0 0 0 1 0 1 1

1 -1 -1 -1 1 Filter 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 6 x 6 image Fewer parameters 13 0 : 0 14 : 15: 1 16: 1 … Even fewer parameters 7 0 : 8 1 : 9 0 : 0 10: -1 … 0 1 0 0 3 … 1 0 0 1 1 1 : 2 0 : 3 0 : 4 0 : Shared weights

The whole CNN cat dog …… Convolution Max Pooling Fully Connected Feedforward network Convolution

The whole CNN cat dog …… Convolution Max Pooling Fully Connected Feedforward network Convolution Max Pooling Flattened Can repeat many times

Max Pooling 1 -1 -1 -1 Filter 1 1 -1 -1 Filter 2 -1

Max Pooling 1 -1 -1 -1 Filter 1 1 -1 -1 Filter 2 -1 3 -1 -1 -1 -3 1 0 -3 -1 -1 -2 1 -3 -3 0 1 -1 -1 -2 1 3 -2 -2 -1 -1 0 -4 3

Why Pooling l Subsampling pixels will not change the object bird Subsampling We can

Why Pooling l Subsampling pixels will not change the object bird Subsampling We can subsample the pixels to make image smaller fewer parameters to characterize the image

A CNN compresses a fully connected network in two ways: l Reducing number of

A CNN compresses a fully connected network in two ways: l Reducing number of connections l Shared weights on the edges l Max pooling further reduces the complexity

Max Pooling 1 0 0 1 0 0 0 1 0 1 1 0

Max Pooling 1 0 0 1 0 0 0 1 0 1 1 0 0 0 1 1 0 0 6 x 6 image New image but smaller Conv Max Pooling 3 -1 0 3 1 0 1 3 2 x 2 image Each filter is a channel

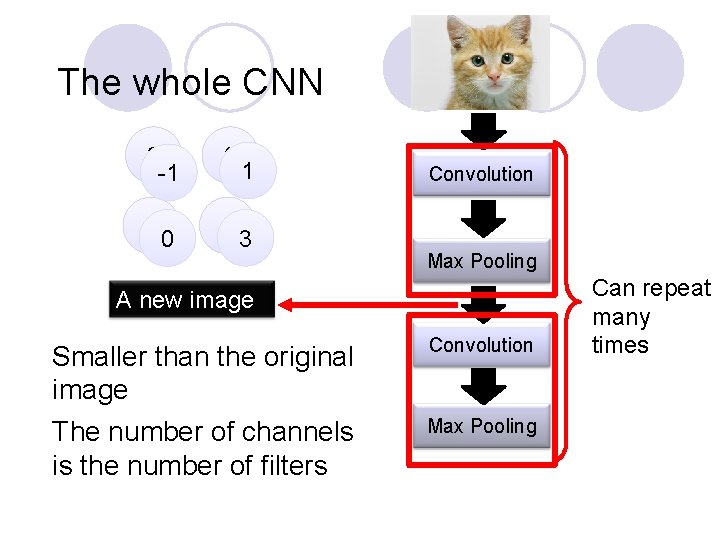

The whole CNN 3 -1 0 3 1 0 1 3 Convolution Max Pooling

The whole CNN 3 -1 0 3 1 0 1 3 Convolution Max Pooling A new image Smaller than the original image The number of channels is the number of filters Convolution Max Pooling Can repeat many times

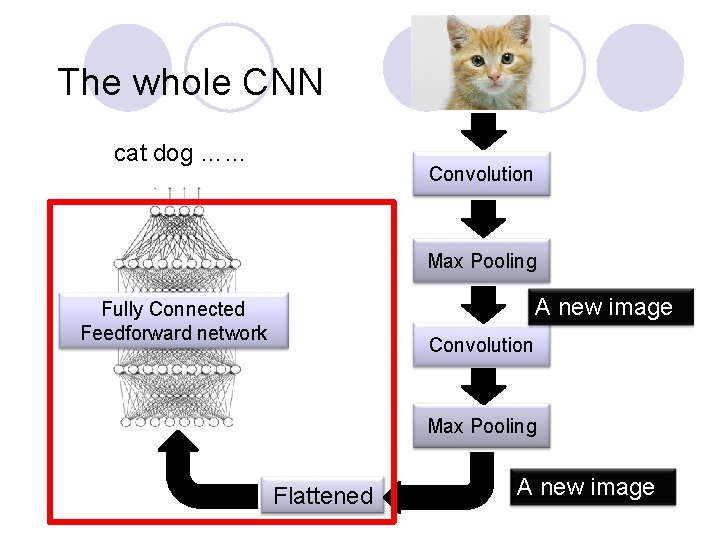

The whole CNN cat dog …… Convolution Max Pooling A new image Fully Connected

The whole CNN cat dog …… Convolution Max Pooling A new image Fully Connected Feedforward network Convolution Max Pooling Flattened A new image

3 Flattening 0 1 3 -1 0 3 1 0 1 3 3 Flattened

3 Flattening 0 1 3 -1 0 3 1 0 1 3 3 Flattened -1 1 0 3 Fully Connected Feedforward network

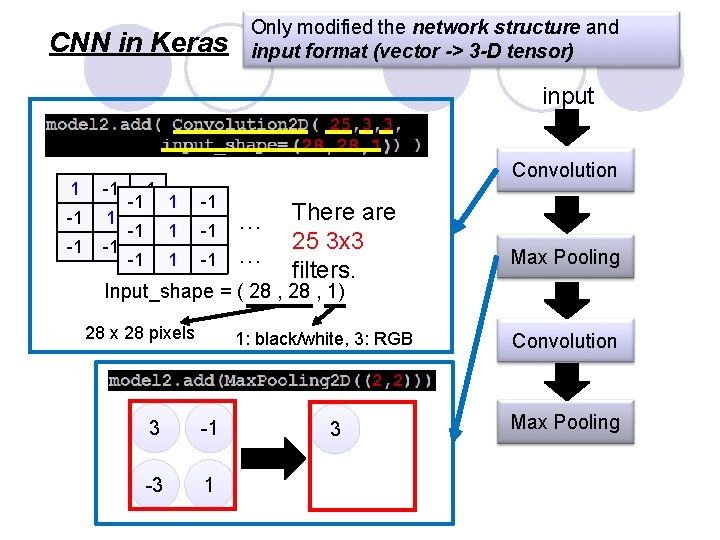

CNN in Keras Only modified the network structure and input format (vector -> 3

CNN in Keras Only modified the network structure and input format (vector -> 3 -D tensor) input 1 -1 -1 -1 1 -1 1 Convolution -1 -1 -1 … There are 25 3 x 3 … filters. Max Pooling Input_shape = ( 28 , 1) 28 x 28 pixels 1: black/white, 3: RGB 3 -1 -3 1 3 Convolution Max Pooling

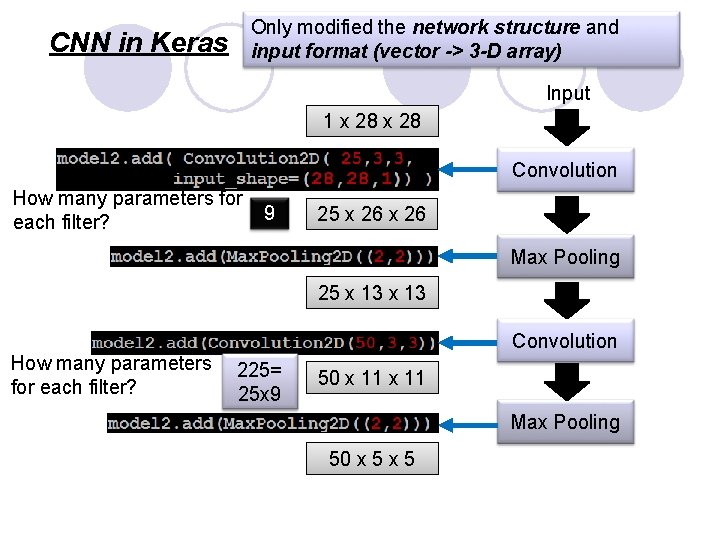

Only modified the network structure and input format (vector -> 3 -D array) CNN

Only modified the network structure and input format (vector -> 3 -D array) CNN in Keras Input 1 x 28 Convolution How many parameters for each filter? 9 25 x 26 Max Pooling 25 x 13 Convolution How many parameters for each filter? 225= 25 x 9 50 x 11 Max Pooling 50 x 5

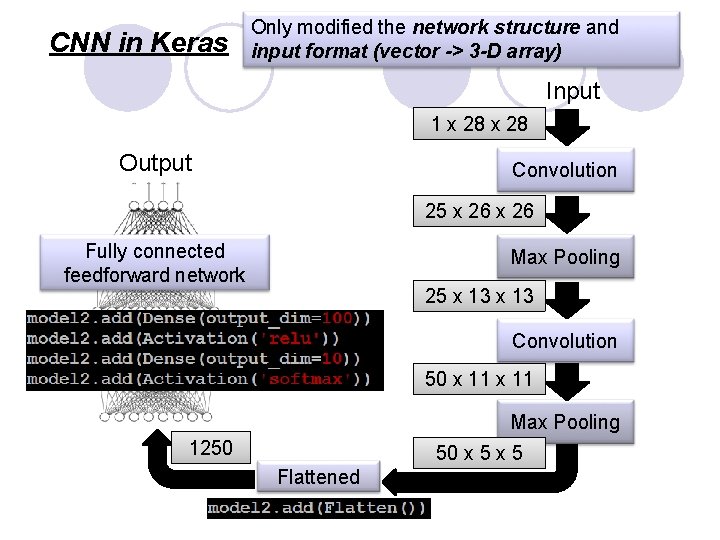

CNN in Keras Only modified the network structure and input format (vector -> 3

CNN in Keras Only modified the network structure and input format (vector -> 3 -D array) Input 1 x 28 Output Convolution 25 x 26 Fully connected feedforward network Max Pooling 25 x 13 Convolution 50 x 11 Max Pooling 1250 50 x 5 Flattened

Alpha. Go Neural Network Next move (19 x 19 positions) 19 x 19 matrix

Alpha. Go Neural Network Next move (19 x 19 positions) 19 x 19 matrix Black: 1 white: -1 none: 0 Fully-connected feedforward network can be used But CNN performs much better

Alpha. Go’s policy network The following is quotation from their Nature article: Note: Alpha.

Alpha. Go’s policy network The following is quotation from their Nature article: Note: Alpha. Go does not use Max Pooling.

CNN in speech recognition Frequency CNN The filters move in the frequency direction. Image

CNN in speech recognition Frequency CNN The filters move in the frequency direction. Image Time Spectrogram

CNN in text classification ? Source of image: http: //citeseerx. ist. psu. edu/viewdoc/downlo ad?

CNN in text classification ? Source of image: http: //citeseerx. ist. psu. edu/viewdoc/downlo ad? doi=10. 1. 1. 703. 6858&rep=rep 1&type=p df
