Misleading Graphs and Statistics Arizona State Standard Objective
Misleading Graphs and Statistics Arizona State Standard:
Objective I will recognize misleading pictographs and bar graphs. I will recognize and correct misleading line graphs.
Questions to Ask When Looking at Data and/or Graphs n Is the information presented correctly? n Is the graph trying to influence you? n Does the scale use a regular interval? n What impression is the graph giving you?
What makes a graph misleading? n Irregular Intervals n Break in the scale (horizontal/vertical) n Distorted data *Over/Under-sized bars/pictures n Biased Title n Vertical Axis starting @ something other than zero

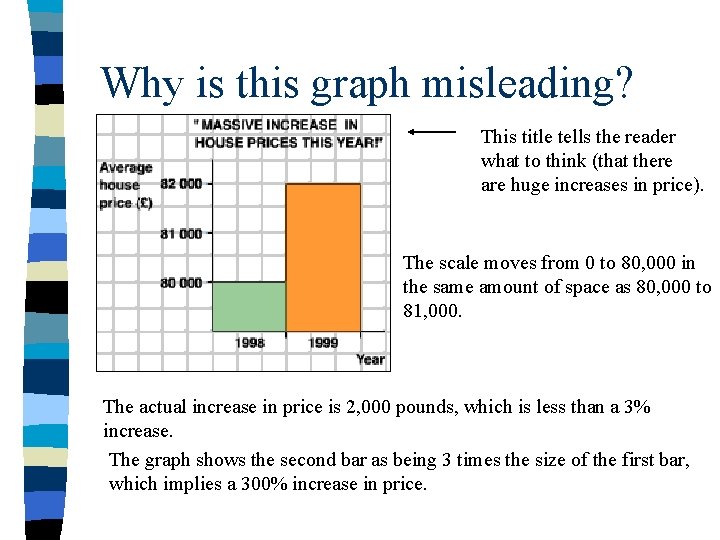

Why is this graph misleading? This title tells the reader what to think (that there are huge increases in price). The scale moves from 0 to 80, 000 in the same amount of space as 80, 000 to 81, 000. The actual increase in price is 2, 000 pounds, which is less than a 3% increase. The graph shows the second bar as being 3 times the size of the first bar, which implies a 300% increase in price.

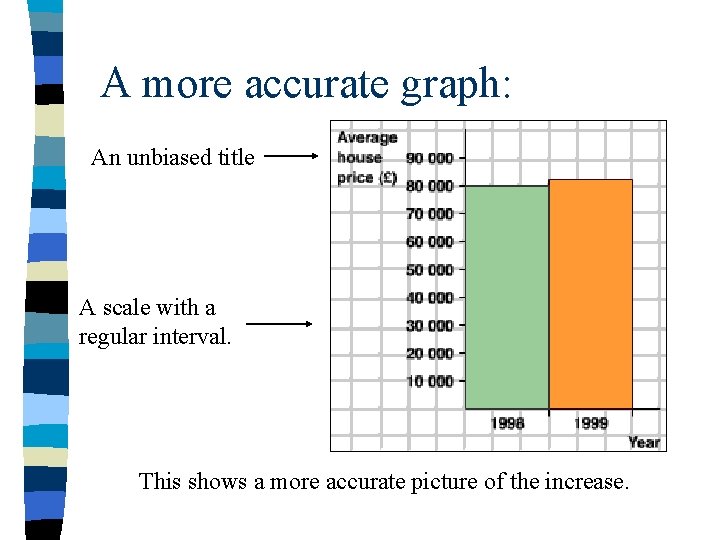

A more accurate graph: An unbiased title A scale with a regular interval. This shows a more accurate picture of the increase.
Why is this graph misleading? The scale does not have a regular interval.

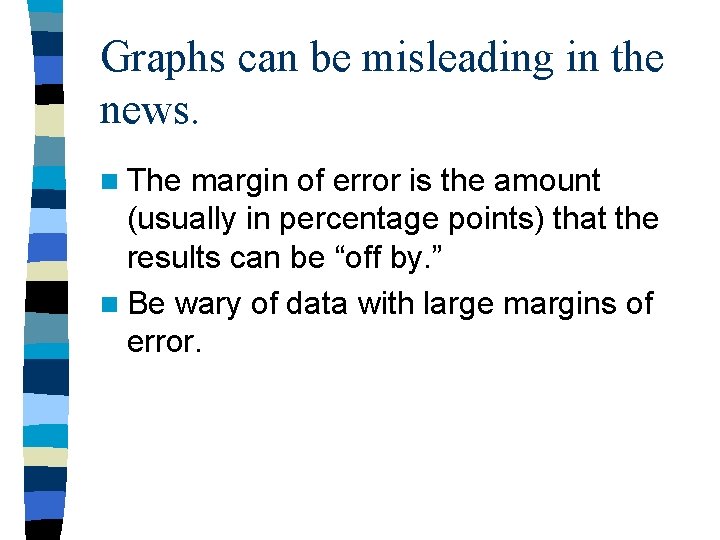

Graphs can be misleading in the news. n The margin of error is the amount (usually in percentage points) that the results can be “off by. ” n Be wary of data with large margins of error.

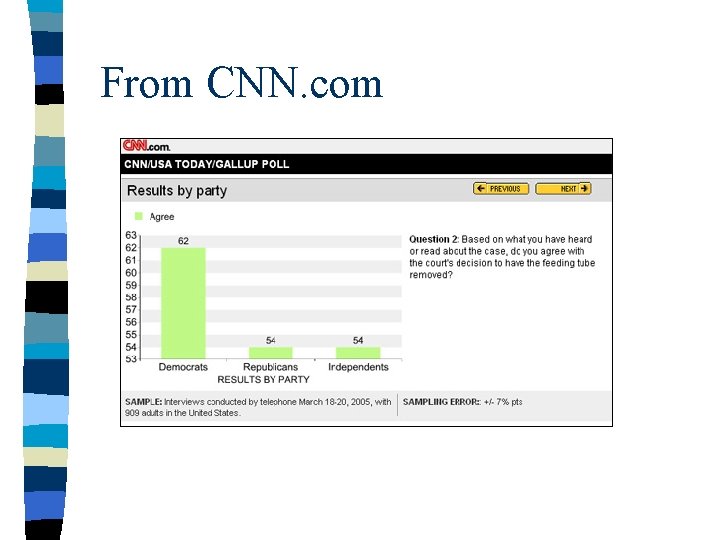

From CNN. com
Problems: The difference in percentage points between Democrats and Republicans (and between Democrats and Independents) is 8% (62 – 54). Since the margin of error is 7%, it is likely that there is even less of a difference. n The graph implies that the Democrats were 8 times more likely to agree with the decision. In truth, they were only slightly more likely to agree with the decision. n The graph does not accurately demonstrate that a majority of all groups interviewed agreed with the decision. n
CNN. com updates the graph:
Let’s Practice! n Review what can cause a graph to be misleading … n Are you ready? ? ?

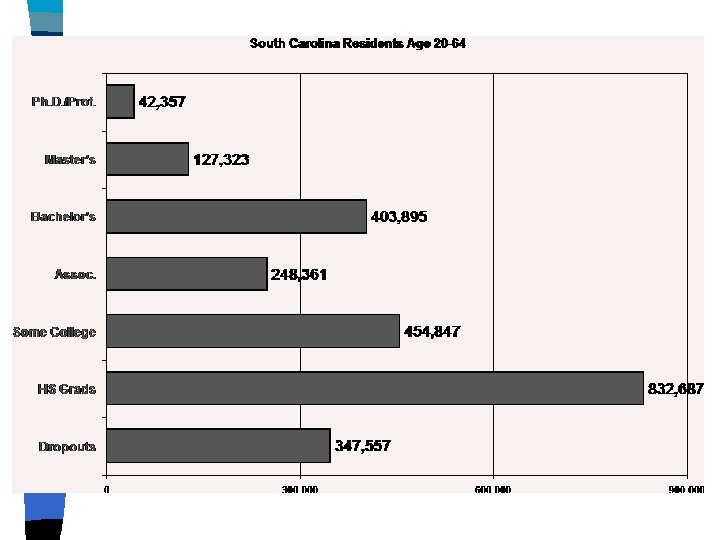

Which one is misleading?

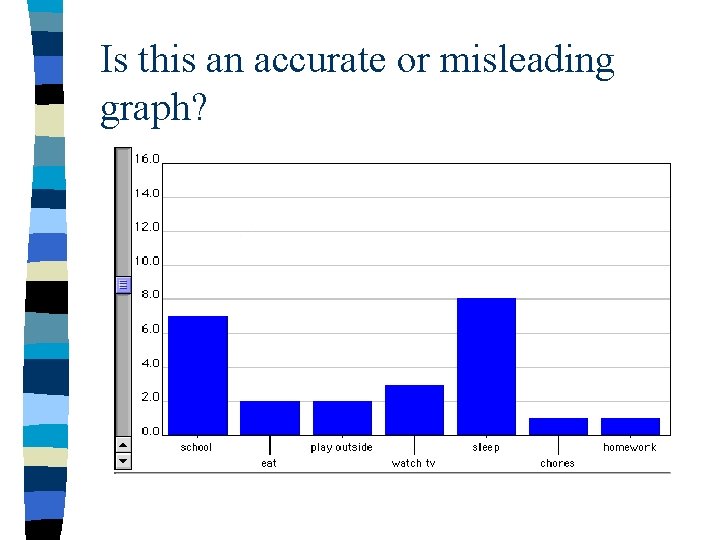

Is this an accurate or misleading graph?

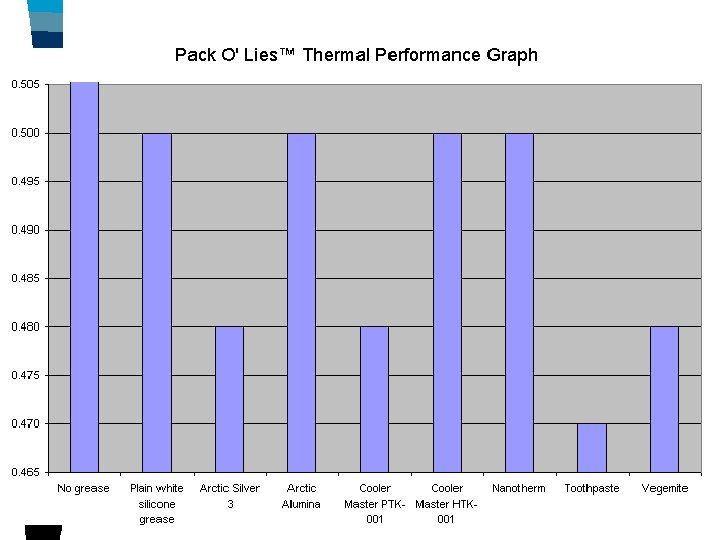

Misleading or Accurate?

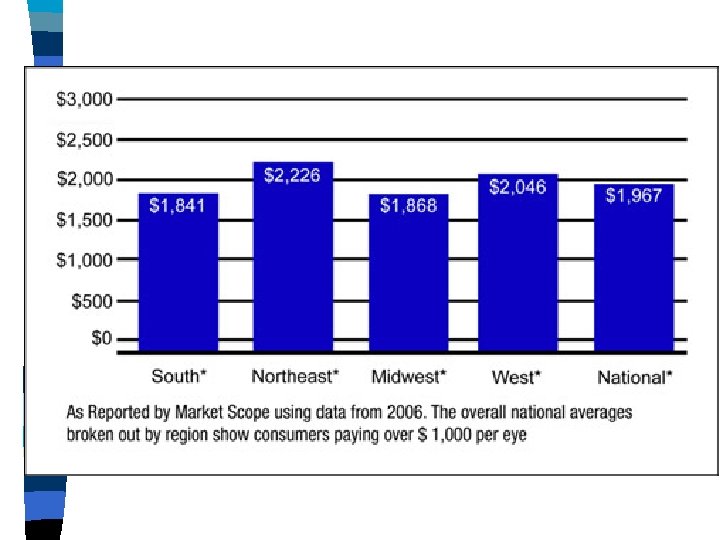

Misleading or Accurate?
Let’s Practice n Page 228 – #1 - 14
