LDAP Directory Services Security Directory Security Overview Brief

LDAP Directory Services: Security

Directory Security Overview · · Brief Review of Directories and LDAP Brief Review of Security Basic Security Concepts Security as Applied to Directories · Threats · · LDAP Protocol Security Features Typically Implemented Security Features Futures References

Brief Review of Directories & LDAP Directory Information Tree (DIT) Network LDAP A B C D Directory Database search “G, C, A” E F Directory Service H Client G I

Brief Review of Directories & LDAP • What directories are… – – Object repositories Typically read more than written Have explicit access protocols Support relatively complex queries • What directories are not… – RDBMSs – Lack notions of. . • Tabular views • JOIN operations • Stored Procedures

Brief Review of Directories & LDAP Directory-based Application LDAP TCP IP Ethernet, Cable, Wireless, whatever. • Obligatory, overly-simplified, Protocol Stack Diagram

Brief Review of Security • Notion of Security for a network protocol is comprised of (at least) these axes. . – Identity & Authentication • “Who are you and who says so? ” – Confidentiality • “Tough petunias to eavesdroppers. ” – Integrity • “Did anyone muck with this data? ” – Authorization • “Yes, you can do that, but no, you can’t do that other thing. ”

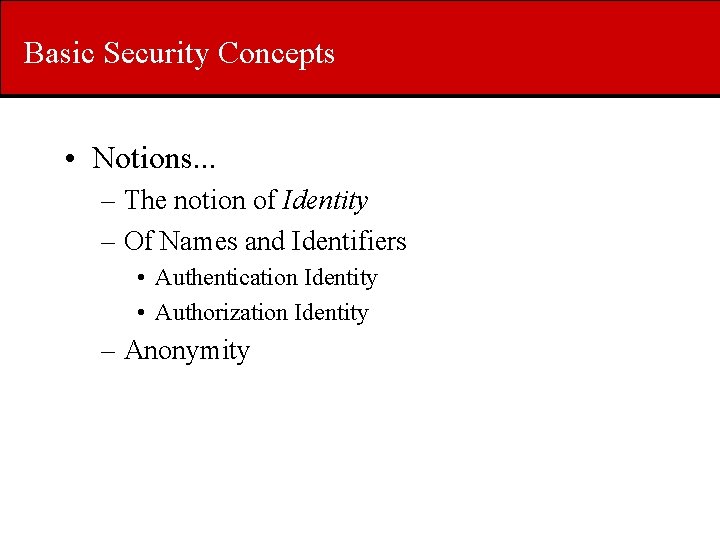

Basic Security Concepts • Notions. . . – The notion of Identity – Of Names and Identifiers • Authentication Identity • Authorization Identity – Anonymity

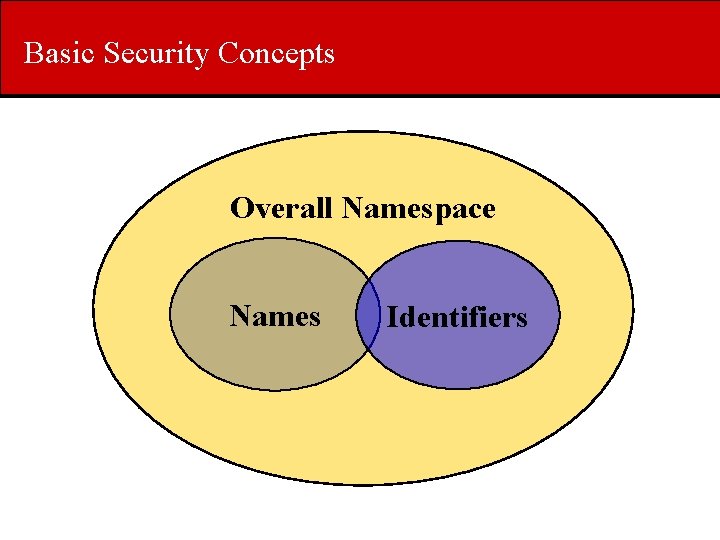

Basic Security Concepts Overall Namespace Names Identifiers

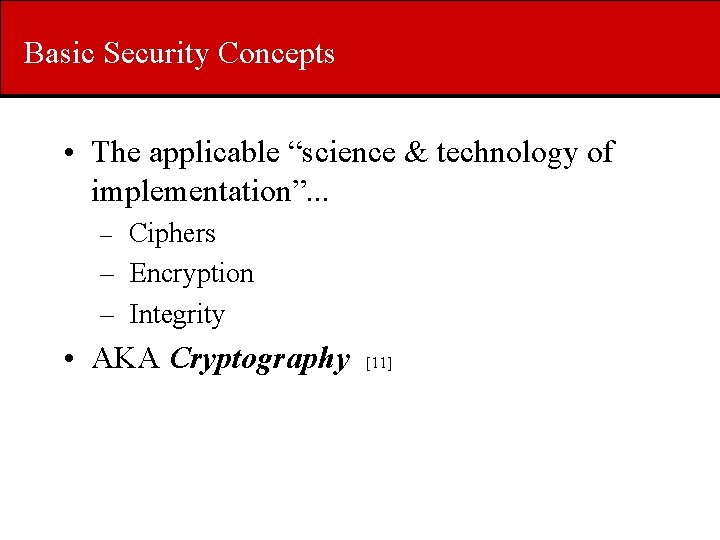

Basic Security Concepts • The applicable “science & technology of implementation”. . . – Ciphers – Encryption – Integrity • AKA Cryptography [11]

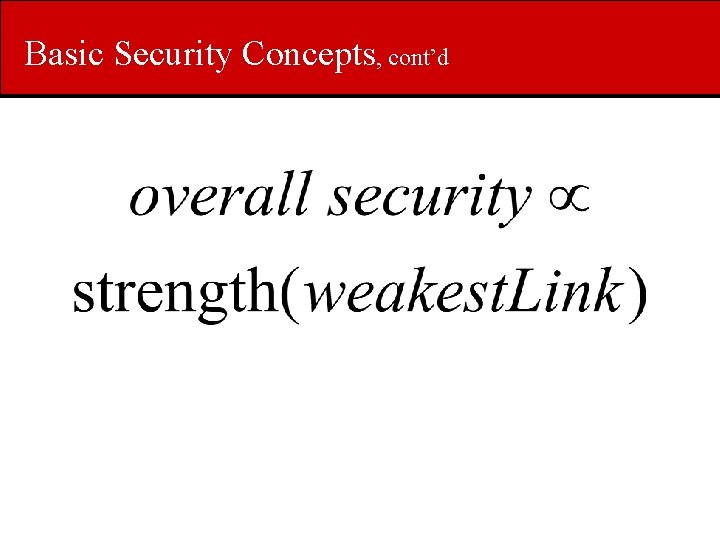

Basic Security Concepts, cont’d

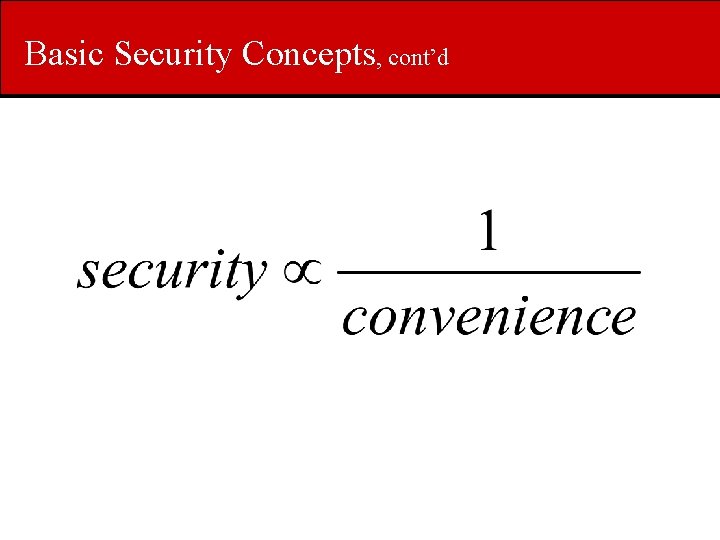

Basic Security Concepts, cont’d

Basic Security Concepts, cont’d

Security as Applied to Directories • One needs to separately consider each of the four security axes in the context of anticipated threats. • Also need to consider security from the perspectives of. . – the info stored in the directory, and. . – attributes of the requesters. • E. g. how much you trust them. • Note that. . – data security != access security

Example Deployment Scenarios

Directory Security Threats Legitimate Directory Service 2, 3 , 7. LDAP Network 4 , 5, 6. Directory Database 1. search “G, C, A” Client A 7. Imposter Directory Service Directory Database B E C D F G H I

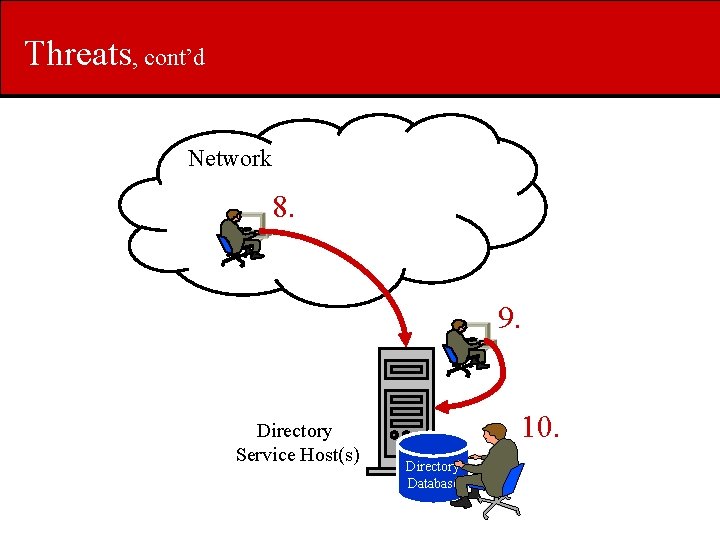

Threats, cont’d Network 8. 9. Directory Service Host(s) 10. Directory Database

LDAP Protocol Security Features • Formal notions of. . – Authentication Identifiers [7], and. . – Authorization Identifiers [7] • Leverages several security mechanisms. . – Simple passwords [2, 8] – SASL [6] • Kerberos [2] • Digest [4] – SSL/TLS [7] • effectively is a session layer • The above may be used in various combinations together.

LDAP Protocol Security Features • Integral-to-the-protocol data integrity and attribution are works-in-progress.

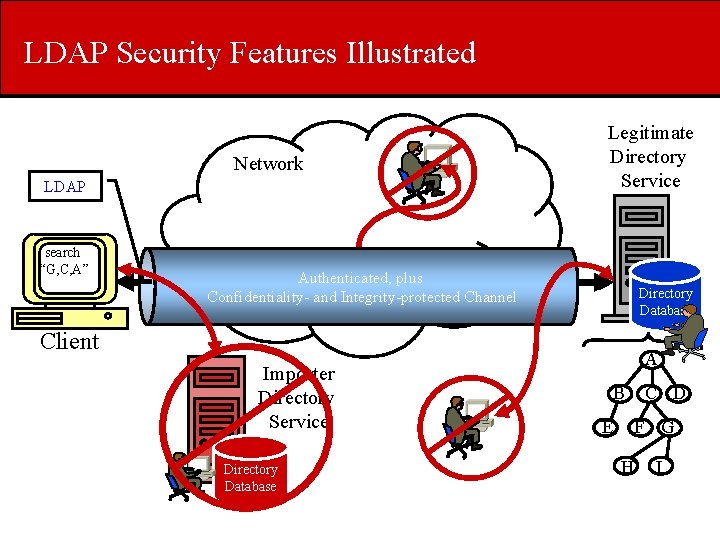

LDAP Security Features Illustrated Network LDAP search “G, C, A” Legitimate Directory Service Authenticated, plus Confidentiality- and. LDAP Integrity-protected Channel Directory Database Client Imposter Directory Service Directory Database A B E C D F G H I

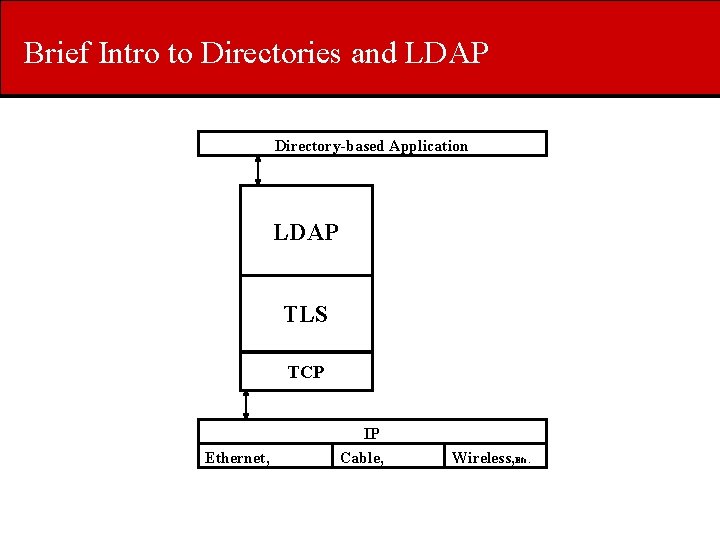

Brief Intro to Directories and LDAP Directory-based Application LDAP TLS TCP IP Ethernet, Cable, Wireless, Etc.

Brief Intro to Directories and LDAP Directory-based Application TLS LDAP SASL TCP IP Ethernet, Cable, Wireless, Etc.

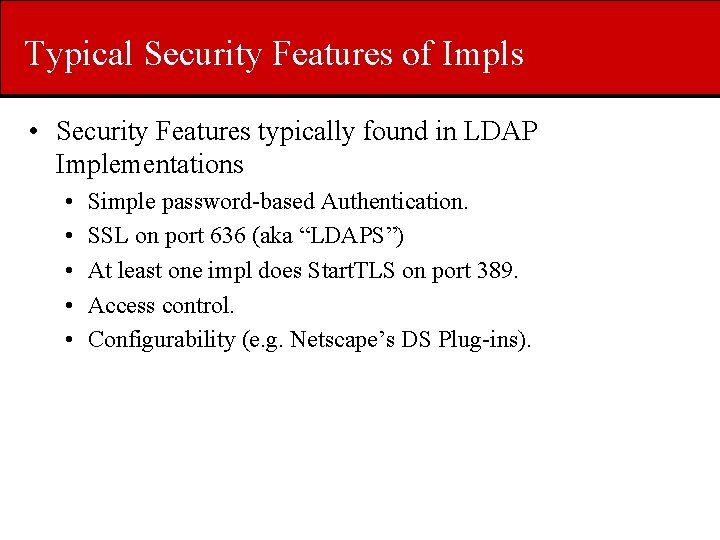

Typical Security Features of Impls • Security Features typically found in LDAP Implementations • • • Simple password-based Authentication. SSL on port 636 (aka “LDAPS”) At least one impl does Start. TLS on port 389. Access control. Configurability (e. g. Netscape’s DS Plug-ins).

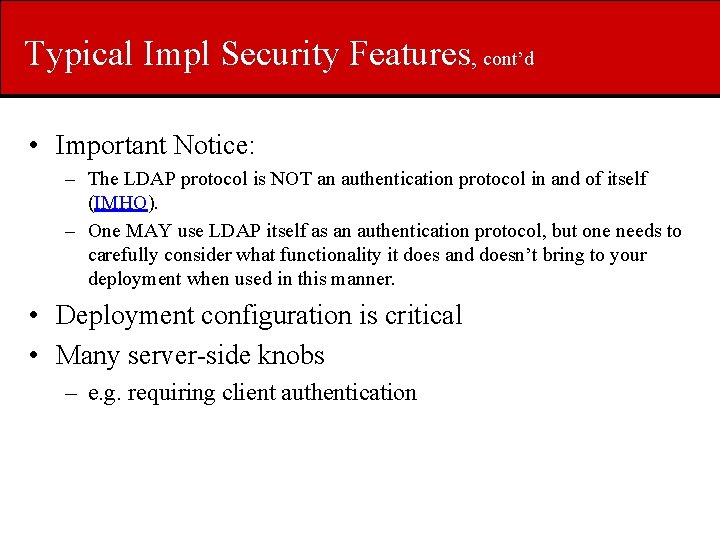

Typical Impl Security Features, cont’d • Important Notice: – The LDAP protocol is NOT an authentication protocol in and of itself (IMHO). – One MAY use LDAP itself as an authentication protocol, but one needs to carefully consider what functionality it does and doesn’t bring to your deployment when used in this manner. • Deployment configuration is critical • Many server-side knobs – e. g. requiring client authentication

Example Directory Service Deployment(s) Authentication Service Desktop Clients Auth DB LDAP-based Directory DB Directory Service LDAP

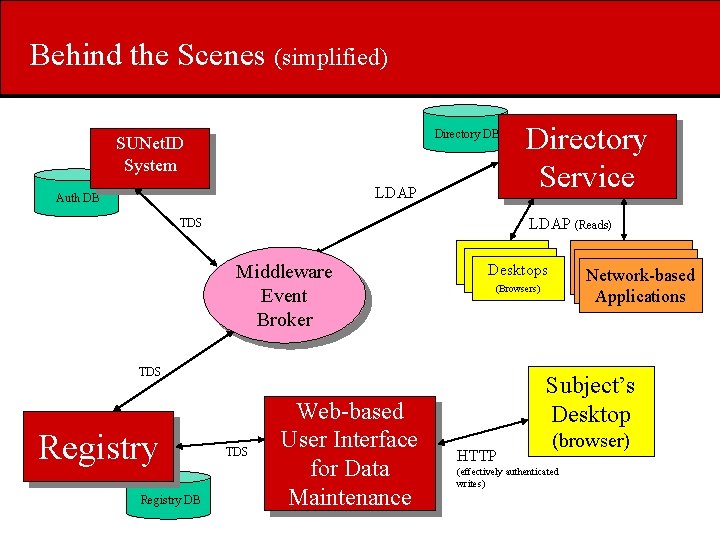

Behind the Scenes (simplified) Directory DB SUNet. ID System LDAP Auth DB LDAP (Reads) TDS Middleware Event Broker Registry DB TDS Web-based User Interface for Data Maintenance Network-based Applications Desktops (Browsers) TDS Registry Directory Service Subject’s Desktop HTTP (browser) (effectively authenticated writes)

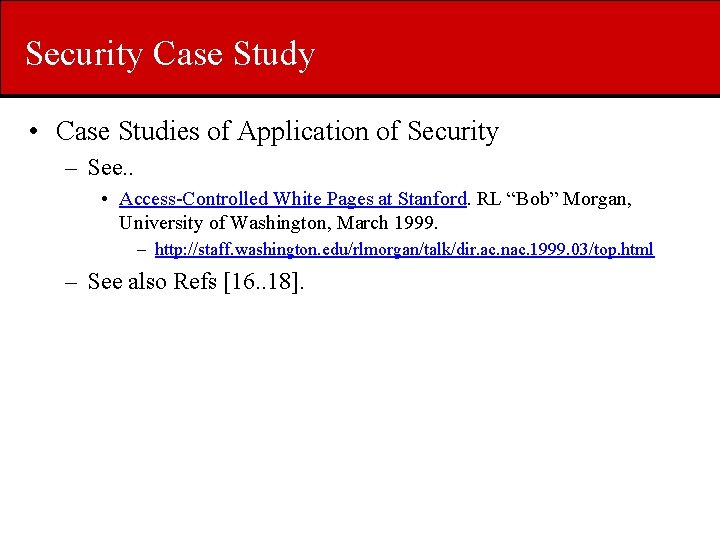

Security Case Study • Case Studies of Application of Security – See. . • Access-Controlled White Pages at Stanford. RL “Bob” Morgan, University of Washington, March 1999. – http: //staff. washington. edu/rlmorgan/talk/dir. ac. nac. 1999. 03/top. html – See also Refs [16. . 18].

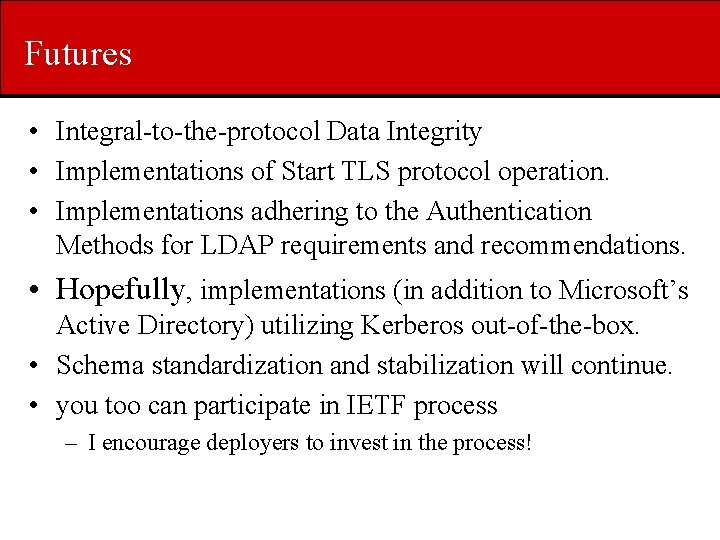

Futures • Integral-to-the-protocol Data Integrity • Implementations of Start TLS protocol operation. • Implementations adhering to the Authentication Methods for LDAP requirements and recommendations. • Hopefully, implementations (in addition to Microsoft’s Active Directory) utilizing Kerberos out-of-the-box. • Schema standardization and stabilization will continue. • you too can participate in IETF process – I encourage deployers to invest in the process!
