Intelligent Lectern Systems Its product portfolio ILS PRESENTING
- Slides: 23
Intelligent Lectern Systems It’s product portfolio ILS
PRESENTING THE CORE ILS LECTERN FAMILY 2010 Presenting (finger touch) - Teaching (pen interaction) 22” Pen Monitor 19” full rack space Control system Audio system 22” Touch Monitor Integral PC Extensive control system Microphone/audio control ILS 22 GL 20” Touch Monitor Integral PC Notebook switcher Microphone handling ILS 21 RL 17 -22” Touch Monitor Optional PC in foot ILS 12 CW Copyright ILS 17” Pen Monitor 19” half rack space Control system Audio system ILS 16 HF ILS 24 HF
Current ILS Presenter Lectern Line ILS 12 W ILS 21 RL Copyright ILS 22 GL

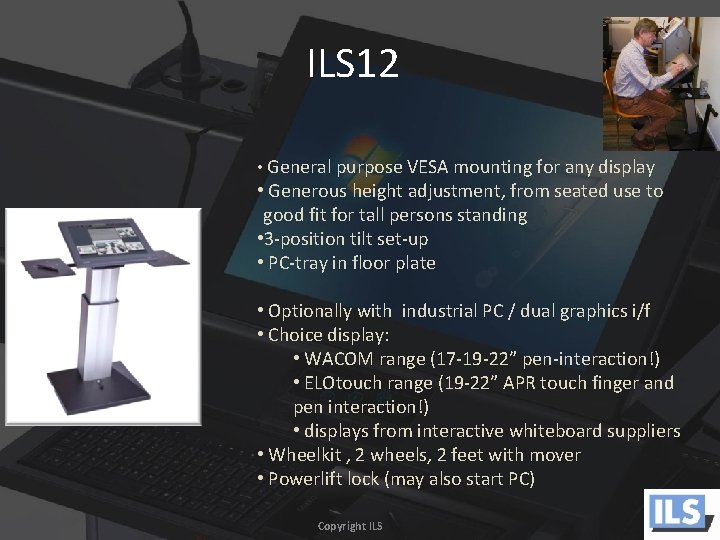

ILS 12 • General purpose VESA mounting for any display • Generous height adjustment, from seated use to good fit for tall persons standing • 3 -position tilt set-up • PC-tray in floor plate • Optionally with industrial PC / dual graphics i/f • Choice display: • WACOM range (17 -19 -22” pen-interaction!) • ELOtouch range (19 -22” APR touch finger and pen interaction!) • displays from interactive whiteboard suppliers • Wheelkit , 2 wheels, 2 feet with mover • Powerlift lock (may also start PC) Copyright ILS
New Generation ILS 21 • Latest display technology, use with pen or finger touch • Latest PC technology, front load DVD, SD card, 4 USB slots • Side tablets for mouse & notebook support • Generous height adjustment and tilt • Audio loop-through, notebook switch, reading light socket Copyright ILS
KEY PRESENTATION TECHNOLOGY: • Rim-less glass touch for flush ILS 22 G mounting (the only technology without some kind of a bezel!) present & control! • Single 31” Touch panel across 22” monitor, keyboard, virtual buttons, mouse pad etc • ILS 22 is 3” thick incl. Industrial PC • Selectively switch backlight groups • Address 11 relays over internal COM port and 3 extra COM ports for room control • ILStouch to command translator and remote control • Sho-Q Presenter system as shown on screen • Top bar includes microphone sockets or USB + mic socket.
Alternative lectern models available from ILS 17, with 17” touch panel Integrated PC and notebook Tray with switch for regular XGA projection ILS 20, with 21” touch panel Integrated PC and notebook Height adjustment behind fixed panel Copyright ILS
Current ILS Lecture Podium Line: ILS Speakers. Corner Aimed at [pen-]interactive teaching solutions Fits large lecture halls Fits any classroom Fits smallerclassroom ILS 16: PC & control space Height & tilt adjustment ILS 12 with sidekick: Full range height adjustment control & audio systems with control & audio systems in shallow 19”rack, 1 – 2 touch panels, remote in small 19”rack locking and control. ILS 24: multi PC & control systems spac Modest height & tilt adjustment with control & audio systems in spacious 19”rack, 2 – 3 touch panels, remote locking and control.
ILS 24 H (closed) Copyright ILS
ILS 24 H (open) • 22” pen display • 2 nd touch display • 3 rd wall panel holder • central control buttons • pull-out keyboard • multitouch & pen tablet • microphones, light • gooseneck camera option • 3 stage IC card access • large drawer for doccam • notebook connections • 12 U, 19” rack • latest room control • rack PC based programming • mixer/scaler 8 x 4 • perfect audio quality • room-Q remote assistance • sho-Q presenter suite Copyright ILS
ILS 24 H has ADA – DDA compliant side table for seated use Drawer folds out, control display & microphone pulled towards user
ILS 16 H More compact lectern solution for classrooms Features mostly as ILS 24 Main footprint 39 cm x 60 cm Copyright ILS
Alternative teaching lecterns available from ILS 18 Tall shape Integrated Doc cam ILS 20/25 Budget solutions Copyright ILS 14 Larger shape Modest price
ILS Software Presentation Delivery: sho-Q Presentation Delivery with Annotation: sho-Q 7 Remote lecterns management for Speakers. Corners: room-Q Remote management ILS 22 G: remote-Q Presenting on monitors around a table from any seat: sho-Q Lightning Copyright ILS
Why use Sho-Q? Seamless flow of multiple presentations Intuitive user interface requires no training Minimal organizational time needed
Presentations Planning and delivery system
ILS room-Q Control all multimedia equipment centrally, intelligently over the school network, manage teaching activities and share resources among classes. 1 equipment management sub system Webbased central control system 2 web monitor sub system 3 alarm sub system 4 PC management sub system 5 teacher assistance sub system
It’s everything you want to do centrally! That’s productivity! Equipment remote control IC/ID card certification equipment management system Video talkback Assets management web monitoring sub system Timing management alarming sub system PC remote switch room-Q PC management sub system PC screen takeover Text message broadcast PC hardware management teaching assistance sub system Lecture evaluation Live broadcast lecture Simple record Specialized recorded broadcast
HJ/ILS room-Q remote assistance Surveillance and remote control Remote assistance Take over remote PC LAN Asset management Remote Messaging E-Learning Record a lecture Stream a lecture to multiple rooms
Boardroom collaboration • Sho-Q Lightning presents around the table rather than on the wall, no longer forcing all participants to face one direction • Sho-Q Lightning creates a collaborative place for interactive presentations • Instant seamless role change by moderator or direct • Pointing and interacting with data presented Copyright ILS
Present from any place to all other places around the board room table! All displays are mounted flush in the table surface with tilt-ability and pen pointing and writing Moderator Sho-Q Lightning Camera option For live streaming Current presenter Secretary Boardroom table Seats N (8 – 24) Green screen in back walls Allows video capture for Streaming inside data presentations
ILS & DARIM Partnership data + video capture, mixing & streaming • Streaming live from a virtual studio Presenter system from an ILS lectern (using sho-Q & DARIM and/or Ubicast partner technology) • Well integrated into the ILS Speaker. Corner lectern • Total output on a single display • Separate PC for capture of video and data • Separate streaming server • Allow telepresence • Allow teleprompting
Who bought our products? Universität Karlsruhe
