GCSE Right-Angled Triangles Dr J Frost (jfrost@tiffin. kingston. sch. uk) Learning Objectives: To be able to find missing sides and missing angles in right-angled triangles and 3 D shapes. Last modified: 2 nd March 2014

RECAP: Pythagoras’ Theorem ! Hypotenuse (the longest side) c a b For any right-angled triangle with longest side c. a 2 + b 2 = c 2

Example Step 1: Determine the hypotenuse. x 2 Step 2: Form an equation 22 4 + 42 = x 2 The hypotenuse appears on its own. Step 3: Solve the equation to find the unknown side. x 2 = 4 + 16 = 20 x = √ 20 = 4. 47 to 2 dp

Pythagoras Mental Arithmetic If you’re looking for the hypotenuse Square root the sum of the squares If you’re looking for another side Square root the difference of the squares h 7 3 5 x 4 ? ?

Pythagoras Mental Arithmetic h 12 10 5 4 y ? 9 ? x q 1 2 2 ? ?

The Wall of Triangle Destiny 2 ? ? 3 42 1 1 1 5 6 x x x 6 4 x 55 x 12 8 ? 4 10 ? “To learn secret way of ninja, find x you must. ” ?

Exercise 1 Give your answers in both surd form and to 3 significant figures. 4 1 x 7 6 y 8 ? ? 5 2 x 13 10 x = 6 5 = 13. 4 x = 10 Find the height of this triangle. ? 6 12 10 y 4 7 ? ? 2 5 ? x = 29 = 5. 39 x N 9 7 1 6 x 3 x = 43 = 6. 56 x = 51 = 7. 14 3 13 18 12 x 1 x x 2 + 49 = 81 – x 2 x=4 ? 1 ? x = 3 = 1. 73

Areas of isosceles triangles To find the area of an isosceles triangle, simplify split it into two right-angled triangles. 13 13 12 ? 1 1 3 ? 2 10 1 Area = 60 ? Area = 3 ? 4

Exercise 2 Determine the area of the following triangles. 1 5 5 3 17 17 5 12 7 12 6 Area = 12 ? 2 16 Area = 120 ? 4 4 4 1 1 4 1. 6 Area = 2 12 = 4 3? = 6. 93 Area = 0. 48 ? Area = 40. 2 ?

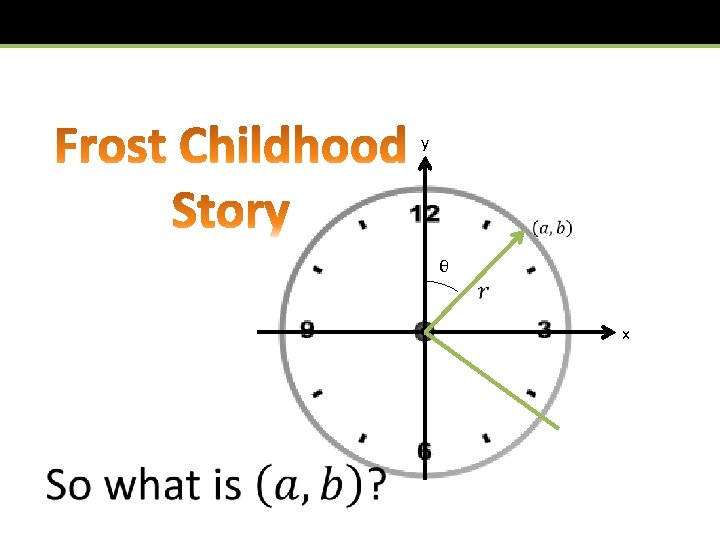

y (a, b) When I was in Year 9 I was trying to write a program that would draw an analogue clock. I needed to work out between what two points to draw the hour hand given the current hour, and the length of the hand. θ r x

Trigonometry Given a right-angled triangle, you know how to find a missing side if the two others are given. But what if only one side and an angle are given? x 4 30° y

Names of sides relative to an angle hypotenuse ? opposite ? 30° adjacent ?

Names of sides relative to an angle Hypotenuse x Opposite Adjacent 60° z y 1 √ 2 45° ? x ? y ? z ? √ 2 ? 1 ? c ? a ? b 1 c 20° a b

Sin/Cos/Tan sin, cos and tan give us the ratio between pairs of sides in a right angle triangle, given the angle. ? h o θ ? a ? “soh cah toa”

Example Looking at this triangle, how many times bigger is the ‘opposite’ than the ‘adjacent’ (i. e. the ratio) Ratio is 1 (they’re? the same length!) Therefore: opposite ? tan(45) =1 45 adjacent ?

More Examples Step 1: Determine which sides are hyp/adj/opp. Step 2: Work out which trigonometric function we need. 20 ° 7 4 40 ° x ?

More Examples 60 ° ? x 12 x 4 30° ?

Exercise 3 1 a b 15 ? 22 ? 20 e d ? ? c 10 f ? 4 ? 2 ? 3 4 ? ?

RECAP: Find x ? 4 30 ° x

But what if the angle is unknown? 5 3 ? ? We can do the ‘reverse’ of sin, cos or tan to find the missing angle.

What is the missing angle?

The Wall of Trig Destiny 2 1 1 1 θ 2 1 θ ? 4 3 6 θ ? 3 8 θ ? “To learn secret way of math ninja, find θ you must. ”

3. 19 m 40° x Find x 60° 3 m

Exercises GCSE questions on provided worksheet

3 D Pythagoras The strategy here is to use Pythagoras twice, and use some internal triangle in the 3 D shape. Determine the length of the internal diagonal of a unit cube. 1 ? √ 3 ? √ 2 1 1 Click to Bro. Sketch

Test Your Understanding The strategy here is to use Pythagoras twice, and use some internal triangle in the 3 D shape. Determine the length of the internal diagonal of a unit cube. 12 ? 13 4 3

Test Your Understanding Determine the height of this right* pyramid. 2 ? 2 2 2 * A ‘right pyramid’ is one where the top point is directly above the centre of the base, i. e. It’s not slanted.

Exercise 4 Determine the length x in each diagram. Give your answer in both surd for and as a decimal to 3 significant figures. 1 x 1 3 13 N 1 2 x 2 3 x = 14 =? 3. 74 2 6 8 4 x = 45 =? 6. 71 x 2 2 2 x = 28 =? 5. 29 N 2 x 8 5 2 2 2 x = 12? 4 x 2 4 x = 51 =? 7. 14 1 x 1 6 1 Hint: the centre of a triangle is 2/3 of the way along the diagonal connecting a corner to the opposite edge. x = (2/3) ? = 0. 816
