Conditions for unbundling the electricity sector and the
![Conditions for unbundling the electricity sector and the introduction of RES into the energy Conditions for unbundling the electricity sector and the introduction of RES into the energy](https://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-1.jpg)
Conditions for unbundling the electricity sector and the introduction of RES into the energy mix of Jamaica By Alberto Gonzalez June 21, 2012 www. jsea. org. jm
![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-2.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 4. Current proposals to isolated electric systems (islands) 5. Conclusions
![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-3.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 4. Current proposals to isolated electric systems (islands) 5. Conclusions
![Yesterday: How electricity flows to its users Yesterday: How electricity flows to its users](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-4.jpg)
Yesterday: How electricity flows to its users
![Yesterday: How electricity flows to its users 74% JPS JPS MONOPOLY JPS Yesterday: How electricity flows to its users 74% JPS JPS MONOPOLY JPS](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-5.jpg)
Yesterday: How electricity flows to its users 74% JPS JPS MONOPOLY JPS
![Tomorrow: How electricity flows to its users JPS Diversified and decentralized power generation Tomorrow: How electricity flows to its users JPS Diversified and decentralized power generation](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-6.jpg)
Tomorrow: How electricity flows to its users JPS Diversified and decentralized power generation

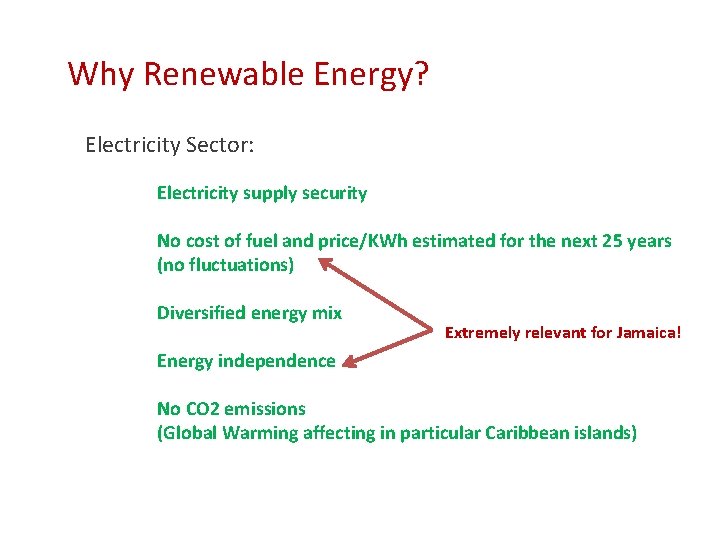

![Why Renewable Energy? Electricity Sector: Electricity supply security No cost of fuel and price/KWh Why Renewable Energy? Electricity Sector: Electricity supply security No cost of fuel and price/KWh](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-7.jpg)
Why Renewable Energy? Electricity Sector: Electricity supply security No cost of fuel and price/KWh estimated for the next 25 years (no fluctuations) Diversified energy mix Extremely relevant for Jamaica! Energy independence No CO 2 emissions (Global Warming affecting in particular Caribbean islands)
![Why Renewable Energy? Why Renewable Energy?](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-8.jpg)
Why Renewable Energy?
![Why Renewable Energy? Why Renewable Energy?](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-9.jpg)
Why Renewable Energy?
![Why Renewable Energy? Grid Parity for PV Why Renewable Energy? Grid Parity for PV](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-10.jpg)
Why Renewable Energy? Grid Parity for PV
![Why Renewable Energy? Grid Parity for PV Why Renewable Energy? Grid Parity for PV](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-11.jpg)
Why Renewable Energy? Grid Parity for PV
![Why Renewable Energy? Grid Parity for PV Source: GLOBAL OVERVIEW ON GRID-PARITY EVENT DYNAMICS, Why Renewable Energy? Grid Parity for PV Source: GLOBAL OVERVIEW ON GRID-PARITY EVENT DYNAMICS,](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-12.jpg)
Why Renewable Energy? Grid Parity for PV Source: GLOBAL OVERVIEW ON GRID-PARITY EVENT DYNAMICS, Ch. Breyer and A. Gerlach, Ch. Breyer and A. Gerlach (2010)
![Current Structure: JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS: Distribution Customers IPP Current Structure: JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS: Distribution Customers IPP](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-13.jpg)
Current Structure: JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS: Distribution Customers IPP OUR: Regulator

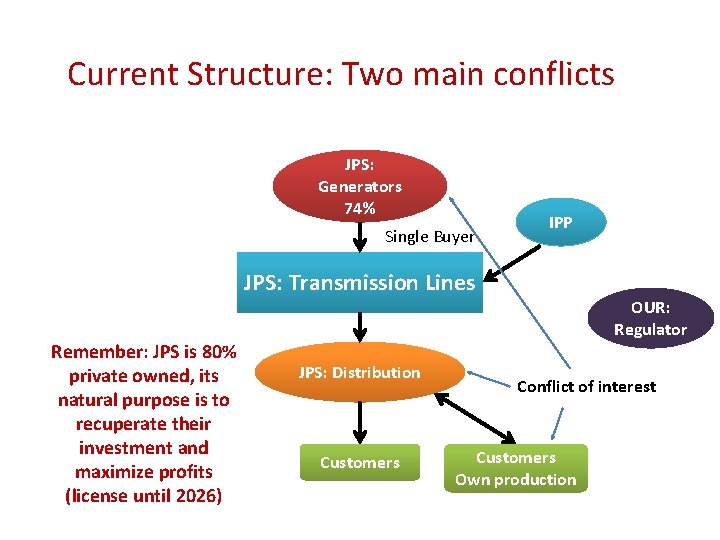

![Current Structure: Two main conflicts JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS: Current Structure: Two main conflicts JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS:](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-14.jpg)
Current Structure: Two main conflicts JPS: Generators 74% Single Buyer JPS: Transmission Lines JPS: Distribution Customers IPP OUR: Regulator
![Current Structure: Two main conflicts Conflict of interest new IPP (e. g. PV installation Current Structure: Two main conflicts Conflict of interest new IPP (e. g. PV installation](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-15.jpg)
Current Structure: Two main conflicts Conflict of interest new IPP (e. g. PV installation MW) JPS: Generators 74% Single Buyer JPS: Transmission Lines Fake competition Last bid tender for JPS: Distribution Customers IPP OUR: Regulator
![Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-16.jpg)
Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines No support to self production of electricity JPS: Distribution Customers OUR: Regulator Conflict of interest Customers Own production
![Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-17.jpg)
Current Structure: Two main conflicts JPS: Generators 74% Single Buyer IPP JPS: Transmission Lines Remember: JPS is 80% private owned, its natural purpose is to recuperate their investment and maximize profits (license until 2026) JPS: Distribution Customers OUR: Regulator Conflict of interest Customers Own production
![Current Structure: Two main conflicts How renewables will change electricity markets in the next Current Structure: Two main conflicts How renewables will change electricity markets in the next](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-18.jpg)
Current Structure: Two main conflicts How renewables will change electricity markets in the next five years Ruggero Schleicher-Tappeser (2012) Sustainable Strategies, Berchtesgadener Str. 8, 10779 Berlin, Germany In 2010, Germany, 51% of the installed renewable power generation capacity Conclusion: Prepare for a turbulent transformation was owned by private persons and farmers, 7% by smaller utilities and only 6. 5% by the four large power companies in the electricity sector
![Current Structure: JPS position Least-cost for customers Net – billing: Support, it has been Current Structure: JPS position Least-cost for customers Net – billing: Support, it has been](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-19.jpg)
Current Structure: JPS position Least-cost for customers Net – billing: Support, it has been implemented in this year Net – metering: Not support, it is a subsidized scheme which does not go along with JPS investments Feed-in tariff: Support only if not subsidized tariffs. Calculation of avoided cost plus 50%

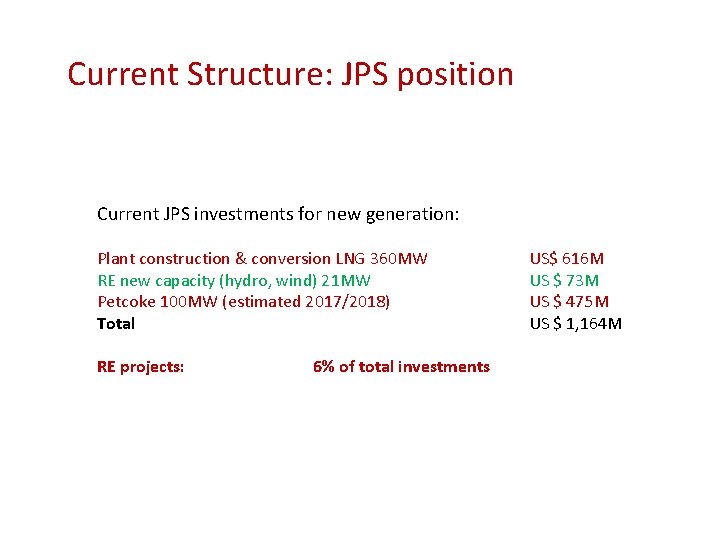

![Current Structure: JPS position Current JPS investments for new generation: Plant construction & conversion Current Structure: JPS position Current JPS investments for new generation: Plant construction & conversion](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-20.jpg)
Current Structure: JPS position Current JPS investments for new generation: Plant construction & conversion LNG 360 MW RE new capacity (hydro, wind) 21 MW Petcoke 100 MW (estimated 2017/2018) Total RE projects: 6% of total investments US$ 616 M US $ 73 M US $ 475 M US $ 1, 164 M

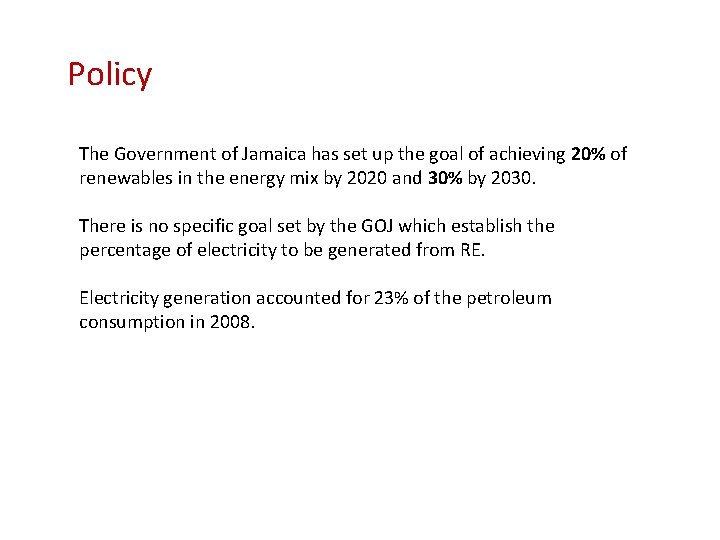

![Policy The Government of Jamaica has set up the goal of achieving 20% of Policy The Government of Jamaica has set up the goal of achieving 20% of](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-21.jpg)
Policy The Government of Jamaica has set up the goal of achieving 20% of renewables in the energy mix by 2020 and 30% by 2030. There is no specific goal set by the GOJ which establish the percentage of electricity to be generated from RE. Electricity generation accounted for 23% of the petroleum consumption in 2008.
![Current Structure: JPS position and RES Questions and Answers: Q: Will JPS invest significantly Current Structure: JPS position and RES Questions and Answers: Q: Will JPS invest significantly](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-22.jpg)
Current Structure: JPS position and RES Questions and Answers: Q: Will JPS invest significantly in RES up to 2030? A: No, large utility companies hardly invest in new decentralized RE projects (take a look to Germany, Italy, Spain). Up to now only 6% of the investments made by JPS for new generation capacity has been assigned to RE projects (in Germany large utilities own 6% of RES installed capacity) Q: Why JPS will not be the main player for renewables in the future? A: There are many reasons to justify this answer: • Renewables is not JPS core business (expertise, capacities, know-how) • RES are characterized by been decentralized and distributed systems (many k. W to sum MW) • In the case of Germany, more than half of the total renewable power generation capacity is owned by private persons and farmers (51%). Investments are meant to be done by private persons, farmers, industries, small utilities, households, farmers
![Current Structure: JPS position and RES Questions and Answers: Q: Is JPS constrained to Current Structure: JPS position and RES Questions and Answers: Q: Is JPS constrained to](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-23.jpg)
Current Structure: JPS position and RES Questions and Answers: Q: Is JPS constrained to produce certain percentage of electricity from renewables? A: No, it is not stipulated in their license Q: Will Jamaica achieve a 30% renewables of energy mix by 2030? A: Hardly. Road, Rail, Shipping, Bauxite, Aviation will hardly contribute to this goal. Electricity has one of the main contributions to make but JPS is not committed and current lack of policies (Net-metering, feed-in tariff) will not allow the introduction of new small investors. On the other hand projects under 25 MW coming from renewables would not have to compete in a bid tender process with other technologies and the GOJ is increasing (currently) the tariffs to attract more investors in the next 3 years to increase the share of RE into the grid, however these tariffs would need to be re considered if such investors do not come.
![Question: Is it convenient for Jamaica to separate its electricity services? • • • Question: Is it convenient for Jamaica to separate its electricity services? • • •](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-24.jpg)
Question: Is it convenient for Jamaica to separate its electricity services? • • • generation, transmission distribution an horizontal and vertical disaggregation of the electricity sector?
![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-25.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 4. Current proposals to isolated electric systems (islands) 5. Conclusions

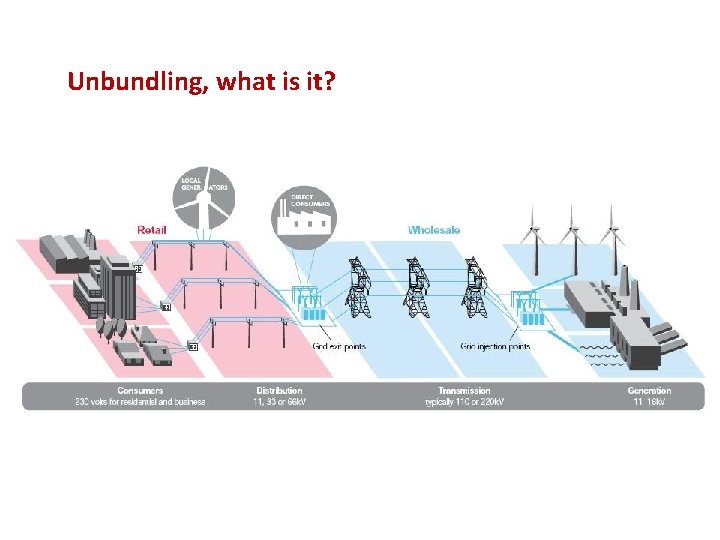

![Unbundling, what is it? Unbundling, what is it?](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-26.jpg)
Unbundling, what is it?
![Unbundling Source: How to make a European integrated market in small and isolated electricity Unbundling Source: How to make a European integrated market in small and isolated electricity](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-27.jpg)
Unbundling Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)
![Unbundling 5 types of separation! Source: How to make a European integrated market in Unbundling 5 types of separation! Source: How to make a European integrated market in](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-28.jpg)
Unbundling 5 types of separation! Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)
![Unbundling Avoid discriminatory practices and allow competition Source: How to make a European integrated Unbundling Avoid discriminatory practices and allow competition Source: How to make a European integrated](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-29.jpg)
Unbundling Avoid discriminatory practices and allow competition Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)

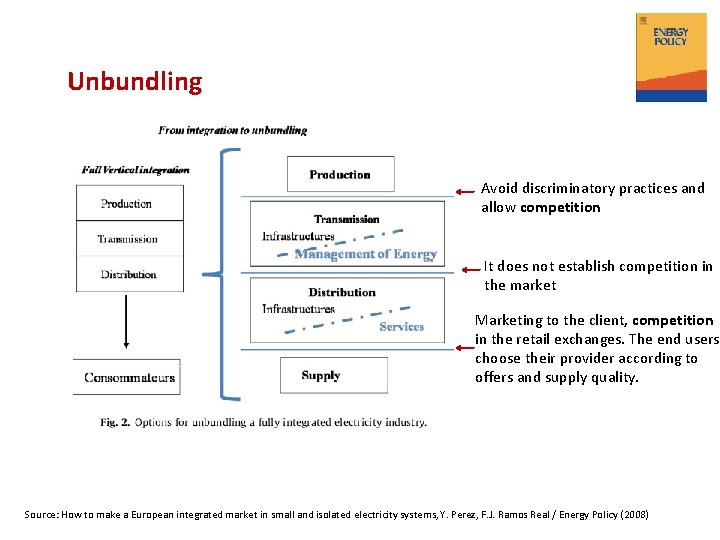

![Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-30.jpg)
Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the market Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)
![Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-31.jpg)
Unbundling Avoid discriminatory practices and allow competition It does not establish competition in the market Marketing to the client, competition in the retail exchanges. The end users choose their provider according to offers and supply quality. Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)
![Unbundling Consensus in economic theory and EU policy is to propose an TSO to Unbundling Consensus in economic theory and EU policy is to propose an TSO to](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-32.jpg)
Unbundling Consensus in economic theory and EU policy is to propose an TSO to manage the flows of energy, and also that it is preferable to separate these activities if the dispatcher is also the owner of the generating assets Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)
![Unbundling The unbundling option for distribution proposes a view that clearly distinguishes between the Unbundling The unbundling option for distribution proposes a view that clearly distinguishes between the](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-33.jpg)
Unbundling The unbundling option for distribution proposes a view that clearly distinguishes between the owner of the network and the operator of the network. Source: How to make a European integrated market in small and isolated electricity systems, Y. Perez, F. J. Ramos Real / Energy Policy (2008)

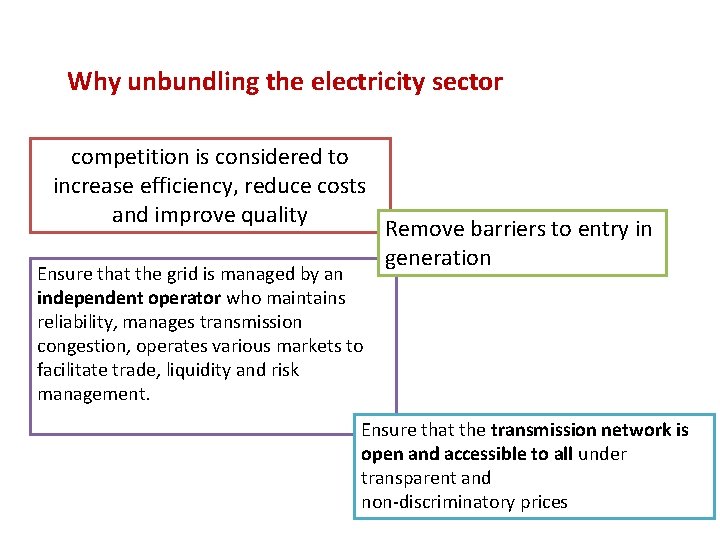

![Why unbundling the electricity sector competition is considered to increase efficiency, reduce costs and Why unbundling the electricity sector competition is considered to increase efficiency, reduce costs and](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-34.jpg)
Why unbundling the electricity sector competition is considered to increase efficiency, reduce costs and improve quality Ensure that the grid is managed by an independent operator who maintains reliability, manages transmission congestion, operates various markets to facilitate trade, liquidity and risk management. Remove barriers to entry in generation Ensure that the transmission network is open and accessible to all under transparent and non-discriminatory prices
![Why unbundling the electricity sector Analyzing 20 years of electricity market reforms all around Why unbundling the electricity sector Analyzing 20 years of electricity market reforms all around](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-35.jpg)
Why unbundling the electricity sector Analyzing 20 years of electricity market reforms all around the world, including liberalization and unbundled markets Good examples bad examples Pages: 688 Year publication: 2006
![Why unbundling the electricity sector “Policies aiming at the expansion of renewable energy technologies Why unbundling the electricity sector “Policies aiming at the expansion of renewable energy technologies](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-36.jpg)
Why unbundling the electricity sector “Policies aiming at the expansion of renewable energy technologies should encourage competition in the electricity market” [1] “Philippines Case: reform with private sector participation, liberalizing the market for IPP, increased social welfare”[2] The question to Jamaica is not only if by unbundling the electricity sector the price/k. Wh is going to be lower in the near future as a direct consequence (which might be), but if it will provide an appropriate market environment to the introduction of RES and the development of a more diversified energy mix in the long term [1] More competition: Threat or chance for financing renewable electricity? , Sandor Szabo, European Commission, DG Joint Research Center [2] Welfare impacts of electricity generation sector reform in the Philippines, Natsuko Toba, University of Cambridge
![Castalia report commissioned by JPS: Options to lower electricity prices in Jamaica “However, the Castalia report commissioned by JPS: Options to lower electricity prices in Jamaica “However, the](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-37.jpg)
Castalia report commissioned by JPS: Options to lower electricity prices in Jamaica “However, the benefits from implementing such reform (separation of electricity services) can only be achieved in markets that are large enough to accommodate sufficient generators to compete with each other. With a small system of the size of Jamaica’s, there is little scope for attracting more than a few generators; thereby resulting in an oligopoly, with prices much higher than under competition” The question to Jamaica is not only if by unbundling the electricity sector the price/k. Wh is going to be lower in the near future as a direct consequence (which might be), but if it will provide an appropriate market environment to the introduction of RES and the development of a more diversified energy mix in the long term
![](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-38.jpg)
![](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-39.jpg)
![Depending on oil imports to supply more than 85% of energy needs Depending on oil imports to supply more than 85% of energy needs](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-40.jpg)
Depending on oil imports to supply more than 85% of energy needs
![Depending on oil imports to supply more than 85% of energy needs > 1 Depending on oil imports to supply more than 85% of energy needs > 1](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-41.jpg)
Depending on oil imports to supply more than 85% of energy needs > 1 million population
![Jamaica Population Country Area 2’ 847. 232 (2012) Power installed capacity 820 MW 10. Jamaica Population Country Area 2’ 847. 232 (2012) Power installed capacity 820 MW 10.](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-42.jpg)
Jamaica Population Country Area 2’ 847. 232 (2012) Power installed capacity 820 MW 10. 991 Km 2 Jamaica Public Service Company (JPS) is the sole distributor of electricity. The company is engaged in generation, transmission and distribution of electricity, it purchases power from 5 IPPs. JPSCo provides 60% of all electricity consumed on the island. Private companies generate the remaining electricity supply
![Comment 10 out of the 15 state members import oil to supply more than Comment 10 out of the 15 state members import oil to supply more than](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-43.jpg)
Comment 10 out of the 15 state members import oil to supply more than 85% of their energy needs. The rest of the members have some indigenous energy resources like natural gas (Trinidad and Tobago) and hydro plants (Suriname, Dominica, Haiti, Belize). The case of Jamaica is unique, as it is the only country in CARICOM with more than 1 million population that depends highly on oil imports (2. 8 million population and more than 90% oil imports). Take references from somewhere else!

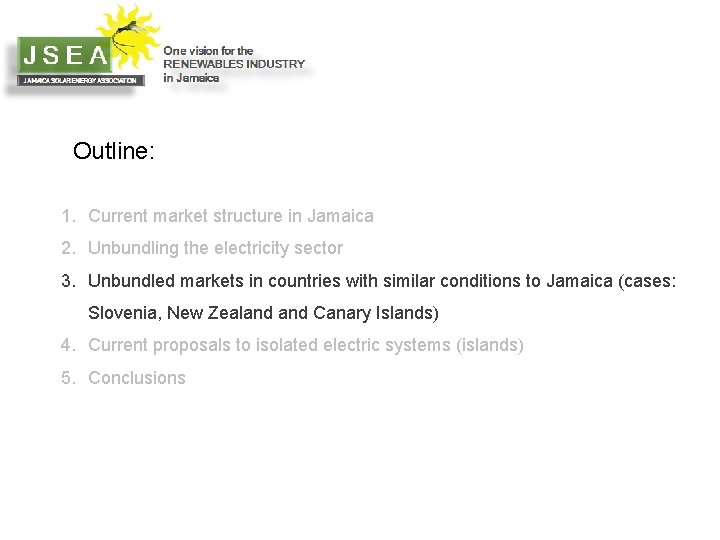

![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-44.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 4. Current proposals to isolated electric systems (islands) 5. Conclusions

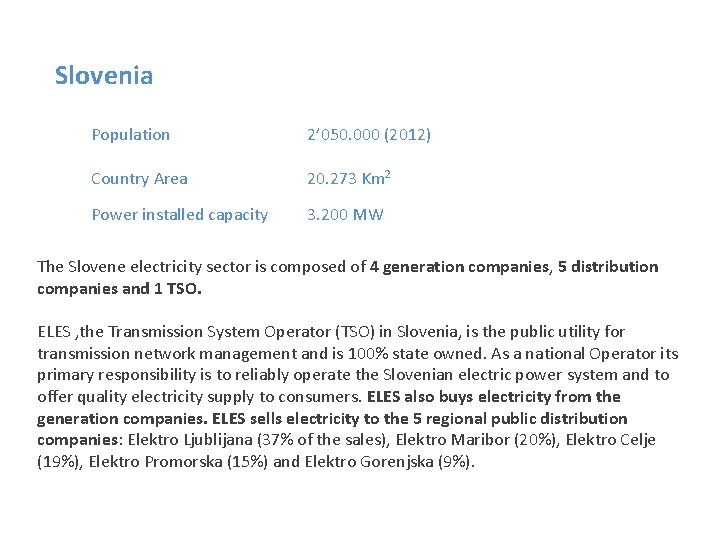

![Slovenia Population Country Area 2’ 050. 000 (2012) Power installed capacity 3. 200 MW Slovenia Population Country Area 2’ 050. 000 (2012) Power installed capacity 3. 200 MW](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-45.jpg)
Slovenia Population Country Area 2’ 050. 000 (2012) Power installed capacity 3. 200 MW 20. 273 Km 2 The Slovene electricity sector is composed of 4 generation companies, 5 distribution companies and 1 TSO. ELES , the Transmission System Operator (TSO) in Slovenia, is the public utility for transmission network management and is 100% state owned. As a national Operator its primary responsibility is to reliably operate the Slovenian electric power system and to offer quality electricity supply to consumers. ELES also buys electricity from the generation companies. ELES sells electricity to the 5 regional public distribution companies: Elektro Ljublijana (37% of the sales), Elektro Maribor (20%), Elektro Celje (19%), Elektro Promorska (15%) and Elektro Gorenjska (9%).
![New Zealand Population Country Area 4’ 429. 789 (2012) 268. 680 Km 2 First New Zealand Population Country Area 4’ 429. 789 (2012) 268. 680 Km 2 First](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-46.jpg)
New Zealand Population Country Area 4’ 429. 789 (2012) 268. 680 Km 2 First two decades: Power installed capacity 9. 485 MW retailers and generators became vertically integrated, failure in light handed regulation Lessons learned: The New Zealand electricity market is a competitive market. There is open entry to the Specialized electricity regulator in 2003 market subject to conditions developed by the Electricity Commission. • Managing the ongoing information disclosure regime As of October 2009, five generation companies operate in the country, the national grid Setting price and revenue caps is wholly owned • and operated by Transpower, a state-owned company. Distribution is • Coordinating the investment plans of various industry players the responsibility of 28 separate distribution companies • Maintaining reserve generation capacity • Overseeing industry governance arrangements • Guiding new investment by the issuing of “statements of opportunity”
![Canary Islands (Spain) Population Country Area 2’ 117. 519 (2012) Power installed capacity 1. Canary Islands (Spain) Population Country Area 2’ 117. 519 (2012) Power installed capacity 1.](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-47.jpg)
Canary Islands (Spain) Population Country Area 2’ 117. 519 (2012) Power installed capacity 1. 980 MW 7. 493 Km 2 Before 2006, Unelco-Endesa was a vertically integrated company that managed the system, generated most of the electricity and had exclusive control over the transmission, distribution and supply of the electricity. New arrangement from 2006: 1. Appearance of the REE as the manager of the transmission network and system operator. The REE is responsible for ensuring access to the grid for all stakeholders under conditions of transparency and equality. In this sense, the REE acts as a single buyer that purchases energy using a generation merit order. 2. Appearance of the figure of the supplier who buys energy from the network operator.
![Canary Islands (Spain) Canary Islands (Spain)](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-48.jpg)
Canary Islands (Spain)
![Canary Islands (Spain) Generation Costs (2008) Source: Trabajo IUDR - FEDEA Canary Islands (Spain) Generation Costs (2008) Source: Trabajo IUDR - FEDEA](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-49.jpg)
Canary Islands (Spain) Generation Costs (2008) Source: Trabajo IUDR - FEDEA
![Canary Islands (Spain) Source: Análisis de los sobrecostes de la Energía del Sistema Energético Canary Islands (Spain) Source: Análisis de los sobrecostes de la Energía del Sistema Energético](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-50.jpg)
Canary Islands (Spain) Source: Análisis de los sobrecostes de la Energía del Sistema Energético de Canarias, RICAM
![Slovenia Nuclear: 38% Coal and Lignite: 34% Hydroelectric: 24% Natural Gas: 3% Biomass and Slovenia Nuclear: 38% Coal and Lignite: 34% Hydroelectric: 24% Natural Gas: 3% Biomass and](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-51.jpg)
Slovenia Nuclear: 38% Coal and Lignite: 34% Hydroelectric: 24% Natural Gas: 3% Biomass and others: 1% New Zealand Hydro-electric: Thermal: Geothermal: Wind: Biogas: Canary Islands 56. 6% 31. 2% 6. 7% 5. 3% ~0. 3 90% RES by 2025 Fossil based: Renewables: Others: 90. 5% 5. 7% 3. 8% El Hierro, 100% RES 2012 All islands, 30% RES 2015
![Comment Convenience for separation of electricity generation, transmission and distribution depends on case by Comment Convenience for separation of electricity generation, transmission and distribution depends on case by](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-52.jpg)
Comment Convenience for separation of electricity generation, transmission and distribution depends on case by case, including aspects like market size, current competition, companies ownership, geographical conditions and diversity of energy resources: natural gas, hydro, nuclear, oil, coal, solar, wind. Separation of electricity sector in Jamaica is an option to develop a more diversified energy mix, incentive competition and introduce RES.
![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Current Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Current](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-53.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector 3. Current situation in CARICOM 4. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 5. Current proposals to isolated electric systems (islands) 6. Conclusions

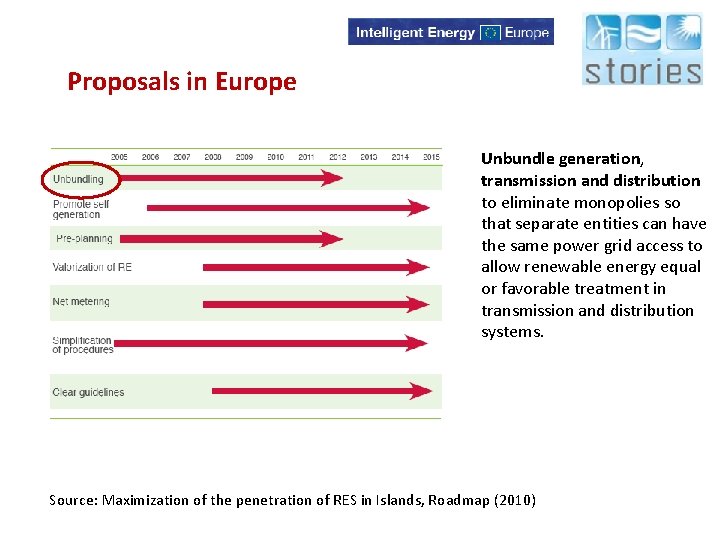

![Proposals in Europe Unbundle generation, transmission and distribution to eliminate monopolies so that separate Proposals in Europe Unbundle generation, transmission and distribution to eliminate monopolies so that separate](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-54.jpg)
Proposals in Europe Unbundle generation, transmission and distribution to eliminate monopolies so that separate entities can have the same power grid access to allow renewable energy equal or favorable treatment in transmission and distribution systems. Source: Maximization of the penetration of RES in Islands, Roadmap (2010)
![Proposals in Europe Suggested market structure for Crete, Greece Source: Maximization of the penetration Proposals in Europe Suggested market structure for Crete, Greece Source: Maximization of the penetration](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-55.jpg)
Proposals in Europe Suggested market structure for Crete, Greece Source: Maximization of the penetration of RES in Islands, Roadmap (2010)
![Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector and advantages Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector and advantages](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-56.jpg)
Outline: 1. Current market structure in Jamaica 2. Unbundling the electricity sector and advantages 3. Unbundled markets in countries with similar conditions to Jamaica (cases: Slovenia, New Zealand Canary Islands) 4. Current proposals to isolated electric systems (islands) 5. Conclusions
![Conclusions: Introducing competition on generation and retail of electricity might lower the costs of Conclusions: Introducing competition on generation and retail of electricity might lower the costs of](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-57.jpg)
Conclusions: Introducing competition on generation and retail of electricity might lower the costs of production, increase efficiency and provide better service, however lowering production costs does not always reflect a decrease in electricity prices for end-consumers. The question to Jamaica is not only if by unbundling the electricity sector the price/k. Wh is going to be lower in the near future as a direct consequence (which might be), but if it will provide an appropriate market environment to the introduction of RES and the development of a more diversified energy mix in the long term
![Conclusions: As long as JPS has the monopoly of the electricity market, the introduction Conclusions: As long as JPS has the monopoly of the electricity market, the introduction](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-58.jpg)
Conclusions: As long as JPS has the monopoly of the electricity market, the introduction of renewable energy systems into the national grid will be limited. (6% ? , 10% ? by 2030). JPS will only invest in profitable centralized large scale RE projects. On the other hand, it depends strongly on the tariffs applied to RE generators, which should encourage investors to come into the market. If RES are meant to be a significant part of the energy mix, a new market organization is suggested to be set up, in particular the introduction of a new Transmission System Operator (TSO) in charge of the management of the national grid, which guarantees transparency and access for all stakeholders.
![Conclusions: The Government of Jamaica (through OUR as a regulator) have to define clear Conclusions: The Government of Jamaica (through OUR as a regulator) have to define clear](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-59.jpg)
Conclusions: The Government of Jamaica (through OUR as a regulator) have to define clear objectives for the introduction of RES in the national grid. Policies such as Feed-in Tariff has been demonstrated to be determinant for RES success penetration in other countries like Germany, Italy and Spain. Priority for power coming from renewables should be encouraged in future bit tender processes for new IPP come into the market.
![Conclusions: Follow Canary Islands model? New legislation: establish an independent Transmission System Operator (TSO) Conclusions: Follow Canary Islands model? New legislation: establish an independent Transmission System Operator (TSO)](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-60.jpg)
Conclusions: Follow Canary Islands model? New legislation: establish an independent Transmission System Operator (TSO) Buy out the transmission lines from JPS: Public, Private, Association Introduce the figure of supplier/retailer of electricity Law in Electric Sector 54/1997, regional legislation, decree 50/2003, Taking place 2006. In 2010 REE purchased the Canary Islands Transmission Assets
![Conclusions: suggested market structure new IPP (e. g. PV installation MW) JPS: Generators 74%? Conclusions: suggested market structure new IPP (e. g. PV installation MW) JPS: Generators 74%?](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-61.jpg)
Conclusions: suggested market structure new IPP (e. g. PV installation MW) JPS: Generators 74%? Single Buyer IPP JPS: Transmission Lines new TSO: new Retailers: Distribution Customers new Retailers: JPS: Distribution Customers Storage (When RES share enough) OUR: Regulator Customers Own production
![Promoting RES in Islands: Maximization of the penetration of RES in islands: Road Map Promoting RES in Islands: Maximization of the penetration of RES in islands: Road Map](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-62.jpg)
Promoting RES in Islands: Maximization of the penetration of RES in islands: Road Map http: //www. storiesproject. eu/docs/STORIES_ROAD_MAP_BROCHURE_EN_20042010. pdf Market organization of autonomous electricity systems http: //www. storiesproject. eu/docs/Market_organisation_E_Panteri. pdf Scheme for market organization of autonomous electricity systems http: //www. storiesproject. eu/docs/STORIES_Deliverable 3_4 FINAL__2_. pdf On the economics of electricity consumption in small island developing states: a role for renewable energy technologies? Daniel Weisser, Imperial College London, 2004
![Reforms in the electricity sector: How renewables will change electricity markets in the next Reforms in the electricity sector: How renewables will change electricity markets in the next](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-63.jpg)
Reforms in the electricity sector: How renewables will change electricity markets in the next five years Ruggero Schleicher-Tappeser n Sustainable Strategies, Berchtesgadener Str. 8 , 10779 Berlin, Germany (2012) Electricity Market Reform: An International Perspective Fereidoon Sioshansi, 2006 Power sector reform in small island developing states: what role for renewable nergy technologies? Daniel Weisser, Imperial College London, 2003 How to make a European integrated market in small and isolated electricity systems? The case of the Canary Islands Yannick Perez, Francisco Javier Ramos Real Energy Policy http: //jsea. org. jm/docs/ Competition, regulation and privatisation of electricity generation in developing countries: does the sequencing of the reforms matter? Yinfang Zhang, University of Manchester 2005
![Thank you Any Questions Find the presentation in our website: www. jsea. org. jm/docs Thank you Any Questions Find the presentation in our website: www. jsea. org. jm/docs](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-64.jpg)
Thank you Any Questions Find the presentation in our website: www. jsea. org. jm/docs Contact for questions: Alberto Gonzalez, alberto. gonzalez. mon@gmail. com

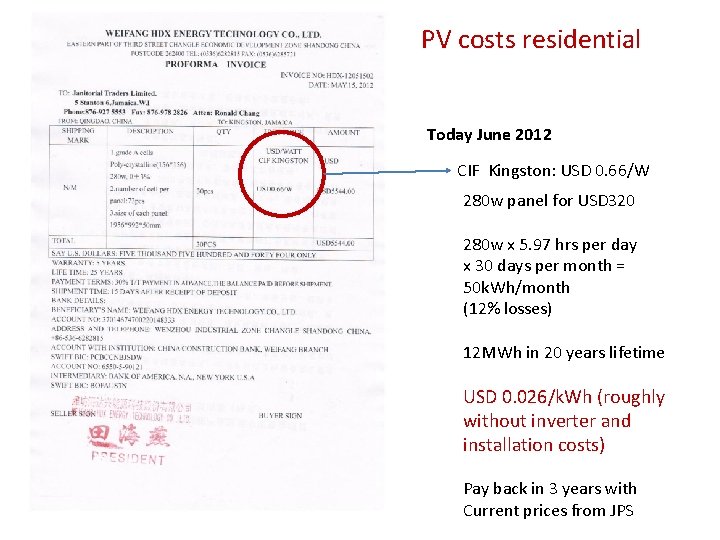

![PV costs residential Today June 2012 CIF Kingston: USD 0. 66/W 280 w panel PV costs residential Today June 2012 CIF Kingston: USD 0. 66/W 280 w panel](http://slidetodoc.com/presentation_image_h/31791d0b6cb2dbef120e2681d6f58498/image-65.jpg)
PV costs residential Today June 2012 CIF Kingston: USD 0. 66/W 280 w panel for USD 320 280 w x 5. 97 hrs per day x 30 days per month = 50 k. Wh/month (12% losses) 12 MWh in 20 years lifetime USD 0. 026/k. Wh (roughly without inverter and installation costs) Pay back in 3 years with Current prices from JPS
