Folding Ductile (Plastic) Deformation

Folding Ductile (Plastic) Deformation

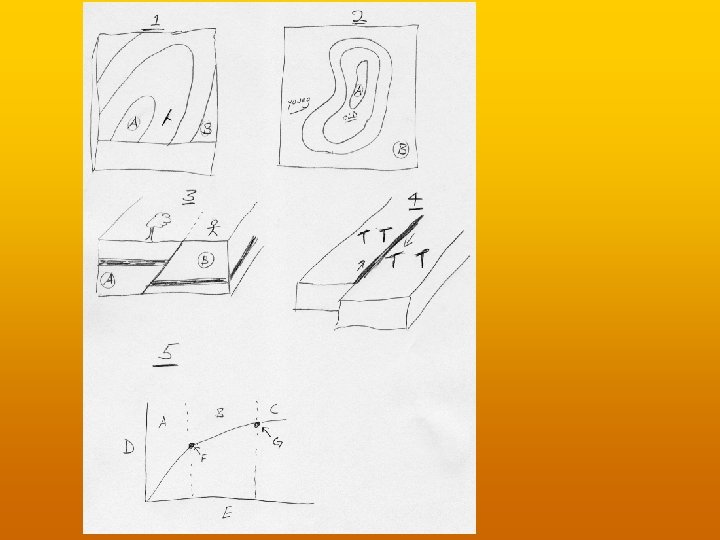

A 1. 2. 3. 4. 5. B Identify the foot wall block. Identify the

A 1. 2. 3. 4. 5. B Identify the foot wall block. Identify the hanging wall block. Is this a strike-slip or dip-slip fault? Is this fault caused by tensional or compressional forces? Is this a normal or reverse fault?

Brittle All of the faults occur in this region as the Earth is broken.

Brittle All of the faults occur in this region as the Earth is broken. Normal, Reverse, and Strike-slip faults Fracture point Ductile Deformation Region Folds (ductile strain) All of the folds occur in this region as the Earth is bent but not broken. Anticlines, Synclines, Monoclines, Basins, Domes Elastic Limit point Elastic Earthquakes (elastic strain) Deformation Region Stress (a compressional, tensional, or shear force) Deformation Region Faults (brittle strain) Earthquakes occur in this region due to Elastic Rebound There is NO permanent deformation This does not create a break in the Earth. The earth is already broken. This is just slippage along the break.

Folded Structures 1. Anticlines 2. Synclines 3. Monoclines 4. Basins 5. Domes

Folded Structures 1. Anticlines 2. Synclines 3. Monoclines 4. Basins 5. Domes

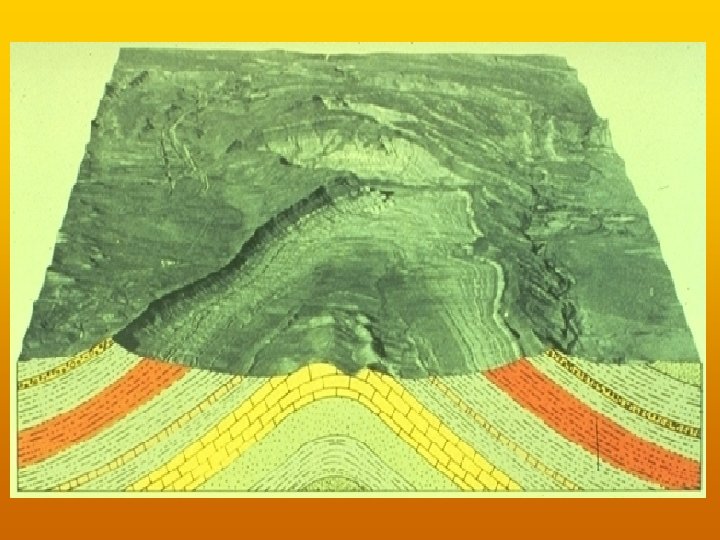

Anticlines

Anticlines

Anticline - oldest rock formation in the middle.

Anticline - oldest rock formation in the middle.

Syncline - youngest rock formation in the middle.

Syncline - youngest rock formation in the middle.

Syncline in Eastern Tennessee

Syncline in Eastern Tennessee

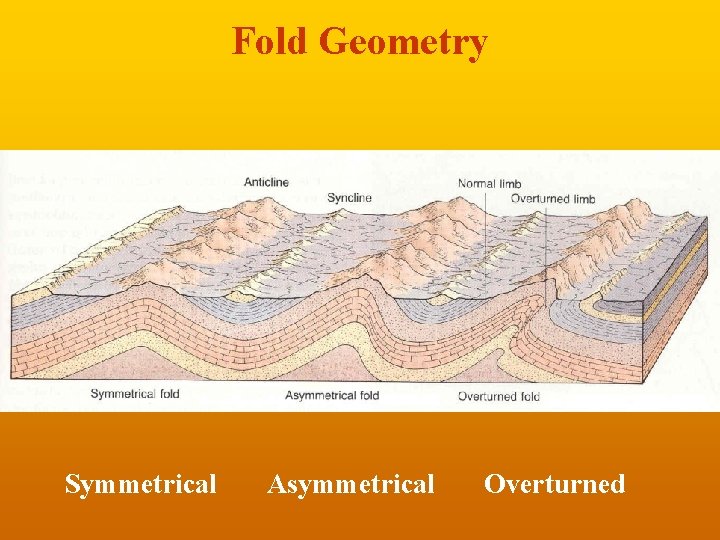

Fold Geometry Symmetrical Asymmetrical Overturned

Fold Geometry Symmetrical Asymmetrical Overturned

Plunge Measured from a horizontal line.

Plunge Measured from a horizontal line.

Plunge - the inclination of the fold axis

Plunge - the inclination of the fold axis

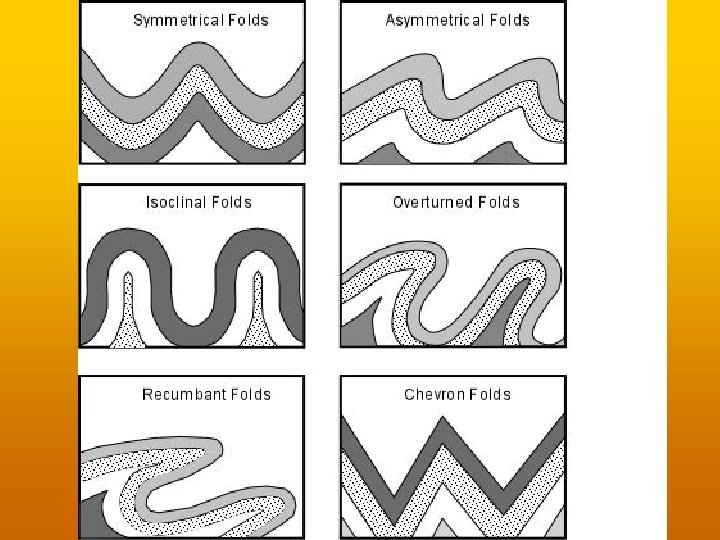

Fold Geometry

Fold Geometry

Anticlines and Synclines

Anticlines and Synclines

Monocline

Monocline

Monocline Peru Monocline – caused by basement-block faulting

Monocline Peru Monocline – caused by basement-block faulting

Domes Oldest rock in center Basins Youngest rock in center

Domes Oldest rock in center Basins Youngest rock in center

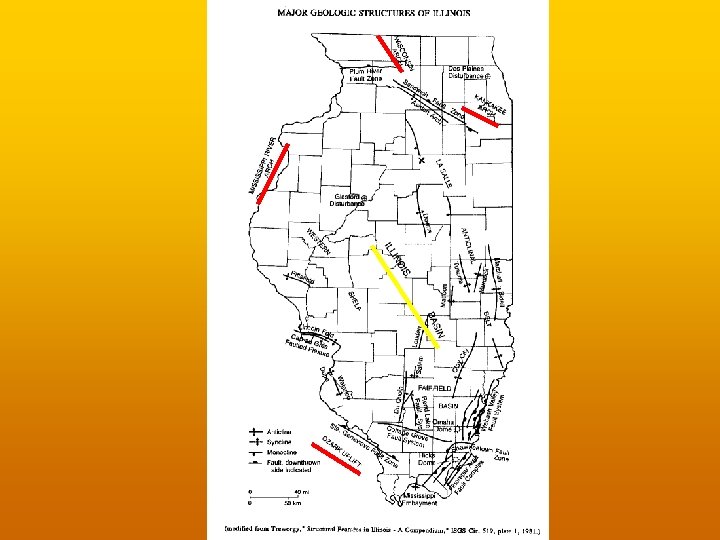

Map view of structures Map Symbols

Map view of structures Map Symbols

Horizontal Strata

Horizontal Strata

Inclined Strata

Inclined Strata

Dome

Dome

Black Hills Dome

Black Hills Dome

Black Hills Geology

Black Hills Geology

Basin

Basin

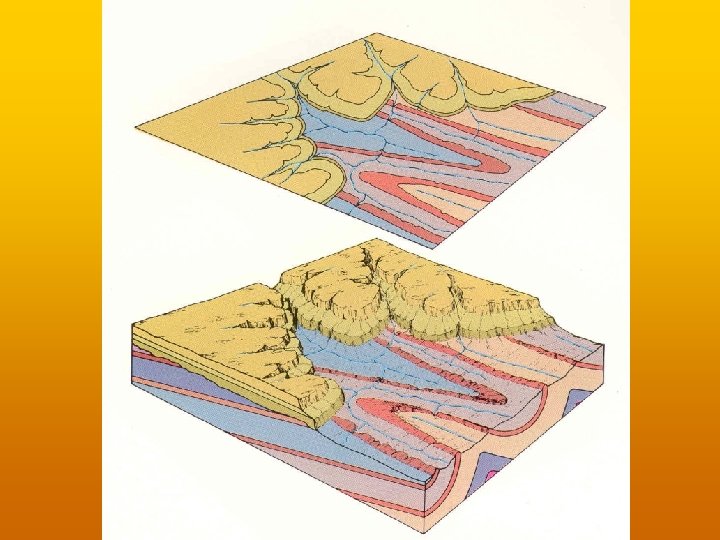

Plunging Anticlines And Synclines

Plunging Anticlines And Synclines

Sheep Mountain Anticline, Wyoming

Sheep Mountain Anticline, Wyoming

What causes folding and faulting Anticlines and synclines – compression Basins – subsidence, the

What causes folding and faulting Anticlines and synclines – compression Basins – subsidence, the sinking of the ground due to crustal thinning. Monoclines – basement block faulting Domes – intrusions Normal Faults – tension Reverse Faults – compression Strike-Slip Faults – shear stress

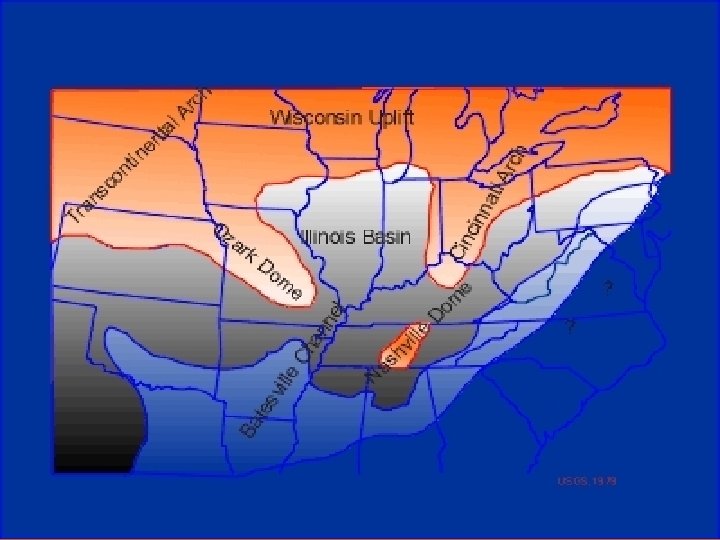

Mich. Basin W isc Ar onsin ch ati A cinn Cin Illinois Basin Nas

Mich. Basin W isc Ar onsin ch ati A cinn Cin Illinois Basin Nas hvi Dom lle e Ozark Dome rch nk Ar ake ch e ssippi R Arch vr. Missi Forest City Basin Ka
