Five Components of a Computer Input Devices keyboard

Five Components of a Computer Input Devices keyboard, mouse CPU Main Memory Secondary Memory Output Devices display screen, printer harddisks, floppy disks, tapes, CD-ROMs CPU - Central Processing Unit fetches and follows a set of simple instructions Main Memory stores the executing program and its data in RAM ( random access memory ) Secondary Memory stores permanent records ( files )

Two Principal Microcomputer System Components • Hardware • Software Hardware: Architecture of a computer - general layout of major Components BUS Memory System BUS Microprocessor (CPU) Random Access Memory (RAM) Dynamic, Static Cache, Flash Memory Read Only Memory (ROM) 8088/8086 80286, 80386 80486, Pentium I/O System Printer, Mouse, DVD Floppy/Hard Disk CD, USB, keyboard Monitor, Tape Backup

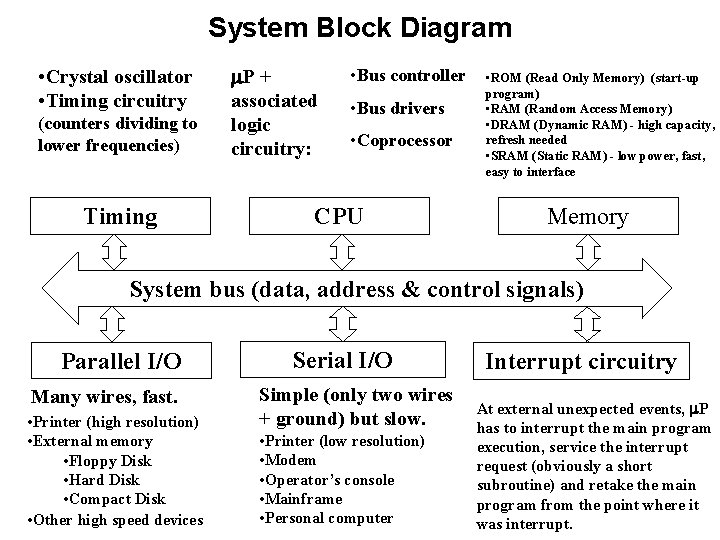

System Block Diagram • Crystal oscillator • Timing circuitry (counters dividing to lower frequencies) Timing P + associated logic circuitry: • Bus controller • Bus drivers • Coprocessor CPU • ROM (Read Only Memory) (start-up program) • RAM (Random Access Memory) • DRAM (Dynamic RAM) - high capacity, refresh needed • SRAM (Static RAM) - low power, fast, easy to interface Memory System bus (data, address & control signals) Parallel I/O Many wires, fast. • Printer (high resolution) • External memory • Floppy Disk • Hard Disk • Compact Disk • Other high speed devices Serial I/O Simple (only two wires + ground) but slow. • Printer (low resolution) • Modem • Operator’s console • Mainframe • Personal computer Interrupt circuitry At external unexpected events, P has to interrupt the main program execution, service the interrupt request (obviously a short subroutine) and retake the main program from the point where it was interrupt.

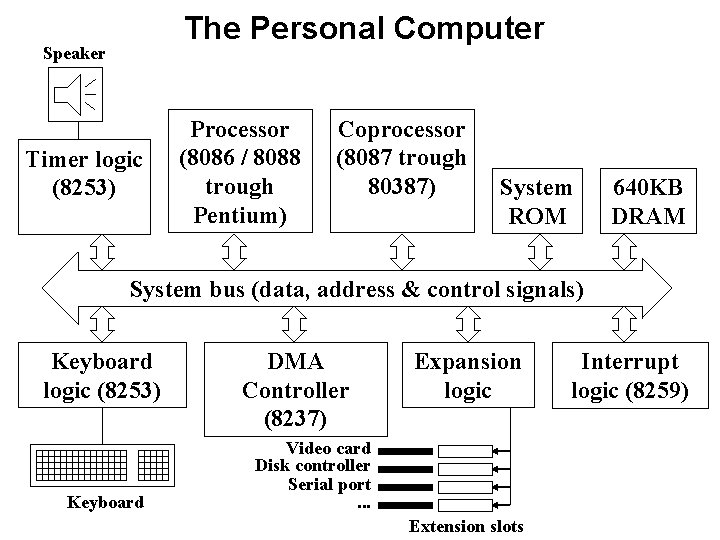

The Personal Computer Speaker Timer logic (8253) Processor (8086 / 8088 trough Pentium) Coprocessor (8087 trough 80387) System ROM 640 KB DRAM System bus (data, address & control signals) Keyboard logic (8253) Keyboard DMA Controller (8237) Expansion logic Video card Disk controller Serial port. . . Extension slots Interrupt logic (8259)

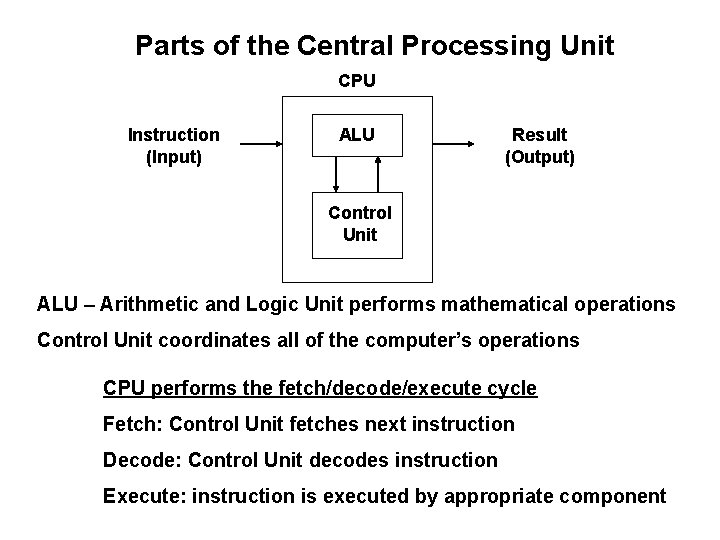

Parts of the Central Processing Unit CPU Instruction (Input) ALU Result (Output) Control Unit ALU – Arithmetic and Logic Unit performs mathematical operations Control Unit coordinates all of the computer’s operations CPU performs the fetch/decode/execute cycle Fetch: Control Unit fetches next instruction Decode: Control Unit decodes instruction Execute: instruction is executed by appropriate component

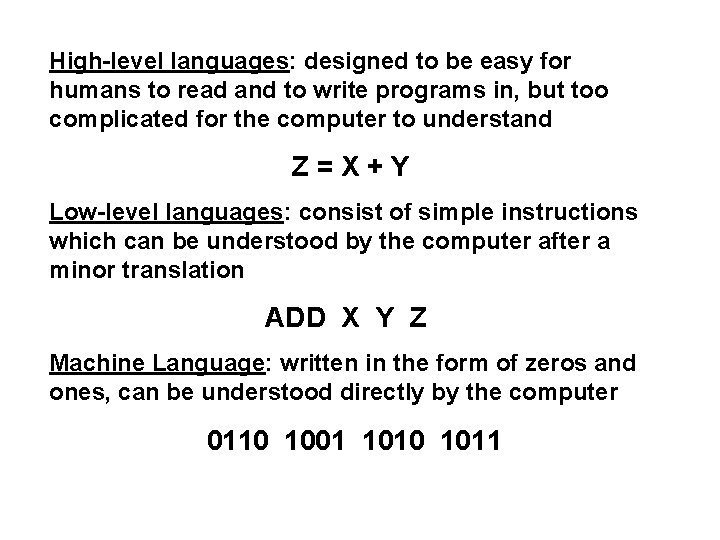

High-level languages: designed to be easy for humans to read and to write programs in, but too complicated for the computer to understand Z=X+Y Low-level languages: consist of simple instructions which can be understood by the computer after a minor translation ADD X Y Z Machine Language: written in the form of zeros and ones, can be understood directly by the computer 0110 1001 1010 1011

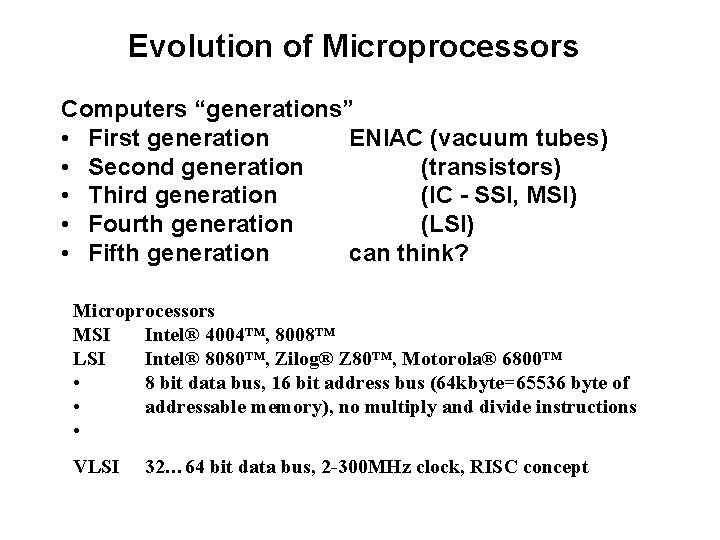

Evolution of Microprocessors Computers “generations” • First generation ENIAC (vacuum tubes) • Second generation (transistors) • Third generation (IC - SSI, MSI) • Fourth generation (LSI) • Fifth generation can think? Microprocessors MSI Intel® 4004™, 8008™ LSI Intel® 8080™, Zilog® Z 80™, Motorola® 6800™ • 8 bit data bus, 16 bit address bus (64 kbyte=65536 byte of • addressable memory), no multiply and divide instructions • VLSI 32… 64 bit data bus, 2 -300 MHz clock, RISC concept

Hardware Terms & Functionality • CPU: Performs all arithmetic & logical operations • Memory: Used to store programs & data. Is divided into individual components called addresses • Input/Output (I/O) devices: allow communication with the “real” world • Mass storage: means of permanently storing programs and/or data • System bus: Means by which other components communicate. Busses are grouped into three categories: – Data lines: for transmitting data – Address lines: indicate where information is sent to/from – Control lines: regulate activity on the bus

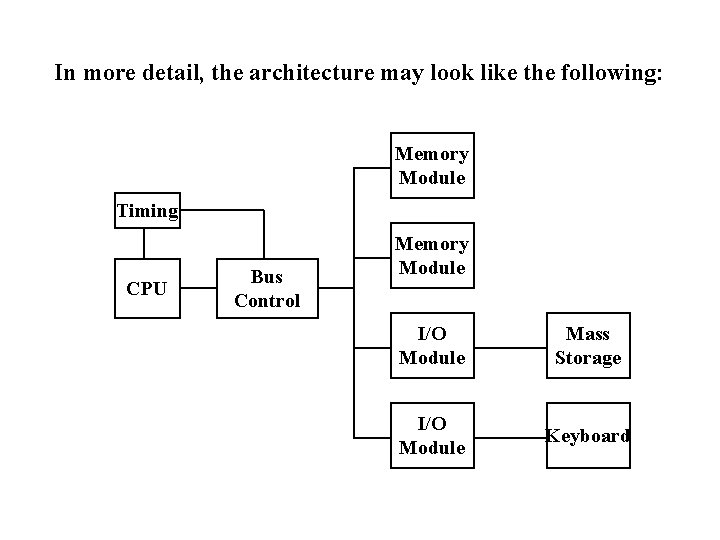

In more detail, the architecture may look like the following: Memory Module Timing CPU Bus Control Memory Module I/O Module Mass Storage I/O Module Keyboard

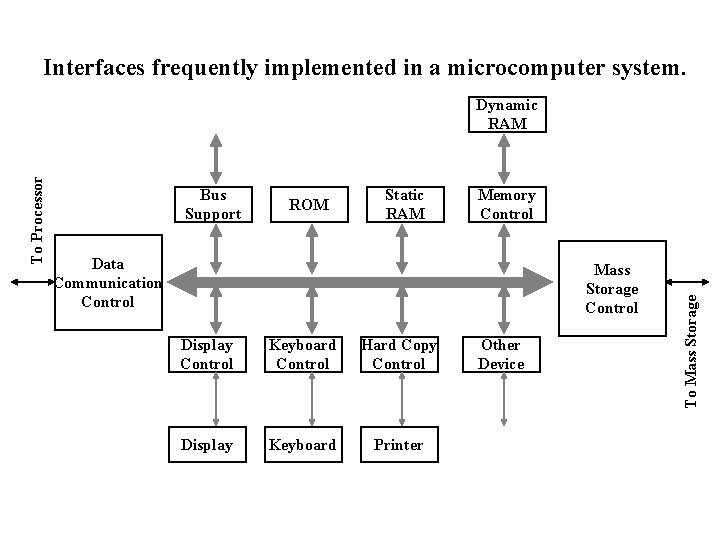

Interfaces frequently implemented in a microcomputer system. Bus Support ROM Static RAM Memory Control Data Communication Control Mass Storage Control Display Control Keyboard Control Hard Copy Control Display Keyboard Printer Other Device To Mass Storage To Processor Dynamic RAM

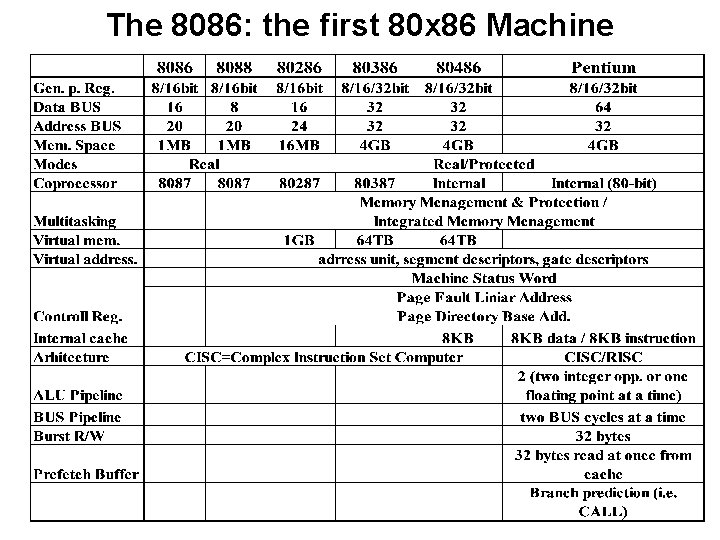

The 8086: the first 80 x 86 Machine

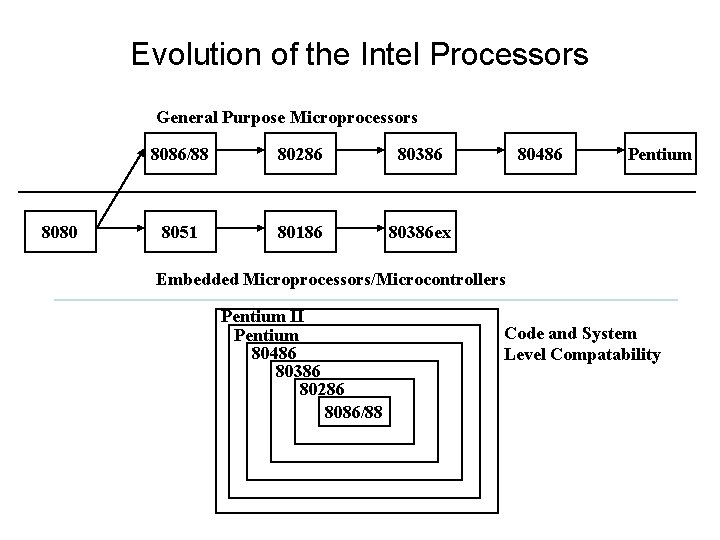

Evolution of the Intel Processors General Purpose Microprocessors 8080 8086/88 80286 80386 8051 80186 80386 ex 80486 Pentium Embedded Microprocessors/Microcontrollers Pentium II Pentium 80486 80386 80286 8086/88 Code and System Level Compatability

The 8086: the first 80 x 86 Machine 8088 and 8086 pin assignments GND 1 40 A 14 A 13 A 12 A 11 A 10 A 9 A 8 AD 7 AD 6 8088 AD 5 AD 4 AD 3 AD 2 AD 1 AD 0 NMI INTR CLK GND 20 21 Vcc A 15 A 16/S 3 A 17/S 4 A 18/S 5 A 19/S 6 ___ SS 0 ___ MN/MX ___ RD HOLD HLDA ___ WR__ IO/M __ DT/R ____ DEN ALE _____ INTA _____ TEST READY RESET (HIGH) ____ (RQ/GT 0) ____ (RQ/GT 1) ______ (LOCK) __ (S 2) __ (SI) __ (S 0) (QS 1) GND 1 40 AD 14 AD 13 AD 12 AD 11 AD 10 AD 9 AD 8 AD 7 AD 6 8086 AD 5 AD 4 AD 3 AD 2 AD 1 AD 0 NMI INTR CLK GND 20 21 Vcc AD 15 A 16/S 3 A 17/S 4 A 18/S 5 A 19/S 6 ____ BHE/S 7 ___ MN/MX ___ RD HOLD HLDA ___ WR__ IO/M __ DT/R ____ DEN ALE _____ INTA _____ TEST READY RESET ____ (RQ/GT 0) ____ (RQ/GT 1) ______ (LOCK) __ (S 2) __ (SI) __ (S 0) (QS 1)

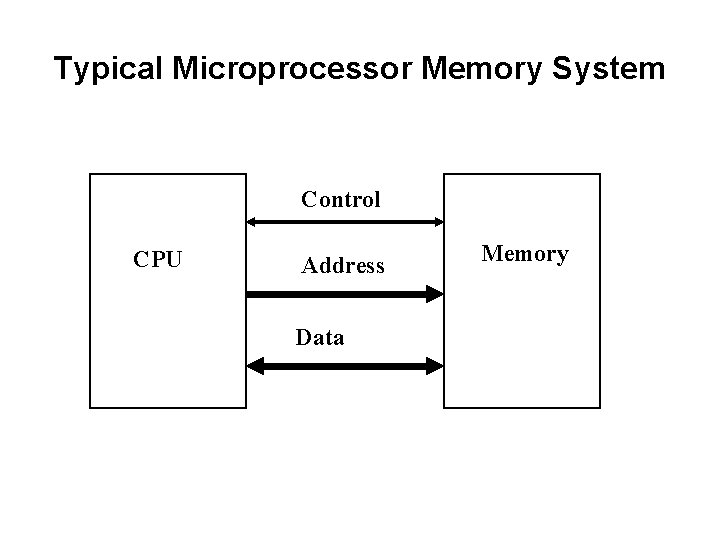

Typical Microprocessor Memory System Control CPU Address Data Memory

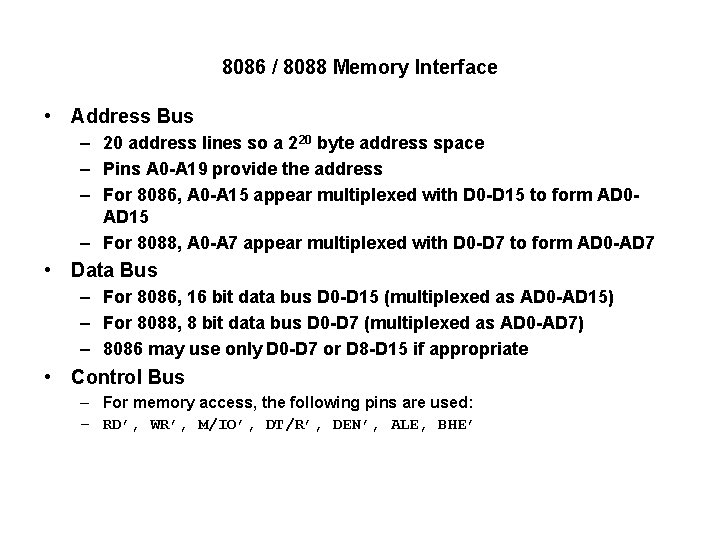

8086 / 8088 Memory Interface • Address Bus – 20 address lines so a 220 byte address space – Pins A 0 -A 19 provide the address – For 8086, A 0 -A 15 appear multiplexed with D 0 -D 15 to form AD 0 AD 15 – For 8088, A 0 -A 7 appear multiplexed with D 0 -D 7 to form AD 0 -AD 7 • Data Bus – For 8086, 16 bit data bus D 0 -D 15 (multiplexed as AD 0 -AD 15) – For 8088, 8 bit data bus D 0 -D 7 (multiplexed as AD 0 -AD 7) – 8086 may use only D 0 -D 7 or D 8 -D 15 if appropriate • Control Bus – For memory access, the following pins are used: – RD’, WR’, M/IO’, DT/R’, DEN’, ALE, BHE’

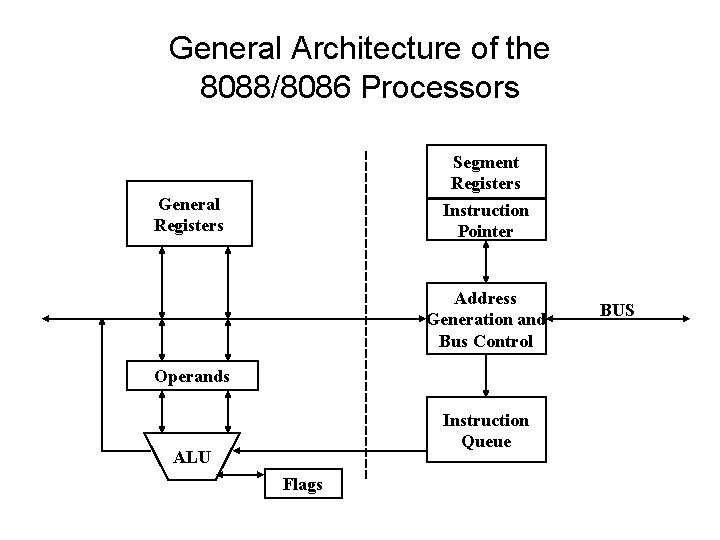

General Architecture of the 8088/8086 Processors Segment Registers Instruction Pointer General Registers Address Generation and Bus Control Operands Instruction Queue ALU Flags BUS

Real mode and Protected mode operation Addressable memory: 8086 20 address lines => 1 MB (Mega Byte) • • • Pentium 32 address lines => 4096 MB For compatibility, all the 80 x 86 family members start running in “Real Mode”, emulating the 8086 features (i. e. 1 MB RAM) Beginning with 80286, the “Protected Mode” is also available, allowing direct control of all address lines (all addressable memory), multitasking support, virtual memory addressing, memory management and protection (against violation from other task), control over internal data and instruction cache.

Addresses • Memory locations are comprised of groups of bits. – 8 bits: 1 byte – 16 bits: 1 word – 32 bits: 1 double word – 64 bits: 1 quad word • Each byte has an associated address. Addresses are comprised of groups of bits. • The set of all possible address bit combinations is called the ADDRESS SPACE.

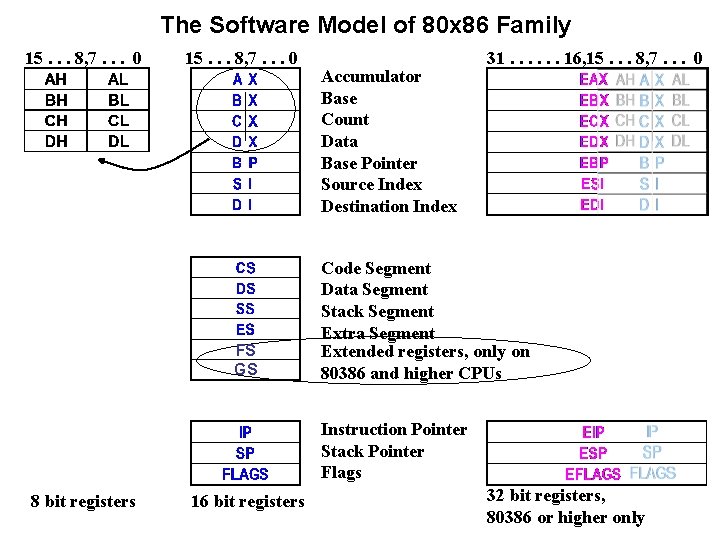

The Software Model of 80 x 86 Family 15. . . 8, 7. . . 0 FS GS Accumulator Base Count Data Base Pointer Source Index Destination Index 31. . . 16, 15. . . 8, 7. . . 0 Code Segment Data Segment Stack Segment Extra Segment Extended registers, only on 80386 and higher CPUs Instruction Pointer Stack Pointer Flags 8 bit registers 16 bit registers 32 bit registers, 80386 or higher only

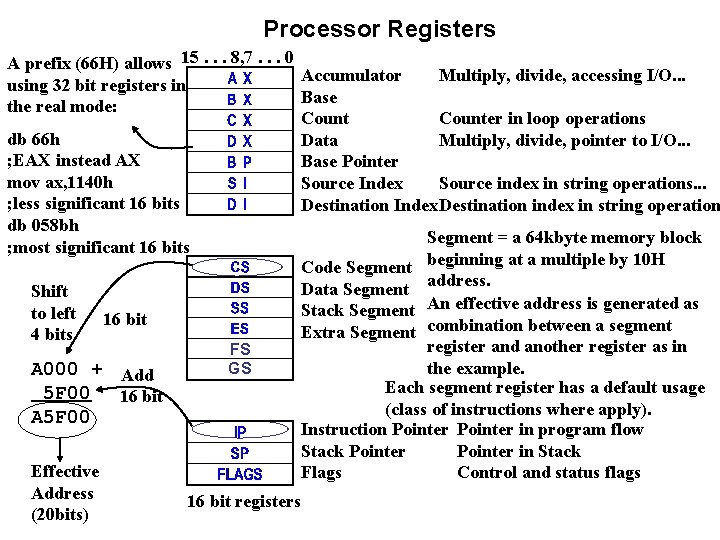

Processor Registers A prefix (66 H) allows 15. . . 8, 7. . . 0 Accumulator Multiply, divide, accessing I/O. . . using 32 bit registers in Base the real mode: Counter in loop operations db 66 h Data Multiply, divide, pointer to I/O. . . ; EAX instead AX Base Pointer mov ax, 1140 h Source Index Source index in string operations. . . ; less significant 16 bits Destination Index Destination index in string operation db 058 bh Segment = a 64 kbyte memory block ; most significant 16 bits Code Segment beginning at a multiple by 10 H Data Segment address. Shift An effective address is generated as Stack Segment to left 16 bit Extra Segment combination between a segment 4 bits register and another register as in FS the example. GS A 000 + Add Each segment register has a default usage 5 F 00 16 bit (class of instructions where apply). A 5 F 00 Instruction Pointer in program flow Stack Pointer in Stack Effective Flags Control and status flags Address 16 bit registers (20 bits)

Flag register CF PF AF ZF SF TF IF DF OF IOPL NT Carry Flag Parity Flag Auxiliary carry Flag Zero Flag Sign Flag Trace Flag Interrupt enable Flag Direction Flag Overflow Flag I/O Priority Level Nested Task Contains Carry out of MSB of result Indicates if result has even parity Contains Carry out of bit 3 in AL Indicates if result equals zero Indicates if result is negative Provides a single step capability for debugging Enables/disables interrupts Controls pointer updating during string operations Indicates that an overflow occurred in result Priority level of current task (two bits) Indicates if current task is nested

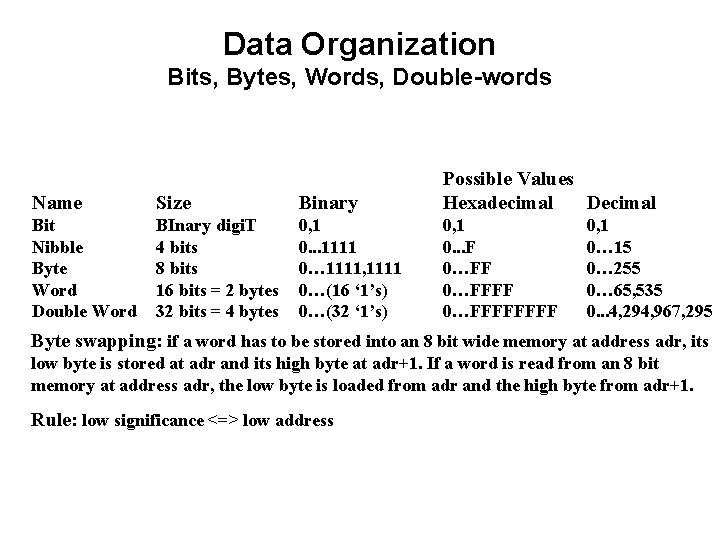

Data Organization Bits, Bytes, Words, Double-words Name Size Binary Possible Values Hexadecimal Decimal Bit Nibble Byte Word Double Word BInary digi. T 4 bits 8 bits 16 bits = 2 bytes 32 bits = 4 bytes 0, 1 0. . . 1111 0… 1111, 1111 0…(16 ‘ 1’s) 0…(32 ‘ 1’s) 0, 1 0. . . F 0…FFFF 0, 1 0… 15 0… 255 0… 65, 535 0. . . 4, 294, 967, 295 Byte swapping: if a word has to be stored into an 8 bit wide memory at address adr, its low byte is stored at adr and its high byte at adr+1. If a word is read from an 8 bit memory at address adr, the low byte is loaded from adr and the high byte from adr+1. Rule: low significance <=> low address

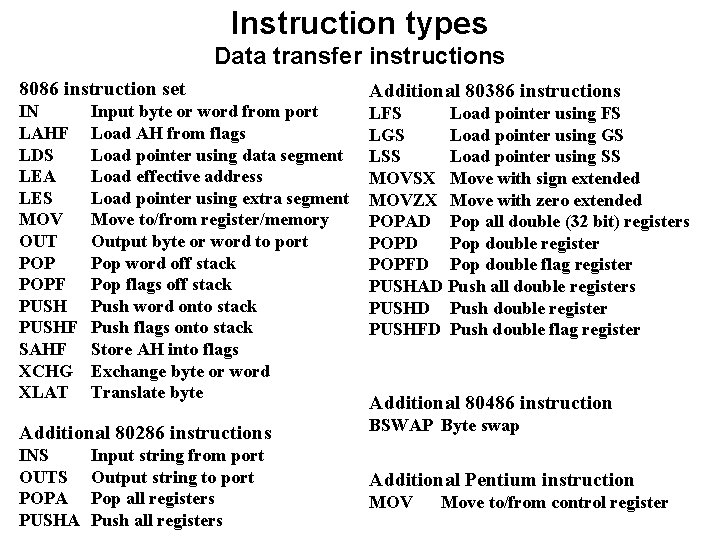

Instruction types Data transfer instructions 8086 instruction set IN LAHF LDS LEA LES MOV OUT POPF PUSHF SAHF XCHG XLAT Input byte or word from port Load AH from flags Load pointer using data segment Load effective address Load pointer using extra segment Move to/from register/memory Output byte or word to port Pop word off stack Pop flags off stack Push word onto stack Push flags onto stack Store AH into flags Exchange byte or word Translate byte Additional 80386 instructions LFS Load pointer using FS LGS Load pointer using GS LSS Load pointer using SS MOVSX Move with sign extended MOVZX Move with zero extended POPAD Pop all double (32 bit) registers POPD Pop double register POPFD Pop double flag register PUSHAD Push all double registers PUSHD Push double register PUSHFD Push double flag register Additional 80486 instruction Additional 80286 instructions BSWAP Byte swap INS OUTS POPA PUSHA Additional Pentium instruction Input string from port Output string to port Pop all registers Push all registers MOV Move to/from control register

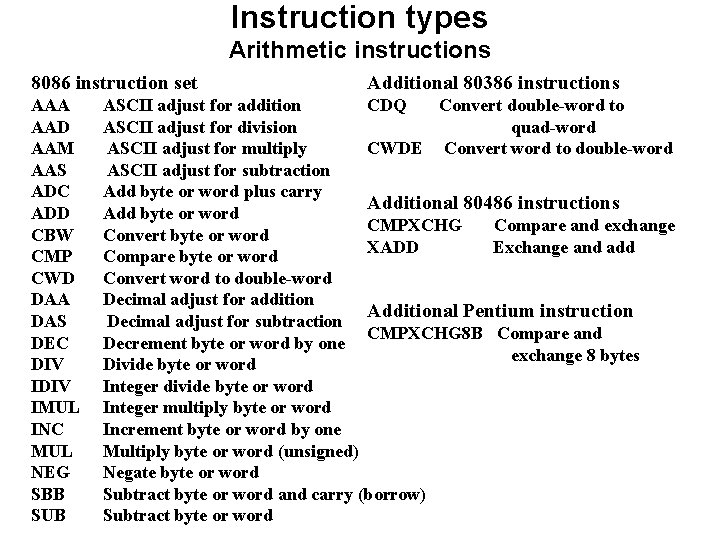

Instruction types Arithmetic instructions 8086 instruction set AAA AAD AAM AAS ADC ADD CBW CMP CWD DAA DAS DEC DIV IMUL INC MUL NEG SBB SUB Additional 80386 instructions CDQ Convert double-word to ASCII adjust for addition quad-word ASCII adjust for division CWDE Convert word to double-word ASCII adjust for multiply ASCII adjust for subtraction Add byte or word plus carry Additional 80486 instructions Add byte or word CMPXCHG Compare and exchange Convert byte or word XADD Exchange and add Compare byte or word Convert word to double-word Decimal adjust for addition Additional Pentium instruction Decimal adjust for subtraction CMPXCHG 8 B Compare and Decrement byte or word by one exchange 8 bytes Divide byte or word Integer divide byte or word Integer multiply byte or word Increment byte or word by one Multiply byte or word (unsigned) Negate byte or word Subtract byte or word and carry (borrow) Subtract byte or word

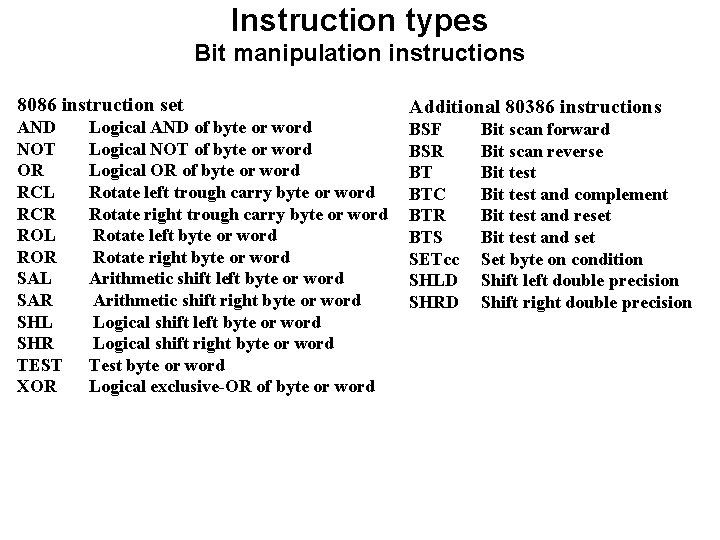

Instruction types Bit manipulation instructions 8086 instruction set AND NOT OR RCL RCR ROL ROR SAL SAR SHL SHR TEST XOR Logical AND of byte or word Logical NOT of byte or word Logical OR of byte or word Rotate left trough carry byte or word Rotate right trough carry byte or word Rotate left byte or word Rotate right byte or word Arithmetic shift left byte or word Arithmetic shift right byte or word Logical shift left byte or word Logical shift right byte or word Test byte or word Logical exclusive-OR of byte or word Additional 80386 instructions BSF BSR BT BTC BTR BTS SETcc SHLD SHRD Bit scan forward Bit scan reverse Bit test and complement Bit test and reset Bit test and set Set byte on condition Shift left double precision Shift right double precision

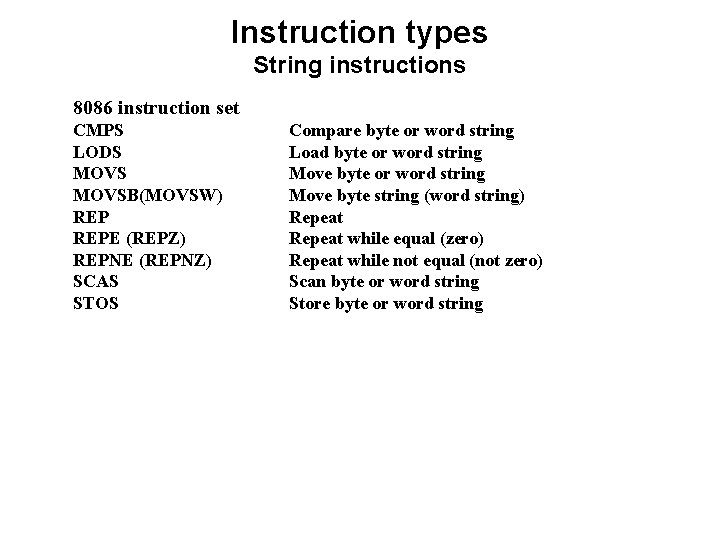

Instruction types String instructions 8086 instruction set CMPS LODS MOVSB(MOVSW) REPE (REPZ) REPNE (REPNZ) SCAS STOS Compare byte or word string Load byte or word string Move byte string (word string) Repeat while equal (zero) Repeat while not equal (not zero) Scan byte or word string Store byte or word string
