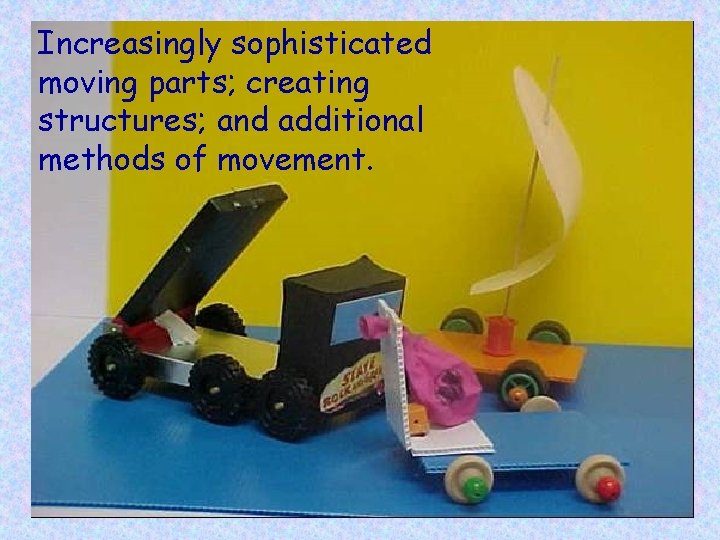

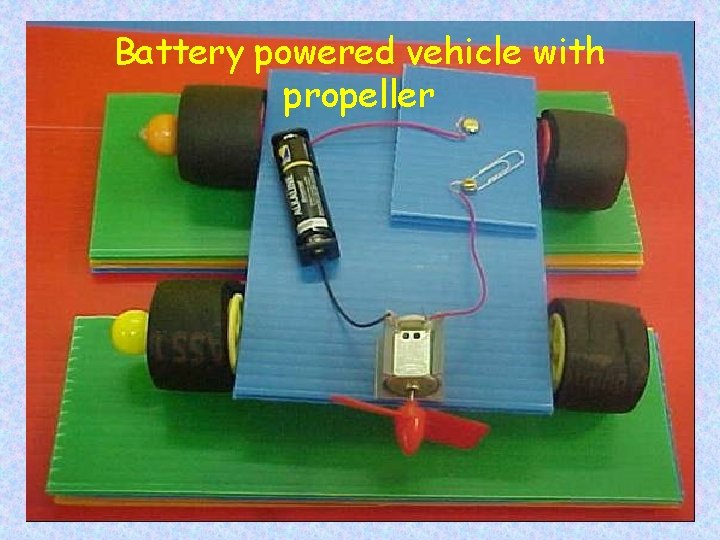

Increasingly sophisticated moving parts; creating structures; and additional methods of movement.

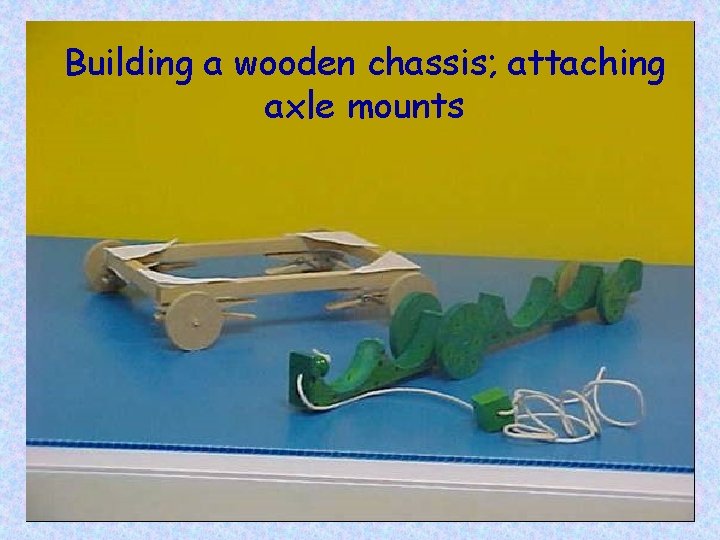

Building a wooden chassis; attaching axle mounts

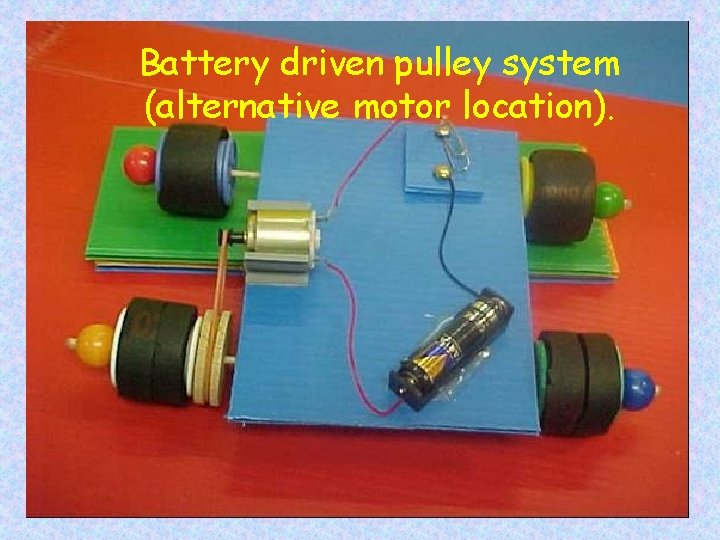

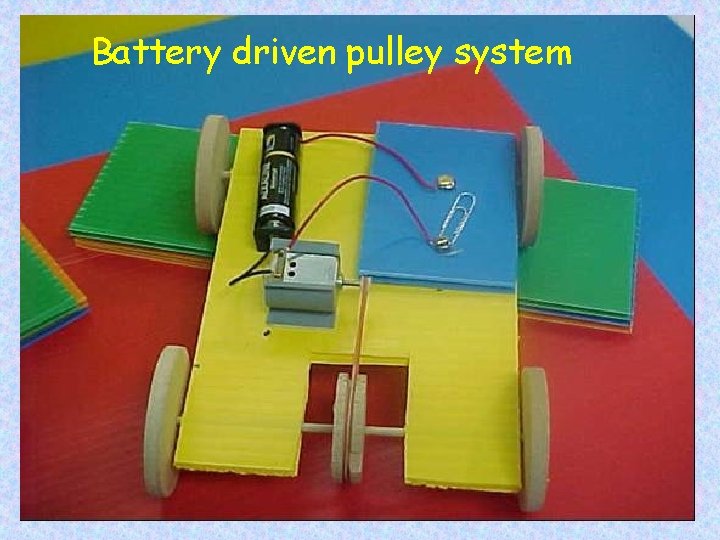

Battery driven pulley system (alternative motor location).

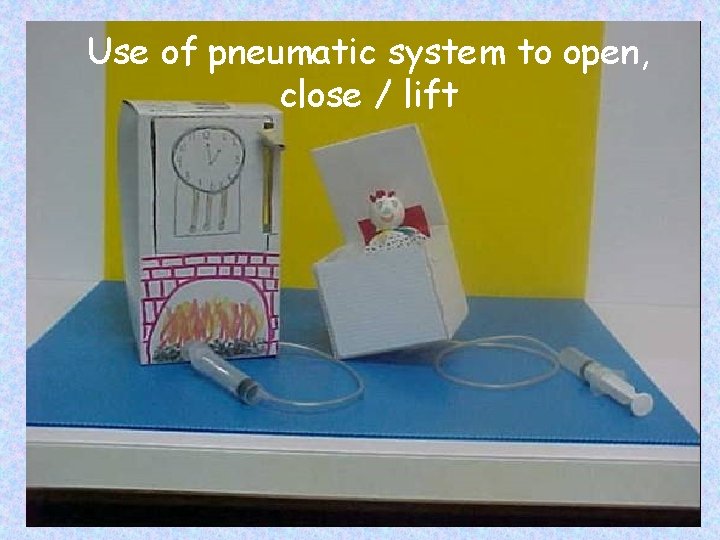

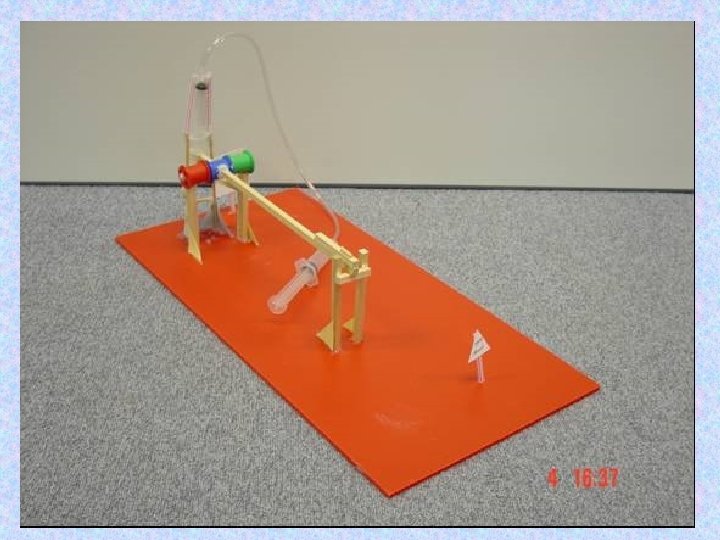

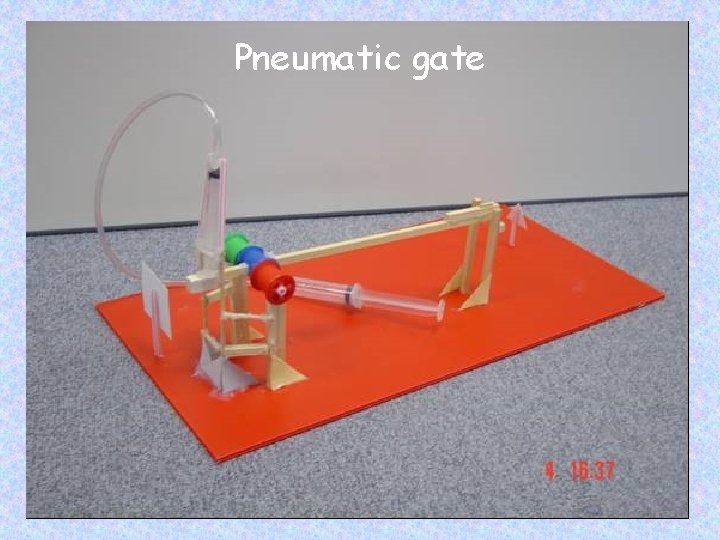

Use of pneumatic system to open, close / lift

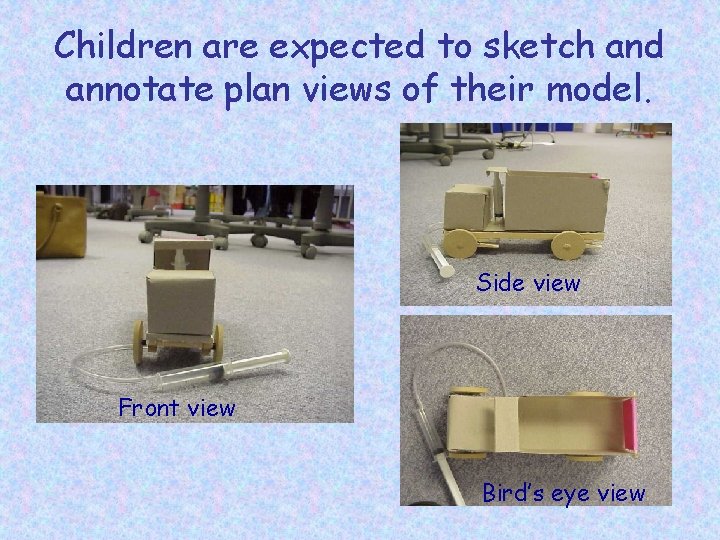

Children are expected to sketch and annotate plan views of their model. Side view

Slides: 34

Download presentation

Equipment and Tools Primary Science & Technology Challenge

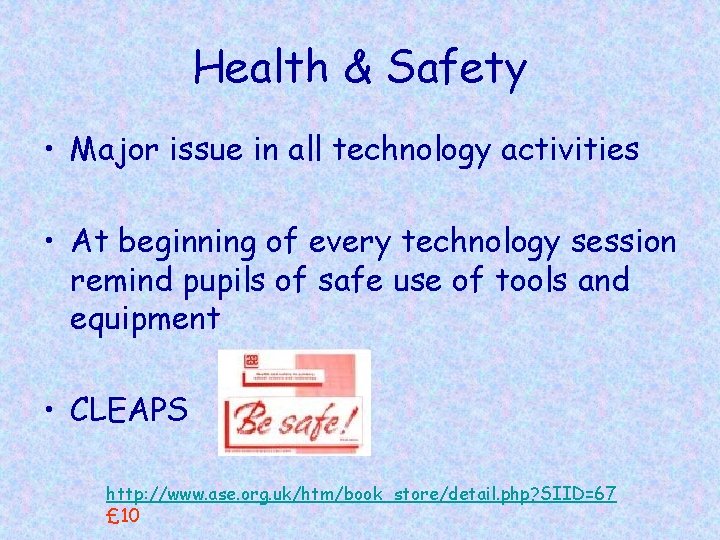

Health & Safety • Major issue in all technology activities • At beginning of every technology session remind pupils of safe use of tools and equipment • CLEAPS http: //www. ase. org. uk/htm/book_store/detail. php? SIID=67 £ 10

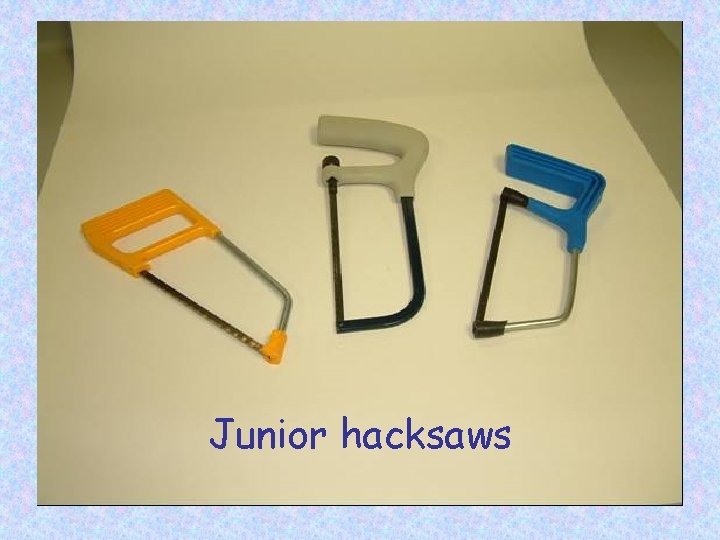

Junior hacksaws

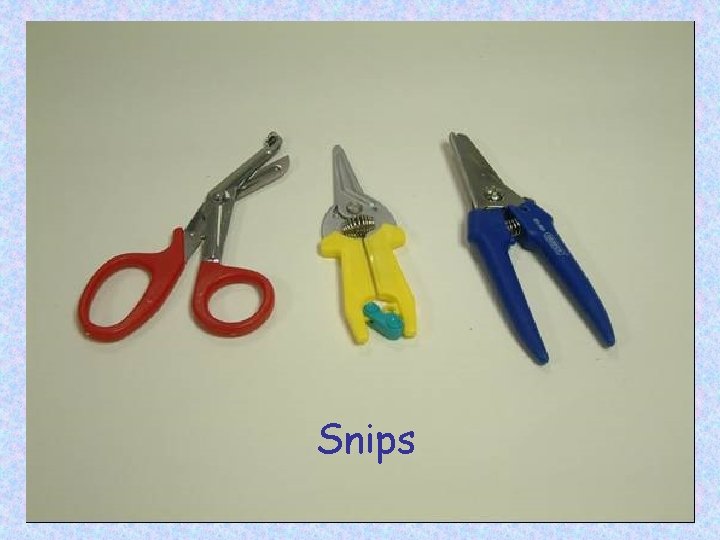

Snips

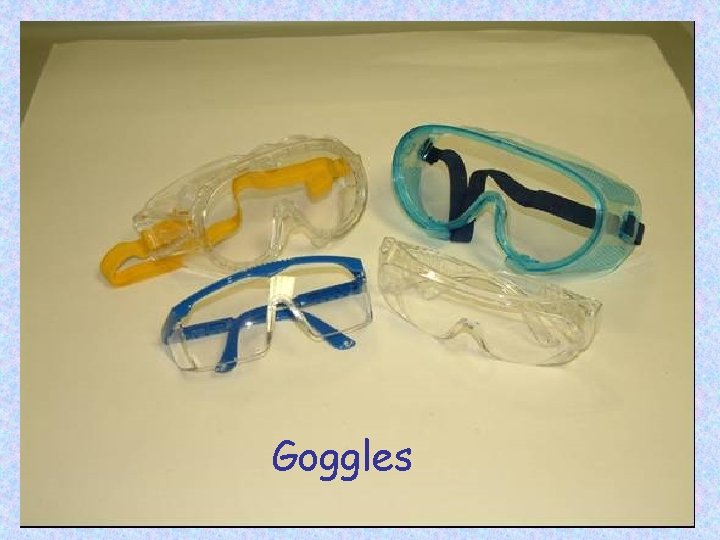

Goggles

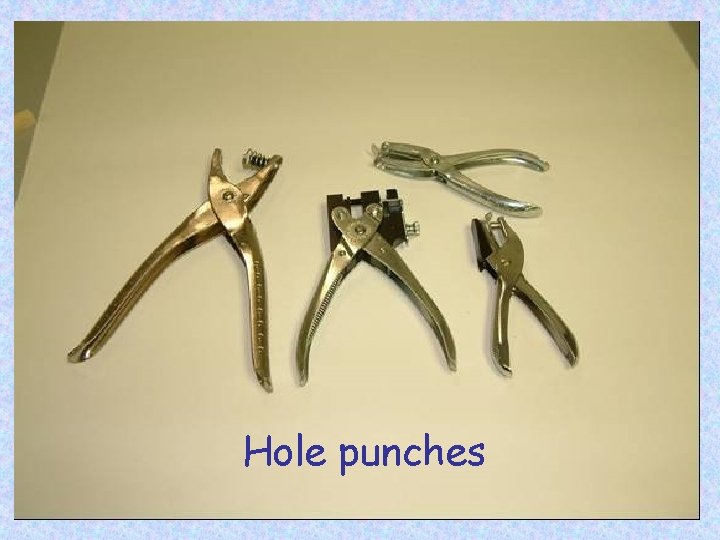

Hole punches

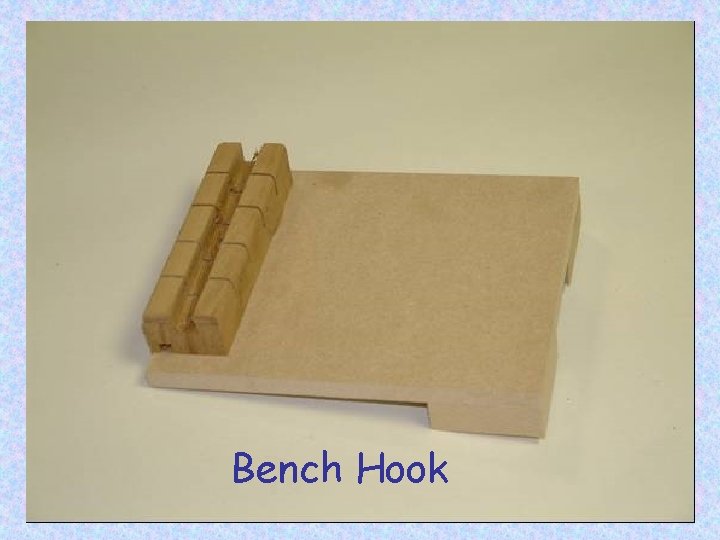

Bench Hook

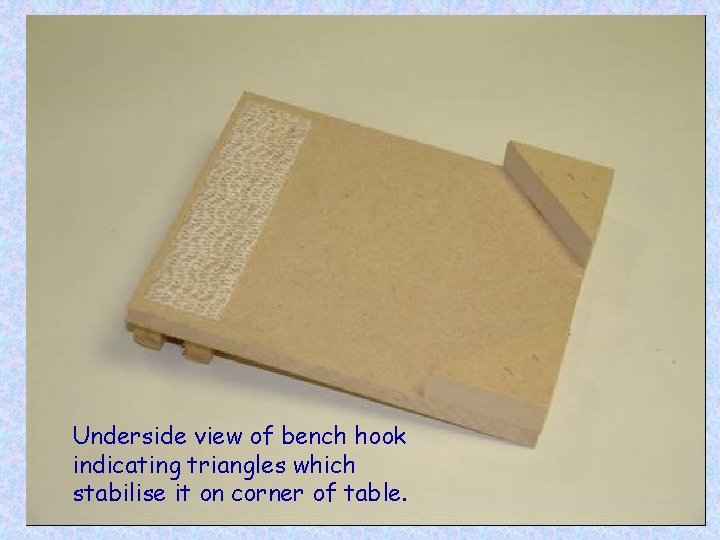

Underside view of bench hook indicating triangles which stabilise it on corner of table.

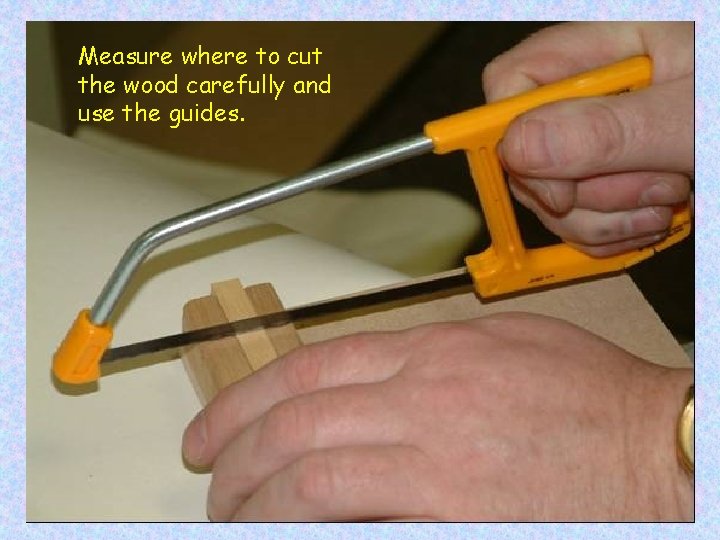

Measure where to cut the wood carefully and use the guides.

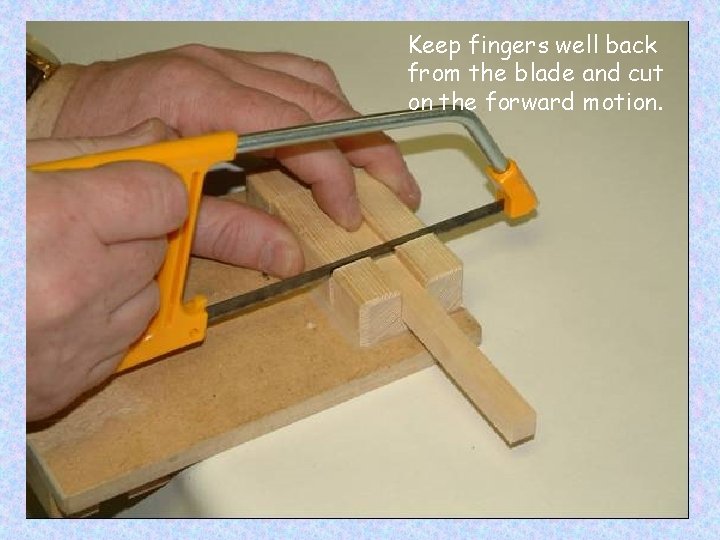

Keep fingers well back from the blade and cut on the forward motion.

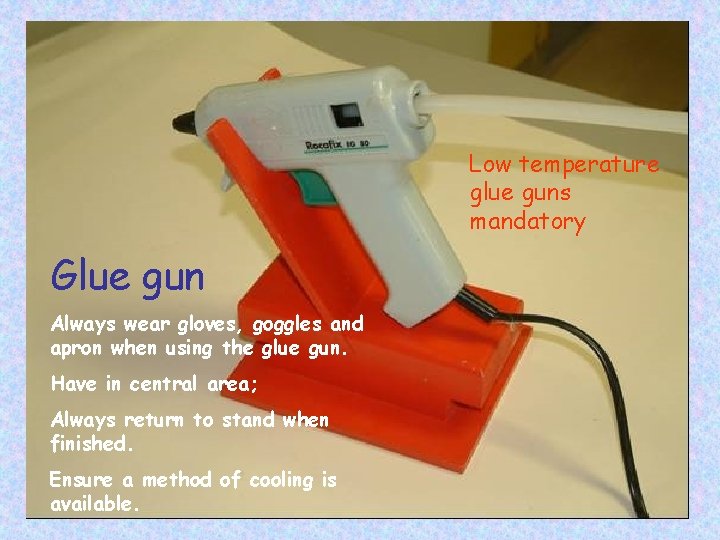

Low temperature glue guns mandatory Glue gun Always wear gloves, goggles and apron when using the glue gun. Have in central area; Always return to stand when finished. Ensure a method of cooling is available.

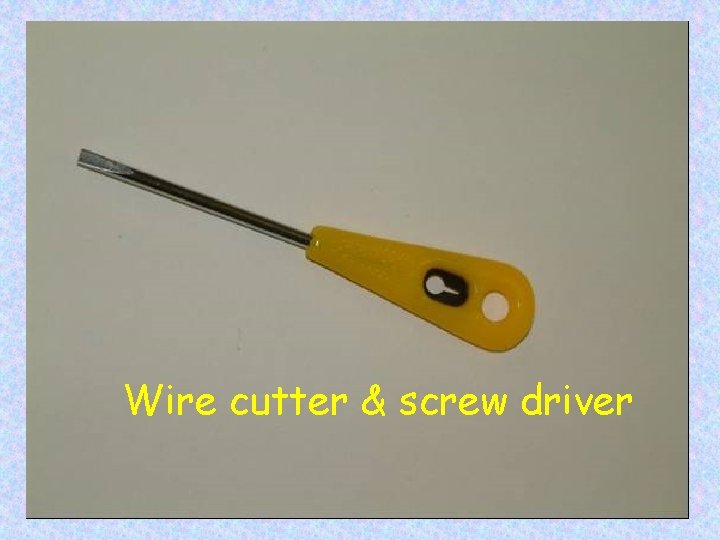

Wire cutter & screw driver

1 cm Lynx jointer

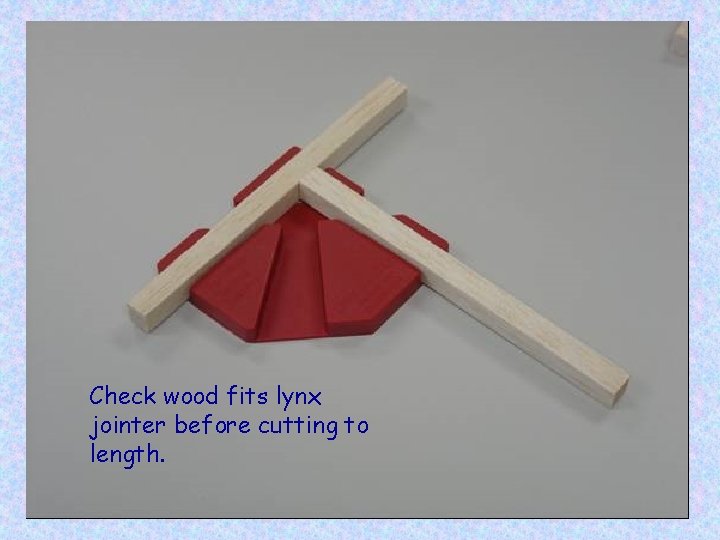

Check wood fits lynx jointer before cutting to length.

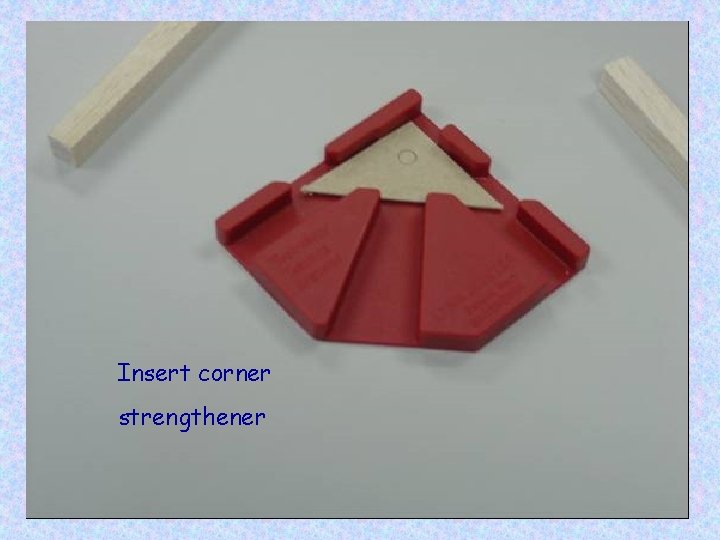

Insert corner strengthener

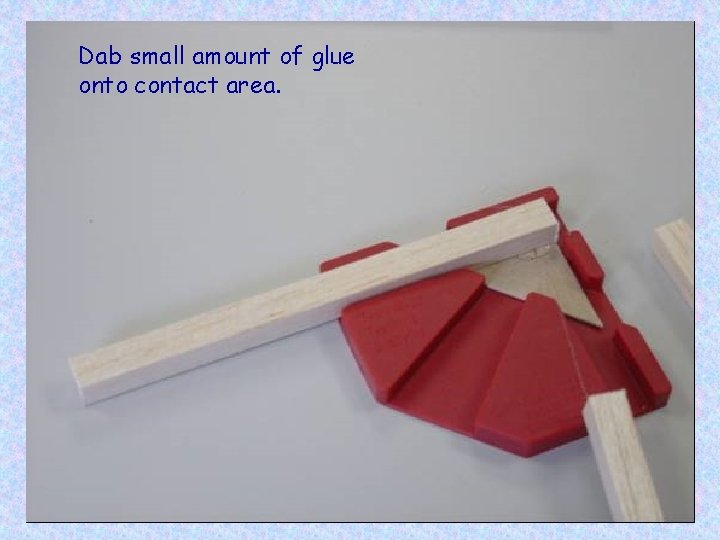

Dab small amount of glue onto contact area.

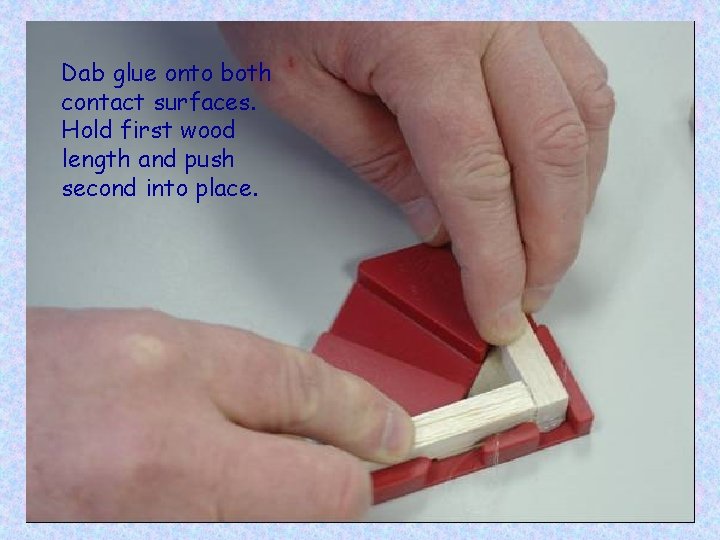

Dab glue onto both contact surfaces. Hold first wood length and push second into place.

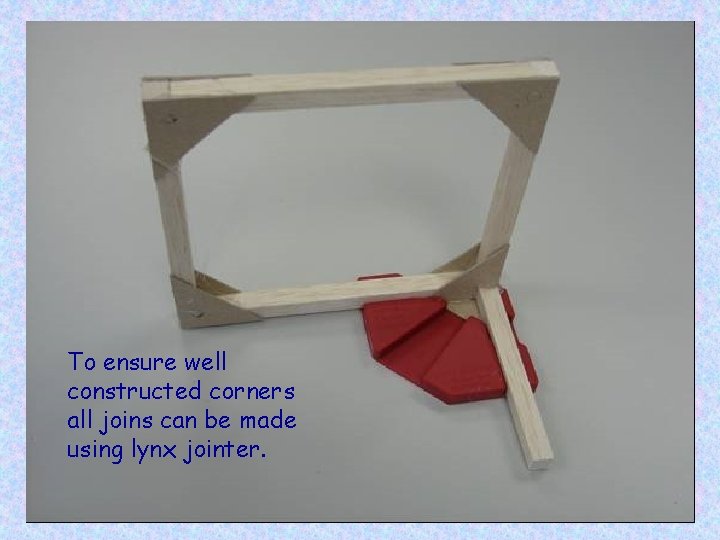

To ensure well constructed corners all joins can be made using lynx jointer.

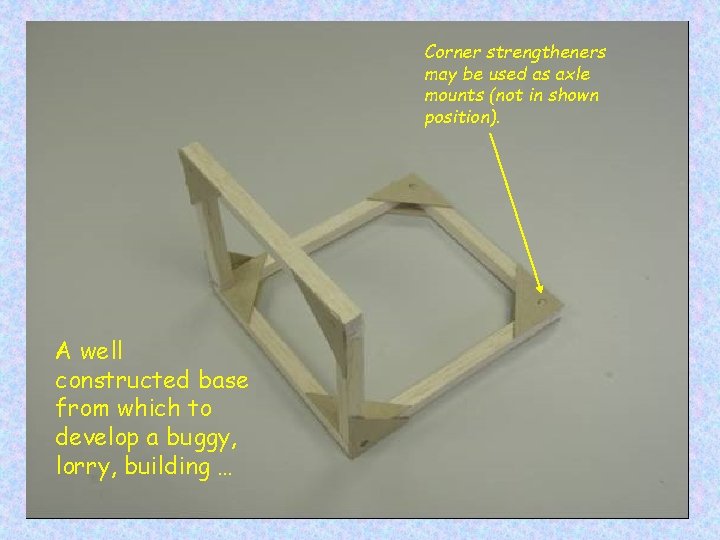

Corner strengtheners may be used as axle mounts (not in shown position). A well constructed base from which to develop a buggy, lorry, building …

Examples A progression in vehicles

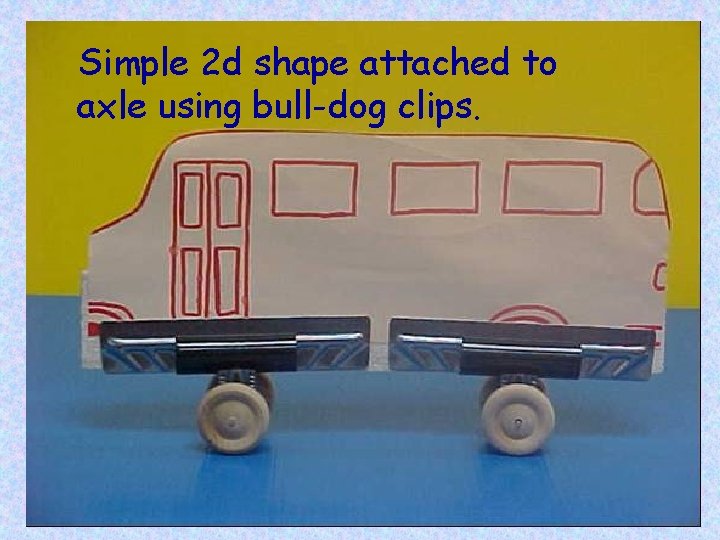

Simple 2 d shape attached to axle using bull-dog clips.

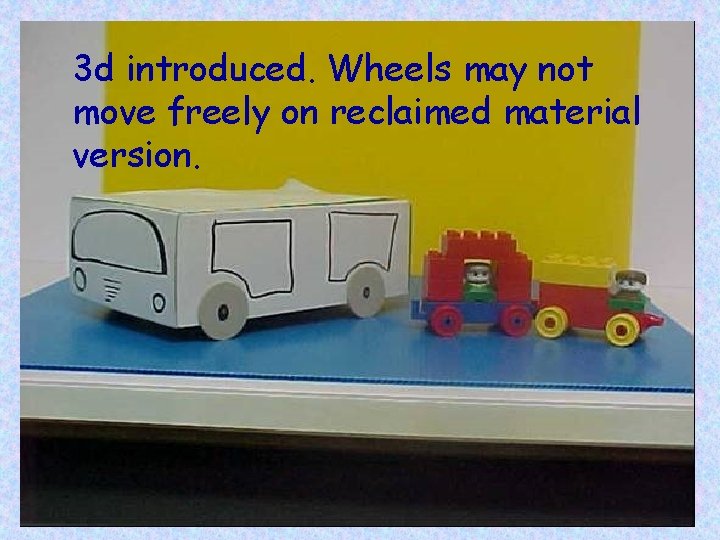

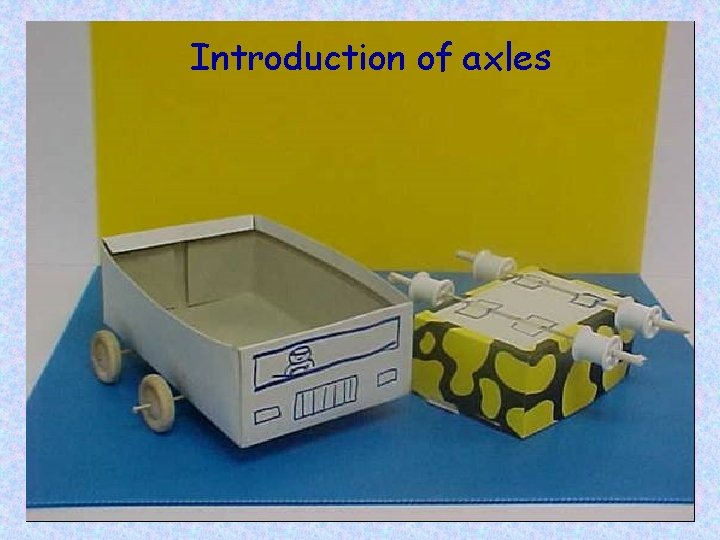

3 d introduced. Wheels may not move freely on reclaimed material version.

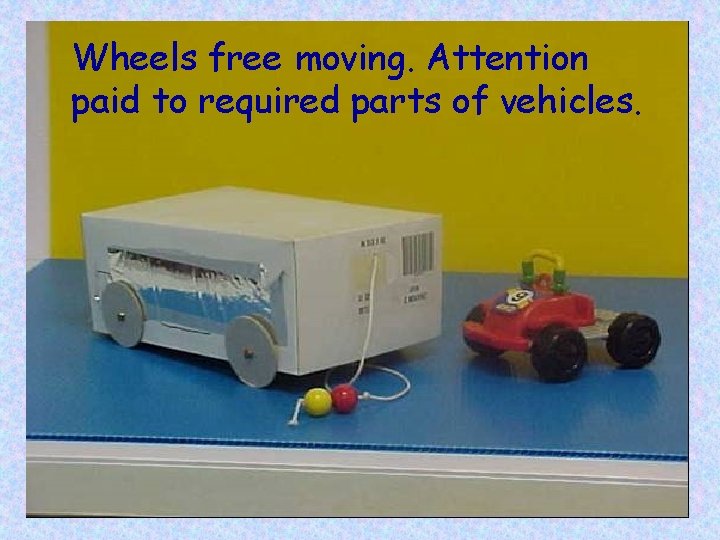

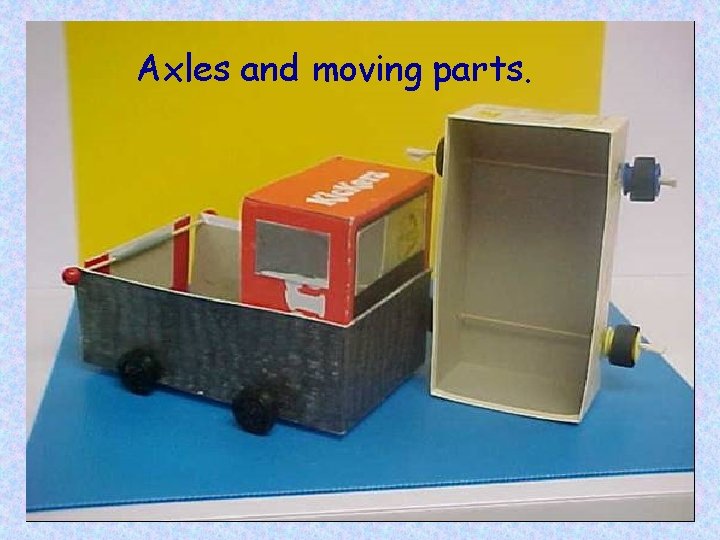

Wheels free moving. Attention paid to required parts of vehicles.
