Efficient Merging and Filtering Algorithms for Approximate String
- Slides: 40
Efficient Merging and Filtering Algorithms for Approximate String Searches Jiaheng Lu, University of California, Irvine Joint work with Chen Li, Yiming Lu
Example: a movie database Find movies starred Schwarrzenger. Star Keanu Reeves Title The Matrix Year 1999 Genre Sci-Fi Samuel Jackson Iron man 2008 Sci-Fi Schwarzenegger The Terminator 1984 Sci-Fi Samuel Jackson The man 2006 Crime Chen Li, Jiaheng Lu, Yiming Lu 2
Data may not clean p Data integration and cleaning: Relation R Star Relation S Star Keanu Reeves Samuel Jackson Samuel L. Jackson Schwarzenegger Chen Li, Jiaheng Lu, Yiming Lu 3
Problem definition: approximate string searches Collection of strings s Search Query q: Schwarrzenger Star Keanu Reeves Samuel Jackson Schwarzenger … Sim functions: edit distance, Jaccard Coefficient and Cosine similarity Output: strings s that satisfy Sim(q, s)≤δ Chen Li, Jiaheng Lu, Yiming Lu 4
Outline Problem motivation p Preliminaries p n n Grams Inverted lists Merge algorithms p Filtering techniques p Conclusion p Chen Li, Jiaheng Lu, Yiming Lu 5
String Grams p q-grams For example: 2 -gram u n i v e r s a l (un), (ni), (iv), (ve), (er), (rs), (sa), (al) Chen Li, Jiaheng Lu, Yiming Lu 6
Inverted lists p Convert strings to gram inverted lists id 0 1 2 3 4 strings rich stick stich stuck static Chen Li, Jiaheng Lu, Yiming Lu 2 -grams at ch ck ic ri st ta ti tu uc 4 0 2 1 0 0 1 4 1 3 3 3 1 2 4 2 3 4 2 4 7

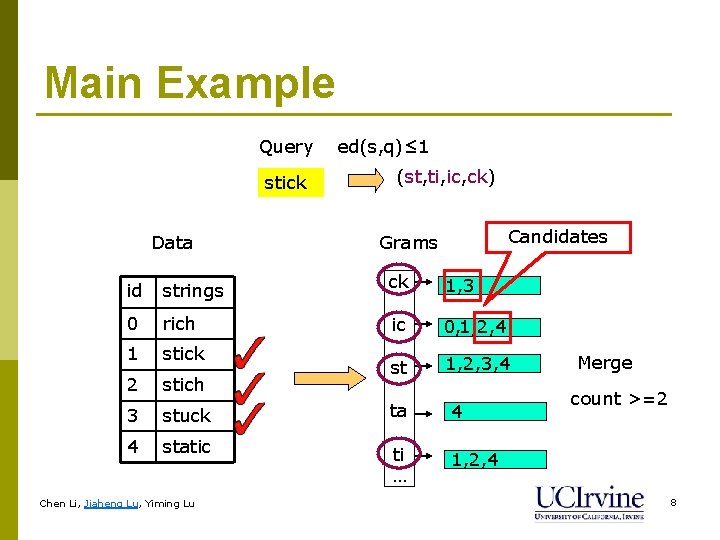

Main Example Query stick Data id strings 0 rich 1 stick 2 stich ed(s, q)≤ 1 (st, ti, ic, ck) ck 1, 3 ic 0, 1, 2, 4 st 1, 2, 3, 4 3 stuck ta 4 static ti … Chen Li, Jiaheng Lu, Yiming Lu Candidates Grams 4 1, 2, 4 Merge count >=2 8
Problem definition: Merge Ascending order Find elements whose occurrences ≥ T Chen Li, Jiaheng Lu, Yiming Lu 9
Example p T=4 1 10 5 3 13 7 5 15 13 13 15 10 13 Result: 13 Chen Li, Jiaheng Lu, Yiming Lu 10

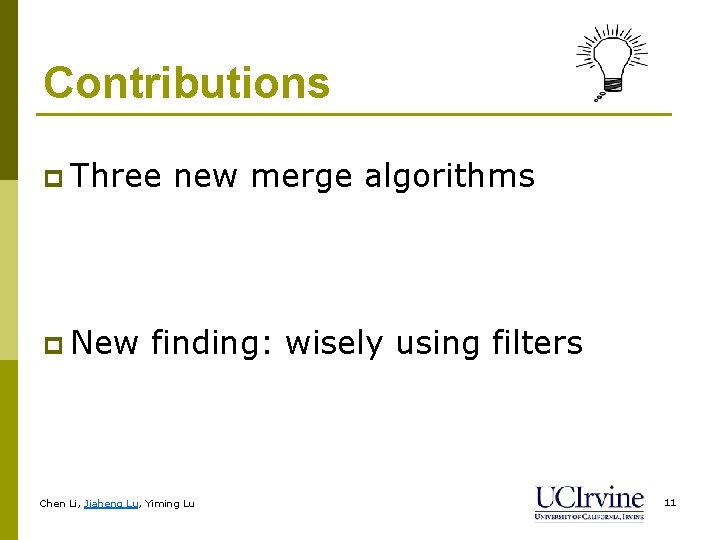

Contributions p Three p New new merge algorithms finding: wisely using filters Chen Li, Jiaheng Lu, Yiming Lu 11
Outline Problem motivation p Preliminaries p Merge algorithms p n n Two previous algorithms Our proposed three algorithms Filtering techniques p Conclusion p Chen Li, Jiaheng Lu, Yiming Lu 12
Five Merge Algorithms Heap. Merger Merge. Opt [Sarawagi, SIGMOD 2004] Previous New Scan. Count Chen Li, Jiaheng Lu, Yiming Lu Merge. Skip Divide. Skip 13
Heap-based Algorithm Push to heap …… Min-heap Count # of the occurrences of each element by a heap Chen Li, Jiaheng Lu, Yiming Lu 14
Merge. Opt Algorithm Binary search Long Lists: T-1 Chen Li, Jiaheng Lu, Yiming Lu Short Lists 15
Example of Merge. Opt [Sarawagi et al 2004] 1 10 5 3 13 7 5 15 13 13 15 10 13 Long Lists: 3 Short Lists: 2 Count threshold T≥ 4 Chen Li, Jiaheng Lu, Yiming Lu 16
Can we run faster? Chen Li, Jiaheng Lu, Yiming Lu 17

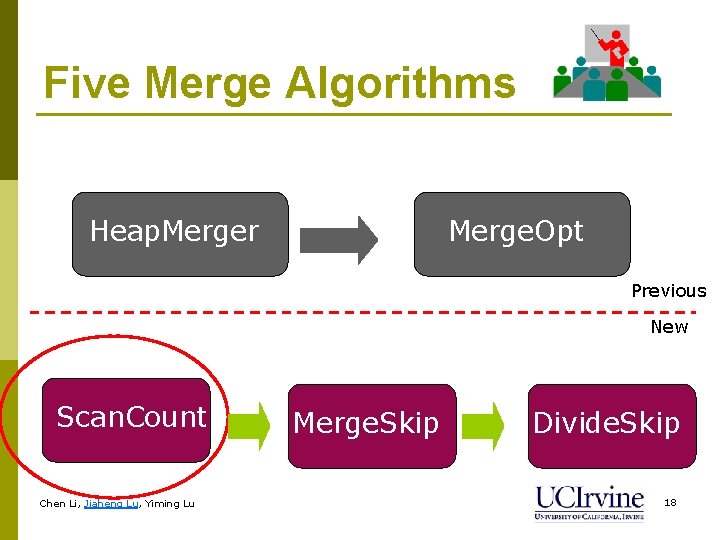

Five Merge Algorithms Heap. Merger Merge. Opt Previous New Scan. Count Chen Li, Jiaheng Lu, Yiming Lu Merge. Skip Divide. Skip 18
Scan. Count Example String ids 1 2 3 … 1 0 0 1 0 # of occurrences Increment by 1 1 10 5 3 13 7 5 15 13 13 15 10 13 14 15 0 4 0 2 0 Result! Chen Li, Jiaheng Lu, Yiming Lu 13 Count threshold T≥ 4 19
Five Merge Algorithms Heap. Merger Merge. Opt Previous New Scan. Count Chen Li, Jiaheng Lu, Yiming Lu Merge. Skip Divide. Skip 20
Merge. Skip algorithm …… Min-heap Jump Pop T-1 Greater or equals T-1 Chen Li, Jiaheng Lu, Yiming Lu 21
Example of Merge. Skip 1 min. Heap 5 13 Jump 10 15 1 10 5 3 13 7 5 15 17 13 15 10 15 Count threshold T≥ 4 Chen Li, Jiaheng Lu, Yiming Lu 22
Skip is safe Min-heap …… Skip # of occurrences of skipped elements ≤T-1 Chen Li, Jiaheng Lu, Yiming Lu 23
Five Merge Algorithms Heap. Merger Merge. Opt Previous New Scan. Count Chen Li, Jiaheng Lu, Yiming Lu Merge. Skip Divide. Skip 24
Divide. Skip Algorithm Binary Merge. Skip search Long Lists Chen Li, Jiaheng Lu, Yiming Lu Short Lists 25
How many lists are treated as long lists? Long Lists ? Chen Li, Jiaheng Lu, Yiming Lu Lookup Short Lists Merge 26
Decide L value A good balance in the tradeoff: # of long lists = T / ( μ log. M +1) Chen Li, Jiaheng Lu, Yiming Lu 27
Experimental data sets DBLP data Chen Li, Jiaheng Lu, Yiming Lu IMDB data Google Web corpus 28
Performance (DBLP) Divide. Skip is the best one Chen Li, Jiaheng Lu, Yiming Lu 29
# of access elements (DBLP) Divide. Skip is the best one Chen Li, Jiaheng Lu, Yiming Lu 30
Outline Problem motivation p Preliminaries p Merge algorithms p Filtering techniques p n n p Length, positional filters Filter tree Conclusion and future work Chen Li, Jiaheng Lu, Yiming Lu 31
Length Filtering Length: 10 s: By length only! Ed(s, t) ≤ 2 t: Length: 19 Chen Li, Jiaheng Lu, Yiming Lu 32
Positional Filtering Ed(s, t) ≤ 2 s a b (ab, 1) t a b (ab, 12) Chen Li, Jiaheng Lu, Yiming Lu 33
Filter tree root 1 2 aa ab 3 … … zy 1 2 5 12 17 28 44 Chen Li, Jiaheng Lu, Yiming Lu n Gram level zz … Length level m Position level Inverted list 34
Surprising experimental results (DBLP) Divide. Skip No filter (ms) Length (ms) 2. 23 0. 76 Length+Pos (ms) 1. 96 Why adding position filter increases the running time? Chen Li, Jiaheng Lu, Yiming Lu 35
Filters fragment inverts lists Merge Applying filters Saving: Cost: reduce (1)total Tree lists traversal size (2)More merging Chen Li, Jiaheng Lu, Yiming Lu 36
Conclusion p Three n new merge algorithms We run faster p Interesting finding: Do not abuse filters! Chen Li, Jiaheng Lu, Yiming Lu 37
Related work Approximate string matching [Navarro 2001] Fuzzy lookup in Chen Li, Jiaheng Lu, Yiming Lu Varied length Grams [Li et al 2007] 38
References 1. 2. 3. [Arasu 2006] A. Arasu and V. Ganti and R. Kaushik “Efficient Exact Set-similarity Joins” in VLDB 2006 [Chaudhuri 2003] S. Chaudhuri , K Ganjam, V. Ganti and R. Motwani “Robust and Efficient Fuzzy Match for online Data Cleaning” in SIGMOD 2003 [Gravano 2001] L. Gravano, P. G. Ipeirotis, H. V. Jagadish, N. Koudas, S. Muthukrishnan and D. Srivastava “Approximate string joins in a database almost for free” in VLDB 2001 Chen Li, Jiaheng Lu, Yiming Lu 39
References 4. [Li 2007] C. Li, B Wang and X. Yang “VGRAM: Improving performance of approximate queries on string collections using variablelength grams ” in VLDB 2007 5. [Navarro 2001] G. Navarro, “A guided tour to approximate string matching” in Computing survey 2001 6. [Sarawagi 2004] S. Sarawagi and A. Kirpal, “Efficient set joins on similarity predicates” in ACM SIGMOD 2004 Chen Li, Jiaheng Lu, Yiming Lu 40
