DESIGN II for Windows Win Sim Inc Advanced

DESIGN II for Windows Win. Sim Inc. Advanced Engineering Software

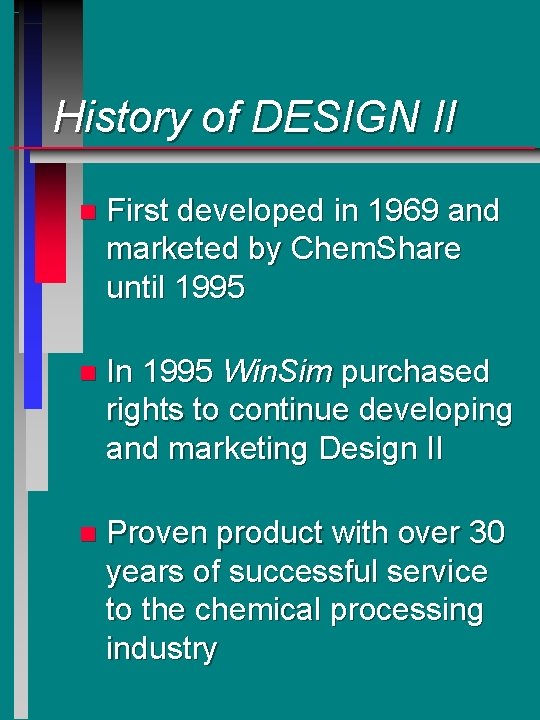

History of DESIGN II n First developed in 1969 and marketed by Chem. Share until 1995 n In 1995 Win. Sim purchased rights to continue developing and marketing Design II n Proven product with over 30 years of successful service to the chemical processing industry

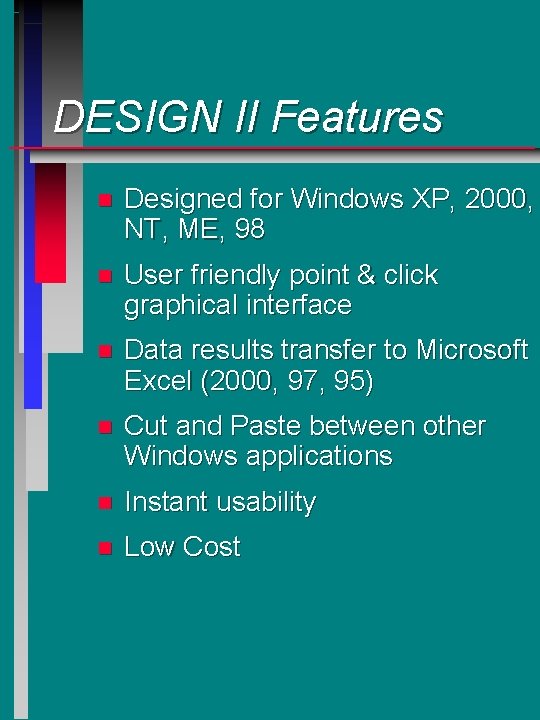

DESIGN II Features n Designed for Windows XP, 2000, NT, ME, 98 n User friendly point & click graphical interface n Data results transfer to Microsoft Excel (2000, 97, 95) n Cut and Paste between other Windows applications n Instant usability n Low Cost

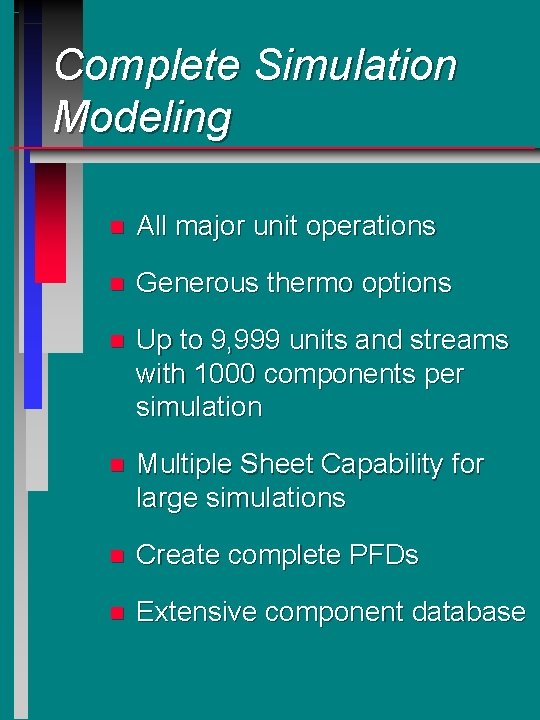

Complete Simulation Modeling n All major unit operations n Generous thermo options n Up to 9, 999 units and streams with 1000 components per simulation n Multiple Sheet Capability for large simulations n Create complete PFDs n Extensive component database

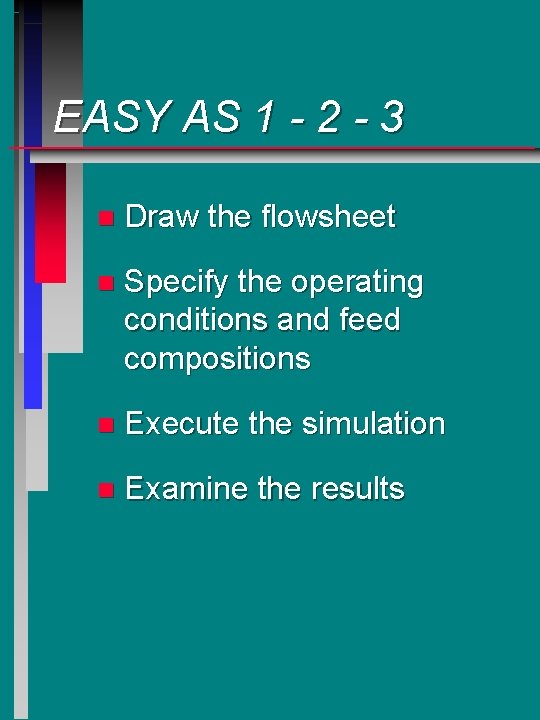

EASY AS 1 - 2 - 3 n Draw the flowsheet n Specify the operating conditions and feed compositions n Execute the simulation n Examine the results

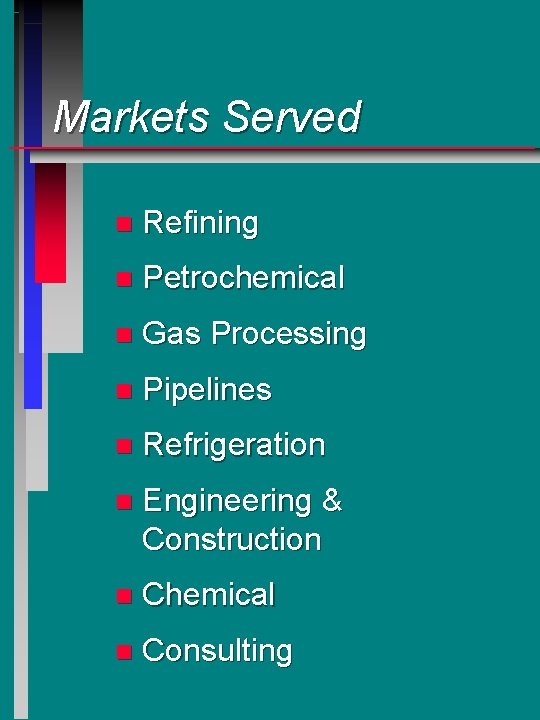

Markets Served n Refining n Petrochemical n Gas Processing n Pipelines n Refrigeration n Engineering & Construction n Chemical n Consulting

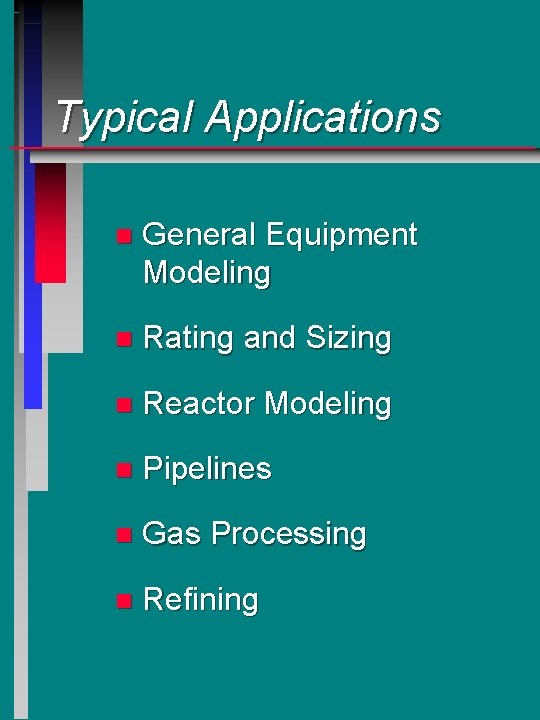

Typical Applications n General Equipment Modeling n Rating and Sizing n Reactor Modeling n Pipelines n Gas Processing n Refining

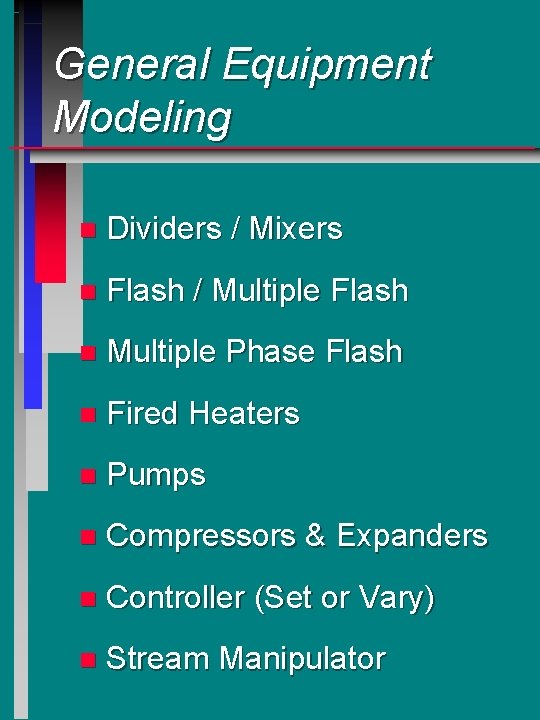

General Equipment Modeling n Dividers / Mixers n Flash / Multiple Flash n Multiple Phase Flash n Fired Heaters n Pumps n Compressors & Expanders n Controller (Set or Vary) n Stream Manipulator

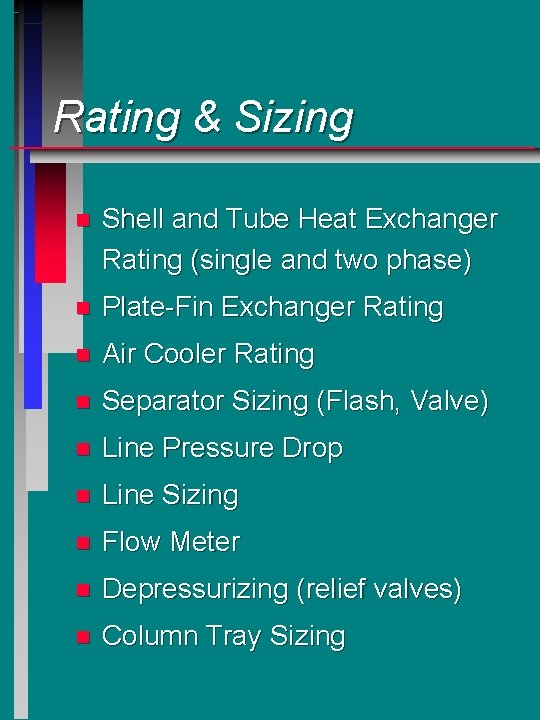

Rating & Sizing n Shell and Tube Heat Exchanger Rating (single and two phase) n Plate-Fin Exchanger Rating n Air Cooler Rating n Separator Sizing (Flash, Valve) n Line Pressure Drop n Line Sizing n Flow Meter n Depressurizing (relief valves) n Column Tray Sizing

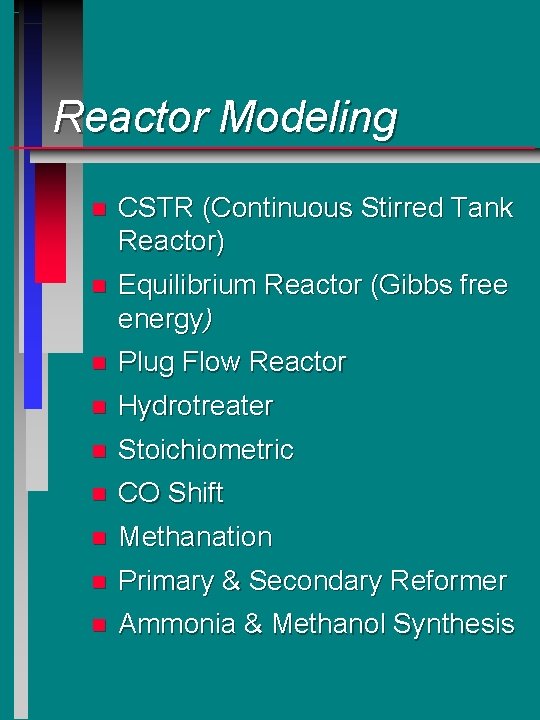

Reactor Modeling n CSTR (Continuous Stirred Tank Reactor) n Equilibrium Reactor (Gibbs free energy) n Plug Flow Reactor n Hydrotreater n Stoichiometric n CO Shift n Methanation n Primary & Secondary Reformer n Ammonia & Methanol Synthesis

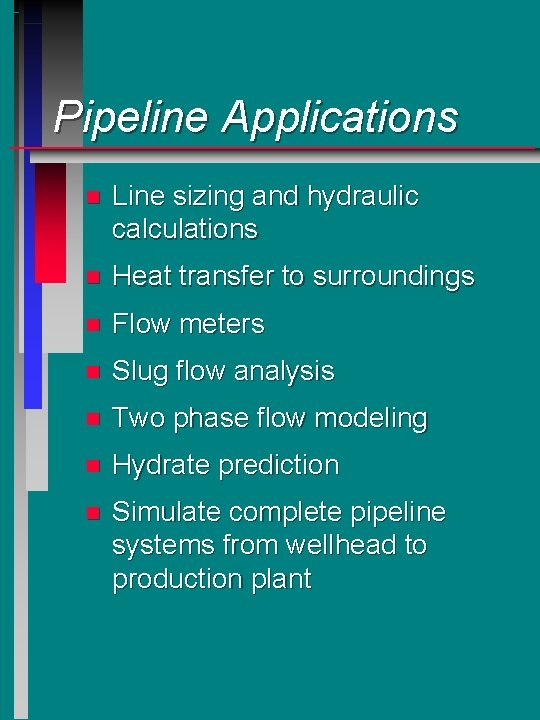

Pipeline Applications n Line sizing and hydraulic calculations n Heat transfer to surroundings n Flow meters n Slug flow analysis n Two phase flow modeling n Hydrate prediction n Simulate complete pipeline systems from wellhead to production plant

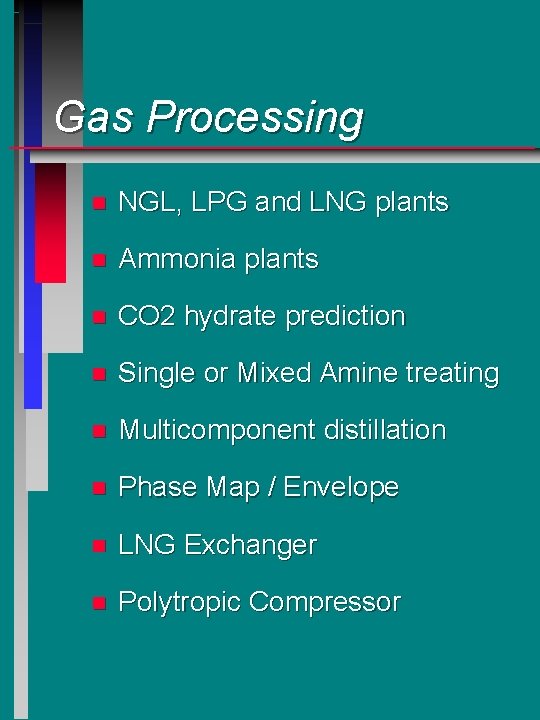

Gas Processing n NGL, LPG and LNG plants n Ammonia plants n CO 2 hydrate prediction n Single or Mixed Amine treating n Multicomponent distillation n Phase Map / Envelope n LNG Exchanger n Polytropic Compressor

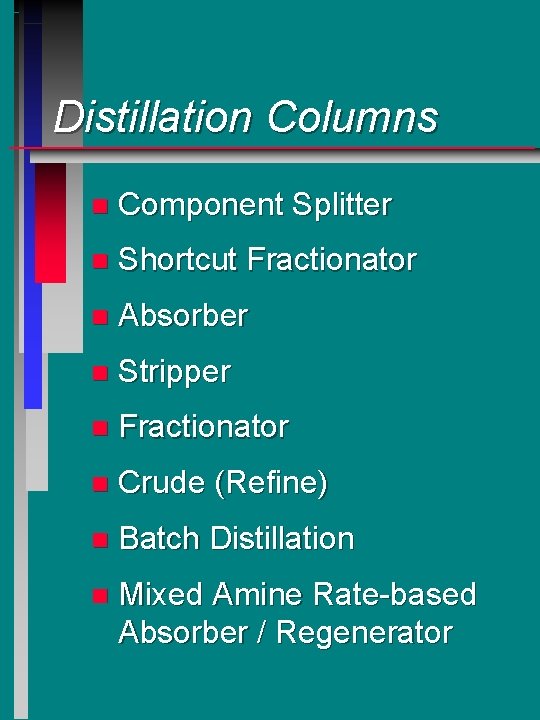

Distillation Columns n Component Splitter n Shortcut Fractionator n Absorber n Stripper n Fractionator n Crude (Refine) n Batch Distillation n Mixed Amine Rate-based Absorber / Regenerator

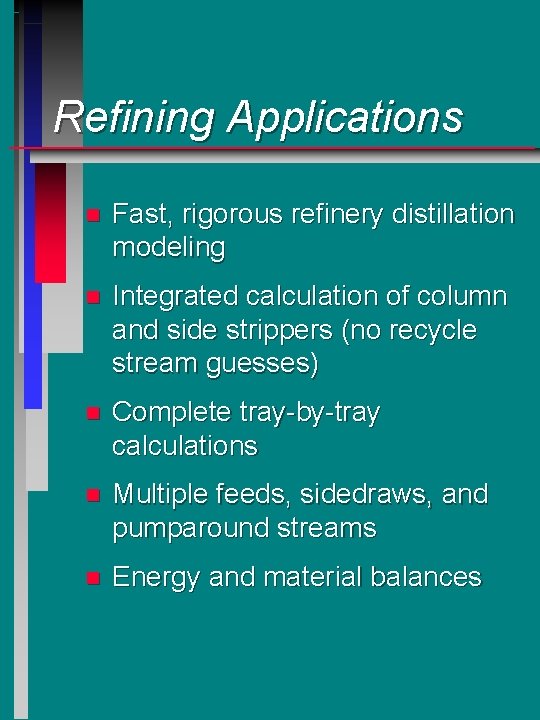

Refining Applications n Fast, rigorous refinery distillation modeling n Integrated calculation of column and side strippers (no recycle stream guesses) n Complete tray-by-tray calculations n Multiple feeds, sidedraws, and pumparound streams n Energy and material balances

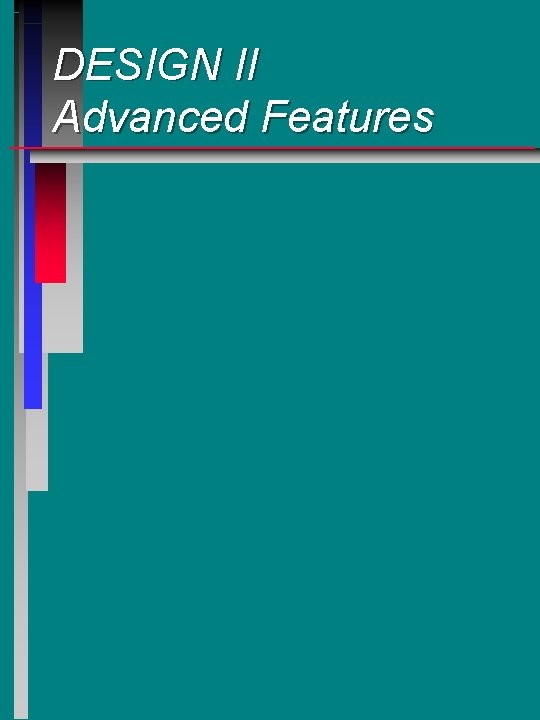

DESIGN II Advanced Features

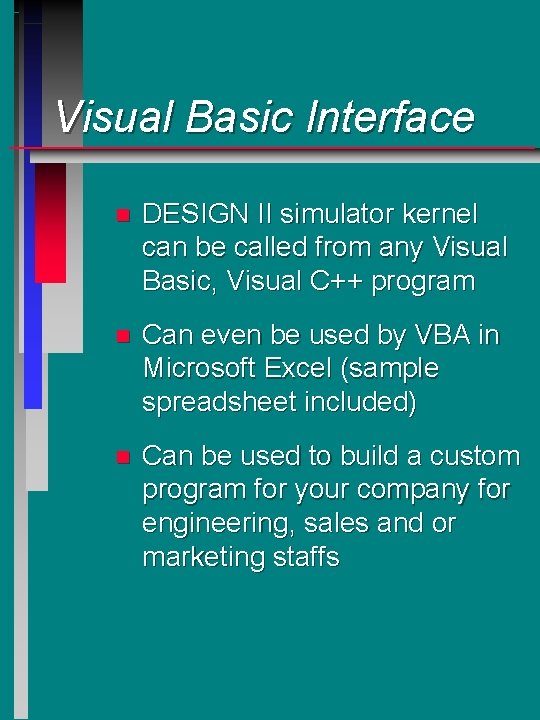

Visual Basic Interface n DESIGN II simulator kernel can be called from any Visual Basic, Visual C++ program n Can even be used by VBA in Microsoft Excel (sample spreadsheet included) n Can be used to build a custom program for your company for engineering, sales and or marketing staffs

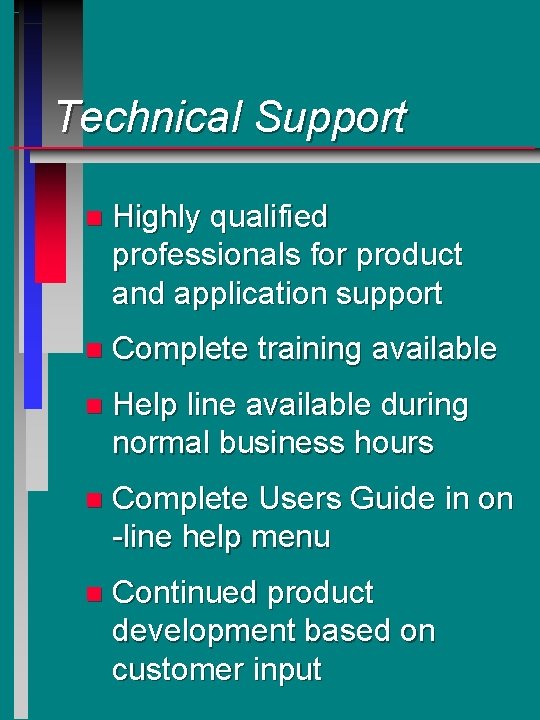

Technical Support n Highly qualified professionals for product and application support n Complete training available n Help line available during normal business hours n Complete Users Guide in on -line help menu n Continued product development based on customer input

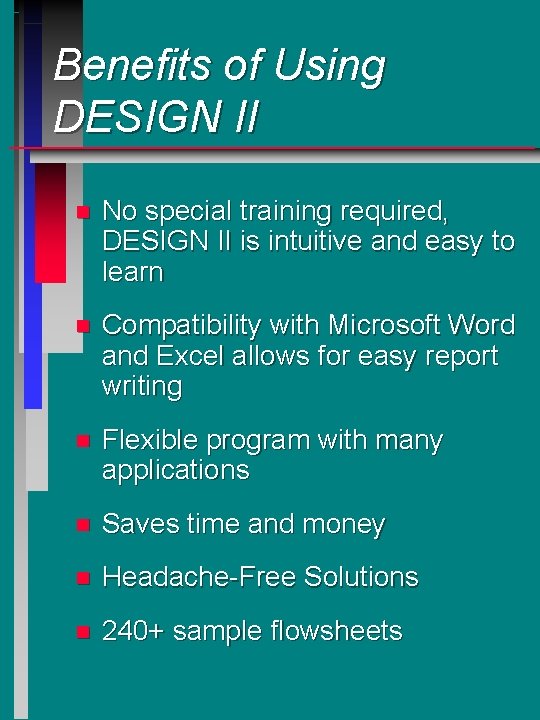

Benefits of Using DESIGN II n No special training required, DESIGN II is intuitive and easy to learn n Compatibility with Microsoft Word and Excel allows for easy report writing n Flexible program with many applications n Saves time and money n Headache-Free Solutions n 240+ sample flowsheets

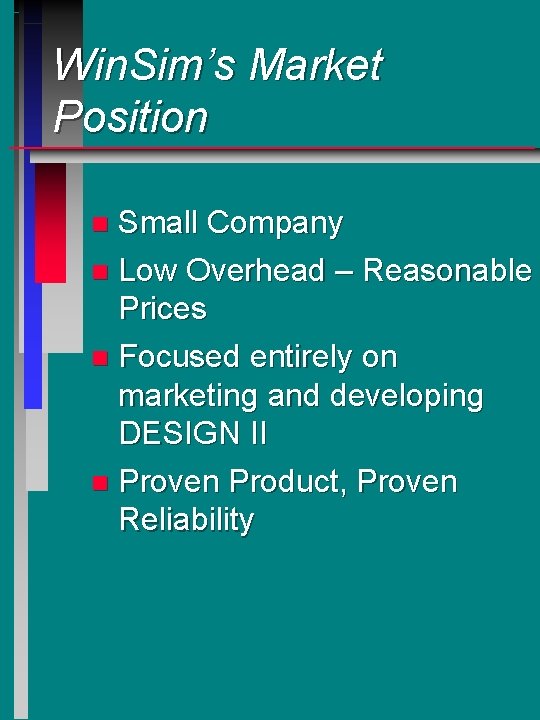

Win. Sim’s Market Position Small Company n Low Overhead – Reasonable Prices n Focused entirely on marketing and developing DESIGN II n Proven Product, Proven Reliability n

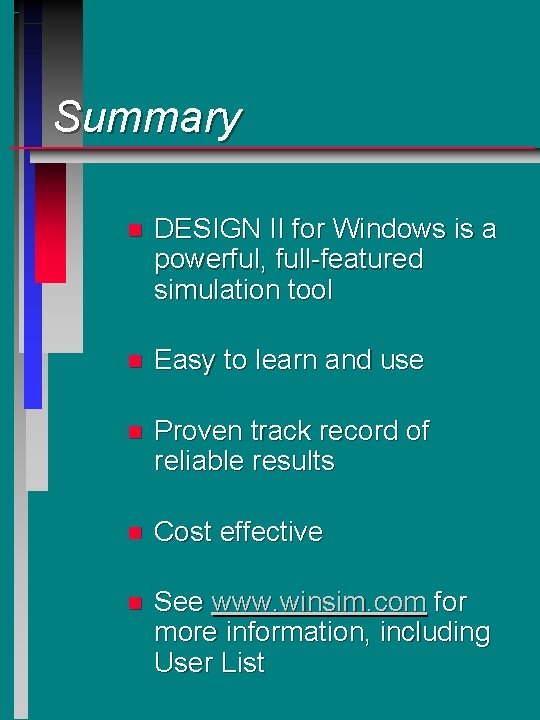

Summary n DESIGN II for Windows is a powerful, full-featured simulation tool n Easy to learn and use n Proven track record of reliable results n Cost effective n See www. winsim. com for more information, including User List
