DC 5900 F Flush Mount Series DDS 5900 Digital Discussion System 1

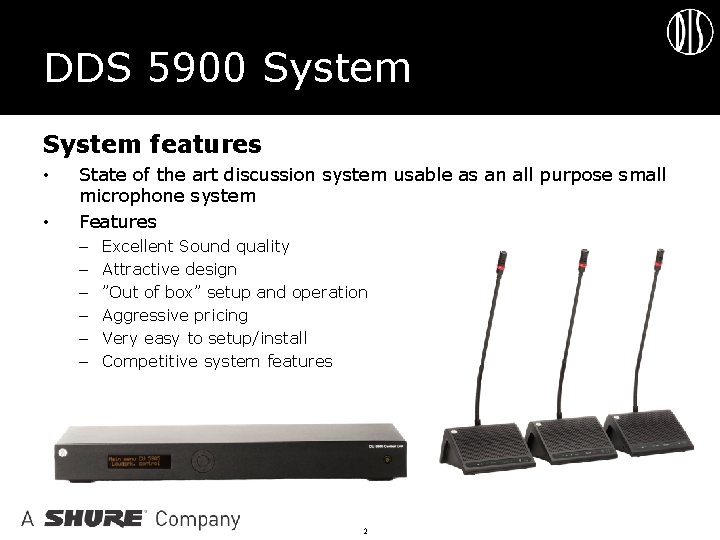

DDS 5900 System features • • State of the art discussion system usable as an all purpose small microphone system Features – – – Excellent Sound quality Attractive design ”Out of box” setup and operation Aggressive pricing Very easy to setup/install Competitive system features 2

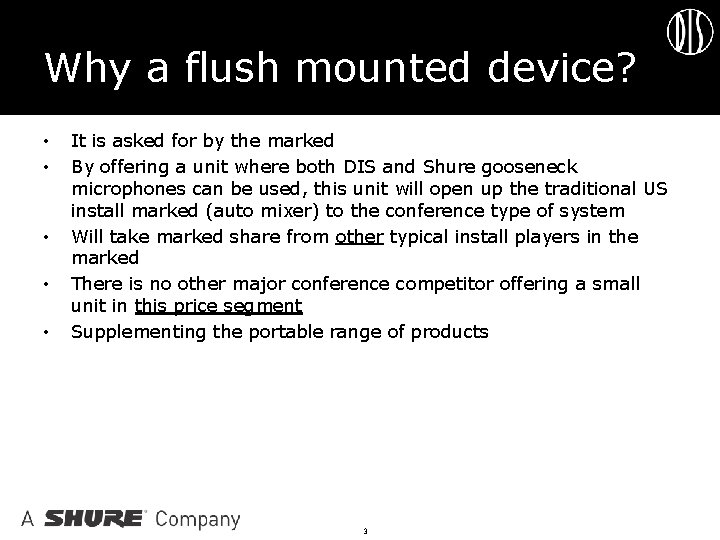

Why a flush mounted device? • • • It is asked for by the marked By offering a unit where both DIS and Shure gooseneck microphones can be used, this unit will open up the traditional US install marked (auto mixer) to the conference type of system Will take marked share from other typical install players in the marked There is no other major conference competitor offering a small unit in this price segment Supplementing the portable range of products 3

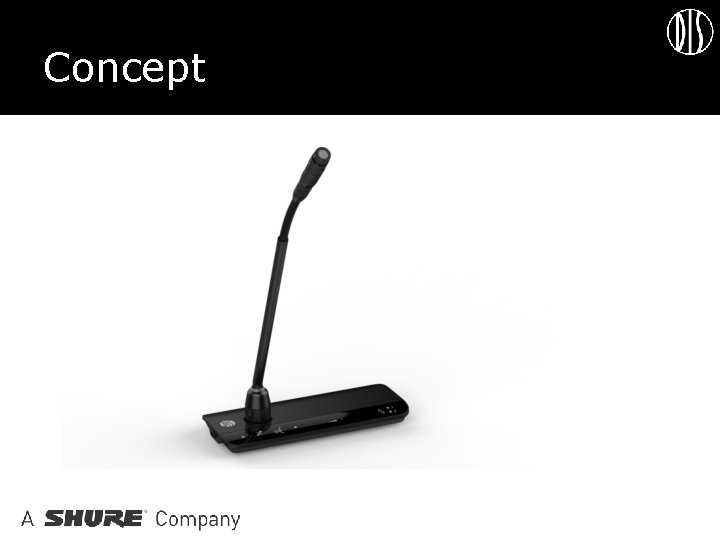

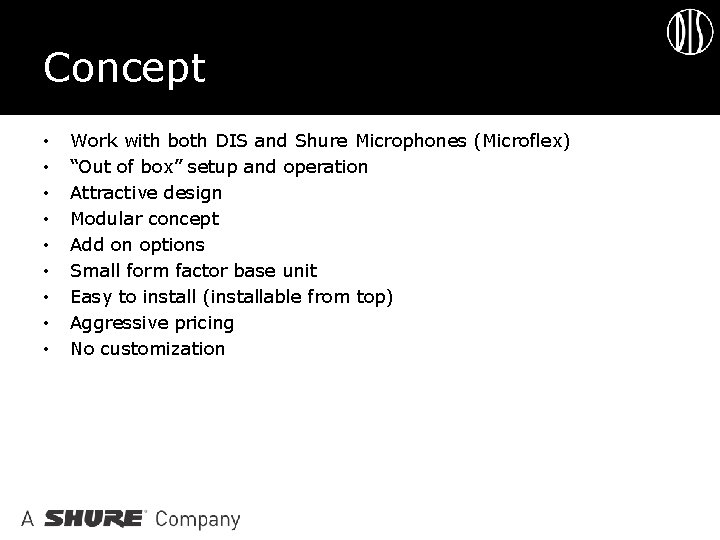

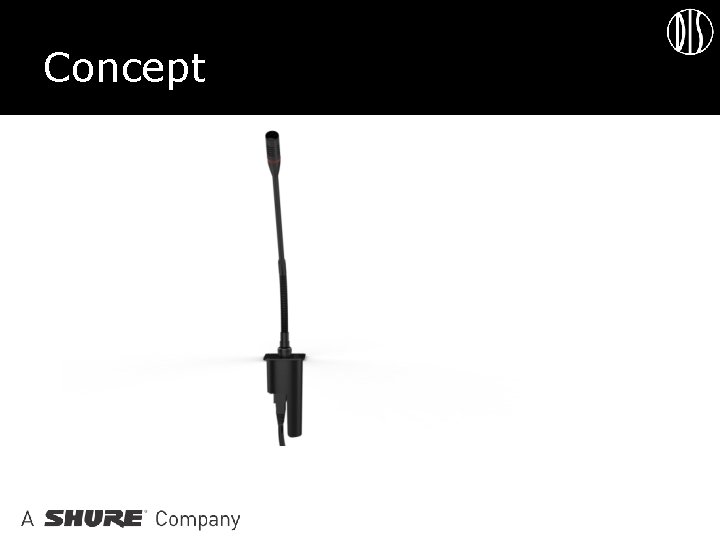

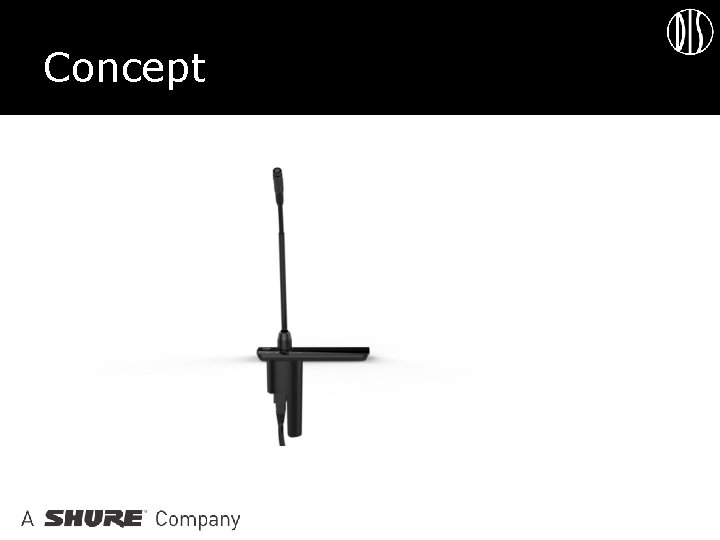

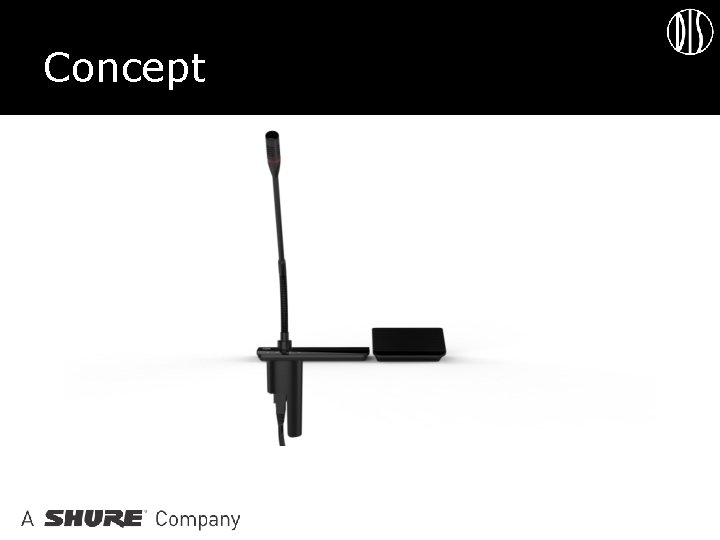

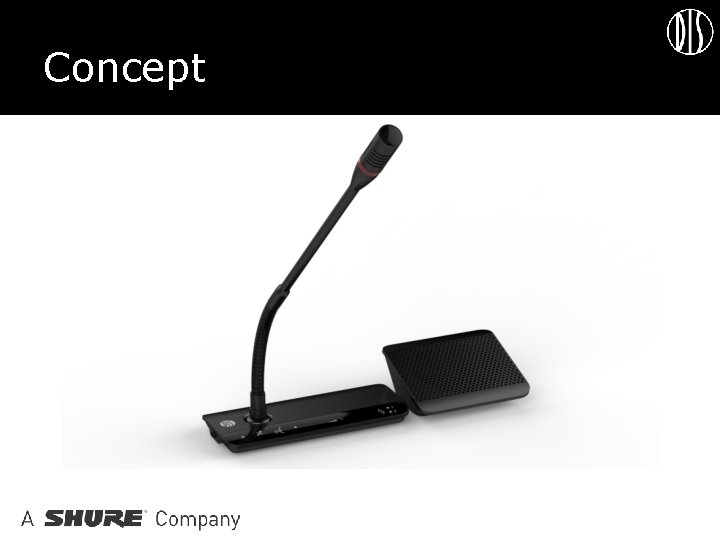

Concept • • • Work with both DIS and Shure Microphones (Microflex) “Out of box” setup and operation Attractive design Modular concept Add on options Small form factor base unit Easy to install (installable from top) Aggressive pricing No customization

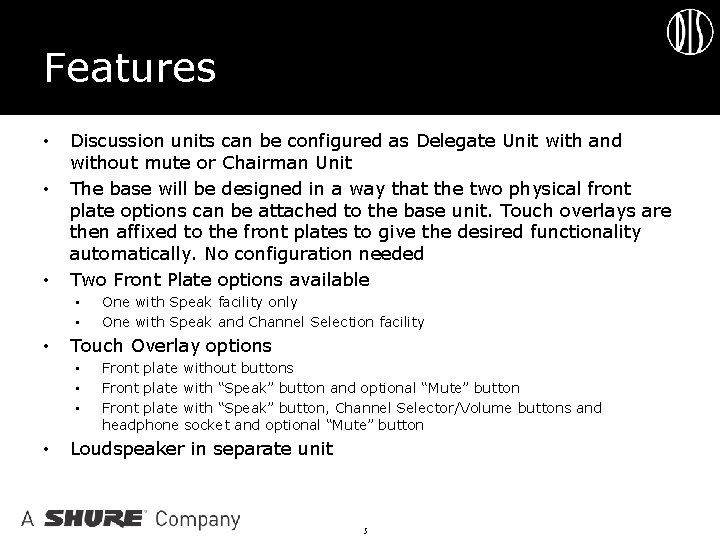

Features • • • Discussion units can be configured as Delegate Unit with and without mute or Chairman Unit The base will be designed in a way that the two physical front plate options can be attached to the base unit. Touch overlays are then affixed to the front plates to give the desired functionality automatically. No configuration needed Two Front Plate options available • • • Touch Overlay options • • One with Speak facility only One with Speak and Channel Selection facility Front plate without buttons Front plate with “Speak” button and optional “Mute” button Front plate with “Speak” button, Channel Selector/Volume buttons and headphone socket and optional “Mute” button Loudspeaker in separate unit 5

DC 5900 F Base Unit Concept

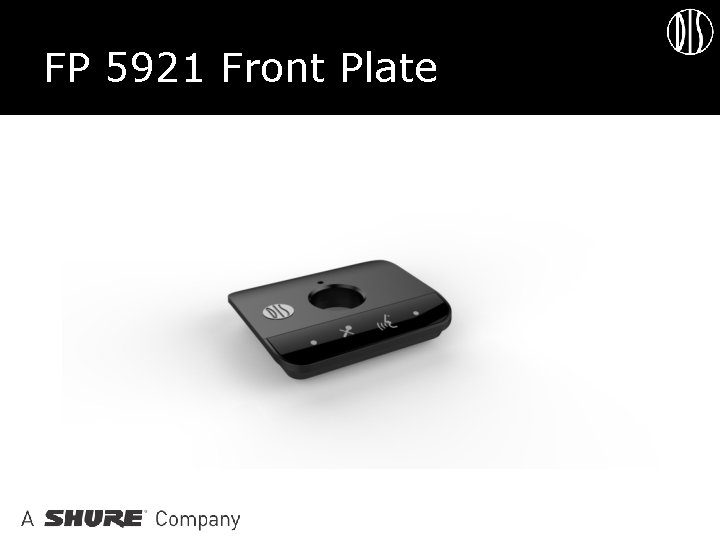

FP 5921 Front Plate Concept

FP 5981 Front Plate Concept

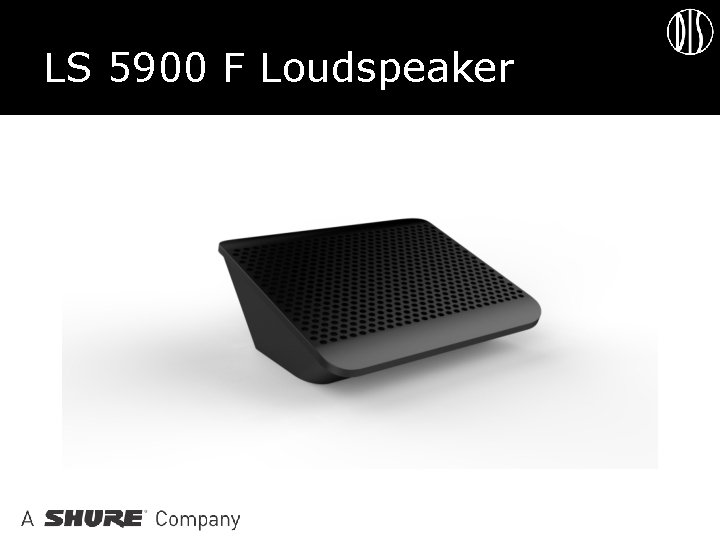

LS 5900 F Loudspeaker Concept

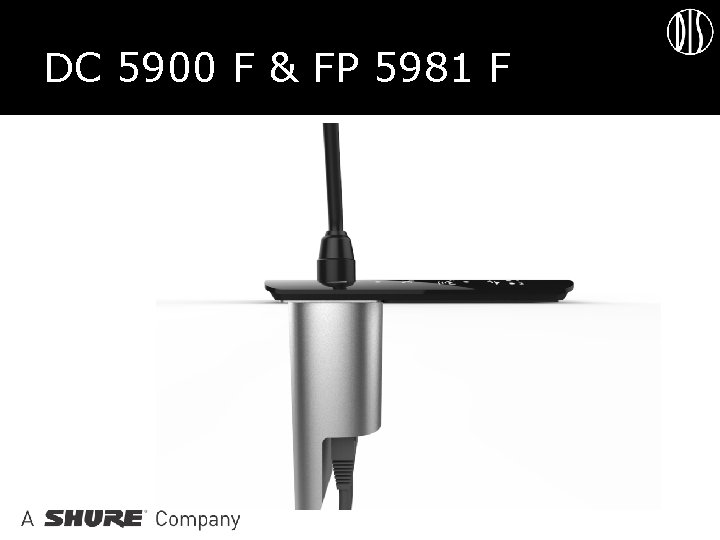

DC 5900 F & FP 5981 F

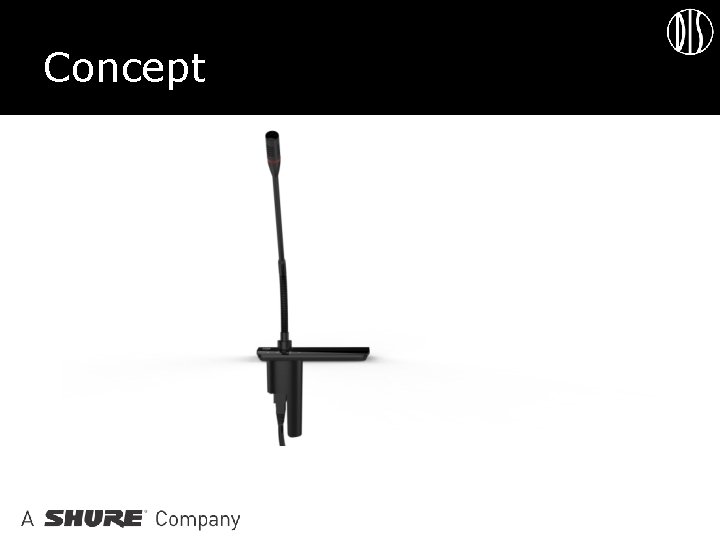

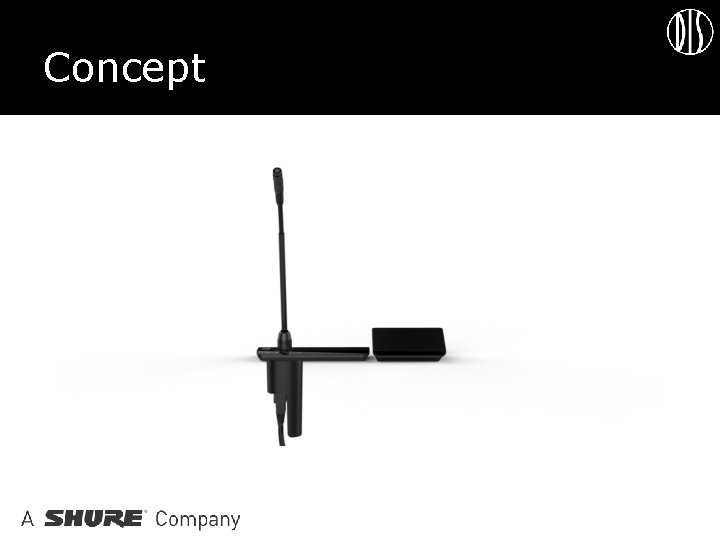

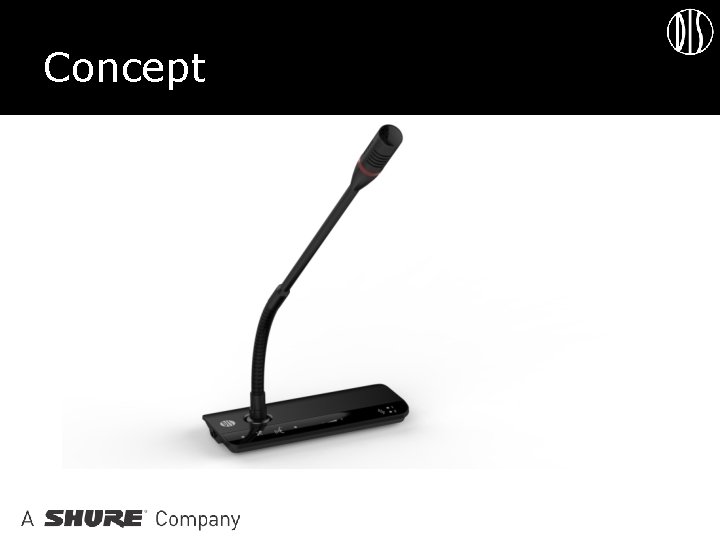

Concept

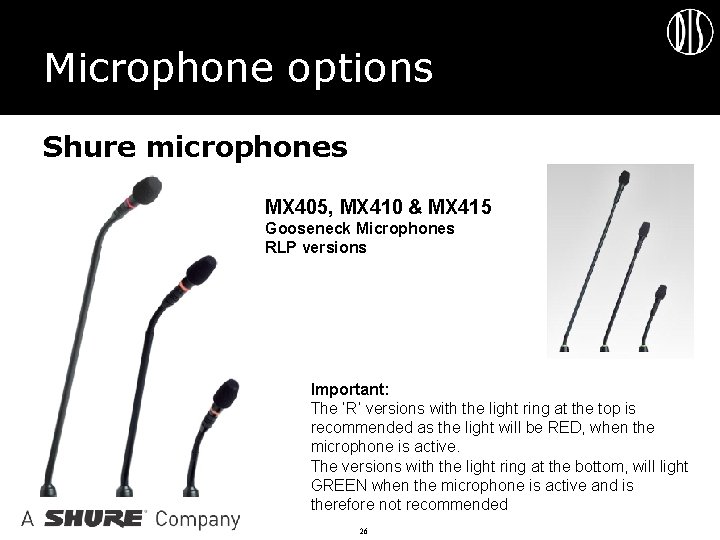

Microphone options Shure microphones MX 405, MX 410 & MX 415 Gooseneck Microphones RLP versions Important: The ‘R’ versions with the light ring at the top is recommended as the light will be RED, when the microphone is active. The versions with the light ring at the bottom, will light GREEN when the microphone is active and is therefore not recommended 26

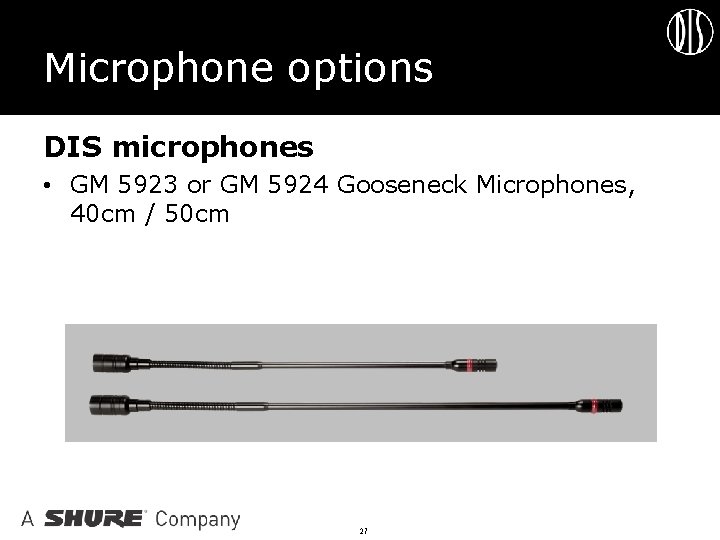

Microphone options DIS microphones • GM 5923 or GM 5924 Gooseneck Microphones, 40 cm / 50 cm 27

Microflex – DIS XLR adapter

Button Overlays Delegate Speak + Mute Delegate Speak Chairman Speak + Del. Off 29

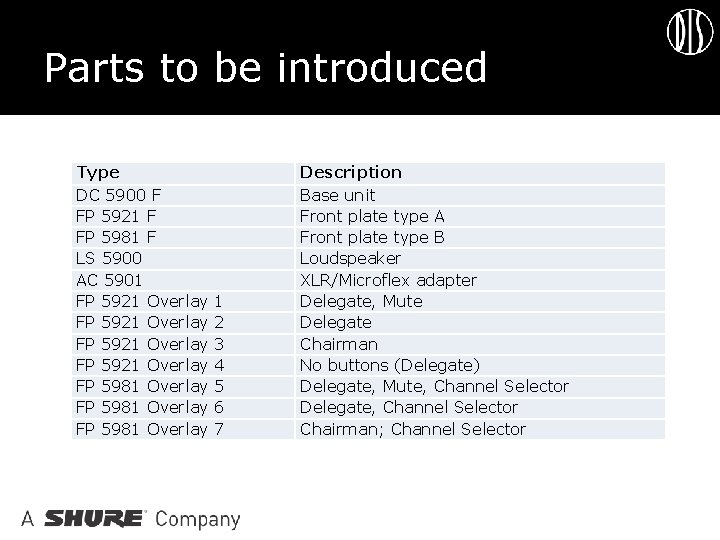

Parts to be introduced Type DC 5900 F FP 5921 F FP 5981 F LS 5900 AC 5901 FP 5921 Overlay FP 5981 Overlay 1 2 3 4 5 6 7 Description Base unit Front plate type A Front plate type B Loudspeaker XLR/Microflex adapter Delegate, Mute Delegate Chairman No buttons (Delegate) Delegate, Mute, Channel Selector Delegate, Channel Selector Chairman; Channel Selector
