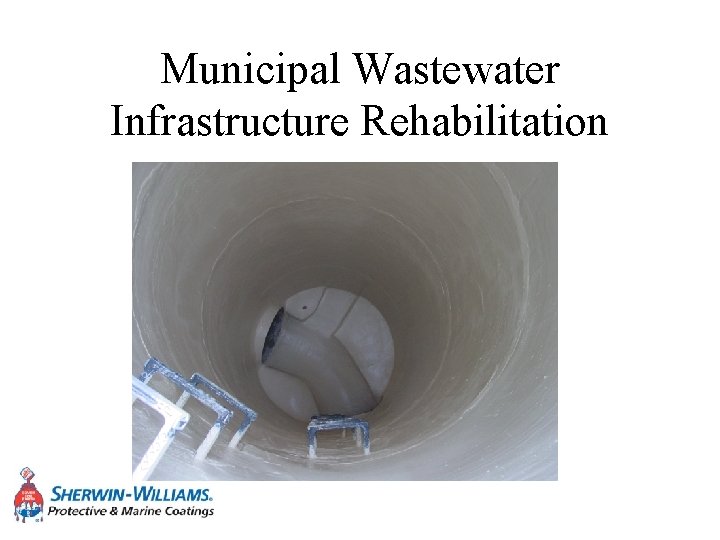

Municipal Wastewater Infrastructure Rehabilitation

Sherwin Williams Murray Heywood – Water & Wastewater Business Development Manager Eastern North America • • • 34 Years Coating Industry Experience NACE Level 3 Coating Inspector SSPC- Protective Coating Specialist NACE CIP Instructor MPI- Architectural Coating Specialist Chair- SSPC Ontario Chapter

Learning Objectives • Causes of Deterioration of Concrete in Municipal Infrastructure • Stopping Inflow & Infiltration • Structural Rehabilitation Materials • Chemical Resistant Coatings and Linings

Causes of Deterioration • • Structural Fatigue Corrosive Gases Microbial Induced Corrosion (MIC) Old Age

Causes of Deterioration • Infrastructure Now Reaching Its Intended Life Cycle Of 50 Years • Sewage Has Become More Septic Due to Longer Dwell Times • Poor or Poorly Placed Concrete • More Industrial Waste Entering Stream • Different Organic Components

Structural Fatigue Manholes • Caused by: – Traffic Loading – Freeze/Thaw Cycling – Soil Movement – Erosion or Cavitation

Corrosive Gases • Hydrogen Sulfide – H 2 S – Corrosive to metal and concrete – Reduces the p. H level – Converts to sulfuric acid when it comes in contact with Sulfur Reducing Bacteria (SRB’s)

Corrosive Gases • Carbon Dioxide – Slow deterioration of the substrate – Naturally occurring – Acts to reduce p. H of the substrate – Carbonated concrete

Microbial Induced Corrosion – Sulfur reducing bacteria (SRB) break down sulfates in the waste stream and produce hydrogen sulfide (H 2 S) and carbon dioxide CO 2. – The acidic gases H 2 S and CO 2 act to reduce the p. H of concrete from approximately 12 to as low as 9.

Microbial Induced Corrosion – Sulfur oxidizing bacteria (SOB’s) attach to the surface as sulfates are produced. – The SOB’s are known as Thiobacillus Thioxidans. They consume H 2 S and discharge sulfuric acid H 2 SO 4 – The p. H continues to drop and microbial growth accelerates creating more H 2 SO 4 – Eventual structural failure

Stopping Inflow & Infiltration • Purpose: – Lower the cost of wastewater being treated at the plant. – Lower the cost of equipment maintenance associated with abrasive soils in the waste stream. – Protect the environment for Sanitary Sewer Overflows (SSO’s)

Stopping Inflow & Infiltration • Process – Treated through trenchless technology applications – Utilizing polyurethane grout injection – Sherwin Williams Partners with Avanti International for all grouting products

Typical Manhole Rehabilitation Program 1 - Correct All I&I Issues 2 - Determine Level Of Deterioration of Concrete 3 - Determine Areas of High H 2 S 4 - Develop a Budget 5 - Develop a Rehabilitation Plan

Typical Manhole Rehabilitation Program Rehabilitation Plan While manholes properly repaired with mortar and properly lined with Epoxy will typically have a 50 year life span not all municipalities have the budget to use a full mortar and lining system for all manholes. Sherwin Williams Can Help Develop a Manhole Rehabilitation Plan

Typical Manhole Rehabilitation Program Rehabilitation Plan (After All I&I Stopped) • Lift Station/Force Main and next 4 -5 Holes. Repair Mortar Lined With 125 mils of Epoxy • Next Consecutive 4 -5 Holes - Calcium Aluminate Mortar Lining – ½”-4” Nominal Thickness. • Next Consecutive Holes to Next Lift Station- Microsilica Mortar Lining - ½”-4” Nominal Thickness • Then Re-Start Process at Next Lift Station. * Approximate Plan Must Be Customized

Structural Rehabilitation Materials • Cementitious Repair Mortars – Portland Cement with Admixtures or Calcium Aluminates – Sprayed or trowel applied – New product mixes allow radial spray with no entry into manhole – Will degrade as the original surface did

Structural Rehabilitation Materials • Portland Cement – This is the most commonly used cement during the precasting and/or cast-in-place production of today’s wastewater components. • • Relatively Inexpensive Easily Located Susceptible to MIC Long cure times before top coating

Structural Rehabilitation Materials • Microsilica Repair Mortars – Microsilica repair mortars utilize Portland cement to create the cement paste but also contain a fumed silica admixture to create a more dense substrate. • Chemical Resistant / Lower Permeability • Can be used as a stand-alone liner in a mild H 2 S environments. • Faster cure times for top coating • Susceptible to MIC • Lower cost than Calcium Aluminate Mortars

Structural Rehabilitation Materials • Calcium Aluminate Repair Mortars – The principle behind Calcium Aluminates is that they maintain a higher p. H that prevents they colonization of the Thiobacillus bacteria. – Offer an improved life cycle over other repair mortars – Susceptible to MIC but a reduced rate – Can be used as a stand-alone liner in moderate H 2 S environments.

Chemical Resistant Coatings & Linings • Protect the surrounding environment • Provide a longer life cycle for the substrate they are protecting • Provide an excellent infiltration barrier • Available chemistries include: – Epoxy – Polyurethane – Polyurea

Chemical Resistant Coatings & Linings • All 3 Chemistries (Epoxy, Polyurethane & Polyurea) have a place in Lining Wastewater Structures and Tanks • Sherwin Williams Has Developed Our Manhole Rehabilitation Program Around Epoxy Technology

Manhole Rehabilitation Chemical Resistant Linings Competitive Manhole Lining Products in the market Include; • Epoxy Technology • Polyurethane Technology • Polyurea Technology • What's The Difference ? ?

Manhole Rehabilitation Chemical Resistant Linings Polyurethane Products • Require a Primer For SSD Conditions • Isocyanate Will Blister In The Presence of Moisture During Application • Very Poor Bond When Directly Applied To Concrete • Most Products Are Actually Free Floating In the Manhole and Not Physically Attached to Walls • I&I Can Occur Between Lining an Wall and No One Would Know. • Mostly Small to Medium Sized Regional Manufacturers with Protected Territories.

Manhole Rehabilitation Chemical Resistant Linings Polyurea Products • Require a Primer For SSD Conditions • Isocyanate Will Blister In The Presence of Moisture During Application • Very Poor Bond When Directly Applied To Concrete • Often Applied Over Foam Which Has Little To No Structural Integrity. • Application Equipment Very Bulky • Surface Preparation Must Be Perfect for Success. • Mostly Small to Medium Sized Regional Manufacturers with Protected Territories.

Manhole Rehabilitation Chemical Resistant Linings Epoxy Products • • • High Bond Strength to Prepared Concrete Most Can Be Applied to SSD Substrate Amine Epoxy provides High Chemical Resistance High Build Characteristics Ease of Application Beware of Claims that Epoxy Can be Directly Applied To Brick Manholes Without Mortar Repairs. • Mostly Small to Medium Sized Regional Manufacturers Some Have Protected Territories.

Manhole Rehabilitation Chemical Resistant Linings Why The Sherwin Williams Manhole Program? • Tried and True Technology- SW Chose Epoxy As The Liner of Choice Because It Makes Sense!! • Only True National Company in The Manhole Market • Single Source Supplier-Partnerships with Avanti (Chemical Grouts) A. W Cook (Repair Mortars) With All Testing Completed Allowing Sherwin Williams to Offer Complete Warranty. • On Site Technical Support

Manhole Rehabilitation Chemical Resistant Linings Why The Sherwin Williams Manhole Program? • • Multiple Levels of Support for Contractors & Owners Local Representatives & Project Development Managers Support of National Wastewater Specialists Largest Manufacturer of Protective Coatings in North America • 4000 Stores Across North America • ISO Quality Control

Manhole Rehabilitation Chemical Resistant Linings • Sherwin-Williams Duraplate 5900 Epoxy Corrosion Protection Coating – 100% Solids, Amine Cured Epoxy, Capable of being applied @ 60 – 125 mils DFT in a single coat. – Maybe applied to a Surface Saturated Dry (SSD) Substrate. – The product offers well balanced physical performance characteristics for use in municipal wastewater streams and wastewater treatment facilities. – Also Available In An Epoxy Mortar

Manhole Rehabilitation Chemical Resistant Linings • Sherwin-Williams Duraplate 6100 Epoxy Corrosion Protection Coating – 100% Solids, Amine Cured Epoxy, Capable of being applied @ 125 – 250 mils DFT in a single coat. – Maybe applied to a Surface Saturated Dry (SSD) Substrate. – “Next Generation” of Epoxy- Higher Build and Higher Chemical Resistance – Dry to Touch in 2 Hrs – Put Back in Service in 5 -6 Hrs (Temperature & RH Dependent)

Chemical Resistant Coatings & Linings • Sherwin-Williams Envirolastic AR 530 Brush Grade Polyurea Chimney Seal – 100% Solids, Aromatic, Pure Polyurea, Capable of being applied up to 250 Mils DFT in a single coat. – Primer required for application to concrete and steel and application to a Surface Saturated Dry (SSD) substrate. – The product offers a flexible liner capable of bridging a 1/8” crack. It will withstand severe traffic loading and is packaged in a side by side plural component cartridges for pneumatic application.

Municipal Wastewater Infrastructure Rehabilitation • Sherwin-Williams offers a complete line of products through our manufacture and distribution for the rehabilitation of all of your municipal wastewater infrastructure rehabilitation.
