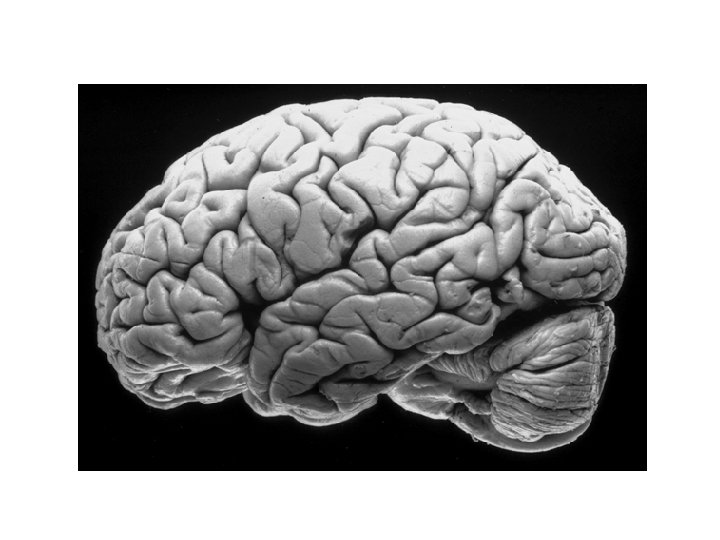

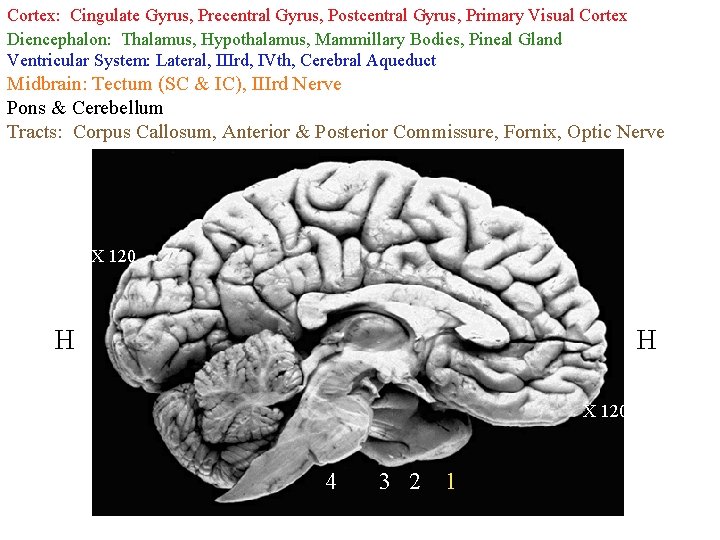

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

Frontal Lobe Temporal Lobe Cingulate Gyrus Corpus Callosum Septum Pellucidum Lateral Ventricle Caudate Nuc.

Frontal Lobe Temporal Lobe Cingulate Gyrus Corpus Callosum Septum Pellucidum Lateral Ventricle Caudate Nuc. Putamen Internal Cap (AL) External & Extreme Cap Claustrum

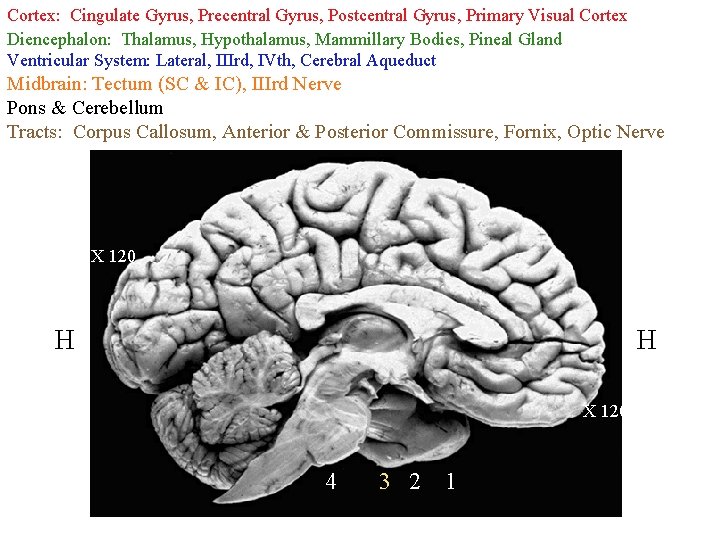

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

Frontal Lobe Temporal Lobe Cingulate Gyrus Corpus Callosum Septum Pellucidum Lateral Ventricle Fornix Anterior

Frontal Lobe Temporal Lobe Cingulate Gyrus Corpus Callosum Septum Pellucidum Lateral Ventricle Fornix Anterior Comm Hypothalumus IIIrd Ventricle Optic Chiasm Caudate Nuc Interal Capsule (AL) Putamen & Globus Pall External & Extreme Cap Claustrum Insular Cortex Lateral Sulcus

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

Cingulate Gyrus Corpus Callosum Lateral Ventricle (Body) Choroid Plexus Fornix IIIrd Ventricle Thalamus Hypothalamus

Cingulate Gyrus Corpus Callosum Lateral Ventricle (Body) Choroid Plexus Fornix IIIrd Ventricle Thalamus Hypothalamus Mammillary Bodies Caudate Nuc Internal Cap (PL) Putamen Globus Pall (Ext and Int) Subthalamic Nuc Substantia Nigra Temporal Lobe Uncus Amygdala & Hipp Form Inferior Horn (LV) Claustrum External and Extreme Cap Insular Cortex

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

Cingulate Gyrus Corpus Callosum Lateral Ventricle Fornix Posterior Comm Cerebral Aqueduct Midbrain Basis Pedunculi

Cingulate Gyrus Corpus Callosum Lateral Ventricle Fornix Posterior Comm Cerebral Aqueduct Midbrain Basis Pedunculi Pons Caudate Nuc Thalamus Medial Geniculate Lateral Geniculate Internal Cap (PL) Hippocampal Form Caudate Nuc (Tail) Inferior Horn (LV) Temporal Lobe Heschl Gyri

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

Frontal Lobe Temporal Lobe Occipital Lobe Cingulate Gyrus (2 X) Lateral Ventricle (2 X)

Frontal Lobe Temporal Lobe Occipital Lobe Cingulate Gyrus (2 X) Lateral Ventricle (2 X) Caudate Nuc (2 X) Forix IIIrd Ventricle Thalamus Pulvinar Hippocampal Form Cerebellum Primary Visual Cortex Internal Cap (AL, Genu, PL) Putamen Globus Pallidus Optic Radiations External & Extreme Cap Insular Cortex Lateral Fissure

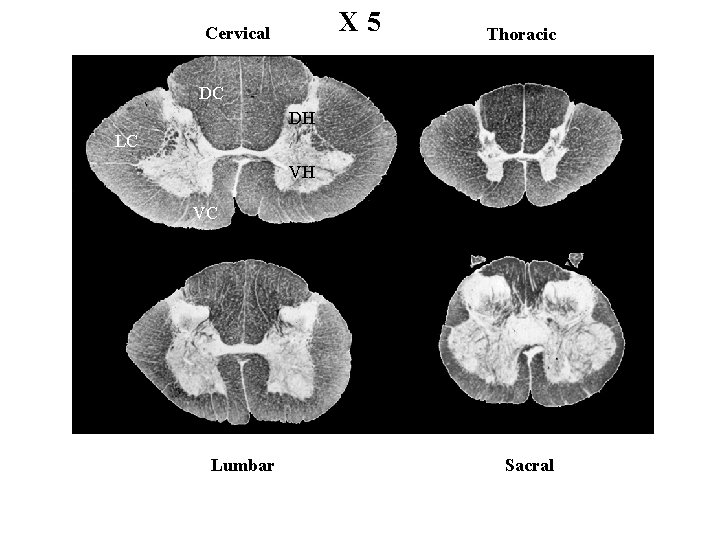

X 5 Cervical Thoracic DC DH LC VH VC Lumbar Sacral

X 5 Cervical Thoracic DC DH LC VH VC Lumbar Sacral

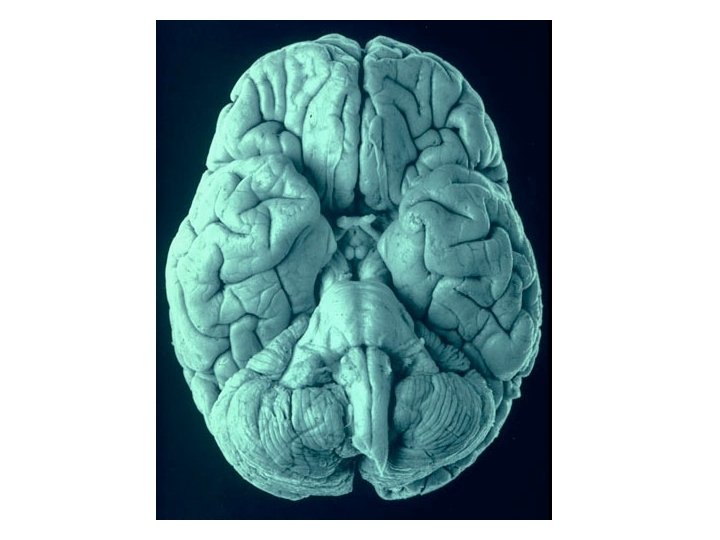

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 Dorsal View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 X 10 X 5

X 10 Spinal Cord-Medulla Jct Pyramidal Decussation Dorsal Column Tracts & Nuclei

X 10 Spinal Cord-Medulla Jct Pyramidal Decussation Dorsal Column Tracts & Nuclei

X 15 Caudal Medulla Pyramid Inferior Olivary Nuc Medial Lemniscus Reticular Formation Dorsal Column

X 15 Caudal Medulla Pyramid Inferior Olivary Nuc Medial Lemniscus Reticular Formation Dorsal Column Tracts & Nuclei

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 Dorsal View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 X 10 X 5

X 20 Mid Medulla Pyramid Medial Lemniscus Inferior Olivary Nuc Inf Cerebellar Ped IVth

X 20 Mid Medulla Pyramid Medial Lemniscus Inferior Olivary Nuc Inf Cerebellar Ped IVth Ventricle Cranial Nerve Nuc Reticular Form

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30

Ventral View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 Dorsal View of Brainstem X 45 X 40 X 37 X 35 X 30 X 25 X 20 X 15 X 10 X 5

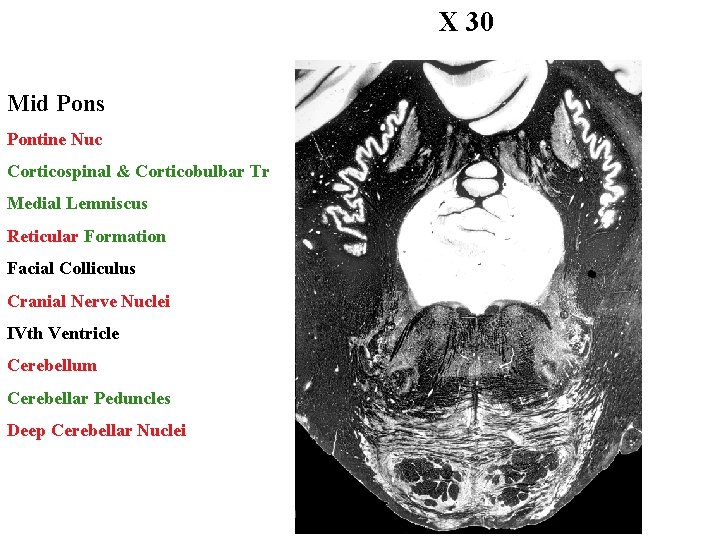

X 30 Mid Pons Pontine Nuc Corticospinal & Corticobulbar Tr Medial Lemniscus Reticular Formation

X 30 Mid Pons Pontine Nuc Corticospinal & Corticobulbar Tr Medial Lemniscus Reticular Formation Facial Colliculus Cranial Nerve Nuclei IVth Ventricle Cerebellum Cerebellar Peduncles Deep Cerebellar Nuclei

X 40 Midbrain (Inf Coll) Basis Pedunculi Substantia Nigra Medial Lemniscus Sup. Cerebellar Peduncle

X 40 Midbrain (Inf Coll) Basis Pedunculi Substantia Nigra Medial Lemniscus Sup. Cerebellar Peduncle (decussation) Reticular Formation Cerebral Aqueduct Inferior Colliculus

X 45 Midbrain (Sup Coll) Basis Pedunculi Substantia Nigra Red Nucleus Medial Lemniscus Reticular

X 45 Midbrain (Sup Coll) Basis Pedunculi Substantia Nigra Red Nucleus Medial Lemniscus Reticular Formation Cerebral Aqueduct Superior Colliculus

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary

Cortex: Cingulate Gyrus, Precentral Gyrus, Postcentral Gyrus, Primary Visual Cortex Diencephalon: Thalamus, Hypothalamus, Mammillary Bodies, Pineal Gland Ventricular System: Lateral, IIIrd, IVth, Cerebral Aqueduct Midbrain: Tectum (SC & IC), IIIrd Nerve Pons & Cerebellum Tracts: Corpus Callosum, Anterior & Posterior Commissure, Fornix, Optic Nerve X 120 H H X 120 4 3 2 1

X 120 Anterior Comm Fornix IIIrd Ventricle Thalamus & Pulvinar Corpus Callosum Lateral Ventricle

X 120 Anterior Comm Fornix IIIrd Ventricle Thalamus & Pulvinar Corpus Callosum Lateral Ventricle (Atrium) Optic Radiations Primary Visual Cortex Caudate Nuc (2 X) Internal Cap (AL, Genu, PL) Putamen Globus Pallidus (Ext & Int) External & Extreme Cap Claustrum Insular Cortex
