Constraint Satisfaction Problems vs Finite State Problems Finite

Constraint Satisfaction Problems vs. Finite State Problems

Finite State Problems (FSP) • FSP can be solved by searching in a space of simple states. • Finite states are evaluated by domain-specific heuristics (rules) and tested to see whether they were goal states. • Finite States have no discernible internal structure. • Objective: Examine rules that govern behavior and perform a goal test. • The Virtual Pet problem is a Finite State Problem.

Constraint Satisfaction Problems (CSP) • complex situations that cannot utilize this finite state application very efficiently. • Problem requires a complex internal structure. • Constraint Satisfaction Problems contain states and goals that conform to a complex data structured representation. • The Maze problem is a Constraint Satisfaction Problem, which refers to a specific area of AI.

Virtual Pet Problem: Simple Data Structure • Virtual Pet is a Finite State Problem. • Finite states can be represented by primitive values. is. EATING = 1 , is. HUNGRY = 2, and, is. PLAYING = 3. • Simplified states could be easily identified them during the game loop using a switch statement.

Maze App: Complex Data Structure - Carving out the pathways - • The Maze Game is a Constraint Satisfaction Problem because it contains states and goals that conform to a complex data structured representation. • A maze requires a unique search algorithm to carve out a path. • Search algorithms for Constraint Satisfaction Problems require the application of conflict heuristics. • NOTE: The topic of Constraint Satisfaction appears regularly in Artificial Intelligence research papers and in the specialist journal, Constraints.

Definition of Constraint Satisfaction Problem • Formally speaking, a constraint satisfaction problem (or CSP) is a search problem defined by: a set of variables. a set of constraints that restrict the values assigned to the variables. • Each variable has a nonempty domain of possible values. • Each constraint involves some subset of the variables and specifies the allowable combinations of values for that subset.

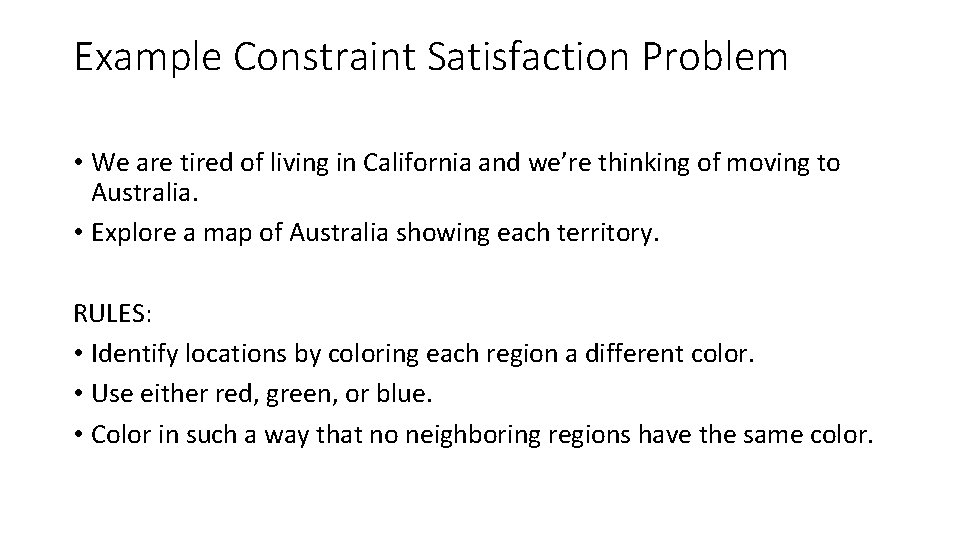

Example Constraint Satisfaction Problem • We are tired of living in California and we’re thinking of moving to Australia. • Explore a map of Australia showing each territory. RULES: • Identify locations by coloring each region a different color. • Use either red, green, or blue. • Color in such a way that no neighboring regions have the same color.

No neighboring regions have the same color. NOTE: Tasmania is not included.

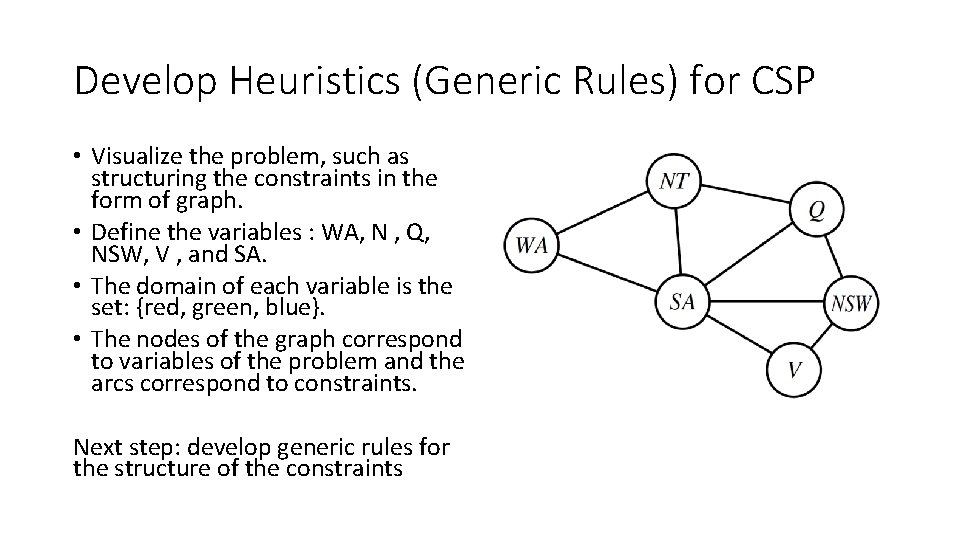

Develop Heuristics (Generic Rules) for CSP • Visualize the problem, such as structuring the constraints in the form of graph. • Define the variables : WA, N , Q, NSW, V , and SA. • The domain of each variable is the set: {red, green, blue}. • The nodes of the graph correspond to variables of the problem and the arcs correspond to constraints. Next step: develop generic rules for the structure of the constraints

Why Constraint Rules? – An Overview • Once we have chosen {SA = blue}, we can conclude that none of the five neighboring variables can take on the value blue. • Without taking advantage of a constraint heuristic, a search would consider 35 = 243 assignments for the five neighboring variables. • With a constraint heuristic we never have to consider blue as a value, so we have only 25 assignments to search.

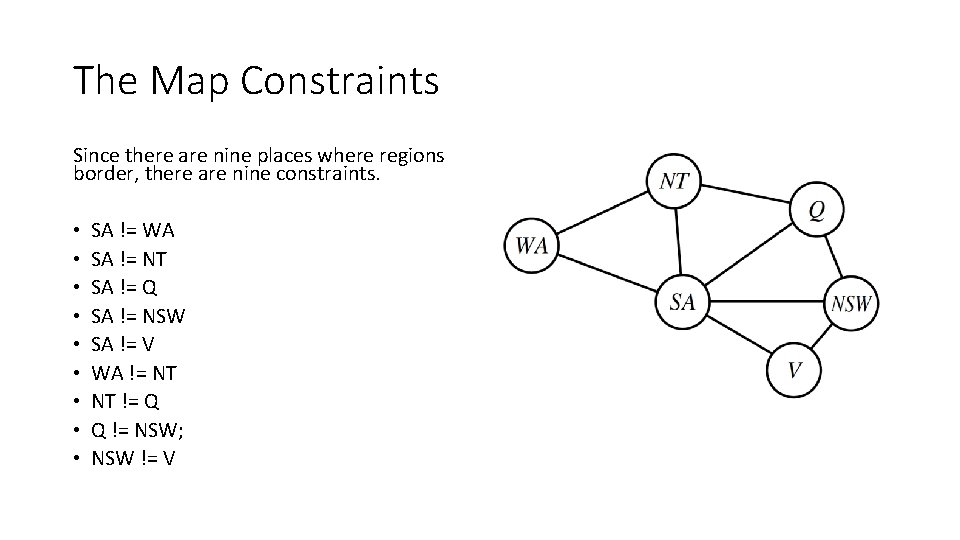

The Map Constraints Since there are nine places where regions border, there are nine constraints. • • • SA != WA SA != NT SA != Q SA != NSW SA != V WA != NT NT != Q Q != NSW; NSW != V

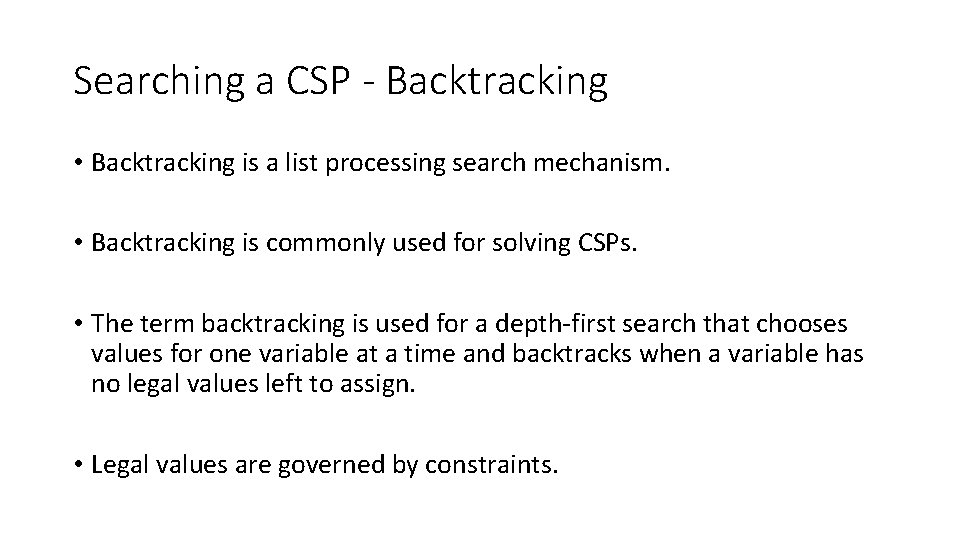

Searching a CSP - Backtracking • Backtracking is a list processing search mechanism. • Backtracking is commonly used for solving CSPs. • The term backtracking is used for a depth-first search that chooses values for one variable at a time and backtracks when a variable has no legal values left to assign. • Legal values are governed by constraints.

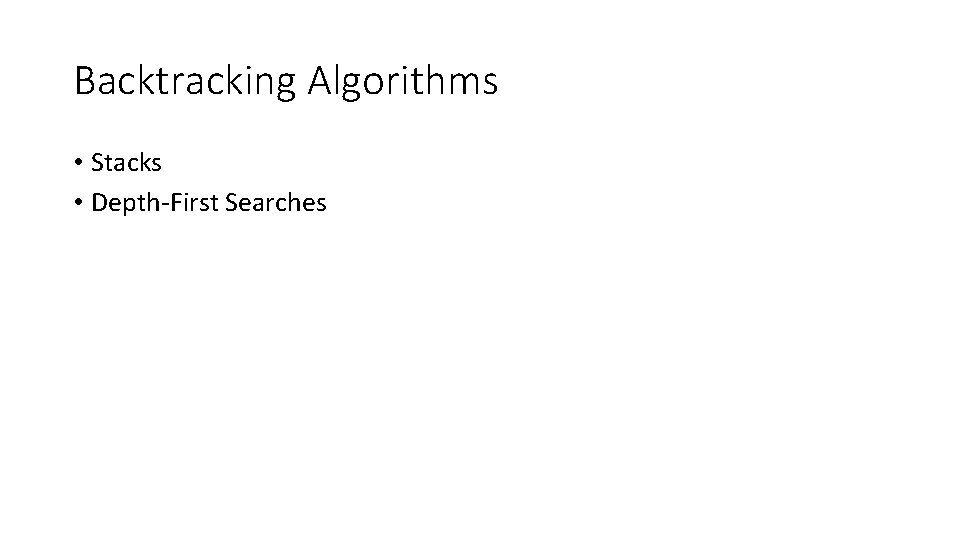

Backtracking Algorithms • Stacks • Depth-First Searches

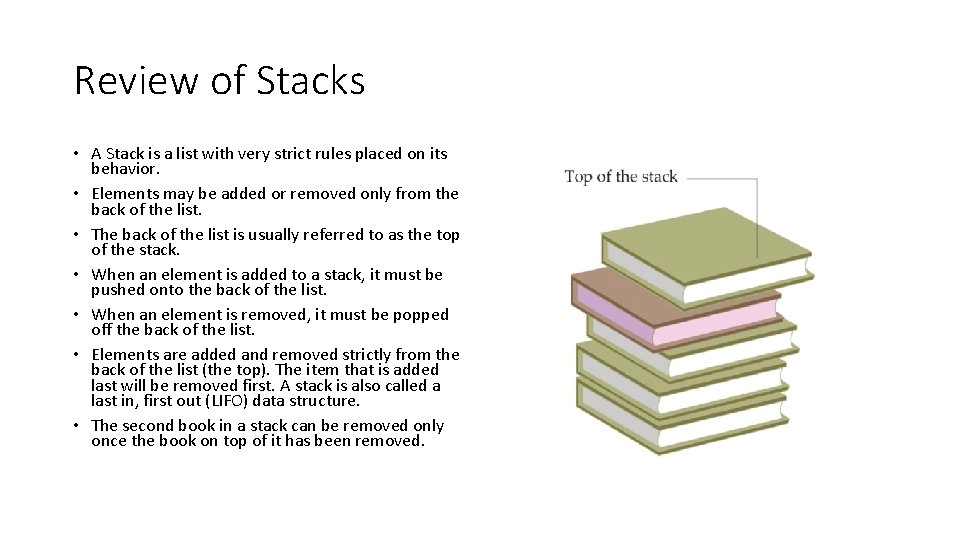

Review of Stacks • A Stack is a list with very strict rules placed on its behavior. • Elements may be added or removed only from the back of the list. • The back of the list is usually referred to as the top of the stack. • When an element is added to a stack, it must be pushed onto the back of the list. • When an element is removed, it must be popped off the back of the list. • Elements are added and removed strictly from the back of the list (the top). The item that is added last will be removed first. A stack is also called a last in, first out (LIFO) data structure. • The second book in a stack can be removed only once the book on top of it has been removed.

Stacks and AS 3 • A stack can be implemented using an AS 3 array structure. • Stacks begin with zero elements, initialized to an empty state. • The top of the stack is the last element in the array. • Two array operations are used for accessing elements on a stack: a) push() b) pop() Adds an item to the back of the list. Removes an item from the back of the list.

AS 3 Code Example for Stacks var stack: Array = new Array(); stack. push(3); stack. push(4); stack. push(5); stack. push(6); stack. push(7); trace(“Top of the stack is “, stack. length – 1);

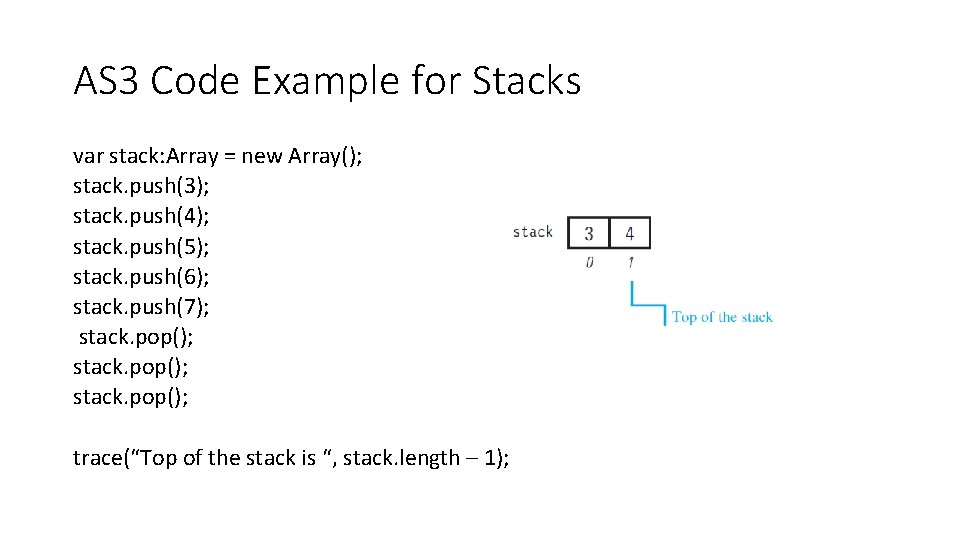

AS 3 Code Example for Stacks var stack: Array = new Array(); stack. push(3); stack. push(4); stack. push(5); stack. push(6); stack. push(7); stack. pop(); trace(“Top of the stack is “, stack. length – 1);

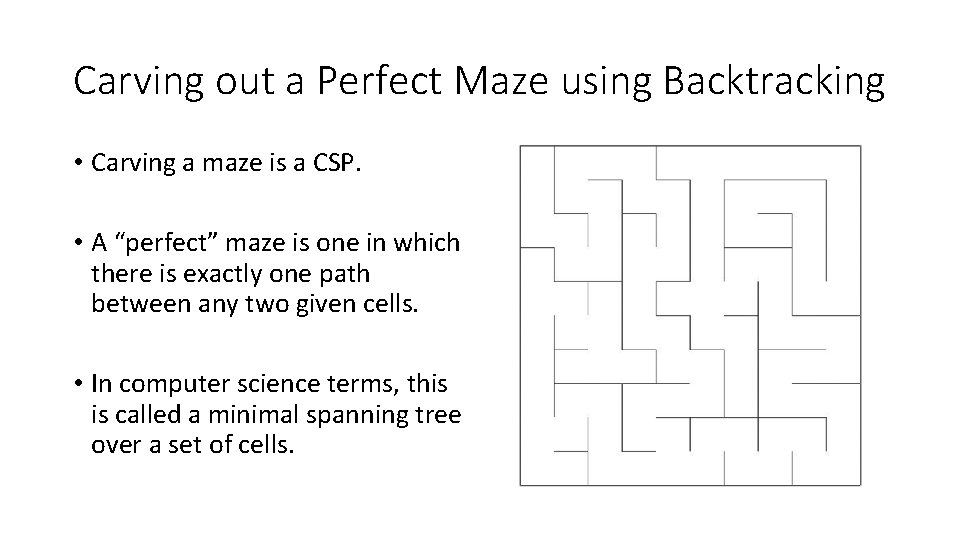

Carving out a Perfect Maze using Backtracking • Carving a maze is a CSP. • A “perfect” maze is one in which there is exactly one path between any two given cells. • In computer science terms, this is called a minimal spanning tree over a set of cells.

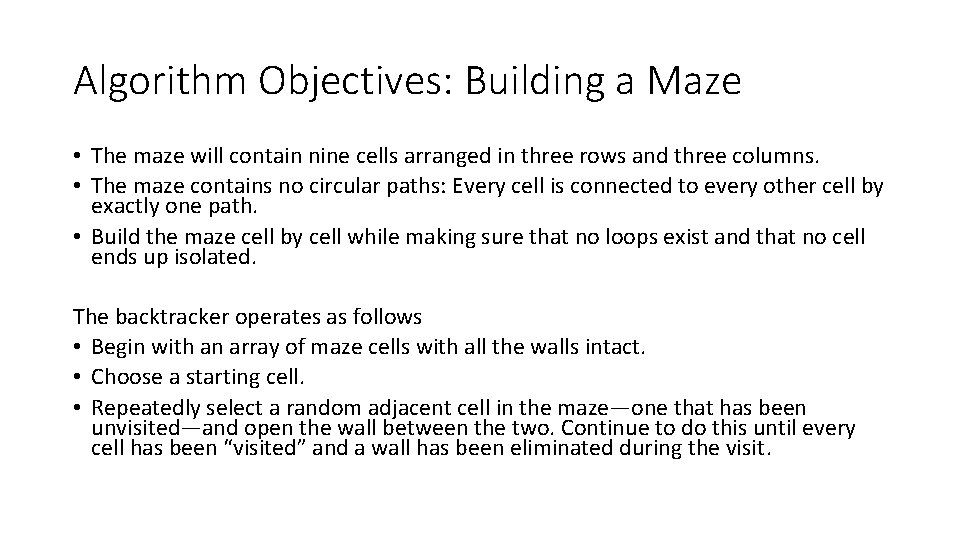

Algorithm Objectives: Building a Maze • The maze will contain nine cells arranged in three rows and three columns. • The maze contains no circular paths: Every cell is connected to every other cell by exactly one path. • Build the maze cell by cell while making sure that no loops exist and that no cell ends up isolated. The backtracker operates as follows • Begin with an array of maze cells with all the walls intact. • Choose a starting cell. • Repeatedly select a random adjacent cell in the maze—one that has been unvisited—and open the wall between the two. Continue to do this until every cell has been “visited” and a wall has been eliminated during the visit.

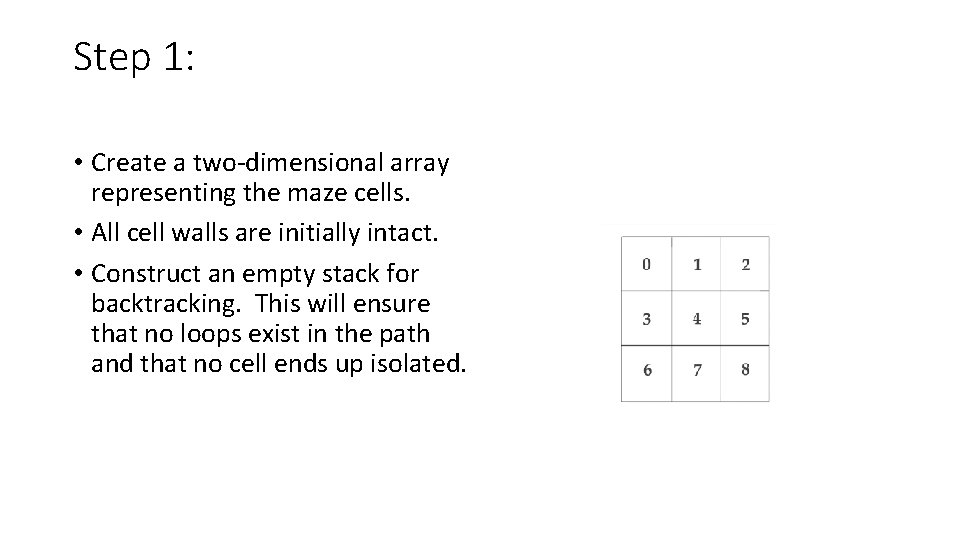

Step 1: • Create a two-dimensional array representing the maze cells. • All cell walls are initially intact. • Construct an empty stack for backtracking. This will ensure that no loops exist in the path and that no cell ends up isolated.

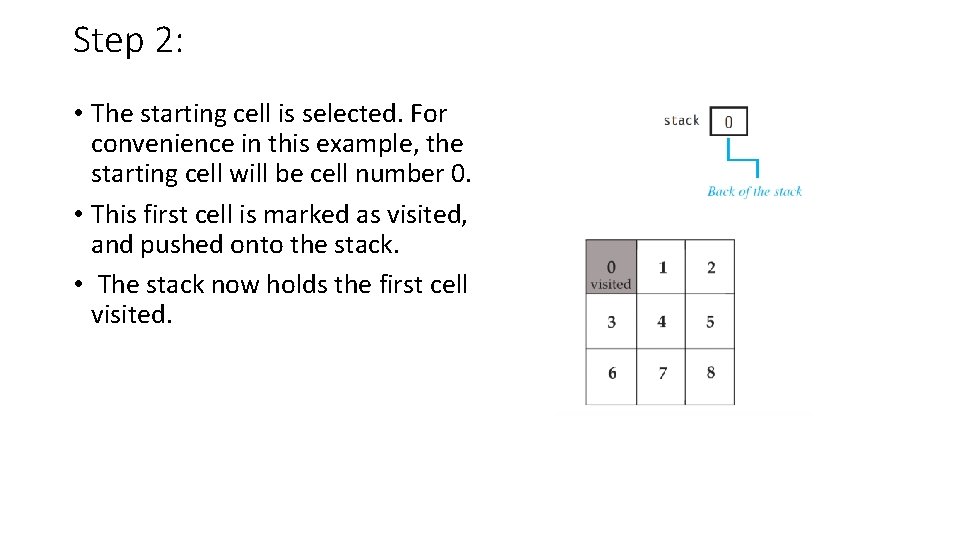

Step 2: • The starting cell is selected. For convenience in this example, the starting cell will be cell number 0. • This first cell is marked as visited, and pushed onto the stack. • The stack now holds the first cell visited.

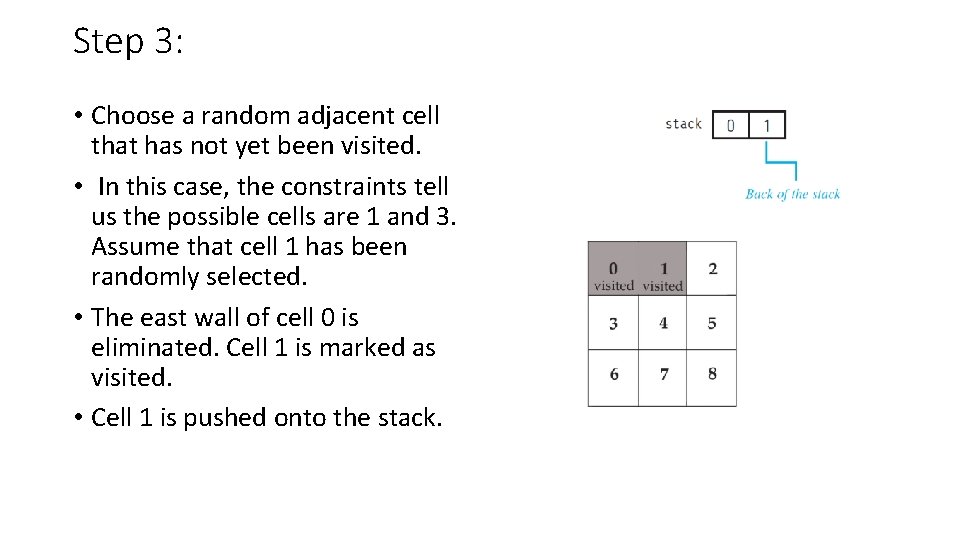

Step 3: • Choose a random adjacent cell that has not yet been visited. • In this case, the constraints tell us the possible cells are 1 and 3. Assume that cell 1 has been randomly selected. • The east wall of cell 0 is eliminated. Cell 1 is marked as visited. • Cell 1 is pushed onto the stack.

Step 4: • The possible adjacent cells to cell 1 are 2 and 4. Assume that cell 4 has been randomly selected. • The south wall of cell 1 is eliminated. The north wall of 4 is eliminated. • Cell 4 is marked as visited and pushed onto the stack.

Step 5: • The possible adjacent cells to cell 1 are 3, 7, and 5. Assume that cell 7 has been randomly selected. • The south wall of cell 4 is eliminated. The north wall of 7 is eliminated. • Cell 7 is marked as visited and pushed onto the stack.

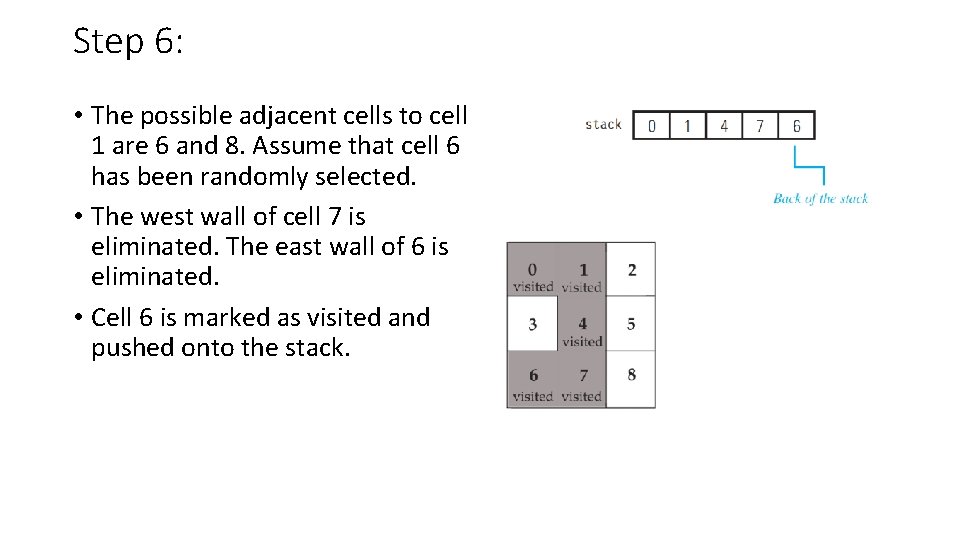

Step 6: • The possible adjacent cells to cell 1 are 6 and 8. Assume that cell 6 has been randomly selected. • The west wall of cell 7 is eliminated. The east wall of 6 is eliminated. • Cell 6 is marked as visited and pushed onto the stack.

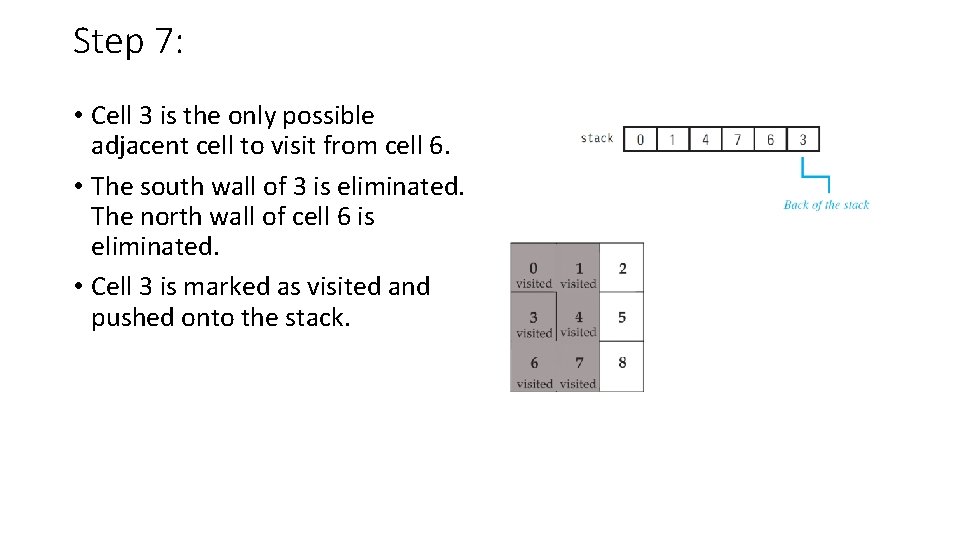

Step 7: • Cell 3 is the only possible adjacent cell to visit from cell 6. • The south wall of 3 is eliminated. The north wall of cell 6 is eliminated. • Cell 3 is marked as visited and pushed onto the stack.

Step 8: There are no valid cells to cell 3 that can be visited. Backtrack to find a new cell that has not been visited.

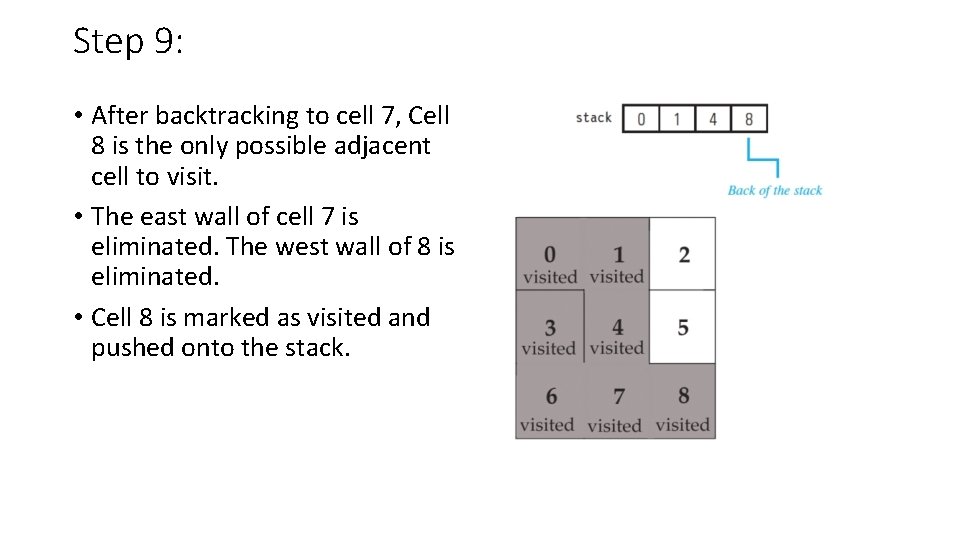

Step 9: • After backtracking to cell 7, Cell 8 is the only possible adjacent cell to visit. • The east wall of cell 7 is eliminated. The west wall of 8 is eliminated. • Cell 8 is marked as visited and pushed onto the stack.

Step 10: • Cell 5 is the only possible adjacent cell to visit from cell 8. • The south wall of 5 is eliminated. The north wall of cell 8 is eliminated. • As shown, cell 5 is marked as visited and pushed onto the stack.

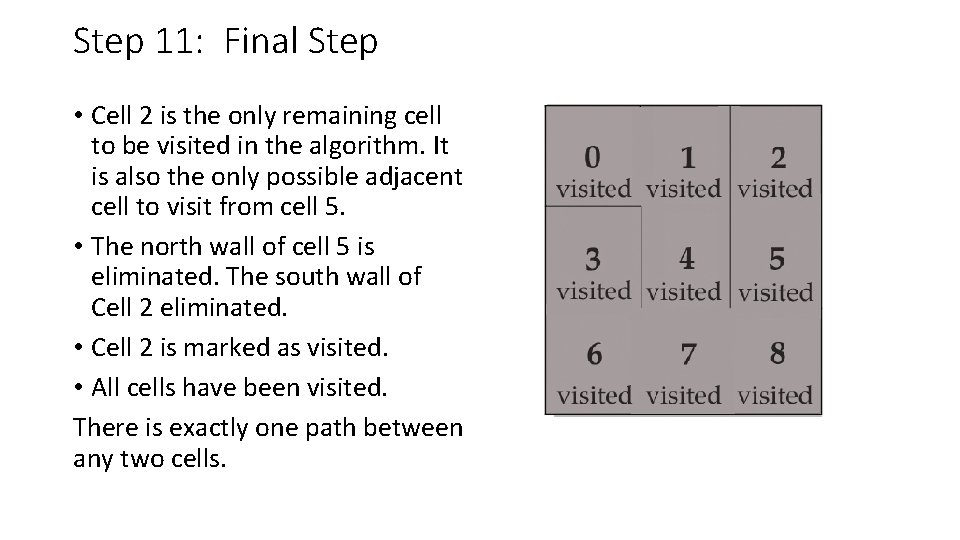

Step 11: Final Step • Cell 2 is the only remaining cell to be visited in the algorithm. It is also the only possible adjacent cell to visit from cell 5. • The north wall of cell 5 is eliminated. The south wall of Cell 2 eliminated. • Cell 2 is marked as visited. • All cells have been visited. There is exactly one path between any two cells.
