Chapter 9. Animation Inverse Kinematics & skinning 2001. 11. 20 강신진 1
Contents Inverse Kinematics Skinning 2
Inverse Kinematics General Idea Forward Kinematics l Inverse Kinematics l Manipulator P 4 P 2 P 5 P 3 P 0 P 1 3
Inverse Kinematics General Idea Forward Kinematics l Inverse Kinematics l Manipulator End Effector P 4 P 2 P 5 P 3 P 0 P 1 4
Inverse Kinematics General Idea Forward Kinematics l Inverse Kinematics l Manipulator P 4 P 2 ? End Effector P 5 P 3 P 0 P 1 5
Inverse Kinematics General Idea Forward Kinematics l Inverse Kinematics l Manipulator P 2 ? P 0 ? ? ? P 4 ? End Effector P 5 P 3 P 1 6
Inverse Kinematics General Idea Forward Kinematics l Inverse Kinematics l Manipulator P 2 P 5 P 3 P 0 End Effector P 4 P 1 Many Solutions! ! 7

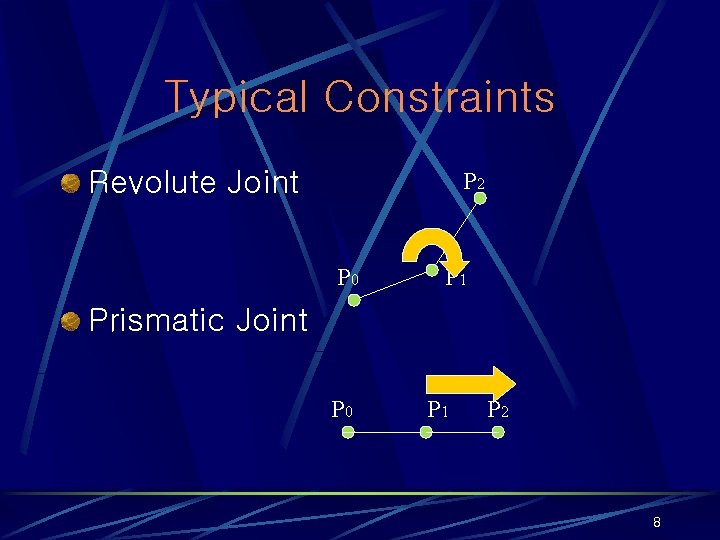

Typical Constraints Revolute Joint P 2 P 0 P 1 Prismatic Joint P 0 P 1 P 2 8
Manipulator Polyline starting point l Unit-length direction l Polyline terminating point l P 4 P 2 P 0 L 1 L 3 L 2 L 4 P 5 P 3 P 1 9
End Effect formula P 4 P 2 P 0 L 1 L 3 L 2 L 4 P 5 P 3 P 1 10
End Effect formula l Each direction l Calculated as as incremental rotation of the previous direction 11
Closed-Form Representation Difficult 12
Numerical Solution by Jacobian l Matrix of first-order partial Derivatives Less Difficult 13
Numerical Solution By Nonlinear Optimization Minimizing Squared Error 14
Numerical Solution by Cyclic Coordinate Descent Joint is optimized one at a time Approximation of global minimum of 15
List Manipulator with One End Effector Rotate to Point Goal: If rotation is constrained to the plane 16
List Manipulator with One End Effector Rotate to Line Goal: If rotation is constrained to the plane 17
List Manipulator with One End Effector Rotate to Plane Goal: 18
List Manipulator with One End Effector Slide to Point Goal: 19
List Manipulator with One End Effector Slide to Line Goal: Find closest point on the line Slide to Plane Goal: Find closest point on the plane 20
List Manipulator with Multiple End Effects Multiple Goal Shoulder P 2 Weighted Distance elbow hand P 0 P 1 GE GH 21
Skinning l Attaching a deformable mesh to a skeletal structure Medial Surface Medial Axis 22
Skinned Mesh attached to the bone with weight values 23
Skinned Mesh In 3 D MAX Studio 24
End 25
