Chapter 3 The Dynamic Earth Section 1 The
- Slides: 26
Chapter 3 – The Dynamic Earth Section 1: The Geosphere 1. Describe the composition & structure of the Earth 2. Describe the Earth’s tectonic plates 3. Explain the main cause of earthquakes & their effects 4. Identify the relationship between volcanic eruptions & climate change 5. Describe how wind & water alter the Earth’s surface
The Earth as a System • Earth consists of ____________, & living things AIR that interact with each other • Divided WATER into 4 parts: LIVING THINGS ROCK

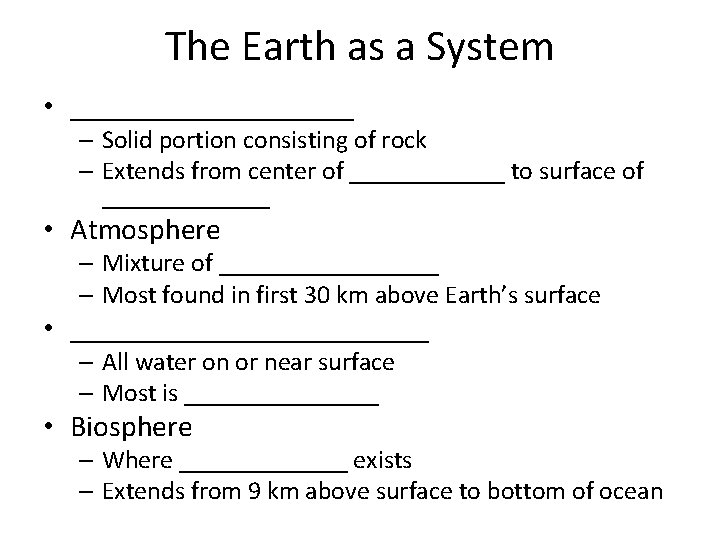

The Earth as a System • __________ – Solid portion consisting of rock – Extends from center of ______ to surface of _______ • Atmosphere – Mixture of _________ – Most found in first 30 km above Earth’s surface • ____________ – All water on or near surface – Most is ________ • Biosphere – Where _______ exists – Extends from 9 km above surface to bottom of ocean
Discovering Earth’s Interior • _________ used to study interior of Earth • Seismic waves Earthquake – Travel through Earth’s interior during earthquakes – Altered by type of material they move Seismic – Changes in speed & wave direction measured when passing through different layers

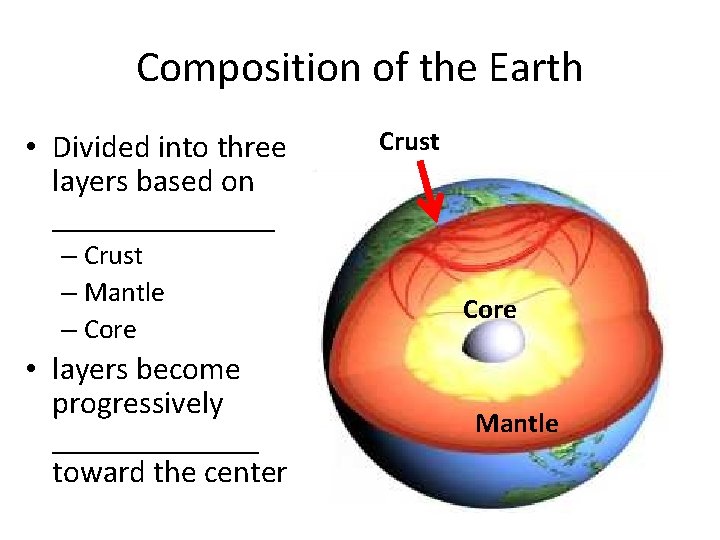

Composition of the Earth • Divided into three layers based on _______ – Crust – Mantle – Core • layers become progressively _______ toward the center Crust Core Mantle
Crust • Thin, _______ layer – 5 to 8 km beneath oceans – 20 to 70 km beneath continents • Solid, ______ • Composed of lightweight elements • Makes up less that ____ of Earth’s mass
Mantle • Layer between crust & core • Composed of rock with medium density • Contains ______ minerals • Makes up _______ of Earth’s mass • Approximately 2900 km thick
Core • Innermost layer – ___________ • Super-heated molten lava • Composed of liquid nickel & iron – ___________ • Sphere of solid nickel & iron • Consists of densest elements • Radius approximately 3400 km Solid inner core

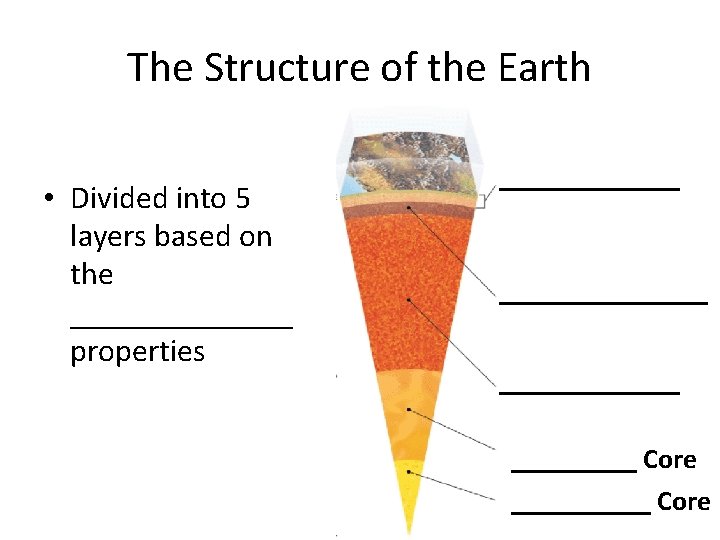

The Structure of the Earth • Divided into 5 layers based on the _______ properties _______________ _____ Core
Lithosphere • Composes ______ & upper part of ______ – 15 -300 km thick (9 -185 mi) • Divided into large pieces called ________ plates – May be oceanic or continental – Slide on fluid portion of mantle – Movement can cause earthquakes
Asthenosphere • Beneath lithosphere – 250 km thick (150 mi) • Solid, plastic-like material of mantle – Made of rock that _______ – Due to temperature & pressure • Allows for movement of tectonic plates
Mesophere • Lower part of mantle • More solid & rigid than asthenosphere due to increased pressure – Can’t flow Lithosphere Asthenosphere Mesosphere Outer Core Inner Core
Outer Core • Super-heated molten lava – Composed of _______ nickel & iron – 4000 to 9000 °F • Source of Earth’s magnetic field – Creates protective bubble – Deflects Sun’s solar winds
Inner Core • ________ ball • Composed of nickel & iron • 9000 °F & 45, 000 psi • Rotates in liquid outer core
Plate Tectonics • Large, irregularly shaped slabs of rock • Composed of oceanic & continental lithosphere – Continental rocks • Lightweight minerals (quartz, feldspar) • Thicker crust – Oceanic rocks • Heavier, denser basltic rocks • Thinner crust
Major & Minor Tectonic Plates move in different directions and speeds, thus crash together, pull apart or side swipe each other like cars in a demolition derby
Plate Boundaries • Most geologic activity occurs where plates ________or _______ (called boundaries) • Movement of plates creates 3 types of tectonic boundaries – ________ – plates collide, move into one another – ________ – plates move apart – ________ – plates move sideways in relation to one another • Movement of tectonic plates causes – Mountain formation – Earthquakes – Volcanic eruptions
Plate Tectonics and Mountain Formation • Plates collide, crust thickens • Rocks break & buckle – Continental plate folds into huge mountain – Oceanic plate forms trench • Examples – Rocky mountains (N. America) – Himalaya mountains (Central Asia

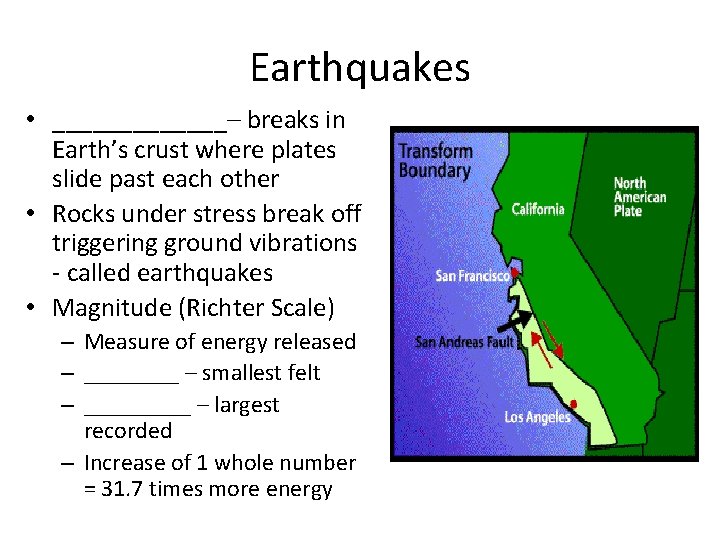

Earthquakes • _______– breaks in Earth’s crust where plates slide past each other • Rocks under stress break off triggering ground vibrations - called earthquakes • Magnitude (Richter Scale) – Measure of energy released – ____ – smallest felt – _____ – largest recorded – Increase of 1 whole number = 31. 7 times more energy

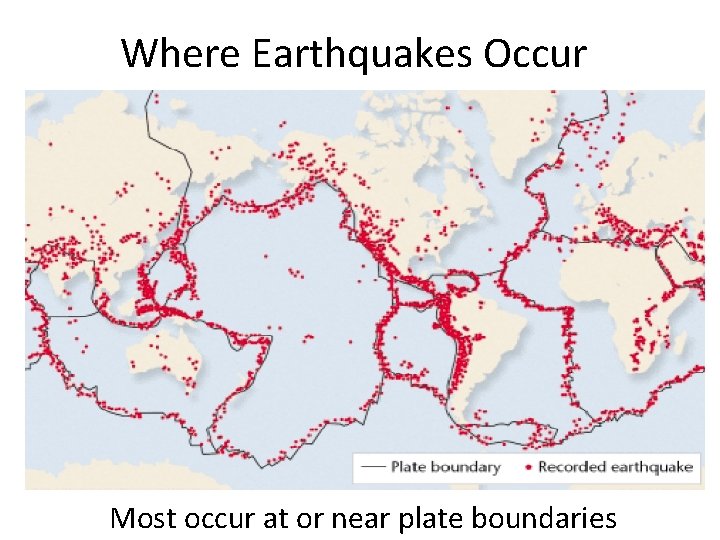

Where Earthquakes Occur Most occur at or near plate boundaries
Earthquake Hazard • Earthquake hazard level determined by past & present seismic activity • Hazards (effects) include – Ground shaking (building damage/settling of ground beneath to different level) – Ground displacement – Flooding (breakage of levies, dams, Tsunamis) – Fire (broken gas & power lines) • Human hazards due to man-made structures – Being crushed, buried or burned or drowning • National Hazards Maps used by cities, counties & local governments to update & create more stringent building codes

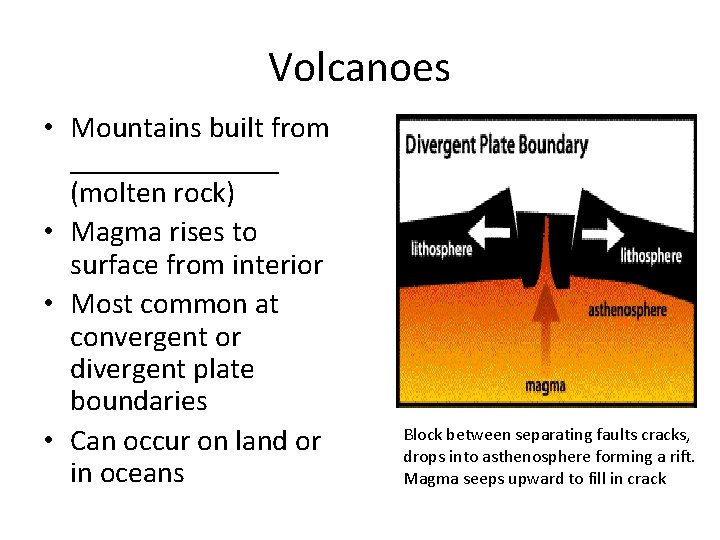

Volcanoes • Mountains built from _______ (molten rock) • Magma rises to surface from interior • Most common at convergent or divergent plate boundaries • Can occur on land or in oceans Block between separating faults cracks, drops into asthenosphere forming a rift. Magma seeps upward to fill in crack
Volcanoes: The Ring of Fire North American Plate Eurasian Plate South American Plate • Majority of active volcanoes on land located along tectonic plate surrounding the ______ Pacific Plate Australian Plate Antarctic Plate
Local Effects of Volcanic Eruptions • Clouds of hot ash, dust, & gases flow down the slopes of volcanoes searing anything in its path – Obscures _______, killing plants & animals • Volcanic ash mixes with water producing ________ – Water contamination – Land contamination • _________ of buildings, burying of crops, & damage to vehicle engines due to falling ash

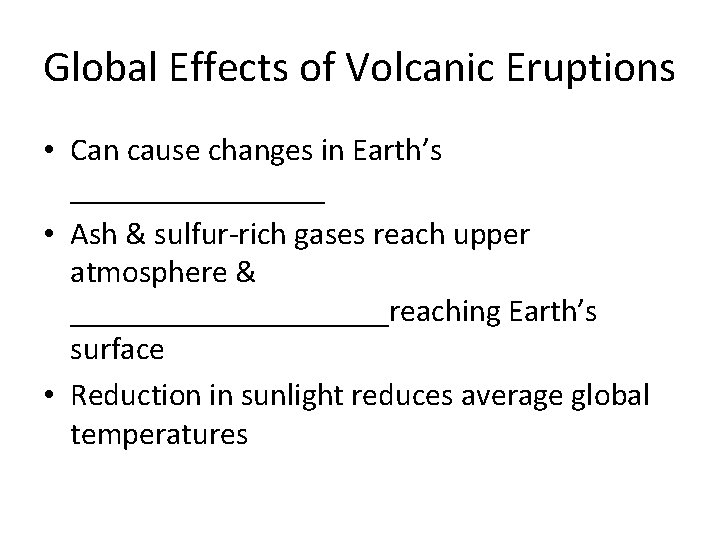

Global Effects of Volcanic Eruptions • Can cause changes in Earth’s ________ • Ash & sulfur-rich gases reach upper atmosphere & __________reaching Earth’s surface • Reduction in sunlight reduces average global temperatures
_________ • Process resulting in materials of the Earth’s surface being loosened, dissolved or worn away & transported from one place to another by natural agents such as wind, water, ice or gravity • _______ erosion – Rivers carve deep canyons or gorges into bedrock – Depositing of dust, pebbles, rocks forms new land areas – Oceans erode coastlines • _______ erosion – Removal of most fertile part of soil lowering soil productivity – Creates sand dunes
