CDA-5155 Computer Architecture Principles Fall 2000 Multiprocessor Architectures
Review • Protocols: reliable and heterogeneous networking • Interconnect technologies/topologies – Length, latency, diameter, blocking, deadlock, bisection BW, overheads, routing, congestion, connectionless? • • CPU interface to memory hierarchy vs. network (SPEC) Standardization key for LAN, WAN Internetworking protocols used as LAN protocols IC revolutionizing networks and processors – Switch is a specialized computer • Amdahl: High BW networks with high overheads
Overview • • • High performance computing Parallelism Taxonomy of multiprocessors Programming models Performance ASCI – Accelerated Strategic Computing Initiative
High Performance Computing • • • Hardware and software El dorado - Attack of the killer micros Microprocessor: the most cost-effective processor Dynamic supercomputer market Timesharing workloads – Multiprocessor vs. high performance uniprocessor • Performance and application domains – Throughput (multiprocessing workloads) • Timesharing, file, database, and web servers – Response time (parallel applications) • Single complex problem • Computation/communication = f(#processors, data size)
Parallelism • Two or more things that happen at the same time • Granularity - size of computations performed at the same time between synchronizations – Carry lookahead adder – Pipelined processor – Two-way superscalar processor – Multiprocessor – COW • Levels of parallelism – Bit level – Instruction level – Thread level • Challenges (Amdahl’s law) – Limited amount of parallelism in programs – High cost of communication

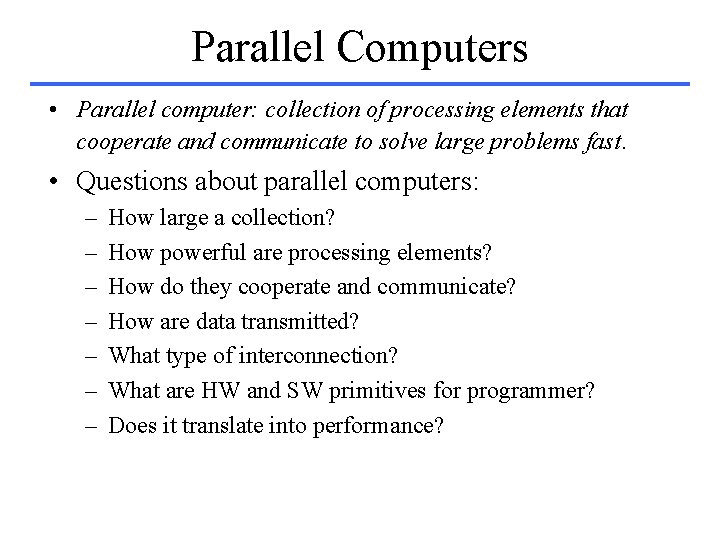

Parallel Computers • Parallel computer: collection of processing elements that cooperate and communicate to solve large problems fast. • Questions about parallel computers: – – – – How large a collection? How powerful are processing elements? How do they cooperate and communicate? How are data transmitted? What type of interconnection? What are HW and SW primitives for programmer? Does it translate into performance?
Taxonomy of Parallel Computers Flynn: I & D streams
Shared Memory Model • Each processor can name every physical location in the machine via Load and Store • Data size: byte, word, . . . or cache blocks • Process: a virtual address space (>= 1 thread of control) – Multiple processes can overlap (share), but ALL threads share a process address space • Writes to shared address space by one thread are visible to reads of other threads – Usual model: share code, private stack, some shared heap, some private heap • Performance – Latency, BW, scalability when communicate?
Message Passing Model • Nodes: whole computers (CPU, RAM, I/O) • Communication: explicit I/O operations – Send (local buffer, remote process) – Recv (local buffer, remote process) • Synchronization – When send completes – When buffer free – When request accepted – Necessary even for 1 processor

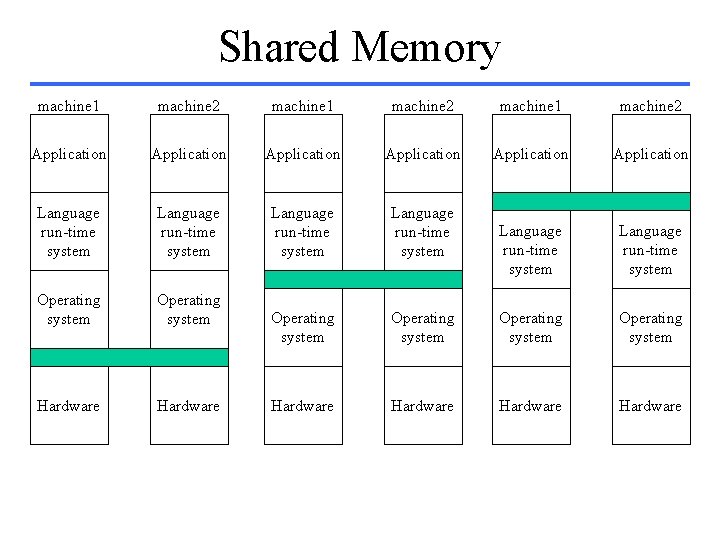

Shared Memory machine 1 machine 2 Application Application Language run-time system Language run-time system Operating system Operating system Hardware Hardware
Shared-Memory SIMD

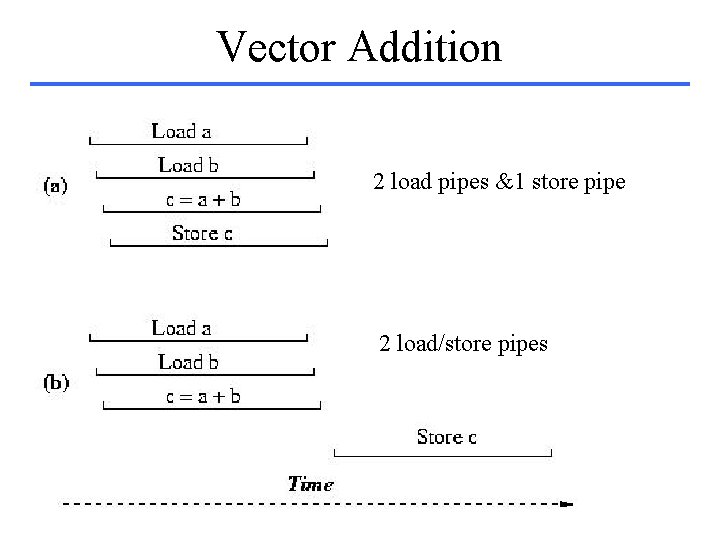

Vector Addition 2 load pipes &1 store pipe 2 load/store pipes
Distributed Memory SIMD
Shared Memory UMA
Bus-Based SMP

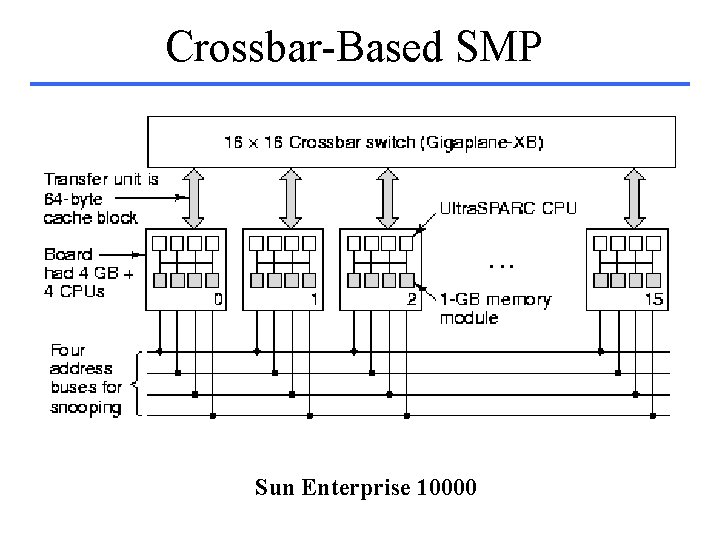

Crossbar-Based SMP Sun Enterprise 10000
NUMA

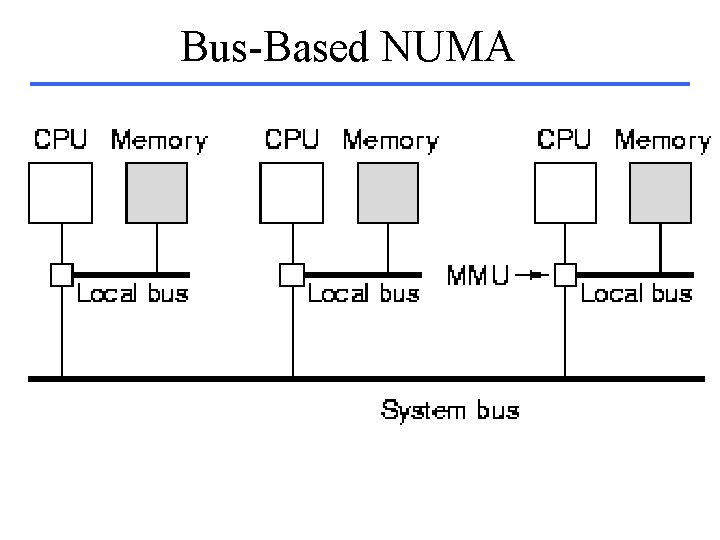

Bus-Based NUMA

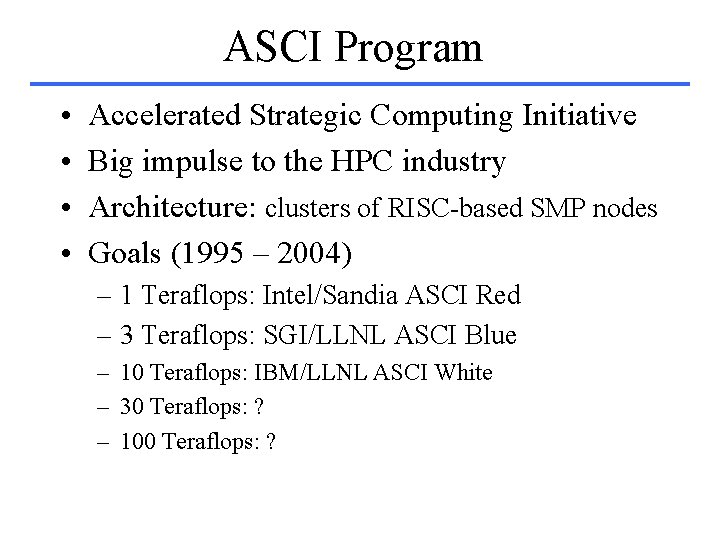

ASCI Program • • Accelerated Strategic Computing Initiative Big impulse to the HPC industry Architecture: clusters of RISC-based SMP nodes Goals (1995 – 2004) – 1 Teraflops: Intel/Sandia ASCI Red – 3 Teraflops: SGI/LLNL ASCI Blue – 10 Teraflops: IBM/LLNL ASCI White – 30 Teraflops: ? – 100 Teraflops: ?
Intel/Sandia ASCI Red 160 m 2 200 -MHz Pentium Pro Nodes: service, compute, I/O, and system Six-link router chip (dimensional, wormhole routing) Link BW: 400 MB/sec (full duplex)
Top 500 HPC
Architectures
CPU
Processor Type
Customer Govern’t 2% 3% 5% 17% 49% 24%

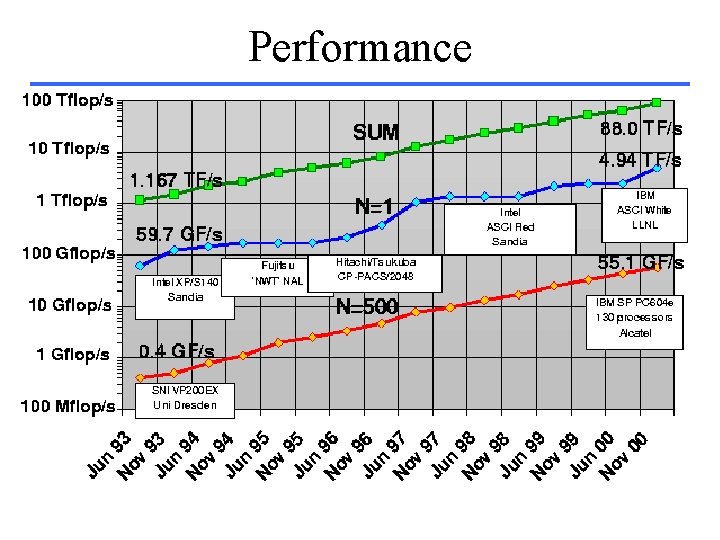

Performance
Manufacturers
