Outline: l l l 1/20/2022 ATmega 103 architecture AVR assembly language Elementary example program AVR Assembler Using the STUDIO 3. 52 simulator Downloading with Pony. Prog Costas Foudas, Imperial College, Rm: 508, x 47590 2

The ATmega 103 Microprocessor l 1/20/2022 In this course you will be using the ATmega 103 processor mounted on an ATMEL programming board Costas Foudas, Imperial College, Rm: 508, x 47590 3

The ATMEL BOARD l 1/20/2022 Connecting the board with your PC Costas Foudas, Imperial College, Rm: 508, x 47590 4

ATmega 103 diagram RISC Architecture 121 Instructions 32 x 8 Registers 4 MIPS @ 4 MHz 128 Kbytes In-System Prog. Flash Memory 4 Kbytes SRAM 4 Kbytes In-System EEPROM 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 5

ATmega 103 Peripherals I 6 PORTS; 4 Bi-Directional 1 Output 1 Input §Port A 8 -bit I/O SRAM ADDR/DATA §Port C SRAM §ADDRESS 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 6

ATmega 103 Peripherals II Interrupt Unit 8 -Channel 10 Bit ADC with interrupt On Chip analog Comparator with Interrupt. Prog. Watchdog Timer Real Time Counter § SPI Interface § UART 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 7

The ATmega 103 Architecture I §Your Program resides in this 128 Kbytes memory in. hex Intel format (hex numbers ) The Program Counter Keeps track which instruction is to be executed next The PC value at a subroutine call is stored in SRAM and after the subroutine execution (return) it is increased by 1 and loaded back. 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 8

The ATmega 103 Architecture II 32 General Purpose Registers The Arithmetic Logic Unit operates on the 32 registers 8 -bit Data Bus 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 9

The ATmega 103 Memory Map 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 10

AVR Assembly Language Why Assembly ? Direct access to the architecture of the processor l Direct use of the machine registers memory and stack l Full control of the processor l Faster 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 11

Registers l There are 32 registers r 0 -r 31 on ATmega 103. You may name them in a way that you can remember: Example: . def In. Put. Register = r 16 l You can zero (clear) them by: Example: clr r 16 ; This would load $00 on r 16 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 12

Registers I l You can set them to ones by: Example: ser r 16 ; This would load $FF on r 16 Remember the D-Flip-Flop ? ? 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 13

Registers II l 1/20/2022 Both CLR and SER are Direct Single Register Addressing because: Costas Foudas, Imperial College, Rm: 508, x 47590 14

Loading a register l You by: can set the contents of r 16 ldi In. Put. Register, $AA The ldi command will load with the HEX value $AA to register In. Put. Register which is just r 16. 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 15

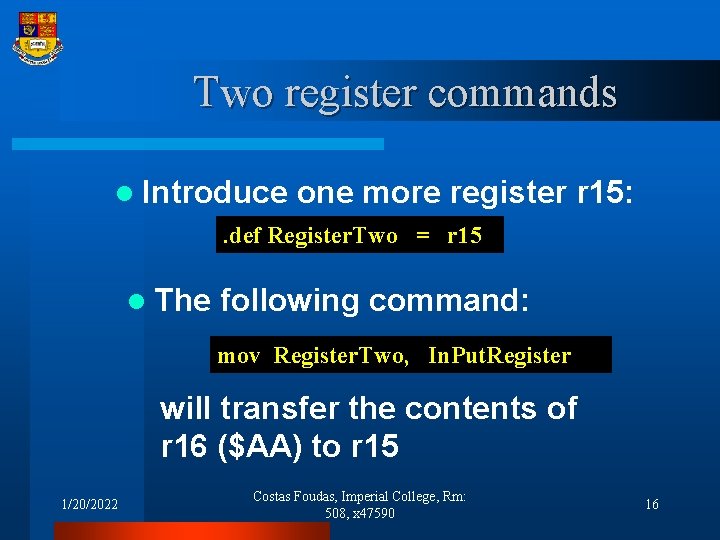

Two register commands l Introduce one more register r 15: . def Register. Two = r 15 l The following command: mov Register. Two, In. Put. Register will transfer the contents of r 16 ($AA) to r 15 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 16

Direct two register MOV Rd, Rx 1/20/2022 Note: that the direction goes Against intuition: Costas Foudas, Imperial College, Rm: 508, x 47590 17

I/O Direct Addressing To read or write to the ATmega 103 ports use the commands: IN Rd, PINX OUT PORTX, Rx ; X is A-F 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 18

Port Example: DDRA : Direction Reg. PORTA : OUTPUT Reg. PINA : INPUT (no Reg. ) 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 19

Setting up a port: PORTB : OUTPUT PORT ; ******* Port B Setup Code **** ldi r 16, $FF out DDRB , r 16 ldi r 16, $FF out PORTB, r 16 ; ; Port B Direction Register ; Init value ; Port B value ; ******* Port D Setup Code **** ldi r 16, $00 ; I/O: out DDRD, r 16 ; Port D Direction Register ldi r 16, $FF ; Init value out PORTD, r 16 ; Port D value PORTD : INPUT PORT 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 20

Program Header I: ; ** ATmega 103(L) Assembly Language File - IAR Assembler Syntax ** . ORG 0. include "m 103 def. inc“ ; Add required path to IAR Directory RJMP Init ; ** Author : Costas Foudas ; ** Company : Imperial College ; ** Comment : Program Header; PORTB=OUT, PORTD=IN 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 21

Program Header II: Init: ; ******* Stack Pointer Setup Code ldi r 16, $0 F ; Stack Pointer Setup out SPH, r 16 ; Stack Pointer High Byte ldi r 16, $FF ; Stack Pointer Setup out SPL, r 16 ; Stack Pointer Low Byte ; ******* RAMPZ Setup Code **** ldi r 16, $00 ; 1 = EPLM acts on upper 64 K out RAMPZ, r 16 ; 0 = EPLM acts on lower 64 K ; ******* Comparator Setup Code **** ldi r 16, $80 ; Comparator Disabled, Input ; Capture Disabled out ACSR, r 16 ; Comparator Settings 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 22

Example LED Program: Main: 1/20/2022 IN r 16, PIND Read in Port. D OUT PORTB, r 16 Write the Port. D input to the Port. B output register rjmp Main Go back to Main Costas Foudas, Imperial College, Rm: 508, x 47590 23

Setting up a code directory: Open a directory where you will store you code: Down-load in this directory the files: LEDIO. ASM and m 103 def. inc from the course web page (Lecture 2 b): Make sure you have : LEDIO. ASM, m 103 def. inc in your code directory 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 24

Getting Started with STUDIO 3. 52 : Go to Start Programs ATMEL AVR Tools AVR Studio 3. 52 Select New Project 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 25

Getting Started with STUDIO 3. 52 : You should be getting now the window: Pick AVR Assembler This is your code directory 1/20/2022 At the end Pick a name for your project Costas Foudas, Imperial College, Rm: 508, x 47590 26

Entering files in STUDIO 3. 52 (I): (1) Click here to go to the assembler files area (2) Click here To add files in the assembler area 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 (3) Click to pick you assembly file 27

Entering files in STUDIO 3. 52 (II): (2) Click hear to add files in the ‘other files’ area (1) Click here to go to the ‘other files’ area 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 (3) Click here to go to the ‘other files’ area 28

Entering files in STUDIO 3. 52 (III): This is your code loaded in Studio This is your definitions file loaded in Studio 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 29

Select the output file format : Click on Project Settings Change the format of the output file 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 Select Intel HEX format 30

Running your Program in Studio : Build and Run 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 31

Processor Settings: ATmega 103, Program memory 131072 (128 Kbytes) Frequency = 4 MHz ATmega 103 Frequency Program Flash 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 32

Processor Settings: ATmega 103 Program Flash Frequency 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 33

Ready to Run : Your Code Assembler Results Your Project Files 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 34

Open monitoring Windows: To run: Auto Step In. Put Out. Put CPU Registers 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 35

Watch your Program Running: In. Put Out. Put Registers CPU 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 36

Exercising the ATmega 103 commands: Look at the processor assembly commands in the Web page and try writing other programs. Try the commands SER, CLR, MOV, ADD, INC, LSL, … and see what do they do…… Write some programs that use these commands and Output the results on PORTB so you can see them on Using the POTRB LEDs when you eventually down load for real to the ATmega 103. 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 37

Downloading with Ponyprog I: Select from Start : ponyprog 2000 Open input Flash File 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 38

Downloading with Ponyprog II: Select from *. hex and LEDIO 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 39

Downloading with Ponyprog III: This is your machine code to be downloaded to the ATmega 103 chip 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 40

Downloading with Ponyprog IV: Select your Processor again 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 41

Downloading with ponyprog V: In ponyprog 2000: (1) Setup (Parallel, AVR I/O, LP 1) (2) Calibrate (3) Select AVR family and ATmega 103 (4) Load your flash file LEDIO. hex (5) Erase the Flash memory (6) Write the flash memory 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 42

Programs to write I: (1) Download from the Web Page the program LEDIO. asm, assemble it and run it. What do you see if you press the buttons on PORTD ? ? Do you know why this happens (dark LED 1) ? ? ? (2) Write a program that adds 2 numbers and outputs the result at PORTB. Read the result using the LEDs. 1/20/2022 Costas Foudas, Imperial College, Rm: 508, x 47590 43
