10 - Lock Bits, Fuse Bits and Boot Loader

Boot Loader Support – Read-While-Write Self. Programming: • The Boot Loader Support provides a real Read-While-Write Self-Programming mechanism for downloading and uploading program code by the MCU itself. This feature allows flexible application software updates controlled by the MCU using a Flash-resident Boot Loader program. • The program code within the Boot Loader section has the capability to write into the entire Flash, including the Boot Loader memory. The Boot Loader can thus even modify itself, and it can also erase itself from the code if the feature is not needed anymore. The size of the Boot Loader memory is configurable with Fuses

Memory Programming: 1. Lock Bits: Programming and Verification of EEPROM and Flash: Lock Bits Protection Type LB 2 LB 1 1 1 No memory lock features enabled 1 0 Further programming of the Flash and EEPROM is disabled. The Fuse bits are locked in both Serial and Parallel Programming mode 0 0 Further programming and Verification of the Flash and EEPROM is disabled. The Fuse bits are locked in both Serial and Parallel Programming mode

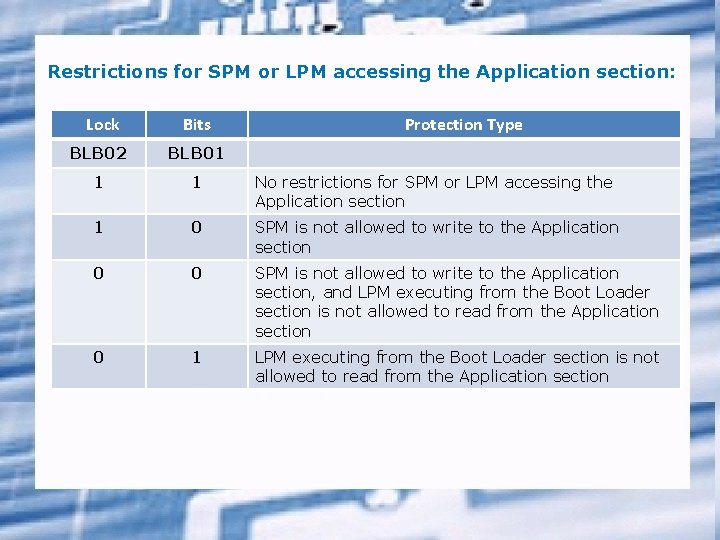

Restrictions for SPM or LPM accessing the Application section: Lock Bits Protection Type BLB 02 BLB 01 1 1 No restrictions for SPM or LPM accessing the Application section 1 0 SPM is not allowed to write to the Application section 0 0 SPM is not allowed to write to the Application section, and LPM executing from the Boot Loader section is not allowed to read from the Application section 0 1 LPM executing from the Boot Loader section is not allowed to read from the Application section

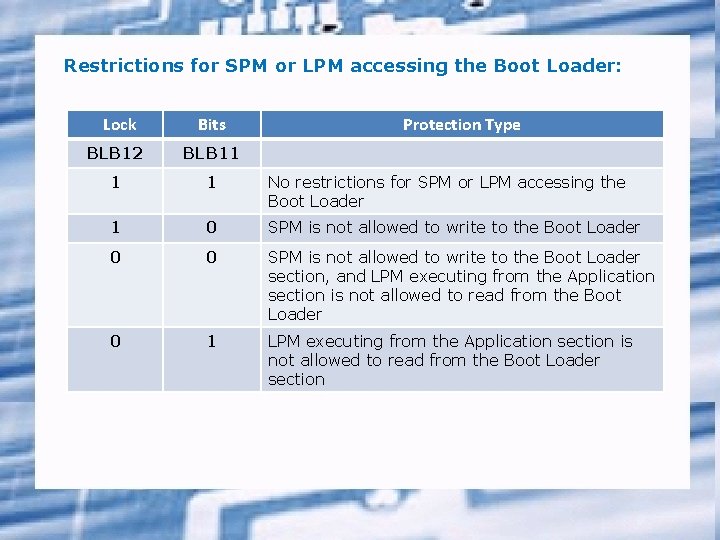

Restrictions for SPM or LPM accessing the Boot Loader: Lock Bits Protection Type BLB 12 BLB 11 1 1 No restrictions for SPM or LPM accessing the Boot Loader 1 0 SPM is not allowed to write to the Boot Loader 0 0 SPM is not allowed to write to the Boot Loader section, and LPM executing from the Application section is not allowed to read from the Boot Loader 0 1 LPM executing from the Application section is not allowed to read from the Boot Loader section

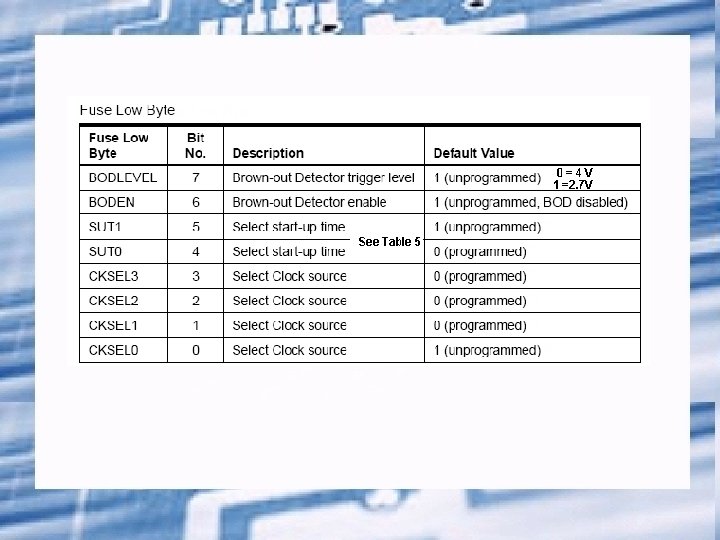

2. Fuse Bits: The ATmega 16 has two fuse bytes. Note that the fuses are read as logical zero, “ 0”, if they are programmed.

Notes: • JTAG (Joint Test Action Group)boundary scan started as a method of testing ICs and their interconnections using a shift register built into the chip so that inputs could be shifted in and the resulting outputs could be shifted out using only four I/O pins (clock, input data, output data, and state machine mode control). This eliminated the need for complex and expensive, bed-of-nails cards for low-speed probing of IC I/O pins. When used as a debugging tool, an in circuit emulator- which in turn uses JTAG as the transport mechanism - enables a programmer to access an on-chip debug module which is integrated into the CPU, via the JTAG interface. The debug module enables the programmer to debug the software of an embedded system. OCDEN: On-Chip Debug System Enable • •

Signature Bytes : All Atmel microcontrollers have a three-byte signature code which identifies the device. This code can be read in both serial and parallel mode, also when the device is locked. The three bytes reside in a separate address space. For the ATmega 16 the signature bytes are: 1. $000: $1 E (indicates manufactured by Atmel) 2. $001: $94 (indicates 16 KB Flash memory) 3. $002: $03 (indicates ATmega 16 device when $001 is $94)
