X 1 SYSTEM Video Entry System with SelfLearning

X 1 SYSTEM Video Entry System with Self-Learning Power Supply Included BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 System Key Assets Two single non-polarised wires, power supply included Simpler installation Expandability Reduced number of dedicated devices Use of various types of cable BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 System Features Inherits all the features of the X 2 system 4 inputs 100 calls* 8 receivers in simultaneous call Programming for self-learning B/W or colour video signals still on twisted pair with power supply Intercom function Perfect integration with system 300 for complex structures * 64 calls with analogue plate, 100 with digital plate BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 System Features Guaranteed Functions Secrecy of speech Door lock release Auxiliary services Self-connection of entry panels Personal doorbell Call warning Door lock release time setting System busy indication BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM NC/321 GR – NVM/301 GR YKP/301 -YV XDV/304 YKP/301 -YV OPHERA HEV/301 ST – HEP/306 ST VA/301 VCM/1 D TWISTED CABLE POWER SUPPLY BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy OPHERA

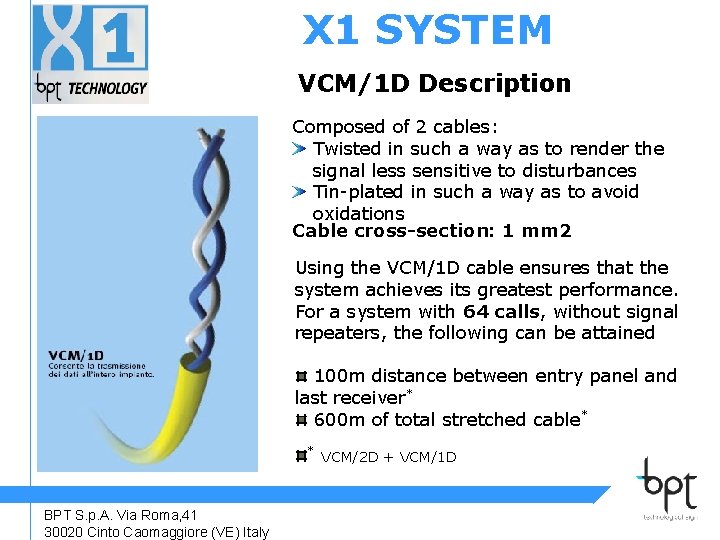

X 1 SYSTEM VCM/1 D Description Composed of 2 cables: Twisted in such a way as to render the signal less sensitive to disturbances Tin-plated in such a way as to avoid oxidations Cable cross-section: 1 mm 2 Using the VCM/1 D cable ensures that the system achieves its greatest performance. For a system with 64 calls, without signal repeaters, the following can be attained 100 m distance between entry panel and last receiver* 600 m of total stretched cable* * VCM/2 D + VCM/1 D BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM System Performance System with 64 Lynea-type receivers Type of cable Max distance between plate > VA/301 Max distance between VA/301 > monitor Max distance between plate > monitor Total stretched cable VCM/1 D 0 -100 m * 0 -100 m 600 m UTP/5 (AWG 24 -0. 2 mm 2) 0 -100 m * 0 -25 m 100 m 400 m Tel. twisted pair (0. 28 mm 2) 0 -100 m * 0 -30 m 100 m 250 m Symmetrical pair cable (1 mm 2) 0 -100 m * 0 -100 m 250 m * Plus two conductors of 1 mm 2 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM System Performance System with 20 Lynea-type receivers Type of cable Max distance between plate > VA/301 Max distance between VA/301 > monitor Max distance between plate > monitor Total stretched cable VCM/1 D 0 -100 m * 0 -150 m 200 m 600 m UTP/5 (AWG 24 -0. 2 mm 2) 0 -100 m * 0 -30 m 130 m 400 m Tel. twisted pair (0. 28 mm 2) 0 -100 m * 0 -50 m 150 m 250 m Symmetrical pair cable (1 mm 2) 0 -100 m * 0 -100 m 150 m 250 m * Plus two conductors of 1 mm 2 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM System Performance System with Lynea-type receiver Type of cable Max distance between plate > VA/301 Max distance between VA/301 > monitor Max distance between plate > monitor Total stretched cable VCM/1 D 0 -100 m * 0 -150 m 250 m / UTP/5 (AWG 24 -0. 2 mm 2) 0 -100 m * 0 -40 m 140 m / Tel. twisted pair (0. 28 mm 2) 0 -100 m * 0 -50 m 150 m / Symmetrical pair cable (1 mm 2) 0 -100 m * 0 -100 m 200 m / * Plus two conductors of 1 mm 2 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM VA/301 Power supply unit capable of supplying power direct to receivers from the X 1 bus with a single twisted pair. Furthermore, it has a separate output for supplying power to an entry panel and any accessories. Dimensions: 12 DIN It is possible to extract the X 1 signal with power supply at +24 V DC (in order to be used in the XUp system) from the CN 1 connector. BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM VA/301 TECHNICAL FEATURES: Receiver power supply 20 V DC One VA/301 can supply: 1 entry panel, analogue or digital, with 64 calls at most 1 activated X 1 video entry system receiver and up to 63 in stand-by Simultaneous call receivers: 8 (3 full call, or 2 in full call and 6 with reduced note) If video entry systems 7 are supplied locally. BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM UP TO 4 INPUTS VCM/1 D VA/301 HEV/301 KHSO. . KHPS(KHPD). . HEP/306 Twisted Pair + 2 Cables for Power Supply 1 2 3 4 Power to the Entry Panels after the first one is supplied appropriately BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

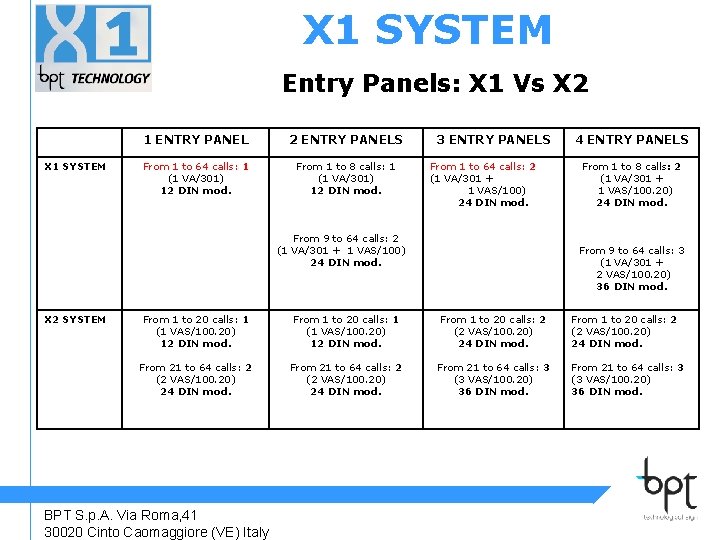

X 1 SYSTEM Entry Panels: X 1 Vs X 2 X 1 SYSTEM 1 ENTRY PANEL 2 ENTRY PANELS From 1 to 64 calls: 1 (1 VA/301) 12 DIN mod. From 1 to 8 calls: 1 (1 VA/301) 12 DIN mod. 3 ENTRY PANELS From 1 to 64 calls: 2 (1 VA/301 + 1 VAS/100) 24 DIN mod. From 9 to 64 calls: 2 (1 VA/301 + 1 VAS/100) 24 DIN mod. X 2 SYSTEM From 1 to 8 calls: 2 (1 VA/301 + 1 VAS/100. 20) 24 DIN mod. From 9 to 64 calls: 3 (1 VA/301 + 2 VAS/100. 20) 36 DIN mod. From 1 to 20 calls: 1 (1 VAS/100. 20) 12 DIN mod. From 1 to 20 calls: 2 (2 VAS/100. 20) 24 DIN mod. From 21 to 64 calls: 3 (3 VAS/100. 20) 36 DIN mod. BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy 4 ENTRY PANELS From 1 to 20 calls: 2 (2 VAS/100. 20) 24 DIN mod. From 21 to 64 calls: 3 (3 VAS/100. 20) 36 DIN mod.

X 1 SYSTEM PROGRAMMING Connect the System to a Power Supply Wait for the confirmation note. The number of tones also indicate the number of entry panels. Reposition the SW 1 jumper. Work on the last entry panel. Remove the SW 2 jumper Remove the SW 1 jumper BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

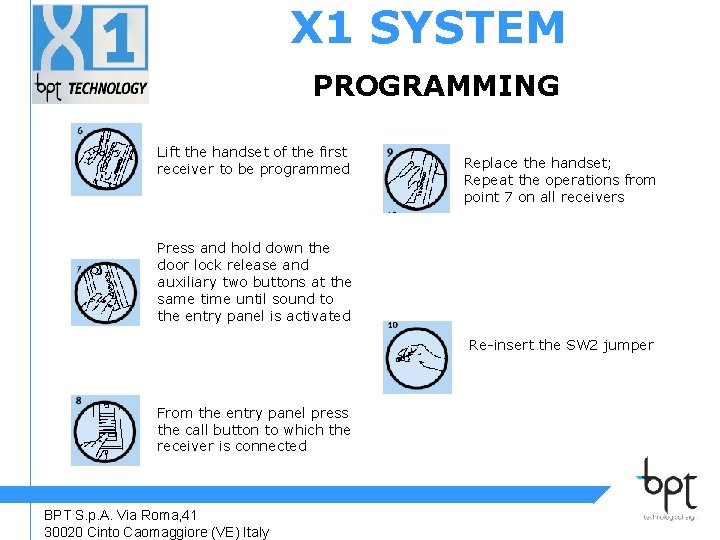

X 1 SYSTEM PROGRAMMING Lift the handset of the first receiver to be programmed Replace the handset; Repeat the operations from point 7 on all receivers Press and hold down the door lock release and auxiliary two buttons at the same time until sound to the entry panel is activated Re-insert the SW 2 jumper From the entry panel press the call button to which the receiver is connected BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM SIMULTANEOUS CALLS Up to 8 in simultaneous call. 2 in full call and 6 reduced OPHERA 1 or 3 in full call 2 5 OPHERA VA/301 HEV/301 KHSO. . KHPS(KHPD). . HEP/306 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy VAS/100 Two wires for power supply VCM/1 D VCM/2 D

X 1 SYSTEM VSE/301 The selector is used to connect groups of intercom receivers (max. 10 Exedra series, max. 6 Lynea series, 8 Ophera) and the main line of an X 1 system, X 2 or system 300. The selector is able to supply power direct to the intercom receivers from the X 1 bus with a single twisted pair. SW 2 Jumper Function (absent in the VSE/300; the reset of the intercom facility appened each times the jumper SW came removed) It is generally inserted. It is removed (for at least 5 secs) to restore the default conditions BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM VSE/301 TECHNICAL FEATURES: Used to add or replace an intercom receiver without having to programme all receivers again in the VSE/301 Receiver power supply through bus: 20 V DC DIMENSIONS: 8 DIN (instead 10 DIN, 6 DIN VSE/300 + 4 DIN AS/200) One VSE/301 supplies power to: 1 intercom receiver 10 receivers in simultaneous call - all in full call (if video entry phones 9 are supplied separately) BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM INTERCOM OPHERA 1 2 5 VSE/301 VA/301 HEV/301 KHSO. . KHPS(KHPD). . HEP/306 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy VAS/100. 20 Two wires for power supply VCM/1 D VCM/2 D

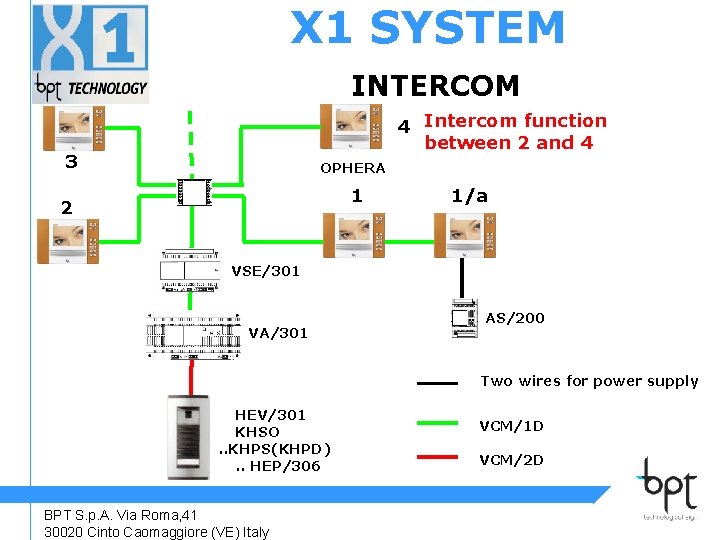

X 1 SYSTEM INTERCOM 4 Intercom function between 2 and 4 3 OPHERA 1 2 1/a VSE/301 VA/301 AS/200 Two wires for power supply HEV/301 KHSO. . KHPS(KHPD). . HEP/306 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy VCM/1 D VCM/2 D

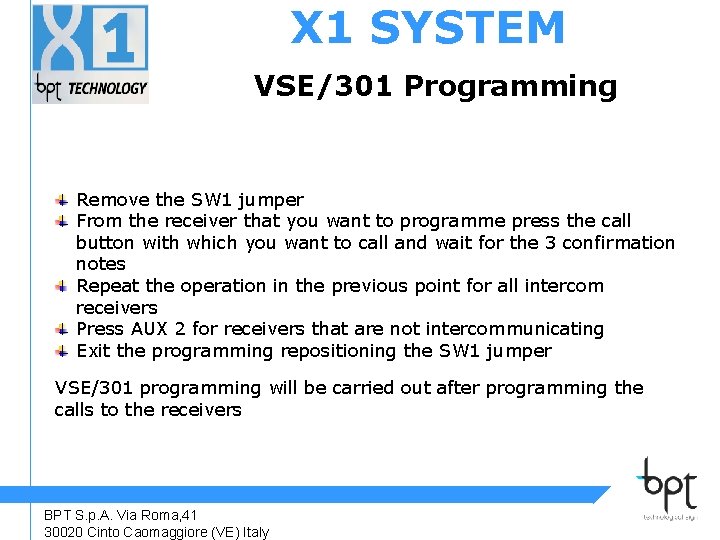

X 1 SYSTEM VSE/301 Programming Remove the SW 1 jumper From the receiver that you want to programme press the call button with which you want to call and wait for the 3 confirmation notes Repeat the operation in the previous point for all intercom receivers Press AUX 2 for receivers that are not intercommunicating Exit the programming repositioning the SW 1 jumper VSE/301 programming will be carried out after programming the calls to the receivers BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM XAS/301 TECHNICAL FEATURES: Audio, video and data repetition units for X 1 lines, allow the system to be extended in terms of distance and n° units. As with the VA/301 it supplies power from the bus to supply the receivers. XAS/301 WILL BE INSERTED UPRIGHT IF AT LEAST ONE OF THE FOLLOWING CHARACTERISTICS IS EXCEEDED: 64 USERS 100 m MAX DISTANCE BETWEEN ENTRY PANEL AND LAST RECEIVER 600 m TOTAL STRETCHED CABLE 2 XDV/300 A 16 XDV/304 A IN SERIES 30 between XDV/304 A and XDV/304 After XAS/301 it is possible to replicate the above-mentioned characteristics with the possibility to reach a maximum 100 users (maximum n° of users managed by the entry panel) BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

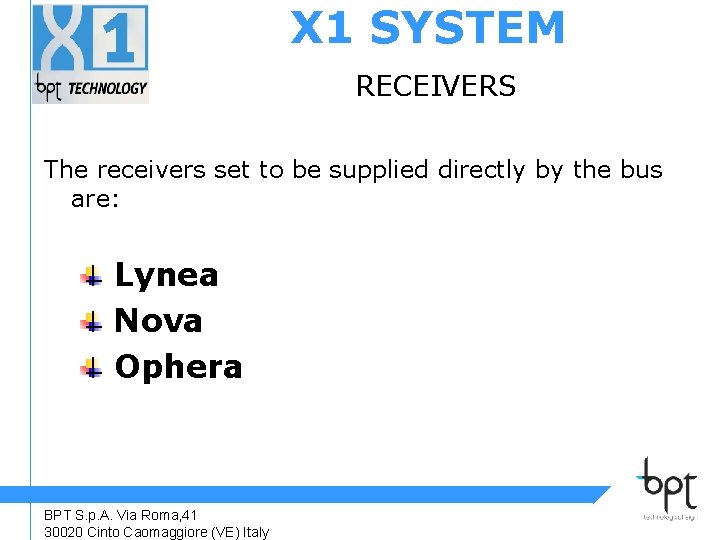

X 1 SYSTEM RECEIVERS The receivers set to be supplied directly by the bus are: Lynea Nova Ophera BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM RECEIVERS It is possible using a jumper to decide if the receiver must be supplied locally or directly by the bus. The possible positions of the jumper are described by the label shown below: WARNING: If X 1 receivers are used in X 2 systems without the jumper being set correctly (local supply) the system enters into protective state, locking itself. BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 DEVICES LYNEA SERIES YKP/301 Entry phone with wall mounting for video modules YV and YVC NOVA SERIES NVM/301 GR Colour monitor module, grey 2” LCD NVM/301 BB Colour monitor module, white 2” LCD NS/61 NVM/301 + NC/321 mounting for 6 module embedding box NST/61 Table-top mounting for Nova POWER SUPPLIERS VA/301 230 V 50/60 Hz power supplier, 12 unit module for DIN rail, low profile XAS/301 Additional 230 V power supplier for signal regeneration SELECTORS VSE/301 Intercom selector, integrated power supply, 8 unit module for DIN rail, low profile CONNECTION CABLES VCM/1 D Tin-plated 2 conductor cable, 1 mm cross-section in 100 m coil VCM/1 D/500 Tin-plated 2 conductor cable, 1 mm cross-section in 500 m coil BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

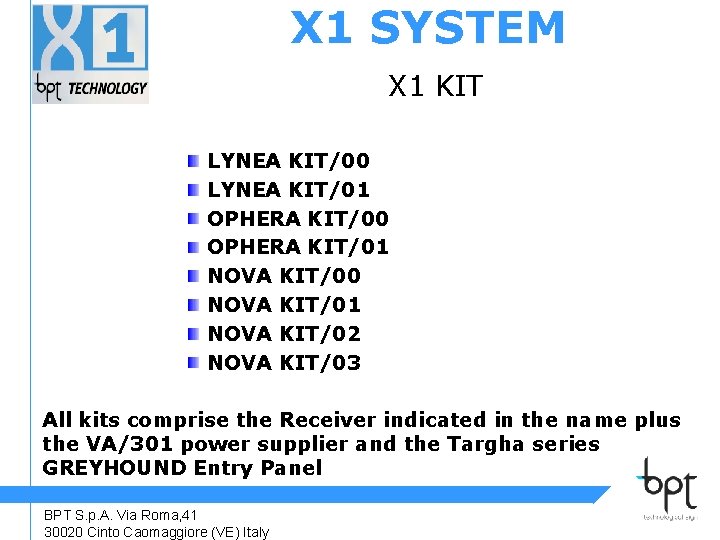

X 1 SYSTEM X 1 KIT LYNEA KIT/00 LYNEA KIT/01 OPHERA KIT/00 OPHERA KIT/01 NOVA KIT/00 NOVA KIT/01 NOVA KIT/02 NOVA KIT/03 All kits comprise the Receiver indicated in the name plus the VA/301 power supplier and the Targha series GREYHOUND Entry Panel BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 OPHERA KIT BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 LYNEA KIT BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM X 1 NOVA KIT BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM EXPANSION Block-type installations Up to 2000 users Porter switchboard Customisable parameters 64 Blocks 64 Users per block 64 Main Entry Panels Simply integrating the X 1 system with the powerful S 300 BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy

X 1 SYSTEM OPHERA NC/321 -NVM/301 -NS/61 VCM/1 D VCM/2 D VCM/4 D XDV/304 TWISTED PAIR YKP/301 -YV VA/301 BCK X 1 HEV/301 KHSO. . KHPS(KHPD). . HEP/306 BCK X 1 XDV/304 A XAV/300 XA/300 LR BPT S. p. A. Via Roma, 41 30020 Cinto Caomaggiore (VE) Italy RIR/300 LR ICB/300 HEV/301 HTS HAC/X 2 LR HAC/300 LR
