![Wireless Power Transmission and Near Field Communication 國立台北科技大學 電子 程系 林丁丙 教授 Wireless Power Transmission and Near Field Communication 國立台北科技大學 電子 程系 林丁丙 教授](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-1.jpg)
Wireless Power Transmission and Near Field Communication 國立台北科技大學 電子 程系 林丁丙 教授
![Outline Introduction l Wireless Power Transmission WPT l Near Field Communication NFC Wireless Power Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-2.jpg)
Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power Transmission l Literature Review l Proposed Design and Parametric Analysis Near Field Communication l Literature Review l Proposed Design and Theoretical Analysis Conclusions 1/32
![Outline Introduction l Wireless Power Transmission WPT l Near Field Communication NFC Wireless Power Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-3.jpg)
Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power Transmission l Literature Review l Proposed Design and Parametric Analysis Near Field Communication l Literature Review l Proposed Design and Theoretical Analysis Conclusion 2/32

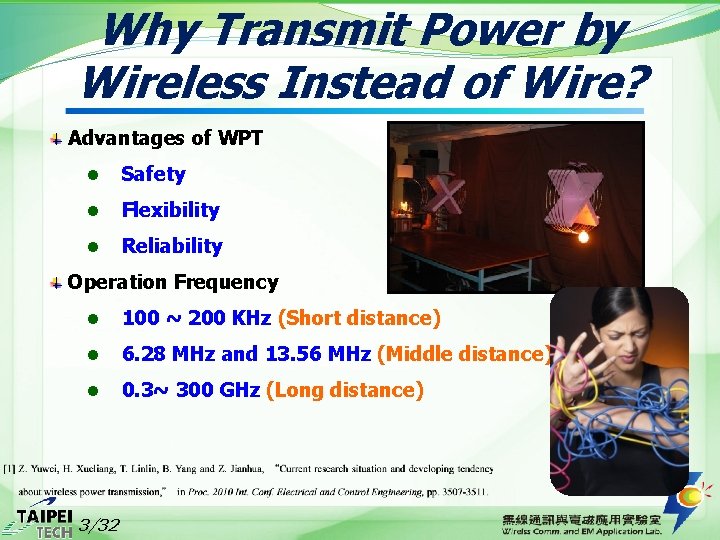

![Why Transmit Power by Wireless Instead of Wire Advantages of WPT l Safety l Why Transmit Power by Wireless Instead of Wire? Advantages of WPT l Safety l](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-4.jpg)
Why Transmit Power by Wireless Instead of Wire? Advantages of WPT l Safety l Flexibility l Reliability Operation Frequency l 100 ~ 200 KHz (Short distance) l 6. 28 MHz and 13. 56 MHz (Middle distance) l 0. 3~ 300 GHz (Long distance) 3/32
![WPT for Short Distance 12 Operation Frequency 100 200 KHz Transmission DistanceLess than WPT for Short Distance (1/2) Operation Frequency: 100 ~ 200 KHz Transmission Distance:Less than](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-5.jpg)
WPT for Short Distance (1/2) Operation Frequency: 100 ~ 200 KHz Transmission Distance:Less than 5 cm Faraday’s law IS IP Equivalent Circuit IP:Primary current IS:Secondary current Schematic Diagram 4/32 H:Magnetic Field
![WPT for Short Distance 22 Name of OrganizationWireless Power Consortium Operation Frequency 100 WPT for Short Distance (2/2) Name of Organization:Wireless Power Consortium Operation Frequency: 100 ~](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-6.jpg)
WPT for Short Distance (2/2) Name of Organization:Wireless Power Consortium Operation Frequency: 100 ~ 200 KHz Output Power: 5 ~ 15 W Charging Methods:Magnetic Field Coupling Fixed Position 5/32 Free Position (Moving Coil) (Array Coil)
![Application of WPT for Short Distance Samsung Galaxy S 4 Nokia Lumia 920 Nexus Application of WPT for Short Distance Samsung Galaxy S 4 Nokia Lumia 920 Nexus](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-7.jpg)
Application of WPT for Short Distance Samsung Galaxy S 4 Nokia Lumia 920 Nexus 4 6/32
![WPT for Middle Distance 12 Name of OrganizationNFC Forum Operation Frequency 13 56 MHz WPT for Middle Distance (1/2) Name of Organization:NFC Forum Operation Frequency: 13. 56 MHz](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-8.jpg)
WPT for Middle Distance (1/2) Name of Organization:NFC Forum Operation Frequency: 13. 56 MHz Output Power:Less than 5 W Charging Methods:Magnetic Field Coupling Transmission Distance:Less than 50 cm NFC Antenna Schematic Diagram 7/32 NFC Antenna of New HTC One
![WPT for Middle Distance 22 Name of OrganizationAlliance for Wireless Power Operation Frequency 13 WPT for Middle Distance (2/2) Name of Organization:Alliance for Wireless Power Operation Frequency: 13.](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-9.jpg)
WPT for Middle Distance (2/2) Name of Organization:Alliance for Wireless Power Operation Frequency: 13. 56 MHz、6. 28 MHz Output Power: 20 ~ 50 W Charging Methods:Magnetic Resonance Current Transmission Distance:Less than 2 M Magnetic Field Schematic Diagram 8/32 Equivalent Circuit
![Application of WPT for Middle Distance NFC Phone Speaker Sony Z 1 Phone Camera Application of WPT for Middle Distance NFC Phone Speaker Sony Z 1 Phone Camera](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-10.jpg)
Application of WPT for Middle Distance NFC Phone Speaker Sony Z 1 Phone Camera Lens NFC 9/32 Nokia Lumia 920
![WPT for Long distance Operation Frequency 0 3 300 GHz Output Power Less WPT for Long distance Operation Frequency: 0. 3 ~ 300 GHz Output Power: Less](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-11.jpg)
WPT for Long distance Operation Frequency: 0. 3 ~ 300 GHz Output Power: Less than 0. 5 W Charging Methods:Microwave Transmission Distance:More than 2 M Schematic Diagram of Microwave Wireless Power Transmission 10/32
![Outline Introduction l Wireless Power Transmission WPT l Near Field Communication NFC Wireless Power Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-12.jpg)
Outline Introduction l Wireless Power Transmission (WPT) l Near Field Communication (NFC) Wireless Power Transmission l Literature Review l Proposed Design and Parametric Analysis Near Field Communication l Literature Review l Proposed Design and Theoretical Analysis Conclusion 11/32
![Efficiency Calculation for WPT Conversion Efficiency CE Conversion Efficiency Total Transmission Efficiency 1232 Efficiency Calculation for WPT Conversion Efficiency CE: Conversion Efficiency Total Transmission Efficiency 12/32](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-13.jpg)
Efficiency Calculation for WPT Conversion Efficiency CE: Conversion Efficiency Total Transmission Efficiency 12/32
![Block Diagram for Rectenna Proposed Rectenna in currently research Za Zd Za Zd Block Diagram for Rectenna Proposed Rectenna in currently research Za Zd Za = Zd](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-14.jpg)
Block Diagram for Rectenna Proposed Rectenna in currently research Za Zd Za = Zd for maximum power transfer Pi Po For IL = 0. 48 d. B Po = 0. 89 x Pi 13/32
![Literature Review for WPT The new dualdiode rectenna can provide at least twice 12 Literature Review for WPT The new dual-diode rectenna can provide at least twice (1/2)](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-15.jpg)
Literature Review for WPT The new dual-diode rectenna can provide at least twice (1/2) the dc output voltage than the traditional one 14/32
![Literature Review for WPT Additional matching network is needed for better power 22 transformation Literature Review for WPT Additional matching network is needed for better power (2/2) transformation](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-16.jpg)
Literature Review for WPT Additional matching network is needed for better power (2/2) transformation 3 rd harmonic rejection filter will cause the additional loss Matching Network 15/32
![Proposed DCP Rectenna 13 Proposed dual circularly polarized rectenna with highorder harmonic rejection property Proposed DCP Rectenna (1/3) Proposed dual circularly polarized rectenna with high-order harmonic rejection property](https://slidetodoc.com/presentation_image_h/b4365a97b2f272d2320527e588fe0bc8/image-17.jpg)
Proposed DCP Rectenna (1/3) Proposed dual circularly polarized rectenna with high-order harmonic rejection property From View Bottom View Side View 16/32
