Scale Optimize Open Stack with Citrix Aaron Delp

Scale & Optimize Open. Stack with Citrix Aaron Delp (@aarondelp), Sr. Director Technical Marketing, Cloud Platforms Sridhar Devarapalli, Director of Product Management, Net. Scaler

Agenda • Evolving IT Role • Citrix / Open. Stack Integration ᵒ Xen. Server • xenserver-core Demonstration ᵒ Net. Scaler • LBaa. S/Neutron Demonstration • NS Control Center Integration ᵒ Cloud. Portal Business Manager • Open. Stack Connector Demonstration

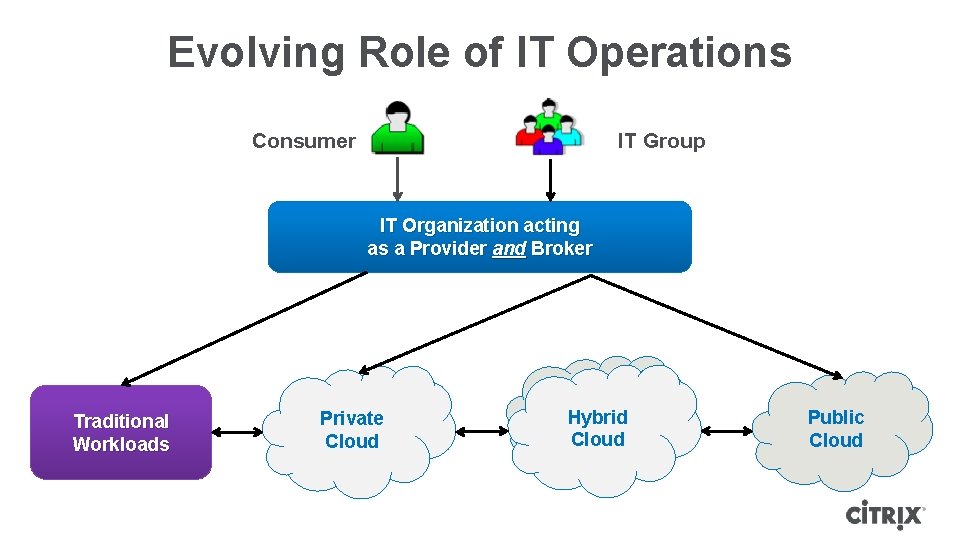

Evolving Role of IT Operations Consumer IT Group IT Organization acting as a Provider and Broker Traditional Workloads Private Cloud Hybrid Cloud Public Cloud

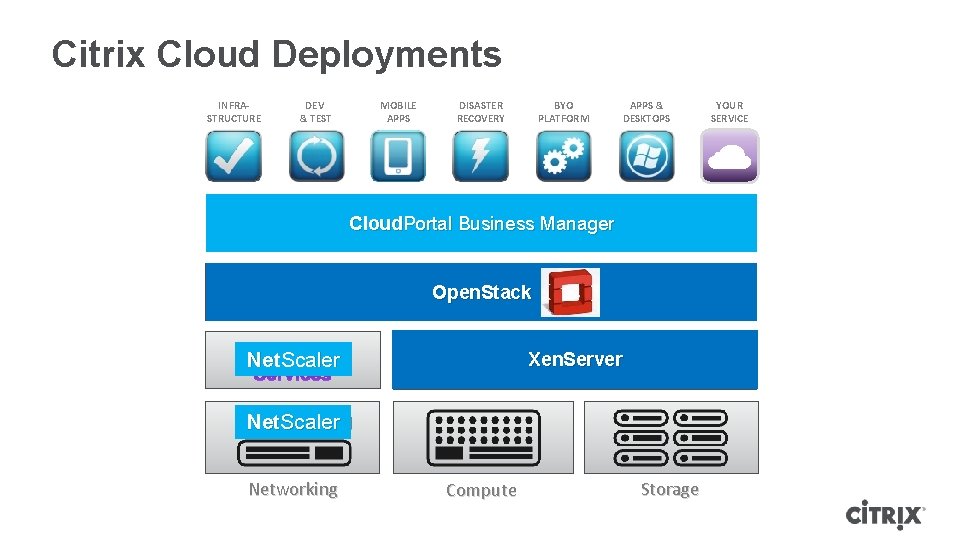

Citrix Cloud Deployments INFRASTRUCTURE DEV & TEST MOBILE APPS DISASTER RECOVERY BYO PLATFORM APPS & DESKTOPS Cloud. Portal Business Manager Open. Stack Net. Scaler Xen. Server Net. Scaler Networking Compute Storage YOUR SERVICE

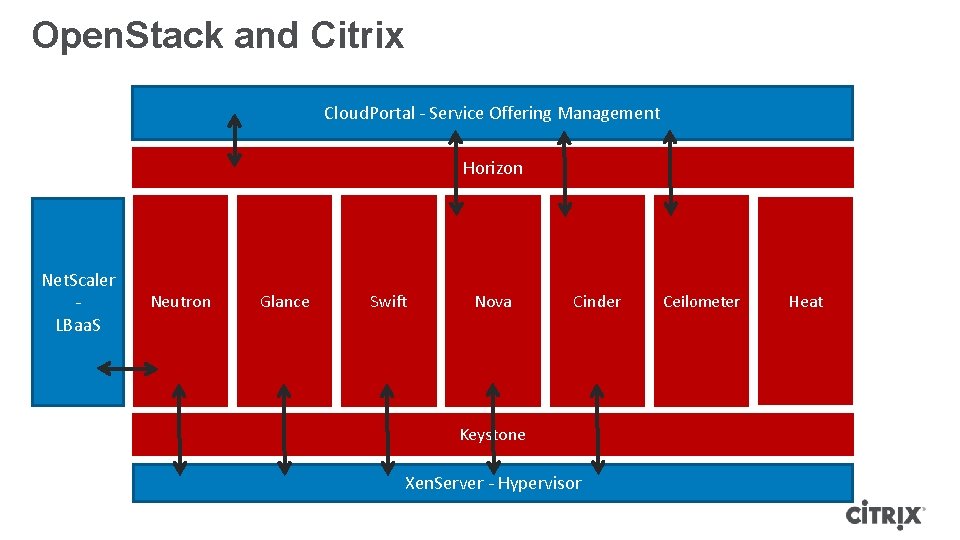

Open. Stack and Citrix Cloud. Portal - Service Offering Management Horizon Net. Scaler LBaa. S Neutron Glance Swift Nova Cinder Keystone Xen. Server - Hypervisor Ceilometer Heat

Xen. Server

Market Momentum 1 Million + downloads of Free Xen. Server 300, 000+ customers > 50% of Fortune 500 Powering the worlds largest clouds

Strong Technical Foundation

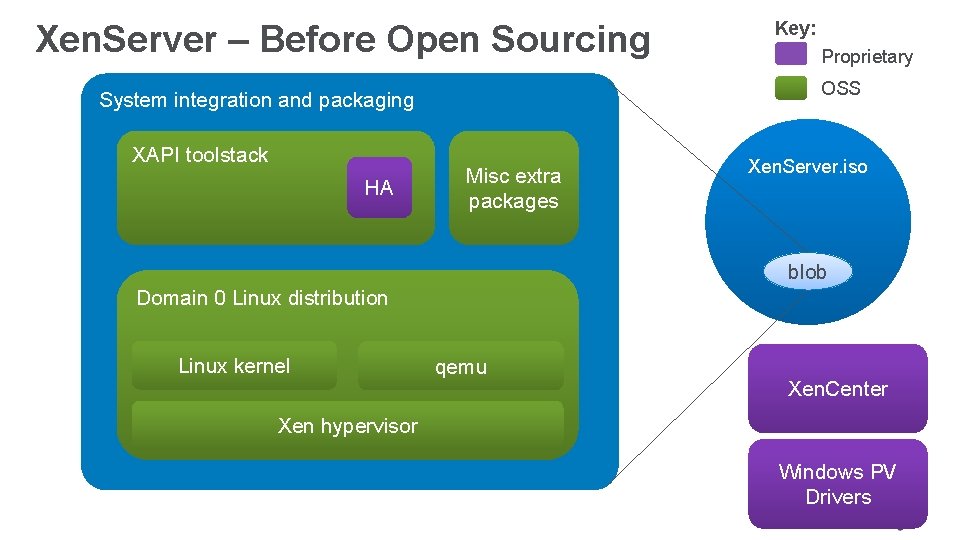

Xen. Server – Before Open Sourcing HA Proprietary OSS System integration and packaging XAPI toolstack Key: Misc extra packages Xen. Server. iso blob Domain 0 Linux distribution Linux kernel qemu Xen. Center Xen hypervisor Windows PV Drivers

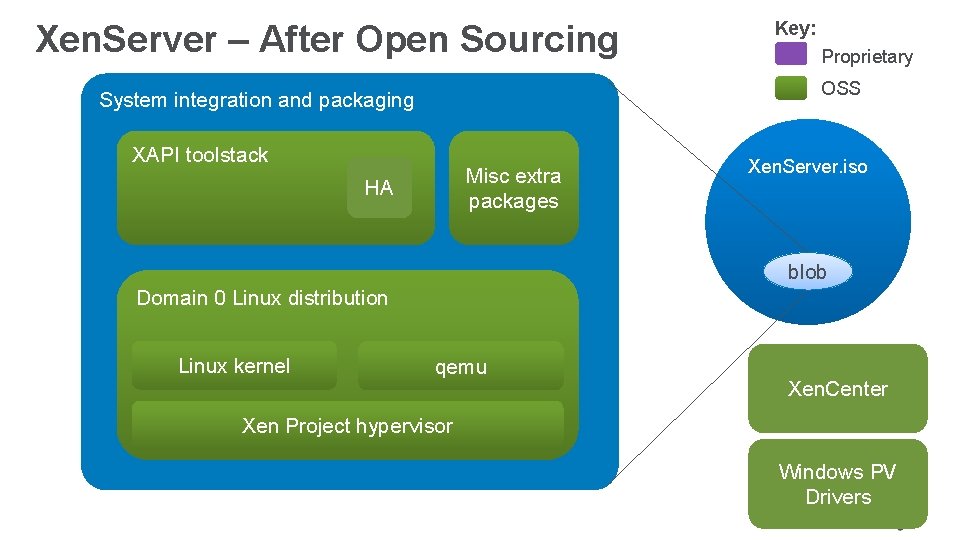

Xen. Server – After Open Sourcing Key: Proprietary OSS System integration and packaging XAPI toolstack Misc extra packages HA Xen. Server. iso blob Domain 0 Linux distribution Linux kernel qemu Xen. Center Xen Project hypervisor Windows PV Drivers

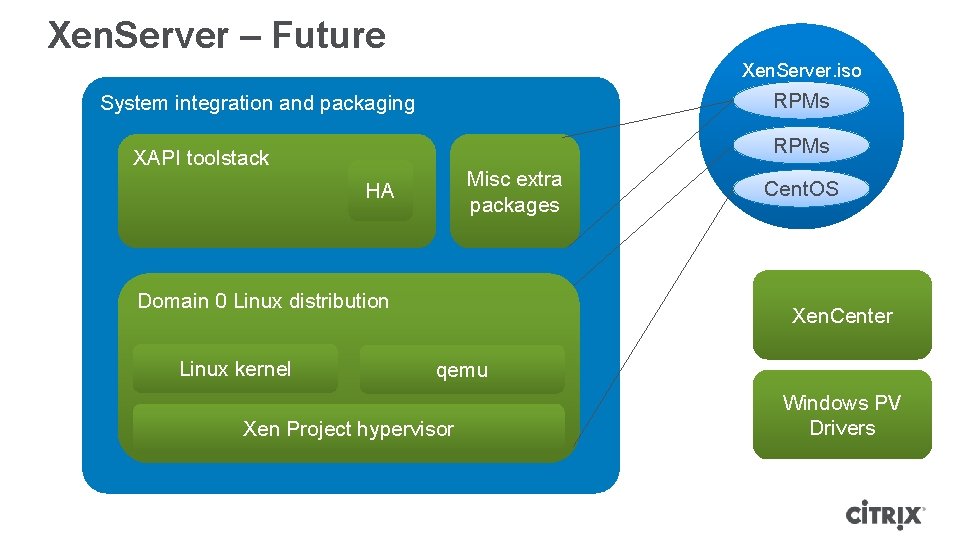

Xen. Server – Future Xen. Server. iso RPMs System integration and packaging RPMs XAPI toolstack Misc extra packages HA Domain 0 Linux distribution Linux kernel Cent. OS Xen. Center qemu Xen Project hypervisor Windows PV Drivers

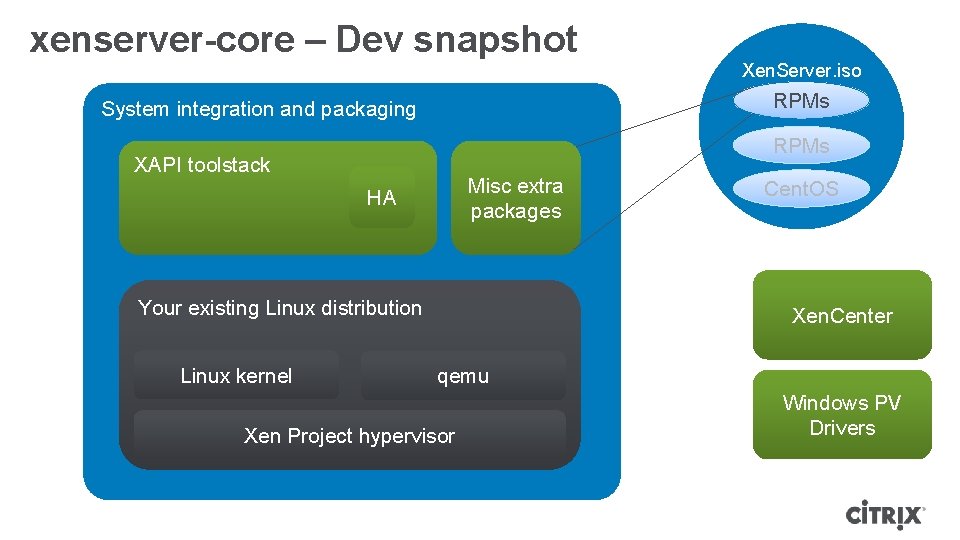

xenserver-core – Dev snapshot RPMs System integration and packaging RPMs XAPI toolstack Misc extra packages HA Your existing Linux distribution Linux kernel Xen. Server. iso Cent. OS Xen. Center qemu Xen Project hypervisor Windows PV Drivers

xenserver-core and Open. Stack Demo

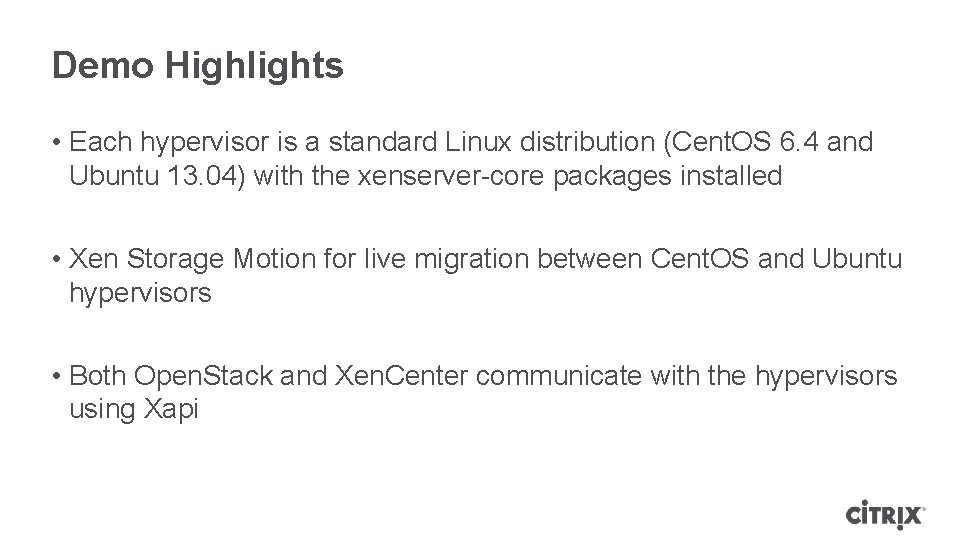

Demo Highlights • Each hypervisor is a standard Linux distribution (Cent. OS 6. 4 and Ubuntu 13. 04) with the xenserver-core packages installed • Xen Storage Motion for live migration between Cent. OS and Ubuntu hypervisors • Both Open. Stack and Xen. Center communicate with the hypervisors using Xapi

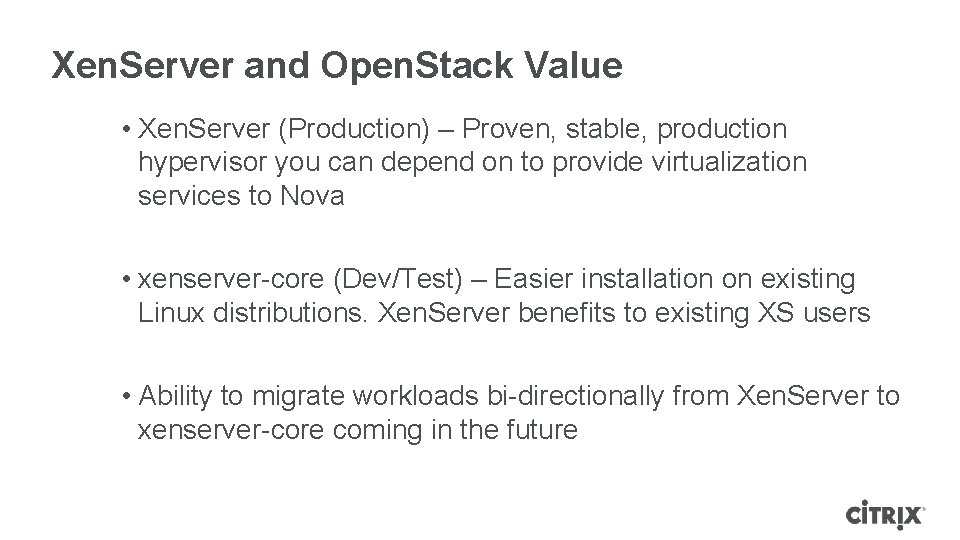

Xen. Server and Open. Stack Value • Xen. Server (Production) – Proven, stable, production hypervisor you can depend on to provide virtualization services to Nova • xenserver-core (Dev/Test) – Easier installation on existing Linux distributions. Xen. Server benefits to existing XS users • Ability to migrate workloads bi-directionally from Xen. Server to xenserver-core coming in the future

Net. Scaler - LBaa. S Tech Preview - Net. Scaler Control Center Tech Preview

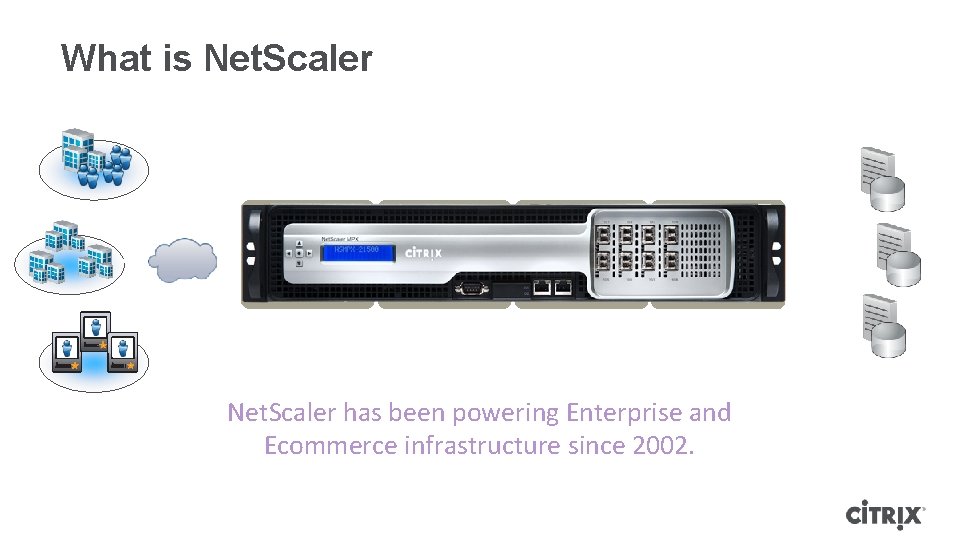

What is Net. Scaler Availability Performance Offload Security Net. Scaler has been powering Enterprise and Ecommerce infrastructure since 2002.

• Increase performance on demand • Reduce the number of appliances in a single multitenant platform • Seamlessly expand capacity Enterprise Cloud • Deploy new services with agility

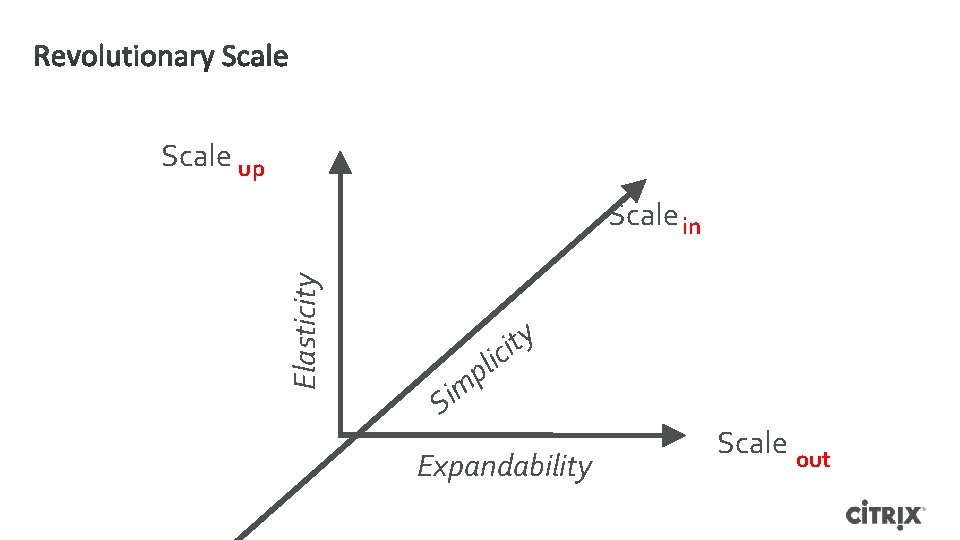

Scale up Elasticity Scale in y t i ic l p Sim Expandability Scale out

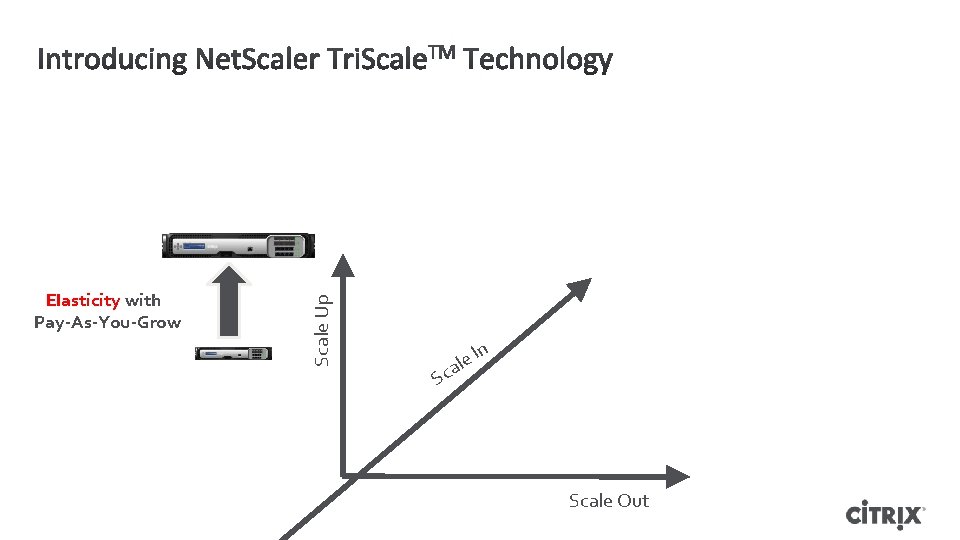

Scale Up Elasticity with Pay-As-You-Grow Sc ale In Scale Out

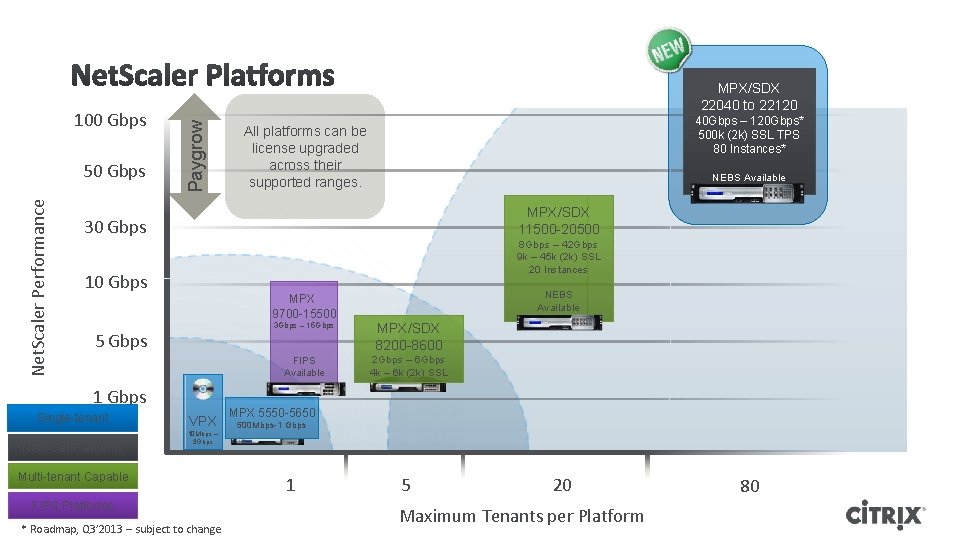

Net. Scaler Performance 50 Gbps Paygrow 100 Gbps MPX/SDX 22040 to 22120 40 Gbps – 120 Gbps* 500 k (2 k) SSL TPS 80 Instances* All platforms can be license upgraded across their supported ranges. NEBS Available MPX/SDX 11500 -20500 30 Gbps 8 Gbps – 42 Gbps 9 k – 45 k (2 k) SSL 20 Instances 10 Gbps 5 Gbps 1 Gbps Single-tenant Next Gen. Platforms NEBS Available MPX 9700 -15500 VPX 10 Mbps – 3 Gbps Multi-tenant Capable FIPS Platforms * Roadmap, Q 3’ 2013 – subject to change 3 Gbps – 15 Gbps MPX/SDX 8200 -8600 FIPS Available 2 Gbps – 6 Gbps 4 k – 6 k (2 k) SSL MPX 5550 -5650 500 Mbps-1 Gbps 1 5 20 Maximum Tenants per Platform 80

Elasticity with Pay-As-You-Grow Scale Up Simplicity with Many-In-One SDX Sc ale In Scale Out

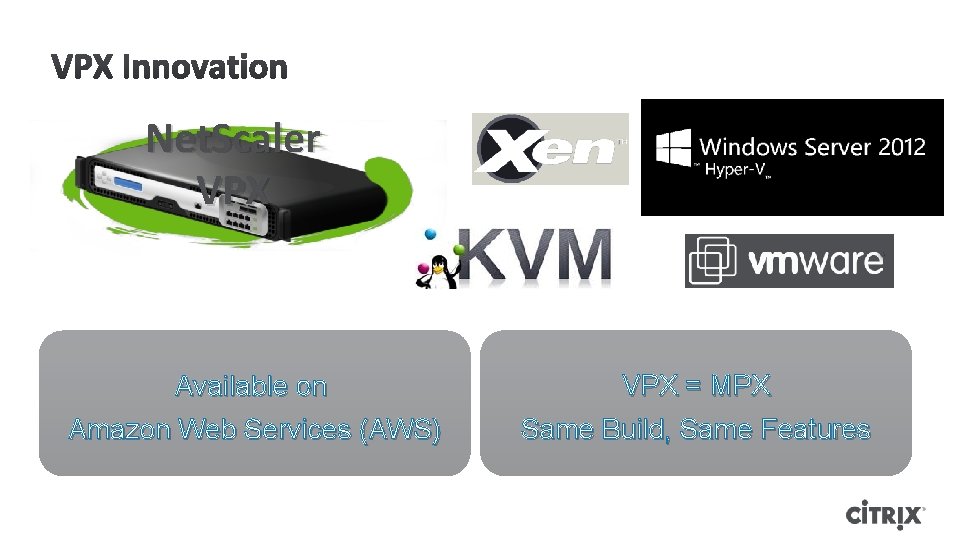

Net. Scaler VPX Available on VPX = MPX Amazon Web Services (AWS) Same Build, Same Features

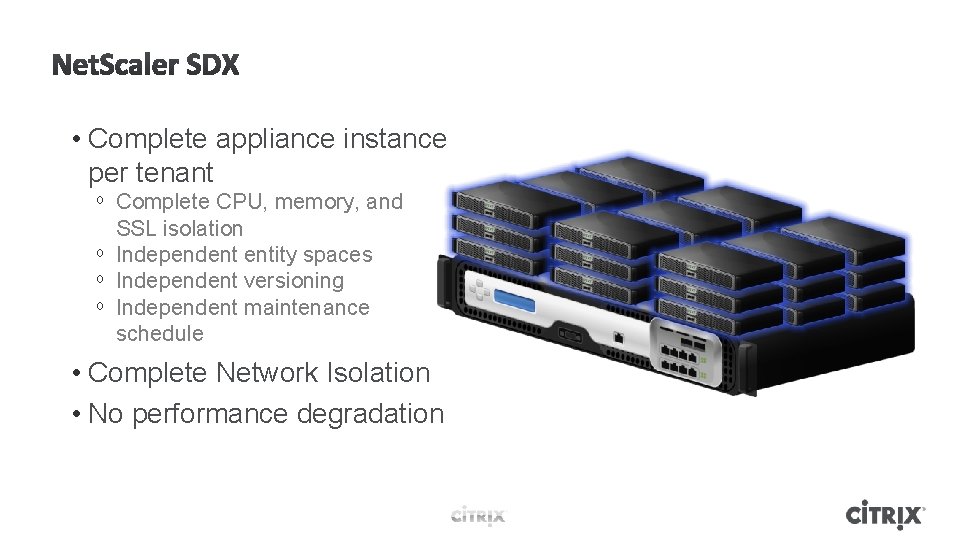

• Complete appliance instance per tenant ᵒ Complete CPU, memory, and SSL isolation ᵒ Independent entity spaces ᵒ Independent versioning ᵒ Independent maintenance schedule • Complete Network Isolation • No performance degradation

3 rd Party Support Now open for 3 rd party services

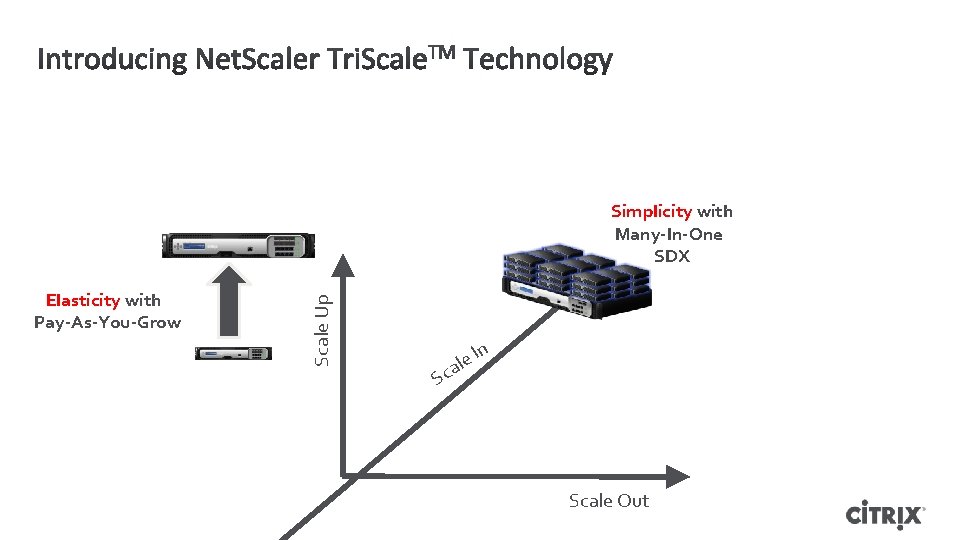

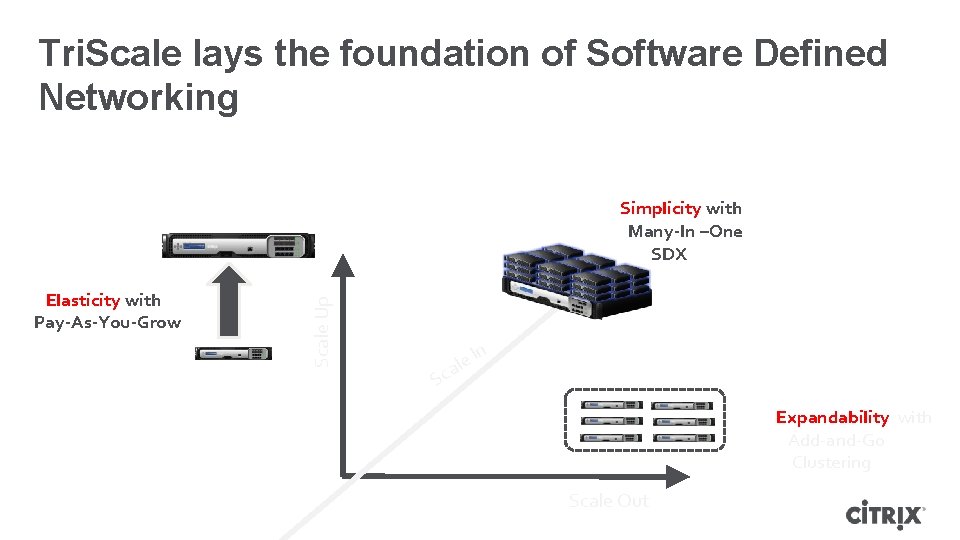

Tri. Scale lays the foundation of Software Defined Networking Elasticity with Pay-As-You-Grow Scale Up Simplicity with Many-In –One SDX Sc ale In Expandability with Add-and-Go Clustering Scale Out

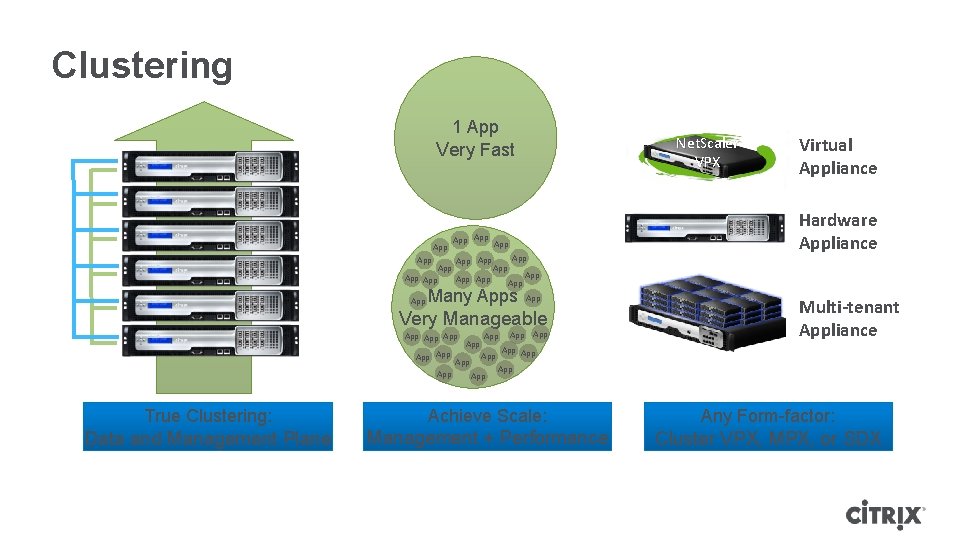

Clustering 1 App Very Fast App App App Net. Scaler VPX Hardware Appliance App App App Many Apps App Very Manageable App App App Virtual Appliance App Multi-tenant Appliance App App True Clustering: Achieve Scale: Any Form-factor: Data and Management Plane Management + Performance Cluster VPX, MPX, or SDX

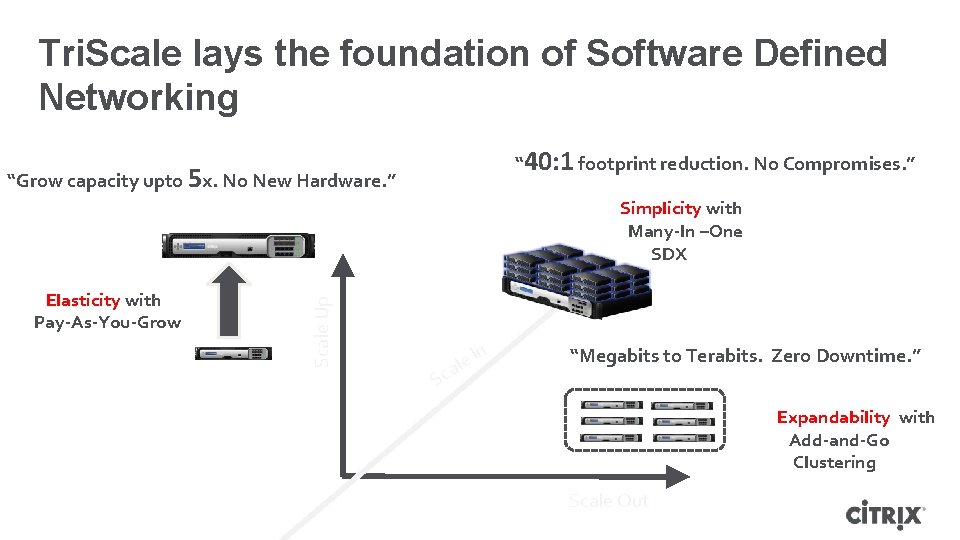

Tri. Scale lays the foundation of Software Defined Networking “ 40: 1 footprint reduction. No Compromises. ” “Grow capacity upto 5 x. No New Hardware. ” Elasticity with Pay-As-You-Grow Scale Up Simplicity with Many-In –One SDX Sc ale In “Megabits to Terabits. Zero Downtime. ” Expandability with Add-and-Go Clustering Scale Out

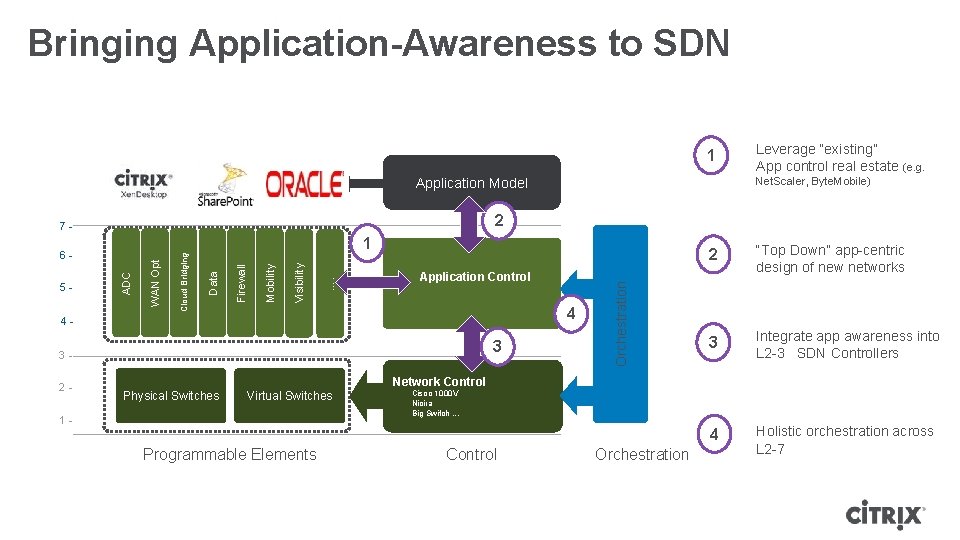

Bringing Application-Awareness to SDN 1 Application Model Application Control 4 4 - 3 3 - Orchestration …. Visibility Mobility Firewall Data Cloud Bridging ADC WAN Opt 1 6 - 2 - Net. Scaler, Byte. Mobile) 2 7 - 5 - Leverage “existing” App control real estate (e. g. 2 “Top Down” app-centric design of new networks 3 Integrate app awareness into L 2 -3 SDN Controllers 4 Holistic orchestration across L 2 -7 Network Control Physical Switches Virtual Switches 1 - Programmable Elements Cisco 1000 V Nicira Big Switch … Control Orchestration

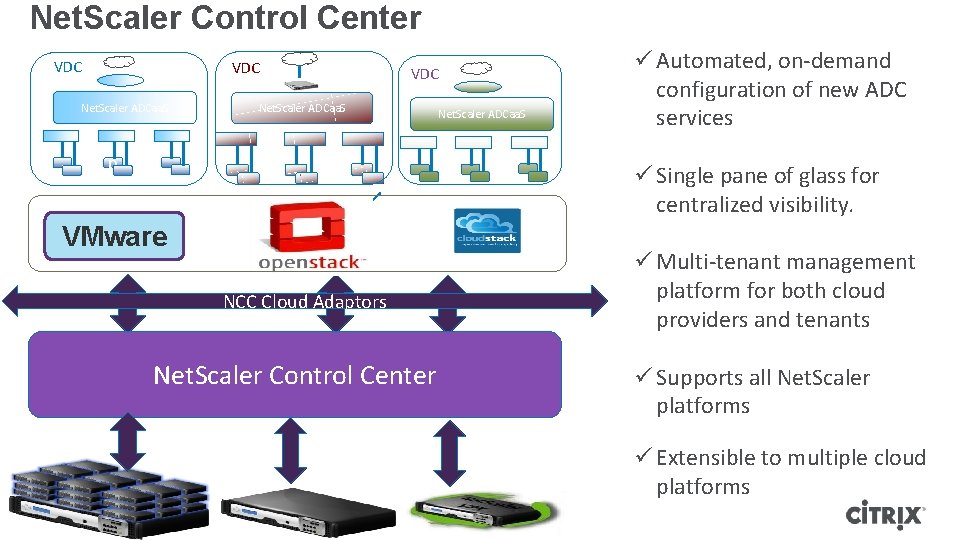

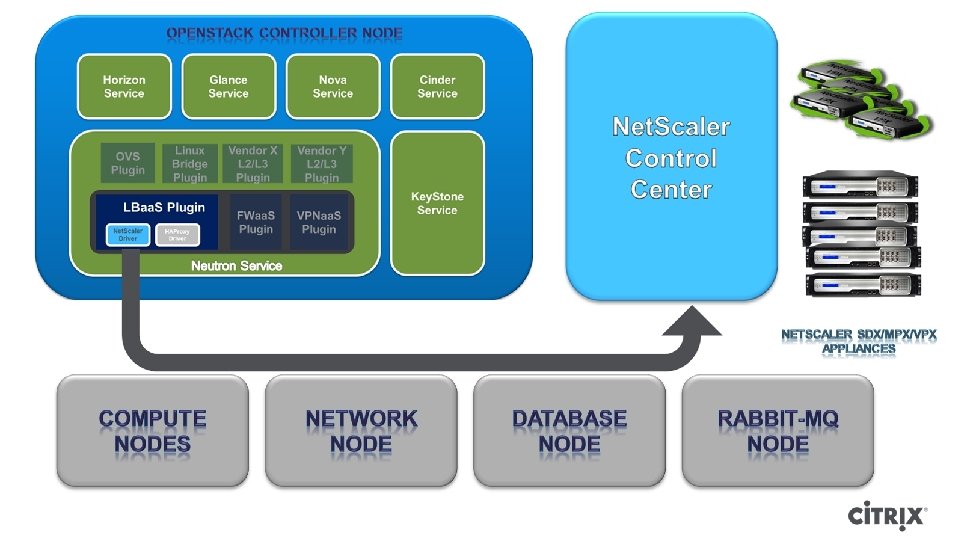

Net. Scaler Control Center VDC Net. Scaler ADCaa. S p Net. Scaler ADCaa. S ü Automated, on-demand configuration of new ADC services ü Single pane of glass for centralized visibility. VMware NCC Cloud Adaptors Net. Scaler Control Center ü Multi-tenant management platform for both cloud providers and tenants ü Supports all Net. Scaler platforms ü Extensible to multiple cloud platforms

Demo – Net. Scaler LBaa. S with Neutron

Tech Preview – Cloud Portal Business Manager

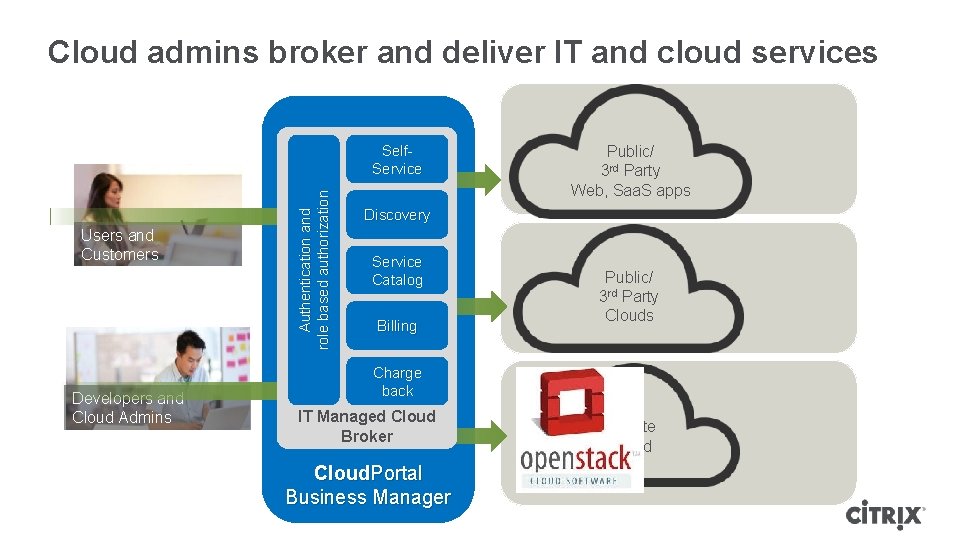

Cloud admins broker and deliver IT and cloud services Users and Customers Developers and Cloud Admins Authentication and role based authorization Self. Service Public/ 3 rd Party Web, Saa. S apps Discovery Service Catalog Billing Public/ 3 rd Party Clouds Charge back IT Managed Cloud Broker Cloud. Portal Business Manager Private Cloud

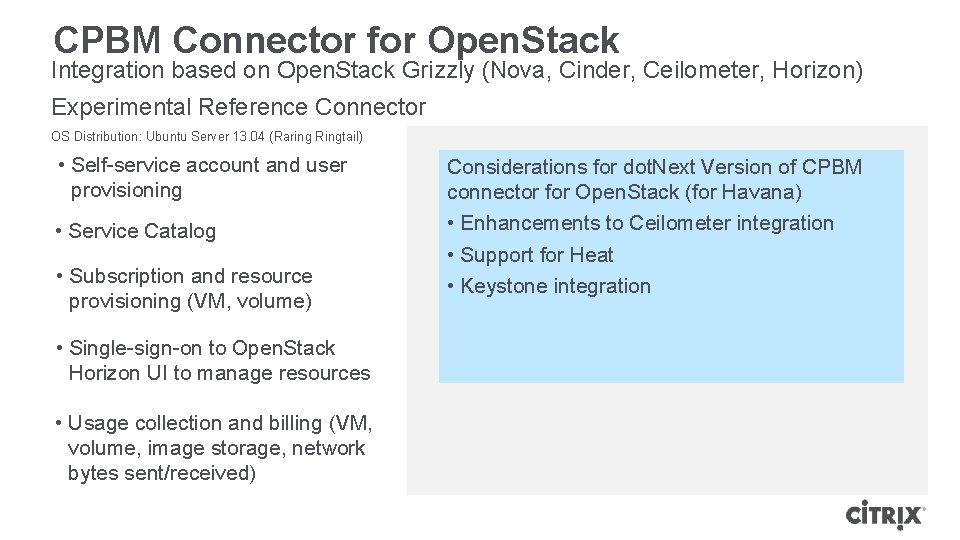

CPBM Connector for Open. Stack Integration based on Open. Stack Grizzly (Nova, Cinder, Ceilometer, Horizon) Experimental Reference Connector OS Distribution: Ubuntu Server 13. 04 (Raring Ringtail) • Self-service account and user provisioning • Service Catalog • Subscription and resource provisioning (VM, volume) • Single-sign-on to Open. Stack Horizon UI to manage resources • Usage collection and billing (VM, volume, image storage, network bytes sent/received) Considerations for dot. Next Version of CPBM connector for Open. Stack (for Havana) • Enhancements to Ceilometer integration • Support for Heat • Keystone integration

Demo – Cloud Portal Business Manager

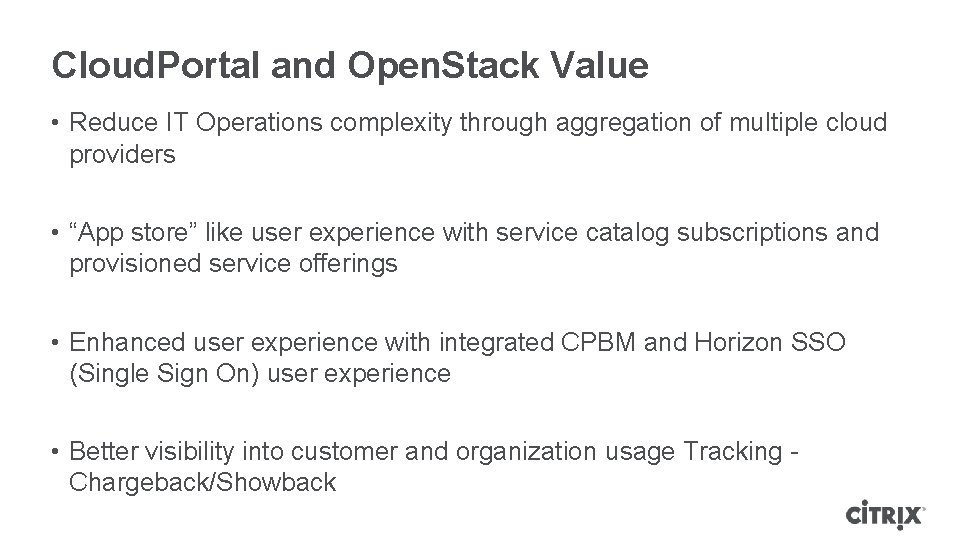

Cloud. Portal and Open. Stack Value • Reduce IT Operations complexity through aggregation of multiple cloud providers • “App store” like user experience with service catalog subscriptions and provisioned service offerings • Enhanced user experience with integrated CPBM and Horizon SSO (Single Sign On) user experience • Better visibility into customer and organization usage Tracking Chargeback/Showback

Questions?

Summary • The role of IT is evolving • Citrix and Open. Stack will meet this new Operations model by combining: ᵒ xen-server core under Nova for compute ᵒ Net. Scaler LBaa. S with Neutron ᵒ Netscaler Control Center Integration ᵒ Portal and service consolidation with Open. Stack and Cloud. Portal Business Manager

Visit the Citrix booth! • Allowing Tenants to control the security of their VMs in the cloud – Collaborative demo with Intel showing the Mystery Hill concept with Xen. Server • Open. Stack virtual appliance for Xen. Server • Multi-tenant deployment of LBaa. S through Open. Stack Neutron, powered by both Net. Scaler multi-tenant appliance (SDX) as well as virtual appliance (VPX) • Net. Scaler Control Center as the orchestration platform for provisioning new Net. Scaler ADC services and for providing centralized visibility of the operational status of the services • CPBM Demo and more information on cloud services aggregation
