SCADA and Telemetry Solutions via DMR DMM-100 / DGW-100 DRAFT Presentation (some of the

SCADA and Telemetry Solutions via DMR DMM-100 / DGW-100 DRAFT Presentation (some of the mentioned features may be altered or changed) Funk-Electronic Piciorgros Gmb. H Michael D. Piciorgros (CEO)

DMM-100 = DMR Modem -100 Professional DMR Data Modem with Voice Option

DMM-100 = DMR Modem -100 Professional DMR Data Modem with Voice Option

DMR Modem - DMM-100 with one serial Port and one Ethernet Port

DMR Modem - DMM-100 with one serial Port and one Ethernet Port

DMR Modem - DMM-100 as before with additional embedded digital and analog I/O

DMR Modem - DMM-100 as before with additional embedded digital and analog I/O

Power Supply: 12 Volt up to 24 Volt +/-20%

Power Supply: 12 Volt up to 24 Volt +/-20%

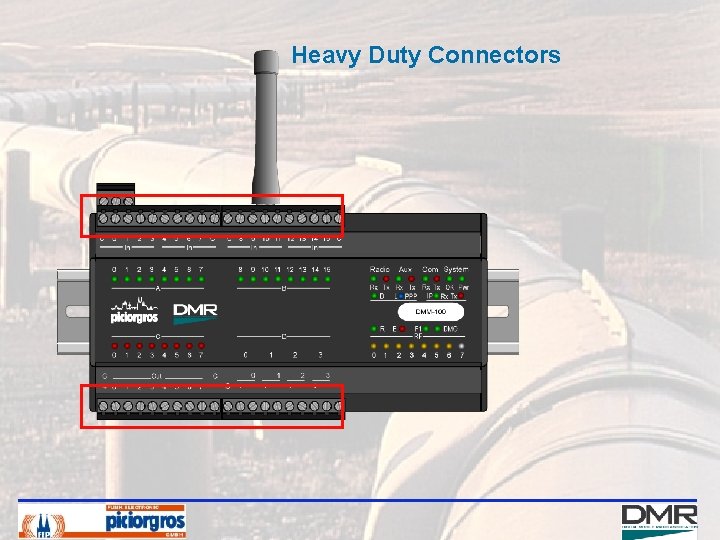

Heavy Duty Connectors

Heavy Duty Connectors

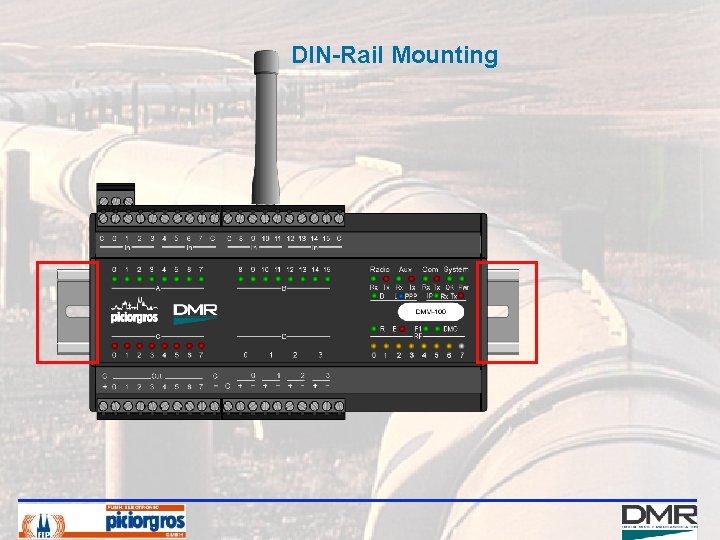

DIN-Rail Mounting

DIN-Rail Mounting

SMA Antenna Connector

SMA Antenna Connector

16 digital Inputs including … 8 Event Counter and 8 Timer (*) All inputs

16 digital Inputs including … 8 Event Counter and 8 Timer (*) All inputs visible as LED

8 (16) digital Outputs PNP open Collector (500 m. A each) All Outputs visible

8 (16) digital Outputs PNP open Collector (500 m. A each) All Outputs visible as LED

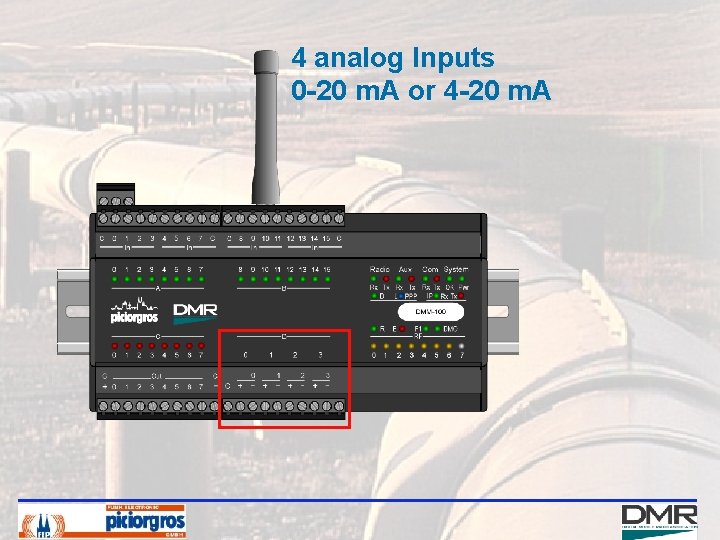

4 analog Inputs 0 -20 m. A or 4 -20 m. A

4 analog Inputs 0 -20 m. A or 4 -20 m. A

8 LED Field Strength Bar Graph

8 LED Field Strength Bar Graph

One Serial Port RS-232 or RS-485 / (RS-422)

One Serial Port RS-232 or RS-485 / (RS-422)

10/100 MB Ethernet Port

10/100 MB Ethernet Port

DMR Network Structures for SCADA and Telemetry

DMR Network Structures for SCADA and Telemetry

SCADA using SDS based Radio-to-Radio Communication Control Room Serial Interface SDS Public Lighting DMM-100

SCADA using SDS based Radio-to-Radio Communication Control Room Serial Interface SDS Public Lighting DMM-100 Serial Communication SDS DMM-100 I/O Command Control Line Device DMM-100 SDS Serial Interface DMR Switch DMM-100 AMR

DGW-100 SDS Gateway - 19” Rack Version with four Gateways - Two serial Ports,

DGW-100 SDS Gateway - 19” Rack Version with four Gateways - Two serial Ports, two Ethernet Ports each - Redundant Power Supply - Redundant switch over on IP Link (to Sw. Mi) fail

SCADA – using an SDS Gateway Public Lighting Control Room SDS Two Serial Interfaces

SCADA – using an SDS Gateway Public Lighting Control Room SDS Two Serial Interfaces per DGW Slot DMM-100 SDS DGW-100 SDS Gateway DMM-100 I/O Command Control Line Device IP Communication SDS AMR DMR Switch DMM-100

DMM-100 DMR Data Modem Feature List

DMM-100 DMR Data Modem Feature List

Embedded Web-Browser

Embedded Web-Browser

Embedded IP and DMR Router

Embedded IP and DMR Router

Piciorgros Complete Solutions Principle drawing of remote site equipment

Piciorgros Complete Solutions Principle drawing of remote site equipment

Cabinet Mounting

Cabinet Mounting

Funk - Electronic Piciorgros Gmb. H Claudiastr. 5 51145 Köln-Porz Germany Thank you very

Funk - Electronic Piciorgros Gmb. H Claudiastr. 5 51145 Köln-Porz Germany Thank you very much for your interest in our Products www. piciorgros. com www. tetramodem. com
