Satellite Altimetry for Gravity, geoid and marine applications (MSS + LAT) Dr Ole B. Andersen, DTU Space, Denmark, oa@space. dtu. dk
Region 2 DTU Space, Technical University of Denmark DTU school June 2017
3 DTU Space, Technical University of Denmark DTU school June 2017
NGS Bathymetry holdings 4 DTU Space, Technical University of Denmark DTU school June 2017
Focus 5 DTU Space, Technical University of Denmark DTU school June 2017
6 DTU Space, Technical University of Denmark DTU school June 2017
Part 1: Mkdata……. . • Prepare data to isolate • Remove EGM • Remove MDT • Cross-over adjust data • You can download the excersize bundle from • ftp. space. dtu. dk/Altimetry/Gravity Excersize_June 2017 7 DTU Space, Technical University of Denmark DTU school June 2017
Before Crossover adjustment • Example: • 3 latitude by 10 longitude cell were found to give best removal of long wavelength errors. 8 DTU Space, Technical University of Denmark DTU school June 2017
After Crossover adjustment 9 DTU Space, Technical University of Denmark DTU school June 2017
Data are now ready for computing gravity / geoid. • • • Corrected the range for as many known signals as possible. Accuracy of geoid+gravity is directly related to accuracy of sea surface height Retracking enhances amount and quality of data Removed Long wavelength Geoid part – will be restored. XOVER: Limited errors + time varying signal (Long wavelength). Small long wavelength errors can still be seen in sea surface heights. 10 DTU Space, Technical University of Denmark DTU school June 2017
Part 2. MKfft 11 DTU Space, Technical University of Denmark DTU school June 2017
GEOGRID Δh Interpolation for FFT (Using LSC) • GEOGRID (GRAVSOFT) can perform interpolation using second order Gauss Markov Covariance function. • r is the distance, C 0 is the signal variance, α is the correlation length • We will try this in the excersizes……… 12 DTU Space, Technical University of Denmark DTU school June 2017

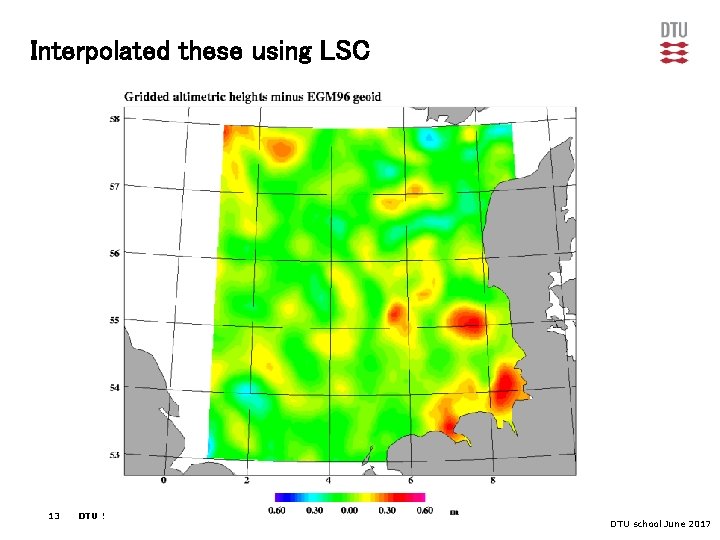

Interpolated these using LSC 13 DTU Space, Technical University of Denmark DTU school June 2017

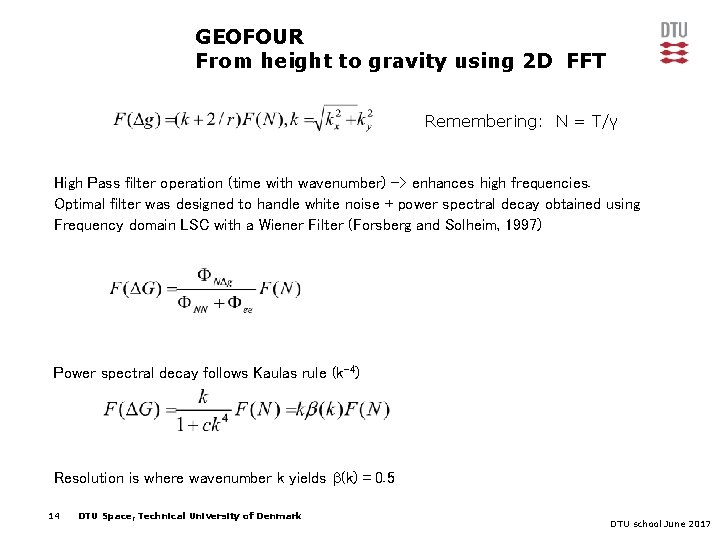

GEOFOUR From height to gravity using 2 D FFT Remembering: N = T/γ High Pass filter operation (time with wavenumber) -> enhances high frequencies. Optimal filter was designed to handle white noise + power spectral decay obtained using Frequency domain LSC with a Wiener Filter (Forsberg and Solheim, 1997) Power spectral decay follows Kaulas rule (k-4) Resolution is where wavenumber k yields (k) = 0. 5 14 DTU Space, Technical University of Denmark DTU school June 2017
Use GRAVSOFT Geo. Four to convert from geoid to Gravity using FFT 15 DTU Space, Technical University of Denmark DTU school June 2017
Restore EGM to get altimetric gravity field. 16 DTU Space, Technical University of Denmark DTU school June 2017
17 DTU Space, Technical University of Denmark DTU school June 2017
