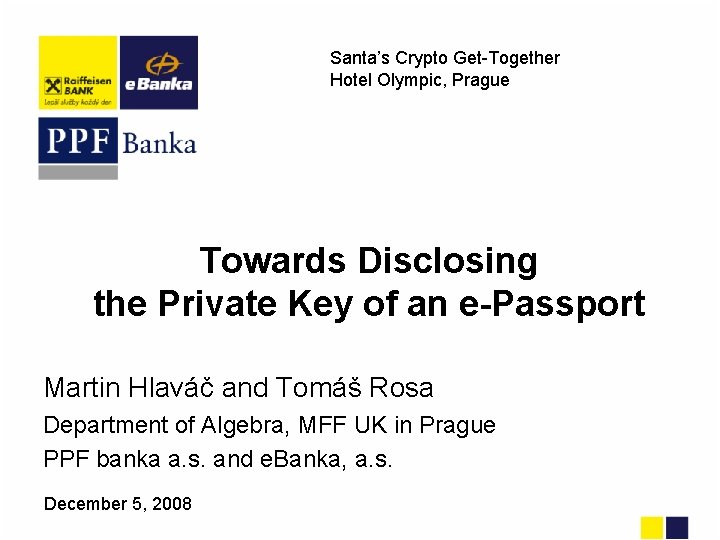

Santa’s Crypto Get-Together Hotel Olympic, Prague Towards Disclosing the Private Key of an e-Passport Martin Hlaváč and Tomáš Rosa Department of Algebra, MFF UK in Prague PPF banka a. s. and e. Banka, a. s. December 5, 2008

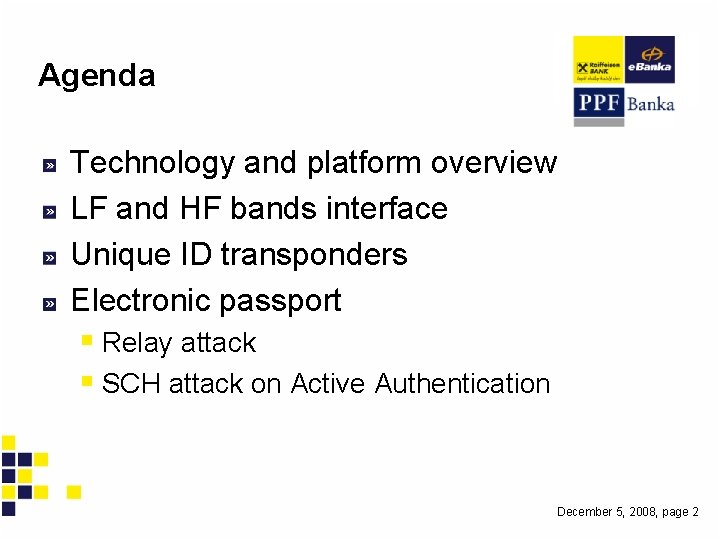

Agenda Technology and platform overview LF and HF bands interface Unique ID transponders Electronic passport § Relay attack § SCH attack on Active Authentication December 5, 2008, page 2

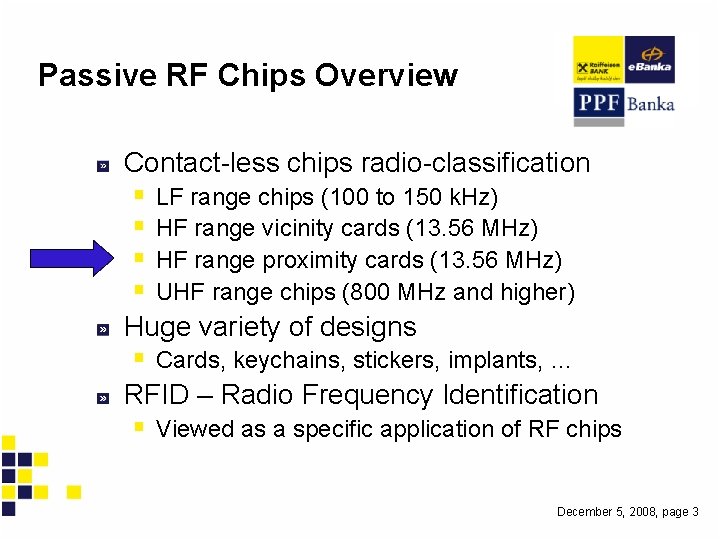

Passive RF Chips Overview Contact-less chips radio-classification § LF range chips (100 to 150 k. Hz) § HF range vicinity cards (13. 56 MHz) § HF range proximity cards (13. 56 MHz) § UHF range chips (800 MHz and higher) Huge variety of designs § Cards, keychains, stickers, implants, … RFID – Radio Frequency Identification § Viewed as a specific application of RF chips December 5, 2008, page 3

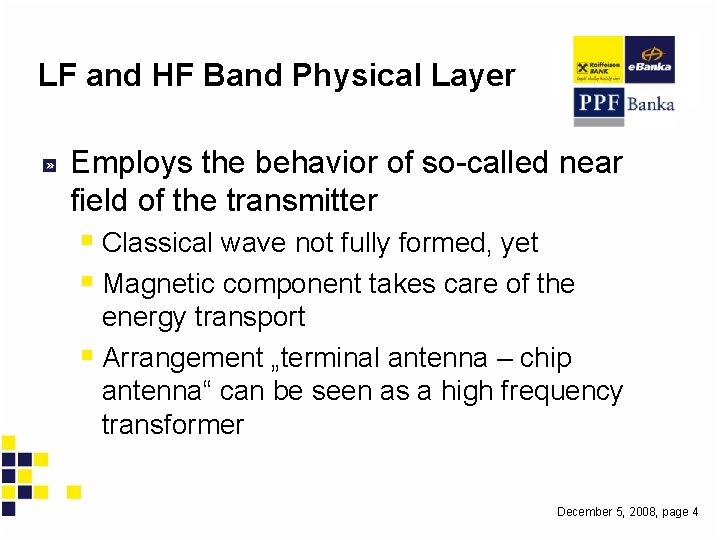

LF and HF Band Physical Layer Employs the behavior of so-called near field of the transmitter § Classical wave not fully formed, yet § Magnetic component takes care of the energy transport § Arrangement „terminal antenna – chip antenna“ can be seen as a high frequency transformer December 5, 2008, page 4

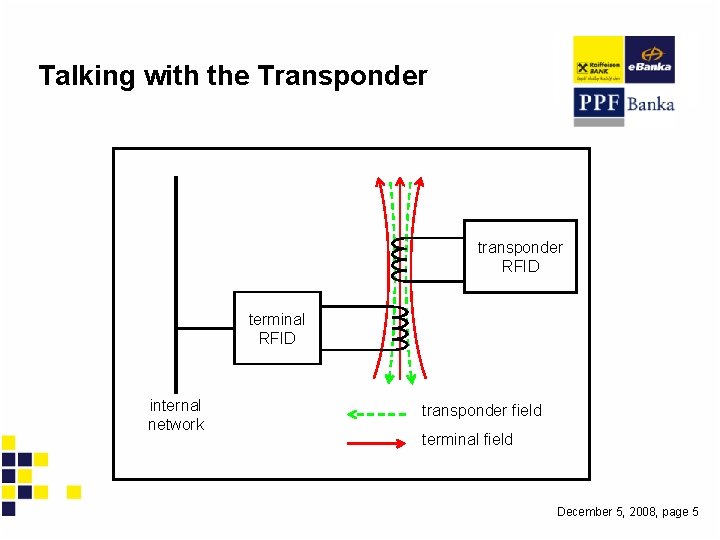

Talking with the Transponder transponder RFID terminal RFID internal network transponder field terminal field December 5, 2008, page 5

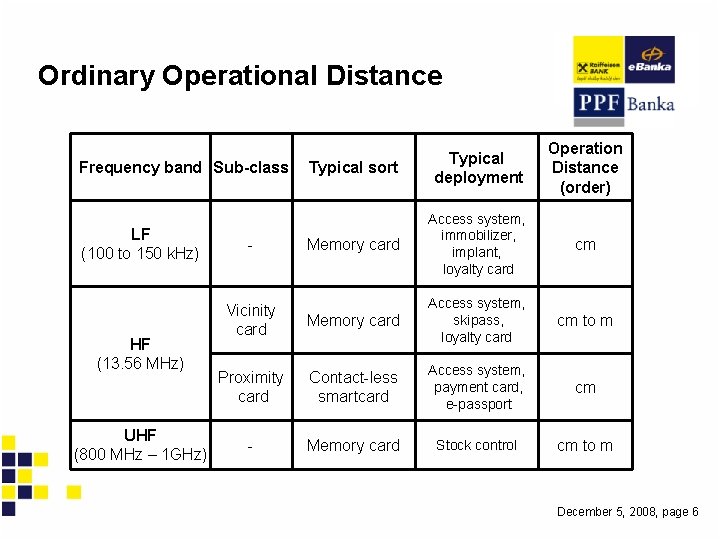

Ordinary Operational Distance Typical sort Typical deployment Operation Distance (order) Memory card Access system, immobilizer, implant, loyalty card cm Vicinity card Memory card Access system, skipass, loyalty card cm to m Proximity card Contact-less smartcard Access system, payment card, e-passport cm - Memory card Stock control cm to m Frequency band Sub-class LF (100 to 150 k. Hz) HF (13. 56 MHz) UHF (800 MHz – 1 GHz) - December 5, 2008, page 6

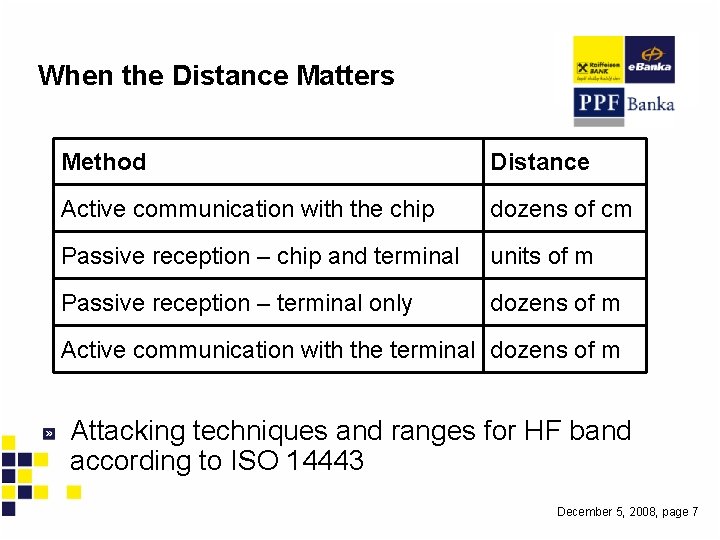

When the Distance Matters Method Distance Active communication with the chip dozens of cm Passive reception – chip and terminal units of m Passive reception – terminal only dozens of m Active communication with the terminal dozens of m Attacking techniques and ranges for HF band according to ISO 14443 December 5, 2008, page 7

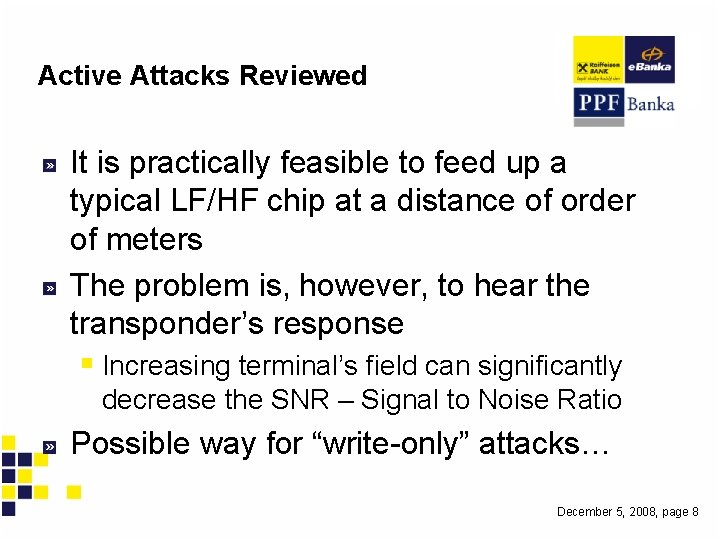

Active Attacks Reviewed It is practically feasible to feed up a typical LF/HF chip at a distance of order of meters The problem is, however, to hear the transponder’s response § Increasing terminal’s field can significantly decrease the SNR – Signal to Noise Ratio Possible way for “write-only” attacks… December 5, 2008, page 8

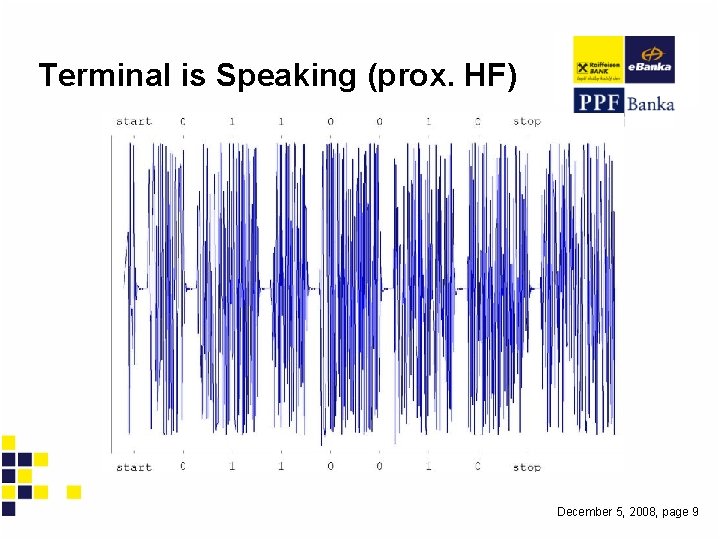

Terminal is Speaking (prox. HF) December 5, 2008, page 9

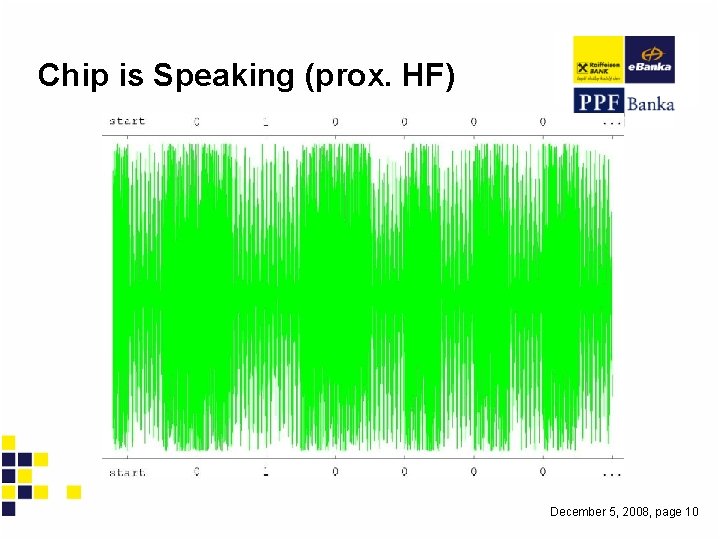

Chip is Speaking (prox. HF) December 5, 2008, page 10

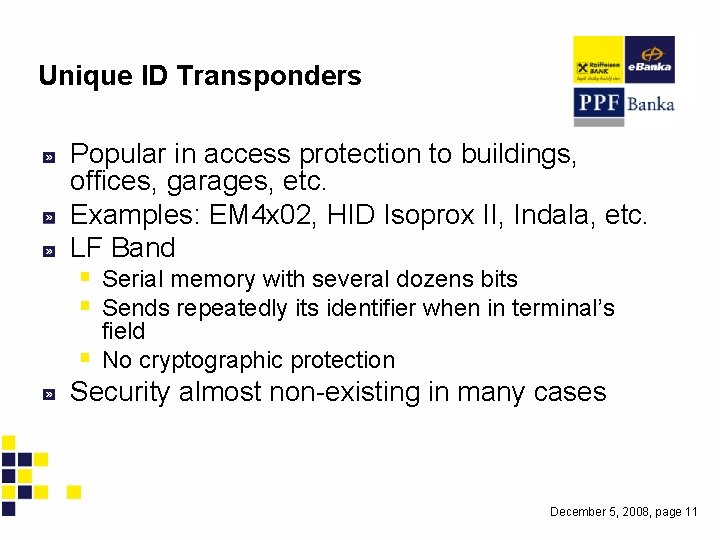

Unique ID Transponders Popular in access protection to buildings, offices, garages, etc. Examples: EM 4 x 02, HID Isoprox II, Indala, etc. LF Band § Serial memory with several dozens bits § Sends repeatedly its identifier when in terminal’s field No cryptographic protection § Security almost non-existing in many cases December 5, 2008, page 11

LF Band Skimmer – Terminal Mode Transmitter Receiver Digital part December 5, 2008, page 12

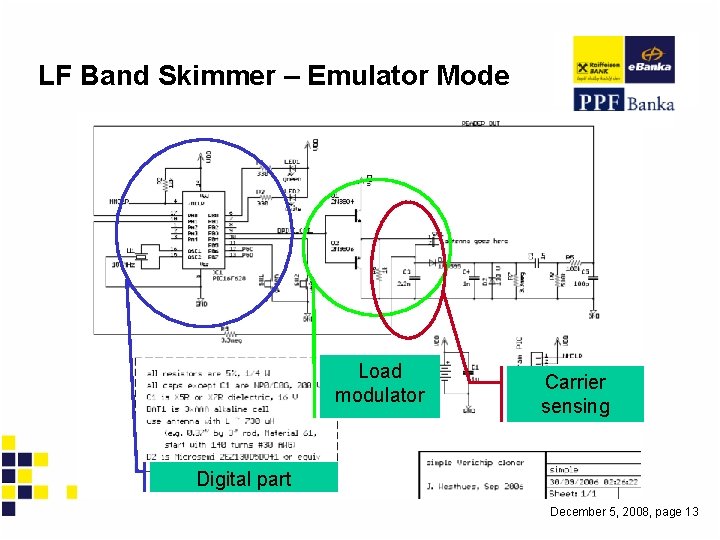

LF Band Skimmer – Emulator Mode Load modulator Carrier sensing Digital part December 5, 2008, page 13

Contactless Smartcard Important sub-class of RFID transponders Function-wise and security-wise in par with classical (contact) smartcards Platform – proximity card (13. 56 MHz) December 5, 2008, page 14

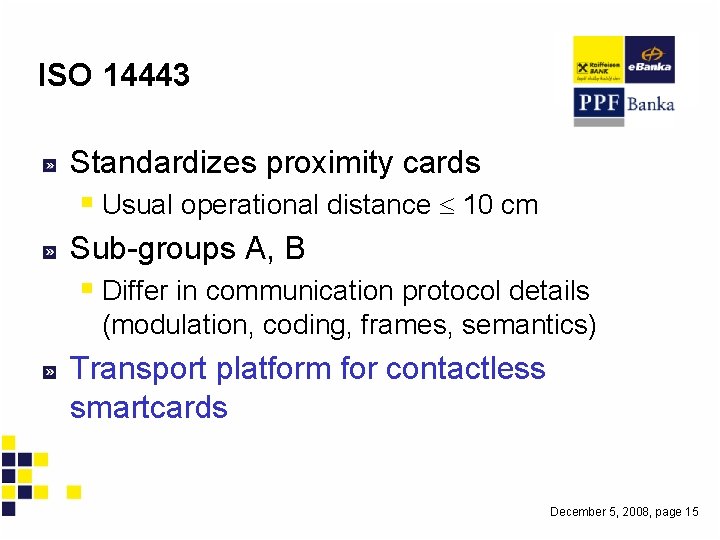

ISO 14443 Standardizes proximity cards § Usual operational distance 10 cm Sub-groups A, B § Differ in communication protocol details (modulation, coding, frames, semantics) Transport platform for contactless smartcards December 5, 2008, page 15

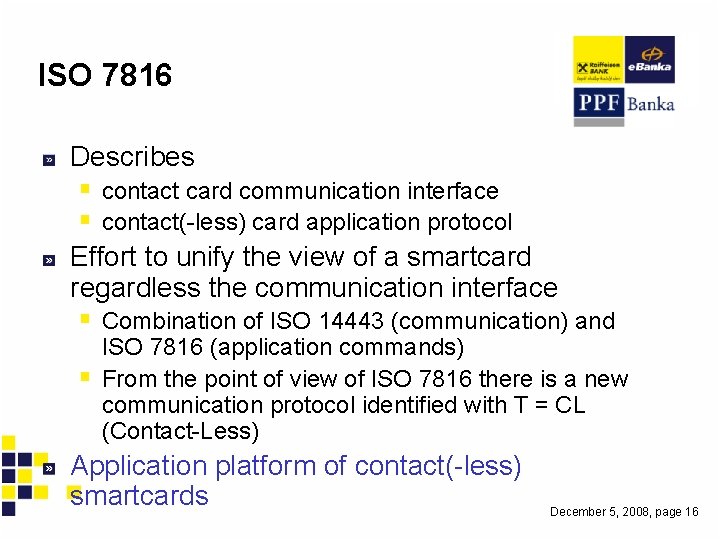

ISO 7816 Describes § contact card communication interface § contact(-less) card application protocol Effort to unify the view of a smartcard regardless the communication interface § Combination of ISO 14443 (communication) and § ISO 7816 (application commands) From the point of view of ISO 7816 there is a new communication protocol identified with T = CL (Contact-Less) Application platform of contact(-less) smartcards December 5, 2008, page 16

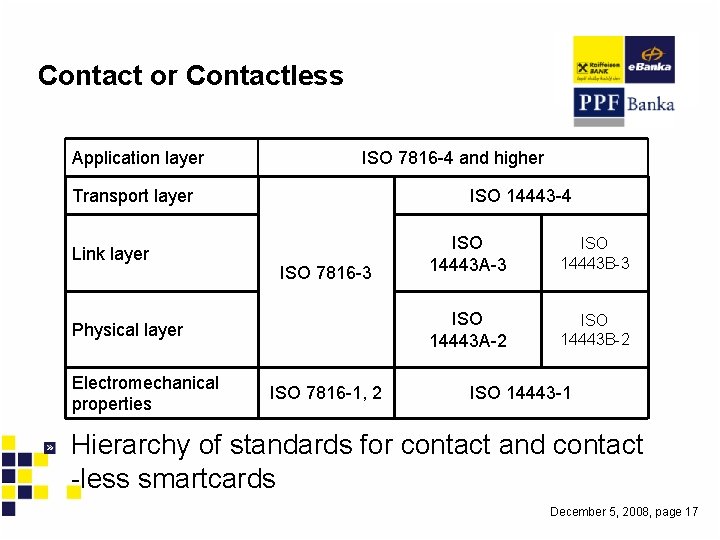

Contact or Contactless Application layer ISO 7816 -4 and higher Transport layer Link layer ISO 14443 -4 ISO 7816 -3 Physical layer Electromechanical properties ISO 7816 -1, 2 ISO 14443 A-3 ISO 14443 B-3 ISO 14443 A-2 ISO 14443 B-2 ISO 14443 -1 Hierarchy of standards for contact and contact -less smartcards December 5, 2008, page 17

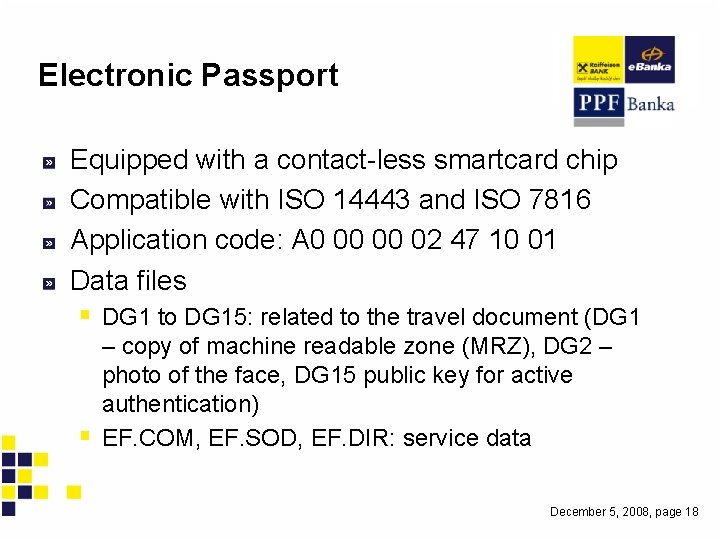

Electronic Passport Equipped with a contact-less smartcard chip Compatible with ISO 14443 and ISO 7816 Application code: A 0 00 00 02 47 10 01 Data files § DG 1 to DG 15: related to the travel document (DG 1 § – copy of machine readable zone (MRZ), DG 2 – photo of the face, DG 15 public key for active authentication) EF. COM, EF. SOD, EF. DIR: service data December 5, 2008, page 18

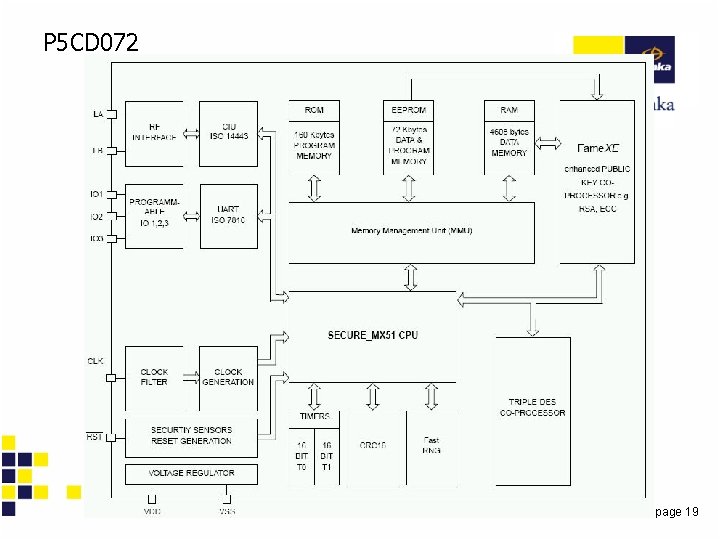

P 5 CD 072 December 5, 2008, page 19

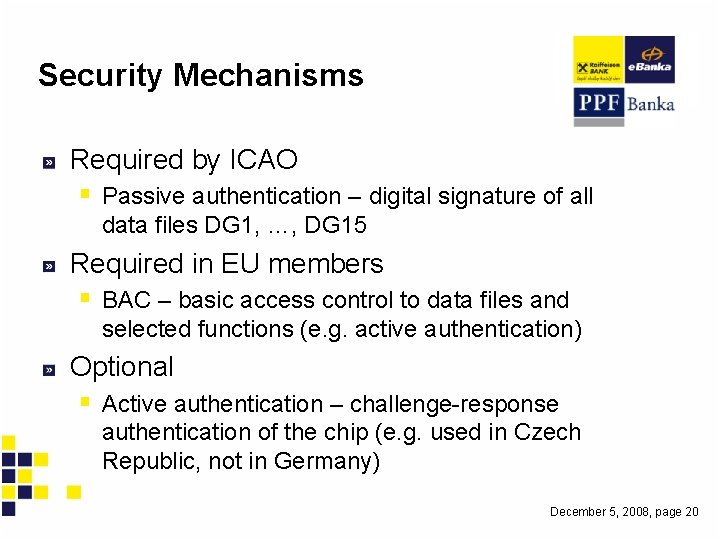

Security Mechanisms Required by ICAO § Passive authentication – digital signature of all data files DG 1, …, DG 15 Required in EU members § BAC – basic access control to data files and selected functions (e. g. active authentication) Optional § Active authentication – challenge-response authentication of the chip (e. g. used in Czech Republic, not in Germany) December 5, 2008, page 20

Apparent Weaknesses of ICAO e-Passport Detectability of passport presence § Markers: presence of application A 0 00 00 02 47 10 01, BAC protocol support, etc. Brute force attack on BAC § Apparently low main password entropy § Listening to terminal is sufficient Partial weaknesses of BAC and SM § Detectability of passport with known password § (MRZ) SM does not protect the command headers and status error answers December 5, 2008, page 21

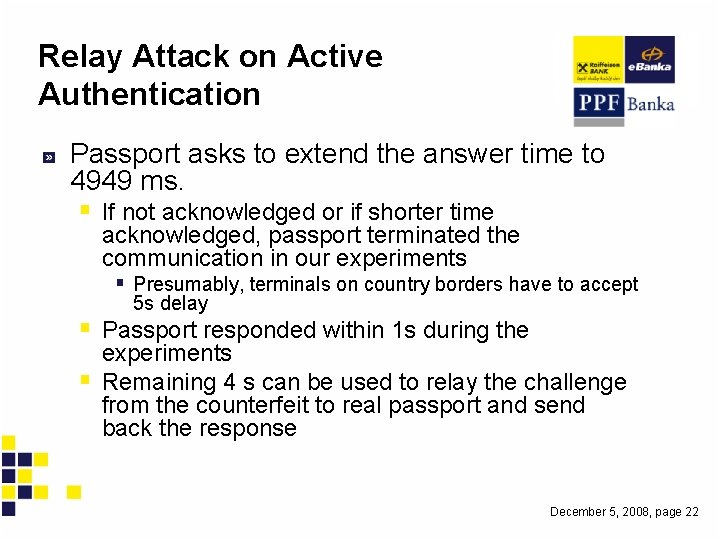

Relay Attack on Active Authentication Passport asks to extend the answer time to 4949 ms. § If not acknowledged or if shorter time acknowledged, passport terminated the communication in our experiments § Presumably, terminals on country borders have to accept 5 s delay § Passport responded within 1 s during the § experiments Remaining 4 s can be used to relay the challenge from the counterfeit to real passport and send back the response December 5, 2008, page 22

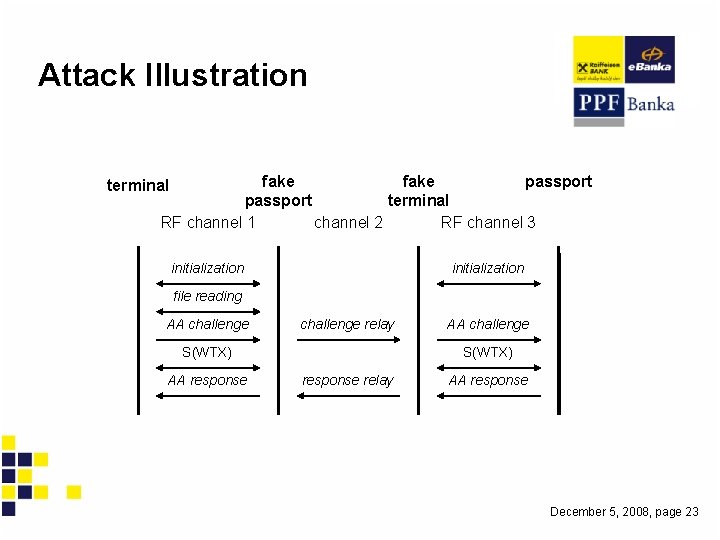

Attack Illustration fake passport terminal RF channel 1 channel 2 RF channel 3 terminal initialization file reading AA challenge relay S(WTX) AA response AA challenge S(WTX) response relay AA response December 5, 2008, page 23

Side Channels SCH is any unwanted information exchange between the cryptographic module and its surroundings Physical principles of passive RF chips greatly facilitate existence of many SCH § Electromagnetic field is a primary concern December 5, 2008, page 24

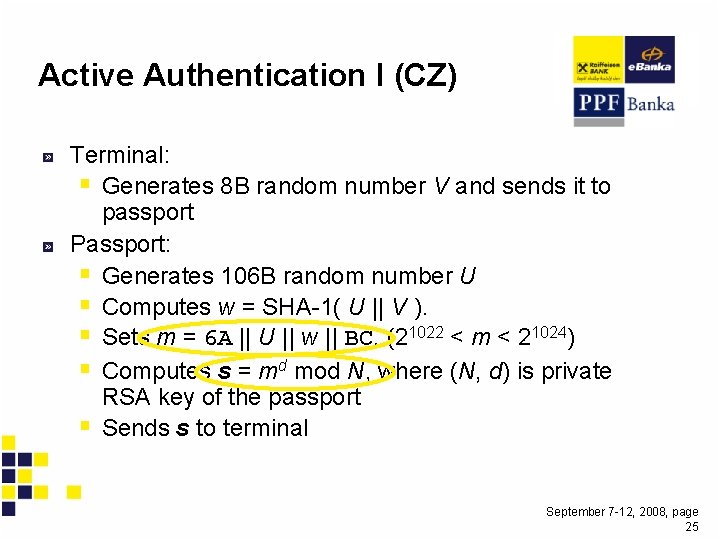

Active Authentication I (CZ) Terminal: § Generates 8 B random number V and sends it to passport Passport: § Generates 106 B random number U § Computes w = SHA-1( U || V ). § Sets m = 6 A || U || w || BC, (21022 < m < 21024) § Computes s = md mod N, where (N, d) is private RSA key of the passport § Sends s to terminal September 7 -12, 2008, page 25

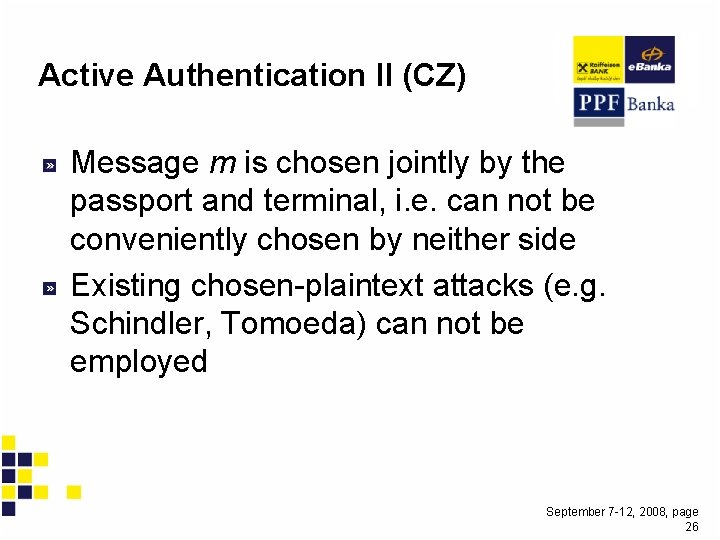

Active Authentication II (CZ) Message m is chosen jointly by the passport and terminal, i. e. can not be conveniently chosen by neither side Existing chosen-plaintext attacks (e. g. Schindler, Tomoeda) can not be employed September 7 -12, 2008, page 26

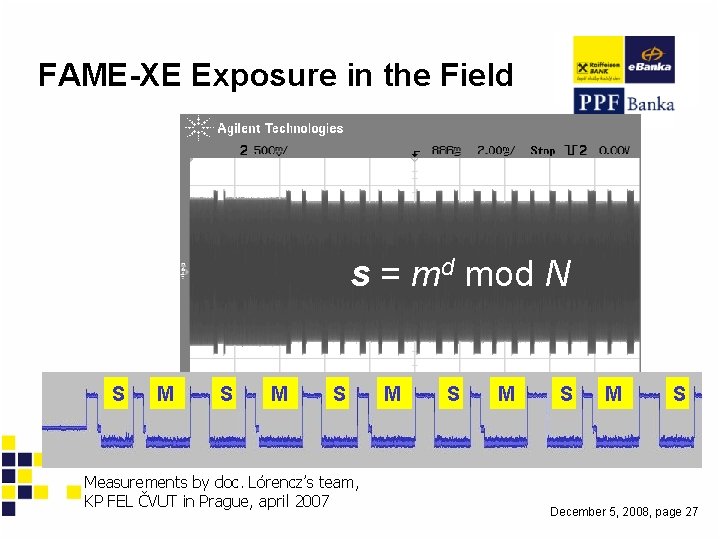

FAME-XE Exposure in the Field s = md mod N S M S Measurements by doc. Lórencz’s team, KP FEL ČVUT in Prague, april 2007 M S M S December 5, 2008, page 27

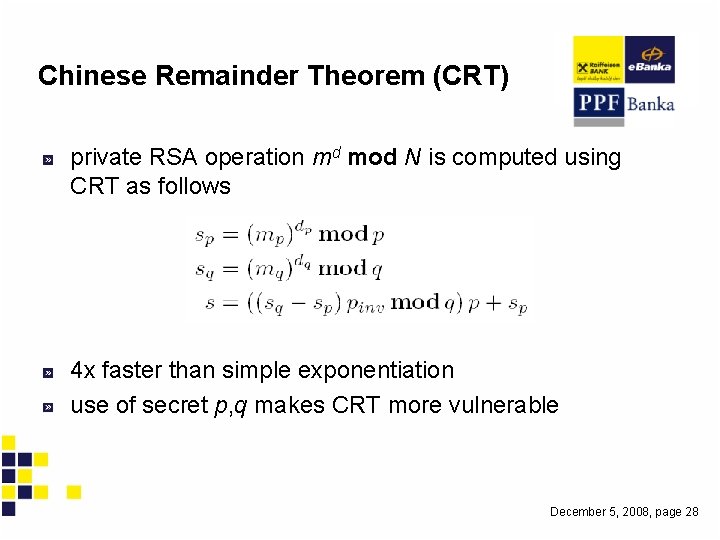

Chinese Remainder Theorem (CRT) private RSA operation md mod N is computed using CRT as follows 4 x faster than simple exponentiation use of secret p, q makes CRT more vulnerable December 5, 2008, page 28

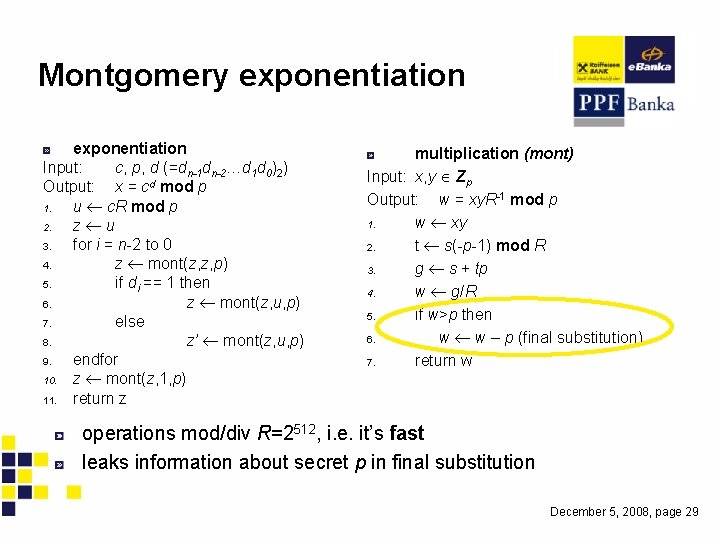

Montgomery exponentiation Input: c, p, d (=dn-1 dn-2…d 1 d 0)2) Output: x = cd mod p 1. u c. R mod p 2. z u 3. for i = n-2 to 0 4. z mont(z, z, p) 5. if di == 1 then 6. z mont(z, u, p) 7. else 8. z’ mont(z, u, p) 9. endfor 10. z mont(z, 1, p) 11. return z multiplication (mont) Input: x, y Zp Output: w = xy. R-1 mod p 1. w xy 2. t s(-p-1) mod R 3. g s + tp 4. w g/R 5. if w>p then 6. w w – p (final substitution) 7. return w operations mod/div R=2512, i. e. it’s fast leaks information about secret p in final substitution December 5, 2008, page 29

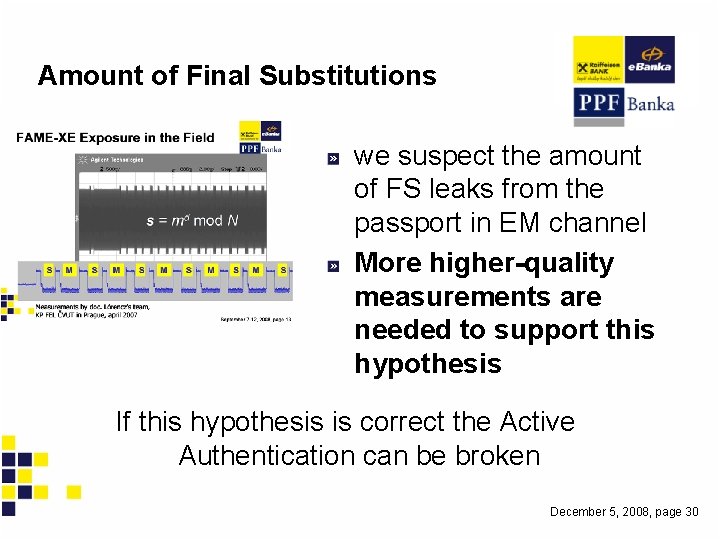

Amount of Final Substitutions we suspect the amount of FS leaks from the passport in EM channel More higher-quality measurements are needed to support this hypothesis If this hypothesis is correct the Active Authentication can be broken December 5, 2008, page 30

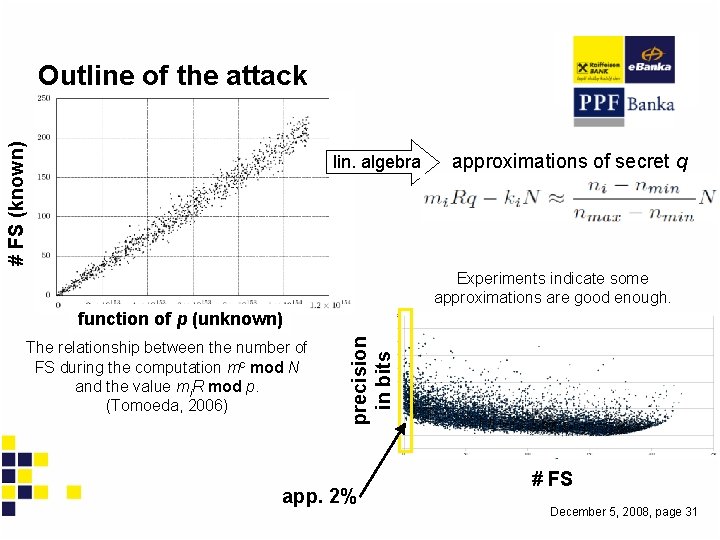

# FS (known) Outline of the attack lin. algebra approximations of secret q Experiments indicate some approximations are good enough. The relationship between the number of FS during the computation mc mod N and the value mi. R mod p. (Tomoeda, 2006) precision in bits function of p (unknown) app. 2% # FS December 5, 2008, page 31

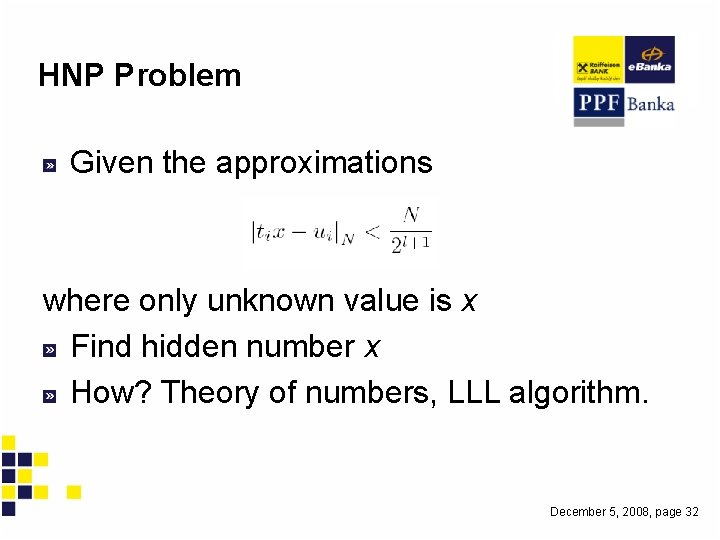

HNP Problem Given the approximations where only unknown value is x Find hidden number x How? Theory of numbers, LLL algorithm. December 5, 2008, page 32

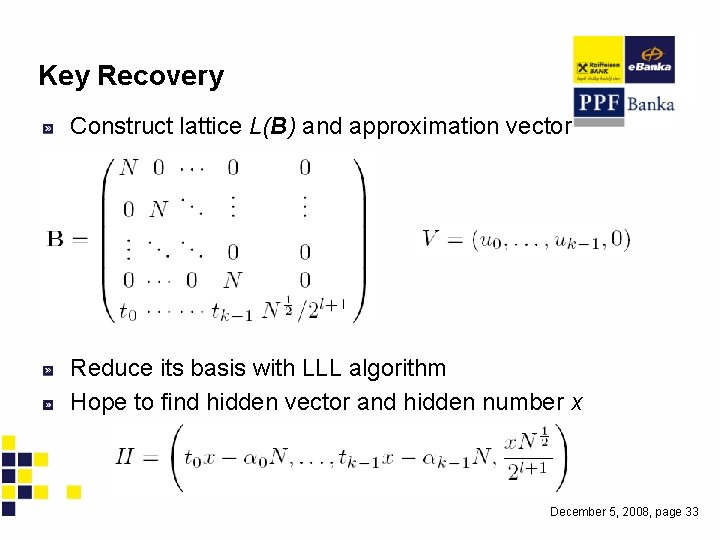

Key Recovery Construct lattice L(B) and approximation vector Reduce its basis with LLL algorithm Hope to find hidden vector and hidden number x December 5, 2008, page 33

Experiments Hardware setup: 16 x Opteron 246 Measurements: 150 filtered from 7000 Time: app. 40 minutes Result: private RSA key found December 5, 2008, page 34

Conclusion EM side channel on e-passport exists New cryptanalytic technique using this side information is elaborated Higher quality measurements needed If our hypothesis is correct, AA can be broken, i. e. e-passport can be duplicated, in order of hours December 5, 2008, page 35

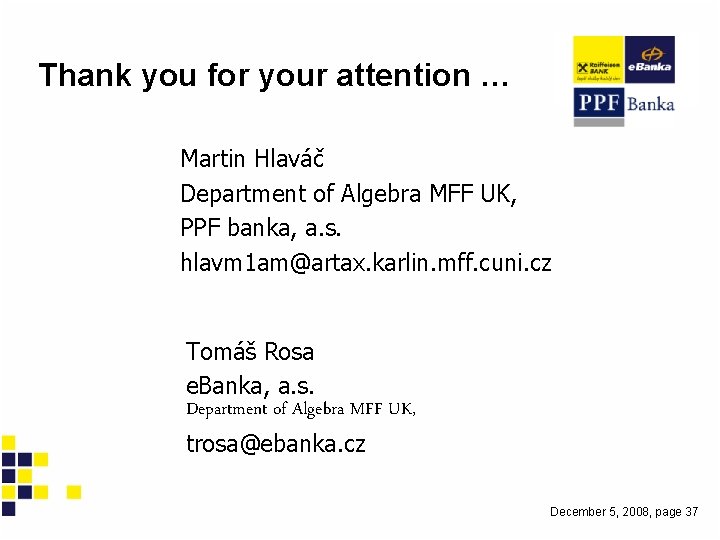

Thank you for your attention … Martin Hlaváč Department of Algebra MFF UK, PPF banka, a. s. hlavm 1 am@artax. karlin. mff. cuni. cz Tomáš Rosa e. Banka, a. s. Department of Algebra MFF UK, trosa@ebanka. cz December 5, 2008, page 37

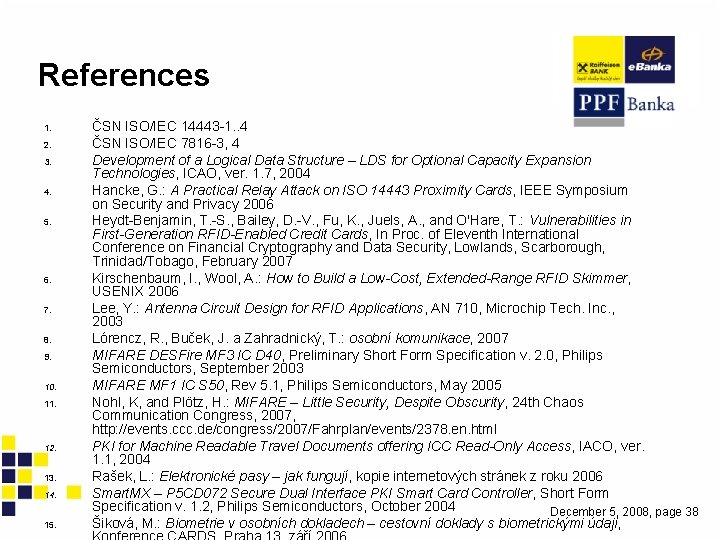

References 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. ČSN ISO/IEC 14443 -1. . 4 ČSN ISO/IEC 7816 -3, 4 Development of a Logical Data Structure – LDS for Optional Capacity Expansion Technologies, ICAO, ver. 1. 7, 2004 Hancke, G. : A Practical Relay Attack on ISO 14443 Proximity Cards, IEEE Symposium on Security and Privacy 2006 Heydt-Benjamin, T. -S. , Bailey, D. -V. , Fu, K. , Juels, A. , and O'Hare, T. : Vulnerabilities in First-Generation RFID-Enabled Credit Cards, In Proc. of Eleventh International Conference on Financial Cryptography and Data Security, Lowlands, Scarborough, Trinidad/Tobago, February 2007 Kirschenbaum, I. , Wool, A. : How to Build a Low-Cost, Extended-Range RFID Skimmer, USENIX 2006 Lee, Y. : Antenna Circuit Design for RFID Applications, AN 710, Microchip Tech. Inc. , 2003 Lórencz, R. , Buček, J. a Zahradnický, T. : osobní komunikace, 2007 MIFARE DESFire MF 3 IC D 40, Preliminary Short Form Specification v. 2. 0, Philips Semiconductors, September 2003 MIFARE MF 1 IC S 50, Rev 5. 1, Philips Semiconductors, May 2005 Nohl, K, and Plötz, H. : MIFARE – Little Security, Despite Obscurity, 24 th Chaos Communication Congress, 2007, http: //events. ccc. de/congress/2007/Fahrplan/events/2378. en. html PKI for Machine Readable Travel Documents offering ICC Read-Only Access, IACO, ver. 1. 1, 2004 Rašek, L. : Elektronické pasy – jak fungují, kopie internetových stránek z roku 2006 Smart. MX – P 5 CD 072 Secure Dual Interface PKI Smart Card Controller, Short Form Specification v. 1. 2, Philips Semiconductors, October 2004 December 5, 2008, page 38 Šiková, M. : Biometrie v osobních dokladech – cestovní doklady s biometrickými údaji,
