Polycom MGC 25 A New Level In Workgroup

Polycom MGC 25 A New Level In Workgroup Video Conferencing

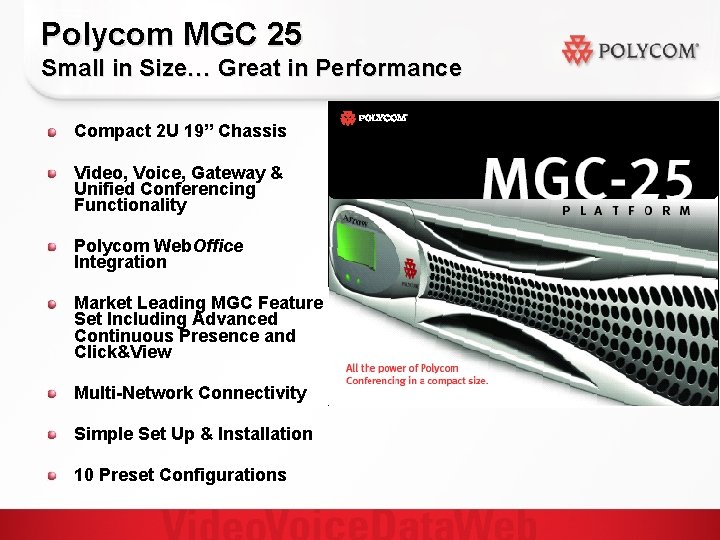

Polycom MGC 25 Small in Size… Great in Performance Compact 2 U 19” Chassis Video, Voice, Gateway & Unified Conferencing Functionality Polycom Web. Office Integration Market Leading MGC Feature Set Including Advanced Continuous Presence and Click&View Multi-Network Connectivity Simple Set Up & Installation 10 Preset Configurations

Network Systems Solution Menu Application Platform Management Video. Plus MGC 100 MGC Manager Voice. Plus MGC 50 Web Commander Unified Conferencing MGC 25 Personal Scheduler Protocol Gateway Web. Office Polycom Conferencing Suite

A Quick Platform Comparison MGC-25 MGC-50 MGC-100 Network Environment Distributed & Core Scalability 3 – 24/48 ports 8 – 480 ports 8 -392/860 ports Yes Yes No Yes Power Redundancy No No Yes Expandable Slots No Yes – 8 slots Yes – 16 slots Firewall/Gateway No Yes (video/audio) Shared Resource Environment Resource Redundancy

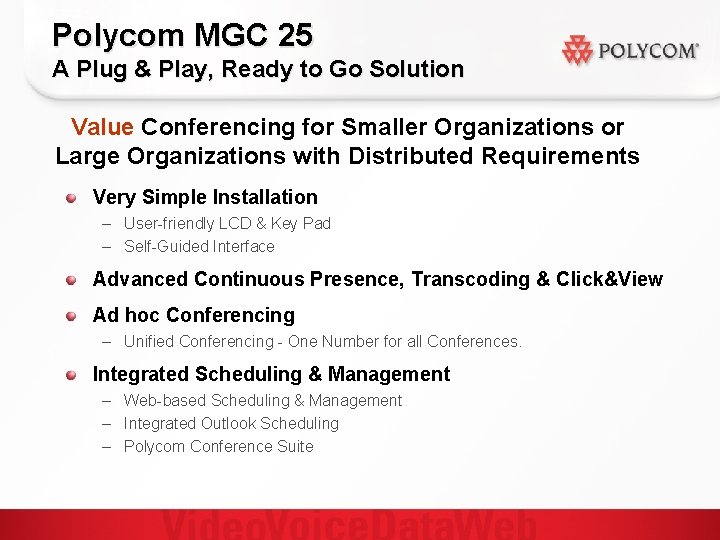

Polycom MGC 25 A Plug & Play, Ready to Go Solution Value Conferencing for Smaller Organizations or Large Organizations with Distributed Requirements Very Simple Installation – User-friendly LCD & Key Pad – Self-Guided Interface Advanced Continuous Presence, Transcoding & Click&View Ad hoc Conferencing – Unified Conferencing - One Number for all Conferences. Integrated Scheduling & Management – Web-based Scheduling & Management – Integrated Outlook Scheduling – Polycom Conference Suite

Fast Set Up Wizard Simple as 1, 2, 3 1. Connect to the Wizard 2. Provide IP & Gatekeeper Address 3. Provide ISDN Settings

High Value Conferencing At Entry Level Capacities Unified 24 & Unified 24 V Voice. Plus 24 Voice. Plus 48 ISDN V IP 12 IP 16+ & IP 16+ V GW 1 GW 2 The MGC 25 provides the best workgroup conferencing solution for any conferencing environment

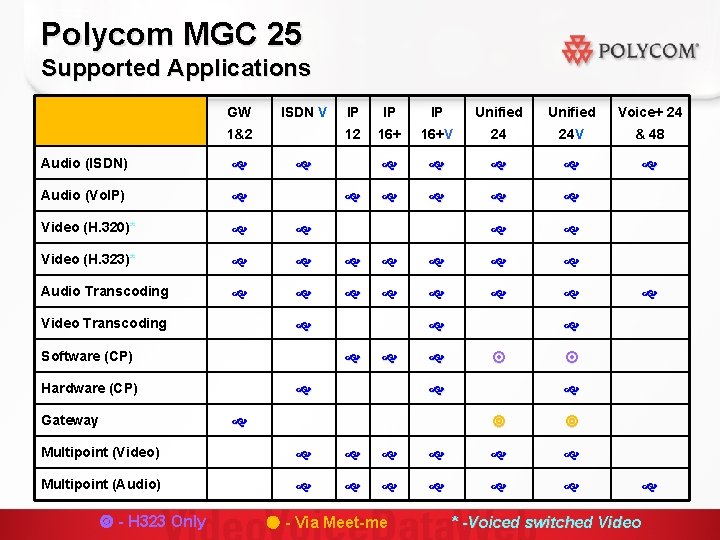

Polycom MGC 25 Supported Applications GW ISDN V 1&2 IP IP IP Unified Voice+ 24 12 16+V 24 24 V & 48 Audio (ISDN) Audio (Vo. IP) Video (H. 320)* Video (H. 323)* Audio Transcoding Video Transcoding Software (CP) Hardware (CP) Gateway Multipoint (Video) Multipoint (Audio) - H 323 Only - Via Meet-me * -Voiced switched Video

Polycom MGC 25 Gateways GW 1 • • Single PRI for IP to ISDN Sessions 3 -5 Sessions @384 kbps T 1/E 1 Up to 12 Sessions @ 128 kbps Audio TX included GW 2 • • Dual PRI for IP to ISDN Sessions 7 -10 Sessions @384 kbps T 1/E 1 Up to 12 Sessions @ 128 kbps Audio TX included

MGC-25 Gateway - Competition Feature Polycom Radvision Tandberg Single PRI Gateway Up to 5 @ Yes Yes No No 384 kbps Sessions Dual PRI Gateway Up to 10 @ 384 kbps Sessions Audio Transcoding • Tandberg doesn’t have a dial thru gateway solution • Radvision gateway doesn’t include audio transcoding * Competitor’s information is based on publicly available information and is subject to change. Polycom cannot guarantee the accuracy of such information.

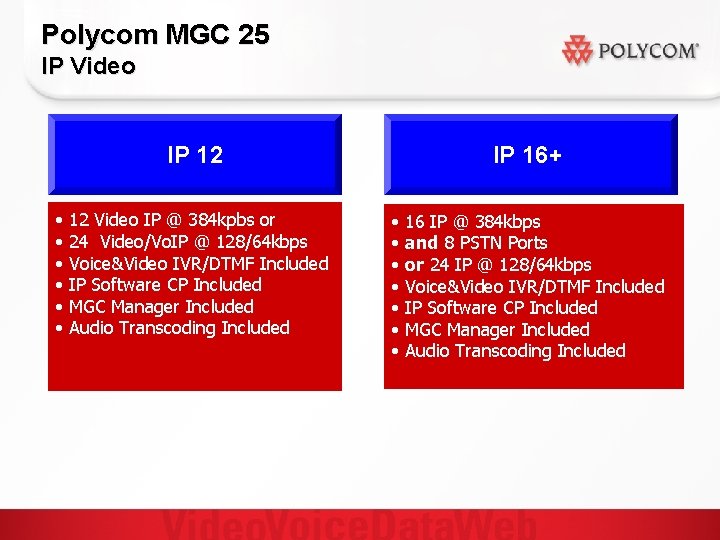

Polycom MGC 25 IP Video IP 12 • • • 12 Video IP @ 384 kpbs or 24 Video/Vo. IP @ 128/64 kbps Voice&Video IVR/DTMF Included IP Software CP Included MGC Manager Included Audio Transcoding Included IP 16+ • • 16 IP @ 384 kbps and 8 PSTN Ports or 24 IP @ 128/64 kbps Voice&Video IVR/DTMF Included IP Software CP Included MGC Manager Included Audio Transcoding Included

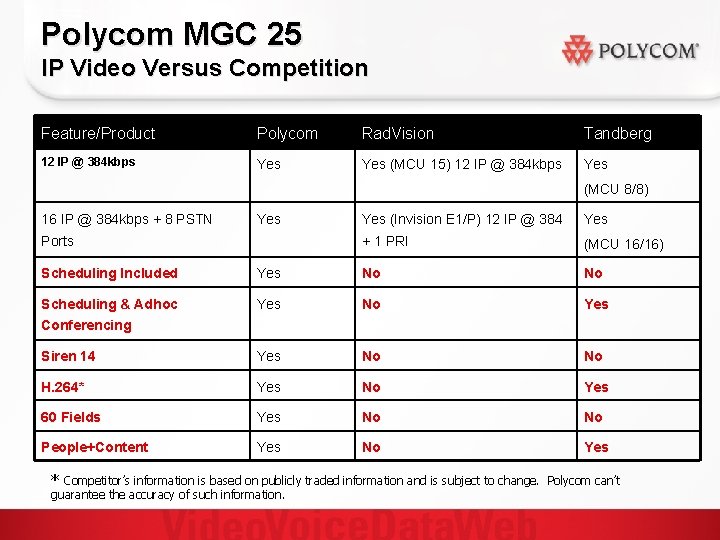

Polycom MGC 25 IP Video Versus Competition Feature/Product Polycom Rad. Vision Tandberg 12 IP @ 384 kbps Yes (MCU 15) 12 IP @ 384 kbps Yes (MCU 8/8) 16 IP @ 384 kbps + 8 PSTN Yes Ports Yes (Invision E 1/P) 12 IP @ 384 Yes + 1 PRI (MCU 16/16) Scheduling Included Yes No No Scheduling & Adhoc Yes No Yes Siren 14 Yes No No H. 264* Yes No Yes 60 Fields Yes No No People+Content Yes No Yes Conferencing * Competitor’s information is based on publicly traded information and is subject to change. Polycom can’t guarantee the accuracy of such information.

Polycom MGC 25 Voice. Plus 24 & 48 24 to 48 PSTN Voice. Plus ports Voice IVR/DTMF Unattended & Attended Conferencing MGC Manager Included

Polycom MGC 25 Voice. Plus 24 & 48 Features A Full Featured Audio Bridge at Entry Level Capacity Attended Conference Service Invite New Participants To Unattended Conference Service Conference Ad Hoc Conference Service Blast Dial-Out Integration With Web. Office IVR / DTMF Based Conference Full Transcoding Of Audio Management PSTN Only Conferences Conference & Chairperson Web Browser Based Conference Scheduling And Management Security PIN Codes Conference Entry Queue With Greeting Voting / Polling Conference Roll call Question And Answers

Polycom MGC 25 Unified 24 Maximum of 24 ports in any combination: 16 ports IP @ 384/128/64 kbps (Vo. IP & Video) 24 voice PSTN Up to 10 video ports ISDN @ 384 kbps Up to 12 video ports ISDN @ 128 kbps Dial Thru Gateway Included Unified Conferencing Suite Audio Transcoding Included MGC Manager Included IP Software CP Included

Polycom MGC 25 Unified 24 Versus Competition Feature/Product Polycom Rad. Vision Tandberg Unified Configuration Yes No No Unified Conferencing Suite – Yes No No Voice&Video IVR/DTMF Radvision & Tandberg do not have a Plug&Play MCU that supports full-featured Audio & Video Conferences on the same platform. * Competitor’s information is based on publicly available information and is subject to change. Polycom cannot guarantee the accuracy of such information.

Polycom MGC 25 + Video Processing Configurations • IP 16+ V • ISDN V • Unified 24 V 27 Continuous Presence Layouts Continuous Presence Visual Effects - Colored Borders - Site Display Names - Speaker Indications - Background Colors Transcoding Click&View Basic+ Continuous Presence Benefits 1. All the advanced functionality of the MGC-50 & MGC-100 in a plug & play platform 2. You don’t sacrifice features at the work group level 3. Each port is enabled with advanced continuous presence and Click&View

World’s Best Continuous Presence Make Your Conference More Productive

World’s Best Continuous Presence Three Levels Of Continuous Presence IP Continuous Presence (Software Based - Standard) – Two CP layout options: 2 way “side-by-side” or 4 way “quad” layouts – CP conference capacity up to total IP system port capacity Basic+ Continuous Presence (Hardware Based – Optional) – Requires one video module port resource to support a conference – Advanced+, Twenty seven CP layout options Advanced+ Continuous Presence (Hardware Based – Optional) – Twenty seven CP layout options – Click&View to change the CP layout for the conference and each conference participant – Lecture mode – Automatic changes of CP layouts – Presentation mode

Click&View

Multi-Way Transcoding Enables Seamless Connection, Regardless Of Network

Packet Commander Makes Video Work In A Data Packet Network

Polycom MGC 25 Scheduling And Management Options One Management application for system and operations support – Support a single or network of MGC platforms from a single application window – Powerful diagnostic and fault resolution capability down to the DSP level One browser interface to schedule and manage video, voice and unified conferences One IVR/DTMF interface to manage video, voice and unified conferences

Polycom MGC 25 Easy Upgrade Path Investment Protection: Start with any MGC 25 configuration Upgrade without buying another box Upgrade Options: GW 1, GW 2, IP 16+ Voice. Plus 24 Unified 24 IP 16+ V, ISDN V Unified 24 V Voice. Plus 24 Voice. Plus 48

Polycom MGC 25 Small in Size… Great in Performance Compact 2 U 19” Chassis Video, Voice, Gateway & Unified Conferencing Functionality Polycom Web. Office Integration Market Leading MGC Feature Set Including Advanced Continuous Presence and Click&View Multi-Network Connectivity Simple Set Up & Installation 10 Preset Configurations

Polycom MGC 25 A New Level In Workgroup Video Conferencing
