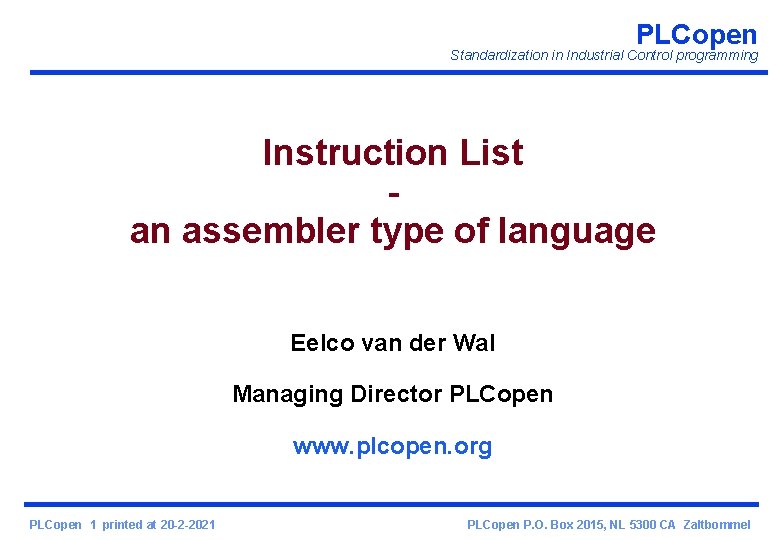

PLCopen Standardization in Industrial Control programming Instruction List an assembler type of language Eelco van der Wal Managing Director PLCopen www. plcopen. org PLCopen 1 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming Examples of instruction fields Label START: Operator. Operand LD %IX 1 Comment (* PUSH BUTTON *) ANDN %MX 5 (* NOT INHIBITED *) ST (* FAN ON *) %QX 2 result : = result OP operand PLCopen 2 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming Operator and Semantics LD Set current result equal to operand ST Store current result to operand location S Set Boolean operand to 1 R Reset Boolean operand to 0 PLCopen 3 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming Operator and Semantics AND Boolean AND & Boolean AND OR Boolean OR XOR Boolean Exclusive OR PLCopen 4 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

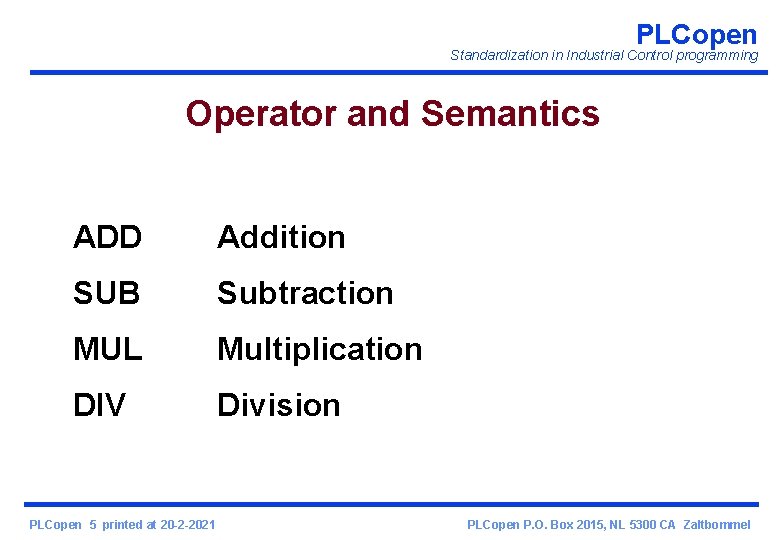

PLCopen Standardization in Industrial Control programming Operator and Semantics ADD Addition SUB Subtraction MUL Multiplication DIV Division PLCopen 5 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

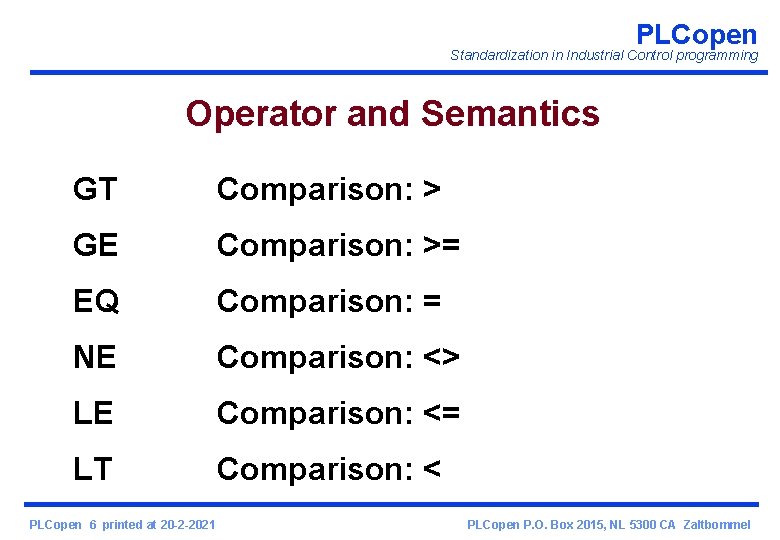

PLCopen Standardization in Industrial Control programming Operator and Semantics GT Comparison: > GE Comparison: >= EQ Comparison: = NE Comparison: <> LE Comparison: <= LT Comparison: < PLCopen 6 printed at 20 -2 -2021 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming Operator and Semantics JMP Jump to label CAL Call function block RET Return from called function or function block ) PLCopen 7 printed at 20 -2 -2021 Evaluate deferred operation PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming Function Block Invocation Examples 1. CAL with input list: CAL C 10(CU: =%IX 10, PV: =15) 2. CAL with load/store of inputs: LD 15 ST C 10. PV LD %IX 10 ST C 10. CU CAL C 10 3. Use of input operators: LD PV LD CU PLCopen 8 printed at 20 -2 -2021 15 C 10 %IX 10 C 10 PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel

PLCopen Standardization in Industrial Control programming FB Type SR RS R_TRIG F_TRIG CTU CTD CTUD TP TON TOF PLCopen 9 printed at 20 -2 -2021 Operators S 1, R S, R 1 CLK CU, R, PV CD, LD, PV CU, CD, R, LD, PV IN, PT PLCopen P. O. Box 2015, NL 5300 CA Zaltbommel
