PLC design example Example 1 motor control problem
PLC design example Example 1: motor control problem. Step 1: Requirement analysis: PB 1 (start) PB 2 (stop) M Constraint Additional requirement: momentary pushbutton Function: control the motor

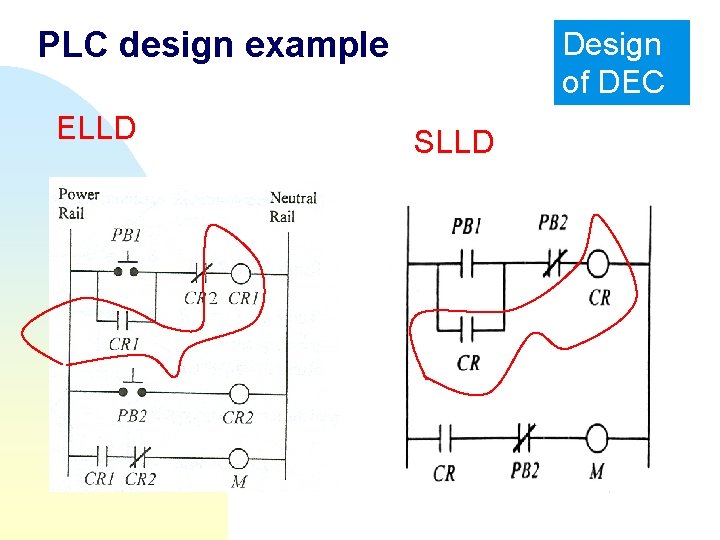

PLC design example ELLD Design of DEC SLLD
PLC design example Requirement analysis: Because PB 1 and PB 2 are momentary pushbutton, we need the latching function. Thus, the modified requirement becomes o FR 1: Latching PB 1. o FR 2: Motor control with latched PB 1 and PB 2.

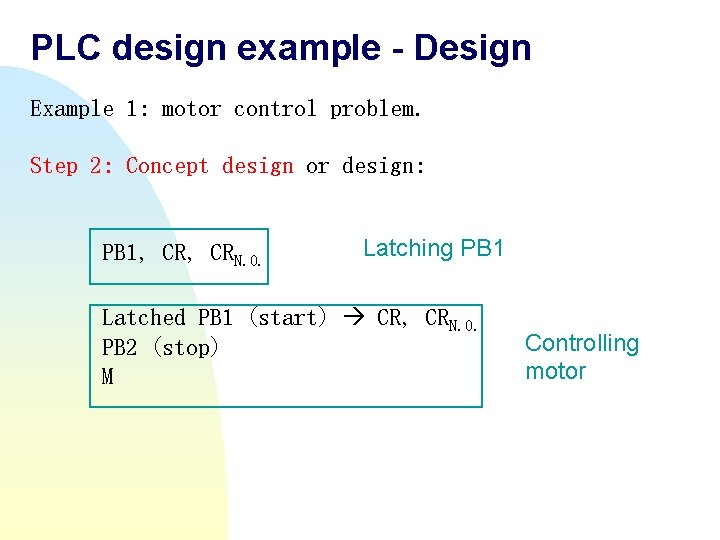

PLC design example - Design Example 1: motor control problem. Step 2: Concept design or design: PB 1, CRN. O. Latching PB 1 Latched PB 1 (start) CR, CRN. O. PB 2 (stop) M Controlling motor
State variable, input variable, output variable X: State variable: M, CR (CRN. O) Y is part of X, i. e. , I: Input variable: Y=M, which is one of the state variables (M, CR) PB 1, PB 2 Y: Output variable: M

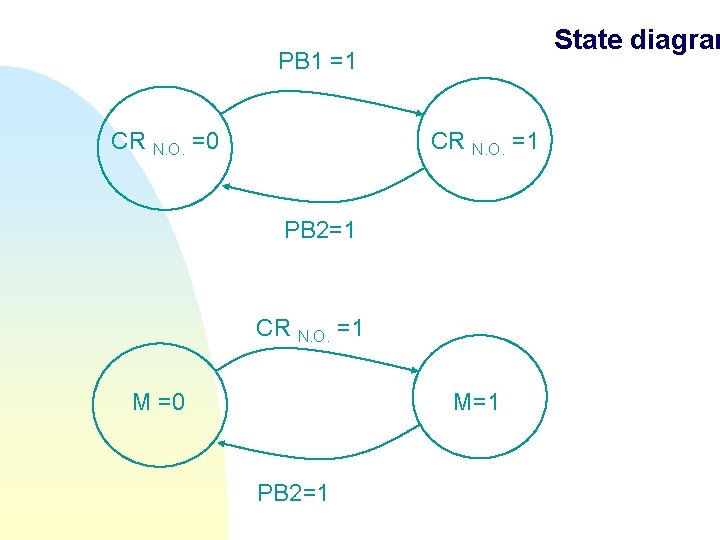

State diagram PB 1 =1 CR N. O. =0 CR N. O. =1 PB 2=1 CR N. O. =1 M =0 M=1 PB 2=1

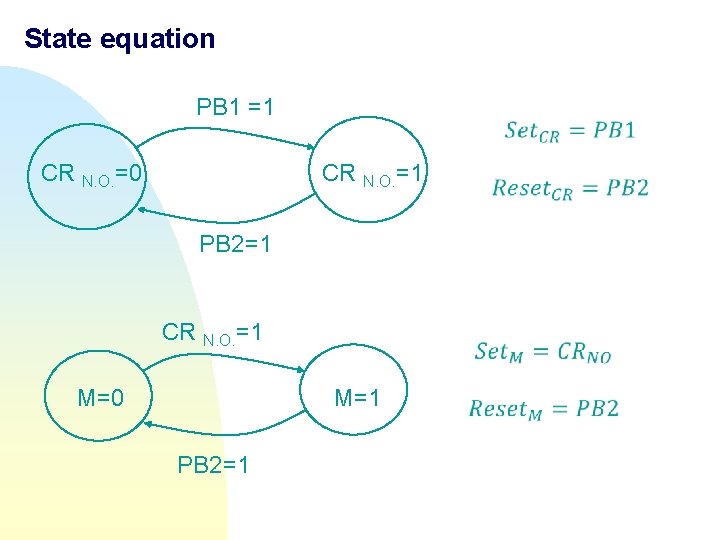

State equation PB 1 =1 CR N. O. =0 CR N. O. =1 PB 2=1 CR N. O. =1 M=0 M=1 PB 2=1
State equation
State equation

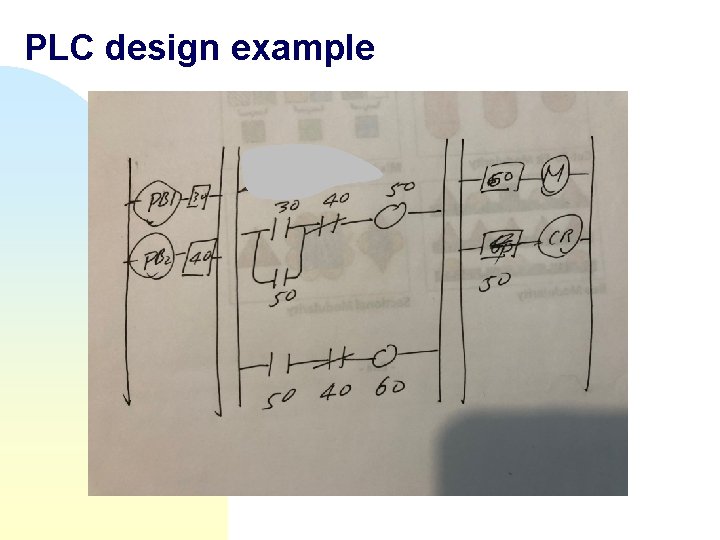

PLC design example
PLC design example
Summary 1. Requirement analysis and its importance. 2. The state equation may further be reduced based on the logical analysis besides based on the logical variable algebra. PB 1 =1 CR N. O. =0 CR N. O. =1 PB 2=1
