P 09454 Design Testing of Centrifugal Pump Components
- Slides: 23
P 09454: Design & Testing of Centrifugal Pump Components MSD II –Managerial Presentation Spring 2009
Design Team: Rishitha Dias - ISE – Project Manager Kevin Klucher - ME – Lead Engineer John Hayles - ME Reme Meck - ME Ammar Jangbarwala - ME

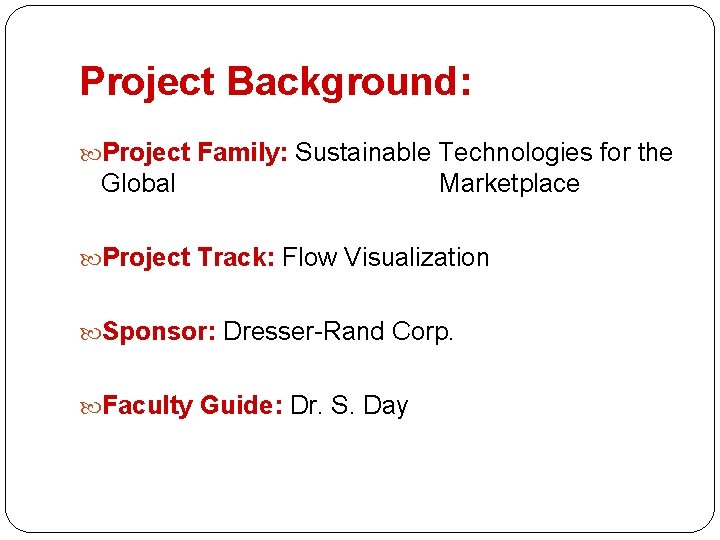

Project Background: Project Family: Sustainable Technologies for the Global Marketplace Project Track: Flow Visualization Sponsor: Dresser-Rand Corp. Faculty Guide: Dr. S. Day

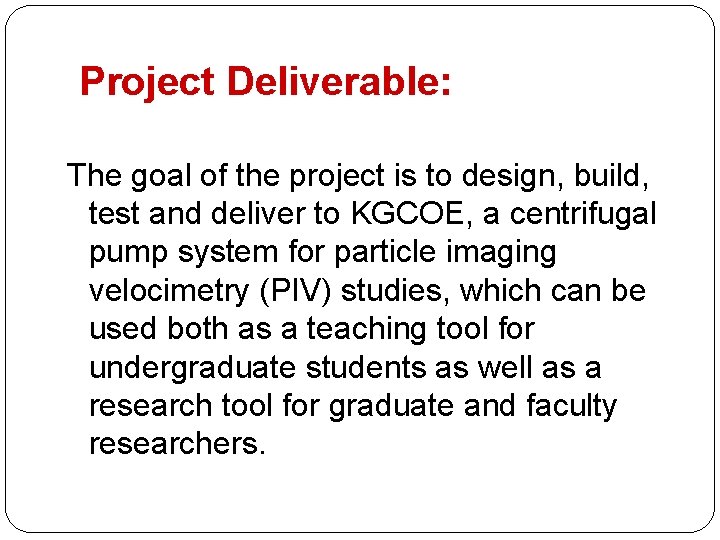

Project Deliverable: The goal of the project is to design, build, test and deliver to KGCOE, a centrifugal pump system for particle imaging velocimetry (PIV) studies, which can be used both as a teaching tool for undergraduate students as well as a research tool for graduate and faculty researchers.

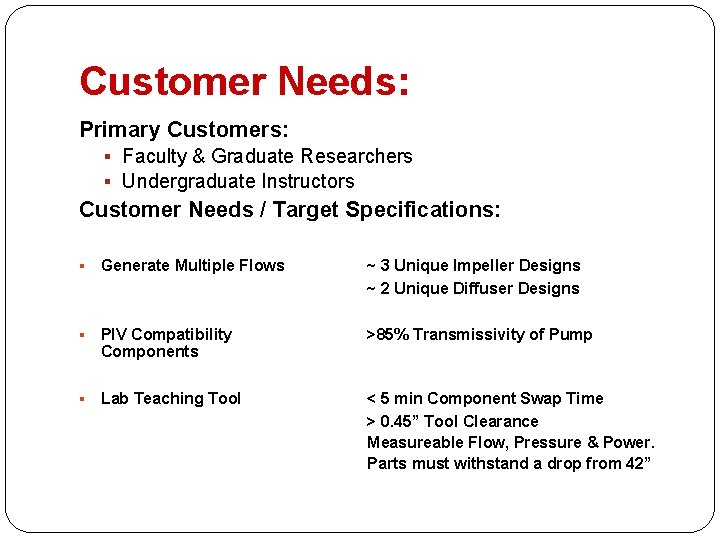

Customer Needs: Primary Customers: § Faculty & Graduate Researchers § Undergraduate Instructors Customer Needs / Target Specifications: § Generate Multiple Flows ~ 3 Unique Impeller Designs ~ 2 Unique Diffuser Designs § PIV Compatibility Components >85% Transmissivity of Pump § Lab Teaching Tool < 5 min Component Swap Time > 0. 45” Tool Clearance Measureable Flow, Pressure & Power. Parts must withstand a drop from 42”
Inherited Pump System: Sensors & Actuators GUI Close-up view of Pump Housing & Impeller Tank
System Architecture:
Design Concept Summary Impeller & Diffuser Riser
Deliverable Status:

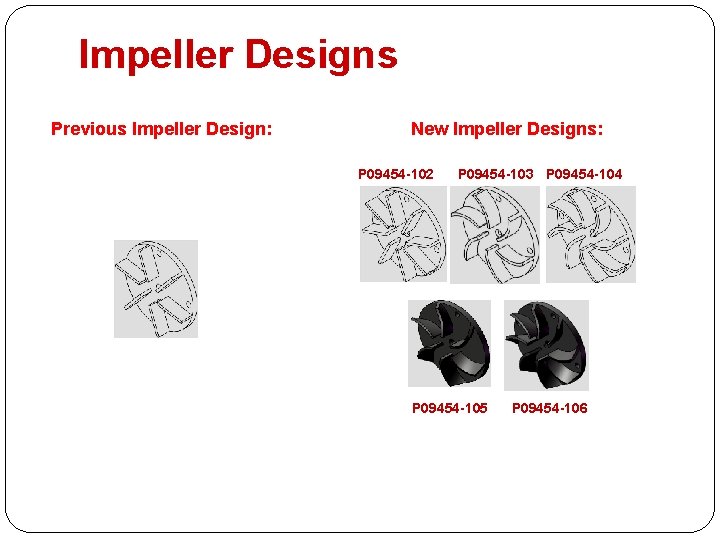

Impeller Designs Previous Impeller Design: New Impeller Designs: P 09454 -102 P 09454 -103 P 09454 -104 P 09454 -105 P 09454 -106
Impeller Designs Old Impeller Design:

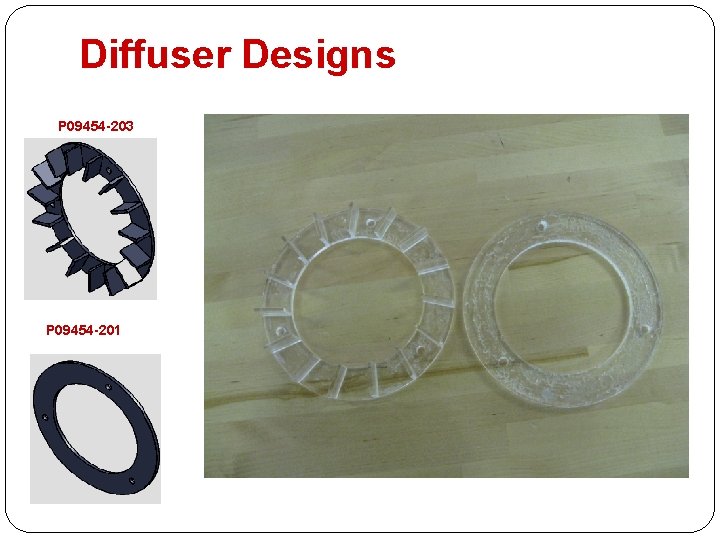

Diffuser Designs P 09454 -203 P 09454 -201

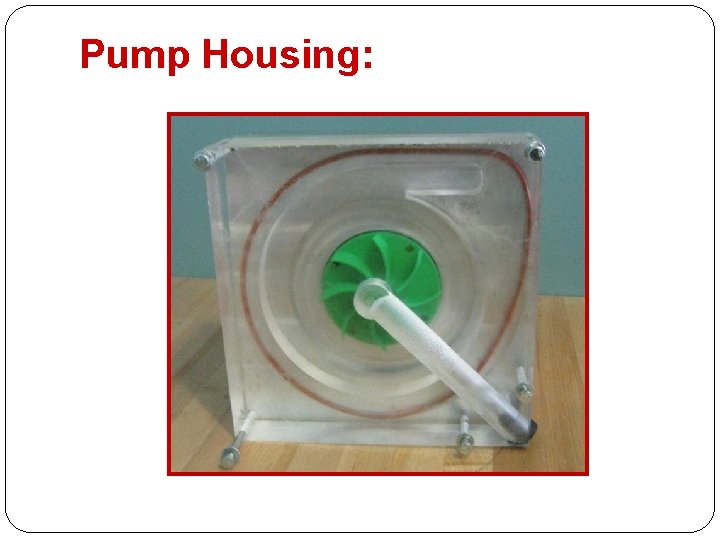

Pump Housing:

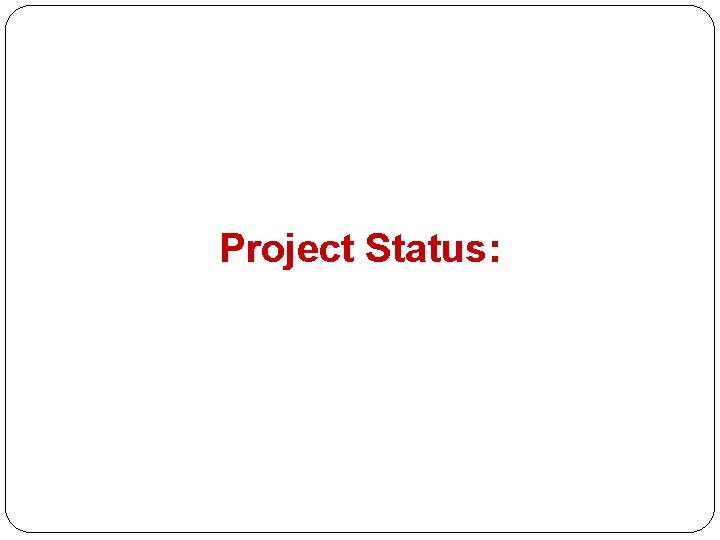

Project Status:

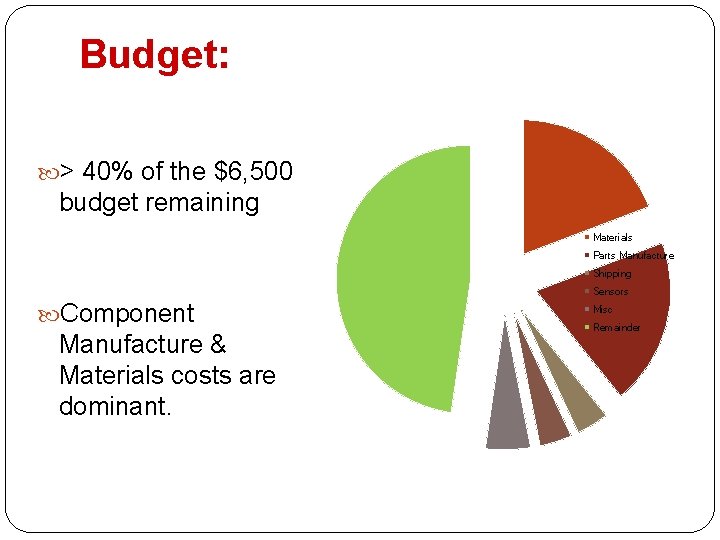

Budget: > 40% of the $6, 500 budget remaining Materials Parts Manufacture Shipping Sensors Component Manufacture & Materials costs are dominant. Misc Remainder
Schedule: Product development Phase 1 Planning Phase 2 Current Stage of Design Concept Development Phase 3 System Level Design Phase 4 MSD II Testing & Refinement

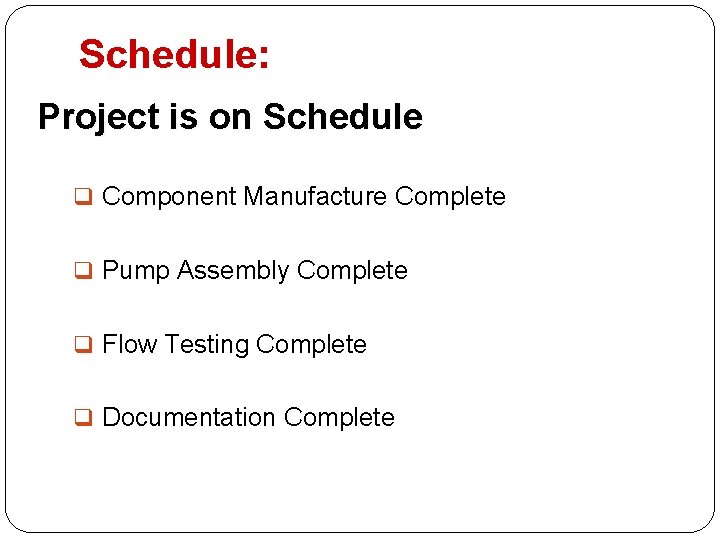

Schedule: Project is on Schedule q Component Manufacture Complete q Pump Assembly Complete q Flow Testing Complete q Documentation Complete
Performance: q Characterize Various q Measure Pressure, Flows RPM & Flow Ø 5 Impellers & 2 Ø Built into GUI Diffusers available to generate curves q Interchangeable Components q Assembly/Disassembly averages 3. 5 minutes functionality q Control Flow, RPM, Pressure Ø GUI Controls & Valves q PIV Compatible Ø Clear Acrylic Components

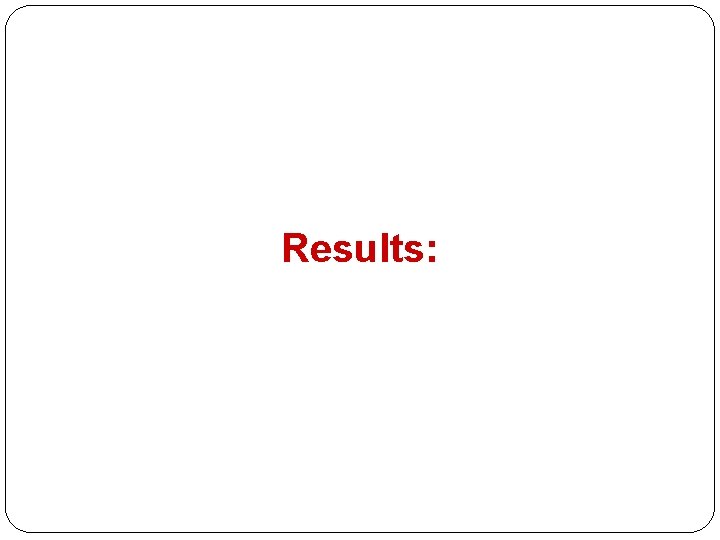

Results:

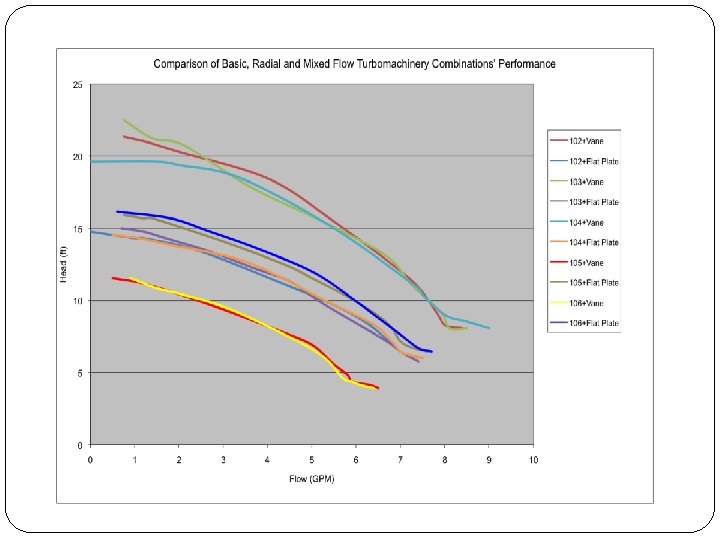

Test Results As head rises, the flow decreases, demonstrating basic pump curve relationships. With the addition of a vaned diffuser, the head generated is increased versus flat ring diffusers. P 09454 -102 Pressure (psi) Vaned Flow (gpm) P 09454 -102 Flat Plate Pressure Flow (psi) (gpm) Head (ft) 3. 5 8. 4 8. 077 2. 6 7. 5 6. 000 3. 6 8 8. 308 2. 7 7. 2 6. 231 4 7. 8 9. 231 2. 8 7 6. 462 5 7. 2 11. 538 3. 6 6. 3 8. 308 6. 8 5. 4 15. 692 4. 2 5. 5 9. 692 8 4 18. 462 4. 7 4. 6 10. 846 8. 8 2 20. 308 5. 8 2. 5 13. 385 9 1. 5 20. 769 6. 2 14. 308 9. 1 1. 25 21. 000 6. 2 1 14. 308 9. 25 0. 75 21. 346 6. 4 0 14. 769 P 09454 -103 Pressure (psi) Vaned Flow (gpm) Head (ft) 3. 5 8. 077 2. 5 7. 4 5. 769 3. 5 8. 1 8. 077 2. 8 7 6. 462 4 7. 9 9. 231 3. 1 6. 7 7. 154 4. 8 7. 25 11. 077 4. 2 5. 3 9. 692 5. 65 6. 7 13. 038 4. 9 4. 5 11. 308 6. 6 5. 4 15. 231 5. 3 3. 7 12. 231 7. 75 3. 6 17. 885 5. 8 2. 7 13. 385 9 2. 1 20. 769 6. 2 1. 7 14. 308 9. 2 1. 4 21. 231 6. 4 1. 2 14. 769 9. 75 0. 75 22. 500 6. 5 0. 7 15. 000 P 09454 -103 Flat Plate Pressure Flow (psi) (gpm) Head (ft)
Discussion Pump provides 10 x the options (impeller and diffuser) with 65% faster component switch time Head generated is up to 60% greater than previous system benchmarks Flow rate is not up to maximum theoretical value of 22. 3 gpm. However, ~ 25% increase over previous iteration Diffuser made a large difference in the amount of head generated, up to a 27% increase for the basic 102 impeller New designs can be rapid prototyped and tested in the test loop within several days based on

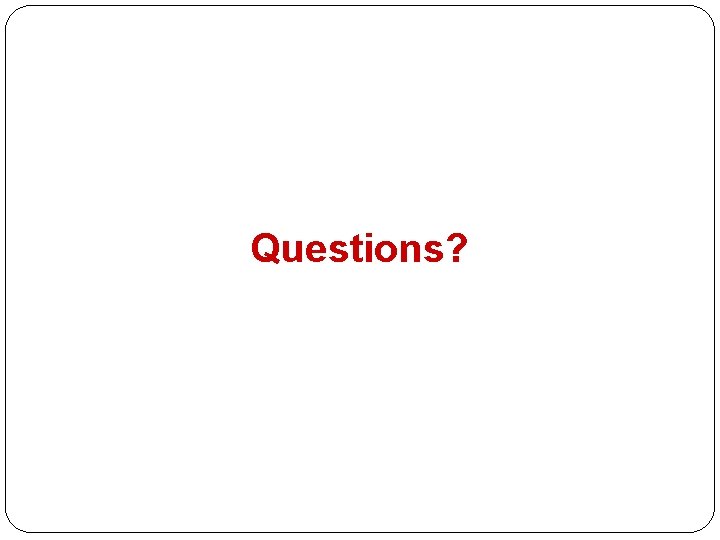

Questions?
