Agenda • Focus Group Updates • ACS Data Subscription – Context Document (First Draft) • ACS Data Query – Storyboard • NAS Common Reference (NCR) Introduction – – – – SWIM Program Overview NCR Architecture Interfacing with NCR Users Program Status Next Steps NCR Team Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 2

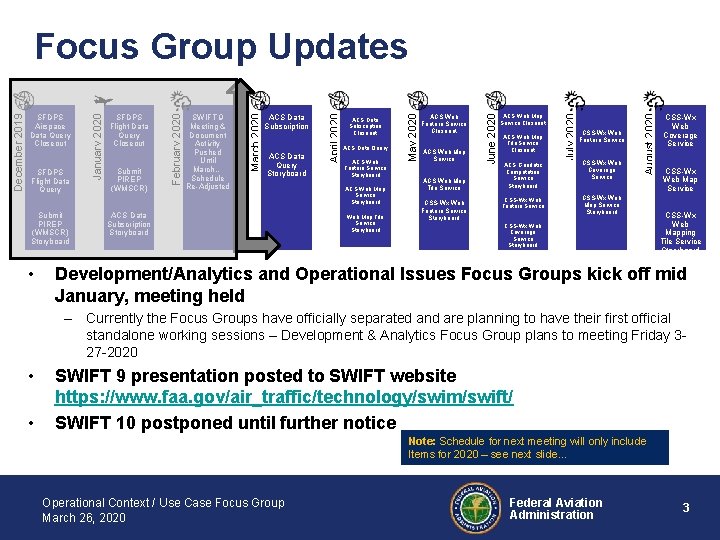

Submit PIREP (WMSCR) Storyboard • ACS Data Subscription Storyboard ACS Web Feature Service Storyboard ACS Web Map Service Storyboard Web Map Tile Service Storyboard ACS Web Map Service ACS Web Map Tile Service CSS-Wx Web Feature Service Storyboard ACS Web Map Service Closeout ACS Web Map Tile Service Closeout July 2020 ACS Data Query ACS Web Feature Service Closeout June 2020 ACS Data Subscription Closeout May 2020 ACS Data Query Storyboard April 2020 ACS Data Subscription CSS-Wx Web Feature Service ACS Geodetic Computation Service Storyboard CSS-Wx Web Coverage Service CSS-Wx Web Feature Service CSS-Wx Web Map Service Storyboard August 2020 Submit PIREP (WMSCR) SWIFT 9 Meeting & Document Activity Pushed Until March… Schedule Re-Adjusted March 2020 SFDPS Flight Data Query Closeout February 2020 SFDPS Airspace Data Query Closeout January 2020 December 2019 Focus Group Updates CSS-Wx Web Coverage Service Storyboard CSS-Wx Web Coverage Service CSS-Wx Web Mapping Tile Service Storyboard Development/Analytics and Operational Issues Focus Groups kick off mid January, meeting held – Currently the Focus Groups have officially separated and are planning to have their first official standalone working sessions – Development & Analytics Focus Group plans to meeting Friday 327 -2020 • • SWIFT 9 presentation posted to SWIFT website https: //www. faa. gov/air_traffic/technology/swim/swift/ SWIFT 10 postponed until further notice Note: Schedule for next meeting will only include Items for 2020 – see next slide… Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 3

ACS Data Subscription Storyboard • ACS Web Map Service Storyboard Web Map Tile Service Storyboard ACS Web Map Service ACS Web Map Tile Service CSS-Wx Web Feature Service Storyboard ACS Web Map Tile Service Closeout ACS Geodetic Computation Service Storyboard CSS-Wx Web Feature Service CSS-Wx Web Coverage Service Storyboard ACS Geodetic Computation Service Closeout CSS-Wx Web Feature Service CSS-Wx Web Coverage Service CSS-Wx Web Map Service Storyboard ACS Airspace Conflict Detection Service Storyboard ACS Post Ops Metrics Storyboard CSS-Wx Web Coverage Service September 2020 ACS Web Feature Service Storyboard ACS Web Map Service Closeout July 2020 ACS Data Query ACS Web Feature Service Closeout June 2020 ACS Data Subscription Closeout May 2020 ACS Data Query Storyboard April 2020 ACS Data Subscription August 2020 Submit PIREP (WMSCR) SWIFT 9 Meeting & Document Activity Pushed Until March… Schedule Re-Adjusted March 2020 SFDPS Flight Data Query Closeout February 2020 January 2020 Focus Group Updates ACS Airspace Conflict Detection Service Closeout ACS Post Ops Metrics Closeout NCR Storyboard CSS-Wx Web Map Service CSS-Wx Web Mapping Tile Service Storyboard Development/Analytics and Operational Issues Focus Groups kick off mid January, meeting held – Currently the Focus Groups have officially separated and are planning to have their first official standalone working sessions – Development & Analytics Focus Group plans to meeting Friday 327 -2020 • • SWIFT 9 presentation posted to SWIFT website https: //www. faa. gov/air_traffic/technology/swim/swift/ SWIFT 10 postponed until further notice Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 4

ACS DATA SUBSCRIPTION Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 5

ACS Data Subscription – Operational Context Document 1. Introduction 2. Aeronautical Common Services Data Subscription Overview – Includes References 3. ACS Subscription Requests & Responses 4. ACS Data Subscription Messages Appendix A: Acronyms Appendix B: ACS Data Subscription Sample Message Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 6

ACS Data Subscription Background • • • The ACSData. Subscription Web Service is based off connections to other FAA internal and external systems. These systems are: SAA, NAV Lean, SAMS/MADE, other AIMM sources. ACSData. Subscription – The ACS Data Subscription Service is a WS-Notification (WSN) service, which is a standard that describes a publish/subscribe messaging model implemented over Web Services. The WS-Notification standard is defined by combining the following OASIS specifications: WS-Topics, WS-Base. Notification, and WS-Brokered. Notification. The service allows consumers to subscribe to notifications of updates to aeronautical information. Consumers can use this service to create and manage their subscriptions. The service allows users to create and manage Pull. Points, which is a resource used to accumulate notification messages, that can later be retrieved at requested intervals. The service consumers of the ACS Web Service will be comprised of the following users: Airlines, General Aviation, Airports, Department of Defense (Do. D), Third Party Providers, and the general public. ACS Data Subscription Service will provide a publish/subscribe function that notifies subscribers when there is a change to the AI Data The ACSData. Subscription Web Service has eight Categories are as follows: – – – – Agency Infrastructure Service Agency Service Air Transportation Information Service Air Transportation Infrastructure Service Air Transportation Service Aircraft Information Service Aircraft Service Operational Context / Use Case Focus Group March 26, 2020 • Special Use Airspace (SAA) • Navigation Procedures Project (NAV Lean) • Special Use Airspace Management System (SAMS) • Military Airspace Management System (MADE) • Aeronautical Information Management Modernization (AIMM) Federal Aviation Administration 7

Sourcing ACS • The ACS Data Service is provided by the Aeronautical Information Management (AIM) directorate. AIM is the authoritative government source for collecting, validating, storing, maintaining, and disseminating aeronautical data concerning the United States and its territories to support real-time aviation activities Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 8

ACS Data Subscription Service Background Message Set Message Name Description Subscribe. Request Allows user to request for a new subscription to AI Subscribe. Response Responds to the users request for a new subscription Renew. Request Allows user to request for an update to their subscription Renew. Response Responds to the users request to update an existing Repository Unsubscribe. Request Allows user to request to delete an existing subscription Unsubscribe. Responds to users request to delete an existing subscription se Create. Pull. Point. Req Allows user to request creation of a Pull. Point resource uest Create. Pull. Point. Responds to users request to create a Pull. Point resource onse Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 9

ACS Data Subscription Service Background Message Set Message Name Description Get. Pull. Point. Messag Allows user to get a Pull. Point message es. Request Get. Pull. Messages. Re sponse Responds to users request to get a Pull. Point message Destroy. Pull. Point. Res Allows user to terminate a Pull. Point resource ponse Destroy. Pull. Point. Responds to users request to terminate a Pull. Point resource ponse Get. Resource. Propert Allows user to request Notification. Producer resource properties y. Request Get. Resource. Propert Responds to users request with Notification. Producer resource y. Response property settings Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 10

ACS Data Query Storyboard Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 11

ACS Data Query Background • ACS Data Query Service collects data from designated authoritative sources, validate and verify the data, and maintain the data in a database when needed – When data is not provided in AIXM format, ACS stores this information • The ACS Data and Information Management functional capability enables this data query service – The service supports exchange of information to users for situation-tailored information gathering and operations planning. – Information will be provided using SWIM-compliant services both within the FAA NAS network and externally through the web portal via the public Internet • Data query capabilities allow internal NAS network users and external users to request and retrieve, or subscribe to, multiple user-defined subsets of aeronautical information – User-defined queries, constrained by user authority, can be stored for future reference and shared with other system users. – Custom queries can also be created to facilitate recurring automatic information subscriptions Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 12

Sourcing ACS Data Query Service - Data Query Service *In addition to Data Query, ACS currently provides seven other web services (nsrr. faa. gov) Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 13

ACS Data Query Message Set ACS Web Service Description Operations ACSData. Query • ACSData. Query allows a service consumer to submit queries and returns SUA Airspace and Schedules • • • get. Saa. Definition. By. Uuid get. Saa. Scheduled. By. Uuid get. Integrated. Saa. By. Uuid ACS Data Query Service Messages Message Name Definition Get. SAADefinition. By. UUIDRequest Allows user to request static SAA data by UUID Get. SAADefinition. By. UUIDResponse Responds to the users request with static SAA data by UUID Get. SAASchedule. By. UUIDRequest Allows user to query SAA schedule data by UUID Get. SAASchedule. By. UUIDResponse Responds to the users request with SAA schedule data by UUID Get. Integrated. SAABy. UUIDResponse Allows user to query integrated SAA data by UUID Get. Integrated. SAABy. UUIDResponse Responds to the users request with integrated SAA data by UUID, which includes both SAA definition and schedule Fault A fault message containing the reason why a service call is not successful. Requests resulting in errors or exceptions will be provided as a Service. Exception. Report. Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 14

ACS Data Query - Operational Context Document 1. 2. 3. 4. 5. 6. Introduction ACS Data Query Overview – Includes References ACS Data Query Operational Context Document ACS Data Query Subscription Requests ACS Data Query Subscription Responses ACS Data Query XML Reply Messages Appendix A: Acronyms Appendix B: ACS Data Query Sample XML Messages Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 15

References • SWIFT Focus Group Website – http: //connect. lstechllc. com/index. cfm/main/opconfocusgroup • Documents – PIREP (WMSCR) Operational Context Final v 1. 0 – ACS Data Subscription Operational Context Draft v 0. 1 • Next Meeting 4/23/20 – ACS Data Subscription Operational Context Close Out, ACS Data Query Operational Context First Draft, ACS Web Feature & Map Service Storyboards • Contacts – Ray Mitchell/Xavier Pratt ray. mitchell@lstechllc. com / xavier. pratt@lstechllc. com – Felisa White felisa. white@faa. gov Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 16

NAS Common Reference (NCR) Introduction Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 17

SWIM Program Concept • SWIM consists of standards, infrastructure, and governance that enables the management of ATM-related information and how it is exchanged between users • The SWIM Program… – Implements a Service-Oriented Architecture (SOA) in the NAS – Allows the FAA to create reusable system interfaces more quickly and cost effectively – Facilitates interoperability and data-sharing needed for the Next Generation Air Transportation System (Next. Gen) Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 18 18

Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 19 19

Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 20

Next. Gen Information Sharing Architecture Next. Gen Applications: ADSB, AIM, Data. Comm, NVS, TFDM, PBN etc. Standards for Data Exchange: Data Standards & Harmonization SWIM Messaging Infrastructure: SWIM Core Services FTI IP Backbone: FTI Operational IP network provides secure transport Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 21 21

NCR Overview • NCR is a NAS Program that provides SWIM Services for parsing, storing, and correlating NAS data – Ingests data from multiple SWIM producers across NAS domains, such as aeronautical, weather, and traffic flow management – Applies constraints from above to the proposed trajectories (in 2 D, 3 D or 4 D) from authorized consumers and validates the trajectories – Performs data transformations, such as translating between units of measure and coordinate reference systems (CRS) – Provides flexible combinations of geospatial, temporal, and attribute filters for users to tailor requests (“queries”) for correlated subsets of NAS data Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 22 22

NCR Overview (cont’d) • • • NCR uses Service Oriented Architecture (SOA) services and NAS Enterprise Messaging Service (NEMS) to interface with producer systems and authorized NAS and Non-NAS consumers using SWIM compliant infrastructure and interface standards. NCR uses FAA Telecommunication Infrastructure (FTI) for data transport. NCR interfaces with the following NAS producer systems: – – • Aeronautical Common Services (ACS) Traffic Flow Management System (TFMS) Common Support Services – Weather Systems (CSS-Wx) SWIM Terminal Data Distribution System (STDDS) Note: – TFMS and STDDS will be in Version 1. 0 – ACS in Rel 1. 1 – CSS-Wx not available during 1. 1 development; National Weather Service (NWS) feeds will be used in 1. 1 Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 23 23

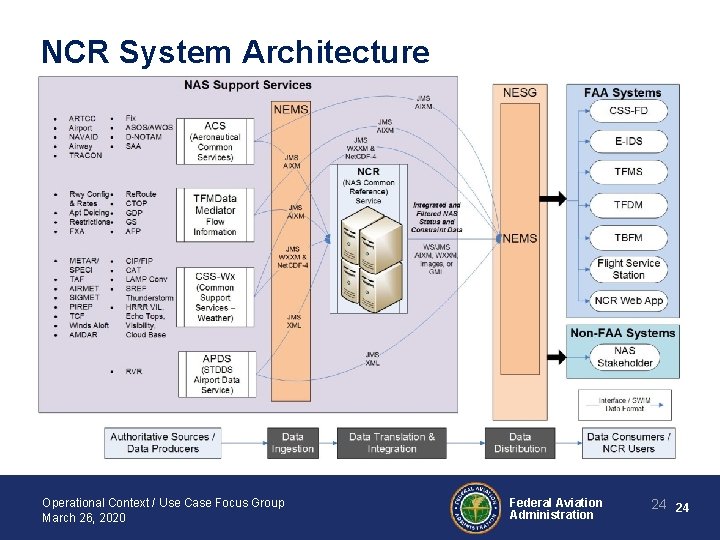

NCR System Architecture Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 24 24

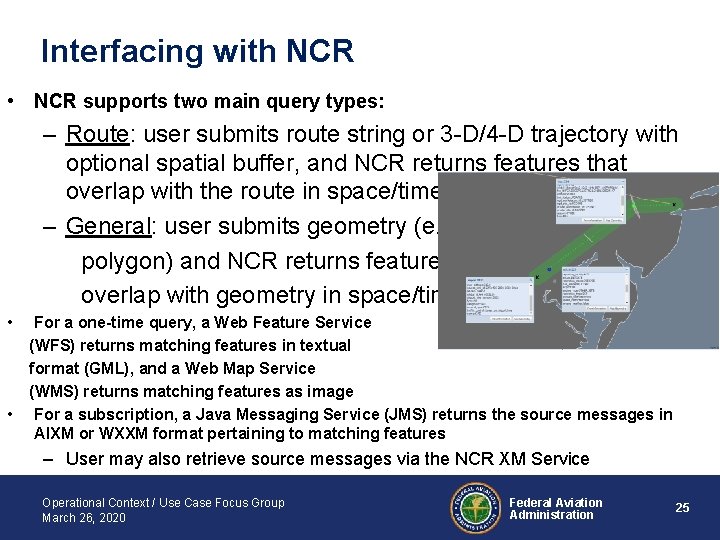

Interfacing with NCR • NCR supports two main query types: – Route: user submits route string or 3 -D/4 -D trajectory with optional spatial buffer, and NCR returns features that overlap with the route in space/time – General: user submits geometry (e. g. , circle, polygon) and NCR returns features that overlap with geometry in space/time • • For a one-time query, a Web Feature Service (WFS) returns matching features in textual format (GML), and a Web Map Service (WMS) returns matching features as image For a subscription, a Java Messaging Service (JMS) returns the source messages in AIXM or WXXM format pertaining to matching features – User may also retrieve source messages via the NCR XM Service Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 25

NCR Users • Potential Internal NAS Consumers: – TFMS, TBFM, TFDM, CSS-FD, E-IDS, OPSNET-R • External Consumers: – AOCs/FOCs/GA, Industry, Academia, Research partners Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 26 26

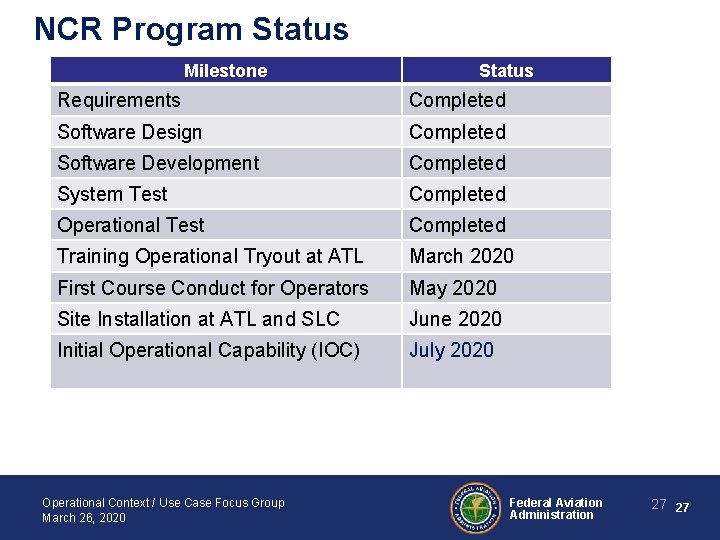

NCR Program Status Milestone Status Requirements Completed Software Design Completed Software Development Completed System Test Completed Operational Test Completed Training Operational Tryout at ATL March 2020 First Course Conduct for Operators May 2020 Site Installation at ATL and SLC June 2020 Initial Operational Capability (IOC) July 2020 Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 27 27

Next Steps after IOC • After IOC version 1. 0, plans are afoot for developing Release 1. 1, which will contain: – Aeronautical Common Services (ACS) constraints for trajectory validation – National Weather Service (NWS) weather services constraints – Data visualization tool on SWIM Cloud – Enhanced 4 -D trajectory algorithm – Interface with CSS-FD prototype – Deferred requirements • Rel 1. 1 to be deployed in September 2021 • In-Service Decision (ISD) in Nov-Dec 2021 Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 28 28

NCR Team Name Job Title Phone Melissa Matthews SWIM Program Manager, AJM-316 202 -267 -0764 Damon Thomas SWIM Capabilities Lead, AJM-316 202 -267 -5300 Mark Strout NCR Development Lead, Volpe Center 617 -494 -2457 Kimberly Fernau NCR First Level Support, NASEO 202 -809 -3004 James Brand NCR Second Level Support, AJW-177 609 -485 -8185 Timothy Sienrukos NCR Test Director, ANG-E 65 609 -485 -4524 Vinod Bhatnagar In-Service Management, AJW-133 202 -267 -9068 Jeff Harden NCR Training Manager 770 -946 -0594 Jermaine Thomas NCR PASS Rep 817 -858 -7310 Operational Context / Use Case Focus Group March 26, 2020 Federal Aviation Administration 29 29
