Operating Systems: Internals and Design Principles, 6/E William Stallings Chapter 13 Embedded Systems Patricia Roy Manatee Community College, Venice, FL © 2008, Prentice Hall
Embedded System • Hardware and software designed to perform a dedicated function • Tightly coupled to their environmnet
Examples
Examples
Embedded System Organization

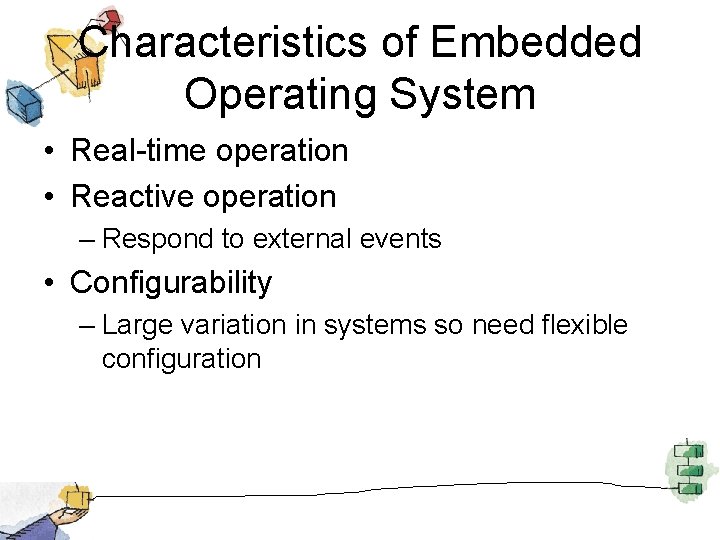

Characteristics of Embedded Operating System • Real-time operation • Reactive operation – Respond to external events • Configurability – Large variation in systems so need flexible configuration
Characteristics of Embedded Operating System • I/O device flexibility • Streamlined protection mechanisms • Direct use of interrupts
Adapting an Existing OS • Add real-time capability • Streamlining operation • Add necessary functionality
e. Cos • Embedded Configurable Operating Systems • Open source • Royalty-free • Real-time OS • Most widely used embedded OS
e. Cos Configuration Tool
e. Cos Configuration Tool

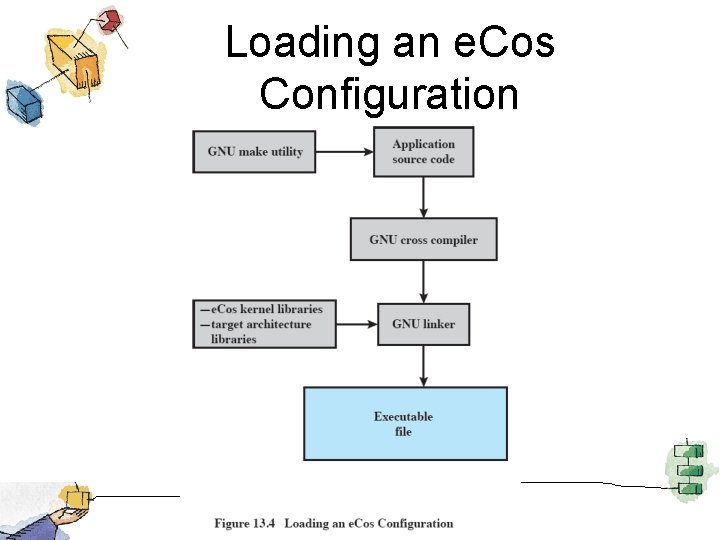

Loading an e. Cos Configuration
e. Cos Layered Structure

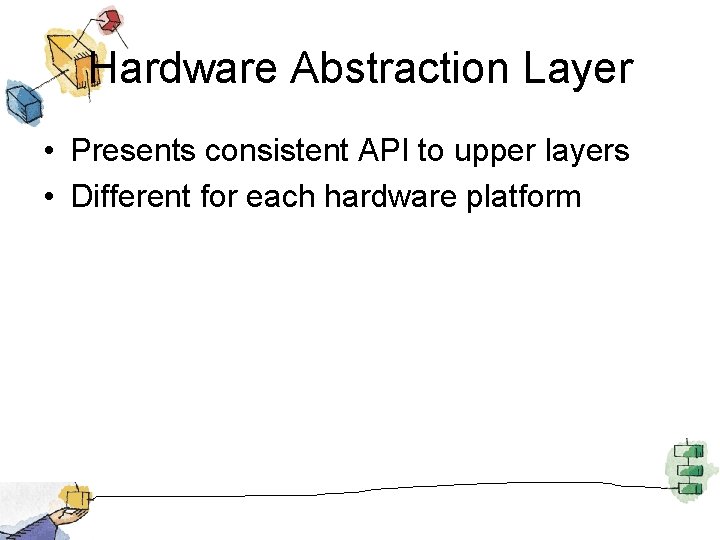

Hardware Abstraction Layer • Presents consistent API to upper layers • Different for each hardware platform
HAL
HAL Modules • Architecture – Processor family type • Variant – Support features of specific processor • Platform – Support of tightly coupled peripherals
e. Cos Kernel • • Low interrupt latency Low task switching latency Small memory footprint Deterministic behavior
Not in e. Cos Kernel • Memory allocation • Device driver
e. Cos I/O System • Framework for supporting device drivers
e. Cos Scheduler • Bitmap scheduler – Efficient for small number of threads active – Each thread has different priority
Bitmap Scheduler
e. Cos Scheduler • Multilevel queue scheduler – Appropriate when number of threads is dynamic – Multiple threads at each priority – Time slicing

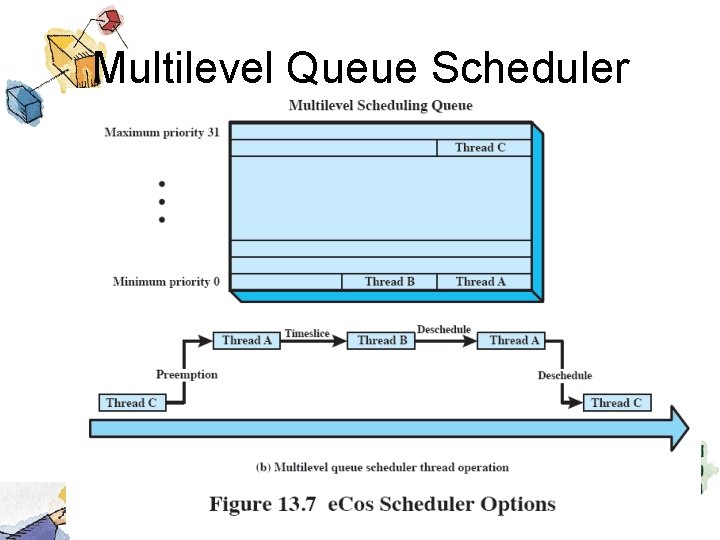

Multilevel Queue Scheduler
e. Cos Thread Synchronization • Mutexes • Semaphores • Condition variables
e. Cos Thread Synchronization • Event flags • Mailboxes • Spinlocks – Useful in SMP (symmetric multiprocessing)
Mutexes
Mutexes and Condition Variables
Mutexes and Condition Variables

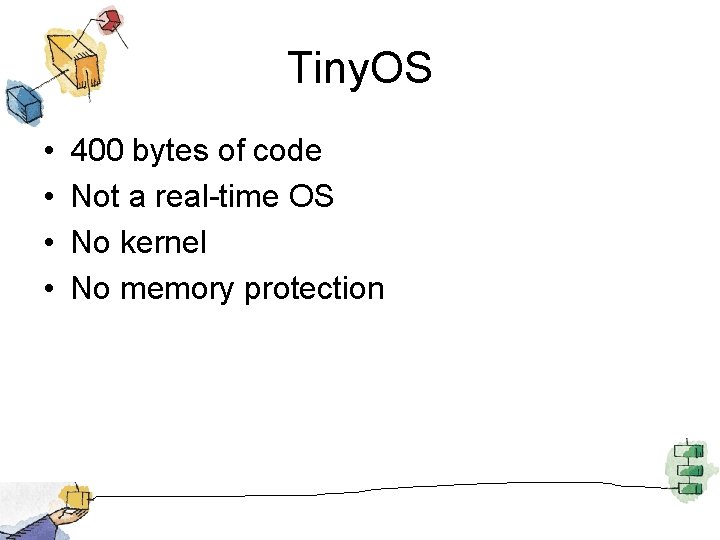

Tiny. OS • • 400 bytes of code Not a real-time OS No kernel No memory protection

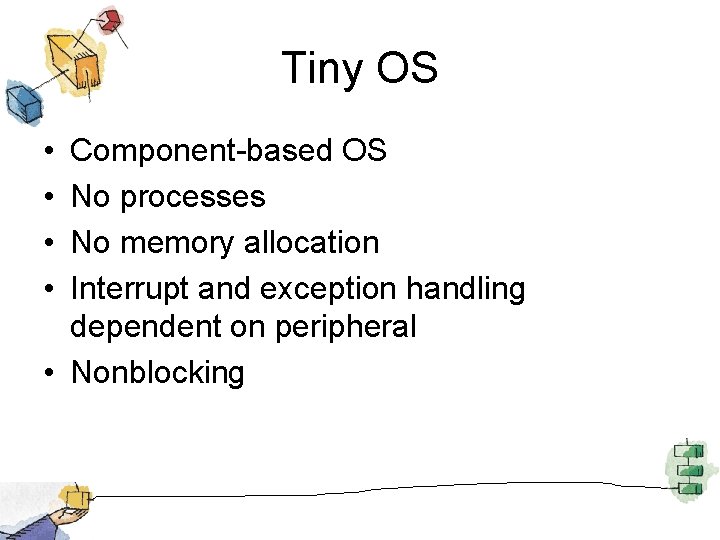

Tiny OS • • Component-based OS No processes No memory allocation Interrupt and exception handling dependent on peripheral • Nonblocking
Wireless Sensor Network Topology
Tiny. OS Goals • Allow high concurrency • Operate with limited resources • Adapt to hardware evolution
Tiny. OS Goals • Support a wide range of applications • Support a diverse set of platforms • Be robust
Tiny. OS Components • • • Single-hop networking Ad-hoc routing Power management Times Nonvolatile storage control
Timer. M Component
Timer. M Configuration
Tiny. OS Scheduler • Operates across all components • Only one task executes at one time • Simple FIFO queue
Example Tiny. OS Appliction
Example Tiny. OS Appliction
Tiny. OS Resource Interface • Dedicated • Virtualized • Shared

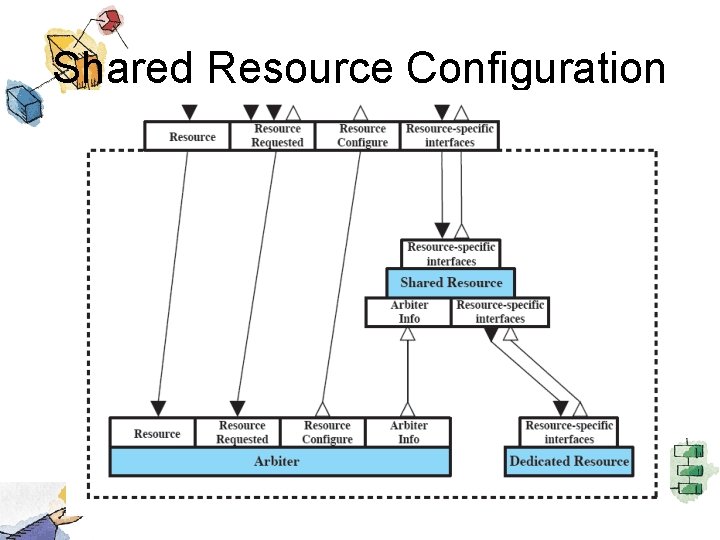

Shared Resource Configuration
