Muscles of the upper and lower Extremities Copyright © 2003 Pearson Education, Inc. publishing

Muscles of the upper and lower Extremities Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

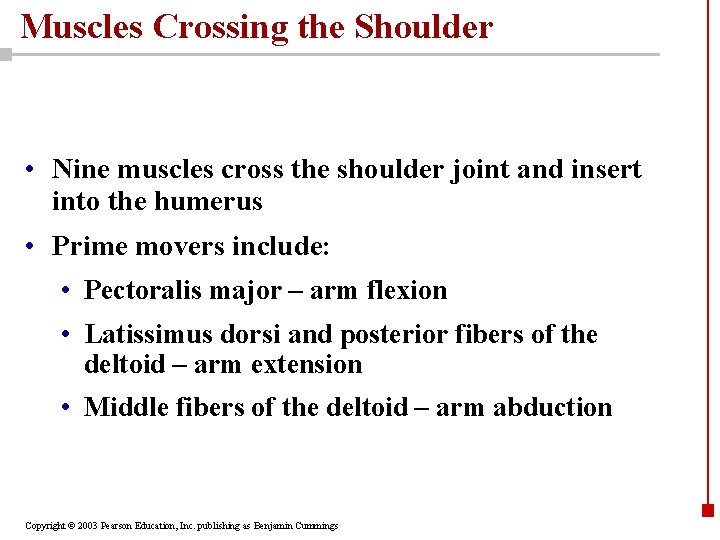

Muscles Crossing the Shoulder • Nine muscles cross the shoulder joint and insert into

Muscles Crossing the Shoulder • Nine muscles cross the shoulder joint and insert into the humerus • Prime movers include: • Pectoralis major – arm flexion • Latissimus dorsi and posterior fibers of the deltoid – arm extension • Middle fibers of the deltoid – arm abduction Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

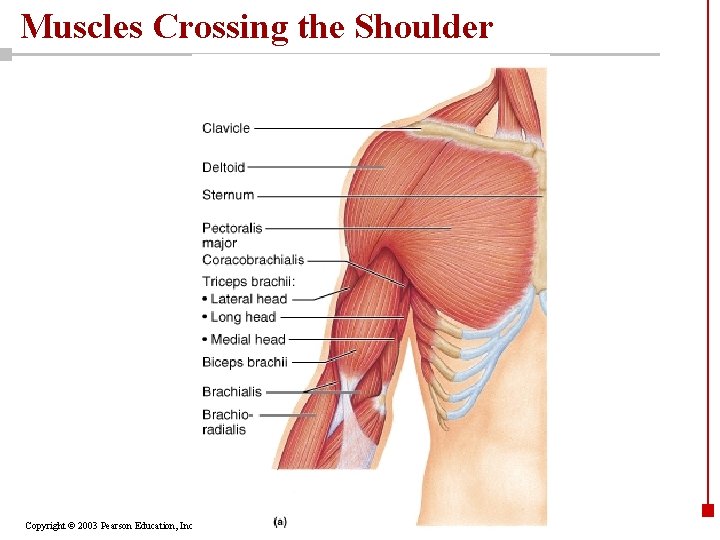

Muscles Crossing the Shoulder Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles Crossing the Shoulder Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

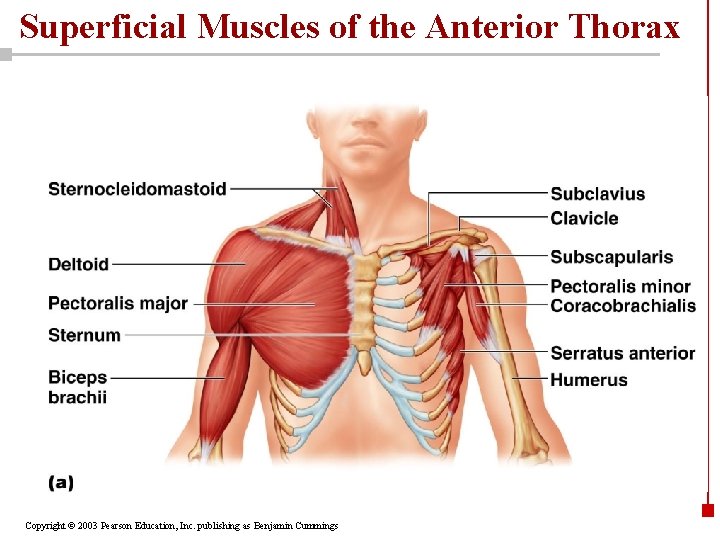

Superficial Muscles of the Anterior Thorax Copyright © 2003 Pearson Education, Inc. publishing as

Superficial Muscles of the Anterior Thorax Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Superficial Muscles of the Back: Posterior Thorax PLAY Rotator cuff muscles: an overview (a)

Superficial Muscles of the Back: Posterior Thorax PLAY Rotator cuff muscles: an overview (a) PLAY Rotator cuff muscles: an overview (b) Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

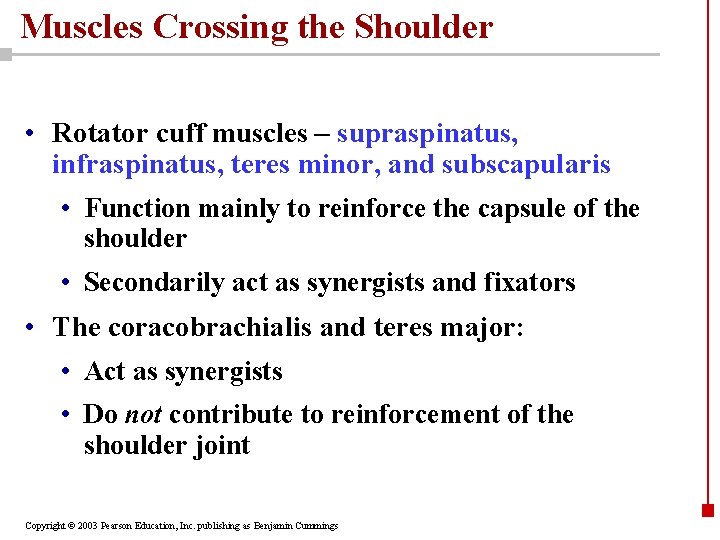

Muscles Crossing the Shoulder • Rotator cuff muscles – supraspinatus, infraspinatus, teres minor, and

Muscles Crossing the Shoulder • Rotator cuff muscles – supraspinatus, infraspinatus, teres minor, and subscapularis • Function mainly to reinforce the capsule of the shoulder • Secondarily act as synergists and fixators • The coracobrachialis and teres major: • Act as synergists • Do not contribute to reinforcement of the shoulder joint Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

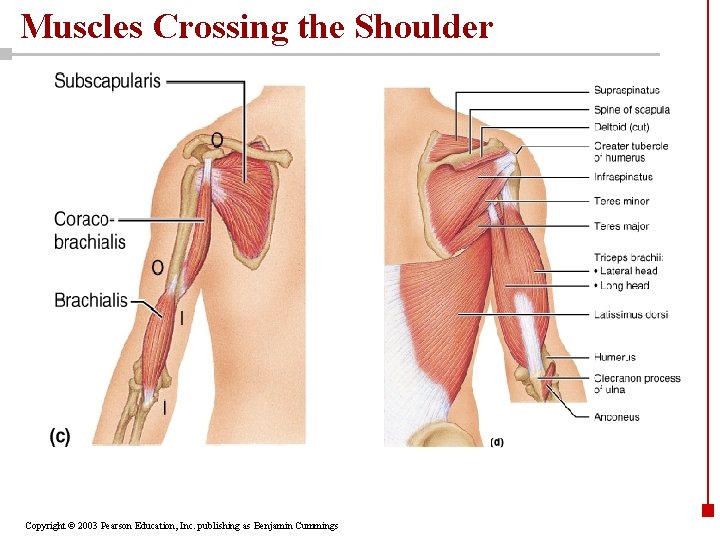

Muscles Crossing the Shoulder Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles Crossing the Shoulder Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles Crossing the Shoulder Joint • Movements of the arm • Latissimus dorsi •

Muscles Crossing the Shoulder Joint • Movements of the arm • Latissimus dorsi • Supraspinatus • Infraspinatus • Teres minor • Teres major • Coracobrachialis • Subscapularis PLAY Movement at the glenohumeral joint: an overview Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles Crossing the Elbow • Forearm extension • The triceps brachii is the prime

Muscles Crossing the Elbow • Forearm extension • The triceps brachii is the prime mover of forearm extension • Forearm flexion • Brachialis and biceps brachii are the chief forearm flexion • The brachioradialis acts as a synergist and helps stabilize the elbow Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

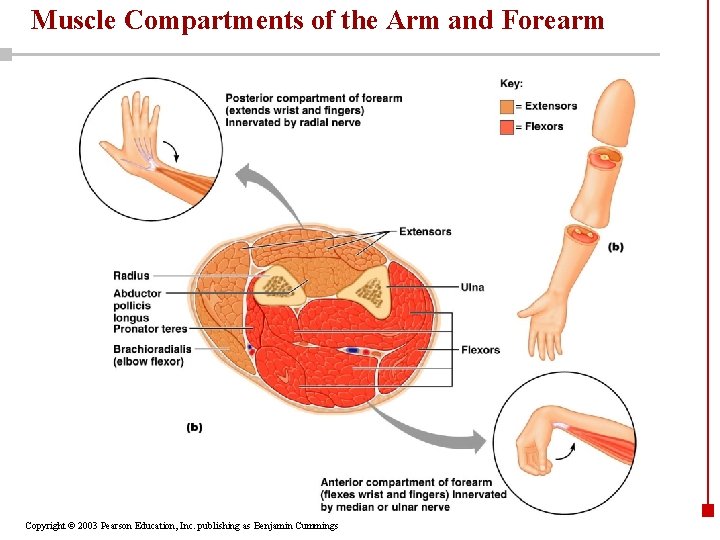

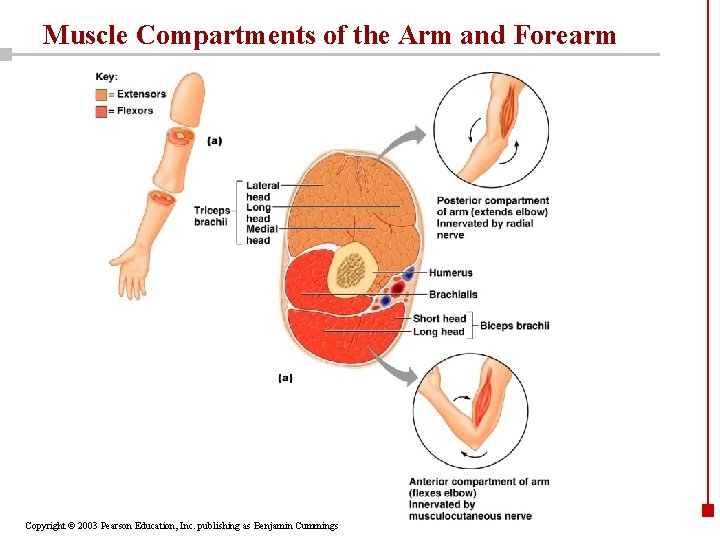

Muscle Compartments of the Arm and Forearm Copyright © 2003 Pearson Education, Inc. publishing

Muscle Compartments of the Arm and Forearm Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscle Compartments of the Arm and Forearm Copyright © 2003 Pearson Education, Inc. publishing

Muscle Compartments of the Arm and Forearm Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles of the Forearm: Anterior Compartment • These muscles are primarily flexors of the

Muscles of the Forearm: Anterior Compartment • These muscles are primarily flexors of the wrist and fingers Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

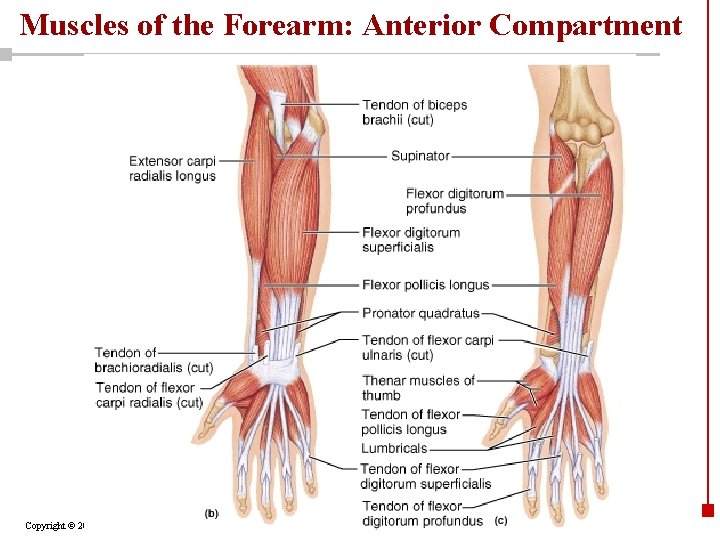

Muscles of the Forearm: Anterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as

Muscles of the Forearm: Anterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles of the Forearm: Posterior Compartment • These muscles are primarily extensors of the

Muscles of the Forearm: Posterior Compartment • These muscles are primarily extensors of the wrist and fingers Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

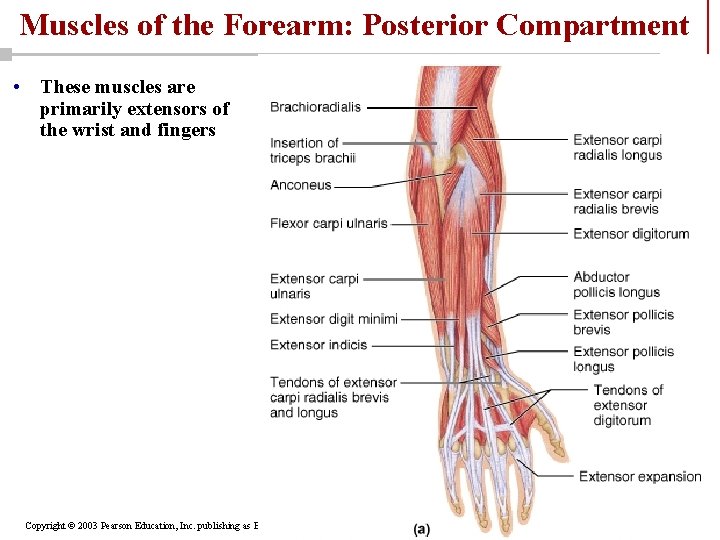

Muscles of the Forearm: Posterior Compartment • These muscles are primarily extensors of the

Muscles of the Forearm: Posterior Compartment • These muscles are primarily extensors of the wrist and fingers Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles of the Lower Limbs • Most anterior compartment muscles of the hip and

Muscles of the Lower Limbs • Most anterior compartment muscles of the hip and thigh flex the femur at the hip and extend the leg at the knee • Posterior compartment muscles of the hip and thigh extend the thigh and flex the leg • The medial compartment muscles all adduct the thigh • These three groups are enclosed by the fascia lata Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

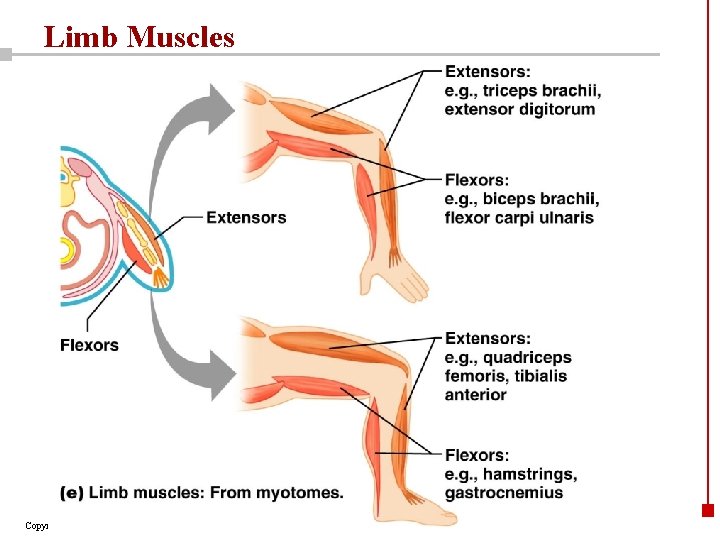

Limb Muscles Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Limb Muscles Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

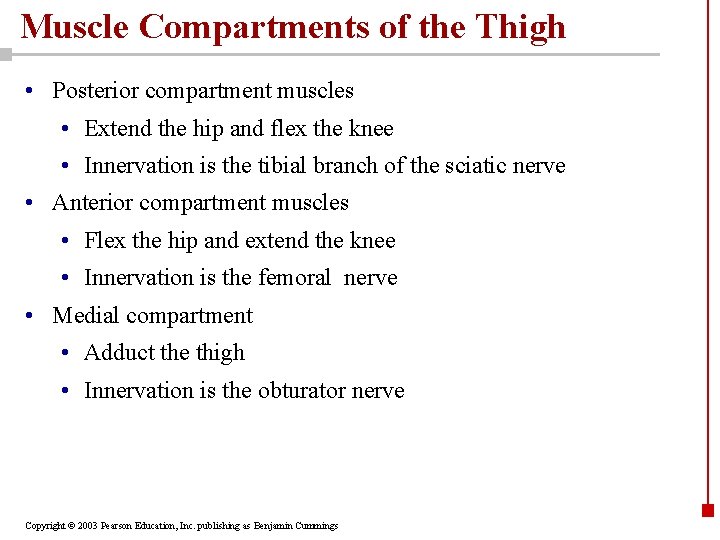

Muscle Compartments of the Thigh • Posterior compartment muscles • Extend the hip and

Muscle Compartments of the Thigh • Posterior compartment muscles • Extend the hip and flex the knee • Innervation is the tibial branch of the sciatic nerve • Anterior compartment muscles • Flex the hip and extend the knee • Innervation is the femoral nerve • Medial compartment • Adduct the thigh • Innervation is the obturator nerve Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Movements of the Thigh at the Hip: Flexion and Extension • The ball-and-socket hip

Movements of the Thigh at the Hip: Flexion and Extension • The ball-and-socket hip joint permits flexion, extension, abduction, adduction, circumduction, and rotation • The most important thigh flexors are the iliopsoas (prime mover), tensor fasciae latae, and rectus femoris • The medially located adductor muscles and sartorius assist in thigh flexion • Thigh extension is primarily effected by the hamstring muscles (biceps femoris, semitendinosus, and semimembranosus) • Forceful extension is aided by the gluteus maximus Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

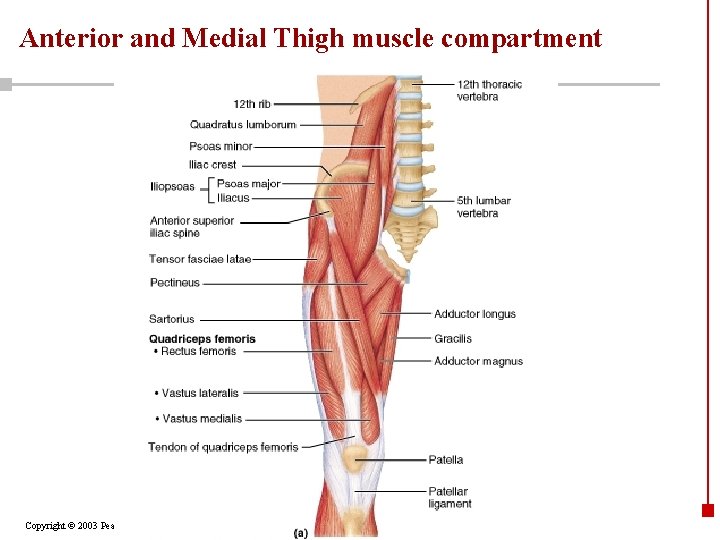

Anterior and Medial Thigh muscle compartment Copyright © 2003 Pearson Education, Inc. publishing as

Anterior and Medial Thigh muscle compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Movements of the Thigh at the Hip: Other Movements • Abduction and rotation are

Movements of the Thigh at the Hip: Other Movements • Abduction and rotation are effected by the gluteus medius and minimus, • Thigh adduction is the role of five adductor muscles (adductor magnus, longus, and brevis; the pectineus, and the gracilis) Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

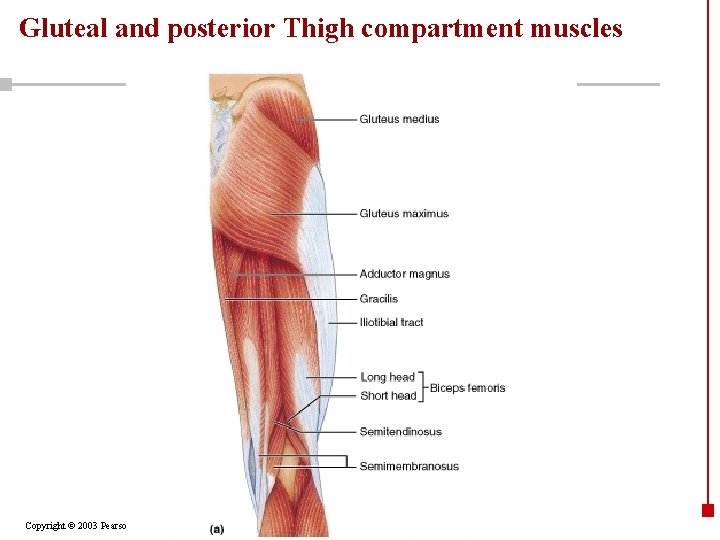

Gluteal and posterior Thigh compartment muscles Copyright © 2003 Pearson Education, Inc. publishing as

Gluteal and posterior Thigh compartment muscles Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

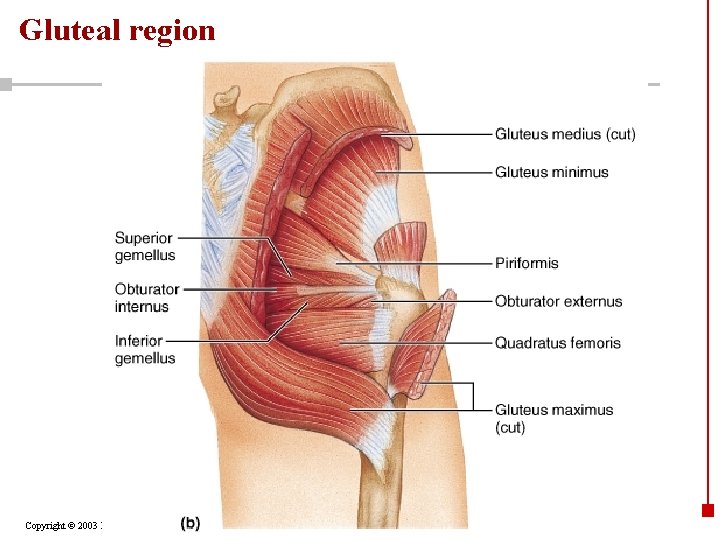

Gluteal region Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Gluteal region Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Movements of the Knee Joint • The sole extensor of the knee is the

Movements of the Knee Joint • The sole extensor of the knee is the quadriceps femoris • The hamstring muscles flex the knee, and are antagonists to the quadriceps femoris Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscle Compartments of the Thigh and Leg Copyright © 2003 Pearson Education, Inc. publishing

Muscle Compartments of the Thigh and Leg Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles of the Leg: Movements • Various leg muscles produce the following movements at

Muscles of the Leg: Movements • Various leg muscles produce the following movements at the: • Ankle – dorsiflexion and plantar flexion • Intertarsal joints – inversion and eversion of the foot • Toes – flexion and extension Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Muscles of the Anterior Compartment • These muscles are the primary toe extensors and

Muscles of the Anterior Compartment • These muscles are the primary toe extensors and ankle dorsiflexors • They include the tibialis anterior, extensor digitorum longus, extensor hallucis longus, and fibularis tertius Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

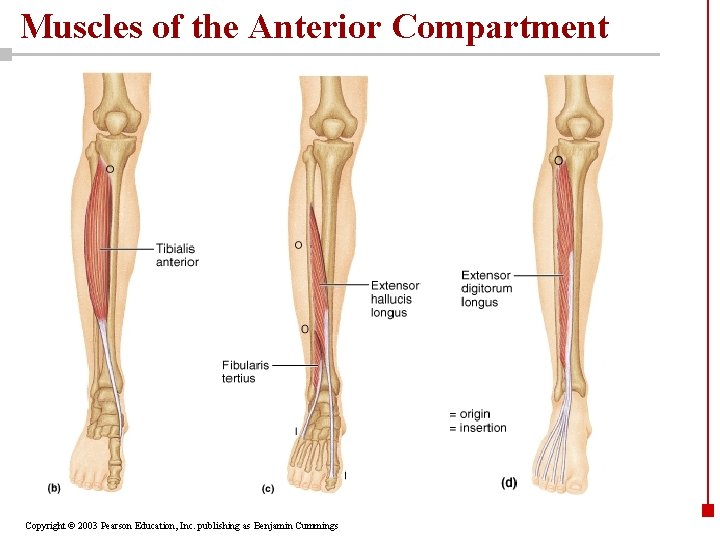

Muscles of the Anterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin

Muscles of the Anterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

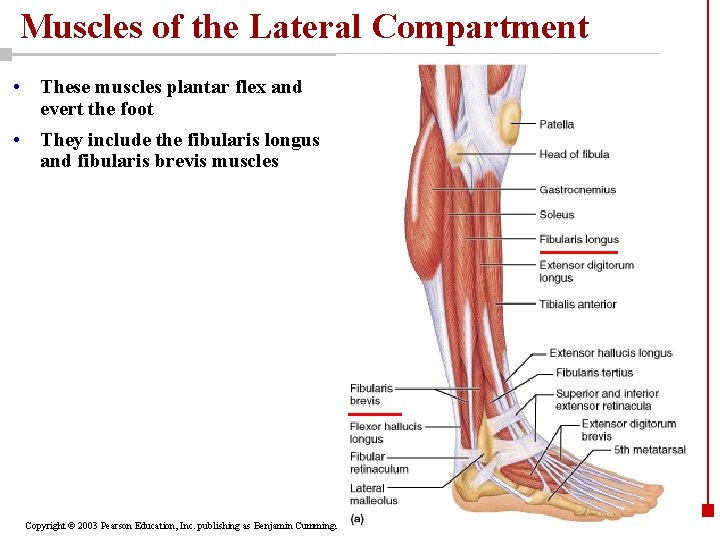

Muscles of the Lateral Compartment • These muscles plantar flex and evert the foot

Muscles of the Lateral Compartment • These muscles plantar flex and evert the foot • They include the fibularis longus and fibularis brevis muscles Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

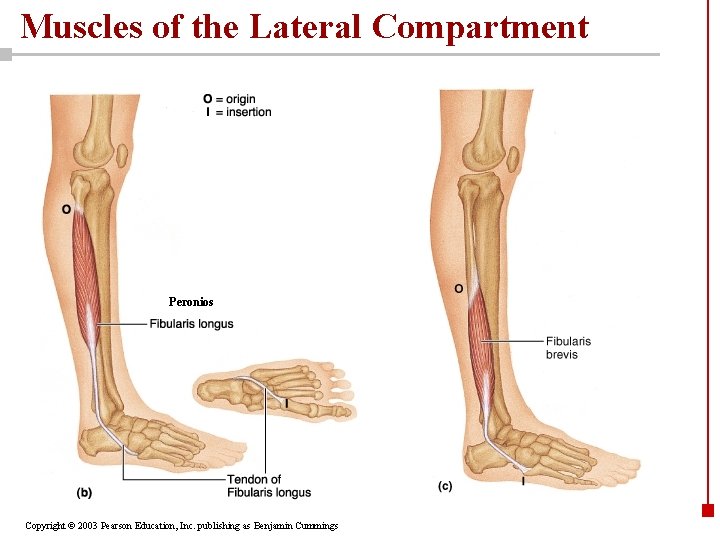

Muscles of the Lateral Compartment Peronios Copyright © 2003 Pearson Education, Inc. publishing as

Muscles of the Lateral Compartment Peronios Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

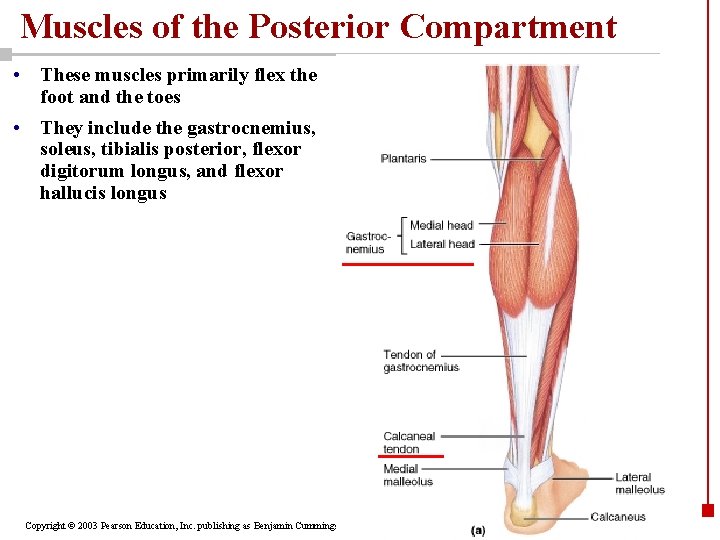

Muscles of the Posterior Compartment • These muscles primarily flex the foot and the

Muscles of the Posterior Compartment • These muscles primarily flex the foot and the toes • They include the gastrocnemius, soleus, tibialis posterior, flexor digitorum longus, and flexor hallucis longus Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

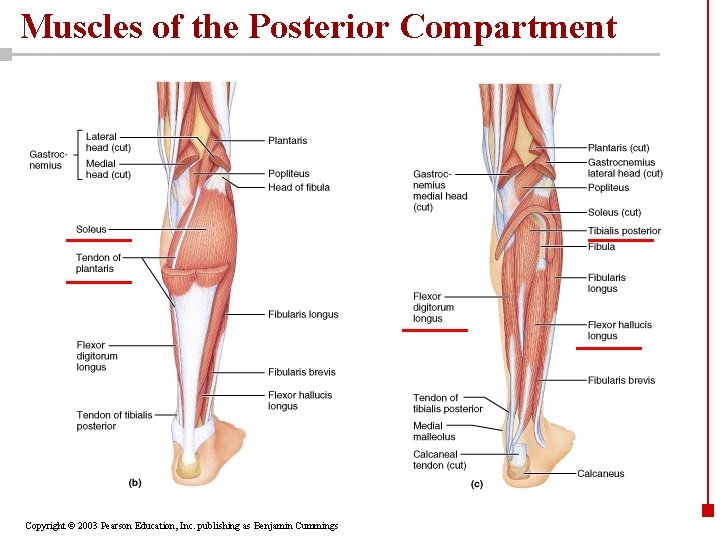

Muscles of the Posterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin

Muscles of the Posterior Compartment Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

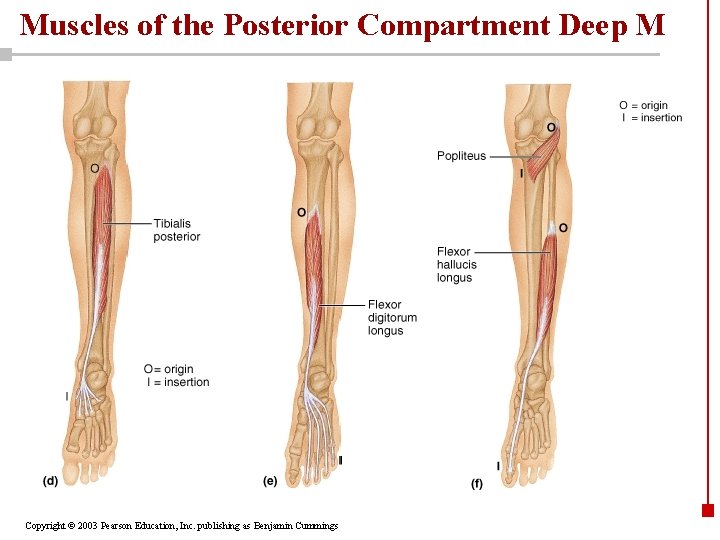

Muscles of the Posterior Compartment Deep M Copyright © 2003 Pearson Education, Inc. publishing

Muscles of the Posterior Compartment Deep M Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings
