MachineIndependent Virtual Memory Management for Paged Uniprocessor and

Machine-Independent Virtual Memory Management for Paged Uniprocessor and Multiprocessor Architectures By: Richard Rashid, Avadis Tevanian, Michael Young, David Golub, Robert Baronn, David Black, William Bolosky, and Jonathan Chew, October 1987 Presented By: Oindrila Mukherjee

Agenda n n Why Mach? Mach Background Mach Features Mach Design – Mach Abstractions – Basic VM Operations n Mach VM Implementation – Data Structures – Sharing Memory – Machine-Independent/Machine-Dependent Interface n n VM Performance Conclusions

Why Mach ? Mach allows – Portability – User processes to perform OS functionality like paging n n Existing versions offer little improvement for VMM other than simple paging support. Use a memory management system that is readily portable to multiprocessor as well as uniprocessor computing engines.

Mach Background n Mach currently runs on – the entire VAX family of uniprocessor and multiprocessor systems – IBM PC RT – SUN 3 – Encore Multimax – Sequential Balance 21000 n Machine dependent code of VMM reduced to single module and related header file.

Mach Features Compatible with UNIX 4. 3 BSD n The Mach System supports: n – Virtual address spaces – Copy-on-write virtual copy operations – Copy-on-write and read-write memory sharing between tasks – Memory-mapped files – User provided backing store objects and pagers

Mach Design Abstractions Five Basic Mach Abstractions – – – Task Thread Port Message Memory Object

Mach Design - Basic VM Operations n n Tasks have large, sparse virtual address spaces. A task can – – allocate/deallocate virtual memory. set protection status (current, maximum). specify inheritance (shared, copy, none). create and manage memory objects. Copy-on-write and read/write sharing of memory are permitted between tasks. Paging operations performed directly by user-state tasks.

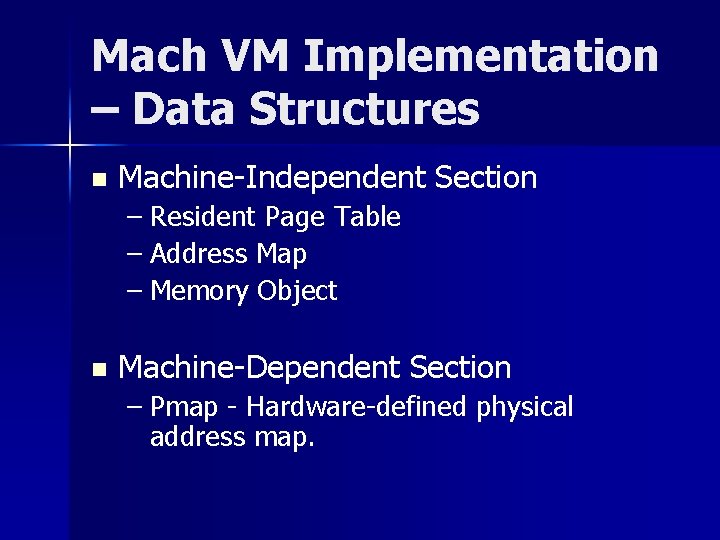

Mach VM Implementation – Data Structures n Machine-Independent Section – Resident Page Table – Address Map – Memory Object n Machine-Dependent Section – Pmap - Hardware-defined physical address map.

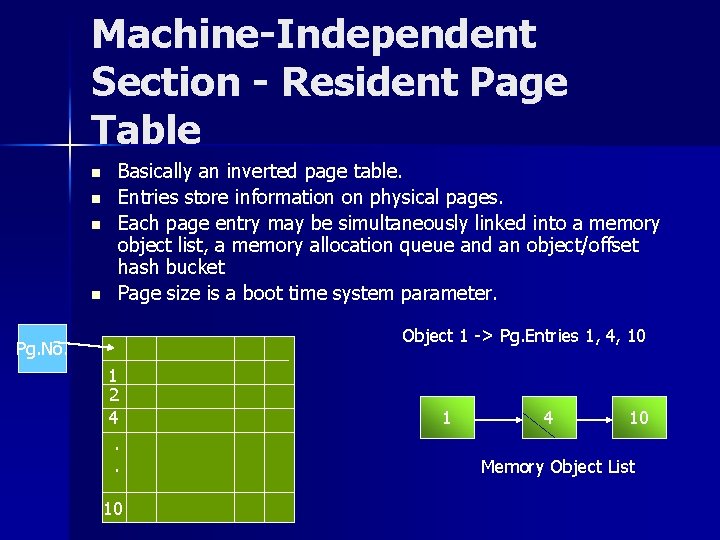

Machine-Independent Section - Resident Page Table n n Basically an inverted page table. Entries store information on physical pages. Each page entry may be simultaneously linked into a memory object list, a memory allocation queue and an object/offset hash bucket Page size is a boot time system parameter. Object 1 -> Pg. Entries 1, 4, 10 Pg. No. 1 2 4. . 10 1 4 10 Memory Object List

Machine-Independent Section - Address Map n n n Entries map a contiguous range of virtual addresses onto a contiguous area of a memory object Maintained as a sorted doubly linked list Carries inheritance and protection attributes information. Efficiently implements page fault lookups, copy/protection on address ranges and allocation/deallocation of address ranges. Small in size

Machine-Independent Section - Memory Objects n n n Data repository, indexed by byte, upon which various operations can be performed. Reference counter per object. Pager handles page faults and page-out requests outside kernel. – Paging_object port allows access to the pager. n Paging_name for every object maintained by n Paging_object_request port used by pager the kernel to send messages to the kernel.

Handling Page Faults using Pagers

Handling Page Faults Address Map Memory Obj Mgr B Obj 1 3. Look for Memory Obj. mapping 2. Pg fault Resident Page Table 1. Search for Page Kernel Obj 3 Obj 2 Port Memory Obj Mgr A 4. Send msg to fetch page and Memory obj mgr fetches page from disk 5. Update resident page table 6. Update TLB

Sharing Memory n n Two address maps pointing to the same memory object. Copy-on-write memory management – kernel needs information about modified pages. Mach uses shadow objects. Sharing Maps Task Address A Task Address B Sharing Map Memory Objects

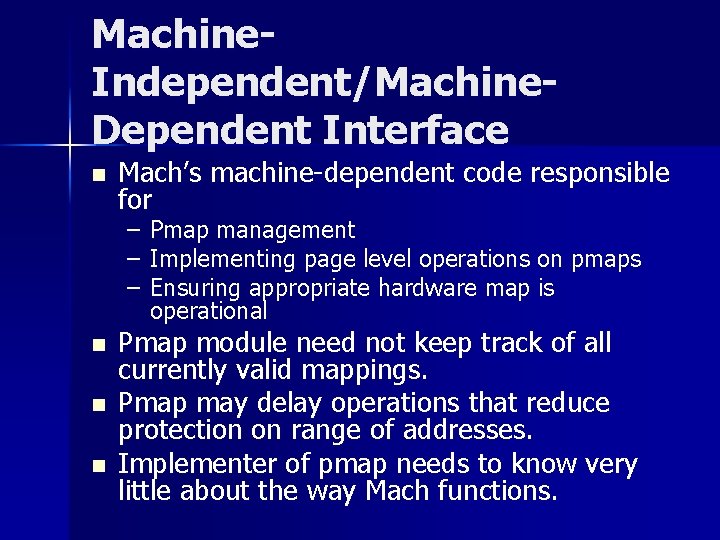

Machine. Independent/Machine. Dependent Interface n Mach’s machine-dependent code responsible for – – – n n n Pmap management Implementing page level operations on pmaps Ensuring appropriate hardware map is operational Pmap module need not keep track of all currently valid mappings. Pmap may delay operations that reduce protection on range of addresses. Implementer of pmap needs to know very little about the way Mach functions.

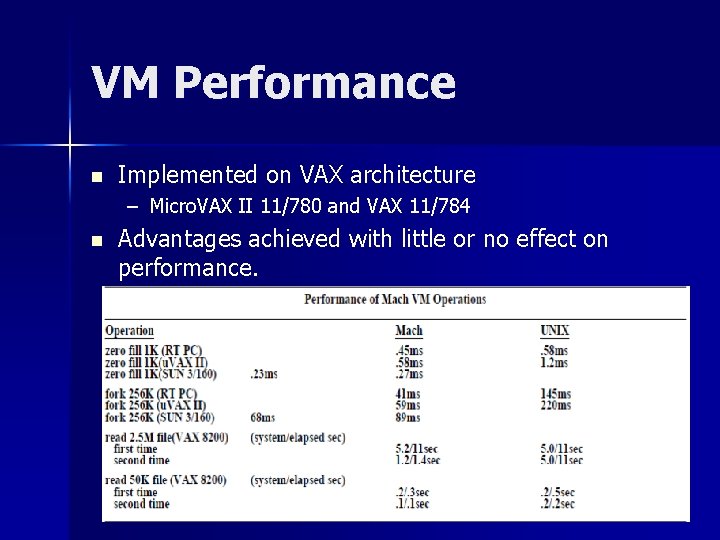

VM Performance n Implemented on VAX architecture – Micro. VAX II 11/780 and VAX 11/784 n Advantages achieved with little or no effect on performance.

Conclusion n Mach provides sophisticated VM features without being tied to a specific hardware base. n VM mechanisms can be used either within a multiprocessor or extended into a distributed environment. n Separation of machine dependent and independent code improves performance.
