Lowpower fast and simple WiFi connectivity Windows 7
- Slides: 38
Low-power, fast and simple Wi-Fi connectivity
Windows 7 Windows 8 Wi-Fi Service Driver Wi-Fi Device
Windows 7 Windows 8 Wi-Fi Service Driver Wi-Fi Device
Windows 7 Scanning Connecting Windows 8 IPAddress Network. ID 0 2 4 6 8 10 12

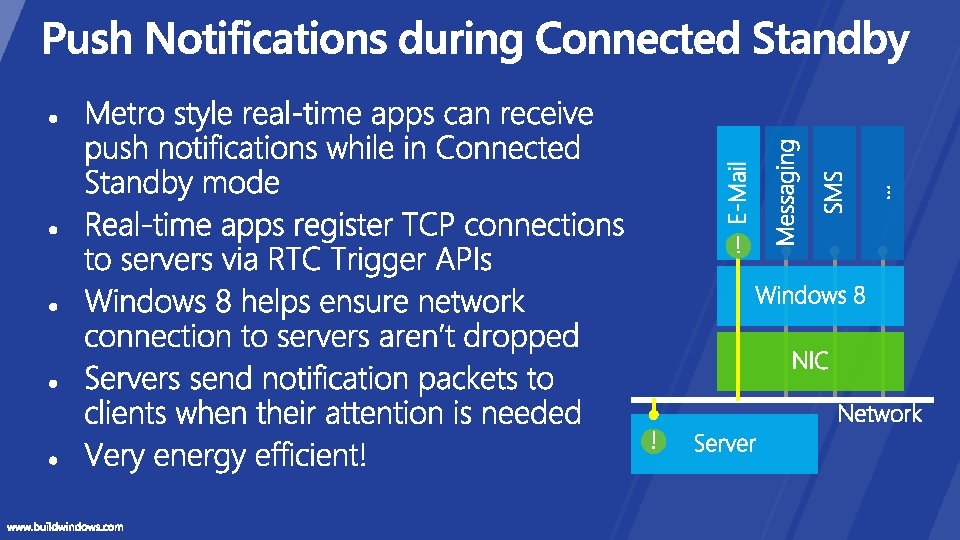

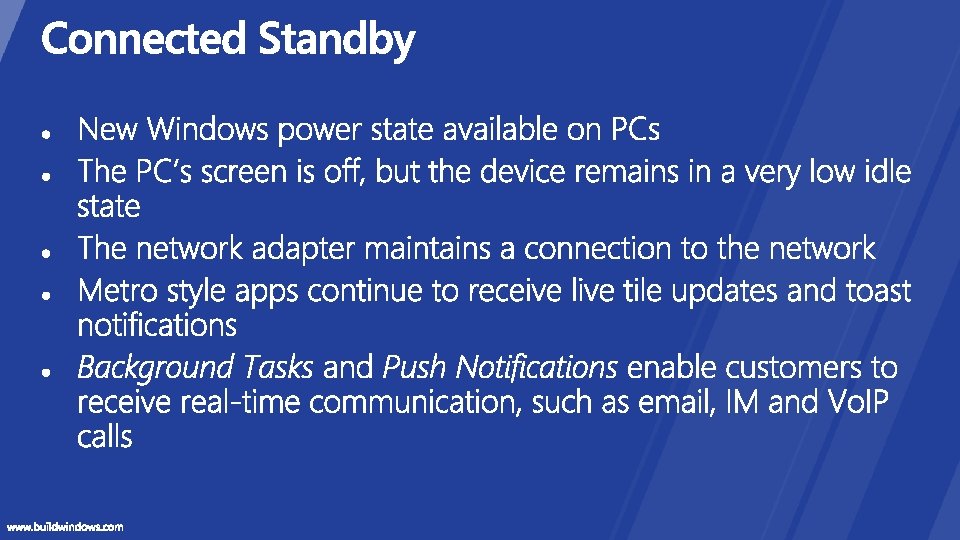

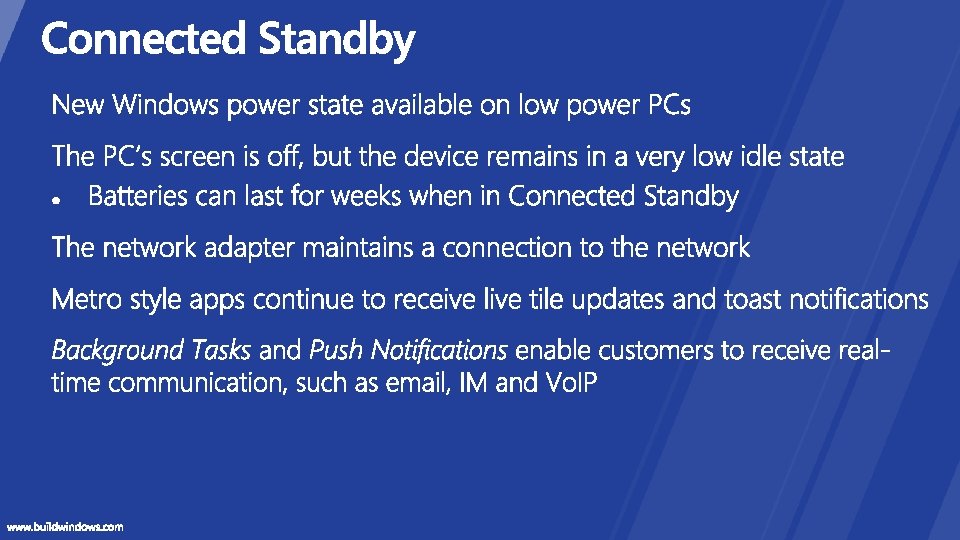

Connected Standby

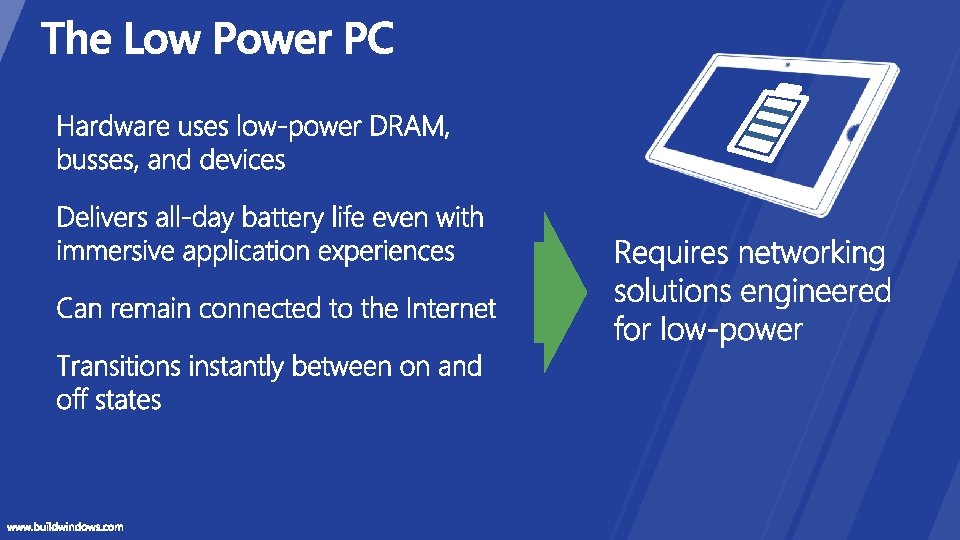

Windows 8 PC
Wi-Fi Direct

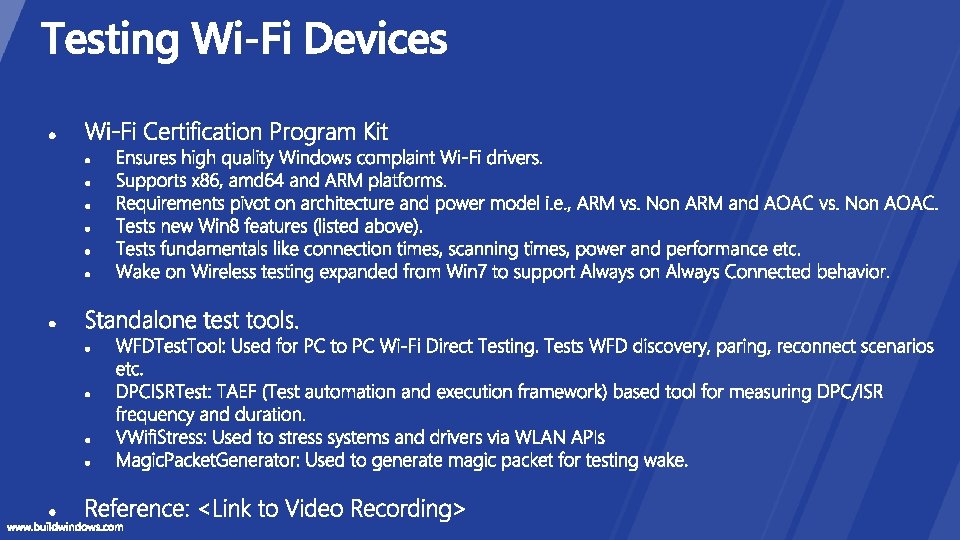

Windows Certification for Wi-Fi devices
Scenario Feature Connected Standby Wake, Network List Offload Instant Connect Network List Offloading Power Interrupt Reduction Power Packet Coalescing Power USB Selective Suspend Power Wi-Fi Auto Power Save Mode Flight Mode Radio Management Play To, Proximity Wi-Fi Direct Basics 802. 11 n, 802. 11 w (PMF – Enterprise security)

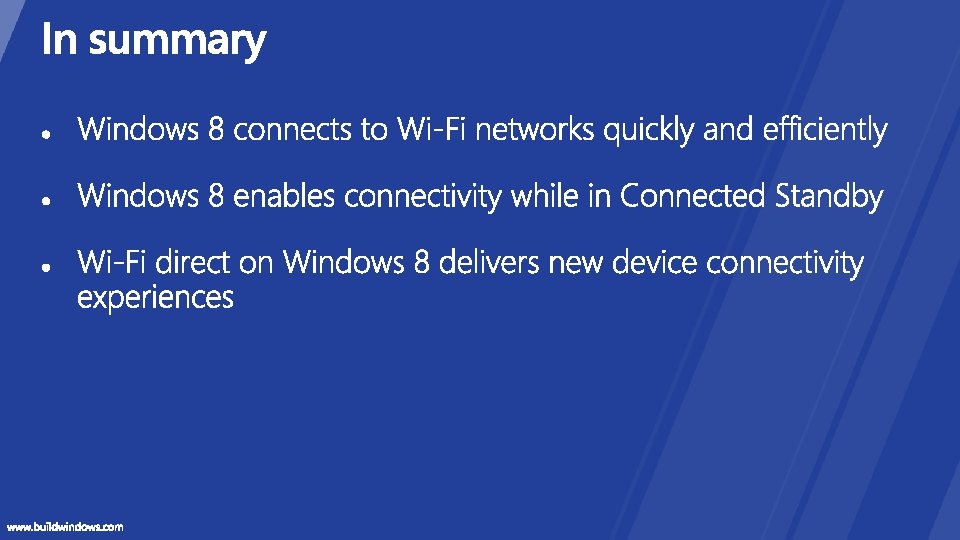

Recap
Wi-Fi Direct (WFD) Reference Windows Hardware Dev Center Windows Dev Center windowswireless@microsoft. com
Features required for AOAC Power Management Feature Description Wi-Fi Direct A peer-to-peer connectivity solution that builds on today’s AP/STA Wi-Fi CERTIFIED™ devices and Internet access Wi-Fi technology. Helps improve device connectivity experience. Connection Manager A light weight cross media connection engine for effortless connection management. Radio Management Software radio ON/OFF controls for different media types. WPS 2. 0 Windows support WPS 2. 0 which enables faster discovery of devices and better interoperability. IEEE 802. 11 w IEEE standard for protected management frames. No Pause on Suspend A new feature to enhance the reliability and lower the 9 F failures. Wi-Fi Auto PSM Windows will support the Wi-Fi Power Save Mode. USB Selective Suspend Windows will natively support USB selective suspend for USB interfaces. D 0 - Packet Coalescing A coalescing scheme for cutting down the impact of noisy traffic on system power consumption. Network List Offload A feature to offload certain network hints to NIC to optimize power efficiency and connectivity. Wo. WLAN/Wake Packet detection (WPD) A feature to remotely wake the sleeping machine as and when needed. It will help system to sleep and at the same time be reachable. WPD will track the reason of wake.
Content Win 7 Logo Kit (WLK 1. 5 and WLK 1. 6) Win 8 Logo Kit (WLK 2. 0) PC Architecture/So. C Architecture Key Takeaways: # of Requirements 23 (18 Required, 5 optional) 23/23 (19/21 Required, 4/2 optional) • IEEE 802. 11 n Optional Required NDIS 6. 30/ No Pause on Suspend NA Required IEEE 802. 11 w Protected Management Frames NA Required Hygiene - DPC/Interrupt Reduction NA 1 interrupt/packet + 4 times per sec DPC duration < 2 ms and Combined DPC duration < 4 s / 10 sec period Wi-Fi Direct NA Required Throughput 54 Mbps for 2 hours (No tests in kit) 20 Mbps for 10 minutes • Scanning performance Optimized scan (NLO) - NA Preferred channel scan – 4 sec All channel scan – 8 sec + Optimized scan (NLO) – < 1 sec Preferred channel scan – 3. 5 sec All channel scan – 4 sec • Network List offload NA Required D 0 Packet Coalescing NA Optional/Required Wo. Wi-Fi Optional - Wo. Wi-Fi Capability - Magic Packet + 8 patterns - GTK refresh in D 3 Optional/Required - Wo. Wi-Fi Capability - Magic Packet + 16 patterns - GTK refresh in D 3 - Wake on Disconnect - Wake on NLO match - Wake on Roaming - Wake Packet Indication - ARP/NS Responders P 11/24/2 MICROSOF • • Split between Traditional PC and So. C architectures. Retired some requirements/tests and added new ones. New features – Wi-Fi Direct, 802. 11 w, AOAC. Scanning performance improved. Wake - expanded
• * P 11/24/2 MICROSOF Feature PC Architecture So. C Architecture Radio Management Required Wi-Fi Direct Required 802. 11 w Required NDIS 6. 30 Required Wi-Fi Auto Power Save Mode Required USB Selective Suspend Required DPC/Interrupt Reduction Required* Network List Offload Required* D 0 – Packet Coalescing If Implemented Required Wake on Wi-Fi If Implemented Required
How does AOAC differ from Today’s Power Model
http: //forums. dev. windows. com http: //bldw. in/Session. Feedback
