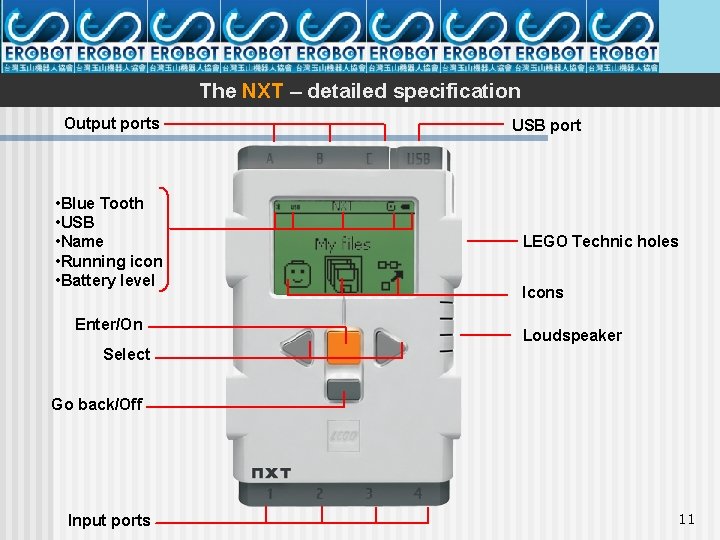

The NXT – detailed specification Output ports • Blue Tooth • USB • Name • Running icon • Battery level Enter/On USB port LEGO Technic holes Icons Loudspeaker Select Go back/Off Input ports 11

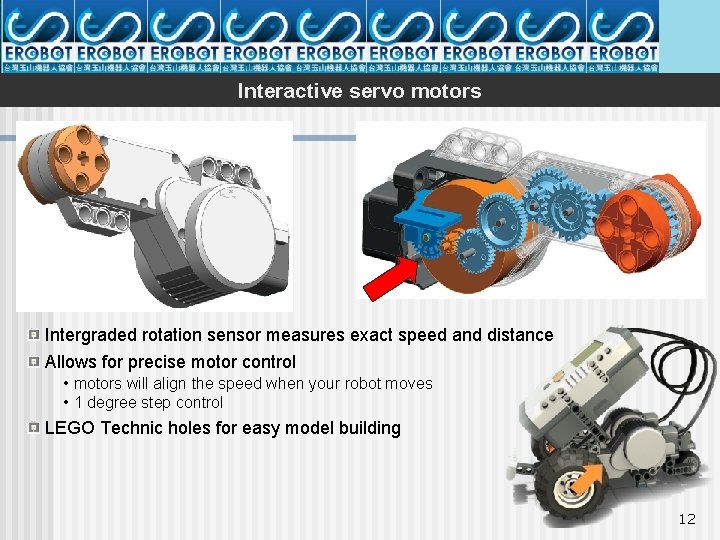

Interactive servo motors Intergraded rotation sensor measures exact speed and distance Allows for precise motor control • motors will align the speed when your robot moves • 1 degree step control LEGO Technic holes for easy model building 12

NXT sensors – specification Ultrasonic Sensor Light Sensor Reads light intensity from environment Reads reflection from IR emitter Sound Sensor Details Measures DB and DBA Sound pattern recognition Tone recognition Senses distance Recognizes objects Movement recognition Touch Sensor Like the existing but with cross hole 13

14

The NXT software Tool bar Portal Work area The controller The programming palette • The common palette • The complete palette • The customized palette The configuration panel Help Navigating the work area 16

The NXT software Download or run a piece Of NXT code Download and Run button NXT communication and memory settings Stop a program Download without ’Run’ 17

NXT software Name of the NXT Battery level Type of connection Free storage Memory usage 18

The NXT software Loop block Switch block Data hub Data wire Output/input plugs 19

參考網站 n 機器人學苑討論區 n n Philo's Home Page n n n www. isogawastudio. co. jp/legostudio/ Nathan Sawaya n n http: //web. mac. com/joenagata/i. Web/Mindstorms. NXT/Welcome. html http: //homepage 3. nifty. com/mindstorms/ 五十川芳仁的LEGO studio n n http: //www. philohome. com/ Joe Nagata MINDSTORMS GALLERY NXT n n http: //forum. erobot. com. tw/ http: //www. brickartist. com/gallery. html 探奇自然科學教室 n http: //tw. myblog. yahoo. com/touch_classroom/ 22

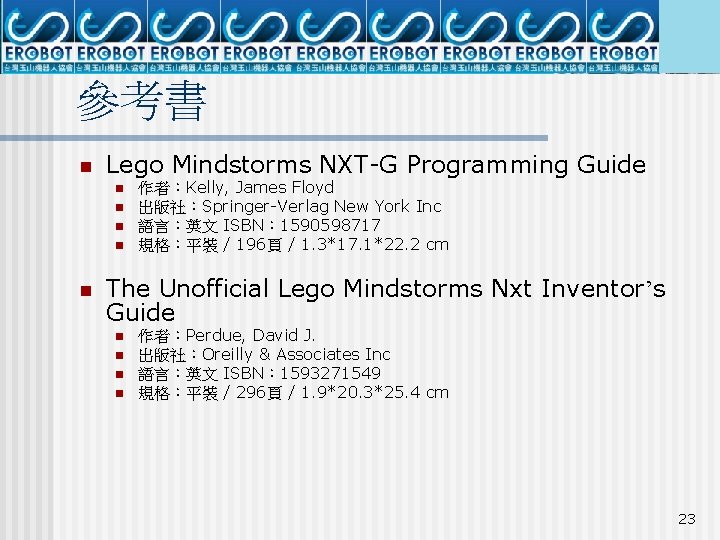

參考書 n Lego Mindstorms NXT-G Programming Guide n n n 作者：Kelly, James Floyd 出版社：Springer-Verlag New York Inc 語言：英文 ISBN： 1590598717 規格：平裝 / 196頁 / 1. 3*17. 1*22. 2 cm The Unofficial Lego Mindstorms Nxt Inventor’s Guide n n 作者：Perdue, David J. 出版社：Oreilly & Associates Inc 語言：英文 ISBN： 1593271549 規格：平裝 / 296頁 / 1. 9*20. 3*25. 4 cm 23
