For most efficient engineering nxt STUDIO nxt LIB

For most efficient engineering nxt. STUDIO nxt. LIB nxt. RT 61499 F nxt. HMI

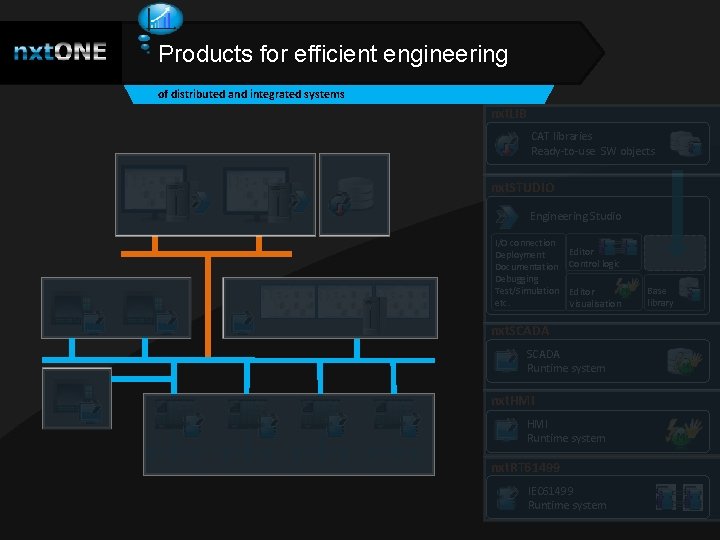

Products for efficient engineering of distributed and integrated systems nxt. LIB CAT libraries Ready-to-use SW objects nxt. STUDIO Engineering Studio I/O connection Editor Deployment Documentation Control logic Debugging Test/Simulation Editor etc. Visualisation nxt. SCADA Runtime system nxt. HMI Runtime system nxt. RT 61499 IEC 61499 Runtime system Base library

Engineering Studio / nxt. STUDIO specifiactions Engineering of … with a single tool … Control logic in a distributed system IEC X CAT NOL X X … HMI visualisation X X … SCADA visualisation X X … Documentation X X X … Test & Simulation X X X … own software objects (CATs) X … own libraries X IEC = Studio for just control logic engineering CAT = Studio for engineering with ready-to-use software-objects (libraries) NOL = Studio same as above but with possiblity to create own software objects (full version) The MOST EFFICIENT ENGINEERING TOOL for the automation of distributed and integrated systems

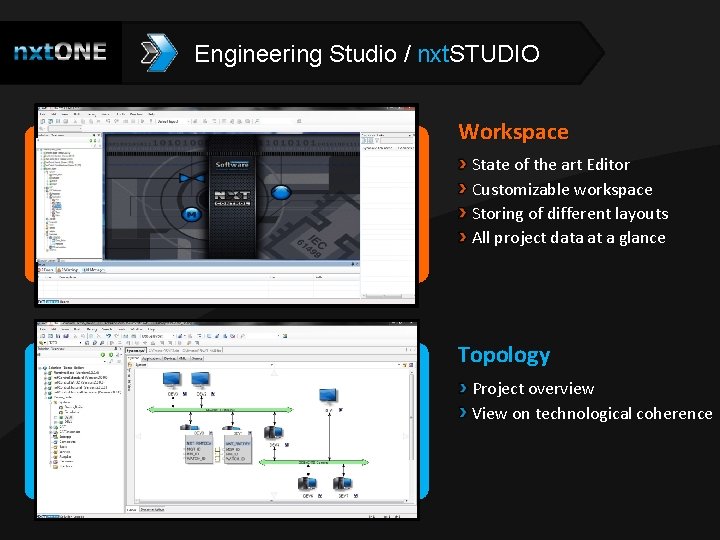

Engineering Studio / nxt. STUDIO Workspace State of the art Editor Customizable workspace Storing of different layouts All project data at a glance Topology Project overview View on technological coherence

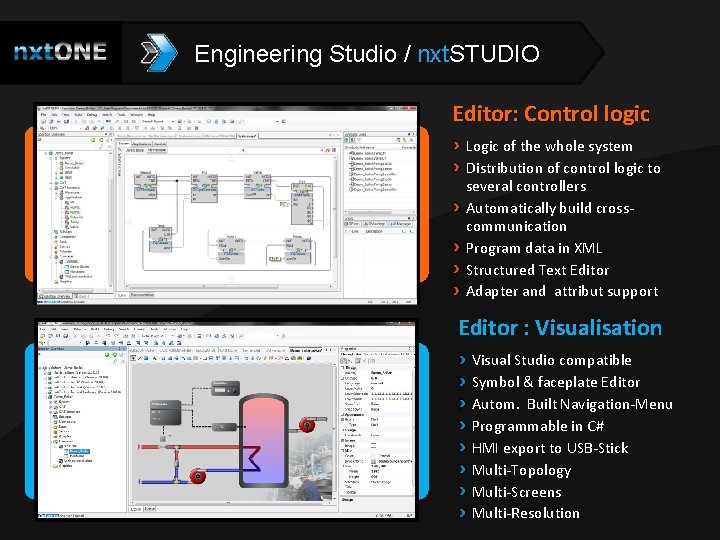

Engineering Studio / nxt. STUDIO Editor: Control logic Logic of the whole system Distribution of control logic to several controllers Automatically build crosscommunication Program data in XML Structured Text Editor Adapter and attribut support Editor : Visualisation Visual Studio compatible Symbol & faceplate Editor Autom. Built Navigation-Menu Programmable in C# HMI export to USB-Stick Multi-Topology Multi-Screens Multi-Resolution

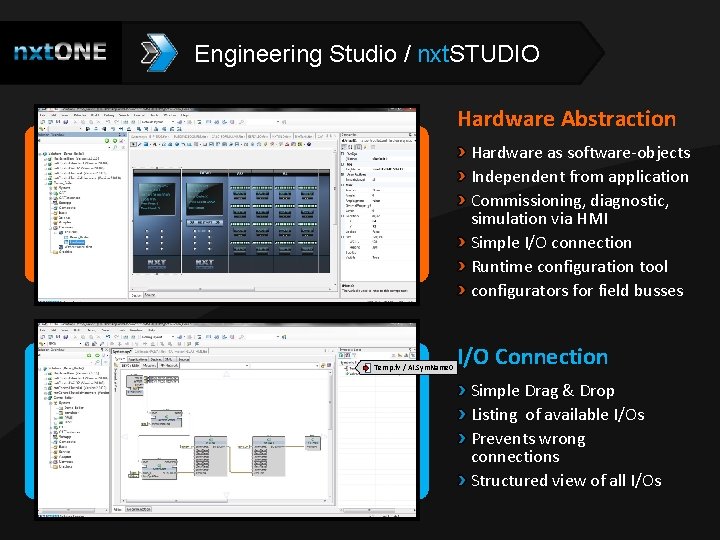

Engineering Studio / nxt. STUDIO Hardware Abstraction Hardware as software-objects Independent from application Commissioning, diagnostic, simulation via HMI Simple I/O connection Runtime configuration tool configurators for field busses Temp. fv / AI. Sym. Name 0 I/O Connection Simple Drag & Drop Listing of available I/Os Prevents wrong connections Structured view of all I/Os

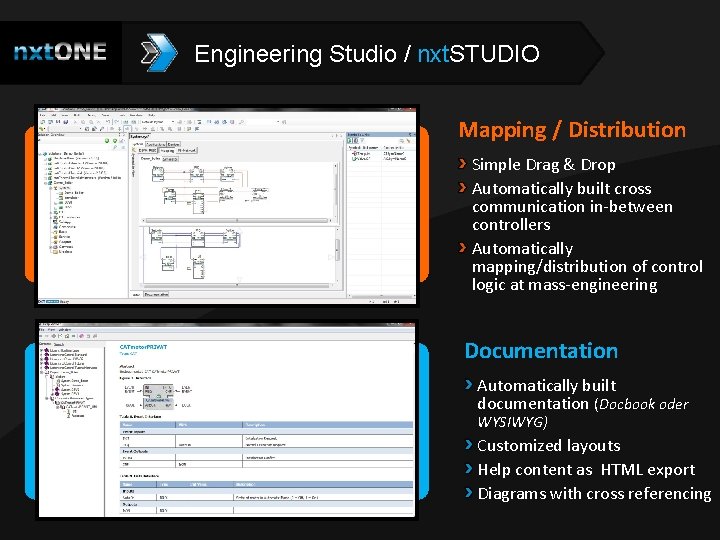

Engineering Studio / nxt. STUDIO Mapping / Distribution Simple Drag & Drop Automatically built cross communication in-between controllers Automatically mapping/distribution of control logic at mass-engineering Documentation Automatically built documentation (Docbook oder WYSIWYG) Customized layouts Help content as HTML export Diagrams with cross referencing

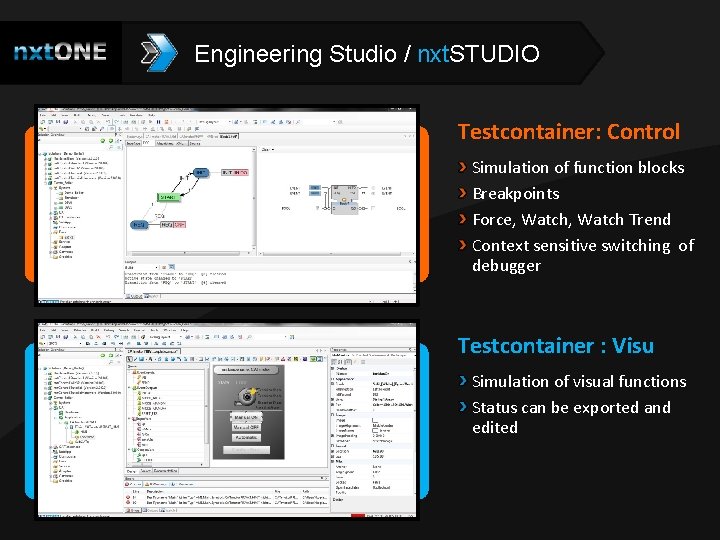

Engineering Studio / nxt. STUDIO Testcontainer: Control Simulation of function blocks Breakpoints Force, Watch Trend Context sensitive switching of debugger Testcontainer : Visu Simulation of visual functions Status can be exported and edited

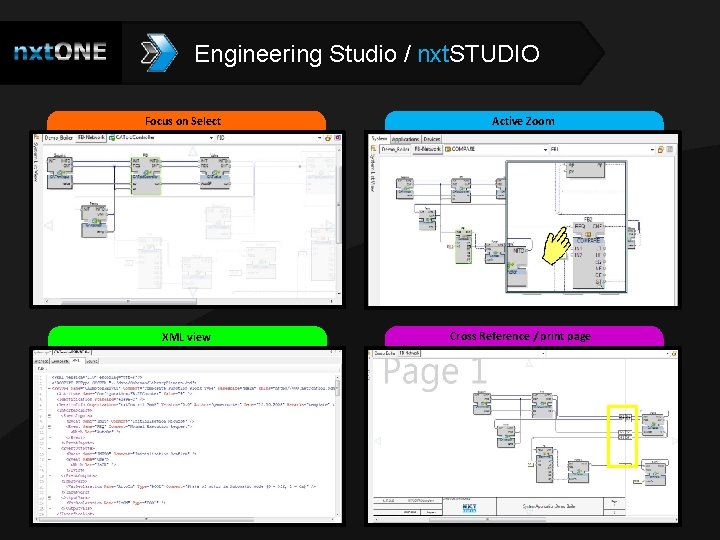

Engineering Studio / nxt. STUDIO Focus on Select Active Zoom XML view Cross Reference / print page

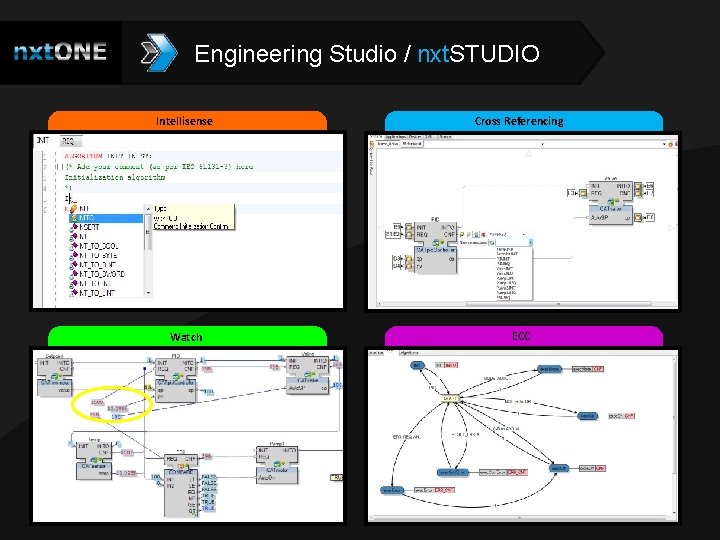

Engineering Studio / nxt. STUDIO Intellisense Cross Referencing Watch ECC

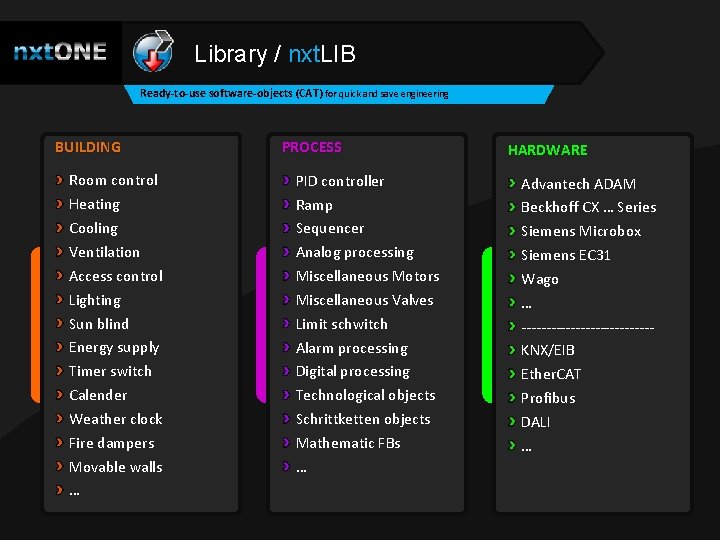

Library / nxt. LIB Ready-to-use software-objects (CAT) for quick and save engineering BUILDING Room control Heating Cooling Ventilation Access control Lighting Sun blind Energy supply Timer switch Calender Weather clock Fire dampers Movable walls … PROCESS PID controller Ramp Sequencer Analog processing Miscellaneous Motors Miscellaneous Valves Limit schwitch Alarm processing Digital processing Technological objects Schrittketten objects Mathematic FBs … HARDWARE Advantech ADAM Beckhoff CX … Series Siemens Microbox Siemens EC 31 Wago … -------------KNX/EIB Ether. CAT Profibus DALI …

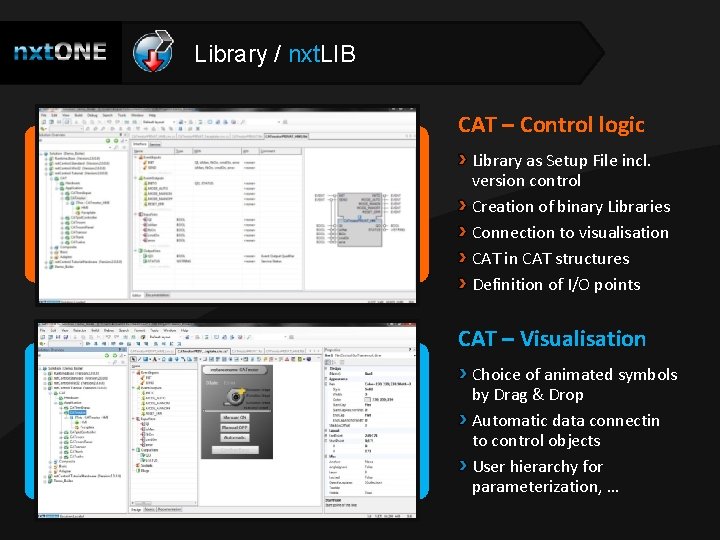

Library / nxt. LIB CAT – Control logic Library as Setup File incl. version control Creation of binary Libraries Connection to visualisation CAT in CAT structures Definition of I/O points CAT – Visualisation Choice of animated symbols by Drag & Drop Automatic data connectin to control objects User hierarchy for parameterization, …

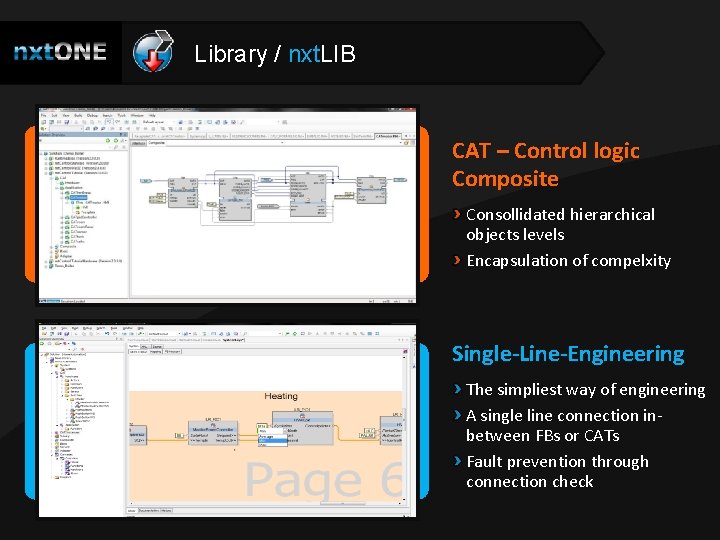

Library / nxt. LIB CAT – Control logic Composite Consollidated hierarchical objects levels Encapsulation of compelxity Single-Line-Engineering The simpliest way of engineering A single line connection inbetween FBs or CATs Fault prevention through connection check

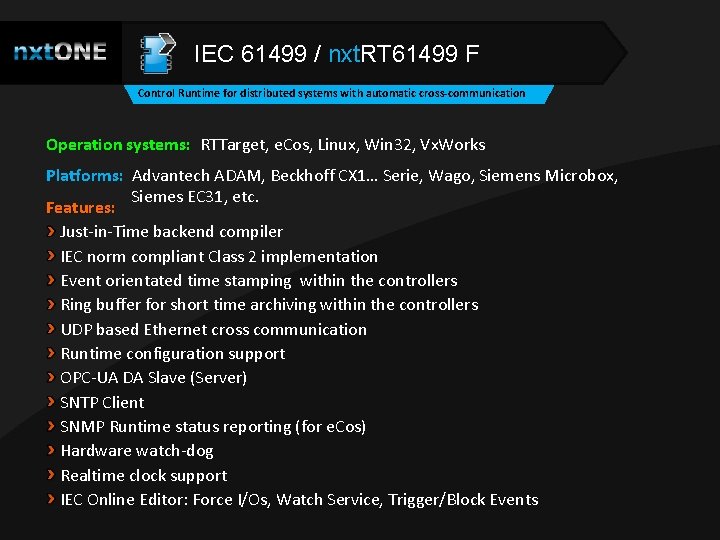

IEC 61499 / nxt. RT 61499 F Control Runtime for distributed systems with automatic cross-communication Operation systems: RTTarget, e. Cos, Linux, Win 32, Vx. Works Platforms: Advantech ADAM, Beckhoff CX 1… Serie, Wago, Siemens Microbox, Siemes EC 31, etc. Features: Just-in-Time backend compiler IEC norm compliant Class 2 implementation Event orientated time stamping within the controllers Ring buffer for short time archiving within the controllers UDP based Ethernet cross communication Runtime configuration support OPC-UA DA Slave (Server) SNTP Client SNMP Runtime status reporting (for e. Cos) Hardware watch-dog Realtime clock support IEC Online Editor: Force I/Os, Watch Service, Trigger/Block Events

nxt. HMI / SCADA Runtime for Multi-Client Visualisation without need of additional server Operation systems: Windows. NET Features: . NET 3. 5 Win 32 runtime HMI clients connect automatically to all necessary controllers Several HMI clients can be simultanously operated No additional HMI / SCADA servers needed Dynamically adaptable resolution (Zoom) Automatically created alarm lists Simple langauge switching Integriertated Log Viewer Archive Link Redundant operation possible Support of Postgre. SQL, Winstör, usw. databases Konfiguration management of controllers Data recording (Werte, Alarme, Journale)

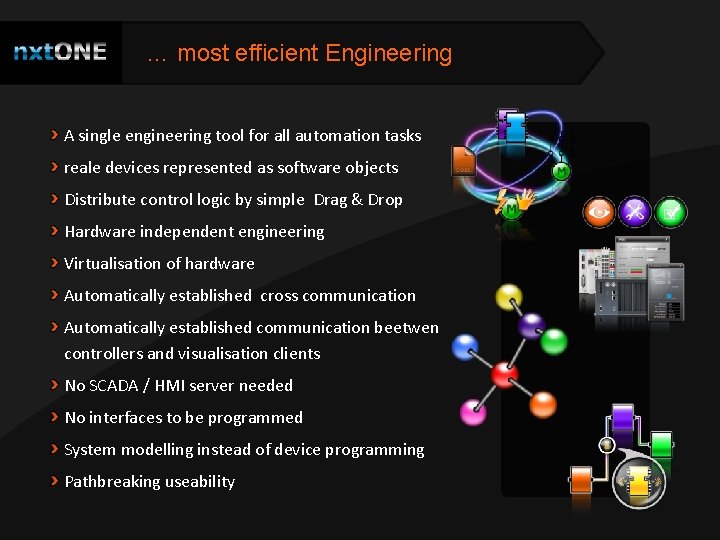

… most efficient Engineering A single engineering tool for all automation tasks reale devices represented as software objects Distribute control logic by simple Drag & Drop Hardware independent engineering Virtualisation of hardware Automatically established cross communication Automatically established communication beetwen controllers and visualisation clients No SCADA / HMI server needed No interfaces to be programmed System modelling instead of device programming Pathbreaking useability

EFFICIENT ENGINEERING of distributed systems Save TIME and MONEY with clever solutions
