Lego Mindstorms and NXTG Magnus Eriksson Mid Sweden
- Slides: 55
Lego Mindstorms and NXT-G Magnus Eriksson, Mid Sweden University 2012 Based on a presentations by National Instruments and Pavel Petrovič
Först några påminnelser… • Bråttom att registrera sig! (Portal. miun. se) • Kursmaterial finns i Lärplattformen 2 (Moodle), som du hittar via portal. miun. se • Kursens deadlines framgår av schemat
Lego Mindstorms can be used for rapid prototyping of intelligent and sensorbased systems Rubik’s cube solver 3
Pen-Drawer Robot
The NXT 2. 0 unit (Motor ports) (Sensor ports)
Motors and Sensors
NXT Motors • Built-in rotation sensors (“servo”) 7
The NXT 2. 0 Unit – an embedded system • 64 K RAM, 256 K Flash • 32 -bit ARM 7 microcontroller • 100 x 64 pixel LCD graphical display • Sound channel with 8 -bit resolution • Bluetooth wireless communications • Stores multiple programs – Programs selectable using buttons
NXT-G graphical programming language Based on the Lab. VIEW programming language G Program by drawing a flow chart LEGO Mindstorms for NXT (NXT-G)
NXT-G PC program interface Tutorials Toolbar Workspace Sequence Beam Palettes Controller Configuration Panel Help & Navigation Web Portal
NXT-G tools • Pointer tool: move blocks, select blocks • Pan tool: move within workspace • Comment tool: add notes to your code
Intro to NXT-G: Palettes Common: Complete: Most commonly used blocks All blocks Custom: Downloa Own blocks
Writing a Basic Program • Drag and drop block(s) on sequence beam • Manipulate Configuration Panel & Download

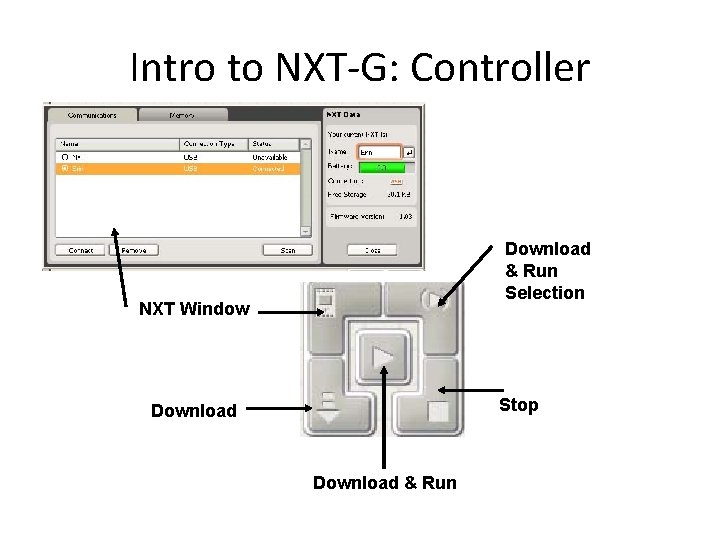

Intro to NXT-G: Controller Download & Run Selection NXT Window Stop Download & Run
NXT Rotation Sensor • Built in to motors • Measure degrees or rotations • Reads + and • Degrees: accuracy +/- 1 • 1 rotation = 360 degrees
Viewing Sensors • • • Connect sensor Turn on NXT Choose “View” Select sensor type Select port
NXT Sound Sensor • Sound sensor can measure in d. B and d. BA – d. B: in detecting standard [unadjusted] decibels, all sounds are measured with equal sensitivity. Thus, these sounds may include some that are too high or too low for the human ear to hear. – d. BA: in detecting adjusted decibels, the sensitivity of the sensor is adapted to the sensitivity of the human ear. In other words, these are the sounds that your ears are able to hear. • Sound Sensor readings on the NXT are displayed in percent [%]. The lower the percent the quieter the sound. http: //mindstorms. lego. com/Overview/Sound_Sensor. aspx
Challenge: Stop with sound • Program your NXT car to drive until you yell “Stop”
Example Program: Stop with Sound
NXT Ultrasonic/Distance Sensor • Measures distance/proximity • Range: 0 -255 cm • Precision: +/- 3 cm • Can report in centimeters or inches http: //mindstorms. lego. com/Overview/Ultrasonic_Sensor. aspx
Challenge: Parking NXT • Program your NXT car to drive forward until you “find a parking spot” (hit a touch sensor) • The car should then turn into the spot, and stop when it gets close enough to wall.
Example Program: Parking NXT
A note about NXT memory • Memory space is limited! • To clear space, use NXT window • Show and delete system files for more space
NXT Structure: Loops
Challenge: Stay on Table • Program your NXT to stay on the table
Example Program: Stay on Table
NXT Structure: Switch
Challenge: Remote Control • Program car to drive while the touch sensor is pushed and stop while the touch sensor is released
Example Program: Remote Control
NXT Sound • NXT can play sound files or notes • Sounds take up more memory space
• • NXT Display images, text, or drawings Choose location on display screen 100 x 64 pixels (up to 7 lines of text) Graphics take up memory space
Challenge: Say Hello • Have the NXT say hello using sound and the display screen • Don’t forget – the program ends after the last block. You may need a wait for to see the display. • Caution: one of the options in the configuration panel is Clear – use it to clear screen. Otherwise, uncheck the box!
Example Program: Say Hello
My Blocks • Create custom blocks • Saved in custom palette • Download blocks from the web
Creating My Blocks • Write the code for the My Block
Creating My Blocks • Select all the blocks to be used for My Block
Creating My Blocks • Choose “Create My Block” on toolbar • Or, go to the Edit menu and select “Make a new My Block”
Creating My Blocks • Name My Block • Add a description
Creating My Blocks • Create a custom icon
Creating My Blocks • My Block appears in Custom Palette
Signal flows and variables
An advanced program 42
Multi-treading 43
LEGO Mindstorms 3. 0 EV 3
Getting started with mindstorms EV 3 https: //www. youtube. com/watch? v=vv 5 X 3 zzk. Bk 4
NXT Blue. Tooth Protocol • • • Master-slave: only master initiates communication Master can connect up to 3 slaves Optional acknowledgement, request reply Mailboxes #1 -10 Sending: – Master: NXTComm. BTWrite(slave, mailbox) – Slave: NXTMessage. Write(mailbox) • Receiving: both sides NXTMessage. Read() • Unreliable & Quite complex, but does not block Silvian Toledo: http: //www. tau. ac. il/~stoledo/lego/btperformance. html 46
LEGO Digital Designer ldd. lego. com CAD-verktyg – Eventuellt för Civing Teknisk design 47
Pneumatics För Civing Teknisk design 48
NXT Non-standard sensors: Hi. Technic. com För Elektroniksystemstudenter • Compass • Gyroscope • Accellerometer/tilt sensor, • Color sensor • IRSeeker • Prototype board with A/D converter 49 for the I 2 C bus
Issues of the standard firmware Only one data type Unreliable bluetooth communication Limited multi-tasking Complex motor control Simplistic memory management Not suitable for large programs Not suitable for development of own tools or blocks För datateknikstudenter 50
Other programming languages and environments – Java le. JOS – Microsoft Robotics Studio – Robot. C – NXC - Not e. Xactly C – NXT Logo – Lego NXT Open source firmware and software development kit För datateknikstudenter
le. JOS • A Java Virtual Machine for NXT • Freely available – http: //lejos. sourceforge. net/ • Replaces the NXT-G firmware • Le. JOS plug-in is available for the Eclipse free development environment • Faster than NXT-G För datateknikstudenter
Example le. JOS Program sonar = new Ultrasonic. Sensor(Sensor. Port. S 4); Motor. A. forward(); Motor. B. forward(); while (true) { if (sonar. get. Distance() < 25) { Motor. A. forward(); Motor. B. backward(); } else { Motor. A. forward(); Motor. B. forward(); } } För datateknikstudenter
NXT Logo example: line-following to "follow [] [ setsensor 3 5 128 motor 0 "onrev 40 while ["true] [ while [ge? sensor 3 59] [] motor 0 "float 0 motor 2 "onrev 40 wait 50 while [lt? sensor 3 60] [] motor 2 "float 0 motor 0 "onrev 40 ] ] För datateknikstudenter 54
Gruppindelning
