Intelligent Platform Management Interface (IPMI) SLAC National Accelerator Laboratory Controls Department BY: DEREK WUNG August 13, 2009
So what exactly is IPMI? IPMI is set of specifications Monitors environmental variables (e. g. temperature, fan speed, voltage)
So tell me more about this IPMI V 1. 0: 1998 V 1. 5: 2001 V 2. 0: 2004
Where is the center of this system?

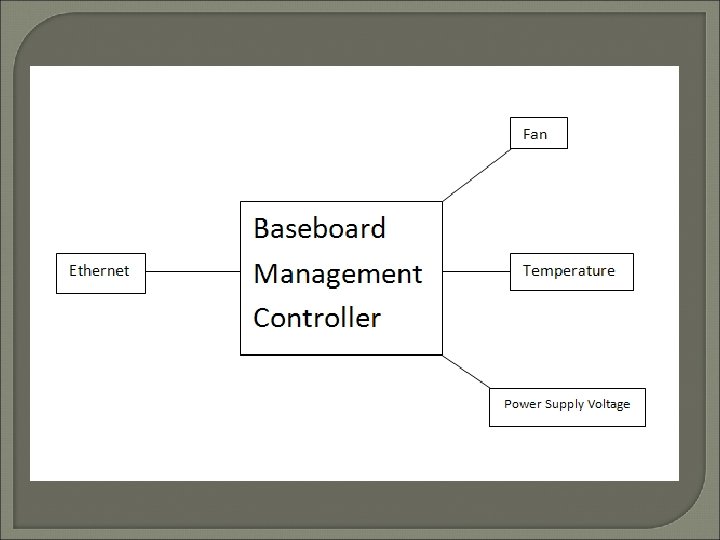

That’s right! The BMC! Baseboard Management Controller Microcontroller that helps all elements communicate with one another System Event Log (SEL)
How does the BMC communicate with other elements? By way of I 2 C- Protocol with two lines: Serial Clock Line (SCL) and Serial Data Line (SDA) SCL Traffic Lights SDA Roads
What else is good about IPMI? Independent of main processor & operating system Helps admins recover systems
IPMIView
Open. IPMI
IPMItool
HOWEVER Not all software compatible with every OS, so you must check before downloading
Objective: Create system that implements IPMI for standalone electronics chassis
BMC: Renesas H 8 S/2167 144 pins 12 pins for I 2 C (6 ports) 3 ports for transmitting/receiving data
Non-Volatile Storage: Phillips PCF 8582 C-2 Preserves information when power is off I 2 C-compatible Ten-year data storage
Sensors
Remote Management Card: Mega. RAC G 4 IPMI V 2. 0 Directly connect to BMC
Interfaces for IPMI Messaging TOP: HN-210 Serial/Modem Cable BOTTOM: ENC 28 J 60 Ethernet Controller
Additional Chips TOP: SC 18 IS 602 IPW I 2 Cto-SPI Bridge BOTTOM: PCA 9518 I 2 C Hub
System Design (Dx. Designer)
What if the system doesn’t work? Interchangeable parts Multiple chips of same component (e. g. four chips for fan sensors)
FPGAs Field-Programmable Gate Arrays Programmable pins More versatile than microcontrollers

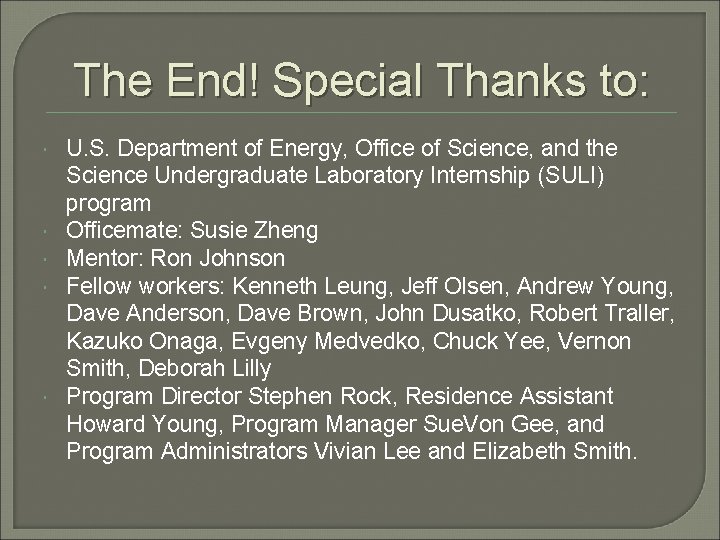

The End! Special Thanks to: U. S. Department of Energy, Office of Science, and the Science Undergraduate Laboratory Internship (SULI) program Officemate: Susie Zheng Mentor: Ron Johnson Fellow workers: Kenneth Leung, Jeff Olsen, Andrew Young, Dave Anderson, Dave Brown, John Dusatko, Robert Traller, Kazuko Onaga, Evgeny Medvedko, Chuck Yee, Vernon Smith, Deborah Lilly Program Director Stephen Rock, Residence Assistant Howard Young, Program Manager Sue. Von Gee, and Program Administrators Vivian Lee and Elizabeth Smith.
