Innovation and Cryptoventures Cryptology Campbell R. Harvey Duke University and NBER
Campbell R. Harvey 2018
Overview Cryptology Cryptography Cryptanalysis Symmetric Ciphers Asymmetric Ciphers Protocols Campbell R. Harvey 2019
Overview Science of making things secret Cryptology Cryptography Cryptanalysis Symmetric Ciphers Asymmetric Ciphers Protocols Campbell R. Harvey 2019 Science of breaking cryptosystems
Overview Science of making things secret Cryptology Cryptography Symmetric Ciphers Asymmetric Ciphers Protocols Cryptanalysis Science of breaking cryptosystems Share a secret key Share a public key but each has secret private key Application of cryptographic algos, like TLS Campbell R. Harvey 2019

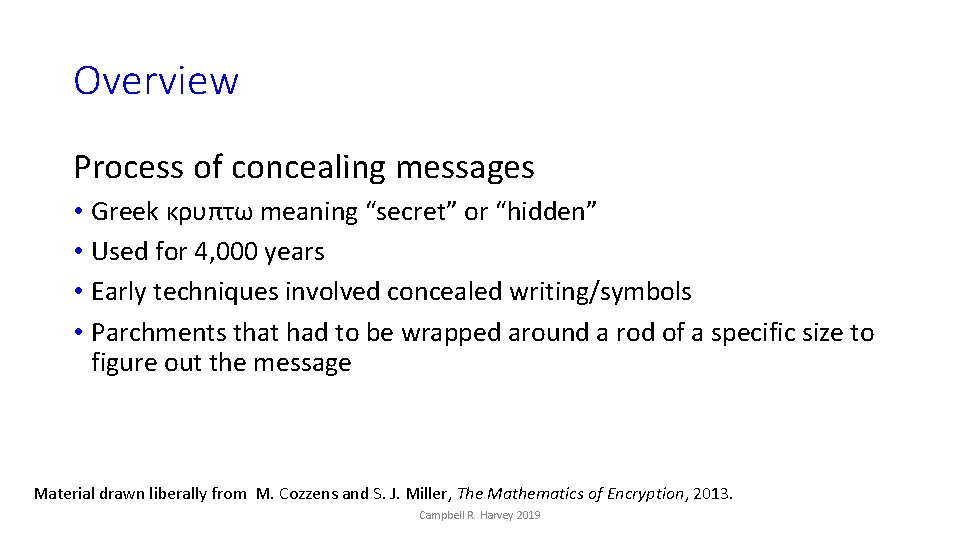

Overview Process of concealing messages • Greek κρυπτω meaning “secret” or “hidden” • Used for 4, 000 years • Early techniques involved concealed writing/symbols • Parchments that had to be wrapped around a rod of a specific size to figure out the message Material drawn liberally from M. Cozzens and S. J. Miller, The Mathematics of Encryption, 2013. Campbell R. Harvey 2019
Polybius square 300 -400 BCE Polybius advocated a square (originally using the Greek alphabet) • Note that i/j are ambiguous • Read off row, column. CAM = 13, 11, 32 Campbell R. Harvey 2019
Substitution Cipher Caesar Cipher shift letters by fixed number of places (originally 3). Note 3 is called the “key”. • The shift could be arbitrary. +3 CAM=FDP • Not very secure Campbell R. Harvey 2019
Substitution Cipher Caesar Cipher is early example of using modulo arithmetic. • If we shifted +26 (or -26), we end up with the regular alphabet • If we shifted +27, it is the same as +1 • If we shifted +54, it is the same as +2 • A clock is modulo 12 • Note: Modulo arithmetic very important for advanced encryption Campbell R. Harvey 2019
Substitution Cipher Caesar Cipher is early example of using modulo arithmetic. • Let A=0, B=1, …, Z=25 Then: • Encrypted(x) = (x + k) mod 26 • Here “k” is the shift or “key”, mod is the modulo operation (in Python code on earlier slide denoted by “%”) Campbell R. Harvey 2019 Caesar cipher is a special case of an “affine cipher”; more generally encrypted (x) = (ax + k) mod 26; a=1 for Caesar.

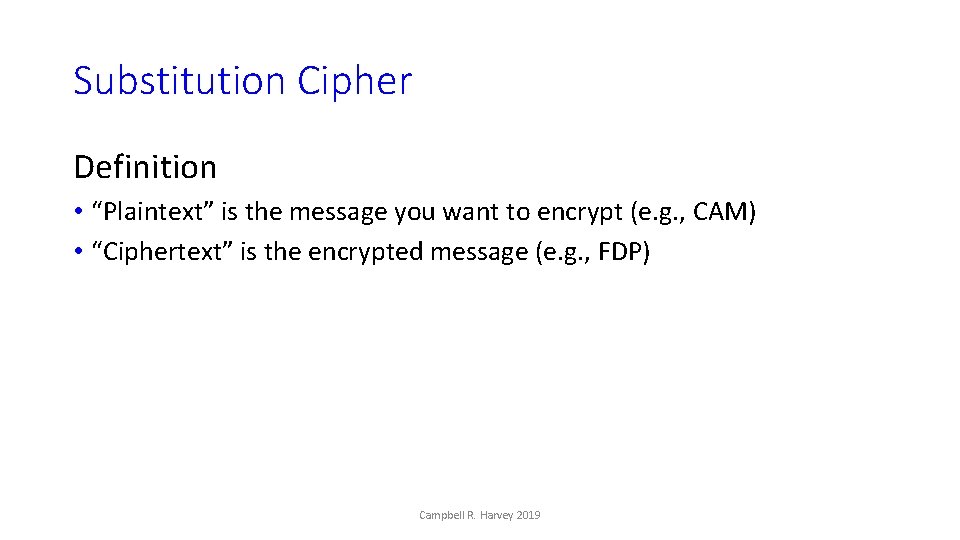

Substitution Cipher Definition • “Plaintext” is the message you want to encrypt (e. g. , CAM) • “Ciphertext” is the encrypted message (e. g. , FDP) Campbell R. Harvey 2019

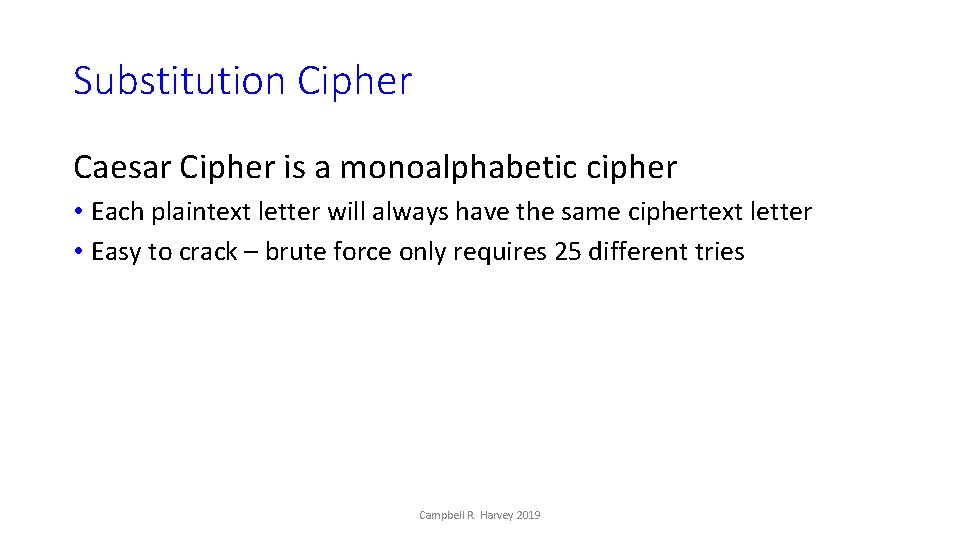

Substitution Cipher Caesar Cipher is a monoalphabetic cipher • Each plaintext letter will always have the same ciphertext letter • Easy to crack – brute force only requires 25 different tries Campbell R. Harvey 2019

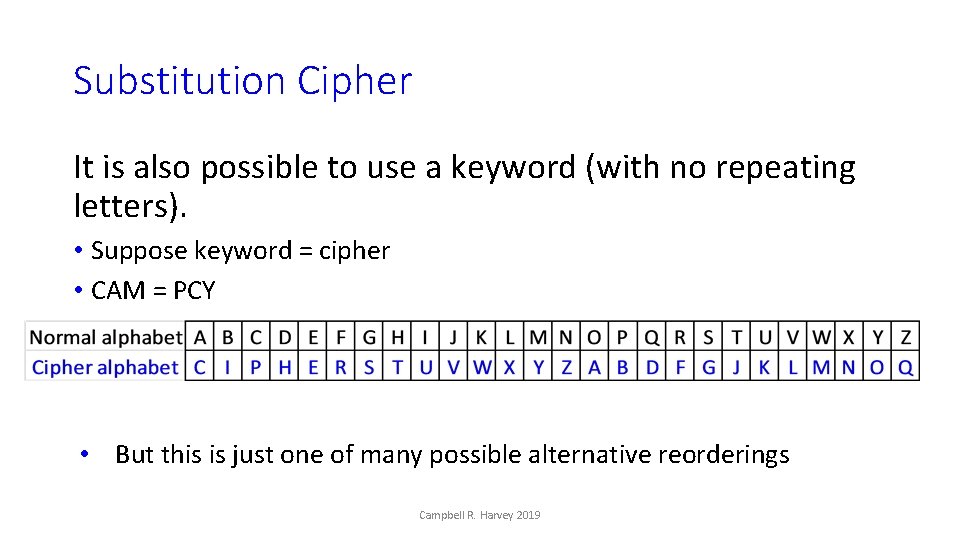

Substitution Cipher It is also possible to use a keyword (with no repeating letters). • Suppose keyword = cipher • CAM = PCY • But this is just one of many possible alternative reorderings Campbell R. Harvey 2019

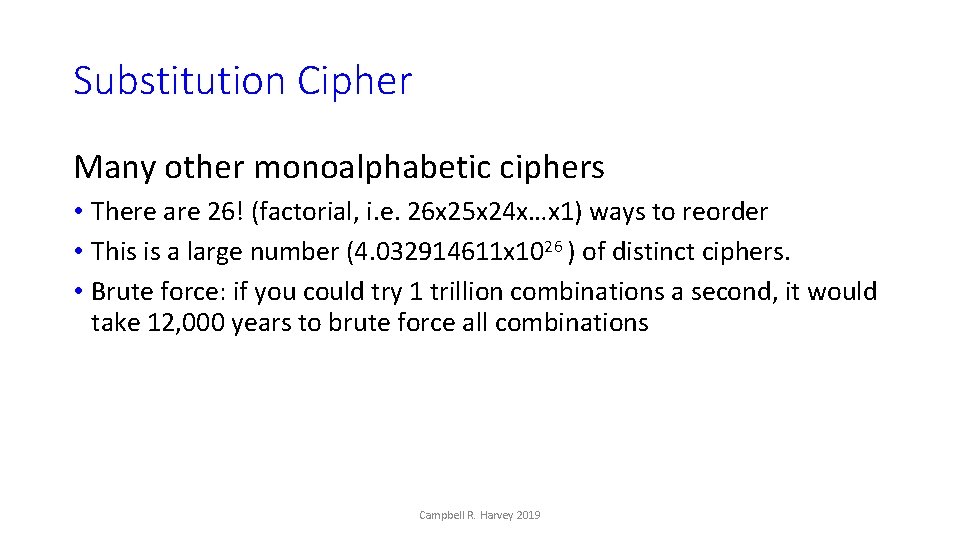

Substitution Cipher Many other monoalphabetic ciphers • There are 26! (factorial, i. e. 26 x 25 x 24 x…x 1) ways to reorder • This is a large number (4. 032914611 x 1026 ) of distinct ciphers. • Brute force: if you could try 1 trillion combinations a second, it would take 12, 000 years to brute force all combinations Campbell R. Harvey 2019

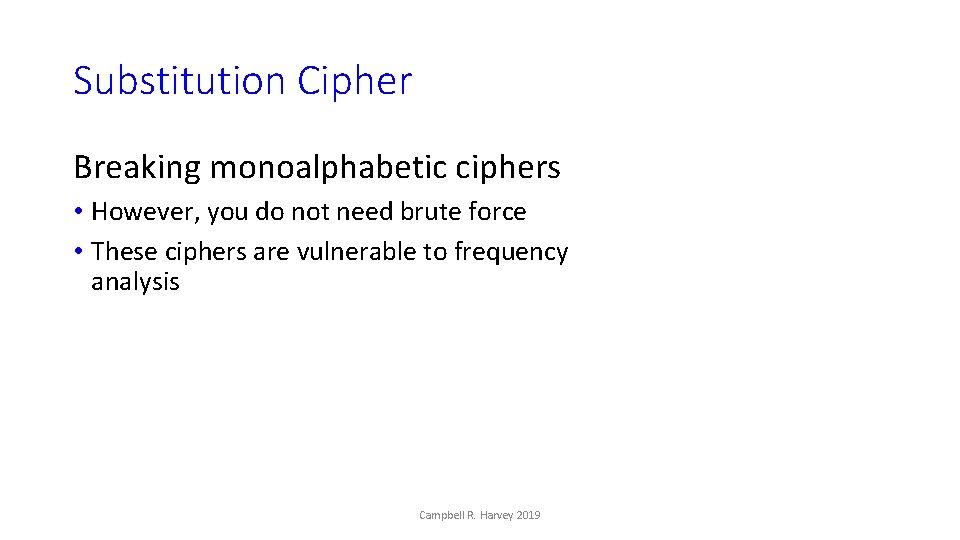

Substitution Cipher Breaking monoalphabetic ciphers • However, you do not need brute force • These ciphers are vulnerable to frequency analysis Campbell R. Harvey 2019
Substitution Cipher Breaking monoalphabetic ciphers • However, you do not need brute force • These ciphers are vulnerable to frequency analysis https: //en. wikipedia. org/wiki/Letter_frequency Campbell R. Harvey 2019

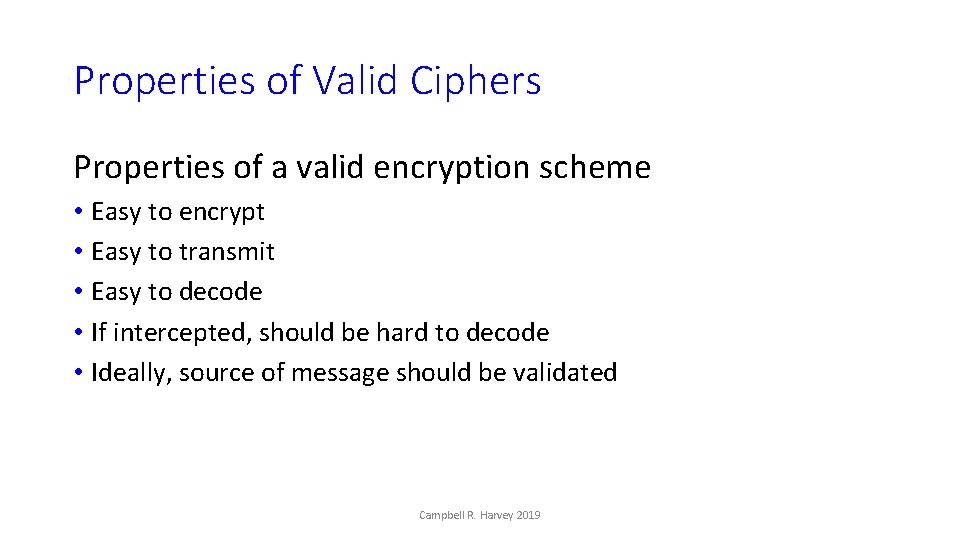

Properties of Valid Ciphers Properties of a valid encryption scheme • Easy to encrypt • Easy to transmit • Easy to decode • If intercepted, should be hard to decode • Ideally, source of message should be validated Campbell R. Harvey 2019

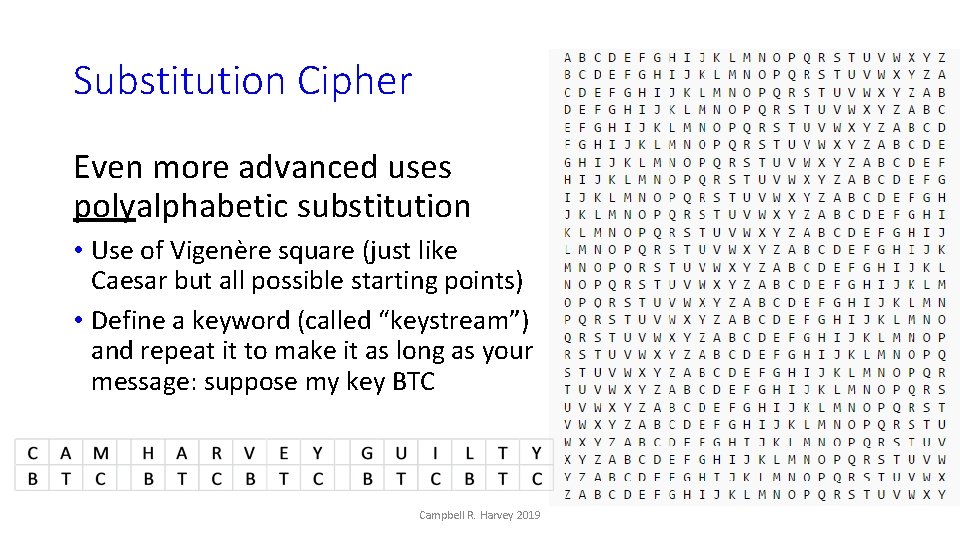

Substitution Cipher Even more advanced uses polyalphabetic substitution • Use of Vigenère square (just like Caesar but all possible starting points) • Define a keyword (called “keystream”) and repeat it to make it as long as your message: suppose my key BTC Campbell R. Harvey 2019

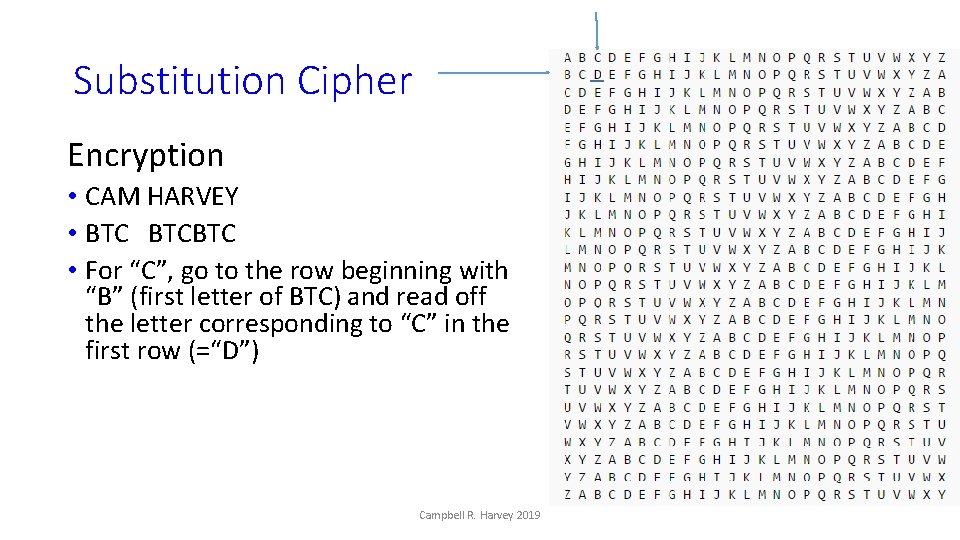

Substitution Cipher Encryption • CAM HARVEY • BTCBTC • For “C”, go to the row beginning with “B” (first letter of BTC) and read off the letter corresponding to “C” in the first row (=“D”) Campbell R. Harvey 2019

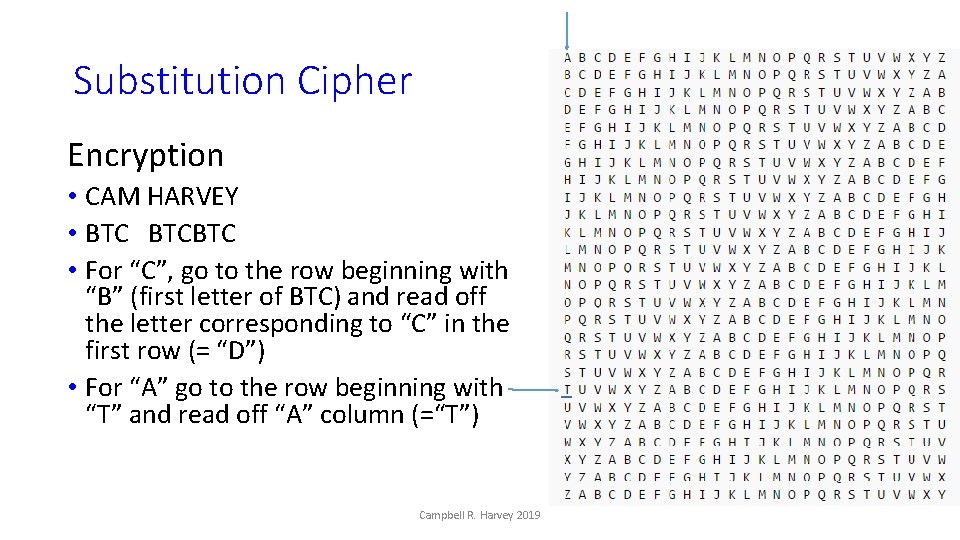

Substitution Cipher Encryption • CAM HARVEY • BTCBTC • For “C”, go to the row beginning with “B” (first letter of BTC) and read off the letter corresponding to “C” in the first row (= “D”) • For “A” go to the row beginning with “T” and read off “A” column (=“T”) Campbell R. Harvey 2019

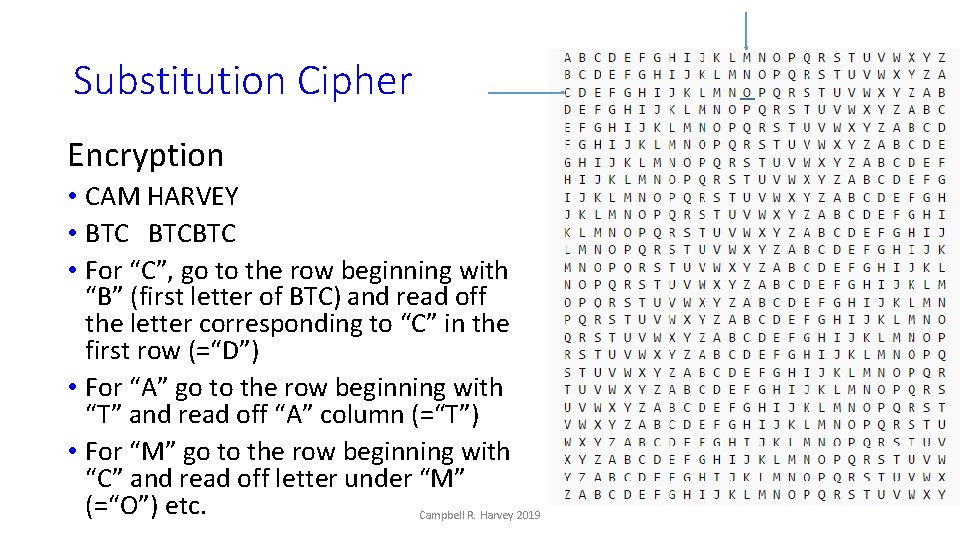

Substitution Cipher Encryption • CAM HARVEY • BTCBTC • For “C”, go to the row beginning with “B” (first letter of BTC) and read off the letter corresponding to “C” in the first row (=“D”) • For “A” go to the row beginning with “T” and read off “A” column (=“T”) • For “M” go to the row beginning with “C” and read off letter under “M” (=“O”) etc. Campbell R. Harvey 2019

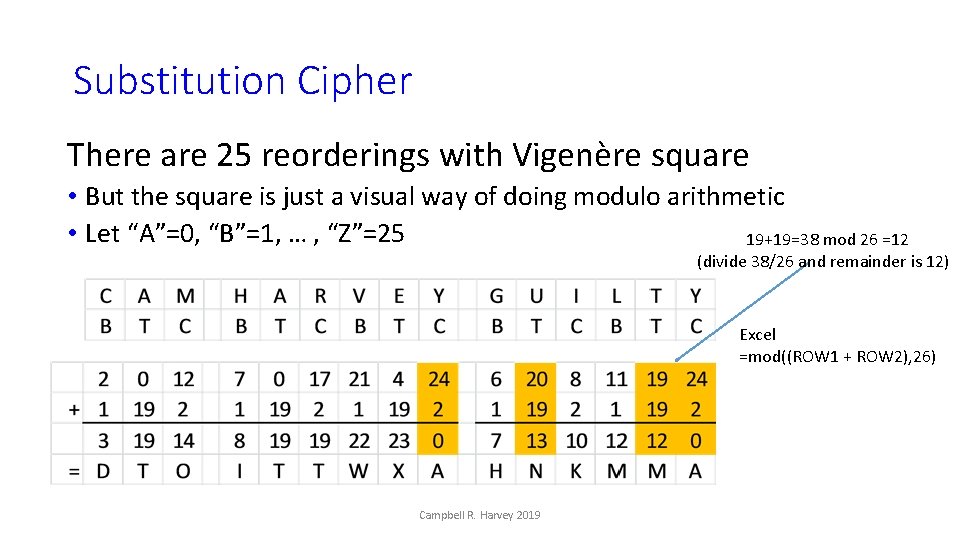

Substitution Cipher There are 25 reorderings with Vigenère square • But the square is just a visual way of doing modulo arithmetic • Let “A”=0, “B”=1, … , “Z”=25 19+19=38 mod 26 =12 (divide 38/26 and remainder is 12) Excel =mod((ROW 1 + ROW 2), 26) Campbell R. Harvey 2019

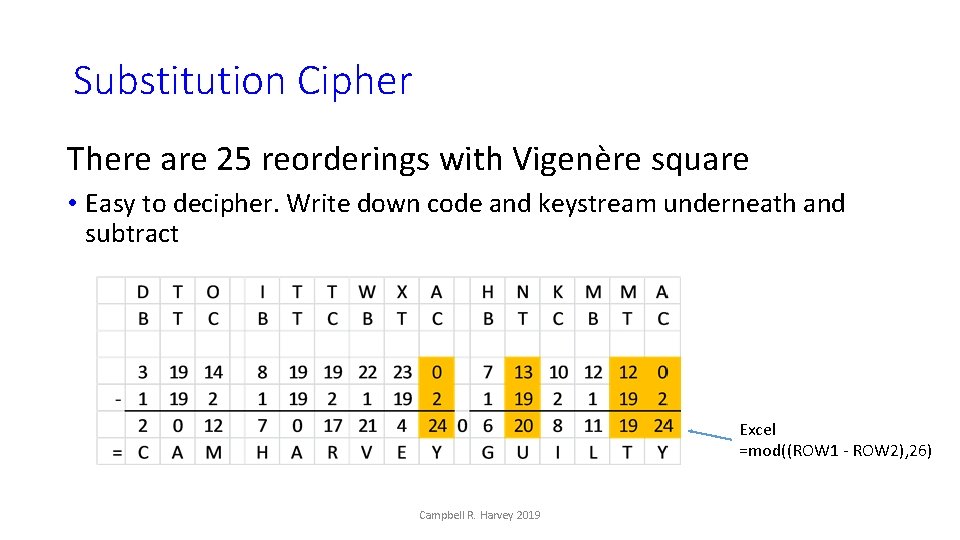

Substitution Cipher There are 25 reorderings with Vigenère square • Easy to decipher. Write down code and keystream underneath and subtract Excel =mod((ROW 1 - ROW 2), 26) Campbell R. Harvey 2019

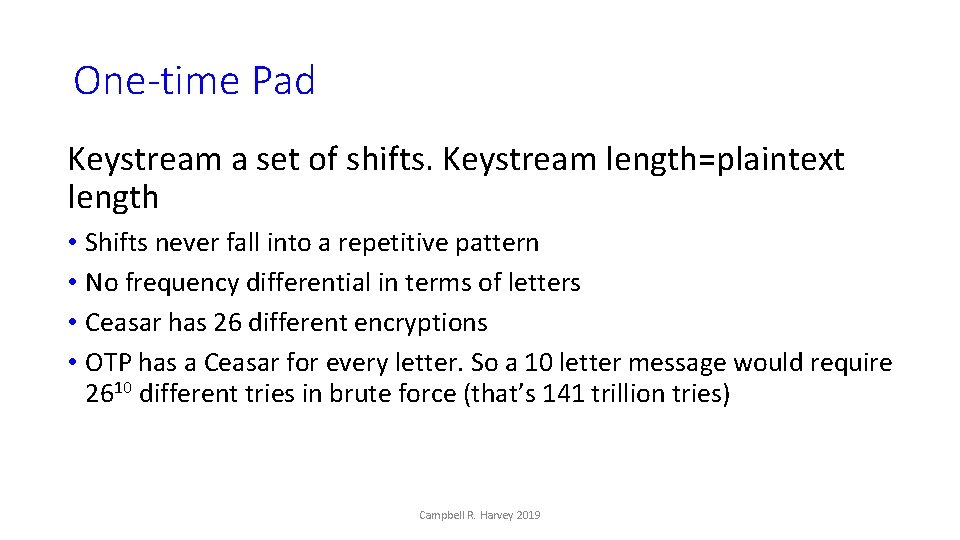

One-time Pad Keystream a set of shifts. Keystream length=plaintext length • Shifts never fall into a repetitive pattern • No frequency differential in terms of letters • Ceasar has 26 different encryptions • OTP has a Ceasar for every letter. So a 10 letter message would require 2610 different tries in brute force (that’s 141 trillion tries) Campbell R. Harvey 2019

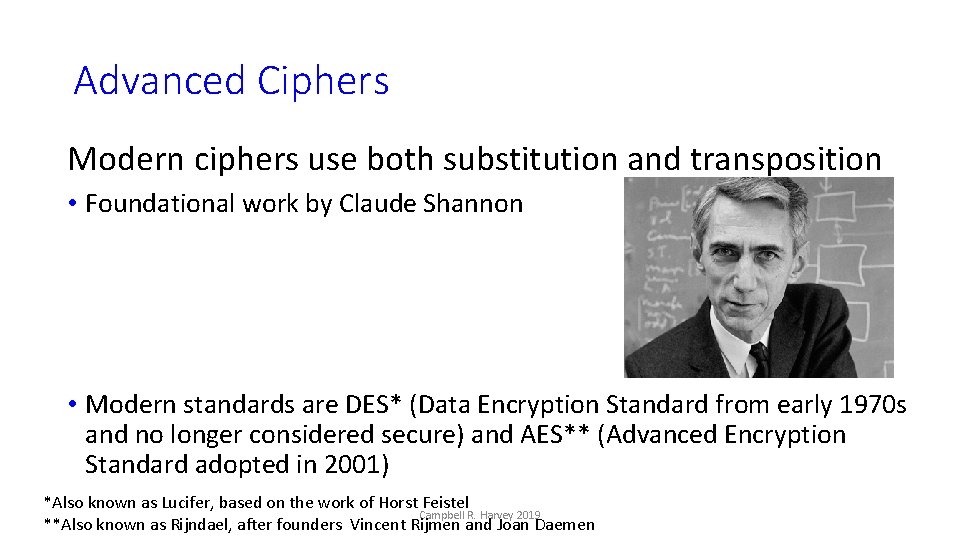

Advanced Ciphers Modern ciphers use both substitution and transposition • Foundational work by Claude Shannon • Modern standards are DES* (Data Encryption Standard from early 1970 s and no longer considered secure) and AES** (Advanced Encryption Standard adopted in 2001) *Also known as Lucifer, based on the work of Horst Feistel Campbell R. Harvey 2019 **Also known as Rijndael, after founders Vincent Rijmen and Joan Daemen
Takeaways A basic understanding of cryptography is crucial for not just blockchain but for business in general • We have seen that JP Morgan’s Quorum uses a blockchain with encrypted data • Zcash is a cryptocurrency that is anonymous and uses encryption • One issue is the keystream. In order to decrypt, that keystream needs to be communicated – and that creates risk. • Next, we need to develop a technology where two people can share a secret (like a keystream) by sending information that anyone can intercept (but not be able to deduce the keystream). • Modulo arithmetic will come in handy. Campbell R. Harvey 2019

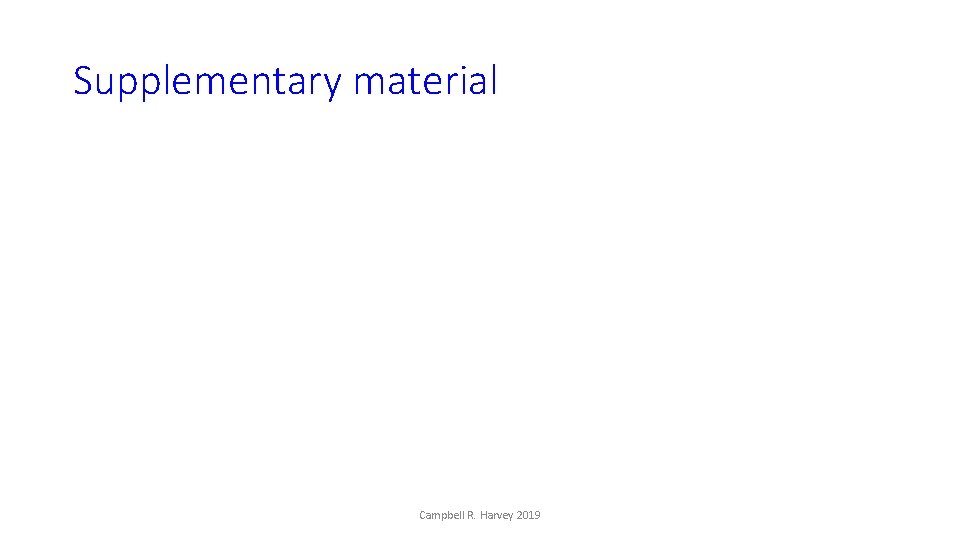

Supplementary material Campbell R. Harvey 2019

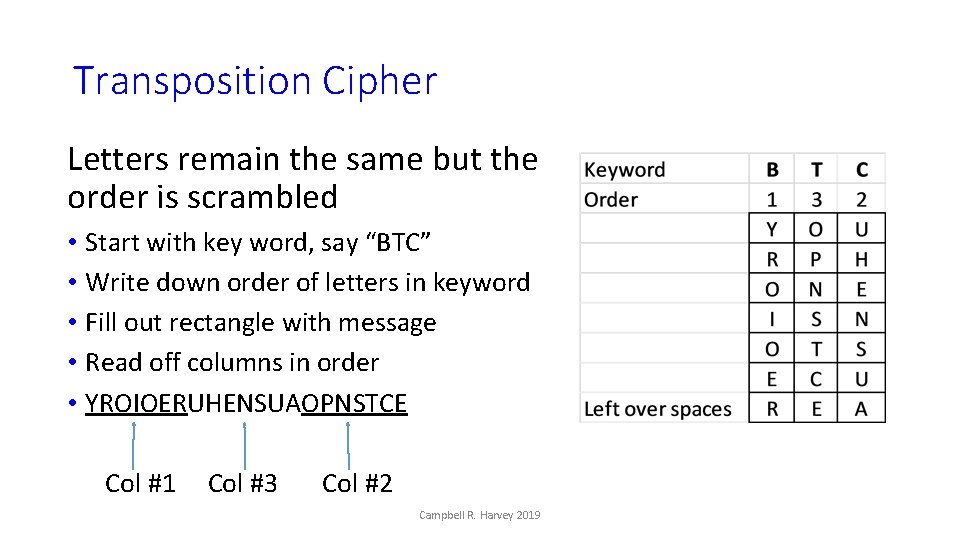

Transposition Cipher Letters remain the same but the order is scrambled • Start with key word, say “BTC” • Write down order of letters in keyword • Fill out rectangle with message • Read off columns in order • YROIOERUHENSUAOPNSTCE Col #1 Col #3 Col #2 Campbell R. Harvey 2019
Transposition Cipher Letters remain the same but the order is scrambled • This type of cipher is immune to an attack based on frequency analysis because the exact same letters are used – the order is subject to permutation Campbell R. Harvey 2019

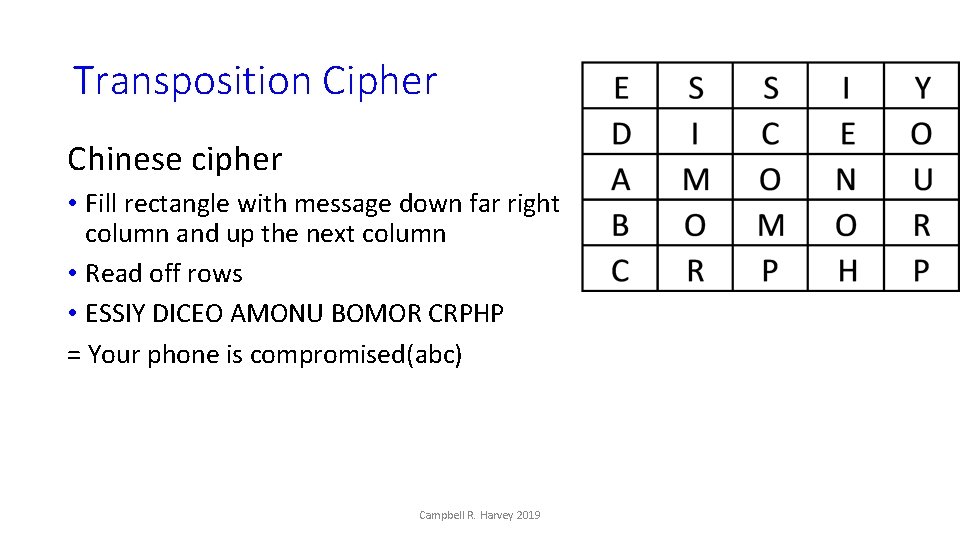

Transposition Cipher Chinese cipher • Fill rectangle with message down far right column and up the next column • Read off rows • ESSIY DICEO AMONU BOMOR CRPHP = Your phone is compromised(abc) Campbell R. Harvey 2019
Permutation Cipher Mixes up the letters. • Example: (1, 2, 3) -> (3, 1, 2) • So the word “THE” would be “ETH” • To decrypt, we use the inverse permutation Campbell R. Harvey 2019

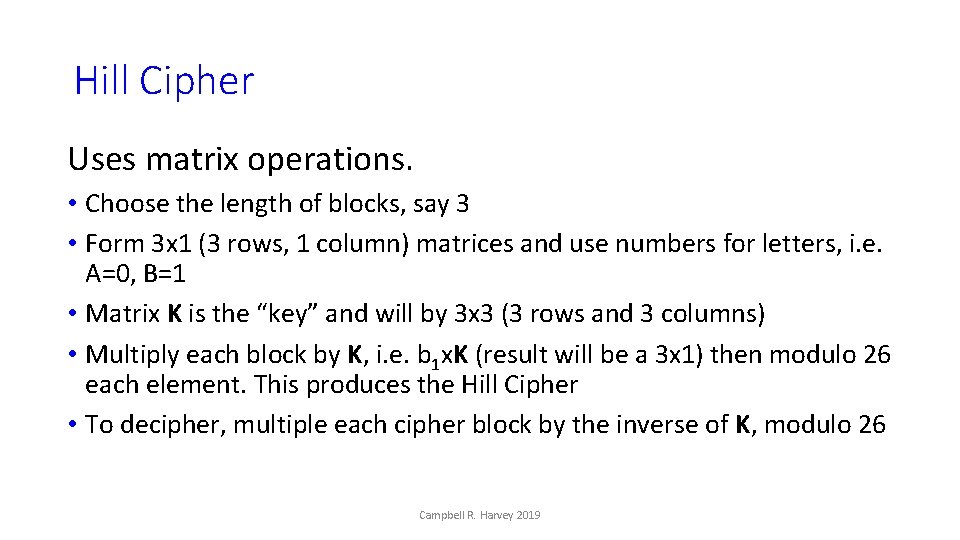

Hill Cipher Uses matrix operations. • Choose the length of blocks, say 3 • Form 3 x 1 (3 rows, 1 column) matrices and use numbers for letters, i. e. A=0, B=1 • Matrix K is the “key” and will by 3 x 3 (3 rows and 3 columns) • Multiply each block by K, i. e. b 1 x. K (result will be a 3 x 1) then modulo 26 each element. This produces the Hill Cipher • To decipher, multiple each cipher block by the inverse of K, modulo 26 Campbell R. Harvey 2019

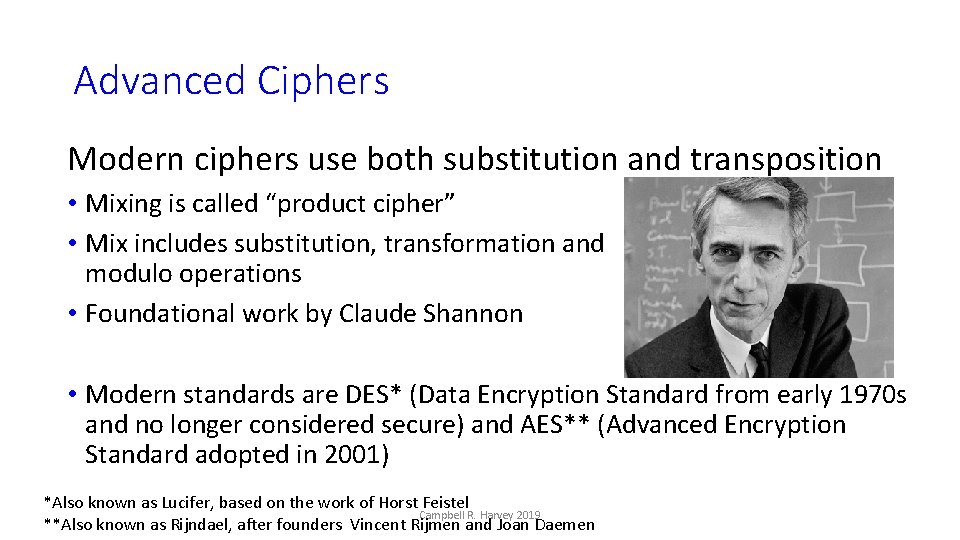

Advanced Ciphers Modern ciphers use both substitution and transposition • Mixing is called “product cipher” • Mix includes substitution, transformation and modulo operations • Foundational work by Claude Shannon • Modern standards are DES* (Data Encryption Standard from early 1970 s and no longer considered secure) and AES** (Advanced Encryption Standard adopted in 2001) *Also known as Lucifer, based on the work of Horst Feistel Campbell R. Harvey 2019 **Also known as Rijndael, after founders Vincent Rijmen and Joan Daemen

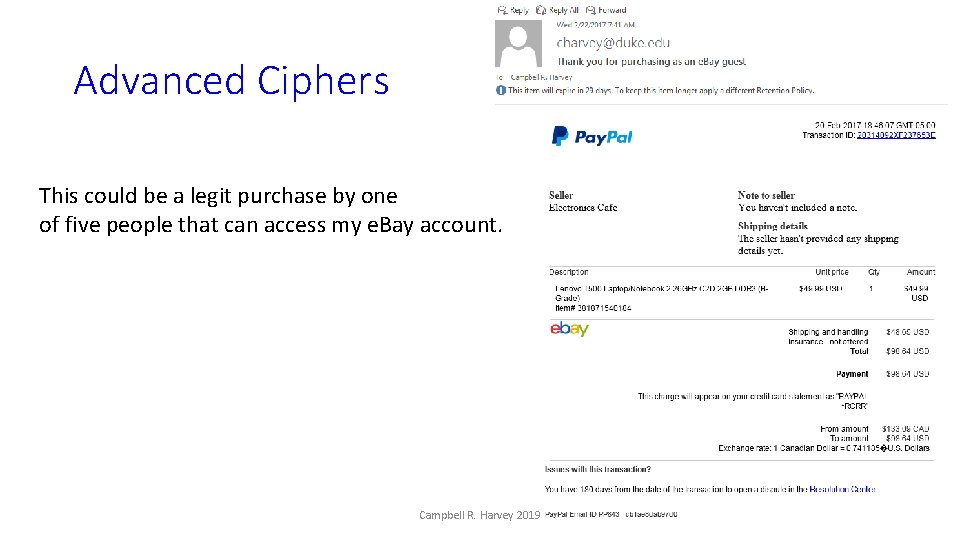

Advanced Ciphers This could be a legit purchase by one of five people that can access my e. Bay account. Campbell R. Harvey 2019
Advanced Ciphers This could be a legit purchase by one of five people that can access my e. Bay account. Why would I buy a 2009 Lenovo in 2017? Campbell R. Harvey 2019

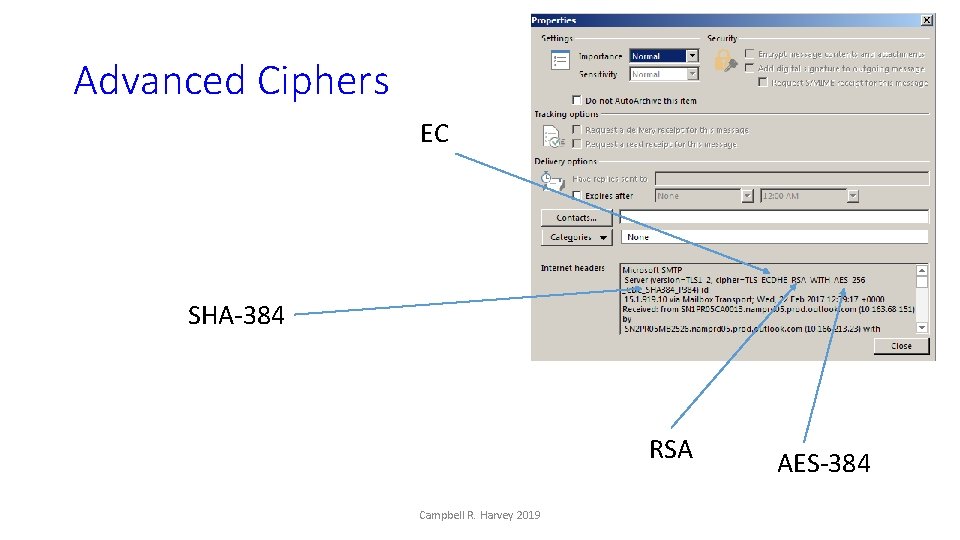

Advanced Ciphers EC SHA-384 RSA Campbell R. Harvey 2019 AES-384

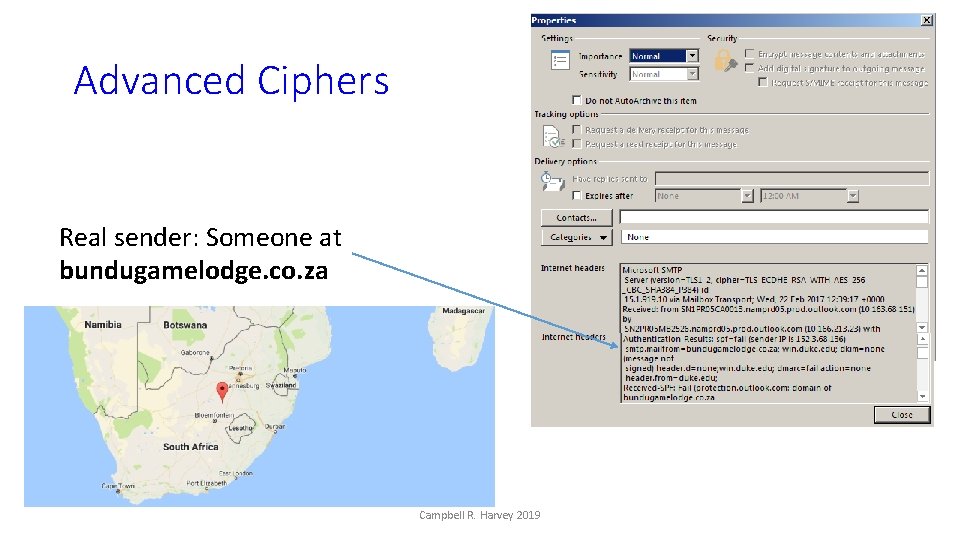

Advanced Ciphers Real sender: Someone at bundugamelodge. co. za Campbell R. Harvey 2019

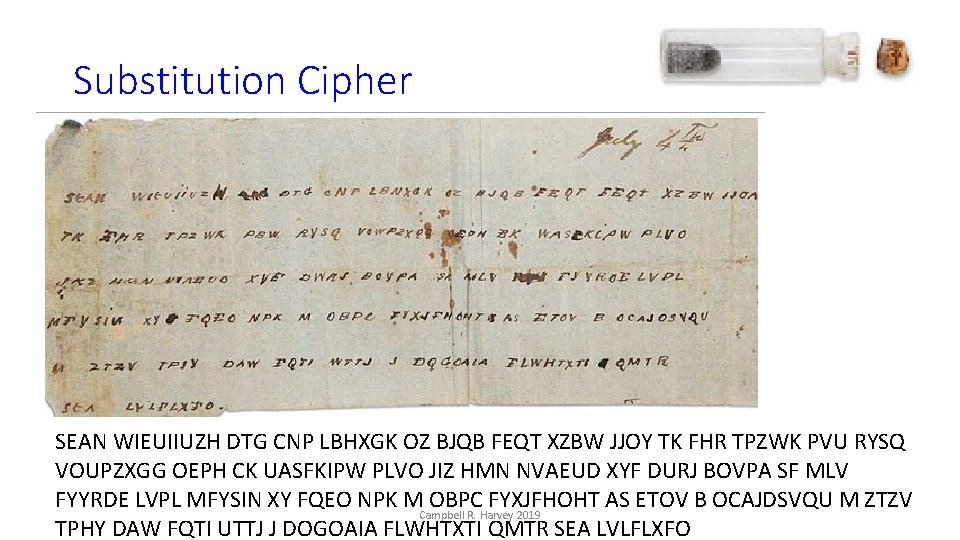

Substitution Cipher SEAN WIEUIIUZH DTG CNP LBHXGK OZ BJQB FEQT XZBW JJOY TK FHR TPZWK PVU RYSQ VOUPZXGG OEPH CK UASFKIPW PLVO JIZ HMN NVAEUD XYF DURJ BOVPA SF MLV FYYRDE LVPL MFYSIN XY FQEO NPK MCampbell OBPC FYXJFHOHT AS ETOV B OCAJDSVQU M ZTZV R. Harvey 2019 TPHY DAW FQTI UTTJ J DOGOAIA FLWHTXTI QMTR SEA LVLFLXFO

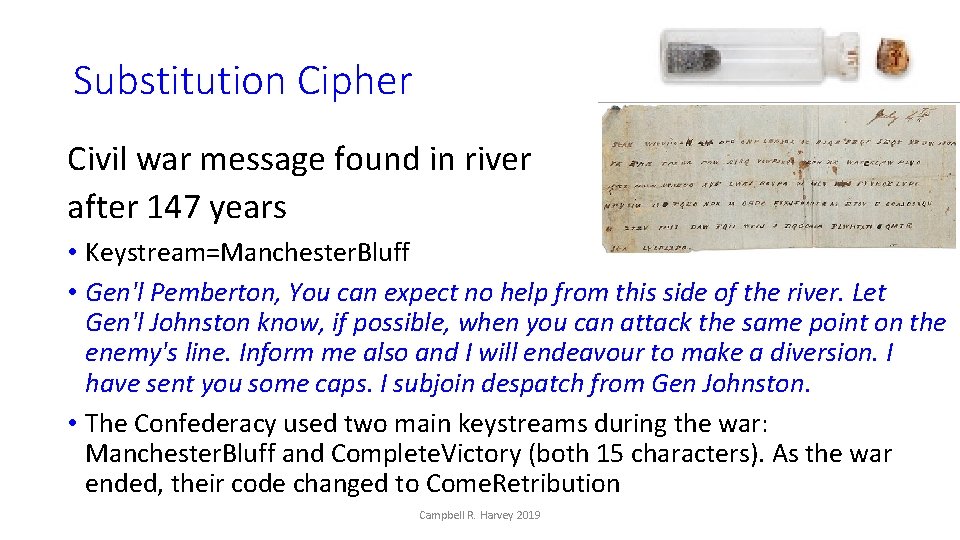

Substitution Cipher Civil war message found in river after 147 years • Keystream=Manchester. Bluff • Gen'l Pemberton, You can expect no help from this side of the river. Let Gen'l Johnston know, if possible, when you can attack the same point on the enemy's line. Inform me also and I will endeavour to make a diversion. I have sent you some caps. I subjoin despatch from Gen Johnston. • The Confederacy used two main keystreams during the war: Manchester. Bluff and Complete. Victory (both 15 characters). As the war ended, their code changed to Come. Retribution Campbell R. Harvey 2019
