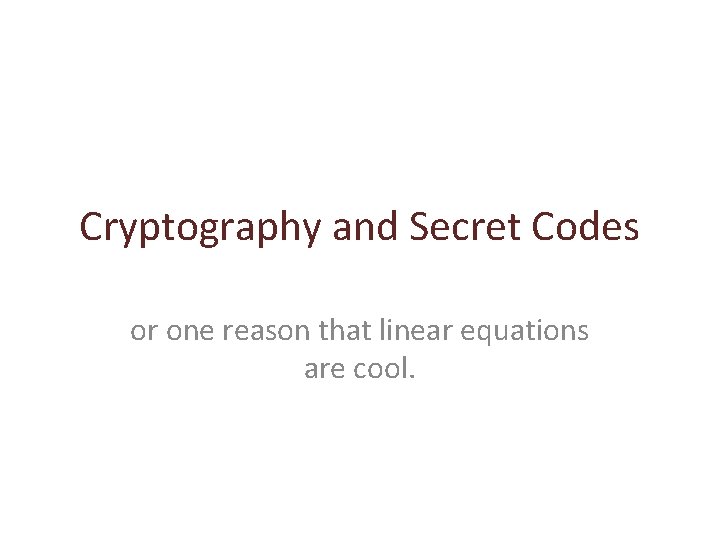

Cryptography and Secret Codes or one reason that linear equations are cool.

Cryptography and Secret Codes or one reason that linear equations are cool.

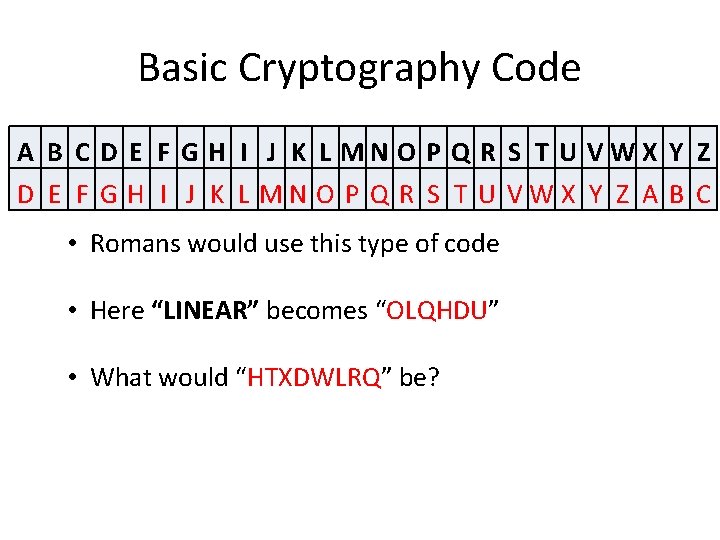

Basic Cryptography Code A B C D E F G H I J K

Basic Cryptography Code A B C D E F G H I J K L MN O P Q R S T U VWX Y Z A B C • Romans would use this type of code • Here “LINEAR” becomes “OLQHDU” • What would “HTXDWLRQ” be?

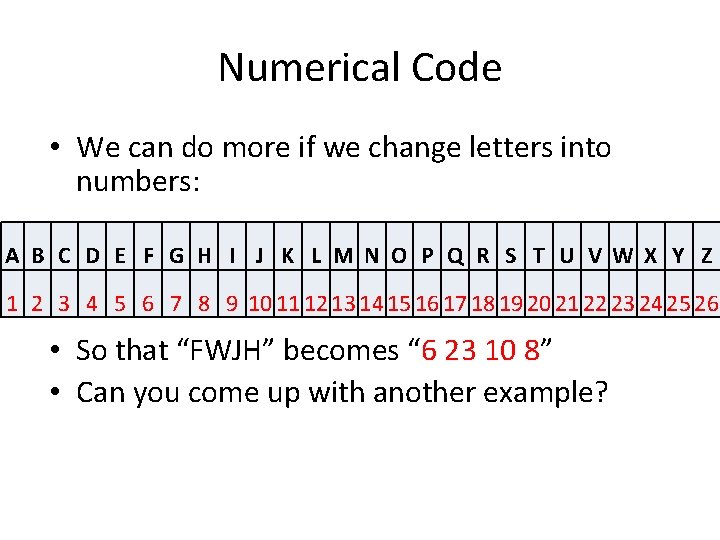

Numerical Code • We can do more if we change letters into numbers: A

Numerical Code • We can do more if we change letters into numbers: A B C D E F G H I J K L MN O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 • So that “FWJH” becomes “ 6 23 10 8” • Can you come up with another example?

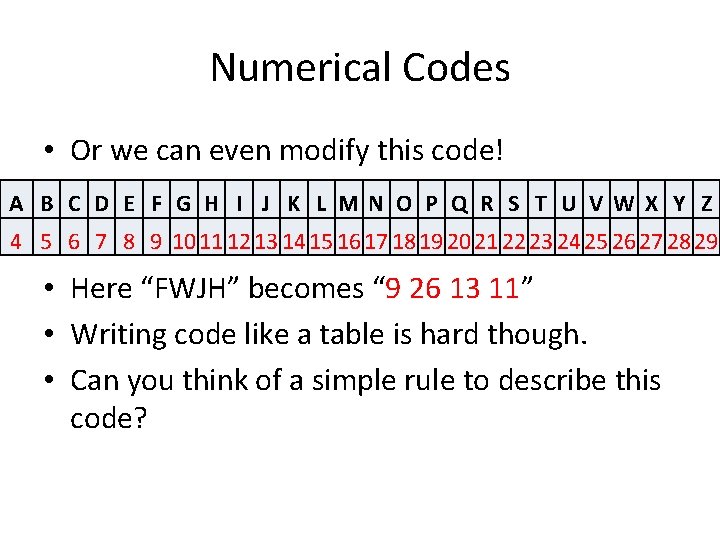

Numerical Codes • Or we can even modify this code! A B C D

Numerical Codes • Or we can even modify this code! A B C D E F G H I J K L MN O P Q R S T U VW X Y Z 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 • Here “FWJH” becomes “ 9 26 13 11” • Writing code like a table is hard though. • Can you think of a simple rule to describe this code?

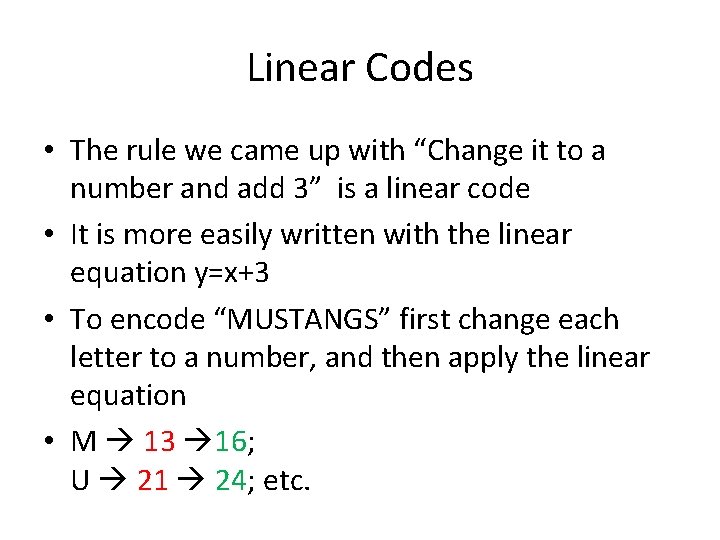

Linear Codes • The rule we came up with “Change it to a number

Linear Codes • The rule we came up with “Change it to a number and add 3” is a linear code • It is more easily written with the linear equation y=x+3 • To encode “MUSTANGS” first change each letter to a number, and then apply the linear equation • M 13 16; U 21 24; etc.

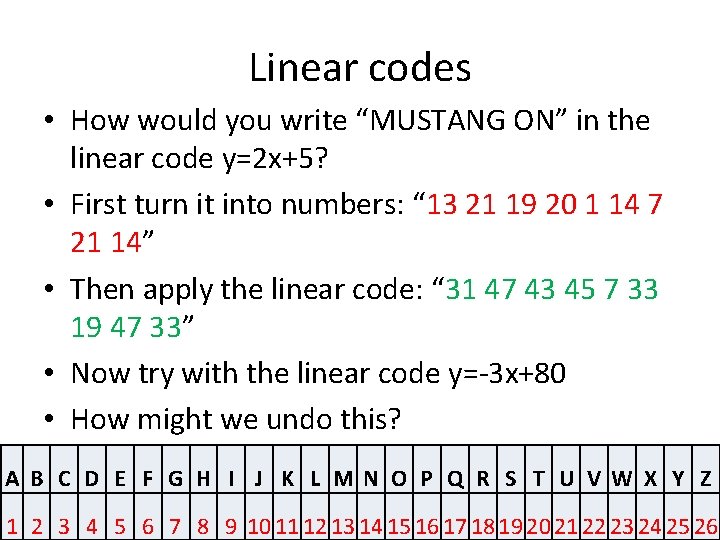

Linear codes • How would you write “MUSTANG ON” in the linear code y=2

Linear codes • How would you write “MUSTANG ON” in the linear code y=2 x+5? • First turn it into numbers: “ 13 21 19 20 1 14 7 21 14” • Then apply the linear code: “ 31 47 43 45 7 33 19 47 33” • Now try with the linear code y=-3 x+80 • How might we undo this? A B C D E F G H I J K L MN O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

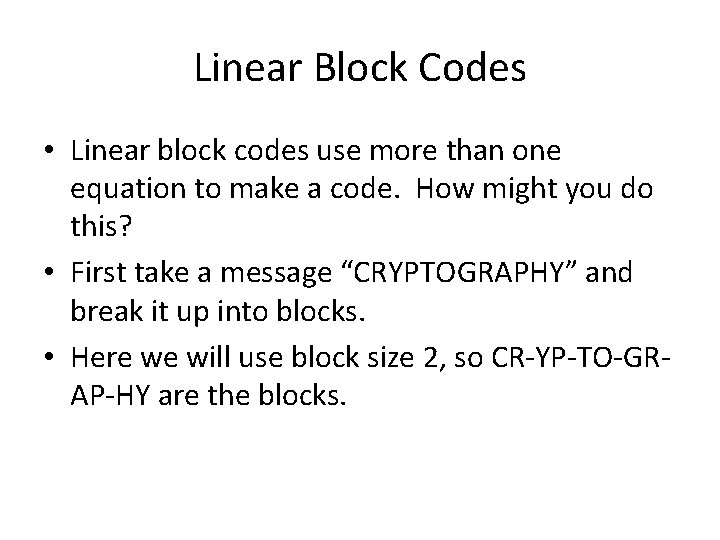

Linear Block Codes • Linear block codes use more than one equation to make

Linear Block Codes • Linear block codes use more than one equation to make a code. How might you do this? • First take a message “CRYPTOGRAPHY” and break it up into blocks. • Here we will use block size 2, so CR-YP-TO-GRAP-HY are the blocks.

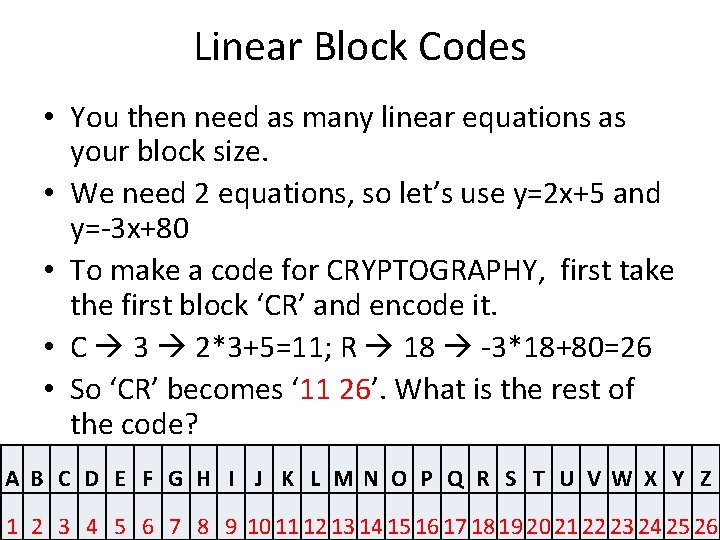

Linear Block Codes • You then need as many linear equations as your block

Linear Block Codes • You then need as many linear equations as your block size. • We need 2 equations, so let’s use y=2 x+5 and y=-3 x+80 • To make a code for CRYPTOGRAPHY, first take the first block ‘CR’ and encode it. • C 3 2*3+5=11; R 18 -3*18+80=26 • So ‘CR’ becomes ‘ 11 26’. What is the rest of the code? A B C D E F G H I J K L MN O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

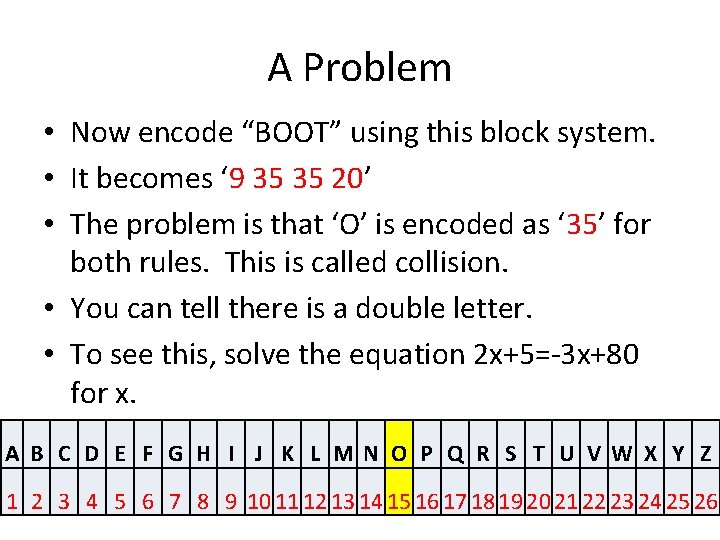

A Problem • Now encode “BOOT” using this block system. • It becomes ‘

A Problem • Now encode “BOOT” using this block system. • It becomes ‘ 9 35 35 20’ • The problem is that ‘O’ is encoded as ‘ 35’ for both rules. This is called collision. • You can tell there is a double letter. • To see this, solve the equation 2 x+5=-3 x+80 for x. A B C D E F G H I J K L MN O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

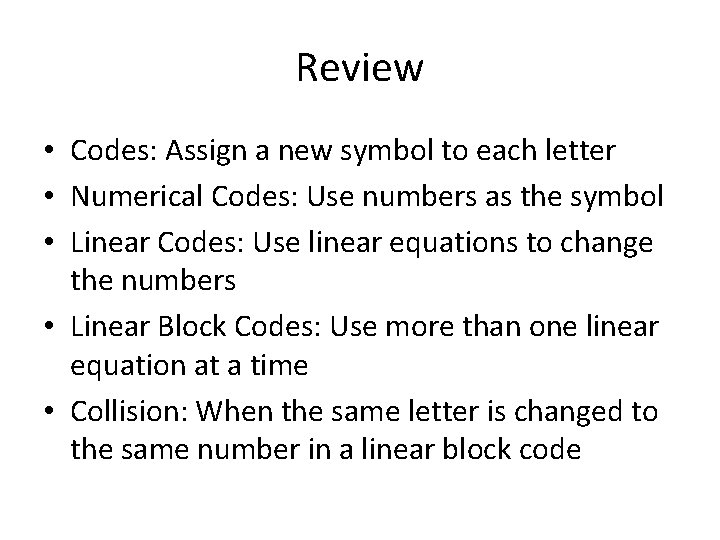

Review • Codes: Assign a new symbol to each letter • Numerical Codes: Use

Review • Codes: Assign a new symbol to each letter • Numerical Codes: Use numbers as the symbol • Linear Codes: Use linear equations to change the numbers • Linear Block Codes: Use more than one linear equation at a time • Collision: When the same letter is changed to the same number in a linear block code

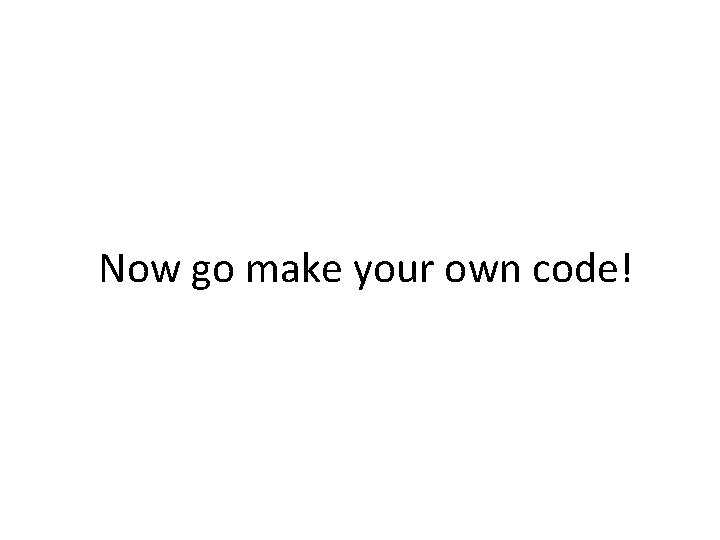

Now go make your own code!

Now go make your own code!
