H. 26 L MPEG-4 TMS 320 DM 642 Industry’s Highest Performance, Software Programmable 600 -MHz Digital Media Processor Complete with ready-to-use application software and development tools for starting designs today Vishal Markandey Distinguished Member of Technical Staff, DSP Video Imaging MPEG-2 Igor Frenkel Worldwide Strategic Marketing, DSP Video Imaging

Presentation Outline n n n Digital Media Market TI Innovation Digital Media Solutions: Hardware, Software, & Systems The DM 642 Digital Media Processor Digital Media Applications Competition Application Performance Ready-to-Use Software Get Started Today Roadmap Summary

Digital Media Market Requirements Service Provider Needs OEM Needs New revenue sources Multiple applications New services n n n Quality and performance Reduced system cost Cool running systems Network connectivity n Any content, anytime n Entertainment on demand n Video over IP C 64 x. TM DSP Core Video Ports Mc. ASP Ethernet MAC PCI Video optimized DSP core & input/output Tailored Software & Development Systems Online codec upgrade: We have doubled your channels Upgrade flexibility New Capabilities DM 642 n Interactivity DM 642 Digital Media Processor Reduced time-to-market Third-Party Network

Growing Video and Imaging Market Fueled by TI Innovation TI Announces DM 642 Over 500 IDKs shipped-to-date MPEG-4 H. 26 L 100 s of designs in video applications using TI’s C 6000 TM DSP Platform (14 devices available) Imaging Developer’s Kit Launched 2001 Jan Apr Sept C 64 x. TM device samples available with video instruction set extensions Dec 2002 Feb RV 8 decoder . . more VP-4 Mar Portable Media Platform DM 310 announced Apr University of Washington C 64 x. TM Media Processing Consortium May Jul Today Development board

TI Delivers Digital Media Solutions TMS 320 DM 642 Digital Media Processor Highest Performance Digital Media Processor DM 642 High-performance DSP core Instruction Set Architecture optimized for video processing 3 Dual Channel Video Ports C 64 x. TM DSP Core Video-optimized I/O Mc. ASP 10/100 Ethernet MAC 66 MHz PCI Multi-Channel Video and Audio IP Connectivity Standard Bus Interface Multi-Format Complete, Ready-to-Use Application Software H. 261 H. 26 L MPEG-4 M-JPEG H. 263 JPEG MP 3 MPEG-4 Cutting Edge System Solutions for Video MPEG-2 UDP/IP H. 261 AAC MPEG-2 G. 722 H. 26 L G. 728 AC 3 H. 263 G. 722. 1 TCP/IP VOD, IP-based video phone, DVR JPEG 2000

DM 642 — Highest Performance With On-Chip Video and Audio Integration DM 642 Processor EMIF 64 VCXO Interpolated Control (VIC) PCI-66 or HPI 32 L 1 P Cache 16 KBytes or 20 -bit Video Port 1 (VP 1) or 2 10 -bit VP 1 or and Mc. BSP 1 or Mc. ASP L 2 Cache/Memory 256 KBytes 20 -bit Video 10 -bit VP 0 Port 0 (VP 0) or and Mc. BSP 0 or or 2 10 -bit Mc. ASP VP 0 Enhanced DMA Controller HPI 16 and EMAC/MDIO 600/500 MHz DSP Core at 1. 4/1. 2 volts l Industry-leading performance in 0. 13 µm copper process Or 2 10 -bit VP 2 l Two video channels per port—software l l l C 64 x DSP Core l TM W NE L 1 D Cache 16 KBytes 20 -bit Video Port 2 (VP 2) W Three Dual-Channel Video Ports NE configurable as input or output Video filtering, horizontal scaling Glueless interface to video system components Support BT 656, digital TV formats (SDTV and HDTV), raw video I/O 8 -bit/10 -bit/16 -bit/20 -bit video support per port Mc. ASP l Multichannel audio serial port l Up to 8 stereo lines (16 channels) 10/100 Ethernet MAC l Connects to IP packet networks W 66 MHz PCI NE l Connects to backplane chassis or PCI bus 23 x 23 mm 2 flip-chip BGA package l Maximizes channel density

DM 642 Optimizes Typical DVR System Current Solution HPI Video In Control Logic BT. 656 Video Control FPGA C 6211 DSP EMIF NTSC/PAL Decoder Ethernet PHY EMIF SDRAM Memory C 6211 (local view) Video Control FPGA BT. 656 NTSC/PAL Encoder Ethernet MAC Video Out DM 642 Processor Solution Video In BT. 656 DM 642 Video 0 NTSC/PAL Decoder EMIF Ethernet Video 1 MAC Video 2 Control Logic Eliminate 10 ICs SDRAM Memory Reduced Bill of Materials Ethernet PHY NTSC/PAL Encoder Video Out Reduced Manufacturing Cost Single Processor System Reduced Time-to-Market

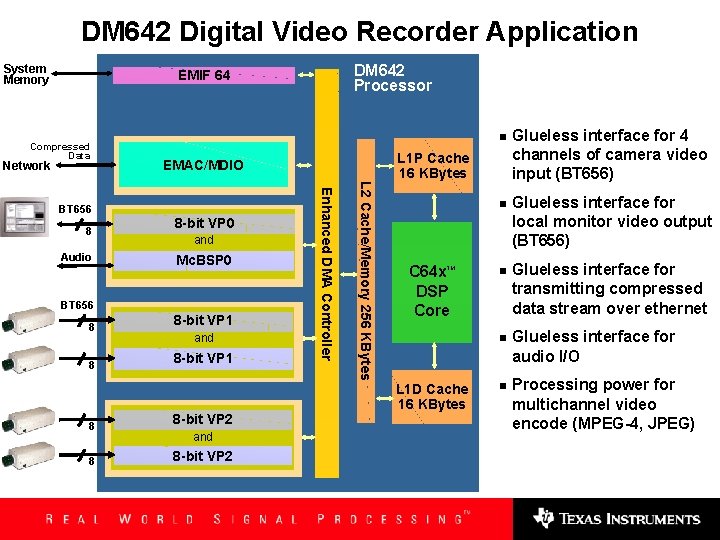

DM 642 Digital Video Recorder Application System Memory DM 642 Processor EMIF 64 Compressed Data Network n and Mc. BSP 0 BT 656 8 8 8 -bit VP 1 and 8 -bit VP 1 8 -bit VP 2 and 8 -bit VP 2 L 2 Cache/Memory 256 KBytes Audio 8 -bit VP 0 Enhanced DMA Controller BT 656 8 L 1 P Cache 16 KBytes EMAC/MDIO n C 64 x DSP Core TM n n L 1 D Cache 16 KBytes n Glueless interface for 4 channels of camera video input (BT 656) Glueless interface for local monitor video output (BT 656) Glueless interface for transmitting compressed data stream over ethernet Glueless interface for audio I/O Processing power for multichannel video encode (MPEG-4, JPEG)

DM 642 Enables High-Quality, Multi-Channel, Multi-Format VOD Applications MPEG-2 Decoder Broadband Set Top-Box MPEG-2 Decode

DM 642 Enables High-Quality, Multi-Channel, Multi-Format VOD Applications DM 642 Processor Load DM 642 Media Processor Solution SDRAM TI Cable Modem Cable Tuner Or TI DSL Modem Broadband Set Top-Box Flash SDRAM DM 642 Media Processor Video Encoder Audio DAC Cable or DSL Headroom Middleware Software l Onscreen display l Internet browser l Media player l Encryption Streaming media decode (MPEG-4/H. 26 L) MPEG-2 Decode

DM 642 Offers Performance for Multi-Channel Video Processing VP-0 Camera Video Decoder TVP 5200 VP-1 LCD Driver Mc. ASP Ethernet MAC Video Processing Video Decoder Display Optimal real-time video performance l l Speech Processing l l Three channels H. 263 decode at 30 fps Video sync to voice Video packetization Video scaling Speech Processing l LCD Driver l Codecs suite (e. g. , G. 723. 1) Echo Cancellation VP-1 VP-0 Mc. ASP Ethernet MAC PM Ethernet (IP packets) System Stack & Networking Support

DM 642 Enables High-Quality Real-Time MPEG-2 Encoding in Software High-Performance MPEG-2 Encoding D 1 MPEG-2 Main Profile @ Main Level Video Encode (MP@ML) n n Film source encode 60% Interactive video encode 67% Encode for video editing 47% Video encode for security monitoring 47% General purpose video encode (customizable for applications) 97% n n n Real-time full D 1 resolution Not limited to low bitrate Full use of field and frame prediction Wide effective motion search range Optimized for intelligent combinations of motion search algorithms Most Flexible n n n Scalable across multiple applications Adaptable to content source and target bitrate Optimal transcoding and transrating including type 1, type 2, type 3, and recoding approaches Optimized Source Code Planned for Availability n Allows focus on differentiated IP

Ready-to-Use Now Streaming Media Partners VP 4/VP 5 codecs with encryption support Real Video/Audio 8 Third-Party Software MPEG-2, MPEG-4 DIVX, Audio Telecom vocoders H. 263 (incl. annexes), H. 26 L JPEG-2000, Video compression JPEG, M-JPEG Development boards Audio Algorithm library and media processing consortium More than 600 e. Xpress. DSP compliant algorithms at www. dspvillage. com Foundation Software TM n e. Xpress. DSP Software TM n Code Composer Studio IDE TM n DSP/BIOS II RTOS n Reference Frameworks n DSP Library, Image Library

Start Development Today C 64 x. TM DSP Network Video Developers Kit (NVDK) n ATEMETM C 6416 video board n 10/100 Mbps Ethernet daughter card n Audio/video interface box Basic NVDK TI Part Number: TMDX 3263 C 6416/E Suggested retail price: $4, 495 www. dspvillage. com n Power supply n CD-ROM (software and documentation) n Video in and out, composite, S-video e. Store Bundle With Emulator & Code Composer Studio TI Part Number: NVDKCCS/E Suggested retail price: $5, 995 Technical Documentation www. ti. com/nvdk_kit n n DM 642 product preview datasheet DM 642 technical brief

e. Xpress. DSP TM Premier, Open, Real-Time Software Environment Powerful Code Composer Studio. TM Developers Toolbox Re-Useable e. Xpress. DSPTM Software DSP/BIOS, TMS 320 Algorithm Standard, Reference Frameworks Largest DSP Third-Party Network 100 K seats shipped since 1999! >600 algorithms from 100 unique 3 rd parties 80% of new designs choose DSP/BIOSTM >500 companies in Third-Party Network

Digital Media Solutions Silicon Roadmap DM 642 Continues Long-Term Commitment to Deliver Higher Integration and Performance Software Compatible Performance C 64 x™ DSP Video Infrastructure 1 st Generation C 62 x™ DSP 10 Devices 2 nd Generation C 6414/15/16 DSP C 6411 DSP Announcing DM 642 500/600 MHz Co processing engines High-bandwidth I/O Multi-C 64 x DSP cores Tailored peripherals and memory mixes Samples: 2 Q 03 Production: 4 Q 03 DMC 64 x™ DSP Roadmap In development Available today 2000 2002 2003 2004+ Time

TI’s Broad Video and Imaging Portfolio High-Perf. Digital Media TMS 320 C 6000 DSP platform Portable Digital Media TMS 320 C 5000 DSP and OMAP platforms Analog TM for video client and infrastructure applications n DM 642 Digital Media Processor TM n n n DSC 21, DSC 24, DSC 25 So. Cs for DSCs DM 310 Digital Media Processor OMAP 5910 Dual core, RISC/DSP processor TVP 5200 first all-format video processor TVP 5145 Best-in-class mixed-signal decoder for video applications THS 8200 all format video backend for video & PC applications Other high-performance data converters and power management products Complementary TI Technologies DSL Modems Cable Modems Wireless LAN Hundreds of products available today, Hundreds of video and imaging products in production today

TI Announces: The highest performance, software programmable, Digital Media Processor Raises the bar over other programmable media processors Applications performance 2 x performance ½ power consumption Fully SW upgradeable New capabilities New services New features System integration Lower cost BOM HD Video ports Ethernet MAC Optimized for target systems Differentiated features Ready to use application software All standards First to market with codecs System solutions Leverage existing core Leverage existing code Leverage existing tools Reduced development time Start Today!
