Foil Windings in Power Inductors: Methods of Reducing AC Resistance Weyman Lundquist President and CEO West Coast Magnetics

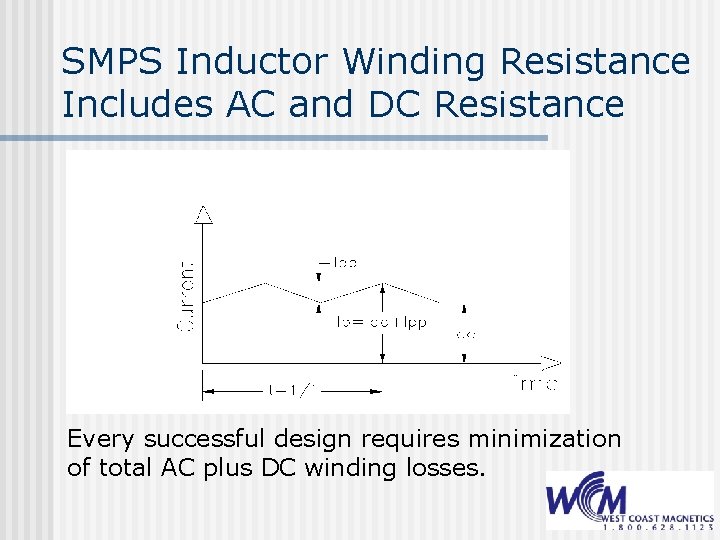

SMPS Inductor Winding Resistance Includes AC and DC Resistance Every successful design requires minimization of total AC plus DC winding losses.

Comparison of DC Resistance: Foil, Solid Wire & Litz Wire FOIL SOLID WIRE DCR = 1. 9 mΩ DCR = 4. 3 mΩ n 50/40 awg LITZ WIRE DCR = 22. 9 mΩ Foil windings: n n Fast and easy to wind Do not require bobbins or other supports

Components of Winding Losses Resistive loss Eddy-current loss dc loss ac loss “ac resistance” Source: J. Pollock Thayer School of Engineering at Dartmouth

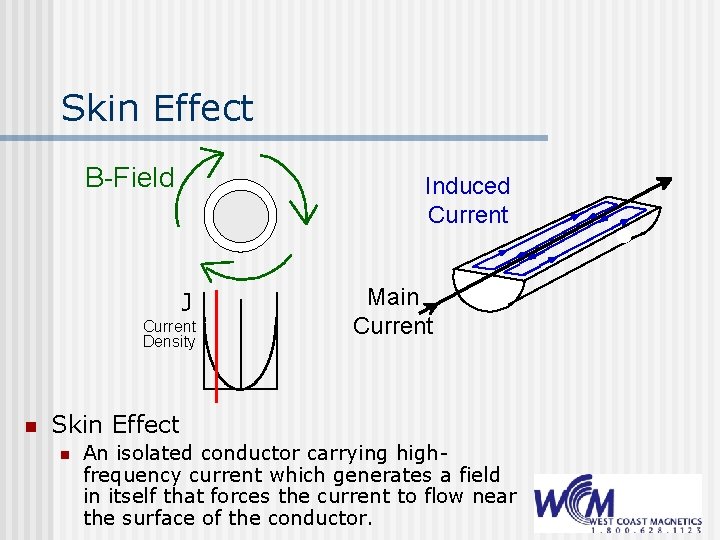

Skin Effect B-Field x J Current Density n Induced Current Main Current Skin Effect n An isolated conductor carrying highfrequency current which generates a field in itself that forces the current to flow near the surface of the conductor.

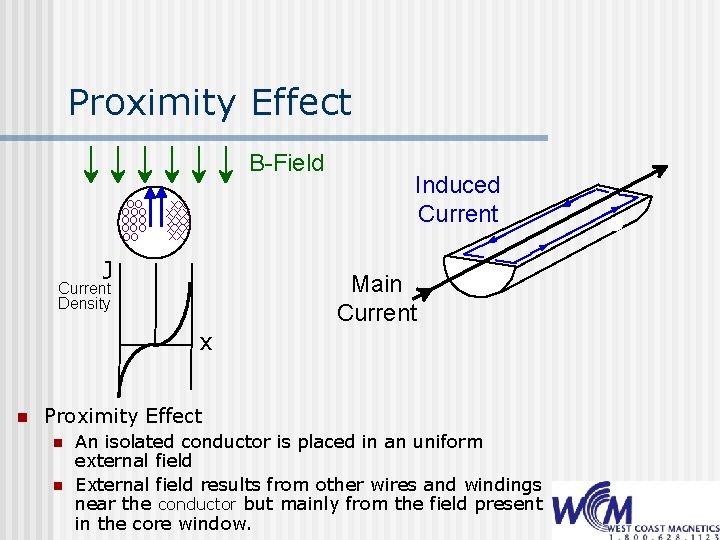

Proximity Effect B-Field oo ooo oo xx xxx xx J Current Density x n Induced Current Main Current Proximity Effect n n An isolated conductor is placed in an uniform external field External field results from other wires and windings near the conductor but mainly from the field present in the core window.

Magnetic Field Inside Core Window Ungapped E-core Gapped E-core

Magnetic Field Inside Gapped Inductor Core Window Legend: Red: strong field Blue: weak field Lines: constant field magnitude Gapped E-core

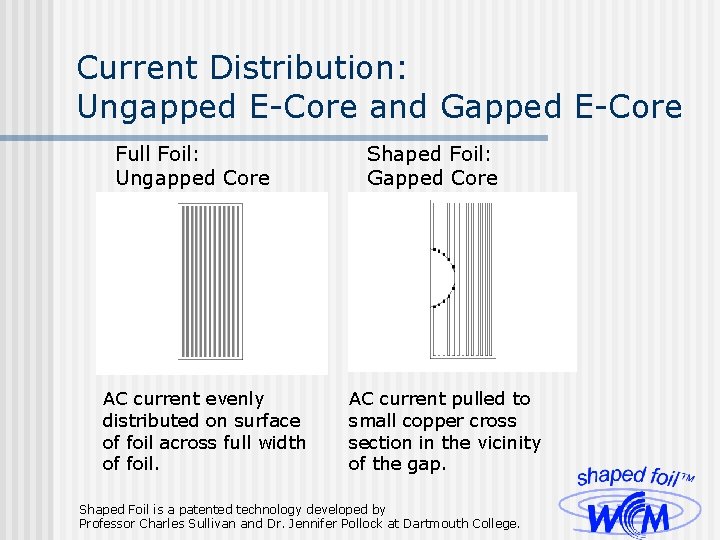

Current Distribution: Ungapped E-Core and Gapped E-Core Full Foil: Ungapped Core AC current evenly distributed on surface of foil across full width of foil. Shaped Foil: Gapped Core AC current pulled to small copper cross section in the vicinity of the gap. Shaped Foil is a patented technology developed by Professor Charles Sullivan and Dr. Jennifer Pollock at Dartmouth College.

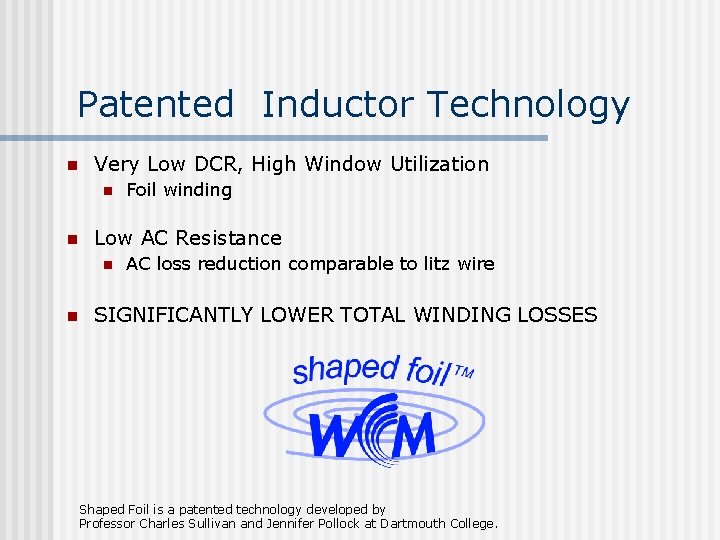

Patented Inductor Technology n Very Low DCR, High Window Utilization n n Low AC Resistance n n Foil winding AC loss reduction comparable to litz wire SIGNIFICANTLY LOWER TOTAL WINDING LOSSES Shaped Foil is a patented technology developed by Professor Charles Sullivan and Jennifer Pollock at Dartmouth College.

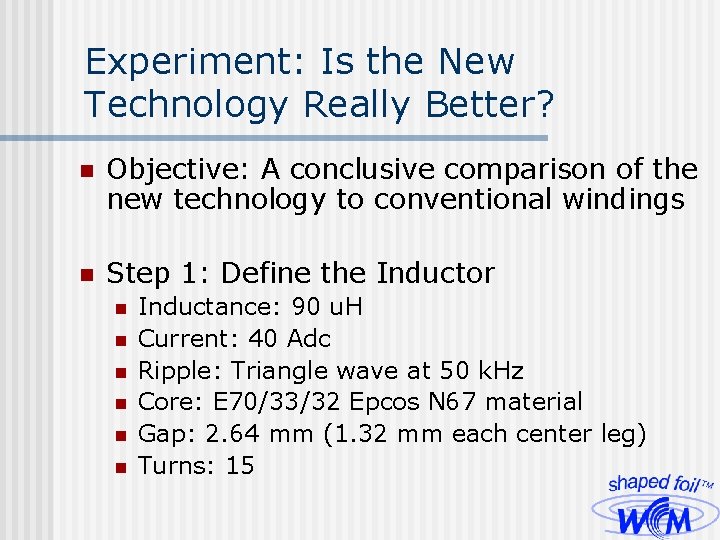

Experiment: Is the New Technology Really Better? n Objective: A conclusive comparison of the new technology to conventional windings n Step 1: Define the Inductor n n n Inductance: 90 u. H Current: 40 Adc Ripple: Triangle wave at 50 k. Hz Core: E 70/33/32 Epcos N 67 material Gap: 2. 64 mm (1. 32 mm each center leg) Turns: 15

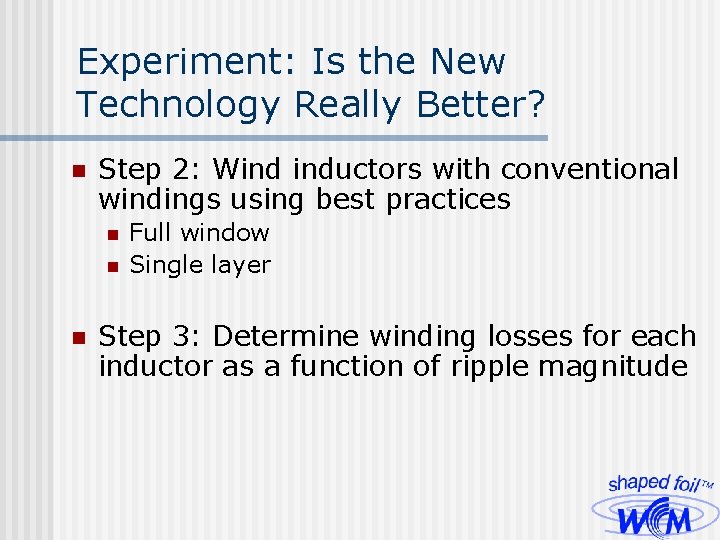

Experiment: Is the New Technology Really Better? n Step 2: Wind inductors with conventional windings using best practices n n n Full window Single layer Step 3: Determine winding losses for each inductor as a function of ripple magnitude

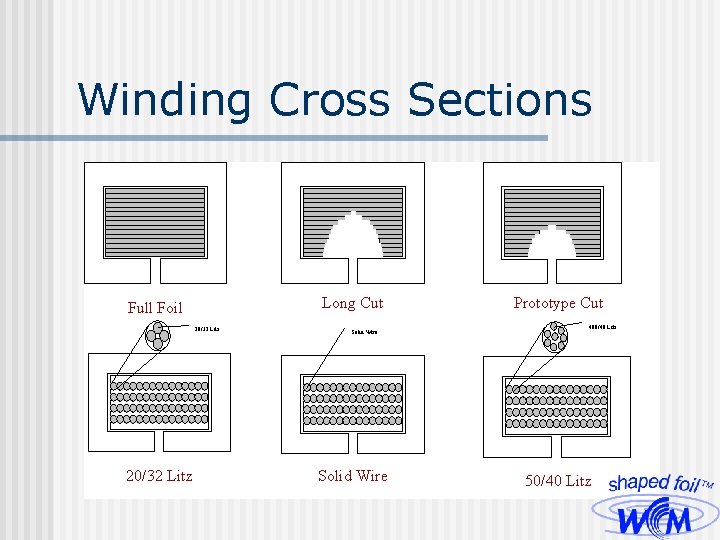

Winding Cross Sections Long Cut Full Foil 20/32 Litz Solid Wire Prototype Cut 400/40 Litz 50/40 Litz

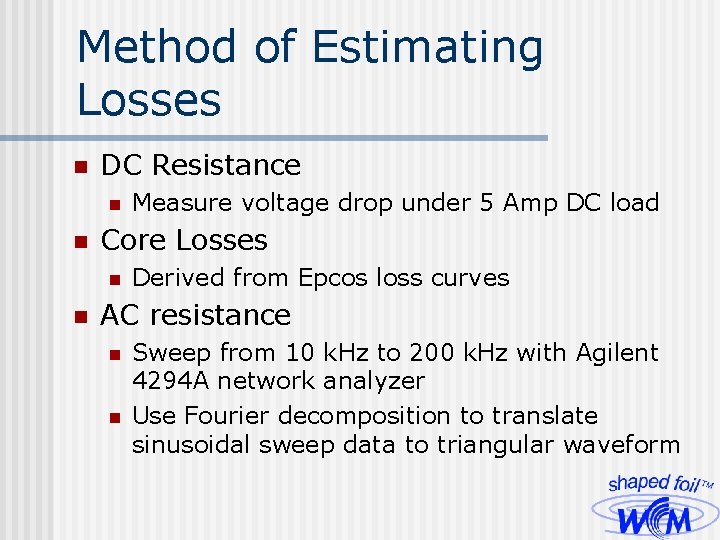

Method of Estimating Losses n DC Resistance n n Core Losses n n Measure voltage drop under 5 Amp DC load Derived from Epcos loss curves AC resistance n n Sweep from 10 k. Hz to 200 k. Hz with Agilent 4294 A network analyzer Use Fourier decomposition to translate sinusoidal sweep data to triangular waveform

Total Loss Comparison: 50 k. Hz Solid Wire 40 awg litz Full Foil 32 awg litz Shaped Foil Tech.

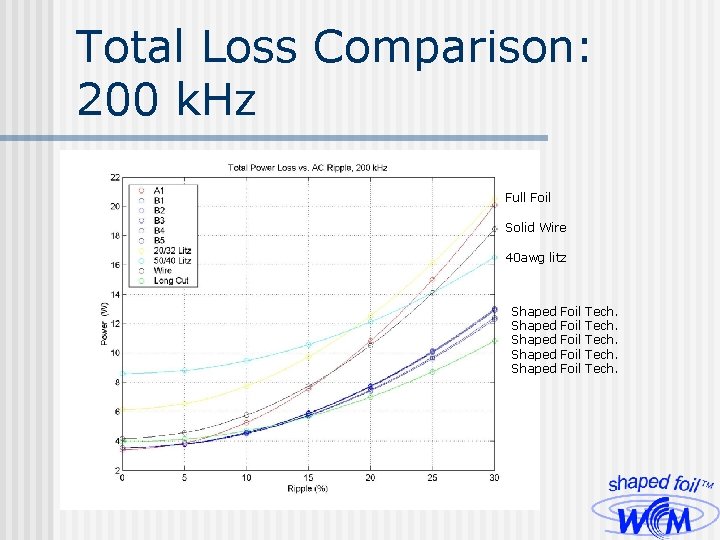

Total Loss Comparison: 200 k. Hz Full Foil Solid Wire 40 awg litz Shaped Shaped Foil Foil Tech.

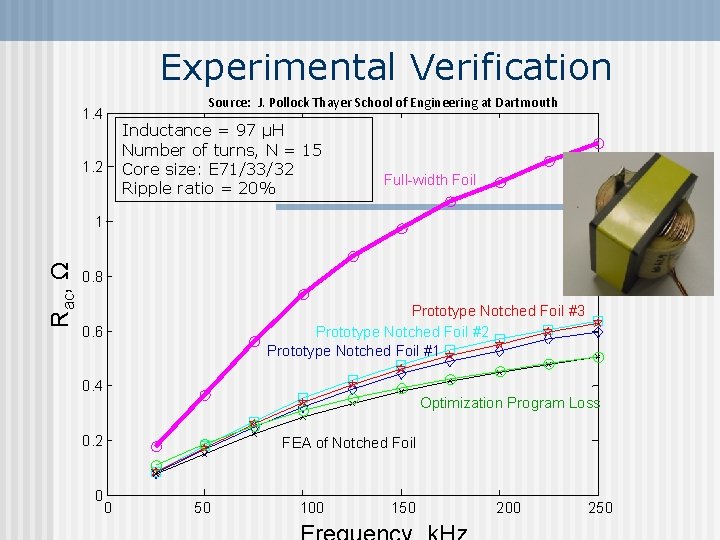

Experimental Verification Source: J. Pollock Thayer School of Engineering at Dartmouth 1. 4 Inductance = 97 μH Number of turns, N = 15 Core size: E 71/33/32 Ripple ratio = 20% 1. 2 Full-width Foil Rac, Ω 1 0. 8 Prototype Notched Foil #3 Prototype Notched Foil #2 Prototype Notched Foil #1 0. 6 0. 4 Optimization Program Loss 0. 2 0 FEA of Notched Foil 0 50 100 150 200 250

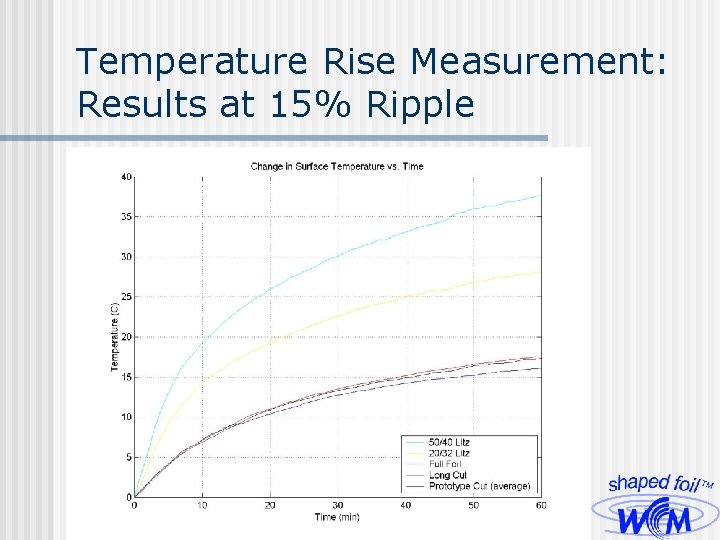

Temperature Rise Measurement: Results at 15% Ripple

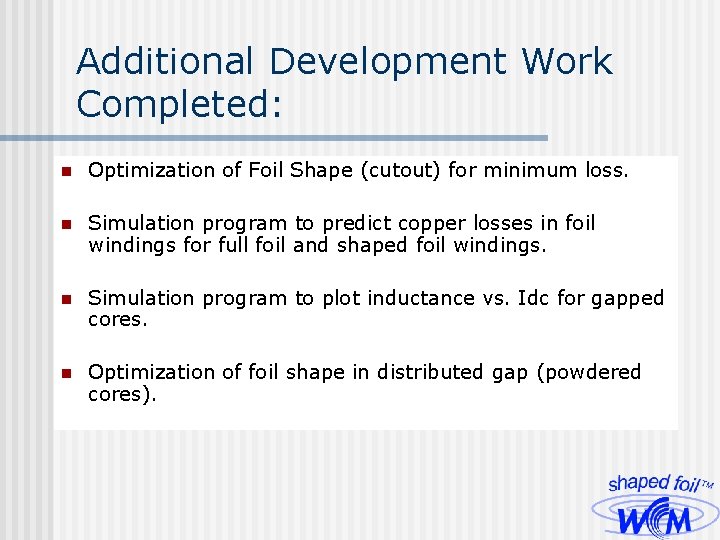

Additional Development Work Completed: n Optimization of Foil Shape (cutout) for minimum loss. n Simulation program to predict copper losses in foil windings for full foil and shaped foil windings. n Simulation program to plot inductance vs. Idc for gapped cores. n Optimization of foil shape in distributed gap (powdered cores).

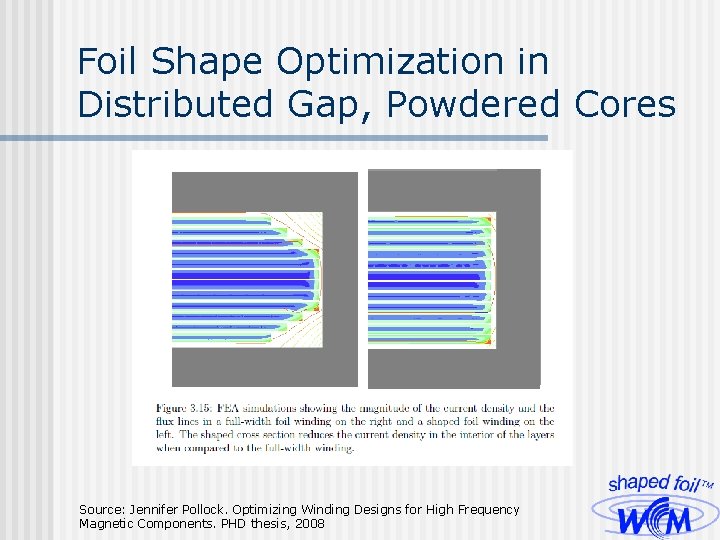

Foil Shape Optimization in Distributed Gap, Powdered Cores Source: Jennifer Pollock. Optimizing Winding Designs for High Frequency Magnetic Components. PHD thesis, 2008

Thank you for your time Weyman Lundquist, President West Coast Magnetics 4848 Frontier Way, Ste 100 Stockton, CA 95215 www. wcmagnetics. com 800 -628 -1123 The author gratefully acknowledges Professor Charles Sullivan, Thayer School of Engineering at Dartmouth and Jennifer Pollock, PHD EE for their work and contributions to this presentation.
