Flex Move FM SERIES Variety of chain type

Flex. Move FM SERIES Variety of chain type suitable for wide range of applications either horizontal or vertically product transportation. Capacity higher than FK and FS. The maximum product width to be conveyed can be referred to guide rail assembly pages . FM Series Characteristic Beam Width: 85 mm Product Width: Refer to Guide Rail Assembly Accessories Needed Slide Rail Required: FASR-25 OR FASR-25 U Slide Rail Colour: WHITE OR NATURAL COLOUR Slide Rail Material: HDPE OR UHMW FM Slide Rail Rivet and Screw: FASLR-4 X 6 or FASLS-M 5 Connecting strip is used to connect 2 beams. Connecting Strip: FACS-25 x 140 A Conveyor Beam FMCB-3 1 158 Kč <70 ks UOM : 3 Meter / Length Chain Connecting Module FMCC-160 878 Kč <4 ks UOM: pc 9. 8 Flex. Move reserves the right to make alteration without prior notification Every care has been taken to ensure the accuracy of the information contained in this catalogue but no liability can be accepted for any error or omissions. 6 -1

Flex. Move FM SERIES Standard Plain Chain FMPC-5 Chain Common Data Conductive Chain FMSD-5 2 517 Kč <45 bal Packaging: 5 m per box Pitch: 33. 5 mm Width: 83 mm Tensile Strength at 20°C: 6000 N Colour: White & Black (Conductive) Material: Chain: White Acetal / POM Pivot: Polyamide Pivot Pin : Stainless Steel Insert (Wedge and Friction): TPE Grey FM Example for FMCT-5 A 17 -L# # = 1 cleated top chain with alternate of # link of plain chain The above chain is FMCT-5 A 17 -L 1, 1 link cleated top chain with alternate of 1 link of plain chain. Note: # = 1, 2, 3, 4, 5…. . 20 Friction Top Chain FSFT-5 UOM: 5 Meter / box Application: Suitable for horizontal and slope < 5° transport of products with accumulation. Application: Suitable for transport of static sensitive product. Wedge Top Chain FMWT-5 A Wedge Top Chain FMWT-5 B 3 383 Kč <20 bal 9. 8 7 506 Kč <20 bal UOM: 5 Meter / box Application: Suitable for transport product in slope > 5 ° but <= 30 ° without accumulation. Application: Vertical Wedge transportation of products (Heavy duty). 6 -2

Flex. Move FM SERIES Roller Top Chain FMRT-5 Roller Cleat Chain FMRC-5 A-L# # = 1, 2, 3, 4, 5…. . 20 Roller Cleat Chain FMRC-5 B-L# # = 1, 2, 3, 4, 5…. . 20 FM UOM: 5 Meter / box Application: Suitable for accumulation of product with low friction and pressure. Application: Suitable for vertical transportation of product in slope with no accumulation. Cleat Top Chain FMCT-5 A 17 -L# 9. 8 Cleat Top Chain FMCT-5 A 30 -L# Magnet Top Chain FMMT-5 # = 1, 2, 3, 4, 5…. . 20 UOM: 5 Meter / box Application: Suitable for vertical transport of product with no accumulation. Application: Suitable for conveying of ferromagnetic products in slope. 6 -3

FM SERIES Flex. Move Magnet Top Chain FMMT-5 -L# # = 1, 2, 3, 4, 5…. . 20 FM UOM: 5 Meter / box Application: Suitable for conveying of ferromagnetic products in slope. 9. 8 6 -4

Flex. Move FM SERIES FM Direct End Drive with Motor (LEFT) FM Direct End Drive without Motor (LEFT) FMDD-0. 25 L, 0. 37 L, 0. 55 L FMDD-0 L 6 119 Kč <4 ks FM Max Traction Force : 1250 N The Direct End Drive Unit is without torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMDD-0 L represents direct drive without gear motor. Multi channel drives are available upon request. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter FM Direct End Drive with Motor (RIGHT) FM Direct End Drive without Motor (RIGHT) FMDD-025 R, 0. 37 R, 0. 55 R FMDD-0 R 6 119 Kč <4 ks Max Traction Force : 1250 N The Direct End Drive Unit without torque limiter. Standard attached gear motor are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMDD-0 R represents direct drive without gear motor. Multi channel drives are available upon request. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -5

Flex. Move FM SERIES FM Direct End Drive with Motor GP (LEFT) FM Direct End Drive without Motor GP (LEFT) FMDD-GP-0. 25 L, 0. 37 L, 0. 55 L FMDD-GP-0 L FM Max Traction Force : 1250 N The Direct End Drive Unit GP is used for vertical wedge conveyor. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMDD-GP-0 L represents direct drive without gear motor. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter FM Direct End Drive with Motor GP (RIGHT) FM Direct End Drive without Motor GP (RIGHT) FMDD-GP-025 R, 0. 37 R, 0. 55 R FMDD-GP-0 R 7 102 Kč <2 ks Max Traction Force : 1250 N The Direct End Drive Unit GP is used for vertical wedge conveyor Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMDD-GP-0 R represents direct drive without gear motor. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -6

Flex. Move FM SERIES FM Suspended End Drive with Motor (LEFT) FM Suspended End Drive without Motor (LEFT) FMSD-0. 25 L, 0. 37 L, 0. 55 L FMSD-0 L 11 067 Kč <2 ks FM Max Traction Force : 1250 N The Suspended End Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMSD-0 L represents direct drive without gear motor. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter FM Suspended End Drive with Motor (RIGHT) FM Suspended End Drive without Motor (RIGHT) FMSD-0. 25 R, 0. 37 R, 0. 55 R FMSD-0 R 11 067 Kč <2 ks Max Traction Force : 1250 N The Suspended End Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMSD-0 R represents direct drive without gear motor. UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -7

Flex. Move FM SERIES FM Direct Intermediate Drive with Motor (LEFT) FM Direct Intermediate Drive without Motor (LEFT) FMID-DD-0. 25 L, 0. 37 L, 0. 55 L FMID-DD-0 L FM Max Traction Force : 200 N The Direct Intermediate Drive Unit is without torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMID-DD-0 L represents direct drive without gear motor. Maximum traction force for FMIDDD is lower than FMDD and FMSD. UOM : pc Chain required 2 -way : 1. 2 meter Slide rail required 2 -way: 1. 1 meter FM Direct Intermediate Drive with Motor (RIGHT) FM Direct Intermediate Drive without Motor (RIGHT) FMID-DD-0. 25 R, 0. 37 R, 0. 55 R FMID-DD-0 R Max Traction Force : 200 N The Direct Intermediate Drive Unit is without torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMID-DD-0 R represents direct drive without gear motor. Maximum traction force for FMIDDD is lower than FMDD and FMSD. UOM : pc Chain required 2 -way : 1. 2 meter Slide rail required 2 -way: 1. 1 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -8

Flex. Move FM SERIES FM Suspended Intermediate Drive with Motor (LEFT) FM Suspended Intermediate Drive without Motor (LEFT) FMID-SD-0. 25 L, 0. 37 L, 0. 55 L FMID-SD-0 L FM Max Traction Force : 200 N The Suspended Intermediate Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMID-SD-0 L represents suspended drive without gear motor. Maximum traction force for FMID-SD is lower than FMDD and FMSD. UOM : pc Chain required 2 -way : 1. 2 meter Slide rail required 2 -way: 1. 1 meter FM Suspended Intermediate Drive with Motor (RIGHT) FM Suspended Intermediate Drive without Motor (RIGHT) FMID-SD-0. 25 R, 0. 37 R, 0. 55 R FMID-SD-0 R Max Traction Force : 200 N The Suspended Intermediate Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMID-SD-0 R represents suspended drive without motor. Maximum traction force for FMIDSD is lower than FMDD and FMSD. UOM : pc Chain required 2 -way : 1. 2 meter Slide rail required 2 -way: 1. 1 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -9

Flex. Move FM SERIES FM Suspended Catenary Drive with Motor (LEFT) FM Suspended Catenary Drive without Motor (LEFT) FMCD-SD-0. 25 L, 0. 37 L, 0. 55 L FMCD-0 L FM Max Traction Force : 1250 N The Suspended Catenary Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMCD-SD-0 L represents suspended drive without gear motor. UOM : pc Chain required 1 -way : 1. 4 meter Slide rail required 1 -way: 1. 0 meter FM Suspended Catenary Drive with Motor (RIGHT) FM Suspended Catenary Drive without Motor (RIGHT) FMCD-SD-0. 25 R, 0. 37 R, 0. 55 R FMCD-0 R Max Traction Force : 1250 N The Suspended Catenary Drive Unit is with torque limiter. Standard attached drive are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMCD-SD-0 R represents suspended drive without motor. UOM : pc Chain required 1 -way : 1. 4 meter Slide rail required 1 -way: 1. 0 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -10

Flex. Move FM SERIES FM Direct Wheel Drive with Motor FM Direct Wheel Drive without Motor FMWD-DD-0. 25, 0. 37, 0. 55 FMWD-DD-0 M FM Max Traction Force : 200 N The Direct Wheel Drive Unit is without torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMWD-DD-0 M represents wheel drive without gear motor. Maximum traction force for FMWD-DD is lower than FMDD and FMSD. UOM : pc Chain required 1 -way : 0. 7 meter Slide rail required 1 -way: 0. 7 meter FM Suspended Wheel Drive with Motor FM Suspended Wheel Drive without Motor FMWD-SD-0. 25, 0. 37, 0. 55 FMWD-SD-0 M Max Traction Force : 200 N The Suspended Wheel Drive Unit is with torque limiter. Standard attached gear motors are with SEW motor size 0. 25 k. W, 0. 37 k. W & 0. 55 k. W. FMWD-SD-0 M represents wheel drive without gear motor. Maximum traction force for FMWD-SD is lower than FMDD and FMSD. UOM : pc Chain required 1 -way : 0. 7 meter Slide rail required 1 -way: 0. 7 meter SEW gear motors are products of SEW Eurodrive. 9. 8 6 -11

Flex. Move FM SERIES FM Idler End-320 FMIE-320 3 257 Kč <16 ks FM UOM : pc Chain required 2 -way : 0. 8 meter Slide rail required 2 -way: 0. 5 meter FM Idler End-315 FMIE-315 UOM : pc Chain required 2 -way : 0. 7 meter Slide rail required 2 -way: 0 FM Idler Bend FMIB-300 UOM : pc Chain required 2 -way : 1. 6 meter Slide rail required 2 -way: 0 9. 8 6 -12

Flex. Move FM SERIES FM End Transfer Bridge c/w Roller for Drive Unit FMTB-DRR FM End Transfer Bridge w/o Roller for Drive Unit FMTB-DR FM 1 641 Kč <10 ks FM End Transfer Bridge c/w Roller for Idler Unit FMTB-IER FM End Transfer Bridge w/o Roller for Idler Unit FMTB-IE 1 476 Kč <10 ks 9. 8 6 -13

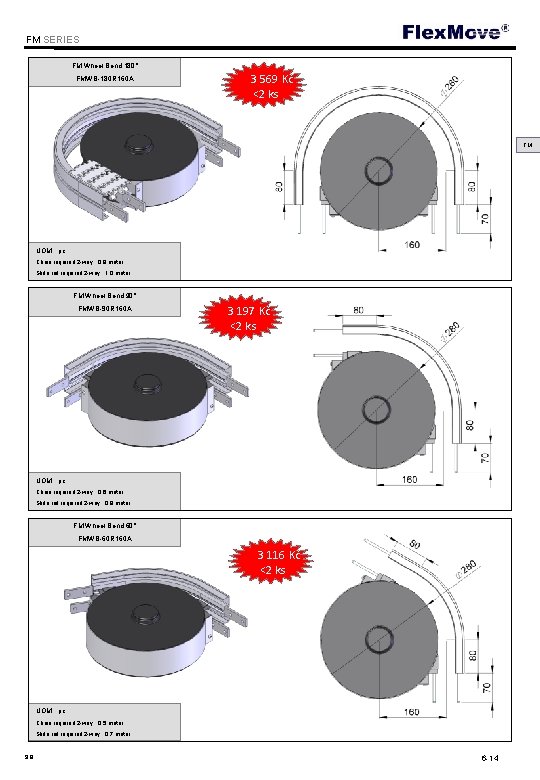

Flex. Move FM SERIES FM Wheel Bend 180° FMWB-180 R 160 A 3 569 Kč <2 ks FM UOM : pc Chain required 2 -way : 0. 9 meter Slide rail required 2 -way: 1. 0 meter FM Wheel Bend 90° FMWB-90 R 160 A 3 197 Kč <2 ks UOM : pc Chain required 2 -way : 0. 6 meter Slide rail required 2 -way: 0. 8 meter FM Wheel Bend 60° FMWB-60 R 160 A 3 116 Kč <2 ks UOM : pc Chain required 2 -way : 0. 5 meter Slide rail required 2 -way: 0. 7 meter 9. 8 6 -14

Flex. Move FM SERIES FM Wheel Bend 45° FMWB-45 R 160 A 3 027 Kč <2 ks FM UOM : pc Chain required 2 -way : 0. 5 meter Slide rail required 2 -way: 0. 6 meter FM Wheel Bend 30° FMWB-30 R 160 A 2 948 Kč <2 ks UOM : pc Chain required 2 -way : 0. 4 meter Slide rail required 2 -way: 0. 6 meter FM Wheel Bend 5° - 180° Example for FM Wheel Bend Ordering Wheel bend, Ɵ° ± 1° FMWB-Ɵ°R 160 A If an angle of 65° is needed for wheel bend, so the ordering part number is FMWB-65 R 160 A The outer bend is assembled using connecting strip (FACS-25 x 140 A). Angle of Ɵ° must be indicated when ordering. 9. 8 6 -15

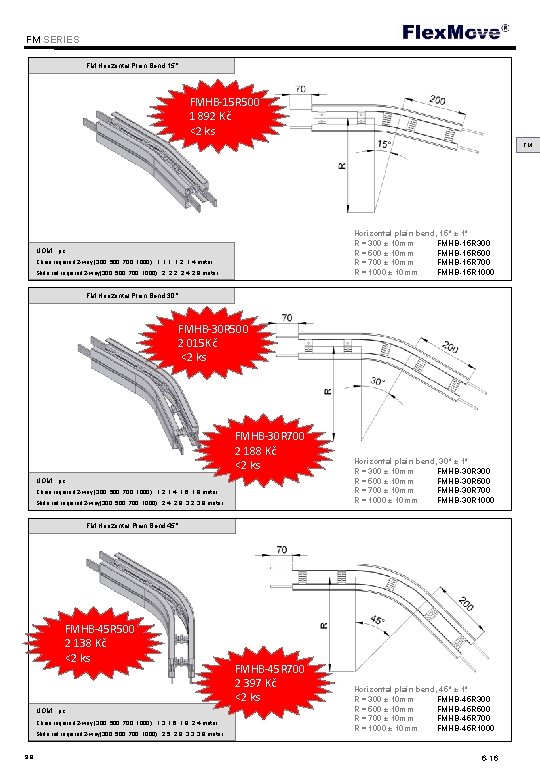

Flex. Move FM SERIES FM Horizontal Plain Bend 15° FMHB-15 R 500 1 892 Kč <2 ks FM Horizontal plain bend, 15° ± 1° R = 300 ± 10 mm FMHB-15 R 300 R = 500 ± 10 mm FMHB-15 R 500 R = 700 ± 10 mm FMHB-15 R 700 R = 1000 ± 10 mm FMHB-15 R 1000 UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 1, 1. 2, 1. 4 meter Slide rail required 2 -way(300, 500, 700, 1000): 2, 2. 4, 2. 8 meter FM Horizontal Plain Bend 30° FMHB-30 R 500 2 015 Kč <2 ks FMHB-30 R 700 2 188 Kč <2 ks UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 1. 2, 1. 4, 1. 6, 1. 9 meter Slide rail required 2 -way(300, 500, 700, 1000): 2. 4, 2. 8, 3. 2, 3. 8 meter Horizontal plain bend, 30° ± 1° R = 300 ± 10 mm FMHB-30 R 300 R = 500 ± 10 mm FMHB-30 R 500 R = 700 ± 10 mm FMHB-30 R 700 R = 1000 ± 10 mm FMHB-30 R 1000 FM Horizontal Plain Bend 45° FMHB-45 R 500 2 138 Kč <2 ks UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 1. 3, 1. 6, 1. 9, 2. 4 meter Slide rail required 2 -way(300, 500, 700, 1000): 2. 5, 2. 9, 3. 3, 3. 9 meter 9. 8 FMHB-45 R 700 2 397 Kč <2 ks Horizontal plain bend, 45° ± 1° R = 300 ± 10 mm FMHB-45 R 300 R = 500 ± 10 mm FMHB-45 R 500 R = 700 ± 10 mm FMHB-45 R 700 R = 1000 ± 10 mm FMHB-45 R 1000 6 -16

FM SERIES FM Horizontal Plain Bend 60° FM FMHB-60 R 500 2 393 Kč <2 ks UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 1. 5, 1. 9, 2. 3, 2. 9 meter Horizontal plain bend, 60° ± 1° R = 300 ± 10 mm FMHB-60 R 300 R = 500 ± 10 mm FMHB-60 R 500 R = 700 ± 10 mm FMHB-60 R 700 R = 1000 ± 10 mm FMHB-60 R 1000 Slide rail required 2 -way(300, 500, 700, 1000): 2. 9, 3. 7, 4. 6, 5. 8 meter FM Horizontal Plain Bend 90° FMHB-90 R 500 2 686 Kč <2 ks FMHB-90 R 500 3 005 Kč <2 ks UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 1. 8, 2. 4, 3. 0, 4. 0 meter Horizontal plain bend, 90° ± 1° R = 300 ± 10 mm FMHB-90 R 300 R = 500 ± 10 mm FMHB-90 R 500 R = 700 ± 10 mm FMHB-90 R 700 R = 1000 ± 10 mm FMHB-90 R 1000 Slide rail required 2 -way(300, 500, 700, 1000): 3. 5, 4. 8, 6. 0, 8. 0 meter 9. 8 6 -17

Flex. Move FM SERIES FM Horizontal Plain Bend 180° Horizontal plain bend, 180° ± 1° R = 300 ± 10 mm FMHB-180 R 300 R = 500 ± 10 mm FMHB-180 R 500 R = 700 ± 10 mm FMHB-180 R 700 R = 1000 ± 10 mm FMHB-180 R 1000 FM UOM : pc Chain required 2 -way (300, 500, 700, 1000) : 2. 7, 4. 0, 5. 2, 7. 1 meter Slide rail required 2 -way(300, 500, 700, 1000): 5. 4, 7. 9, 1. 1, 14. 2 meter FM Horizontal Plain Bend 5° - 180° Example for FM Horizontal Plain Bend Ordering Horizontal plain bend, Ɵ° ± 1° R = 300 ± 10 mm R = 500 ± 10 mm R = 700 ± 10 mm R = 1000 ± 10 mm FMHB-Ɵ°R 300 FMHB-Ɵ°R 500 FMHB-Ɵ°R 700 FMHB-Ɵ°R 1000 If an angle of 120° is needed for radius R 500 horizontal plain bend, so the ordering part number is FMHB-120 R 500 UOM : pc Chain required 2 -way (300, 500, 700, 1000) : meter (variable to angle) Slide rail required 2 -way(300, 500, 700, 1000): meter (variable to angle) 9. 8 6 -18

Flex. Move FM SERIES FM Vertical Bend 5° FMVB-5 R 400 1 529 Kč <2 ks FM UOM: pc Chain required 2 -way: 0. 4 meter Slide rail required 2 -way: 0. 8 meter FM Vertical Bend 10° FMVB-10 R 400 1 803 Kč <2 ks UOM: pc Chain required 2 -way: 0. 5 meter Slide rail required 2 -way: 1. 0 meter FM Vertical Bend 15° FMVB-15 R 400 1 947 Kč <2 ks UOM: pc Chain required 2 -way: 0. 6 meter Slide rail required 2 -way: 1. 1 meter 9. 8 6 -19

Flex. Move FM SERIES FM Vertical Bend 20° FMVB-20 R 400 FM UOM: pc Chain required 2 -way: 0. 6 meter Slide rail required 2 -way: 1. 2 meter FM Vertical Bend 30° FMVB-30 R 400 UOM: pc Chain required 2 -way: 0. 8 meter Slide rail required 2 -way: 1. 5 meter FM Vertical Bend 45° FMVB-45 R 400 UOM: pc Chain required 2 -way: 1. 0 meter Slide rail required 2 -way: 1. 9 meter 9. 8 6 -20

Flex. Move FM SERIES FM Vertical Bend 60° FMVB-60 R 400 FM UOM: pc Chain required 2 -way: 1. 2 meter Slide rail required 2 -way: 2. 4 meter FM Vertical Bend 90° FMVB-90 R 400 UOM: pc Chain required 2 -way: 1. 6 meter Slide rail required 2 -way: 3. 2 meter 9. 8 6 -21

FM SERIES Flex. Move FM Vertical Bend 5° - 90° Example for FM Vertical Bend Ordering FM Vertical bend, Ɵ° ± 1° FMVB-Ɵ°R 400 If an angle of 65° is needed for vertical bend, so the ordering part number is FMVB-65 R 400 The outer bend is assembled using connecting strip (FACS-25 x 140 A). Angle of “Ɵ°” must be indicated when ordering. 9. 8 6 -22
