Dell EMC Storage NX NAS DELL EMC Korea
- Slides: 19
Dell EMC Storage NX NAS 시리즈 : 고성능의 경제적인 스토리지 DELL EMC Korea
Dell EMC Storage NX Windows NAS 시리즈 Dell Storage NX 3230 Power. Vault NX 400 • 턴키 방식, 엔트리급 NAS • SMB 또는 원격 사무실 • Windows Storage Server 2012 R 2 Standard 또는 Workgroup • Windows Storage Server 2012 R 2 Standard • 최대 72 TB 용량의 2 U • 8 최대 16 TB 용량의 1 U Dell Storage NX 3330 • • 중간 규모 기업 • Windows Storage Server 2012 R 2 Standard • 1 U로 최대 64개 클러스터 노드 지원 Dell 기본 스토리지용 게이 트웨이 • 성능과 용량을 유지하면서 경제적인 스토리지 제공 • Windows Storage Server 2012 R 2의 엔터프라이즈급 기능과 성능 • 에너지 효율 기능이 내장된 최신 세대 Power. Edge 서버 하드웨어 * Power. Vault NX 400은 Power. Edge 12대 서버에 설치됨 Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential
Dell EMC Storage NX Windows NAS 시리즈 14 G Power. Vault NX 430 Dell EMC NX 3240 • 턴키 방식, 엔트리 규모 NAS • SMB 또는 원격 사무실 • Windows Storage Server 2016 Standard 또는 Workgroup • Windows Storage Server 2016 Standard • 2 U Rack 공간에 최대 192 TB까지 구성 • 1 U Rack 공간에 최대 40 TB까지 구성 9 14 G Dell EMC NX 3340 • Highly available clustered 로 구성된 모델 • Windows Storage Server 2016 Standard • 1 U Rack 공간에 최대 64 cluster nodes 제공 • 성능, 용량에 경제성을 갖춘 NAS 스토리지 • Windows Storage Server 2016 을 통해 Enterprise 급의 다양한 Feature 제공 • Energy efficiency가 built-in 된 Power. Edge server 를 하드웨어로 채용 Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential
Dell EMC Storage NX Windows NAS 시리즈 구성 및 특징 10 NX 400 NX 3230 NX 3330 최대 시스템 용량(물리) 16 TB 72 TB SAS , FC , i. SCSI 연결된 공유 스토 리지 어레이 활용 탑재 드라이브 3. 5”(7. 2 K rpm) SATA 또는 (7. 2 K rpm) , NL-SAS x 4 3. 5”(7. 2 K rpm) NL-SAS 또는 (10 K/15 K rpm) , SAS x 12 2. 5”(10 K rpm) 드라이브 용량 500 GB, 1 TB, 2 TB(SATA) 1 TB, 2 TB, 3 TB, 4 TB(NL-SAS) 1 TB, 2 TB, 4 TB, 6 TB(NL-SAS), 600 GB 1. 2 TB(10 K SAS) , 600 GB(15 K SAS) 300 GB(10 K SAS) 스토리지 캐쉬 8 GB / 16 GB 최대 32 GB 최대 64 GB 지원되는 프로토콜 CIFS, NFS, FTP, SMB 3. 0, SMB Direct (RDMA), Active Directory CIFS, NFSv 4. 1, FTP, SMB 3. 0, SMB Direct (RDMA), Active Directory 인터페이스(프런트) 10 Gb, 1 Gb, 8 G/ 16 G FC HBA지원 지원되는 스토리지 어레이 - Power. Vault MD 1200 expansion enclosures Power. Vault MD 3, Equal. Logic 및 Compellent 시리즈 관리 DELL Open. Manage 폼 팩터 1 U 2 U 1 U 최대 구성시 무게 16. 33 Kg 27. 6 Kg 16. 9 Kg * Power. Vault NX 400은 Power. Edge 12대 서버에 설치됨 Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential
Windows Storage Server 2016 - 포지셔닝 • Workgroup • Standard Simplified Offerings 간결한 구성옵션 • Segment에 따라 간단히 옵션 선택 업무 용도에 따른 기능 옵션 확장 • 모든 Segment에서 매력적인 가격을 통해 Continuously Available NAS solutions 탑재 가 능 Solution Cost Two Editions: Continuous Availability No Continuous Availability Entry Level NAS Scale Up NAS Segments 11 Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential CA NAS
Software Features Users Hardware WSS 2016 Workgroup + WSS 2016 Standard 13 Maximum # CPU’s and VM rights Maximum Memory # Disks Hardware RAID Concurrent SMB Connections # Users File sharing (SMB & NFS) Online Backup DFS-Replication File Classification Infrastructure (FCI) File Server Resource Manager (FSRM) Domain Join Shared block storage (i. SCSI Target + Boot) OEM Customizable Out of Box Experience Spaces Deduplication Branch. Cache - Hosted Cache Virtualization Clustering (including AD/DNS) Simplified Cluster Setup Networking Infra (DHCP, DNS & WINS) AD Roles including Domain Controller (RODC) Active Directory (Domain Controller, Certificate Services, Federation Services, Rights Management) Application Server, Network Policy, Remote Desktop Broker, WDS and Fax Server Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential Workgroup Standard 1+0 32 GB 6 Yes 250 2+2 Unlimited Yes Unlimited 50 Unlimited Yes Yes Yes No No Yes Yes Yes Host + 2 VM Yes Yes No No No Differentiators: Key Workgroup Limits: • 50 Users • 250 SMB Connections: • • • (50 users with file and print = 100 SMB sessions) (8 node cluster with 4 NICs using SMB multichannel = 128 SMB connections. ) 1 Socket 32 GB RAM 6 Disks, no external SAS Premium Features In Standard: • Deduplication • Hosted Branch. Cache • Clustering • Virtualization Rights • Network infrastructure for a branch office Features Not in storage server: • Storage Spaces Direct and Volume Replication • Domain Controller, Certificate Services, Federation Services, Rights Management • Application Server, Network Policy Server, Terminal Services, WDS and Fax Server

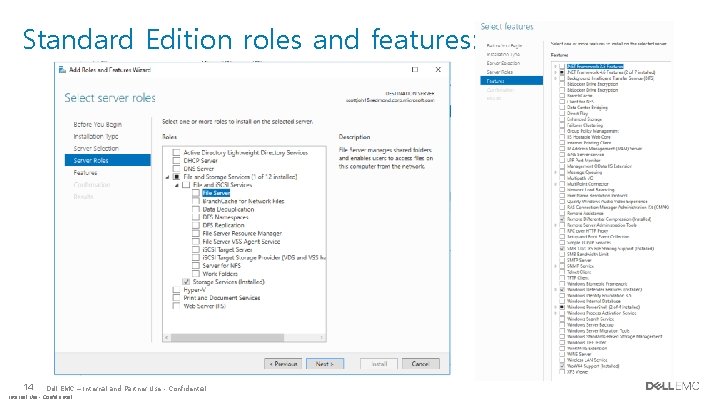

Standard Edition roles and features: 14 Dell EMC – Internal and Partner Use - Confidential Internal Use - Confidential
