Decision I if Statement CSCE 106 Outline What
- Slides: 22
Decision I (if Statement) CSCE 106
Outline § What is Decision § if statement (section 4. 3) § Relational & equality operators § Logical operators § Multiple Decision - Nested if statements (section 4. 7) § if statement with compound alternatives (section 4. 4) CSCE 106 2
Decision Or selection is the choice of alternate paths (branches) depending on a condition that may arise in the logical flow of the algorithm. CSCE 106 3
if Statement if (condition) statement. T; else optional statement. F; two alternatives § if allows a question to be asked § There are two basic forms for an if statement: a dependent (conditional) statement u a choice between two alternatives u CSCE 106 4
Table 4. 1 CSCE 106 Rational and Equality Operators 5
Relational & Equality Operators (cont’d) § Relational expressions (conditions) are used to perform tests for selecting among alternative statements to execute. § Typical forms: variable relational-operator variable relational-operator constant equality-operator variable equality-operator constant § Evaluate to Boolean (bool) value of true or false CSCE 106 6
Examples x y -5 -5 x <= 0 true CSCE 106 -5 7 7 x >= y false 7
Logical Operators § What if you have more complex conditions, like checking ranges (0<x<y)? § The normal way you represent ranges is not valid in programming. § You use logical operators to form more complex conditions && (and) || (or) ! (not) § E. g. (10000 < salary) && (salary <= 20000) (salary < min. Salary) || (dependents > 5) (temperature > 90. 0) && (humidity > 0. 90) winning. Record && (!probation) CSCE 106 8

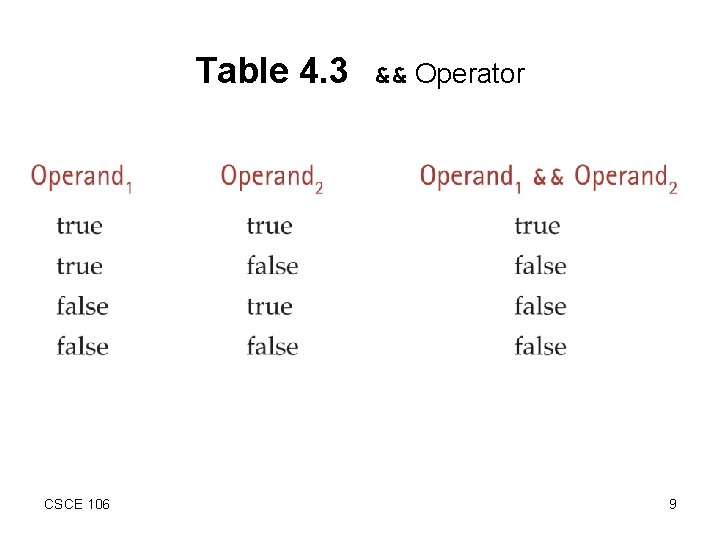

Table 4. 3 CSCE 106 && Operator 9

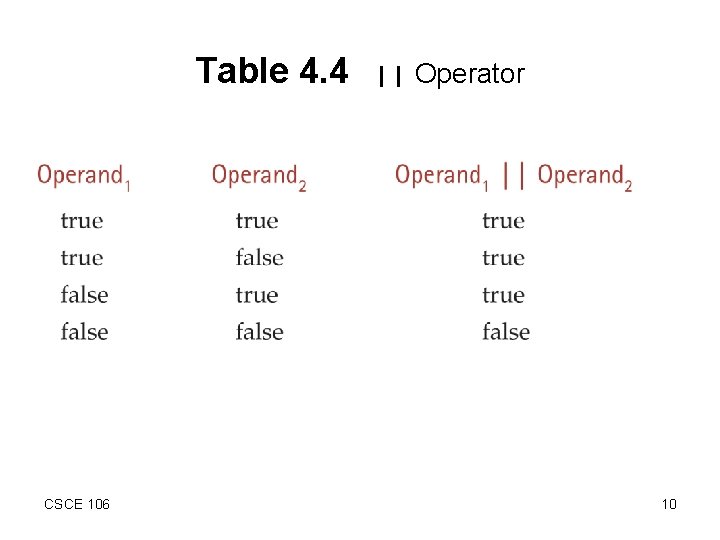

Table 4. 4 CSCE 106 || Operator 10

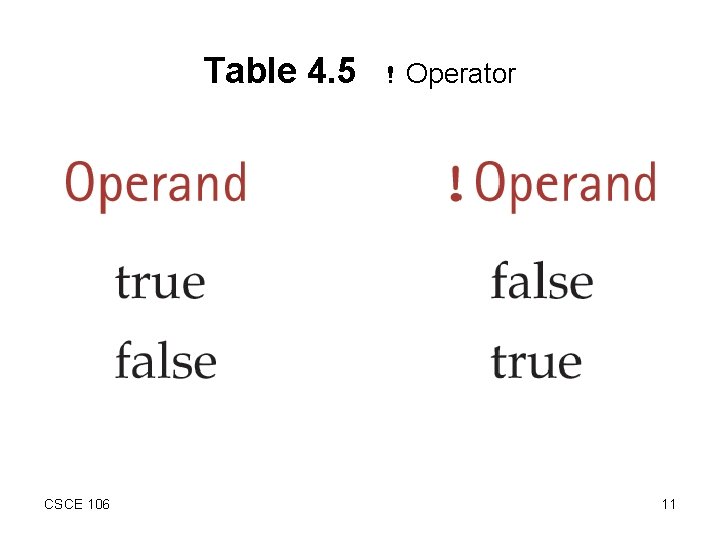

Table 4. 5 CSCE 106 ! Operator 11
Exercise Please analyse, design and implement an algorithm to calculate and output the tax due according to the annual income which is input by the user. The tax rate should be calculated as follows: Tax rate = 10% for annual income < 20, 000 LE = 20% for annual income >= 20, 000 CSCE 106 12
Solution Steps § Problem statement/Requirements phase. § Analysis Input: income u Output: tax. Due u Additional program variables. u Processing formulas. u § Design phase. § Implementation phase. § Testing phase. CSCE 106 13
START § Design INPUT income tax. Due = income * 0. 1 True income < 20000 ? False tax. Due = income * 0. 2 if (income < 20000) tax. Due = income * 0. 1; else tax. Due = income * 0. 2; OUTPUT tax. Due CSCE 106 STOP 14
Multiple Selection § Problem Modification Tax rate = 10% for annual income < 20, 000 LE = 20% for 20, 000<=annualincome<30000 = 30% for annual income >= 30, 000 CSCE 106 15
§ Design Modification tax. Due = income * 0. 1 True if (income < 20000) tax. Due = income * 0. 1; else income < 20000 ? False tax. Due = income * 0. 2 True income < 30000 ? if (income < 30000) tax. Due=income*0. False 2; tax. Due = income * 0. 3 else tax. Due=income* 0. 3; Nested if Statements CSCE 106 16
Nested if Statements § Nested logic, in general, is one control structure containing another similar control structure § E. g. one if statement inside another § Makes it possible to code decisions with several alternatives CSCE 106 17
General Form if (condition 1) statement 1; else if (condition 2) statement 2; . . . else if (conditionn) statementn; else statemente; CSCE 106 18
Example if (x > 0) num. Pos = num. Pos + 1; else if (x < 0) num. Neg = num. Neg + 1; else // x must equal 0 num. Zero = num. Zero + 1; CSCE 106 19
if Statements with Compound Alternatives § Uses { } to group multiple statements. § Any statement type (e. g. assignment, function call, if) can be placed within { }. § Entire group of statements within { } are either all executed or all skipped when part of an if statement. CSCE 106 20
Example if (transaction. Type == ‘c’) { // process check cout << “Check for $” << transaction. Amount << endl; balance = balance - transaction. Amount; } else { // process deposit cout << “Deposit of $” << transaction. Amount << endl; balance = balance + transaction. Amount; } CSCE 106 21
Next lecture we will continue decision construct in C++ CSCE 106 22
