Cryptanalysis of the Revised NTRU Signature Scheme NSS

Cryptanalysis of the Revised NTRU Signature Scheme (NSS) Craig Gentry (Do. Co. Mo) Mike Szydlo (RSA)

A Brief History of NSS • “Preliminary NSS” • Presented at Crypto 2000 Rump • Broken by Mironov, and by the inventors • NSS in Eurocrypt 2001 proceedings • Forgery / key recovery attacks presented at Eurocrypt Rump by Gentry, Jonsson, Stern, and Szydlo • Motivated new key-gen, sign, and verify procedures • “Revised” NSS • Sketched at Eurocrypt 2001, details in EESS doc (May) • Still insecure – we give key recovery attacks… Cryptanalysis of the Revised NTRU Signature Scheme / 2

Revised NSS, Details • Basic Elements are Polynomials. • Full (unreduced ring) is Z[x]/(x. N-1), (N = 251) • (Also Called Cyclotomic Integers). • Multiplication in ring also called convolution. • Auxiliary Rings and Polynomials • Truncated Polynomial Ring Z[x]/(x. N-1) mod 128 • A Small Polynomial” has only {-1, 0, 1} coefficients. Cryptanalysis of the Revised NTRU Signature Scheme / 3

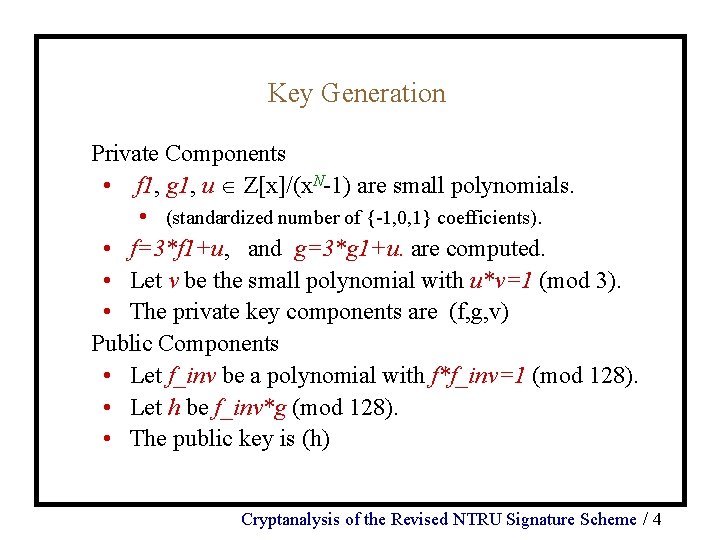

Key Generation Private Components • f 1, g 1, u Z[x]/(x. N-1) are small polynomials. • (standardized number of {-1, 0, 1} coefficients). • f=3*f 1+u, and g=3*g 1+u. are computed. • Let v be the small polynomial with u*v=1 (mod 3). • The private key components are (f, g, v) Public Components • Let f_inv be a polynomial with f*f_inv=1 (mod 128). • Let h be f_inv*g (mod 128). • The public key is (h) Cryptanalysis of the Revised NTRU Signature Scheme / 4

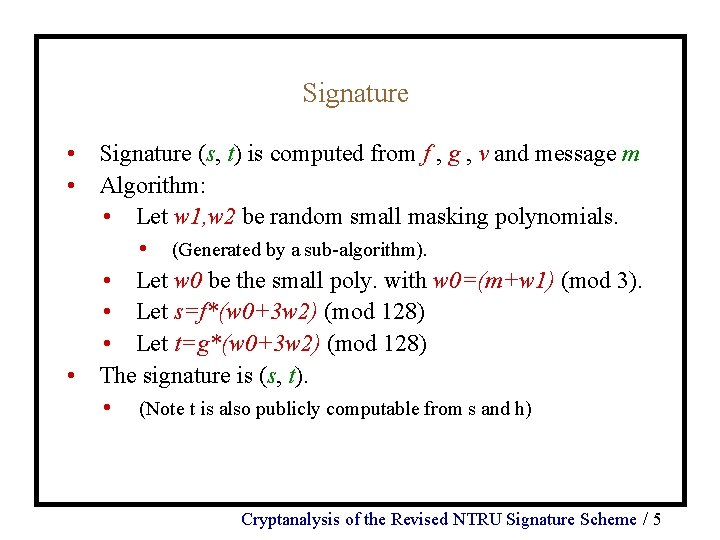

Signature • Signature (s, t) is computed from f , g , v and message m • Algorithm: • Let w 1, w 2 be random small masking polynomials. • (Generated by a sub-algorithm). • Let w 0 be the small poly. with w 0=(m+w 1) (mod 3). • Let s=f*(w 0+3 w 2) (mod 128) • Let t=g*(w 0+3 w 2) (mod 128) • The signature is (s, t). • (Note t is also publicly computable from s and h) Cryptanalysis of the Revised NTRU Signature Scheme / 5

Verification • Multiple Tests, including • Norm Conditions • Use division modulo 128 and centered norm. • | (s-m)/p | < B, and | (t-m) | < B. • | (s-t)/p | < B 2, and | (t-m) | < B. • Distribution Tests • “Mod 3” - Bounds on # coefs of s & t (mod 3). • “Quartile” - Bounds # of coefs in [-64, 64] • Thus s and t appear to be from right distribution. Cryptanalysis of the Revised NTRU Signature Scheme / 6

Lifting the Signatures • Design motivation of reduction mod q • Hide more information about f and g. • Only known lattice was dimension 2 N. (NTRU Lattice) • “Unreduced” signatures would allow dim N. Attacks. • For “equivalent” security use half the key size • Lifting Technique: Apply CRT to congruences: • f*w=m+w 1 (mod 3), s=m (mod 128) • The unknown w 1 coefs. are mostly 0. • Result: Nearly have the lifted multiples: f * w and g * w • Approximations have about 25 errors (out of 251) Cryptanalysis of the Revised NTRU Signature Scheme / 7

Finishing the Lifting • Goal: Find f * w and g * w, error-free. • Take short transcript of signatures: (Si , Tj) • Observation: We know correct liftings • (f * wi) * (g * wj) – (f * wj) * (g * wi) = 0 Si * Tj – Sj * Ti Measures the errors • Iterative Error-Correction: Choose the correction to (Si, Ti) that sends Si * Tj – Sj * Ti closest to 0. • 4 signatures, 25 seconds we get unreduced signatures Cryptanalysis of the Revised NTRU Signature Scheme / 8

We Could Stop Here • By finding unreduced f * w and g * w, we’ve already broken revised NSS. • Dim N lattice (instead of 2 N) – exp. easier to reduce w is GCD Cryptanalysis of the Revised NTRU Signature Scheme / 9

Computing f * frev Quickly • We average sigs to obtain f * frev approximately. S * Srev f * frev Converges Quickly! • We use approximation in N/2 Dim CVP lattice. • With < 10 sigs (to obtain approx), LLL gives us f * frev exactly. Cryptanalysis of the Revised NTRU Signature Scheme/10

A Polynomial-time Approach • Textbook GCD approach appears to be exp. in N • Our approach: Polynomial in N (after experimentally very fast steps) Preliminary step • Fast step: Compute f * frev. • Poly step: Use f * frev and f * w to compute f. • Running times: • Fast step: Less than 1 minute for sugg. parameters • Poly step: Not implimented, but provably O(N 7). Cryptanalysis of the Revised NTRU Signature Scheme /

Get f from f * frev and f * w in Polynomial-time • We help LLL – it doesn’t always find shortest vector! Fact: f p-1 1 (mod p) • • for prime p 1 (mod N) Use LLL to get f p-1 * a. We know a (mod p), thus maybe a exactly. Compute f p-1. Not difficult to compute f from power of f. This algorithm is efficient because LLL does not have to find the shortest vector in the lattice. Cryptanalysis of the Revised NTRU Signature Scheme /

Other Attacks • Polynomial attack shows can’t just increase key size • Alternate attacks using Lattices might be more efficient. • Compute the ratio g/f in Z[x]/(x. N-1) mod Q. • Bigger Q improves lattice constants. • Can translate into traditional Knapsack • Gram Matrix Attack: (find the circulant M_f) • A known matrix M defines GCD (f). • Let G= U*U_rev= UF M_(1/f*f_rev) F_rev U_rev. • Factor G with “modular-Gram-LLL” Cryptanalysis of the Revised NTRU Signature Scheme /

Conclusion • These attacks render revised NSS (with sugg. parameters) very weak. • We have presented a 3 -Stage Attack • First 2 stages very fast, use about 10 sigs. • Last stage polynomial in N. • First stage is enough to dramatically reduce its security. Cryptanalysis of the Revised NTRU Signature Scheme /
