CPSC 410: Software Architectural Style (Part I) • By the end of this lecture, you will be able to: • list various software architectural styles • describe advantages and disadvantages of call-and-return and data-flow (sub-)styles • be able to select and apply one of these styles

Architectural style (Buildings) Early Gothic Architecture Notre Dame, Paris 18 th Century Georgian Architecture “Old Corner Bookstore” Boston MA 2

Styles and patterns • Identifying styles (and patterns) can help codify and share knowledge/expertise • Architectural Styles [Shaw and Garlan, Software Architecture, Prentice Hall 96] • Design Patterns [Gamma, Helm, Johnson, Vlissides, Design Patterns, Addison Wesley 95] [Buschmann et. Al, Pattern-oriented Software Architecture: A System of Patterns, John Wiley & Sons 96] • Code Patterns [Coplien, Advanced C++ Programming Styles and Idioms, Addison-Wesley 91] 3

Architectural styles • A style consists of: • a set of component types (e. g. , process, procedure) that perform some function at runtime • a topological layout of the components showing their runtime relationships • a set of semantic constraints • a set of connectors (e. g. , data streams, sockets) that mediate communication among components • Styles provide a framework on which to base design From Chapter 5, Software Architecture in Practice, p. 94 4

A catalog of architectural styles Today Next Time 5

Example System: KWIC • The KWIC index system accepts: • an ordered set of lines • each line is an ordered set of words • each word is an ordered set of characters • Every line is "circularly shifted" and copied by: • repeatedly removing the first word • appending it at the end of the line • Outputs a listing of all circular shifts of all lines in alphabetical order • “On the Criteria To Be Used in Decomposing Systems into Modules” –David Parnas 6

KWIC Example Input: bar sock car dog town fog Four steps: Input Circular shift Alphabetize Output: bar sock car dog car fog town sock bar town fog Circular shift positions: 1 5 10 14 18 23 Alphabetize: 1 10 14 23 5 18 7

Design Considerations • Changes in algorithm: line shifting can be performed … • on each line as it is read from the input device • on all the lines after they are read • on demand when the alphabetization requires a new set of shifted lines • Changes in data representation: circular shifts … • can be stored explicitly • implicitly (as index and offsets) • Extra Features: • Have the system eliminate circular shifts that start with certain noise words (such as "a", "and", etc. ). • Make the system interactive • allow the user to delete lines from original list and re-output alphabetized list • Performance: Both space and time • Reuse: To what extent can the components serve as reusable entities 8

Call-and-Return style • Goal: achieve modifiability and scalability • Substyles: • Main-program-and-subroutine • Decompose program hierarchically. Each component gets control from its parent. • Object-oriented 9

Object-oriented sub-style • Objects help achieve modifiability by encapsulating internal secrets from environment • Access to objects is only through methods (constrained forms of procedure calls) 10

• Input: read lines and stores them in Text array (buffer), index records starting position of each line • Circular shift: Creates an index of starting positions for circular shifts, stores these in Word index • Alphabetizer: Takes the input from Text array and Word index, creates an index of shifts which are alphabetized 11

Design Considerations • Changes in algorithm: • Somewhat, however explicit data structure limits possibilities • “Show me your data structures and I’ll tell your algorithm” – Fred Brooks • Changes in data representation: • Not possible, because data is made available explicitly to all components. • Extra Features: • Have the system eliminate circular shifts that start with certain noise words • Medium, requires changes to existing component • Make the system interactive • Medium, requires changes to Alphabetizer • Performance: • Space: Good, data is shared • Time: Bad, no concurrency • Reuse: To what extent can the components serve as reusable entities • Bad, explicit data representation dependencies 12

• Line storage: Exports operations for getting characters in different positions • Circular shifter: function SHIFT(l, w, c) returns cth character in the wth word of the lth shift • Alphabetizer: function ITH(i) returns lines in sorted order 13

Design Considerations • Changes in algorithm: • Good, data is made available through fine-grained operations • Example: Alphabetizer can compute lines “on-demand” saving work if we stop early • Changes in data representation: • Good, data is hidden behind interface • Example: Line storage could keep information from disk • Extra Features: • Have the system eliminate circular shifts that start with certain noise words • Medium, requires changes to existing component • Make the system interactive • Medium, may require Alphabetizer to interact with Line storage • Performance: • Space: Good, data can be shared through function calls • Time: Bad, no concurrency • Reuse: To what extent can the components serve as reusable entities • Medium, explicit interface dependencies 14

Data-Flow style Goals: achieve reuse and modifiability Data-flow Batch Sequential • components are independent programs • each step runs to completion before the next starts • each batch of data is transmitted as a whole between steps Classic data-processing approach 15 Pipes and Filters

Pipe-and-Filter sub-style • Incremental transformation of data by successive components • Filters transform data using little contextual information and retain no state between instantiations • Pipes are stateless and are used to move streams of data between filters • A pipe’s source end connects to a filter’s output port; sink end connects to filter’s input port • Ex. • cat file | gawk ‘/. */ { if (match($0, ”; {}”)) print $0; }’ | wc 16

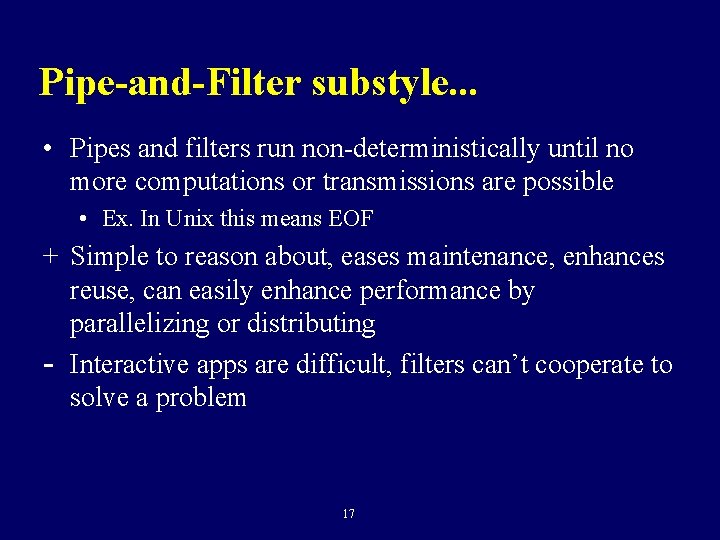

Pipe-and-Filter substyle. . . • Pipes and filters run non-deterministically until no more computations or transmissions are possible • Ex. In Unix this means EOF + Simple to reason about, eases maintenance, enhances reuse, can easily enhance performance by parallelizing or distributing - Interactive apps are difficult, filters can’t cooperate to solve a problem 17

• Each component creates actual text representation for output to passes to next component • Simple design, easy to understand 18

Design Considerations • Changes in algorithm: • Good, as long as it doesn’t require sharing data • Example: Alphabetizer can use any sorting routine • Changes in data representation: • Bad, data is passed explicitly as complete text • Extra Features: • Have the system eliminate circular shifts that start with certain noise words • Good, easy to insert new component in pipeline • Make the system interactive • Bad, there is no stored intermediate representation • Performance: • Space: Bad, data must be copied • Time: • Good, components run in parallel • Bad, copying takes time • Reuse: To what extent can the components serve as reusable entities. • Good, depends only on very common textual representation 19

Heterogeneous Use • Systems are generally built from multiple styles • Three kinds of heterogeneity: • Locationally heterogeneous: Some components in one style participate in another style • Ex. A layer in a layered style is also a client in client-server architecture • Components make use of other styles • Simultaneously heterogeneous: its actually two different styles • Ex. Client-Server Layered Style • All components play simultaneous roles • Hierarchically heterogeneous: a component of one style, when decomposed is structured according to another style • Ex. A filter written using objects • Complete encapsulation 20

Key points from today • Describe advantages and disadvantages of call-andreturn and data-flow (sub-)styles • Be able to select and apply the call-and-return or data -flow (sub-)styles • Sample questions: • Portability is important for the system being built, what style might you choose? • Here are the requirements for a system x … sketch a pipeand-filter architectural design for the system 21
