Contrail and Federated Identity Management Philip Kershaw, RAL Space, STFC Jensen, e-Science, STFC (and

Contrail and Federated Identity Management Philip Kershaw, RAL Space, STFC Jensen, e-Science, STFC (and others: XLab, CNR, INRIA …) contrail is co-funded by the EC 7 th Framework Programme 1

Outline • Contrail overview and goals • Architecture • Single sign-on • Delegation requirements

Outline • Contrail overview and goals • Architecture • Single sign-on • Delegation requirements • Delegation solutions • OAuth flow • Conclusions • Collaborations 2 contrail-project. eu

Contrail Overview and Goals • EC FP 7 Project, led by INRIA, 36 month,

Contrail Overview and Goals • EC FP 7 Project, led by INRIA, 36 month, completes Sept 2013 • Federation of cloud providers • Federation with external Id. Ps • “Elastic” CAs for dynamically created services • Autonomous SLA management from SLA@SOI project • Iaa. S and Paa. S integration • Reuse of existing open standards: OVF OCCI CDMI WS-Security SLA@SOI models 3 contrail-project. eu

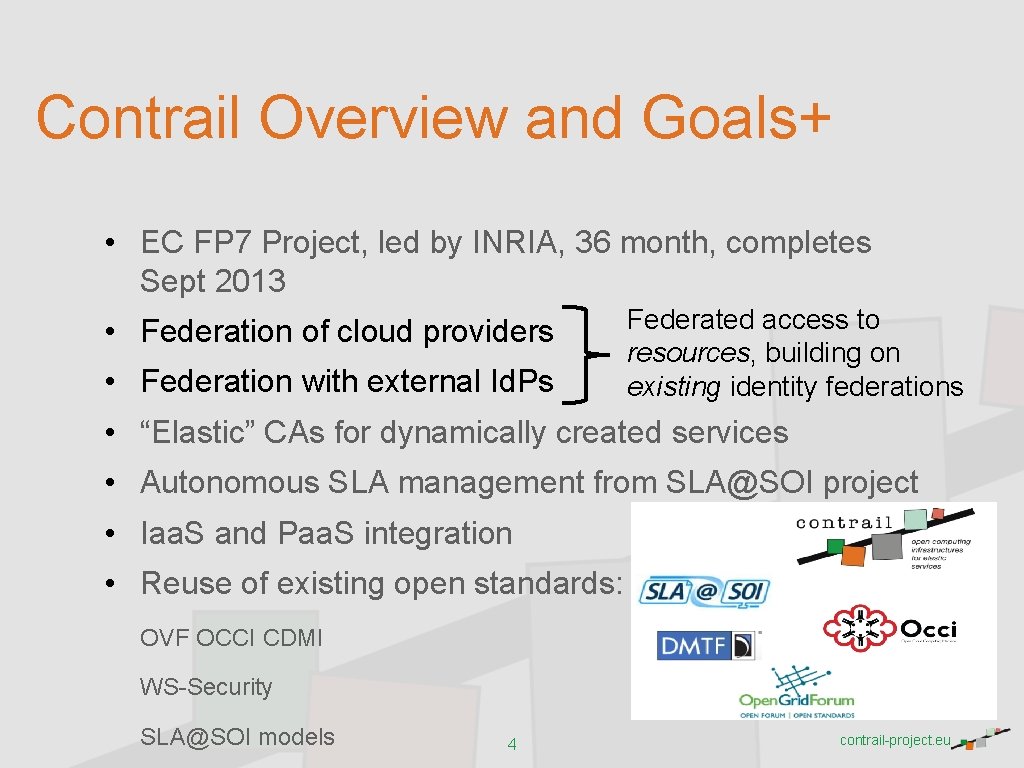

Contrail Overview and Goals+ • EC FP 7 Project, led by INRIA, 36 month,

Contrail Overview and Goals+ • EC FP 7 Project, led by INRIA, 36 month, completes Sept 2013 • Federation of cloud providers • Federation with external Id. Ps Federated access to resources, building on existing identity federations • “Elastic” CAs for dynamically created services • Autonomous SLA management from SLA@SOI project • Iaa. S and Paa. S integration • Reuse of existing open standards: OVF OCCI CDMI WS-Security SLA@SOI models 4 contrail-project. eu

Architecture Federation CLI Browser and rich client access Federation Web Portal REST API Online

Architecture Federation CLI Browser and rich client access Federation Web Portal REST API Online CA Federation core Federation Identity Provider Federation of Cloud Providers 5 contrail-project. eu

Architecture – Single Sign-on Federation CLI Browser Single Sign-on Federation Web Portal Credentials mapping

Architecture – Single Sign-on Federation CLI Browser Single Sign-on Federation Web Portal Credentials mapping REST API Online CA Federation core Federation Identity Provider Single Sign-on Cloud Providers 6 contrail-project. eu

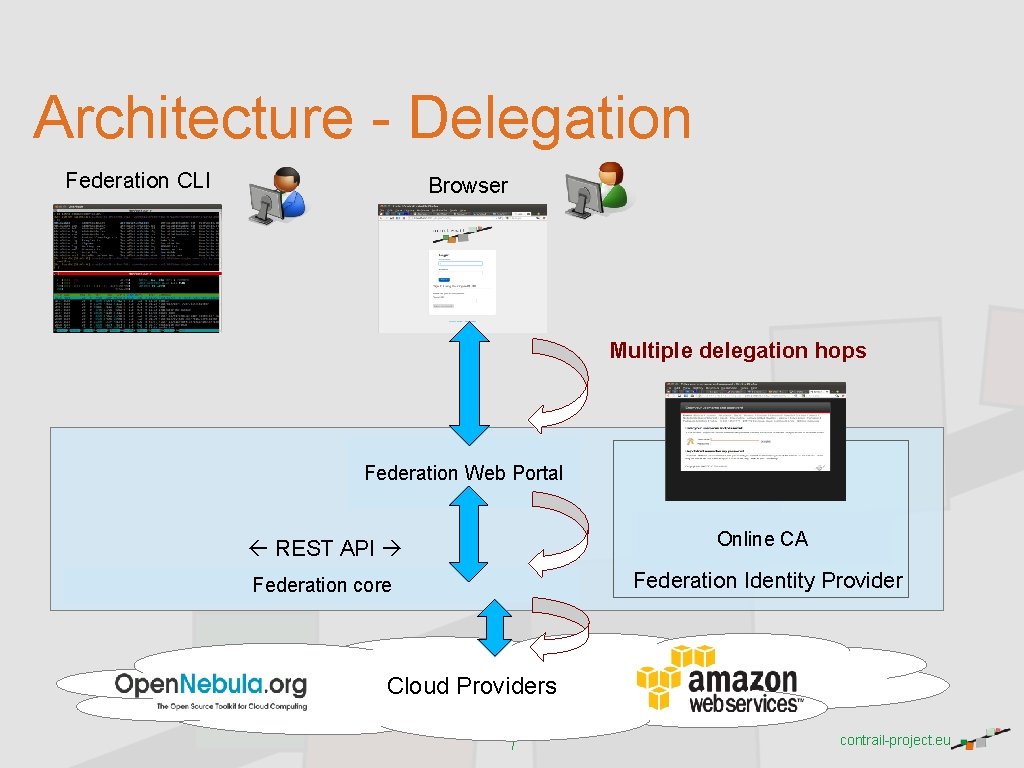

Architecture - Delegation Federation CLI Browser Multiple delegation hops Federation Web Portal REST API

Architecture - Delegation Federation CLI Browser Multiple delegation hops Federation Web Portal REST API Online CA Federation core Federation Identity Provider Cloud Providers 7 contrail-project. eu

Delegation … but how? • Delegator, delegates authority to another, a delegatee • Rights

Delegation … but how? • Delegator, delegates authority to another, a delegatee • Rights that the delegatee inherits can vary e. g. • Identity-based – inherits all the rights of the user • Inherit rights to access a single resource • Some technology options: • GSI Proxy certificates • OAuth 1. 0 (CILogon), OAuth 2. 0? • Others… 8 contrail-project. eu

Delegation: technology options • GSI Proxy certificates • Delegatee inherits all the rights of

Delegation: technology options • GSI Proxy certificates • Delegatee inherits all the rights of the user • Custom SSL extensions needed to support verification • OAuth 1. 0 • Gained traction in commercial environment: Twitter etc… • Digital signature of HTTP header artifacts – canonicalisation can be problematic • OAuth 2. 0 • Simplified flow • Use SSL: no digital signature implementation necessary • CILogon • Use OAuth to protect a short-lived credential service (SLCS) but based on OAuth 1. 0 • Delegatees obtain a standard Entity Certificate • SLCS + OAuth 2. 0 ✔ 9 contrail-project. eu

OAuth Flow (1) Browser Objective: get delegated credential for portal to make onward requests

OAuth Flow (1) Browser Objective: get delegated credential for portal to make onward requests to the federation core [OAuthorisation Server] 1. User request Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 10 contrail-project. eu

OAuth Flow (2 3) Browser 2. Portal requests authorisation for delegation from user 3.

OAuth Flow (2 3) Browser 2. Portal requests authorisation for delegation from user 3. User is redirected to authorisation server [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 11 contrail-project. eu

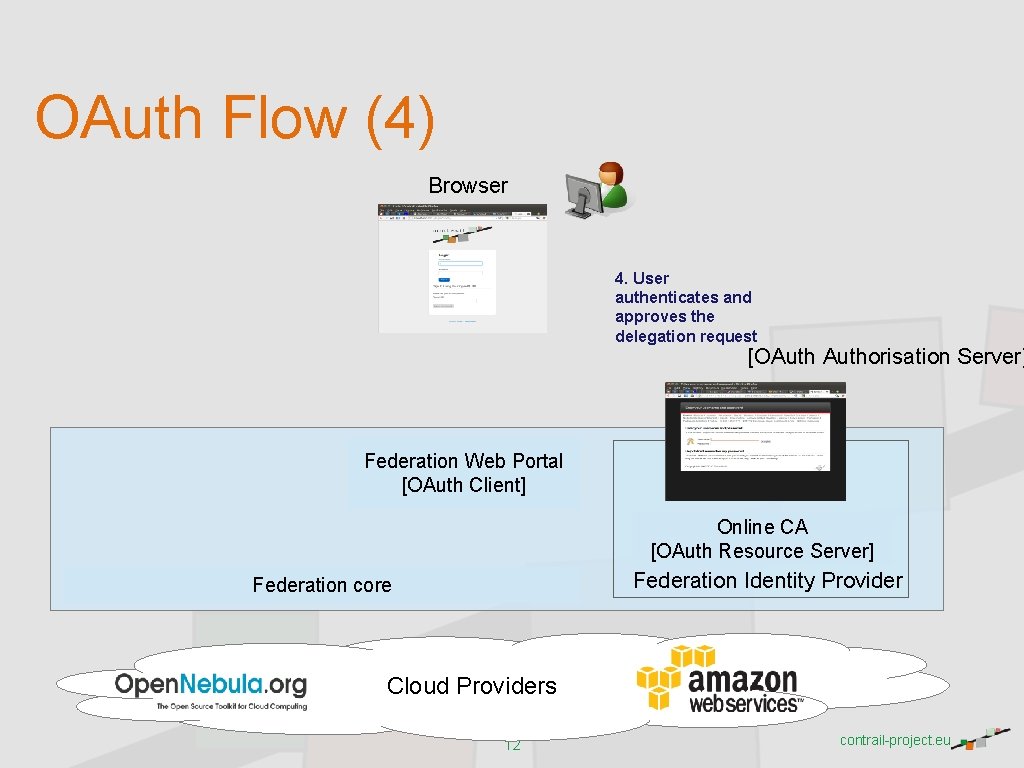

OAuth Flow (4) Browser 4. User authenticates and approves the delegation request [OAuthorisation Server]

OAuth Flow (4) Browser 4. User authenticates and approves the delegation request [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 12 contrail-project. eu

OAuth Flow (5) Browser 5. Return authorisation grant to portal via a redirect [OAuthorisation

OAuth Flow (5) Browser 5. Return authorisation grant to portal via a redirect [OAuthorisation Server] … redirect back to portal Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 13 contrail-project. eu

OAuth Flow (6) Browser 6. Portal requests certificate (oauth access token) passing authorisation grant

OAuth Flow (6) Browser 6. Portal requests certificate (oauth access token) passing authorisation grant as proof of user approval [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 14 contrail-project. eu

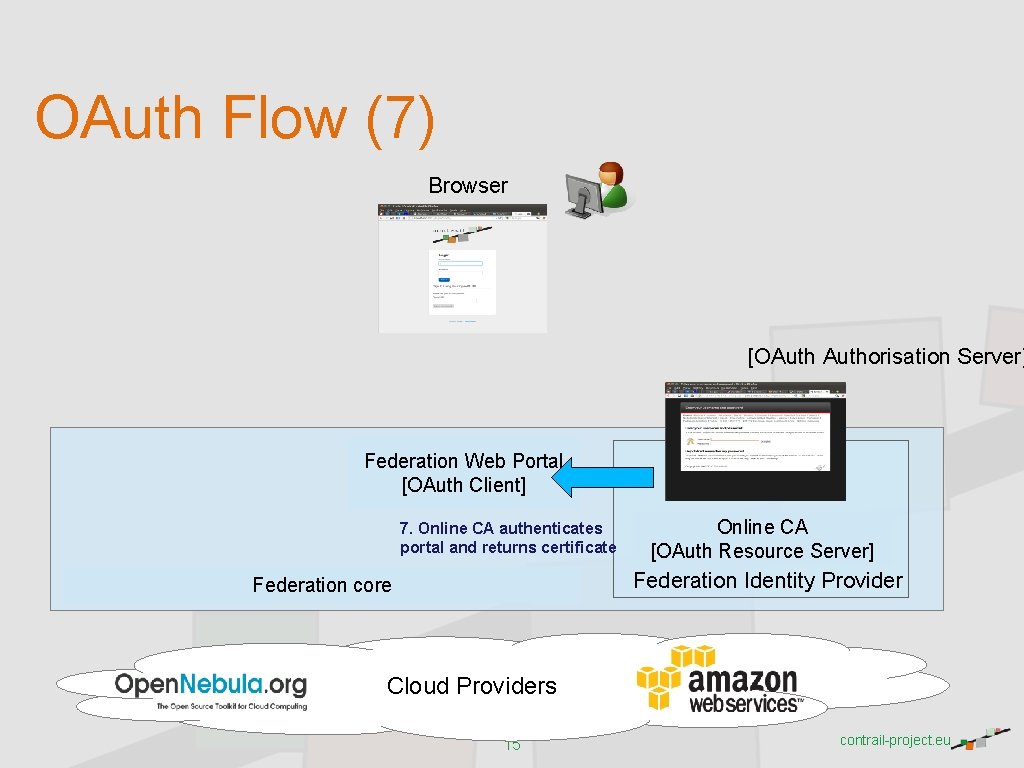

OAuth Flow (7) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] 7. Online CA

OAuth Flow (7) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] 7. Online CA authenticates portal and returns certificate Online CA [OAuth Resource Server] Federation Identity Provider Federation core Cloud Providers 15 contrail-project. eu

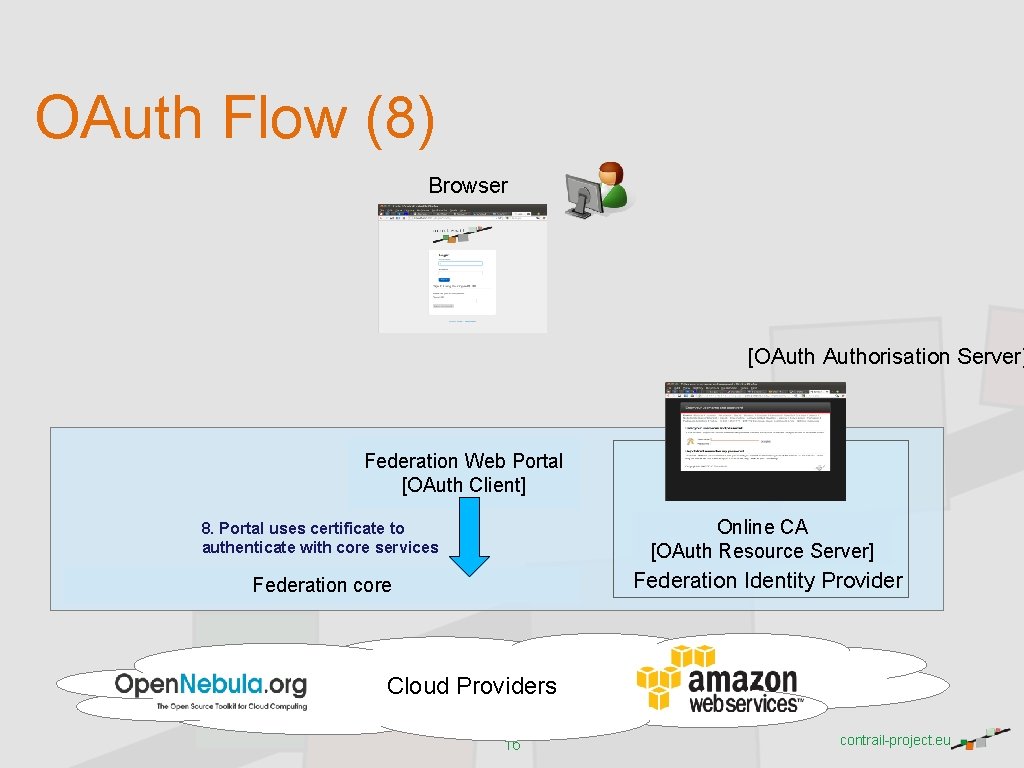

OAuth Flow (8) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth

OAuth Flow (8) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] 8. Portal uses certificate to authenticate with core services Federation Identity Provider Federation core Cloud Providers 16 contrail-project. eu

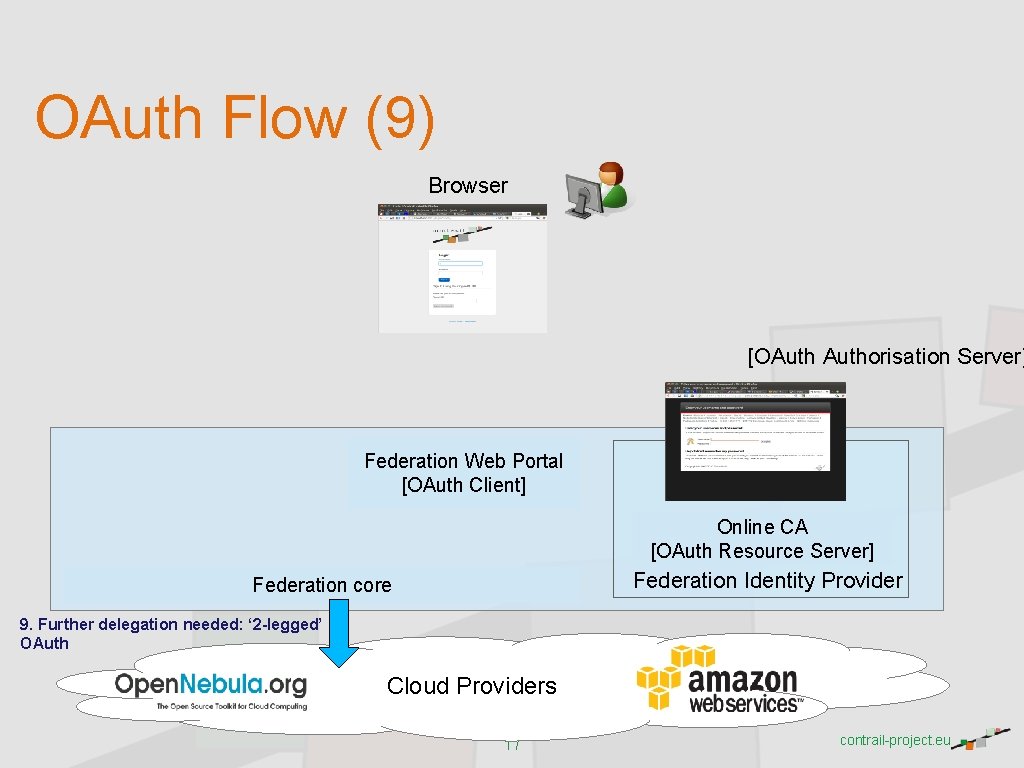

OAuth Flow (9) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth

OAuth Flow (9) Browser [OAuthorisation Server] Federation Web Portal [OAuth Client] Online CA [OAuth Resource Server] Federation Identity Provider Federation core 9. Further delegation needed: ‘ 2 -legged’ OAuth Cloud Providers 17 contrail-project. eu

Development Status • Web portal and federation SSO demonstrated with support for: • SAML

Development Status • Web portal and federation SSO demonstrated with support for: • SAML • Open. ID • Command line SSO with shell script client to Short-Lived Credential Service (X. 509 EECs) • Delegation with 2 -legged OAuth-like interface, full OAuth to be integrated 18 contrail-project. eu

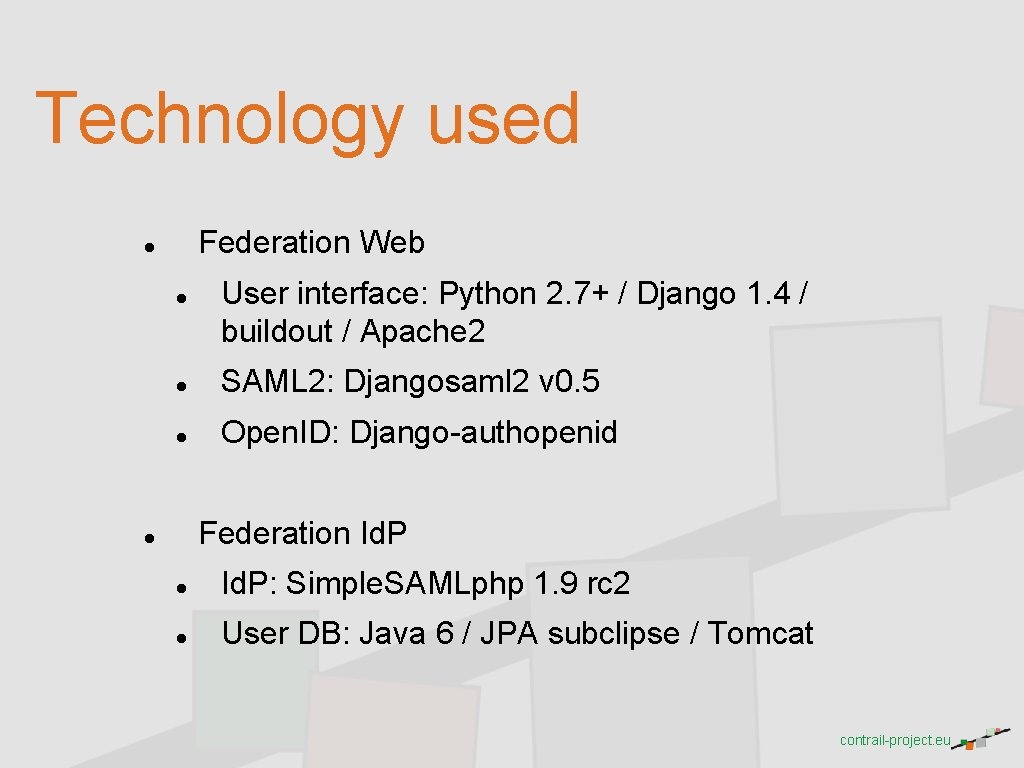

Technology used Federation Web User interface: Python 2. 7+ / Django 1. 4 /

Technology used Federation Web User interface: Python 2. 7+ / Django 1. 4 / buildout / Apache 2 SAML 2: Djangosaml 2 v 0. 5 Open. ID: Django-authopenid Federation Id. P: Simple. SAMLphp 1. 9 rc 2 User DB: Java 6 / JPA subclipse / Tomcat contrail-project. eu

Conclusion Single sign-on support with: Browser: SAML 2 and Open. ID Other client: X.

Conclusion Single sign-on support with: Browser: SAML 2 and Open. ID Other client: X. 509 short-lived entity certificates Delegation with OAuth 2. 0 protected Short-Lived Credential Service Can we offer Federation-in-a-box or federation-as-aservice ? => Federated access to resources, building on existing identity federations. contrail-project. eu

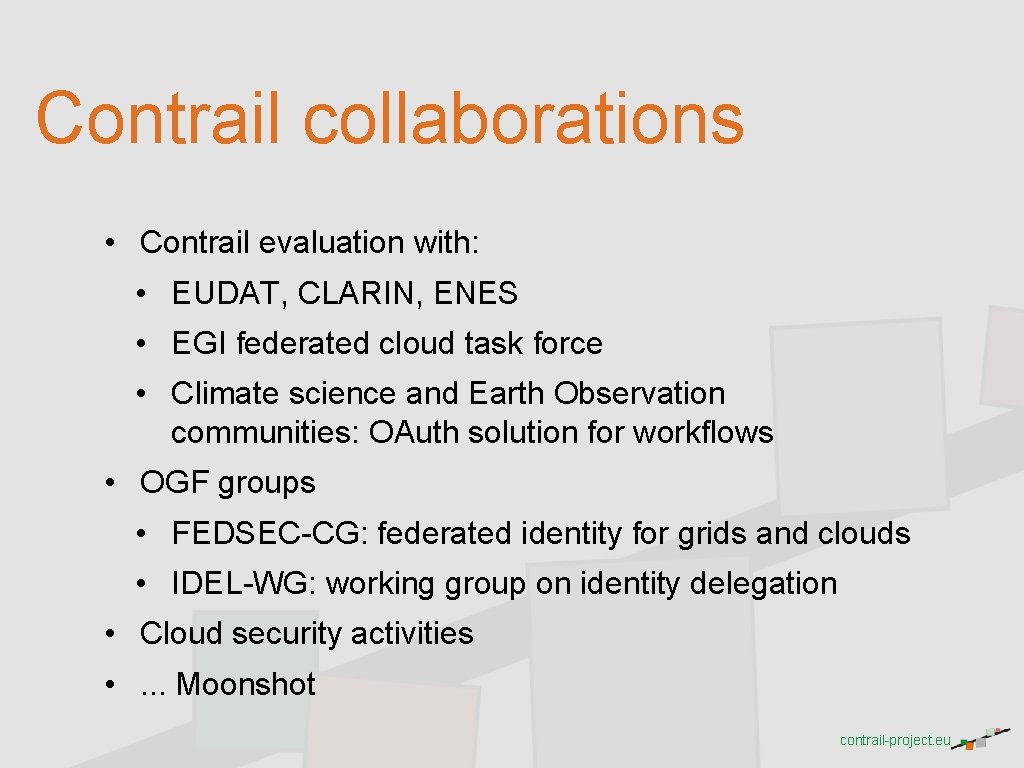

Contrail collaborations • Contrail evaluation with: • EUDAT, CLARIN, ENES • EGI federated cloud

Contrail collaborations • Contrail evaluation with: • EUDAT, CLARIN, ENES • EGI federated cloud task force • Climate science and Earth Observation communities: OAuth solution for workflows • OGF groups • FEDSEC-CG: federated identity for grids and clouds • IDEL-WG: working group on identity delegation • Cloud security activities • . . . Moonshot contrail-project. eu

contrail is co-funded by the EC 7 th Framework Programme Funded under: FP 7

contrail is co-funded by the EC 7 th Framework Programme Funded under: FP 7 (Seventh Framework Programme) Area: Internet of Services, Software & virtualization (ICT 2009. 1. 2) Project reference: 257438 Total cost: 11, 29 million euro EU contribution: 8, 3 million euro Execution: From 2010 -10 -01 till 2013 -09 -30 Duration: 36 months Contract type: Collaborative project (generic) 22 contrail-project. eu
