Op-amp concepts
![Ideal Versus Practical Ideal characteristics are used to understand simplify the analyses. Practically impossible Ideal Versus Practical Ideal characteristics are used to understand simplify the analyses. Practically impossible](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-3.jpg)
Ideal Versus Practical Ideal characteristics are used to understand simplify the analyses. Practically impossible to achieve these standards. Ideal Practical Open Loop gain A 105 Bandwidth BW 10 -100 Hz Input Impedance Zin >1 M 0 10 -100 Depends only on Vd = (V+ V ) Differential mode signal Depends slightly on average input Vc = (V++V )/2 Common. Mode signal 10 -100 d. B Output Impedance Zout Output Voltage Vout CMRR
![Ideal OP-AMP Av = ∞ Vin Zin = ∞ + Av. Vin Zout = Ideal OP-AMP Av = ∞ Vin Zin = ∞ + Av. Vin Zout =](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-4.jpg)
Ideal OP-AMP Av = ∞ Vin Zin = ∞ + Av. Vin Zout = 0 Vout
![Properties Infinite voltage gain Infinite input impedence Zero output impedence Infinite bandwidth Zero input Properties Infinite voltage gain Infinite input impedence Zero output impedence Infinite bandwidth Zero input](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-5.jpg)

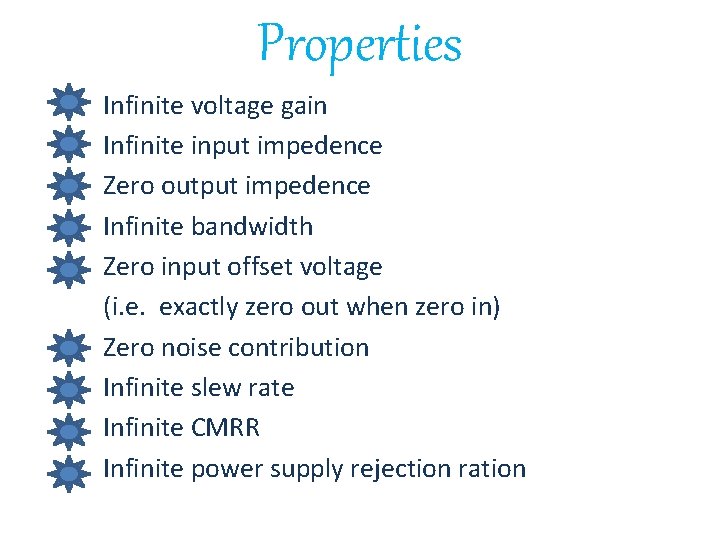

Properties Infinite voltage gain Infinite input impedence Zero output impedence Infinite bandwidth Zero input offset voltage (i. e. exactly zero out when zero in) Zero noise contribution Infinite slew rate Infinite CMRR Infinite power supply rejection ration
![Their characteristics can be summarized by the two “Golden rules” The output attempts to Their characteristics can be summarized by the two “Golden rules” The output attempts to](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-6.jpg)
Their characteristics can be summarized by the two “Golden rules” The output attempts to do whatever is necessary to make the voltage difference between the inputs zero. The input draws no current.
![Practical op-amp Practical op-amp](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-7.jpg)

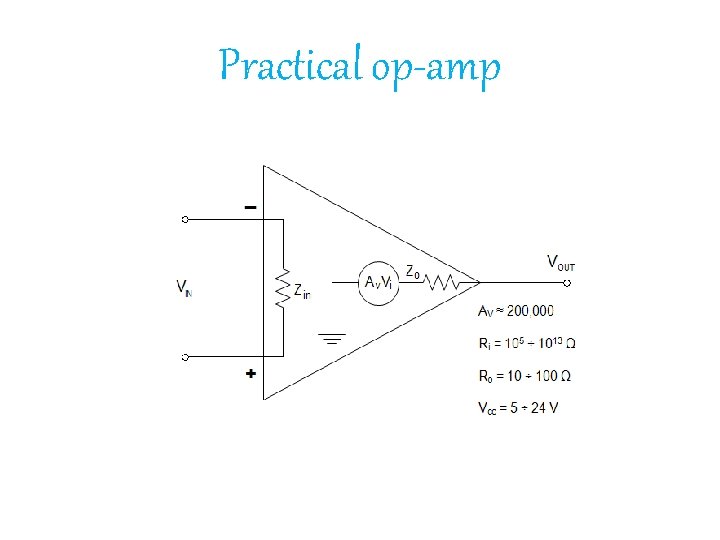

Practical op-amp
![Properties Suffer from several non-ideal effects: Finite voltage gain Finite bandwidth Finite input impedences Properties Suffer from several non-ideal effects: Finite voltage gain Finite bandwidth Finite input impedences](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-8.jpg)
Properties Suffer from several non-ideal effects: Finite voltage gain Finite bandwidth Finite input impedences Non-zero output impedences Finite CMRR Noise
![Limitations v. The input current is not exactly zero. v. There are voltage gain Limitations v. The input current is not exactly zero. v. There are voltage gain](http://slidetodoc.com/presentation_image_h/0c71c66863c84e46a94d71edf28ea729/image-9.jpg)
Limitations v. The input current is not exactly zero. v. There are voltage gain limitations including phase shifts. v. There is a finite slew rate. v. There is some temperature differences.
